buttons VOLVO V70 2000 Owners Manual

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_03a.htm[4/4/2013 10:24:13 PM]

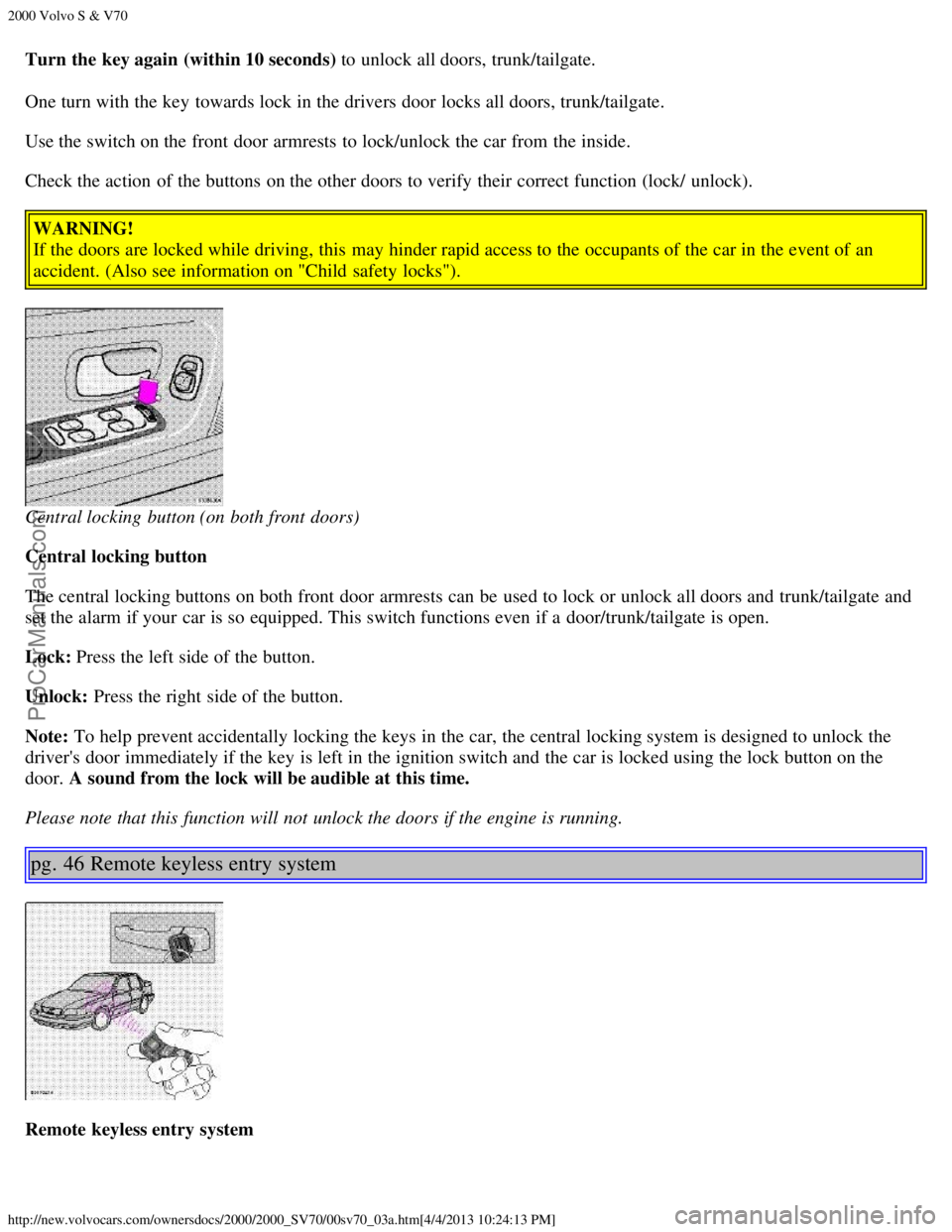

Turn the key again (within 10 seconds) to unlock all doors, trunk/tailgate.
One turn with the key towards lock in the drivers door locks all doors, trunk/tailgate.
Use the switch on the front door armrests to lock/unlock the car from the inside.
Check the action of the buttons on the other doors to verify their correct function (lock/ unlock).
WARNING!
If the doors are locked while driving, this may hinder rapid access to the occupants of the car in the event of an
accident. (Also see information on "Child safety locks").
Central locking button (on both front doors)
Central locking button
The central locking buttons on both front door armrests can be used to lock or unlock all doors and trunk/tailgate and
set the alarm if your car is so equipped. This switch functions even if a door/trunk/tailgate is open.
Lock: Press the left side of the button.
Unlock: Press the right side of the button.
Note: To help prevent accidentally locking the keys in the car, the central locking system is designed to unlock the
driver's door immediately if the key is left in the ignition switch and the car is locked using the lock button on the
door. A sound from the lock will be audible at this time.
Please note that this function will not unlock the doors if the engine is running.
pg. 46 Remote keyless entry system
Remote keyless entry system
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_03a.htm[4/4/2013 10:24:13 PM]

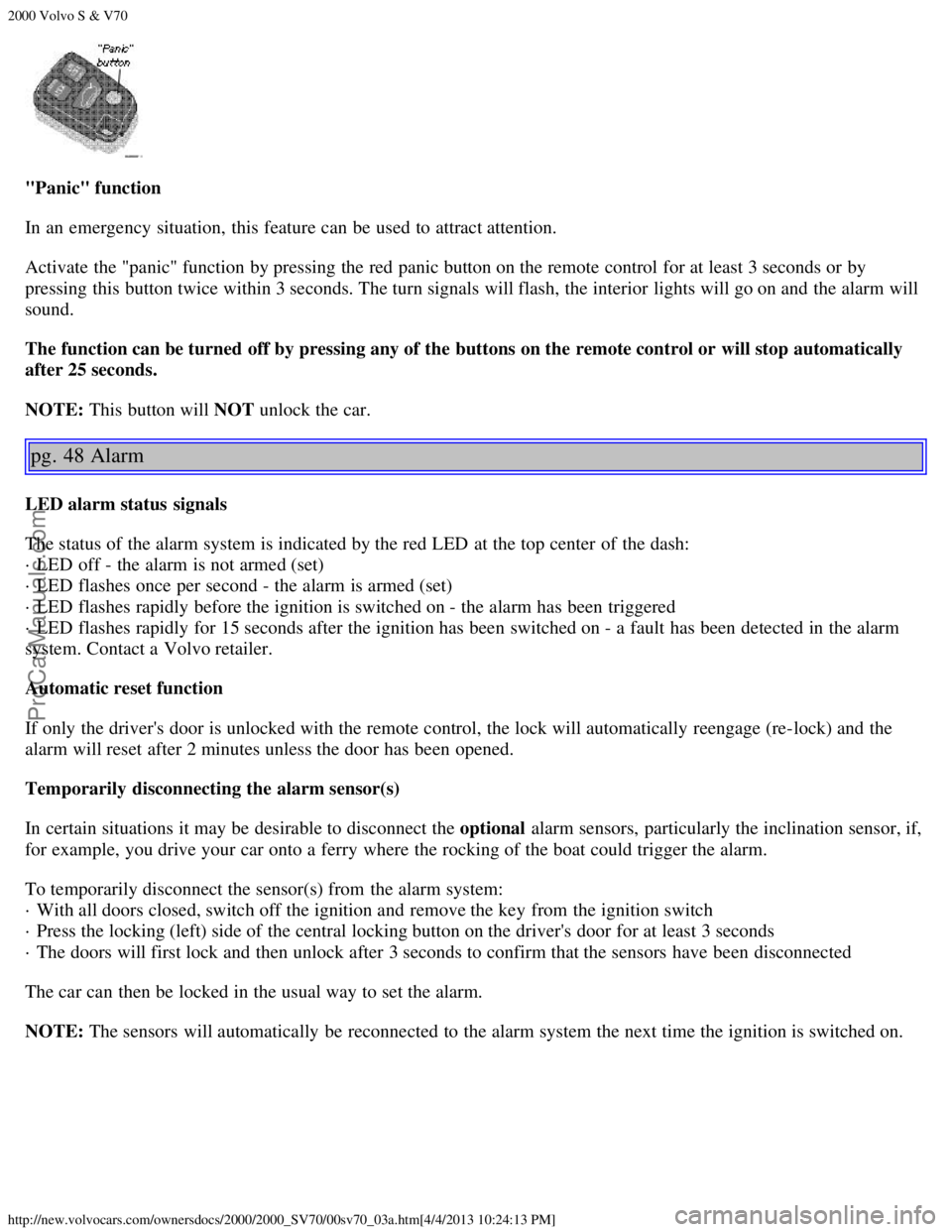

"Panic" function
In an emergency situation, this feature can be used to attract attention.
Activate the "panic" function by pressing the red panic button on the remote control for at least 3 seconds or by
pressing this button twice within 3 seconds. The turn signals will flash, the interior lights will go on and the alarm will
sound.
The function can be turned off by pressing any of the buttons on the remote control or will stop automatically
after 25 seconds.
NOTE: This button will NOT unlock the car.
pg. 48 Alarm
LED alarm status signals
The status of the alarm system is indicated by the red LED at the top center of the dash:
· LED off - the alarm is not armed (set)
· LED flashes once per second - the alarm is armed (set)
· LED flashes rapidly before the ignition is switched on - the alarm has been triggered
· LED flashes rapidly for 15 seconds after the ignition has been switched on - a fault has been detected in the alarm
system. Contact a Volvo retailer.
Automatic reset function
If only the driver's door is unlocked with the remote control, the lock will automatically reengage (re-lock) and the
alarm will reset after 2 minutes unless the door has been opened.
Temporarily disconnecting the alarm sensor(s)
In certain situations it may be desirable to disconnect the optional alarm sensors, particularly the inclination sensor, if,
for example, you drive your car onto a ferry where the rocking of the boat could trigger the alarm.
To temporarily disconnect the sensor(s) from the alarm system:
· With all doors closed, switch off the ignition and remove the key from the ignition switch
· Press the locking (left) side of the central locking button on the driver's door for at least 3 seconds
· The doors will first lock and then unlock after 3 seconds to confirm that the sensors have been disconnected
The car can then be locked in the usual way to set the alarm.
NOTE: The sensors will automatically be reconnected to the alarm system the next time the ignition is switched on.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_03a.htm[4/4/2013 10:24:13 PM]

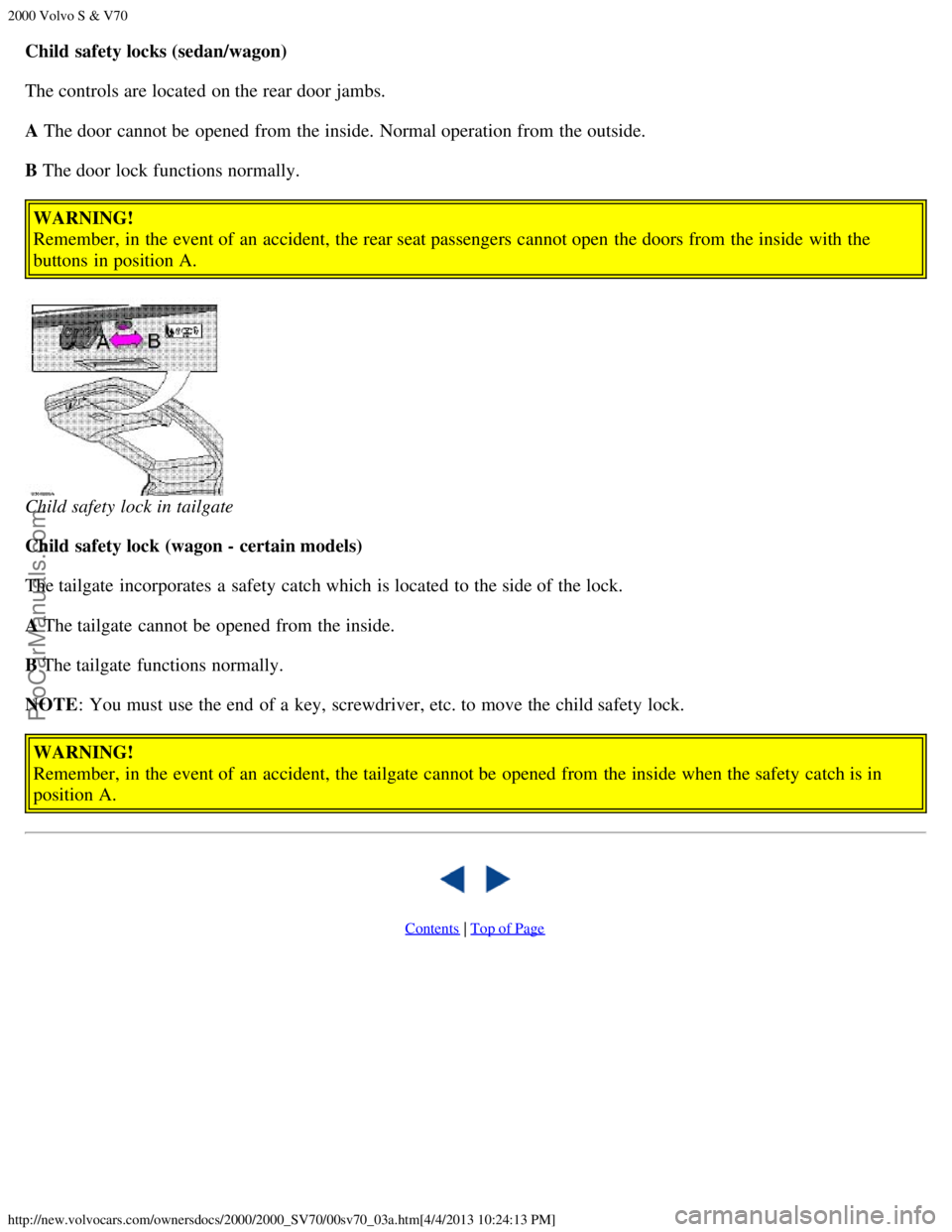

Child safety locks (sedan/wagon)
The controls are located on the rear door jambs.
A The door cannot be opened from the inside. Normal operation from the outside.
B The door lock functions normally.
WARNING!
Remember, in the event of an accident, the rear seat passengers cannot open the doors from the inside with the
buttons in position A.
Child safety lock in tailgate
Child safety lock (wagon - certain models)
The tailgate incorporates a safety catch which is located to the side of the lock.
A The tailgate cannot be opened from the inside.
B The tailgate functions normally.
NOTE : You must use the end of a key, screwdriver, etc. to move the child safety lock.
WARNING!
Remember, in the event of an accident, the tailgate cannot be opened from the inside when the safety catch is in
position A.

Contents | Top of Page
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_10a.htm[4/4/2013 10:25:18 PM]

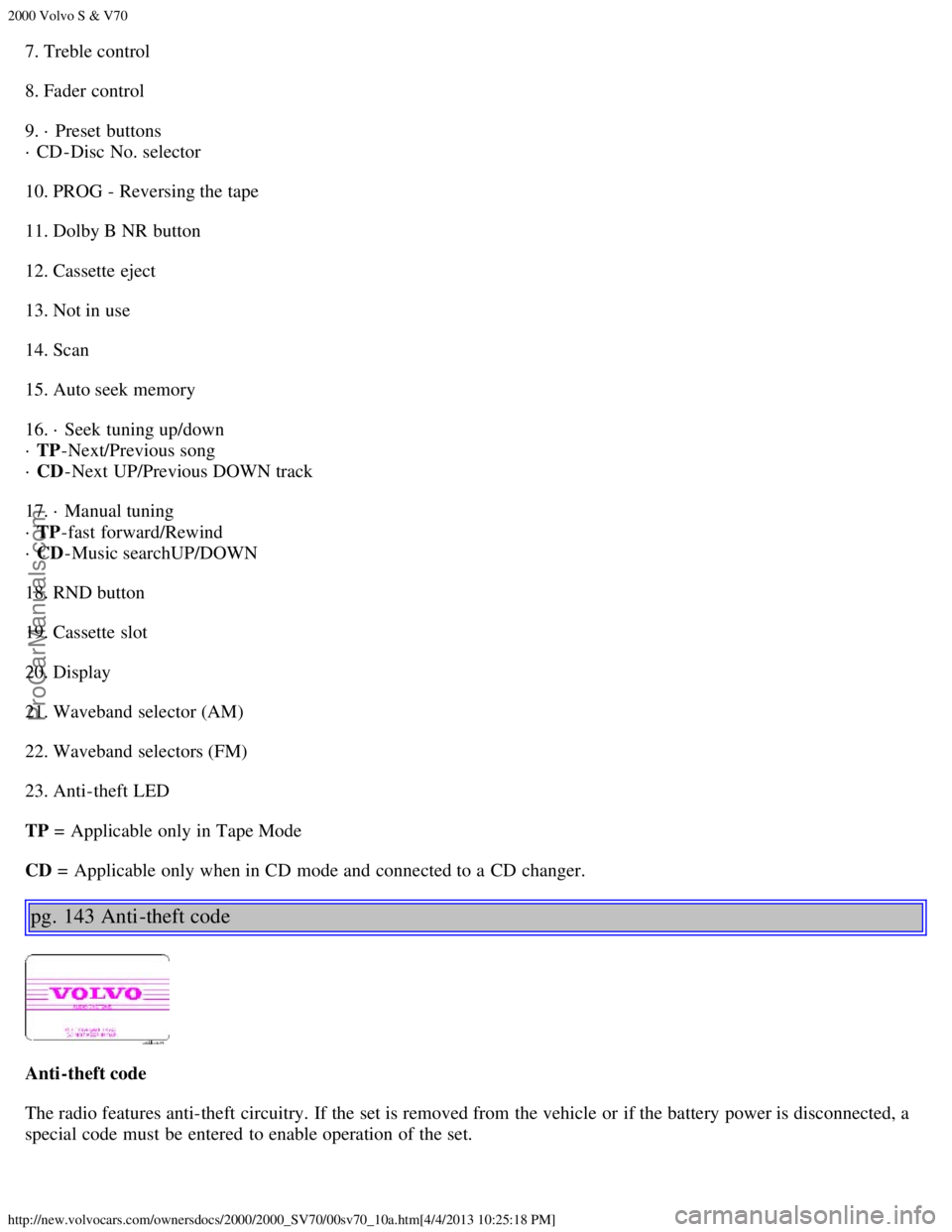

7. Treble control
8. Fader control
9. · Preset buttons
· CD-Disc No. selector
10. PROG - Reversing the tape
11. Dolby B NR button
12. Cassette eject
13. Not in use
14. Scan
15. Auto seek memory
16. · Seek tuning up/down
· TP-Next/Previous song
· CD -Next UP/Previous DOWN track
17. · Manual tuning
· TP -fast forward/Rewind
· CD -Music searchUP/DOWN
18. RND button
19. Cassette slot
20. Display
21. Waveband selector (AM)
22. Waveband selectors (FM)
23. Anti-theft LED
TP = Applicable only in Tape Mode
CD = Applicable only when in CD mode and connected to a CD changer.
pg. 143 Anti -theft code
Anti-theft code
The radio features anti-theft circuitry. If the set is removed from the vehicle or if the battery power is disconnected, a
special code must be entered to enable operation of the set.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_10a.htm[4/4/2013 10:25:18 PM]

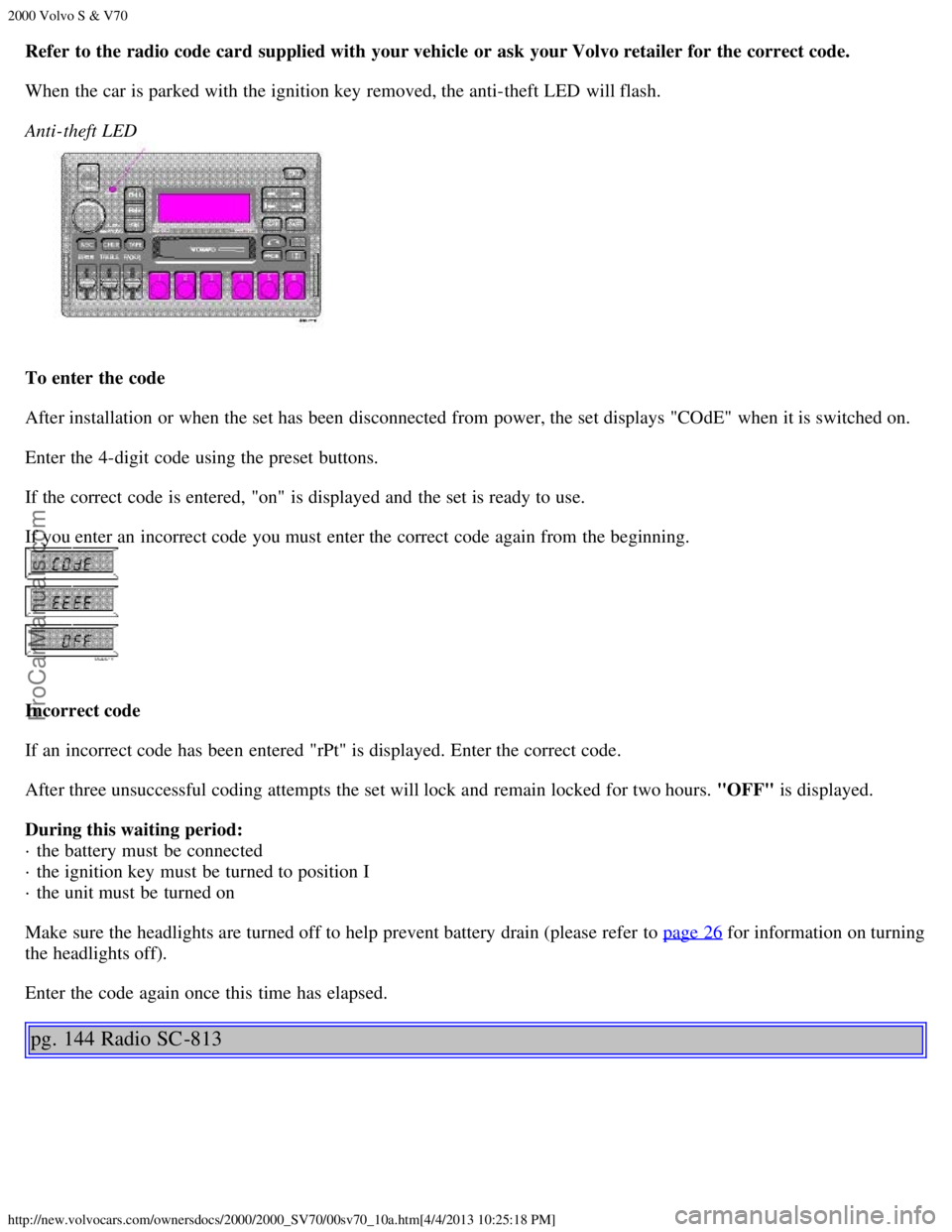

Refer to the radio code card supplied with your vehicle or ask your Volvo retailer for the correct code.
When the car is parked with the ignition key removed, the anti-theft LED will flash.
Anti-theft LED
To enter the code
After installation or when the set has been disconnected from power, the set displays "COdE" when it is switched on.
Enter the 4-digit code using the preset buttons.
If the correct code is entered, "on" is displayed and the set is ready to use.
If you enter an incorrect code you must enter the correct code again from the beginning.
Incorrect code
If an incorrect code has been entered "rPt" is displayed. Enter the correct code.
After three unsuccessful coding attempts the set will lock and remain locked for two hours. "OFF" is displayed.
During this waiting period:
· the battery must be connected
· the ignition key must be turned to position I
· the unit must be turned on
Make sure the headlights are turned off to help prevent battery drain (please refer to page 26
for information on turning
the headlights off).
Enter the code again once this time has elapsed.
pg. 144 Radio SC -813
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_10a.htm[4/4/2013 10:25:18 PM]

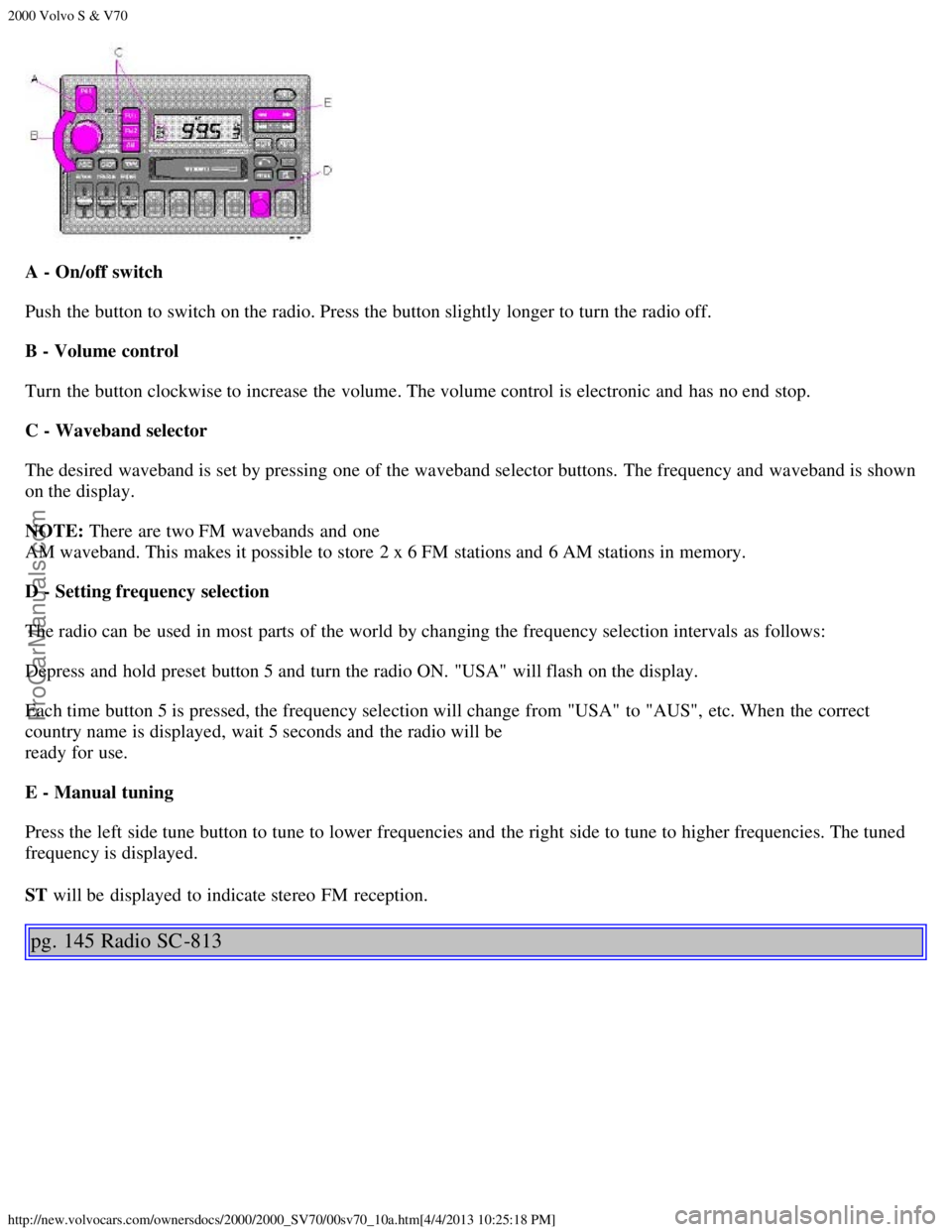

A - On/off switch
Push the button to switch on the radio. Press the button slightly longer to turn the radio off.
B - Volume control
Turn the button clockwise to increase the volume. The volume control is electronic and has no end stop.
C - Waveband selector
The desired waveband is set by pressing one of the waveband selector buttons. The frequency and waveband is shown
on the display.
NOTE: There are two FM wavebands and one
AM waveband. This makes it possible to store 2 x 6 FM stations and 6 AM stations in memory.
D - Setting frequency selection
The radio can be used in most parts of the world by changing the frequency selection intervals as follows:
Depress and hold preset button 5 and turn the radio ON. "USA" will flash on the display.
Each time button 5 is pressed, the frequency selection will change from "USA" to "AUS", etc. When the correct
country name is displayed, wait 5 seconds and the radio will be
ready for use.
E - Manual tuning
Press the left side tune button to tune to lower frequencies and the right side to tune to higher frequencies. The tuned
frequency is displayed.
ST will be displayed to indicate stereo FM reception.
pg. 145 Radio SC -813
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_10a.htm[4/4/2013 10:25:18 PM]

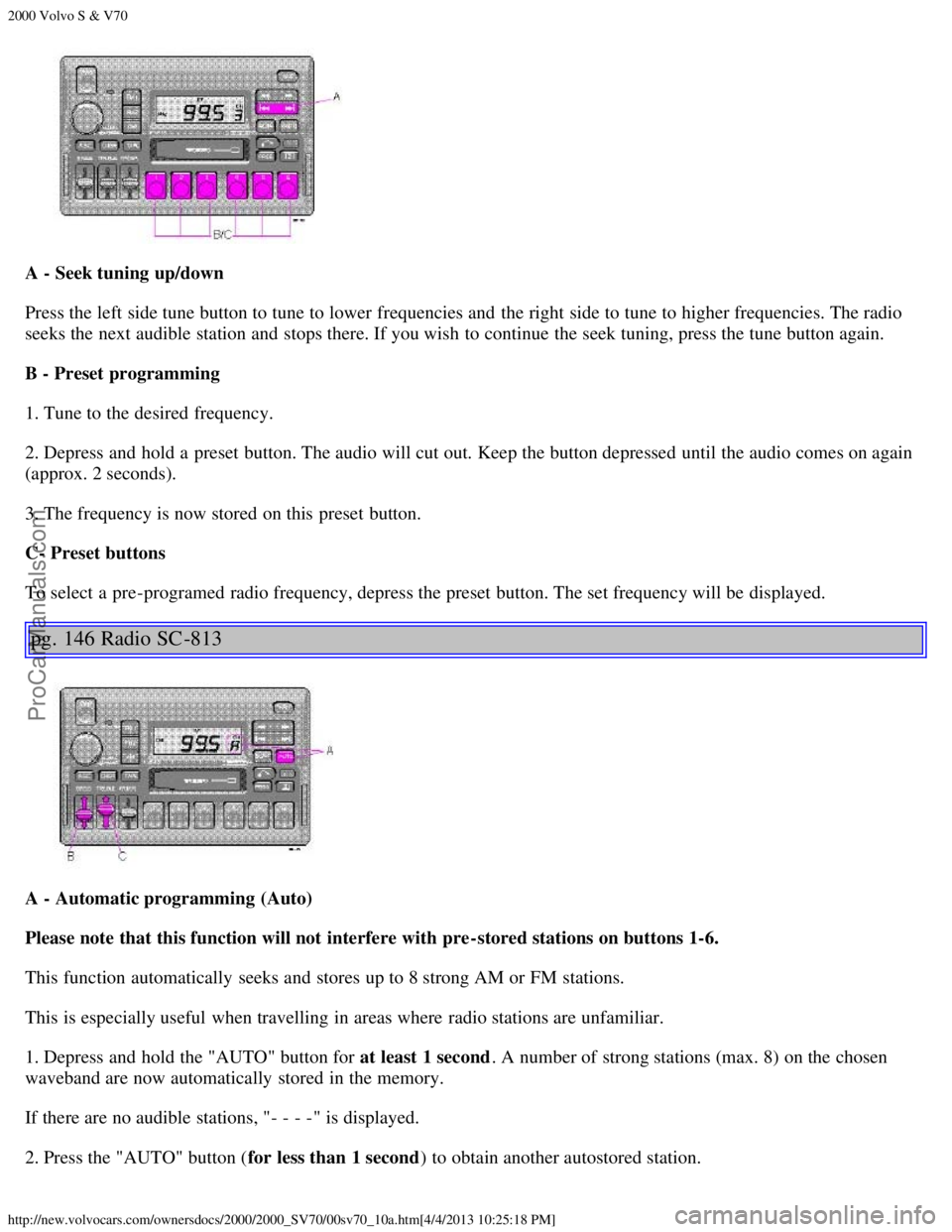

A - Seek tuning up/down
Press the left side tune button to tune to lower frequencies and the right side to tune to higher frequencies. The radio
seeks the next audible station and stops there. If you wish to continue the seek tuning, press the tune button again.
B - Preset programming
1. Tune to the desired frequency.
2. Depress and hold a preset button. The audio will cut out. Keep the button depressed until the audio comes on again
(approx. 2 seconds).
3. The frequency is now stored on this preset button.
C- Preset buttons
To select a pre-programed radio frequency, depress the preset button. The set frequency will be displayed.
pg. 146 Radio SC -813
A - Automatic programming (Auto)
Please note that this function will not interfere with pre -stored stations on buttons 1-6.
This function automatically seeks and stores up to 8 strong AM or FM stations.
This is especially useful when travelling in areas where radio stations are unfamiliar.
1. Depress and hold the "AUTO" button for at least 1 second. A number of strong stations (max. 8) on the chosen
waveband are now automatically stored in the memory.
If there are no audible stations, "- - - -" is displayed.
2. Press the "AUTO" button ( for less than 1 second) to obtain another autostored station.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_10a.htm[4/4/2013 10:25:18 PM]

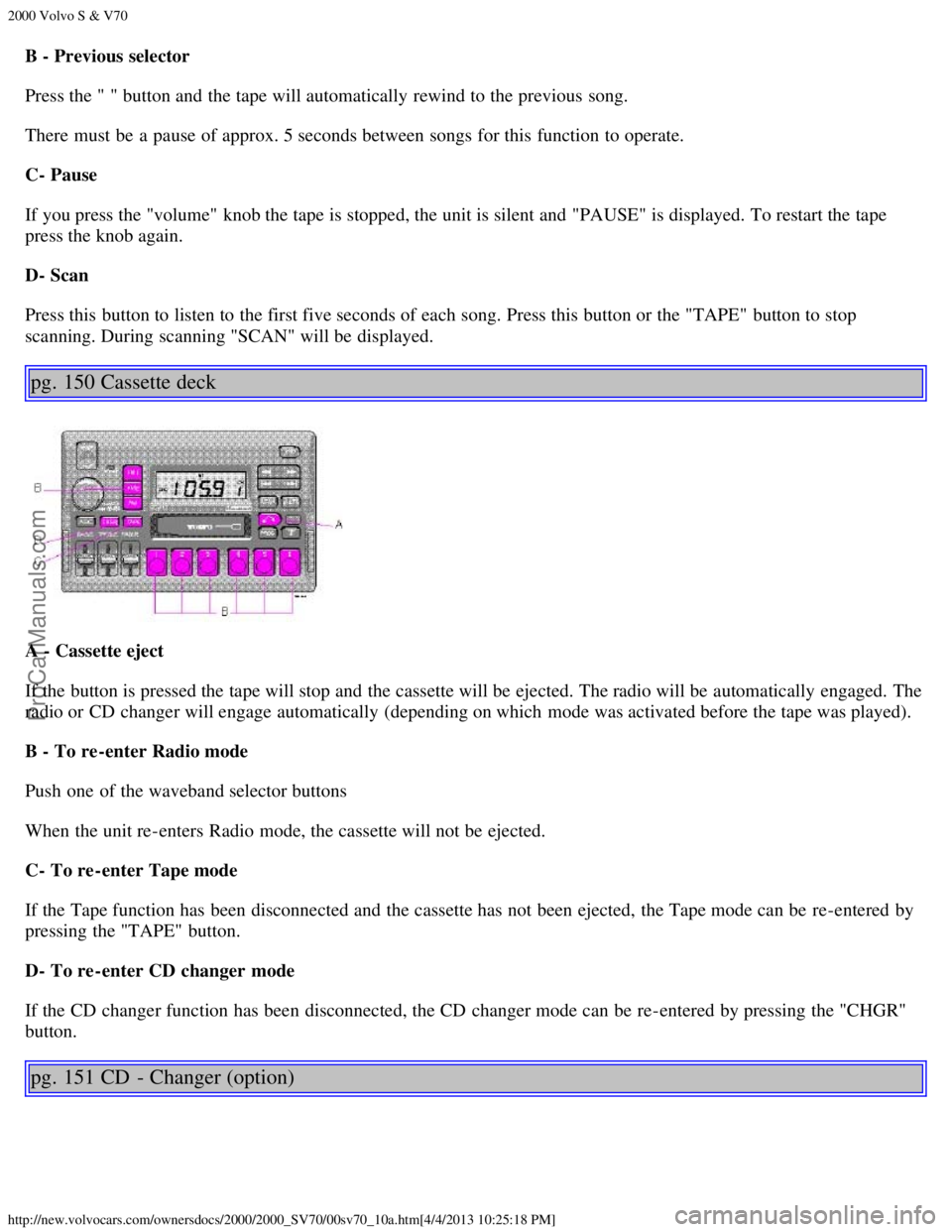

B - Previous selector
Press the " " button and the tape will automatically rewind to the previous song.
There must be a pause of approx. 5 seconds between songs for this function to operate.
C- Pause
If you press the "volume" knob the tape is stopped, the unit is silent and "PAUSE" is displayed. To restart the tape
press the knob again.
D- Scan
Press this button to listen to the first five seconds of each song. Press this button or the "TAPE" button to stop
scanning. During scanning "SCAN" will be displayed.
pg. 150 Cassette deck
A - Cassette eject
If the button is pressed the tape will stop and the cassette will be ejected. The radio will be automatically engaged. The
radio or CD changer will engage automatically (depending on which mode was activated before the tape was played).
B - To re-enter Radio mode
Push one of the waveband selector buttons
When the unit re-enters Radio mode, the cassette will not be ejected.
C- To re-enter Tape mode
If the Tape function has been disconnected and the cassette has not been ejected, the Tape mode can be re-entered by
pressing the "TAPE" button.
D- To re-enter CD changer mode
If the CD changer function has been disconnected, the CD changer mode can be re-entered by pressing the "CHGR"
button.
pg. 151 CD - Changer (option)
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_10a.htm[4/4/2013 10:25:18 PM]

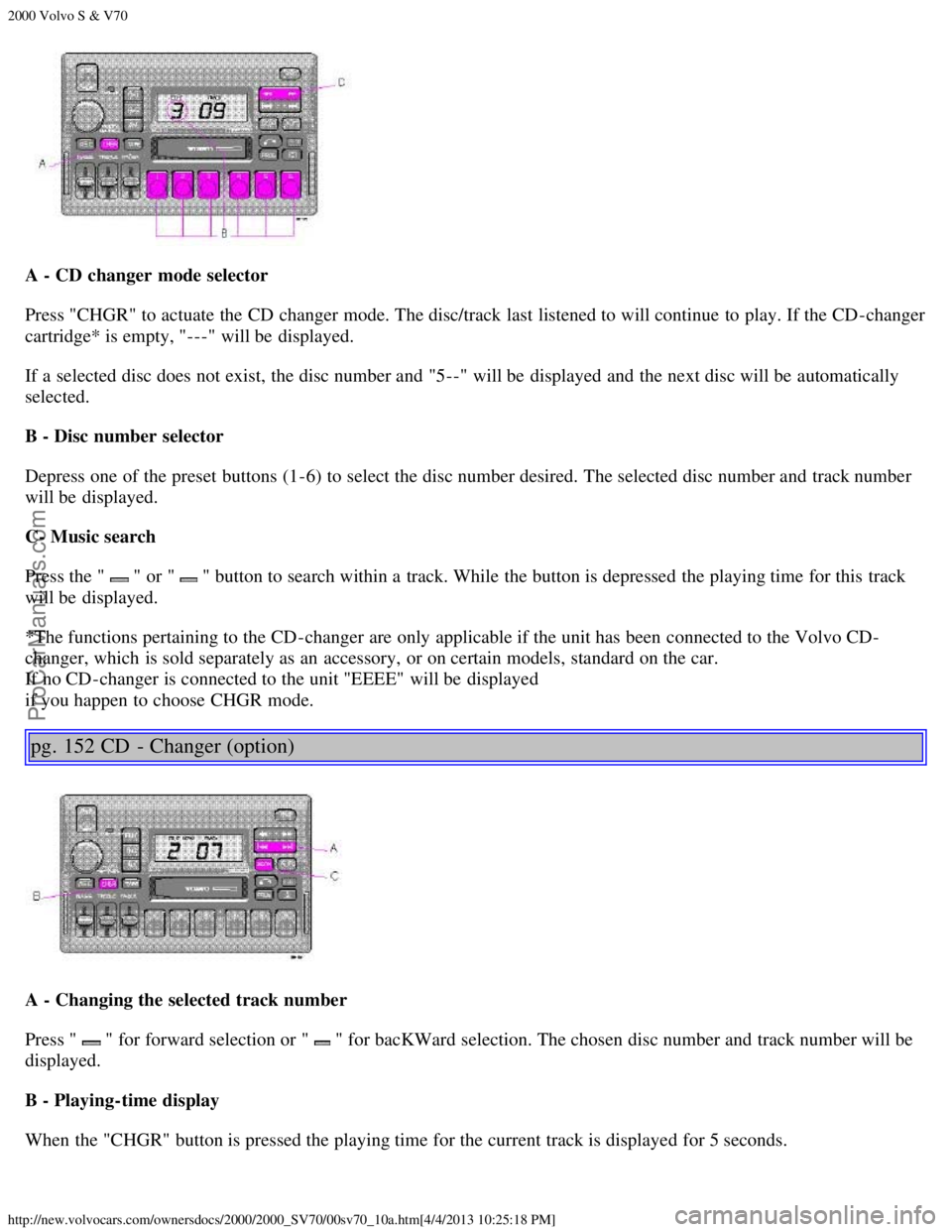

A - CD changer mode selector
Press "CHGR" to actuate the CD changer mode. The disc/track last listened to will continue to play. If the CD-changer
cartridge* is empty, "---" will be displayed.
If a selected disc does not exist, the disc number and "5--" will be displayed and the next disc will be automatically
selected.
B - Disc number selector
Depress one of the preset buttons (1-6) to select the disc number desired. The selected disc number and track number
will be displayed.
C- Music search
Press the "
" or " " button to search within a track. While the button is depressed the playing time for this track
will be displayed.
*The functions pertaining to the CD-changer are only applicable if the unit has been connected to the Volvo CD-
changer, which is sold separately as an accessory, or on certain models, standard on the car.
If no CD-changer is connected to the unit "EEEE" will be displayed
if you happen to choose CHGR mode.
pg. 152 CD - Changer (option)
A - Changing the selected track number
Press "
" for forward selection or " " for bacKWard selection. The chosen disc number and track number will be
displayed.
B - Playing-time display
When the "CHGR" button is pressed the playing time for the current track is displayed for 5 seconds.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_10a.htm[4/4/2013 10:25:18 PM]

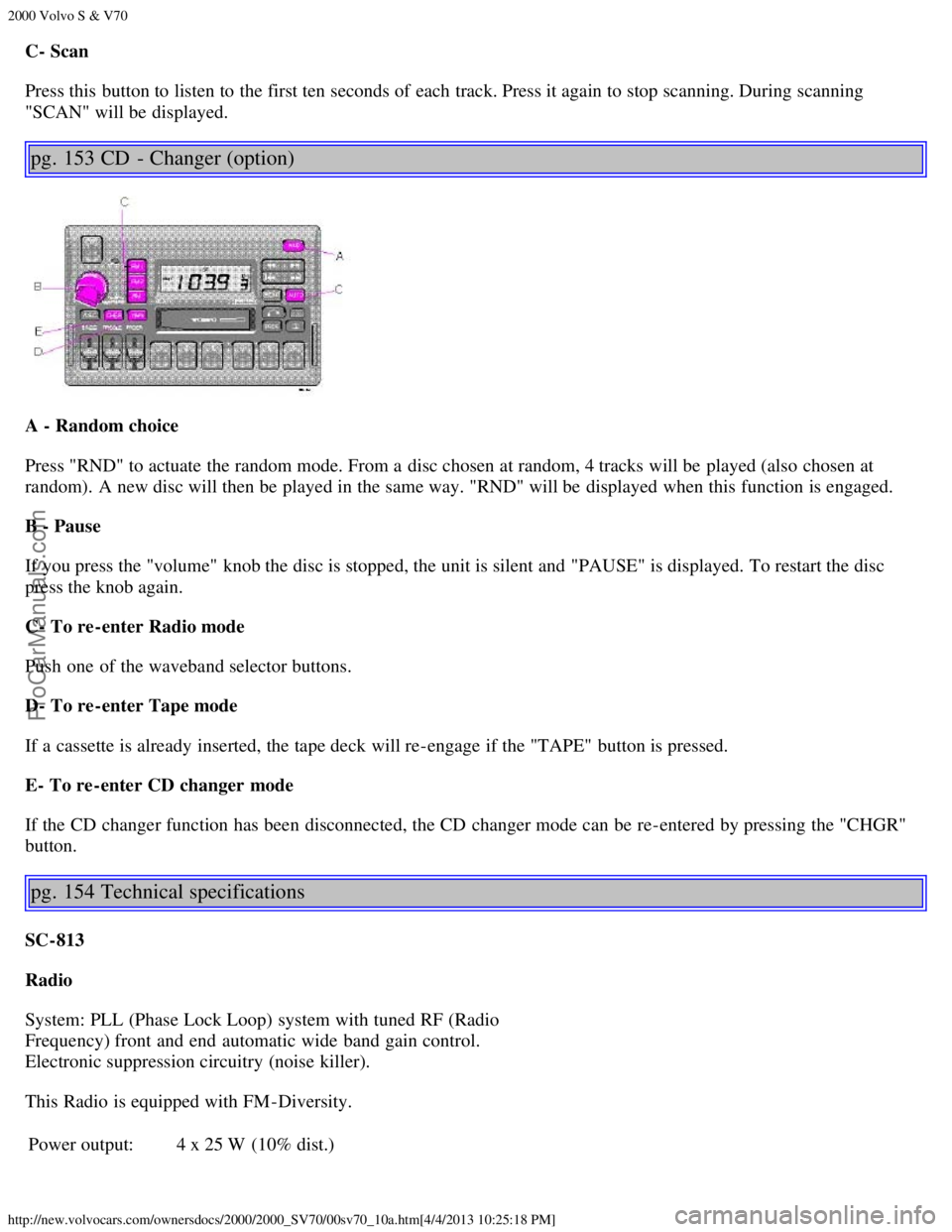

C- Scan
Press this button to listen to the first ten seconds of each track. Press it again to stop scanning. During scanning
"SCAN" will be displayed.
pg. 153 CD - Changer (option)
A - Random choice
Press "RND" to actuate the random mode. From a disc chosen at random, 4 tracks will be played (also chosen at
random). A new disc will then be played in the same way. "RND" will be displayed when this function is engaged.
B - Pause
If you press the "volume" knob the disc is stopped, the unit is silent and "PAUSE" is displayed. To restart the disc
press the knob again.
C- To re-enter Radio mode
Push one of the waveband selector buttons.
D- To re-enter Tape mode
If a cassette is already inserted, the tape deck will re-engage if the "TAPE" button is pressed.
E- To re-enter CD changer mode
If the CD changer function has been disconnected, the CD changer mode can be re-entered by pressing the "CHGR"
button.
pg. 154 Technical specifications
SC-813
Radio
System: PLL (Phase Lock Loop) system with tuned RF (Radio
Frequency) front and end automatic wide band gain control.
Electronic suppression circuitry (noise killer).
This Radio is equipped with FM -Diversity.
Power output: 4 x 25 W (10% dist.)
