VOLVO V70 2000 Owners Manual 2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_00.htm[4/4/2013 10:21:00 PM]
When your car is parked, the gear selector is locked in the (P)ark position. To release the se

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_00.htm[4/4/2013 10:21:00 PM]

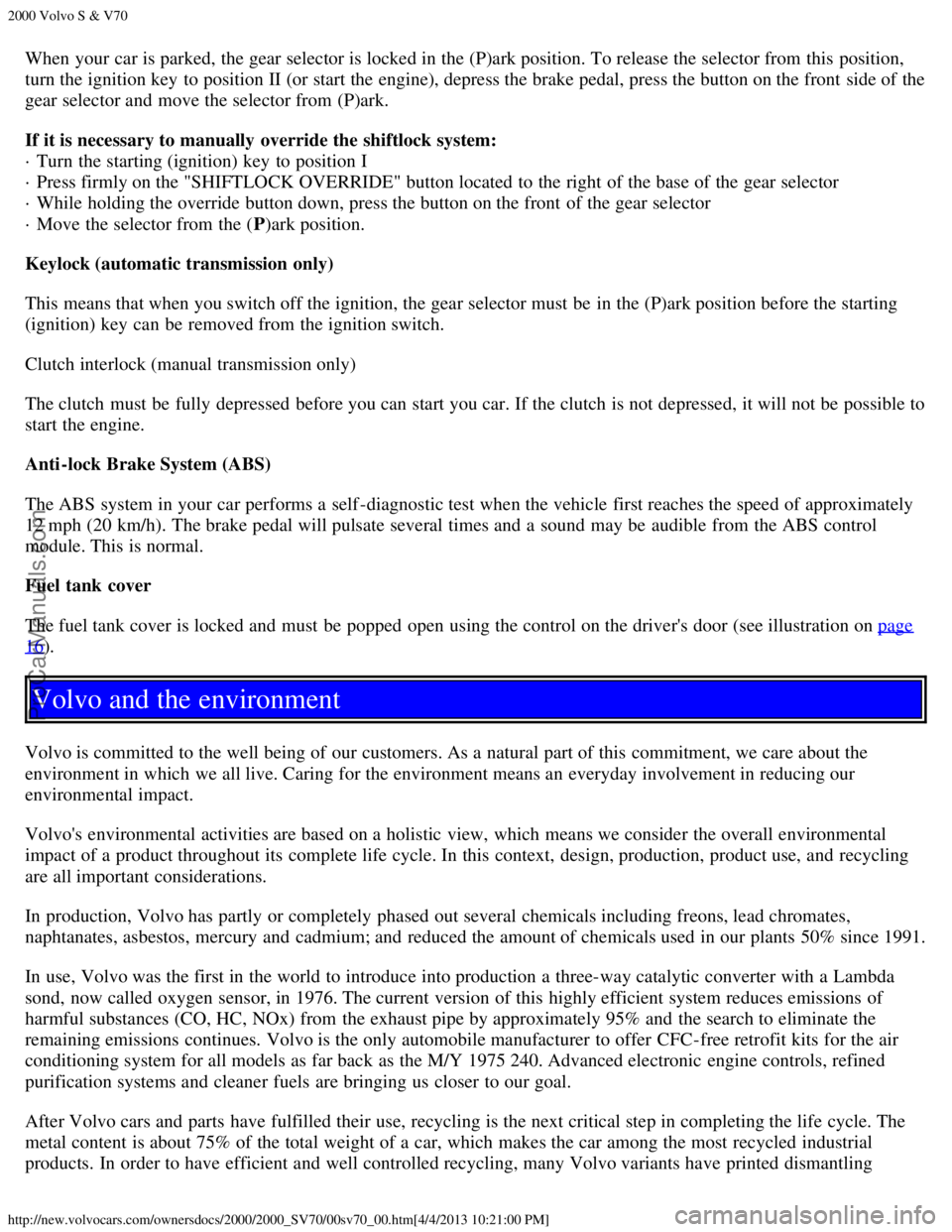

When your car is parked, the gear selector is locked in the (P)ark position. To release the selector from this position,
turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front side of the
gear selector and move the selector from (P)ark.
If it is necessary to manually override the shiftlock system:
· Turn the starting (ignition) key to position I
· Press firmly on the "SHIFTLOCK OVERRIDE" button located to the right of the base of the gear selector
· While holding the override button down, press the button on the front of the gear selector
· Move the selector from the (P)ark position.
Keylock (automatic transmission only)
This means that when you switch off the ignition, the gear selector must be in the (P)ark position before the starting
(ignition) key can be removed from the ignition switch.
Clutch interlock (manual transmission only)
The clutch must be fully depressed before you can start you car. If the clutch is not depressed, it will not be possible to
start the engine.
Anti-lock Brake System (ABS)
The ABS system in your car performs a self -diagnostic test when the vehicle first reaches the speed of approximately
12 mph (20 km/h). The brake pedal will pulsate several times and a sound may be audible from the ABS control
module. This is normal.
Fuel tank cover
The fuel tank cover is locked and must be popped open using the control on the driver's door (see illustration on page
16).
Volvo and the environment
Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the
environment in which we all live. Caring for the environment means an everyday involvement in reducing our
environmental impact.
Volvo's environmental activities are based on a holistic view, which means we consider the overall environmental
impact of a product throughout its complete life cycle. In this context, design, production, product use, and recycling
are all important considerations.
In production, Volvo has partly or completely phased out several chemicals including freons, lead chromates,
naphtanates, asbestos, mercury and cadmium; and reduced the amount of chemicals used in our plants 50% since 1991.
In use, Volvo was the first in the world to introduce into production a three-way catalytic converter with a Lambda
sond, now called oxygen sensor, in 1976. The current version of this highly efficient system reduces emissions of
harmful substances (CO, HC, NOx) from the exhaust pipe by approximately 95% and the search to eliminate the
remaining emissions continues. Volvo is the only automobile manufacturer to offer CFC-free retrofit kits for the air
conditioning system for all models as far back as the M/Y 1975 240. Advanced electronic engine controls, refined
purification systems and cleaner fuels are bringing us closer to our goal.
After Volvo cars and parts have fulfilled their use, recycling is the next critical step in completing the life cycle. The
metal content is about 75% of the total weight of a car, which makes the car among the most recycled industrial
products. In order to have efficient and well controlled recycling, many Volvo variants have printed dismantling
ProCarManuals.com

Page 19 of 102

VOLVO V70 2000 Owners Manual 2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_02a.htm[4/4/2013 10:23:03 PM]
4 Low washer fluid level
If the lamp glows continuously when the engine is running, there is

Page 21 of 102

VOLVO V70 2000 Owners Manual 2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_02a.htm[4/4/2013 10:23:03 PM]
Canadian models are equipped with this warning light:
WARNING!
If the fluid level is below

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_02a.htm[4/4/2013 10:23:03 PM]
Canadian models are equipped with this warning light:
WARNING!
If the fluid level is below the MIN mark in either section of the reservoir: DO NOT DRIVE. Tow the car to a Volvo
retailer and have the brake system checked and any leakage repaired.
Fault in ETC (Electronic Throttle Control system)
If this lamp comes on, there is a fault in the engine control system and driveability will be affected. Switch the ignition
off and then on again. If the light remains on, the system should be inspected by an authorized Volvo retailer.
pg. 23 Warning lights
TRACS disengaged (option)
If the TRACS (TRAction Control System) is manually disengaged with the switch on the dashboard (see page 27), the
warning light will come on. This will also come on to indicate a TRACS malfunction, and when the brakes overheat,
although it goes out again at the normal temperature level. If the lamp remains on, the system should be checked by
an authorized Volvo retailer. This lamp should not be confused with the ON/OFF indicator lamp above the switch.
STC disengaged (option)
The indicator light () in the instrument panel will be ON when you have switched the Stability and Traction Control
system (STC) OFF using the button on the dashboard (see page 25). The light will also come on if there is a fault in the
STC system or to indicate that the brakes have overheated. The light will go out when the brake temperature returns to
normal.
The symbol will flash when STC is actively regulating power to the drive wheels. Normal power may be reduced at
this time. This is normal as power is momentarily reduced to help keep the drive wheels from losing traction and
spinning.
Coolant level sensor
If this light comes on while driving, the coolant level is low. The coolant level in the expansion tank should be
checked immediately and topped up if necessary. The cooling system should be inspected by an authorized Volvo
retailer.
Mode "W" engaged
The lamp will light up when the Winter/Wet starting mode is engaged or if gears "4-1" or "L" are selected.
If the warning lamp begins to flash , this means that there is a fault in the automatic gearbox. Contact Your Volvo
ProCarManuals.com

Page 58 of 102

VOLVO V70 2000 Owners Manual 2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_06.htm[4/4/2013 10:24:41 PM]

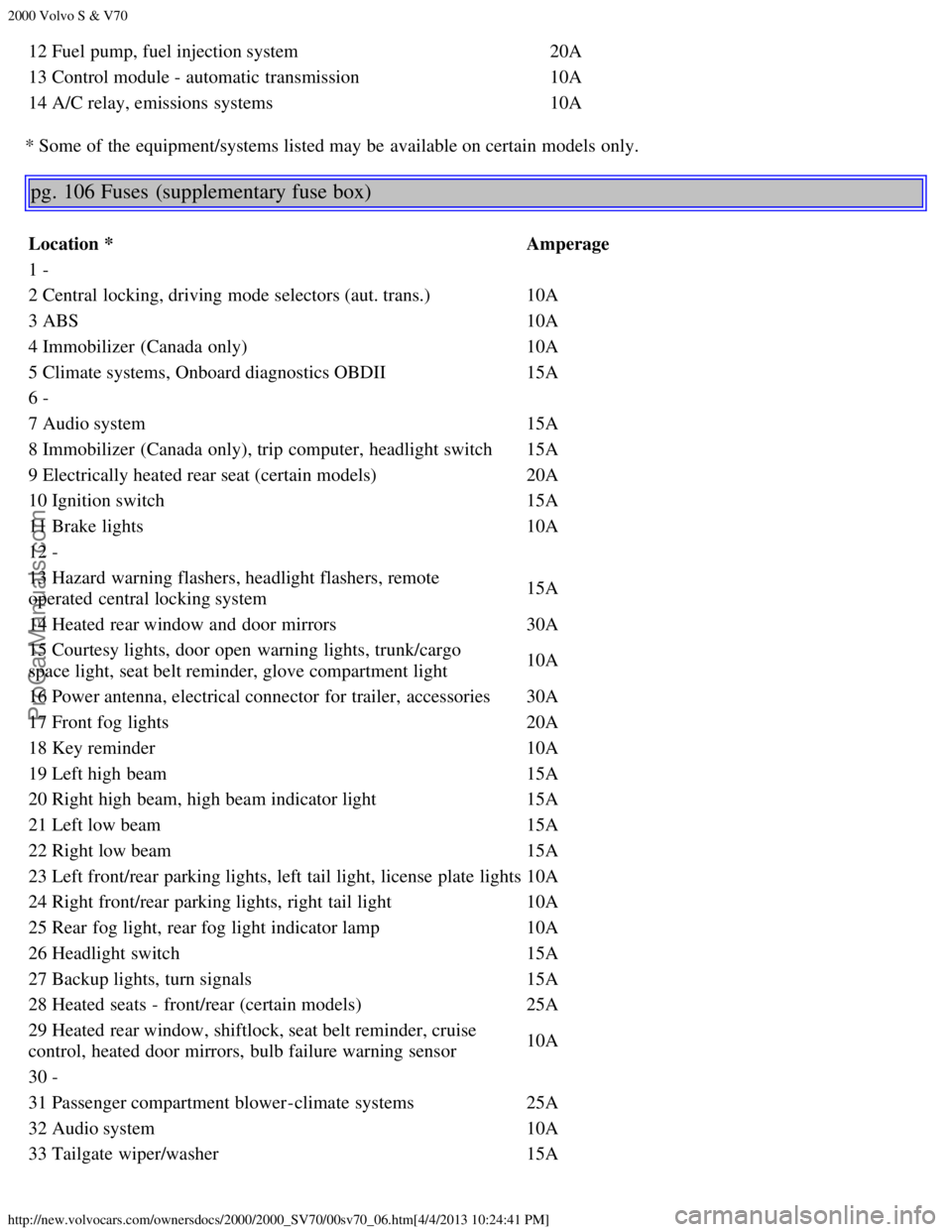

12 Fuel pump, fuel injection system20A
13 Control module - automatic transmission10A
14 A/C r

Page 73 of 102

VOLVO V70 2000 Owners Manual 2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]
not mix with other oils.Capacity: 8 US qts. (7.5
liters)
Manual transmission fluid Quality: V

Page 96 of 102

VOLVO V70 2000 Owners Manual 2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]

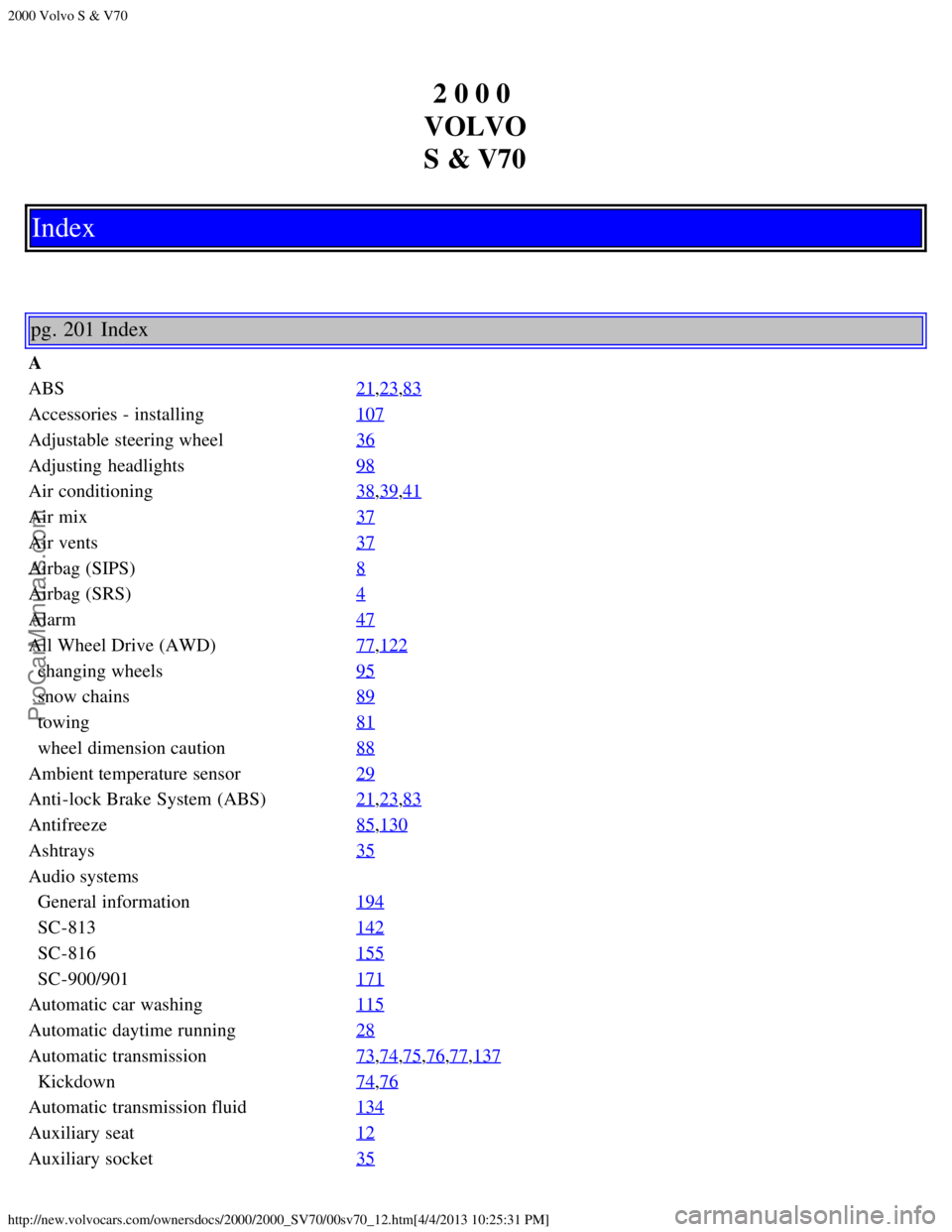

2 0 0 0
VOLVO
S & V70
Index
pg. 201 Index
A
ABS 21
,23,83
Accessories - installing107
Adjusta

Page 97 of 102

VOLVO V70 2000 Owners Manual 2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]

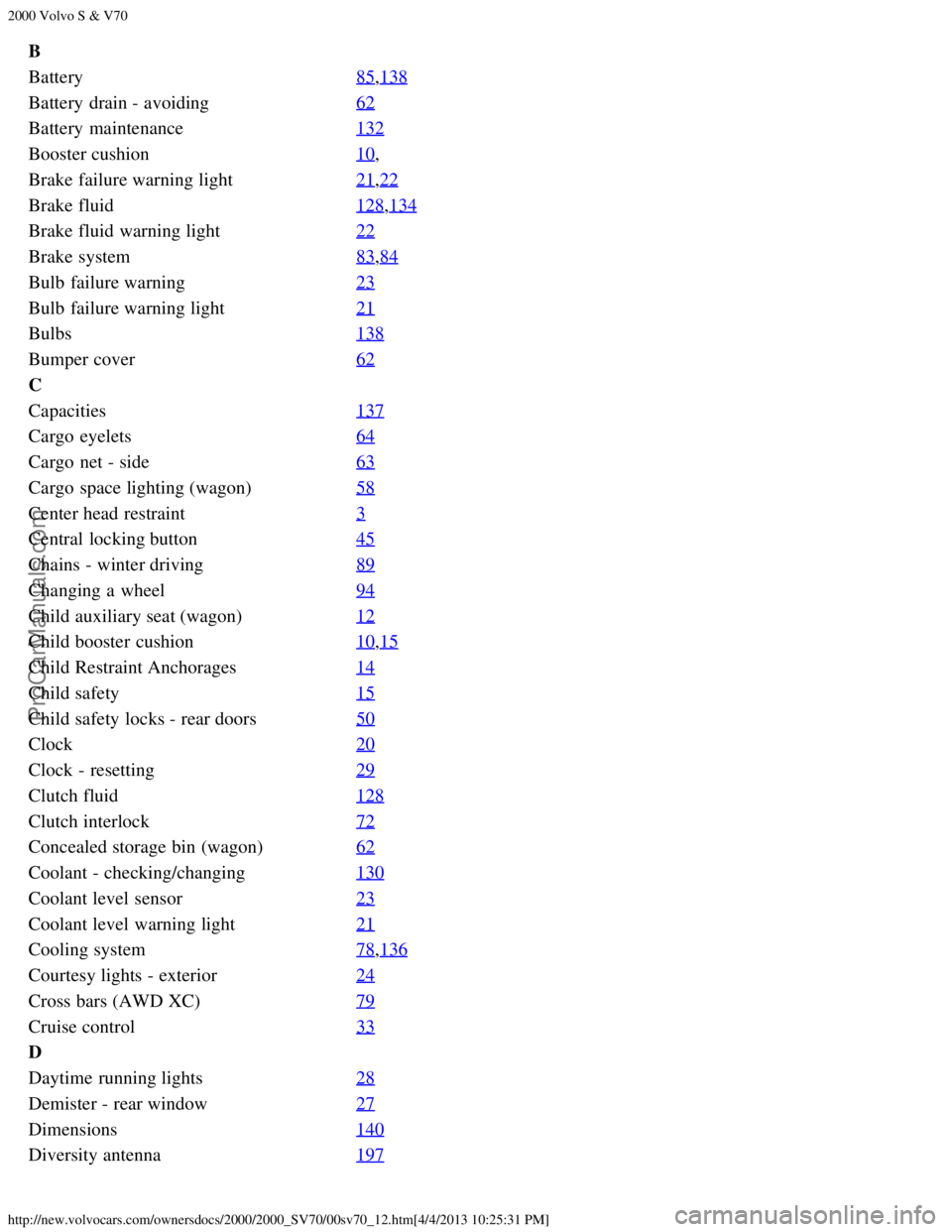

B
Battery85,138
Battery drain - avoiding62
Battery maintenance132
Booster cushion10,
Brake f
