2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_11.htm[4/4/2013 10:25:25 PM]

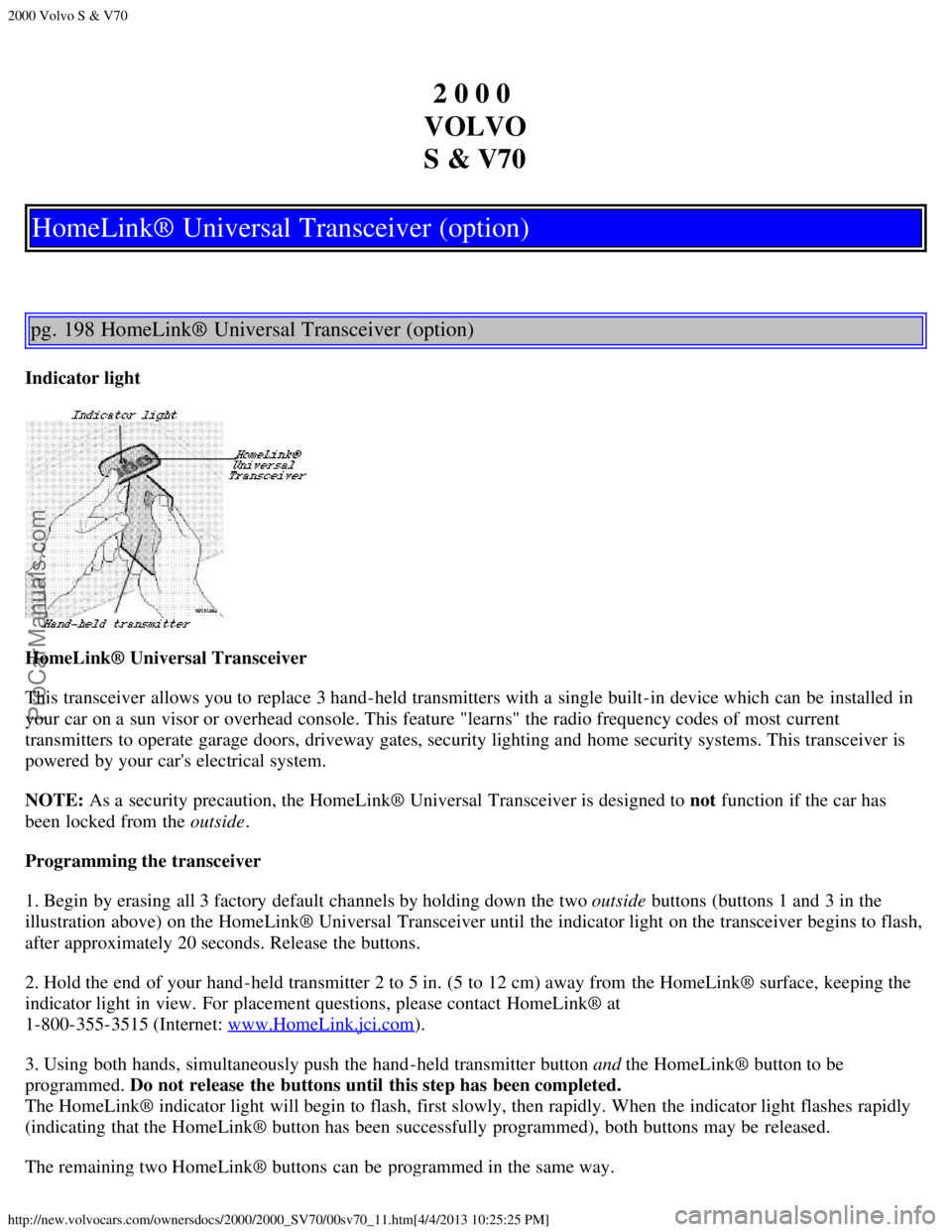

2 0 0 0
VOLVO
S & V70
HomeLink® Universal Transceiver (option)
pg. 198 HomeLink® Universal Transceiver (option)
Indicator light
HomeLink® Universal Transceiver
This transceiver allows you to replace 3 hand -held transmitters with a single built-in device which can be installed in
your car on a sun visor or overhead console. This feature "learns" the radio frequency codes of most current
transmitters to operate garage doors, driveway gates, security lighting and home security systems. This transceiver is
powered by your car's electrical system.
NOTE: As a security precaution, the HomeLink® Universal Transceiver is designed to not function if the car has
been locked from the outside .
Programming the transceiver
1. Begin by erasing all 3 factory default channels by holding down the two outside buttons (buttons 1 and 3 in the
illustration above) on the HomeLink® Universal Transceiver until the indicator light on the transceiver begins to flash,
after approximately 20 seconds. Release the buttons.
2. Hold the end of your hand -held transmitter 2 to 5 in. (5 to 12 cm) away from the HomeLink® surface, keeping the
indicator light in view. For placement questions, please contact HomeLink® at
1-800-355-3515 (Internet: www.HomeLink.jci.com
).
3. Using both hands, simultaneously push the hand -held transmitter button and the HomeLink® button to be
programmed. Do not release the buttons until this step has been completed.
The HomeLink® indicator light will begin to flash, first slowly, then rapidly. When the indicator light flashes rapidly
(indicating that the HomeLink® button has been successfully programmed), both buttons may be released.
The remaining two HomeLink® buttons can be programmed in the same way.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_11.htm[4/4/2013 10:25:25 PM]

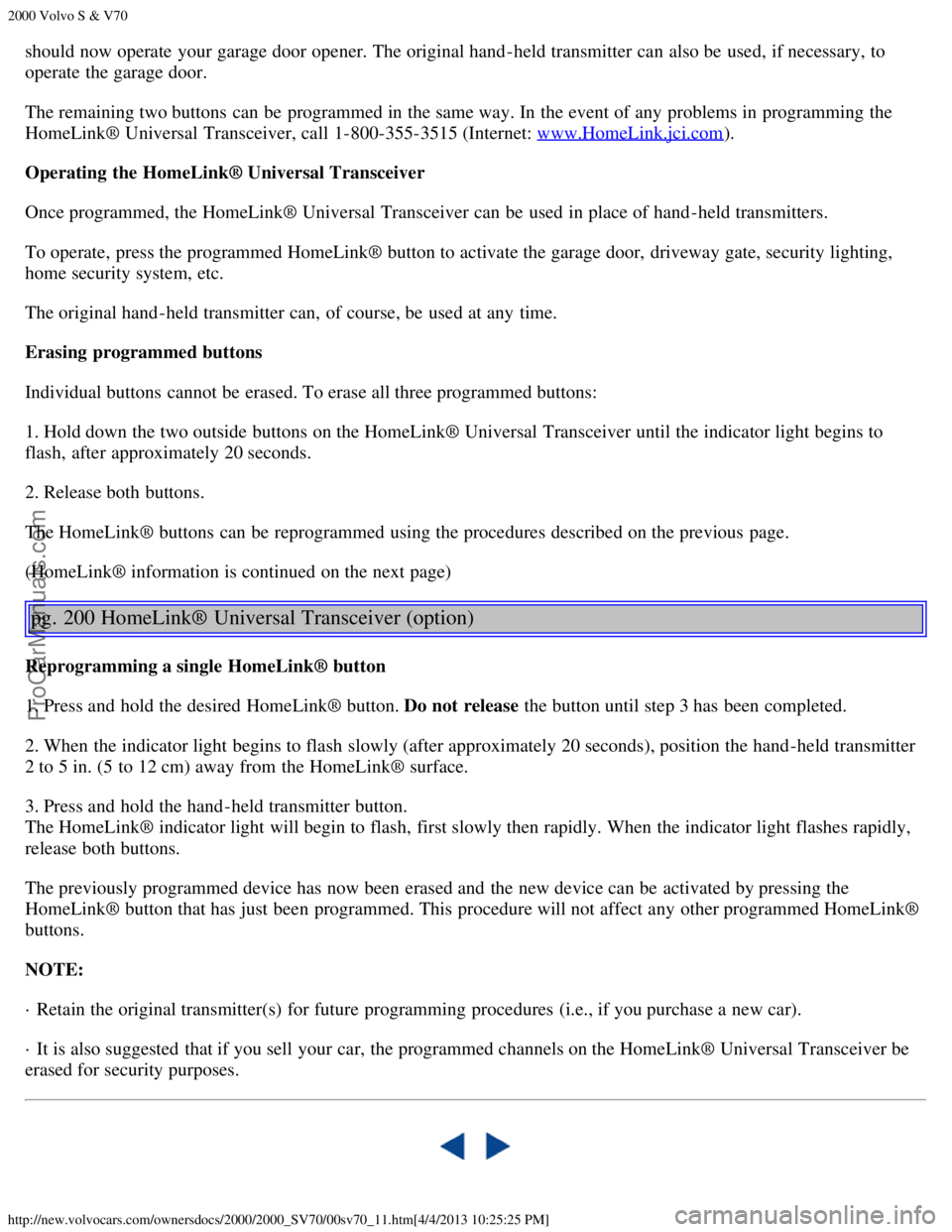

should now operate your garage door opener. The original hand -held transmitter can also be used, if necessary, to
operate the garage door.
The remaining two buttons can be programmed in the same way. In the event of any problems in programming the
HomeLink® Universal Transceiver, call 1-800-355-3515 (Internet: www.HomeLink.jci.com
).
Operating the HomeLink® Universal Transceiver
Once programmed, the HomeLink® Universal Transceiver can be used in place of hand -held transmitters.
To operate, press the programmed HomeLink® button to activate the garage door, driveway gate, security lighting,
home security system, etc.
The original hand -held transmitter can, of course, be used at any time.
Erasing programmed buttons
Individual buttons cannot be erased. To erase all three programmed buttons:
1. Hold down the two outside buttons on the HomeLink® Universal Transceiver until the indicator light begins to
flash, after approximately 20 seconds.
2. Release both buttons.
The HomeLink® buttons can be reprogrammed using the procedures described on the previous page.
(HomeLink® information is continued on the next page)
pg. 200 HomeLink® Universal Transceiver (option)
Reprogramming a single HomeLink® button
1. Press and hold the desired HomeLink® button. Do not release the button until step 3 has been completed.
2. When the indicator light begins to flash slowly (after approximately 20 seconds), position the hand -held transmitter
2 to 5 in. (5 to 12 cm) away from the HomeLink® surface.
3. Press and hold the hand -held transmitter button.
The HomeLink® indicator light will begin to flash, first slowly then rapidly. When the indicator light flashes rapidly,
release both buttons.
The previously programmed device has now been erased and the new device can be activated by pressing the
HomeLink® button that has just been programmed. This procedure will not affect any other programmed HomeLink®
buttons.
NOTE:
· Retain the original transmitter(s) for future programming procedures (i.e., if you purchase a new car).
· It is also suggested that if you sell your car, the programmed channels on the HomeLink® Universal Transceiver be
erased for security purposes.
