When your car is parked, the gear selector is locked in the (P)ark position. To release the selector from this position,
turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front side of the
gear selector and move the selector from (P)ark.
If it is necessary to manually override the shiftlock system:
· Turn the starting (ignition) key to position I
· Press firmly on the "SHIFTLOCK OVERRIDE" button located to the right of the base of the gear selector
· While holding the override button down, press the button on the front of the gear selector
· Move the selector from the (P)ark position.
Keylock (automatic transmission only)
This means that when you switch off the ignition, the gear selector must be in the (P)ark position before the starting
(ignition) key can be removed from the ignition switch.
Clutch interlock (manual transmission only)
The clutch must be fully depressed before you can start you car. If the clutch is not depressed, it will not be possible to
start the engine.
Anti-lock Brake System (ABS)
The ABS system in your car performs a self -diagnostic test when the vehicle first reaches the speed of approximately
12 mph (20 km/h). The brake pedal will pulsate several times and a sound may be audible from the ABS control
module. This is normal.
Fuel tank cover
The fuel tank cover is locked and must be popped open using the control on the driver's door (see illustration on page
16).
Volvo and the environment
Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the
environment in which we all live. Caring for the environment means an everyday involvement in reducing our
environmental impact.
Volvo's environmental activities are based on a holistic view, which means we consider the overall environmental
impact of a product throughout its complete life cycle. In this context, design, production, product use, and recycling
are all important considerations.
In production, Volvo has partly or completely phased out several chemicals including freons, lead chromates,
naphtanates, asbestos, mercury and cadmium; and reduced the amount of chemicals used in our plants 50% since 1991.
In use, Volvo was the first in the world to introduce into production a three-way catalytic converter with a Lambda
sond, now called oxygen sensor, in 1976. The current version of this highly efficient system reduces emissions of
harmful substances (CO, HC, NOx) from the exhaust pipe by approximately 95% and the search to eliminate the
remaining emissions continues. Volvo is the only automobile manufacturer to offer CFC-free retrofit kits for the air
conditioning system for all models as far back as the M/Y 1975 240. Advanced electronic engine controls, refined
purification systems and cleaner fuels are bringing us closer to our goal.
After Volvo cars and parts have fulfilled their use, recycling is the next critical step in completing the life cycle. The
metal content is about 75% of the total weight of a car, which makes the car among the most recycled industrial
products. In order to have efficient and well controlled recycling, many Volvo variants have printed dismantling
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_01a.htm[4/4/2013 10:22:18 PM]
2 0 0 0
VOLVO
S & V70

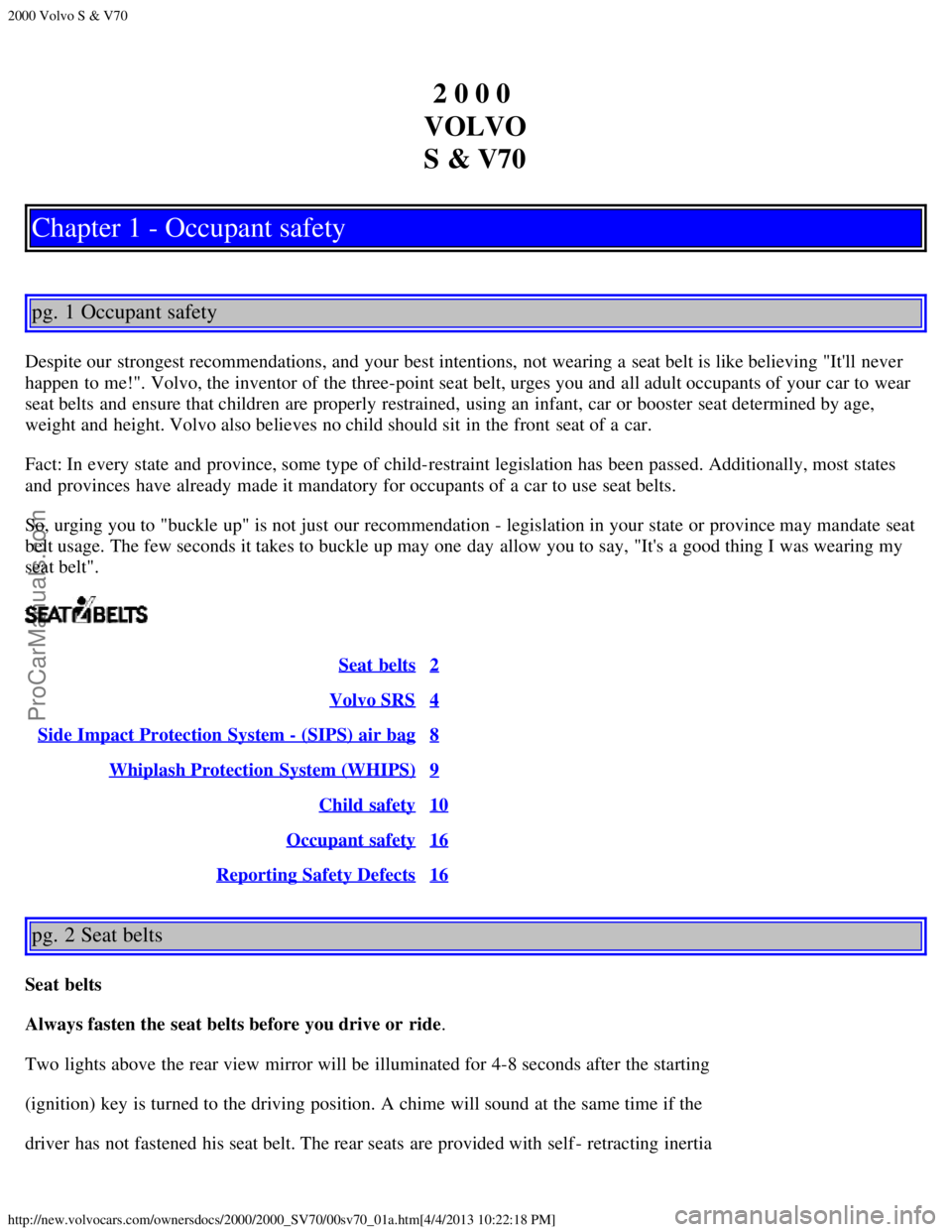

Chapter 1 - Occupant safety
pg. 1 Occupant safety
Despite our strongest recommendations, and your best intentions, not wearing a seat belt is like believing "It'll never
happen to me!". Volvo, the inventor of the three-point seat belt, urges you and all adult occupants of your car to wear
seat belts and ensure that children are properly restrained, using an infant, car or booster seat determined by age,
weight and height. Volvo also believes no child should sit in the front seat of a car.
Fact: In every state and province, some type of child-restraint legislation has been passed. Additionally, most states
and provinces have already made it mandatory for occupants of a car to use seat belts.
So, urging you to "buckle up" is not just our recommendation - legislation in your state or province may mandate seat
belt usage. The few seconds it takes to buckle up may one day allow you to say, "It's a good thing I was wearing my
seat belt".
Seat belts2
Volvo SRS4
Side Impact Protection System - (SIPS) air bag8
Whiplash Protection System (WHIPS)9
Child safety10
Occupant safety16
Reporting Safety Defects16
pg. 2 Seat belts
Seat belts
Always fasten the seat belts before you drive or ride .
Two lights above the rear view mirror will be illuminated for 4-8 seconds after the starting
(ignition) key is turned to the driving position. A chime will sound at the same time if the
driver has not fastened his seat belt. The rear seats are provided with self - retracting inertia
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_01a.htm[4/4/2013 10:22:18 PM]
The heart of the Volvo safety system is the threepoint seat belt (a Volvo invention)! In order for the SRS system to
provide the protection intended, seat belts must be worn at all times by everyone in the car.
The SRS system is a supplement to the seat belts.
WARNING!
If your car has been subjected to flood conditions (e.g. soaked carpeting/standing water on the floor of the vehicle)
or if your car has become flooddamaged in any way, do not attempt to start the vehicle or put the key in the ignition
before disconnecting the battery (see below). This may cause airbag deployment which could result in personal
injury. Have the car towed to an authorized Volvo retailer for repairs.
Automatic transmission only:
Before attempting to tow the car, use the following procedure to override the shiftlock system to move the gear
selector to the neutral position.
· Disconnect the battery
· Wait at least one minute
· Insert the key in the ignition and turn it to position 1
· Press firmly on the shiftlock override button (located near the base of the gear selector).
· While holding the override button down, move the gear selector from the park position.
WARNING!
Never drive with the airbags deployed. The fact that they hang out can impair the steering of your car. Other safety
systems can also be damaged. The smoke and dust formed when the airbags are deployed can cause skin and eye
irritation in the event of prolonged exposure.
pg. 8 Volvo Side Impact Protection System (SIPS) airbag
1 - Airbag, 2 - cable, 3 - sensor unit,
SIPS airbag
As an enhancement to the structural Side Impact Protection System built into your car, the car is also equipped with
Side Impact Protection System (SIPS) airbags. The SIPS airbag system consists of airbag modules built into the sides
of both front seat backrests (1), cables (2) from these modules to the electronic sensor units (3).
The SIPS airbag system is designed to help increase occupant protection in the event of certain side impact collisions.
The SIPS airbags are designed to deploy only during certain sideimpact collisions, depending on the crash severity,
angle, speed and point of impact. The airbags are not designed to deploy in all side impact situations.
NOTE: SIPS airbag deployment (one airbag) occurs only on the side of the vehicle affected by the impact.
WARNING!
· The SIPS airbag system is a supplement to the Side Impact Protection System and the threepoint seat belt system.
It is not designed to deploy during collisions from the front or rear of the car or in rollover situations.
· The use of seat covers on the front seats may impede SIPS airbag deployment.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_01a.htm[4/4/2013 10:22:18 PM]

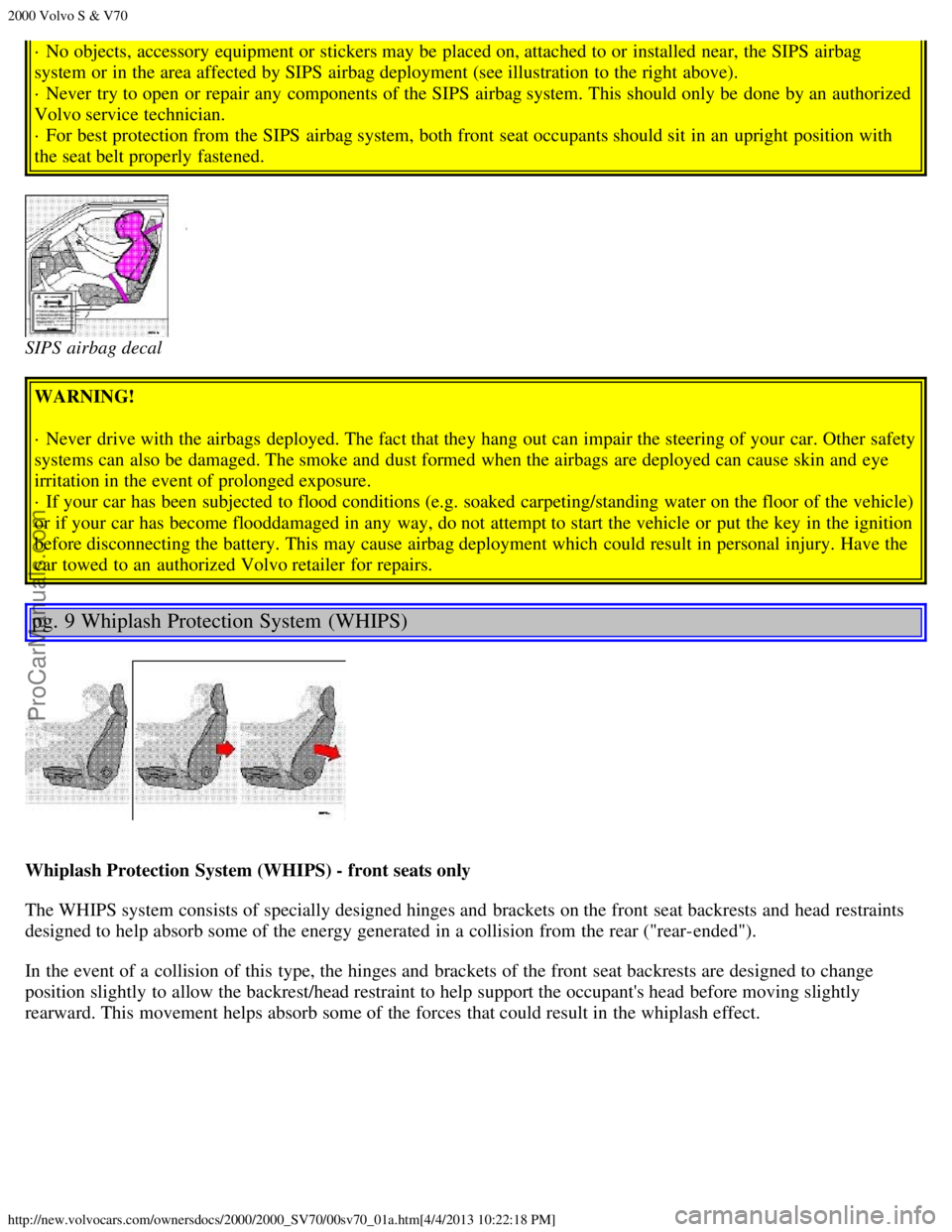

· No objects, accessory equipment or stickers may be placed on, attached to or installed near, the SIPS airbag
system or in the area affected by SIPS airbag deployment (see illustration to the right above).
· Never try to open or repair any components of the SIPS airbag system. This should only be done by an authorized
Volvo service technician.
· For best protection from the SIPS airbag system, both front seat occupants should sit in an upright position with
the seat belt properly fastened.
SIPS airbag decal
WARNING!
· Never drive with the airbags deployed. The fact that they hang out can impair the steering of your car. Other safety
systems can also be damaged. The smoke and dust formed when the airbags are deployed can cause skin and eye
irritation in the event of prolonged exposure.
· If your car has been subjected to flood conditions (e.g. soaked carpeting/standing water on the floor of the vehicle)
or if your car has become flooddamaged in any way, do not attempt to start the vehicle or put the key in the ignition
before disconnecting the battery. This may cause airbag deployment which could result in personal injury. Have the
car towed to an authorized Volvo retailer for repairs.
pg. 9 Whiplash Protection System (WHIPS)
Whiplash Protection System (WHIPS) - front seats only
The WHIPS system consists of specially designed hinges and brackets on the front seat backrests and head restraints
designed to help absorb some of the energy generated in a collision from the rear ("rear-ended").
In the event of a collision of this type, the hinges and brackets of the front seat backrests are designed to change
position slightly to allow the backrest/head restraint to help support the occupant's head before moving slightly
rearward. This movement helps absorb some of the forces that could result in the whiplash effect.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_02a.htm[4/4/2013 10:23:03 PM]
1 Fuel gauge
Fuel tank capacity:
18 US gal. (68 liters) - Front Wheel Drive
17.4 US gal (66 liters) - All Wheel Drive When the warning light comes on there is approximately 1.8 US gal. (8
liters) of fuel remaining. See "Refueling" for additional information.
2 Temperature gauge
Do not drive the car with the pointer in the red range. The pointer should be approximately midway on the gauge
face when driving. If the pointer approaches the red range repeatedly, check coolant level.
3 Speedometer
4 Clock, ambient temperature sensor, trip computer (certain models)
5 Trip odometer
Used for measuring shorter distances. The last digit indicates 1/10 mile/kilometer.
6 Odometer
7 Trip odometer reset button
8 Tachometer
Reads thousands of engine rpm. Do not drive for long with the needle in the red section. The engine has an inbuilt
function preventing too high a rotation speed. When this function operates, you may discern some pulsation, which in
that case is quite normal.
NOTE: Digital displays showing Clock, Trip Odometer and Odometer will go off 30 minutes after the ignition has
been switched off. To view these displays again, turn the ignition key to position I.
pg. 21 Indicator and warning lights
1 Turn signal, left
2 Turn signal, right
3 Cruise control
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_02a.htm[4/4/2013 10:23:03 PM]
4 Low washer fluid level
If the lamp glows continuously when the engine is running, there is only about 1/2 - 1 US qt. remaining in the washer
fluid reservoir.
5 Low fuel level
When the lamp glows, only about 1.8 US gals. (8 liters) of fuel remain. If the ignition is switched on while refuelling,
the gauge may read inaccurately for up to 45 minutes.
6 Rear fog light
7 High beams
8 Trunk/tailgate open
9 Bulb failure warning sensor
10 (Not in use)
11 Electronic Throttle System (ETS)
12 SRS
13 Generator not charging
14 Low engine oil pressure
15 Brake warning light
16 Parking brake applied
17 ABS -system
18 Transmission mode: Indicates "W" if winter/wet driving mode is active, or indicates currently selected low gear.
19 Low coolant level
20 Traction Control (TRACS)/ Stability and Traction Control (STC) Systems (option)
21 Malfunction indicator lamp
(See page 22
for more information)
22 Service reminder indicator
pg. 22 Warning lights
The warning lights described on pages 20 and 21 should never stay on when driving
When the ignition key is turned on and before the engine starts, all of the warning lights should go on to test the
function of the bulbs. Should a light not go off after the engine has started, the system indicated should be inspected.
However, the parking brake reminder light will not go off until the parking brake has been fully released.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_02a.htm[4/4/2013 10:23:03 PM]
screw (A) in position .
The high beams can only be switched on if the headlight switch is in position .
Switch from high to low beams and vice versa by moving the turn signal switch lever on the left side of steering
column towards the steering wheel.
* See page 26
for information on Daytime running lights.
Exterior courtesy lights
When you leave your car at night, you can make use of the exterior courtesy lighting function:
· Remove the key from the ignition switch.
· Pull the direction indicator lever towards the steering wheel (as when using the headlight flasher function).
The low beam headlights will now remain on for 30 seconds to light your way.
Turn signals
1 Lane change position. In maneuvers such as lane changing, the driver can flash the turn signals by moving the turn
signal lever to the first stop and holding it there. The lever will return to the neutral position when released.
2 Signal lever engaged for normal turns.
3 High beam/low beam switch (headlights on).
Move the lever towards the steering wheel and release it.
Headlight flasher (headlights off).
Move the lever towards the steering wheel. The headlight high beam will be on until the lever is released.
NOTE: A defective turn signal bulb will cause the turn signal indicator and remaining signal lights to flash more
rapidly than normal.
pg. 25 Windshield wipers/washers, Ignition switch/steering wheel lock
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_02a.htm[4/4/2013 10:23:03 PM]

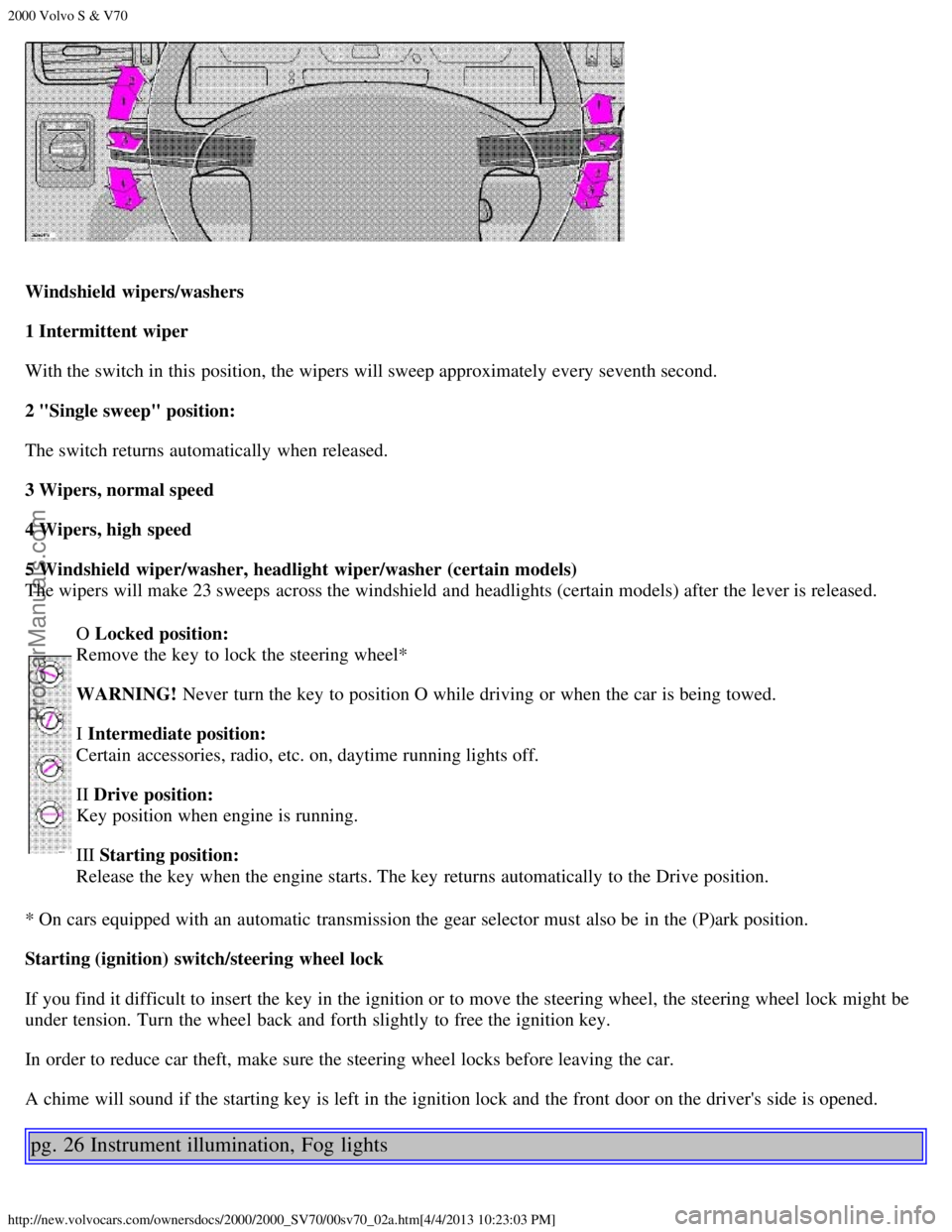

Windshield wipers/washers
1 Intermittent wiper
With the switch in this position, the wipers will sweep approximately every seventh second.
2 "Single sweep" position:
The switch returns automatically when released.
3 Wipers, normal speed
4 Wipers, high speed
5 Windshield wiper/washer, headlight wiper/washer (certain models)
The wipers will make 23 sweeps across the windshield and headlights (certain models) after the lever is released.
O Locked position:
Remove the key to lock the steering wheel*
WARNING! Never turn the key to position O while driving or when the car is being towed.
I Intermediate position:
Certain accessories, radio, etc. on, daytime running lights off.
II Drive position:
Key position when engine is running.
III Starting position:
Release the key when the engine starts. The key returns automatically to the Drive position.
* On cars equipped with an automatic transmission the gear selector must also be in the (P)ark position.
Starting (ignition) switch/steering wheel lock
If you find it difficult to insert the key in the ignition or to move the steering wheel, the steering wheel lock might be
under tension. Turn the wheel back and forth slightly to free the ignition key.
In order to reduce car theft, make sure the steering wheel locks before leaving the car.
A chime will sound if the starting key is left in the ignition lock and the front door on the driver's side is opened.
pg. 26 Instrument illumination, Fog lights
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_03a.htm[4/4/2013 10:24:13 PM]

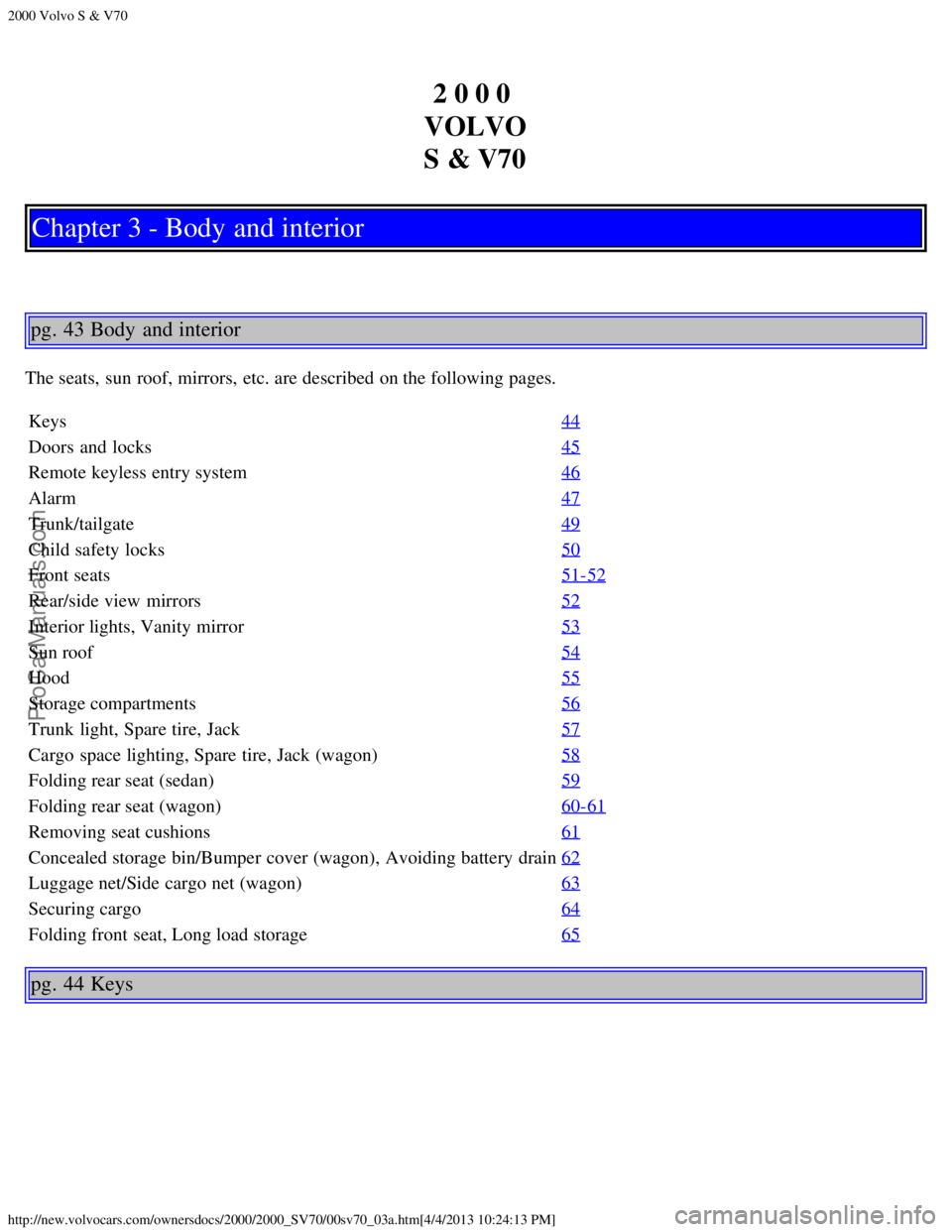

2 0 0 0
VOLVO
S & V70
Chapter 3 - Body and interior
pg. 43 Body and interior
The seats, sun roof, mirrors, etc. are described on the following pages. Keys 44
Doors and locks45
Remote keyless entry system46
Alarm47
Trunk/tailgate49
Child safety locks50
Front seats51-52
Rear/side view mirrors52
Interior lights, Vanity mirror53
Sun roof54
Hood55
Storage compartments56
Trunk light, Spare tire, Jack57
Cargo space lighting, Spare tire, Jack (wagon)58
Folding rear seat (sedan)59
Folding rear seat (wagon)60-61
Removing seat cushions61
Concealed storage bin/Bumper cover (wagon), Avoiding battery drain62
Luggage net/Side cargo net (wagon)63
Securing cargo64
Folding front seat, Long load storage65
pg. 44 Keys
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_03a.htm[4/4/2013 10:24:13 PM]

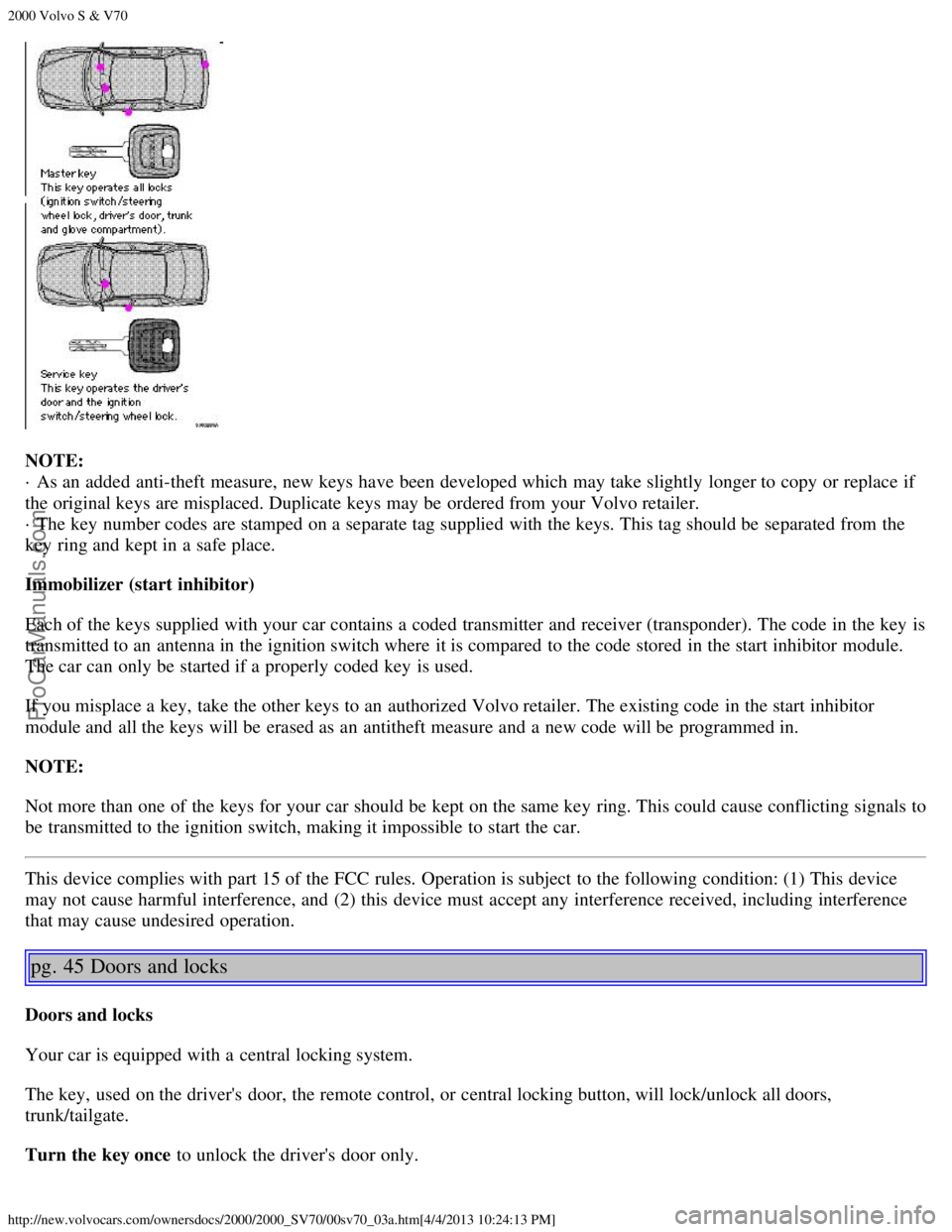

NOTE:
· As an added anti-theft measure, new keys have been developed which may take slightly longer to copy or replace if
the original keys are misplaced. Duplicate keys may be ordered from your Volvo retailer.
· The key number codes are stamped on a separate tag supplied with the keys. This tag should be separated from the
key ring and kept in a safe place.
Immobilizer (start inhibitor)
Each of the keys supplied with your car contains a coded transmitter and receiver (transponder). The code in the key is
transmitted to an antenna in the ignition switch where it is compared to the code stored in the start inhibitor module.
The car can only be started if a properly coded key is used.
If you misplace a key, take the other keys to an authorized Volvo retailer. The existing code in the start inhibitor
module and all the keys will be erased as an antitheft measure and a new code will be programmed in.
NOTE:
Not more than one of the keys for your car should be kept on the same key ring. This could cause conflicting signals to
be transmitted to the ignition switch, making it impossible to start the car.
This device complies with part 15 of the FCC rules. Operation is subject to the following condition: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
pg. 45 Doors and locks
Doors and locks
Your car is equipped with a central locking system.
The key, used on the driver's door, the remote control, or central locking button, will lock/unlock all doors,
trunk/tailgate.
Turn the key once to unlock the driver's door only.
ProCarManuals.com
