VOLVO V70 2001 Owners Manual

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_09.htm[4/4/2013 10:39:07 PM]

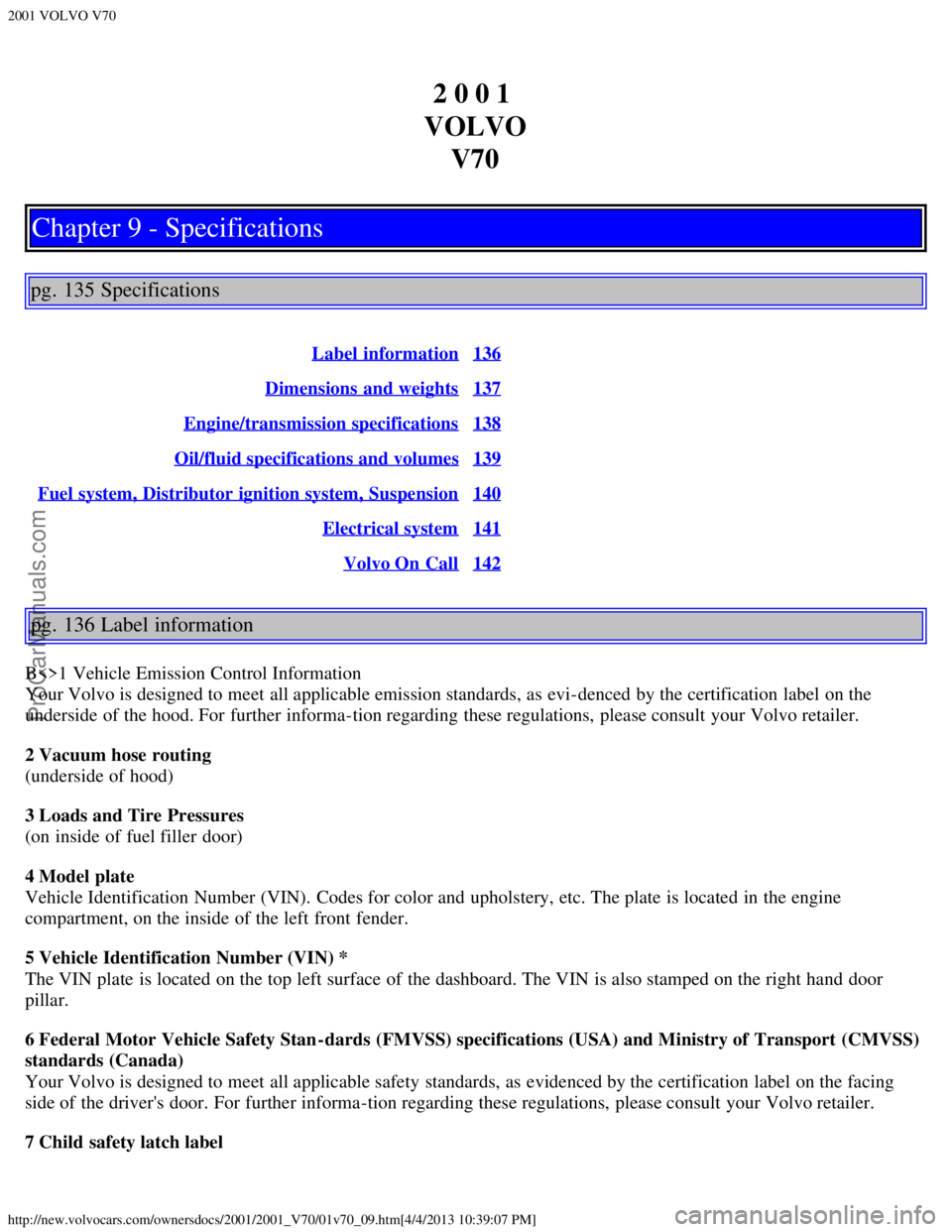

2 0 0 1
VOLVO V70
Chapter 9 - Specifications
pg. 135 Specifications
Label information136
Dimensions and weights137
Engine/transmission specifications138
Oil/fluid specifications and volumes139
Fuel system, Distributor ignition system, Suspension140
Electrical system141
Volvo On Call142
pg. 136 Label information
B<>1 Vehicle Emission Control Information
Your Volvo is designed to meet all applicable emission standards, as evi-denced by the certification label on the
underside of the hood. For further informa-tion regarding these regulations, please consult your Volvo retailer.
2 Vacuum hose routing
(underside of hood)
3 Loads and Tire Pressures
(on inside of fuel filler door)
4 Model plate
Vehicle Identification Number (VIN). Codes for color and upholstery, etc. The plate is located in the engine
compartment, on the inside of the left front fender.
5 Vehicle Identification Number (VIN) *
The VIN plate is located on the top left surface of the dashboard. The VIN is also stamped on the right hand door
pillar.
6 Federal Motor Vehicle Safety Stan -dards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS)
standards (Canada)
Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing
side of the driver's door. For further informa-tion regarding these regulations, please consult your Volvo retailer.
7 Child safety latch label
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_09.htm[4/4/2013 10:39:07 PM]

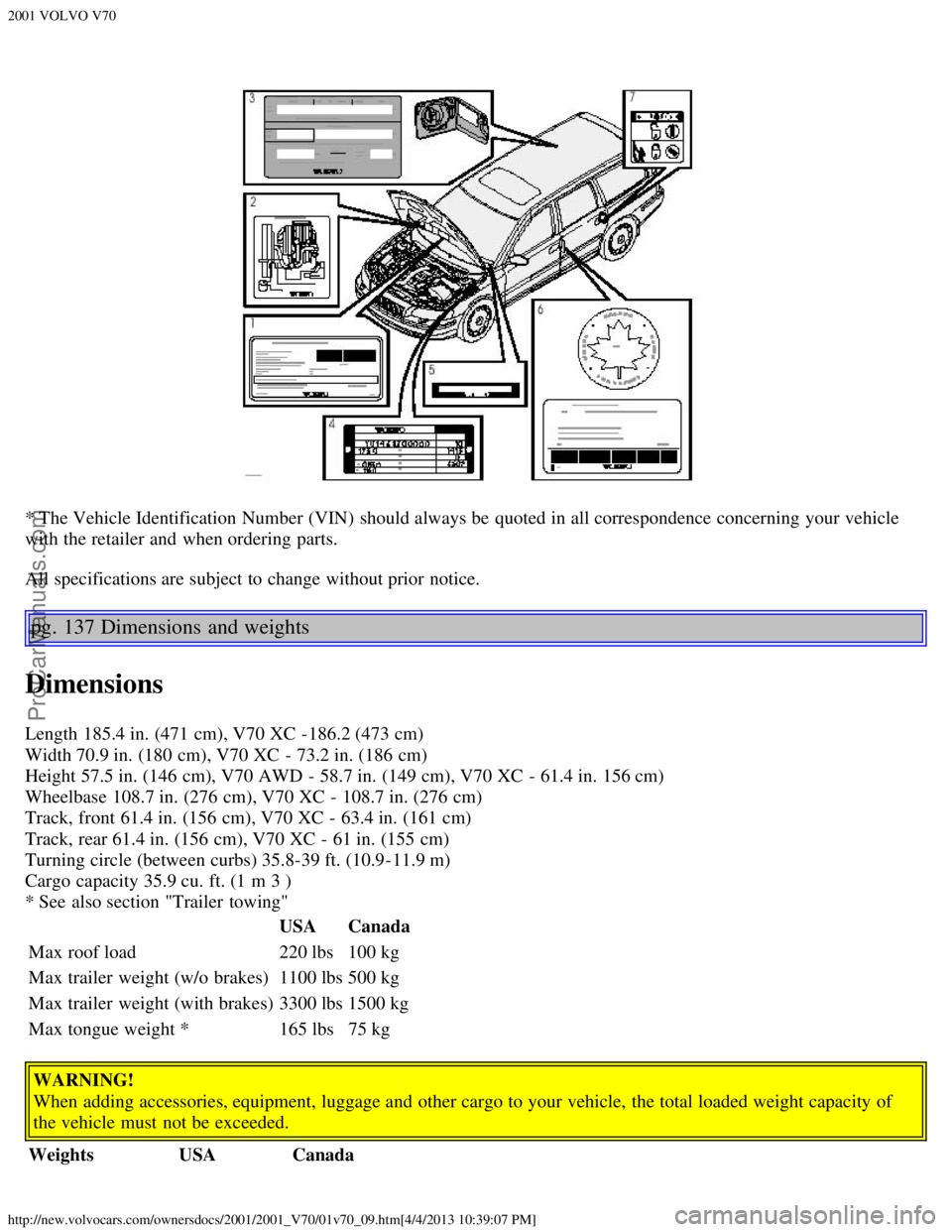

* The Vehicle Identification Number (VIN) should always be quoted in all correspondence concerning your vehicle
with the retailer and when ordering parts.
All specifications are subject to change without prior notice.
pg. 137 Dimensions and weights
Dimensions
Length 185.4 in. (471 cm), V70 XC -186.2 (473 cm)
Width 70.9 in. (180 cm), V70 XC - 73.2 in. (186 cm)
Height 57.5 in. (146 cm), V70 AWD - 58.7 in. (149 cm), V70 XC - 61.4 in. 156 cm)
Wheelbase 108.7 in. (276 cm), V70 XC - 108.7 in. (276 cm)
Track, front 61.4 in. (156 cm), V70 XC - 63.4 in. (161 cm)
Track, rear 61.4 in. (156 cm), V70 XC - 61 in. (155 cm)
Turning circle (between curbs) 35.8-39 ft. (10.9-11.9 m)
Cargo capacity 35.9 cu. ft. (1 m 3 )
* See also section "Trailer towing"
USACanada
Max roof load 220 lbs100 kg
Max trailer weight (w/o brakes) 1100 lbs500 kg
Max trailer weight (with brakes) 3300 lbs1500 kg
Max tongue weight * 165 lbs75 kg
WARNING!
When adding accessories, equipment, luggage and other cargo to your vehicle, the total loaded weight capacity of
the vehicle must not be exceeded.
Weights USACanada
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_09.htm[4/4/2013 10:39:07 PM]

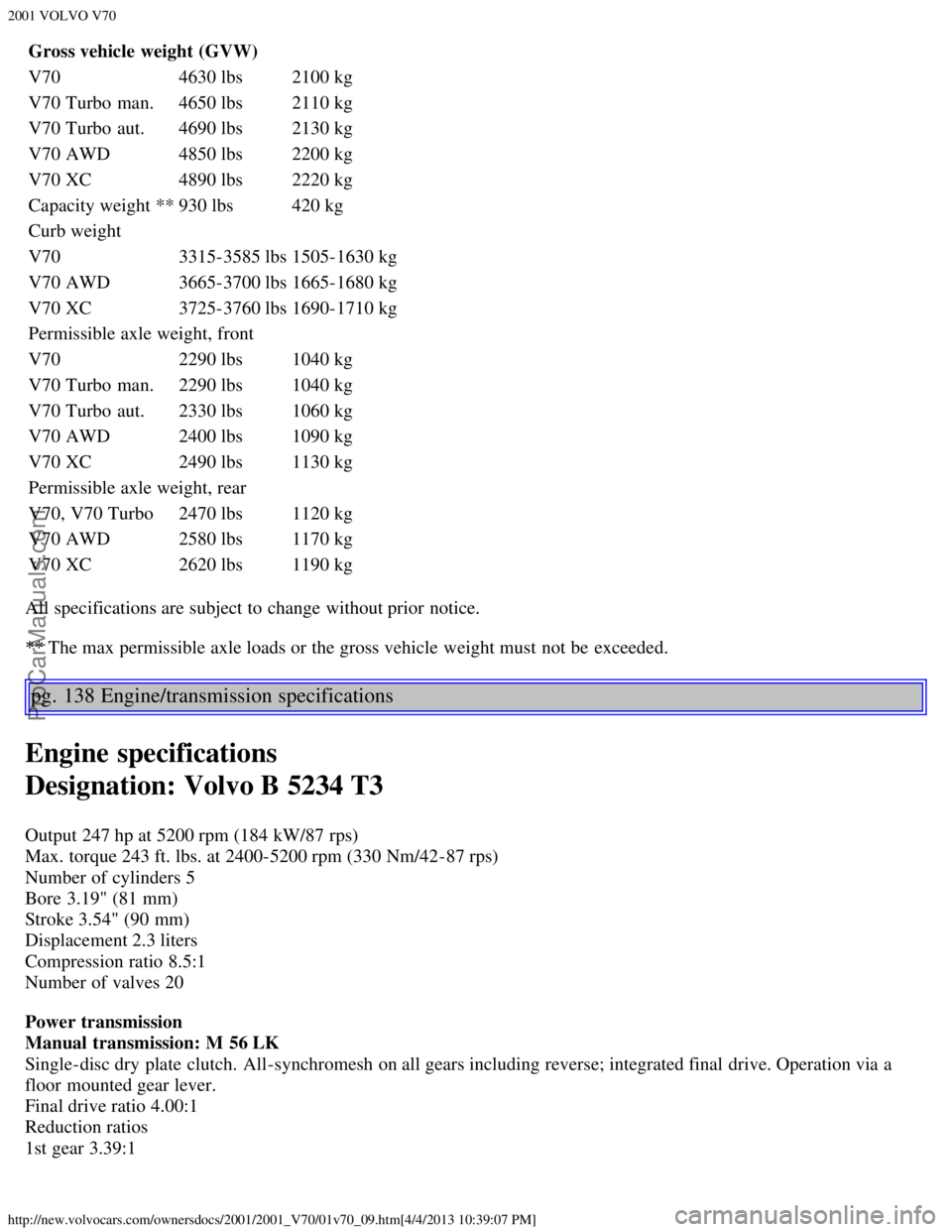

Gross vehicle weight (GVW)
V704630 lbs2100 kg
V70 Turbo man. 4650 lbs2110 kg
V70 Turbo aut. 4690 lbs2130 kg
V70 AWD 4850 lbs2200 kg
V70 XC 4890 lbs2220 kg
Capacity weight ** 930 lbs420 kg
Curb weight
V70 3315-3585 lbs1505-1630 kg
V70 AWD 3665-3700 lbs1665-1680 kg
V70 XC 3725-3760 lbs1690-1710 kg
Permissible axle weight, front
V70 2290 lbs1040 kg
V70 Turbo man. 2290 lbs1040 kg
V70 Turbo aut. 2330 lbs1060 kg
V70 AWD 2400 lbs1090 kg
V70 XC 2490 lbs1130 kg
Permissible axle weight, rear
V70, V70 Turbo 2470 lbs1120 kg
V70 AWD 2580 lbs1170 kg
V70 XC 2620 lbs1190 kg
All specifications are subject to change without prior notice.
** The max permissible axle loads or the gross vehicle weight must not be exceeded.
pg. 138 Engine/transmission specifications
Engine specifications
Designation: Volvo B 5234 T3
Output 247 hp at 5200 rpm (184 kW/87 rps)
Max. torque 243 ft. lbs. at 2400-5200 rpm (330 Nm/42-87 rps)
Number of cylinders 5
Bore 3.19" (81 mm)
Stroke 3.54" (90 mm)
Displacement 2.3 liters
Compression ratio 8.5:1
Number of valves 20
Power transmission
Manual transmission: M 56 LK
Single-disc dry plate clutch. All-synchromesh on all gears including reverse; integrated final drive. Operation via a
floor mounted gear lever.
Final drive ratio 4.00:1
Reduction ratios
1st gear 3.39:1
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_09.htm[4/4/2013 10:39:07 PM]

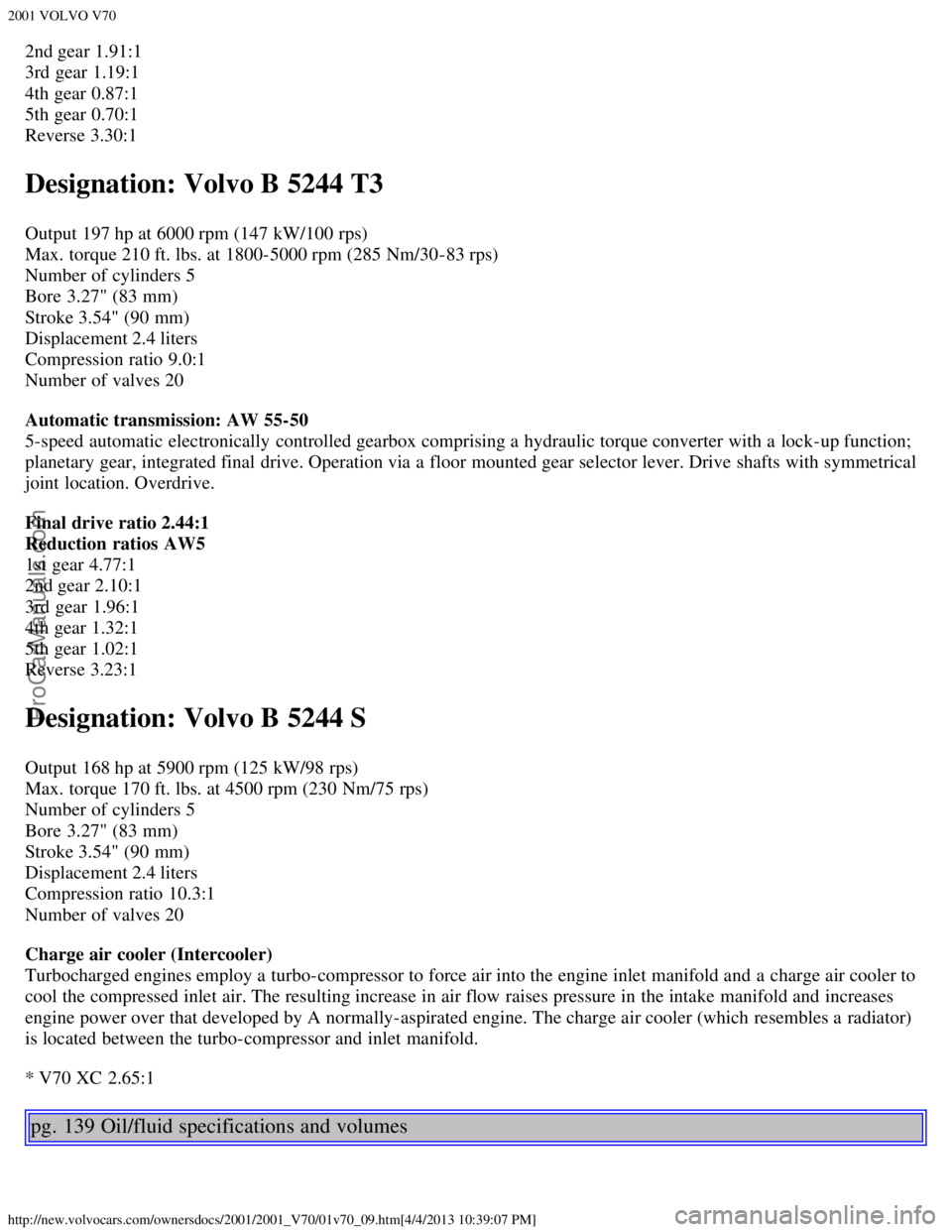

2nd gear 1.91:1
3rd gear 1.19:1
4th gear 0.87:1
5th gear 0.70:1
Reverse 3.30:1
Designation: Volvo B 5244 T3
Output 197 hp at 6000 rpm (147 kW/100 rps)
Max. torque 210 ft. lbs. at 1800-5000 rpm (285 Nm/30-83 rps)
Number of cylinders 5
Bore 3.27" (83 mm)
Stroke 3.54" (90 mm)
Displacement 2.4 liters
Compression ratio 9.0:1
Number of valves 20
Automatic transmission: AW 55-50
5-speed automatic electronically controlled gearbox comprising a hydraulic torque converter with a lock-up function;
planetary gear, integrated final drive. Operation via a floor mounted gear selector lever. Drive shafts with symmetrical
joint location. Overdrive.
Final drive ratio 2.44:1
Reduction ratios AW5
1st gear 4.77:1
2nd gear 2.10:1
3rd gear 1.96:1
4th gear 1.32:1
5th gear 1.02:1
Reverse 3.23:1
Designation: Volvo B 5244 S
Output 168 hp at 5900 rpm (125 kW/98 rps)
Max. torque 170 ft. lbs. at 4500 rpm (230 Nm/75 rps)
Number of cylinders 5
Bore 3.27" (83 mm)
Stroke 3.54" (90 mm)
Displacement 2.4 liters
Compression ratio 10.3:1
Number of valves 20
Charge air cooler (Intercooler)
Turbocharged engines employ a turbo-compressor to force air into the engine inlet manifold and a charge air cooler to
cool the compressed inlet air. The resulting increase in air flow raises pressure in the intake manifold and increases
engine power over that developed by A normally-aspirated engine. The charge air cooler (which resembles a radiator)
is located between the turbo-compressor and inlet manifold.
* V70 XC 2.65:1
pg. 139 Oil/fluid specifications and volumes
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_09.htm[4/4/2013 10:39:07 PM]

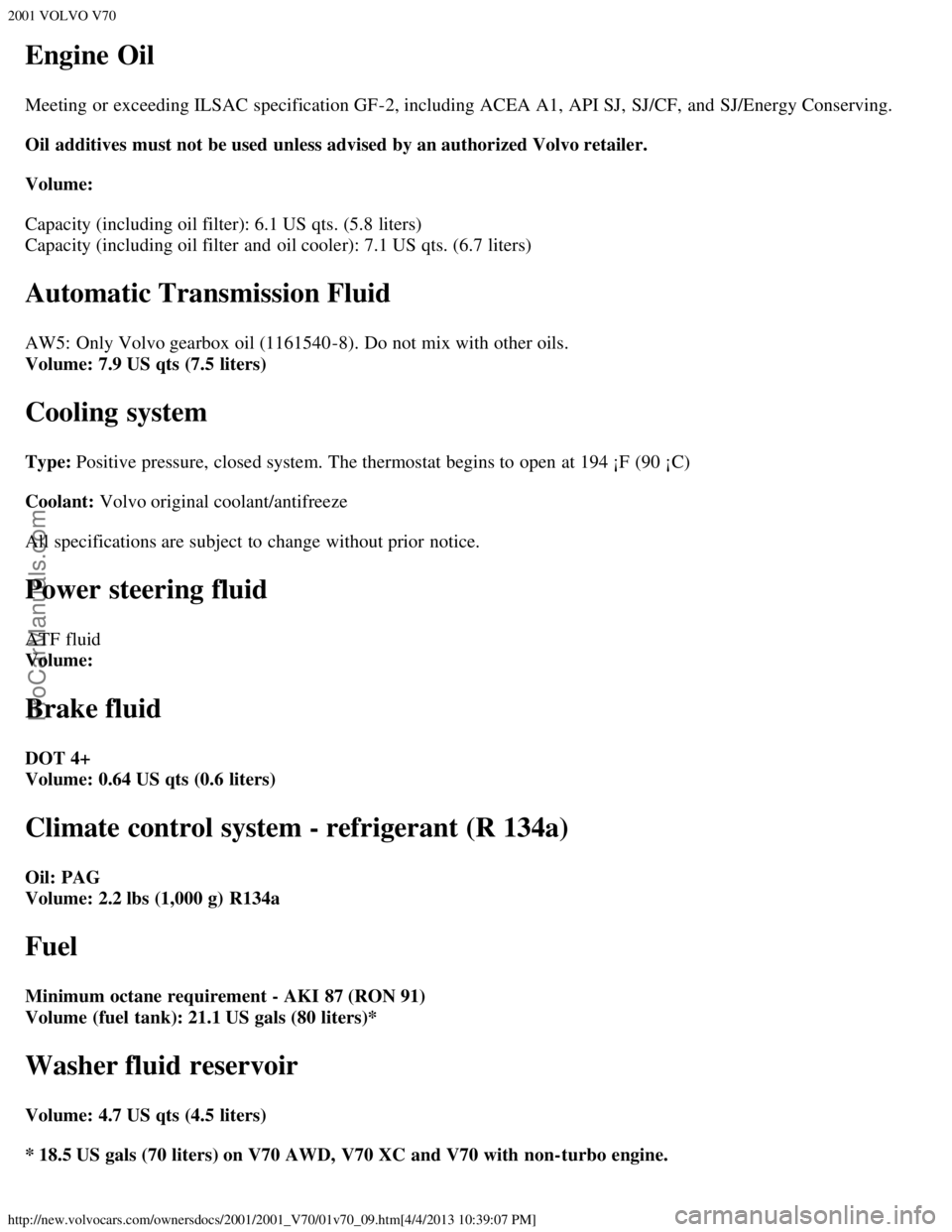

Engine Oil
Meeting or exceeding ILSAC specification GF-2, including ACEA A1, API SJ, SJ/CF, and SJ/Energy Conserving.
Oil additives must not be used unless advised by an authorized Volvo retailer.
Volume:
Capacity (including oil filter): 6.1 US qts. (5.8 liters)
Capacity (including oil filter and oil cooler): 7.1 US qts. (6.7 liters)
Automatic Transmission Fluid
AW5: Only Volvo gearbox oil (1161540-8). Do not mix with other oils.
Volume: 7.9 US qts (7.5 liters)
Cooling system
Type: Positive pressure, closed system. The thermostat begins to open at 194 ¡F (90 ¡C)
Coolant: Volvo original coolant/antifreeze
All specifications are subject to change without prior notice.
Power steering fluid
ATF fluid
Volume:
Brake fluid
DOT 4+
Volume: 0.64 US qts (0.6 liters)
Climate control system - refrigerant (R 134a)
Oil: PAG
Volume: 2.2 lbs (1,000 g) R134a
Fuel
Minimum octane requirement - AKI 87 (RON 91)
Volume (fuel tank): 21.1 US gals (80 liters)*
Washer fluid reservoir
Volume: 4.7 US qts (4.5 liters)
* 18.5 US gals (70 liters) on V70 AWD, V70 XC and V70 with non-turbo engine.
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_09.htm[4/4/2013 10:39:07 PM]

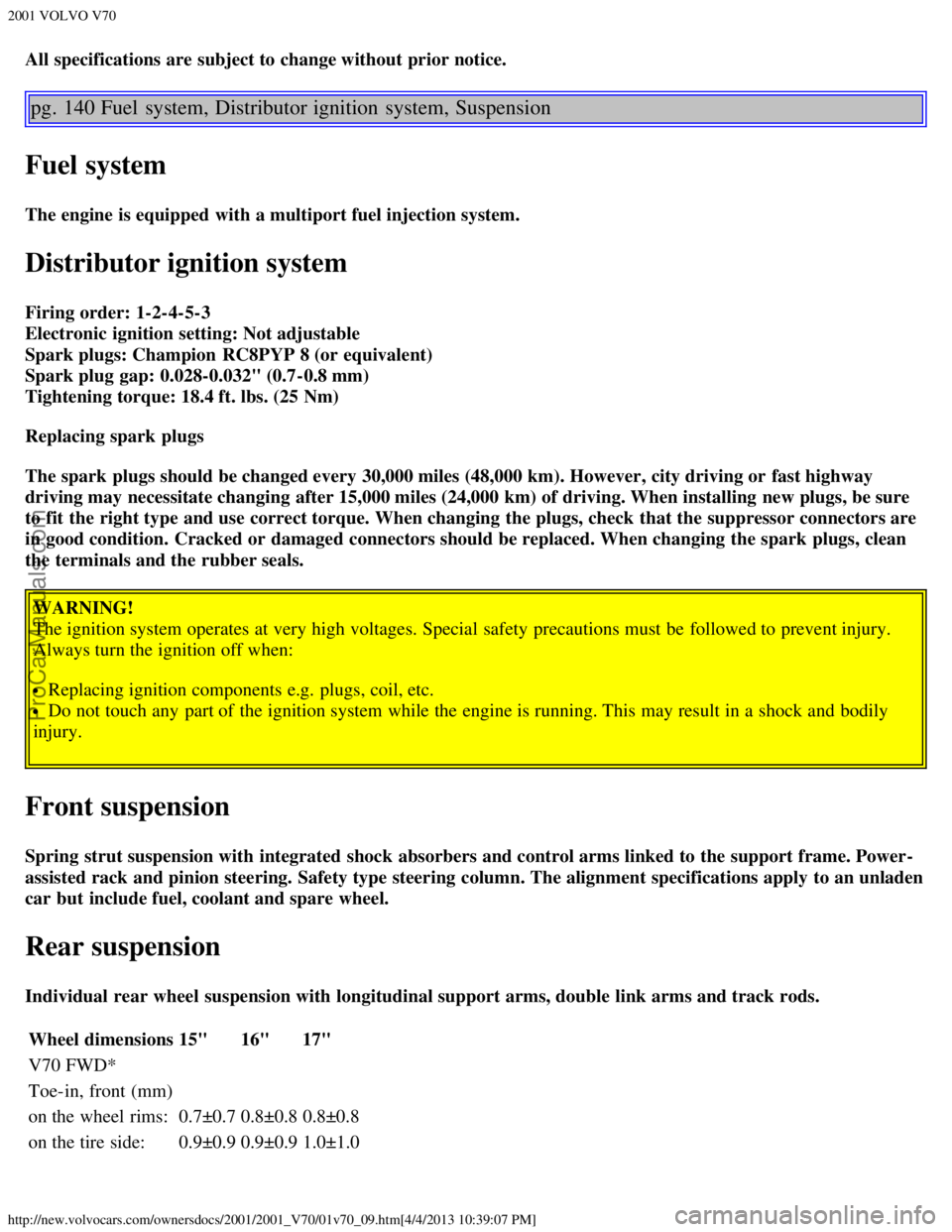

All specifications are subject to change without prior notice.
pg. 140 Fuel system, Distributor ignition system, Suspension
Fuel system
The engine is equipped with a multiport fuel injection system.
Distributor ignition system
Firing order: 1-2-4-5-3
Electronic ignition setting: Not adjustable
Spark plugs: Champion RC8PYP 8 (or equivalent)
Spark plug gap: 0.028-0.032" (0.7-0.8 mm)
Tightening torque: 18.4 ft. lbs. (25 Nm)
Replacing spark plugs
The spark plugs should be changed every 30,000 miles (48,000 km). However, city driving or fast highway
driving may necessitate changing after 15,000 miles (24,000 km) of driving. When installing new plugs, be sure
to fit the right type and use correct torque. When changing the plugs, check that the suppressor connectors are
in good condition. Cracked or damaged connectors should be replaced. When changing the spark plugs, clean
the terminals and the rubber seals.
WARNING!
The ignition system operates at very high voltages. Special safety precautions must be followed to prevent injury.
Always turn the ignition off when:
Replacing ignition components e.g. plugs, coil, etc.
Do not touch any part of the ignition system while the engine is running. This may result in a shock and bodily
injury.
Front suspension
Spring strut suspension with integrated shock absorbers and control arms linked to the support frame. Power-
assisted rack and pinion steering. Safety type steering column. The alignment specifications apply to an unladen
car but include fuel, coolant and spare wheel.
Rear suspension
Individual rear wheel suspension with longitudinal support arms, double link arms and track rods.
Wheel dimensions 15"16"17"
V70 FWD*
Toe-in, front (mm)
on the wheel rims: 0.7±0.70.8±0.80.8±0.8
on the tire side: 0.9±0.90.9±0.91.0±1.0
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_09.htm[4/4/2013 10:39:07 PM]

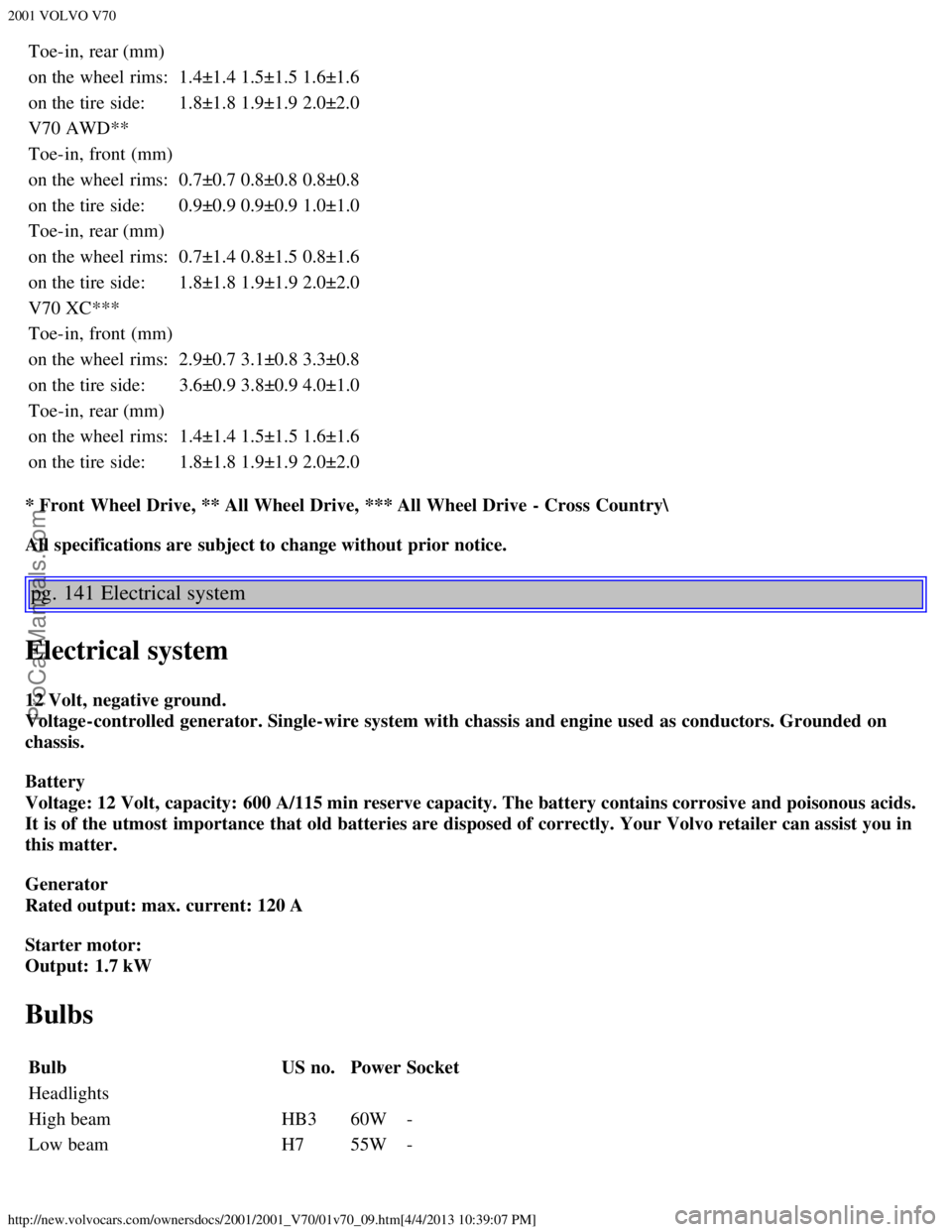

Toe-in, rear (mm)
on the wheel rims:1.4±1.41.5±1.51.6±1.6
on the tire side: 1.8±1.81.9±1.92.0±2.0
V70 AWD**
Toe-in, front (mm)
on the wheel rims: 0.7±0.70.8±0.80.8±0.8
on the tire side: 0.9±0.90.9±0.91.0±1.0
Toe-in, rear (mm)
on the wheel rims: 0.7±1.40.8±1.50.8±1.6
on the tire side: 1.8±1.81.9±1.92.0±2.0
V70 XC***
Toe-in, front (mm)
on the wheel rims: 2.9±0.73.1±0.83.3±0.8
on the tire side: 3.6±0.93.8±0.94.0±1.0
Toe-in, rear (mm)
on the wheel rims: 1.4±1.41.5±1.51.6±1.6
on the tire side: 1.8±1.81.9±1.92.0±2.0
* Front Wheel Drive, ** All Wheel Drive, *** All Wheel Drive - Cross Country\
All specifications are subject to change without prior notice.
pg. 141 Electrical system
Electrical system
12 Volt, negative ground.
Voltage-controlled generator. Single-wire system with chassis and engine used as conductors. Grounded on
chassis.
Battery
Voltage: 12 Volt, capacity: 600 A/115 min reserve capacity. The battery contains corrosive and poisonous acids.
It is of the utmost importance that old batteries are disposed of correctly. Your Volvo retailer can assist you in
this matter.
Generator
Rated output: max. current: 120 A
Starter motor:
Output: 1.7 kW
Bulbs
Bulb US no.PowerSocket
Headlights
High beam HB360W-
Low beam H755W-
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_09.htm[4/4/2013 10:39:07 PM]

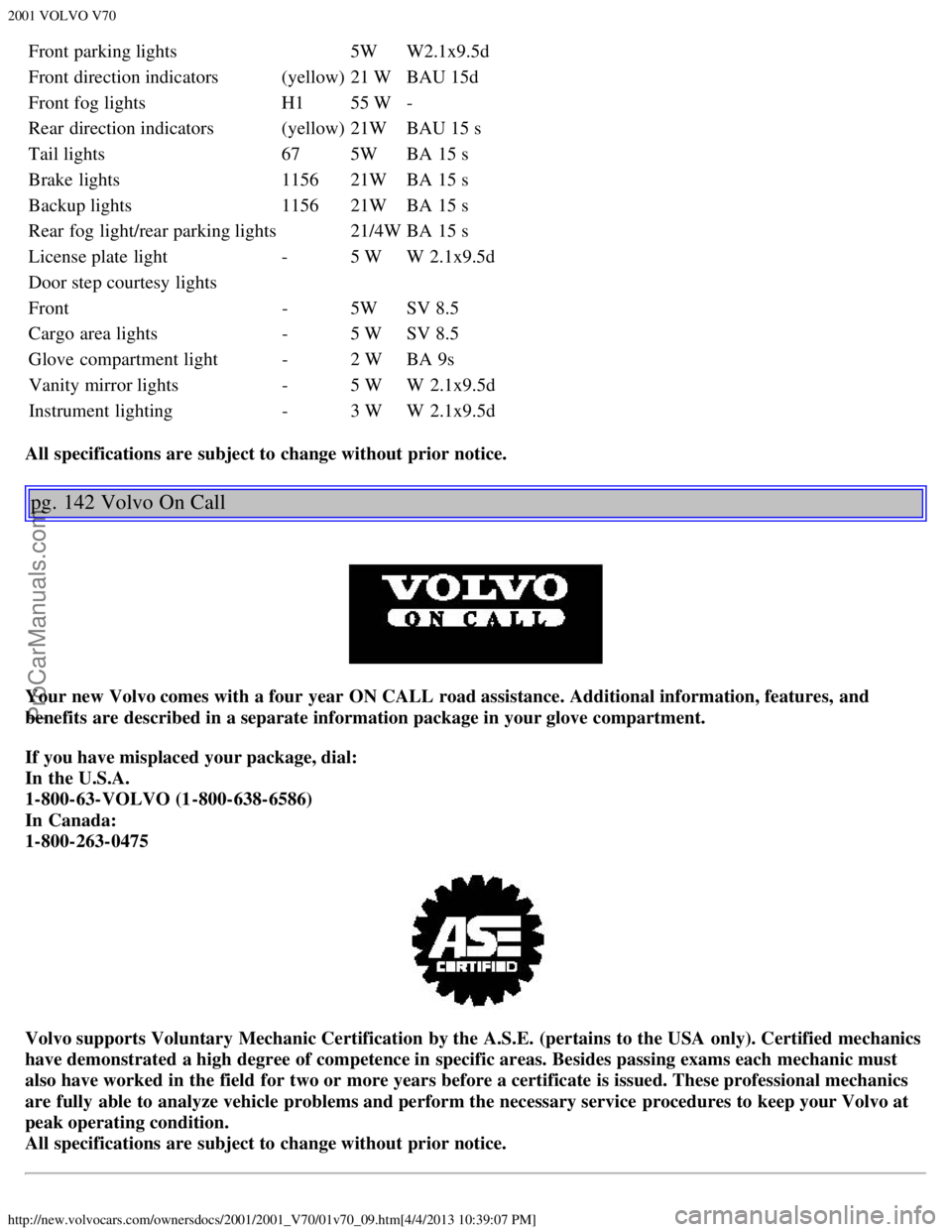

Front parking lights5WW2.1x9.5d
Front direction indicators (yellow)21 WBAU 15d
Front fog lights H155 W-
Rear direction indicators (yellow)21WBAU 15 s
Tail lights 675WBA 15 s
Brake lights 115621WBA 15 s
Backup lights 115621WBA 15 s
Rear fog light/rear parking lights 21/4WBA 15 s
License plate light -5 WW 2.1x9.5d
Door step courtesy lights
Front -5WSV 8.5
Cargo area lights -5 WSV 8.5
Glove compartment light -2 WBA 9s
Vanity mirror lights -5 WW 2.1x9.5d
Instrument lighting -3 WW 2.1x9.5d
All specifications are subject to change without prior notice.
pg. 142 Volvo On Call
Your new Volvo comes with a four year ON CALL road assistance. Additional information, features, and
benefits are described in a separate information package in your glove compartment.
If you have misplaced your package, dial:
In the U.S.A.
1-800-63-VOLVO (1-800-638-6586)
In Canada:
1-800-263-0475
Volvo supports Voluntary Mechanic Certification by the A.S.E. (pertains to the USA only). Certified mechanics
have demonstrated a high degree of competence in specific areas. Besides passing exams each mechanic must
also have worked in the field for two or more years before a certificate is issued. These professional mechanics
are fully able to analyze vehicle problems and perform the necessary service procedures to keep your Volvo at
peak operating condition.
All specifications are subject to change without prior notice.
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_09.htm[4/4/2013 10:39:07 PM]

Contents | Top of Page
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_10a.htm[4/4/2013 10:39:12 PM]
2 0 0 1
VOLVO V70
Chapter 10 - Audio systems
pg. 143 Audio systems
HU-413 overview144
HU-613 overview145
HU-803 overview146
Functions147
Specifications159
General information160
pg. 144 Audio system HU-413 - overview
1. Display
2. Radio - Manual station selection
Cassette - Fast winding forward/backward
CD - Fast forward/backward.
3. Radio - Station seek up/down
Cassette - selecting next/previous track
CD - Selecting next/previous track
4. Fader - press and turn Balance - press, pull and turn
5. Selector knob:
Radio
Cassette
CD changer
ProCarManuals.com
