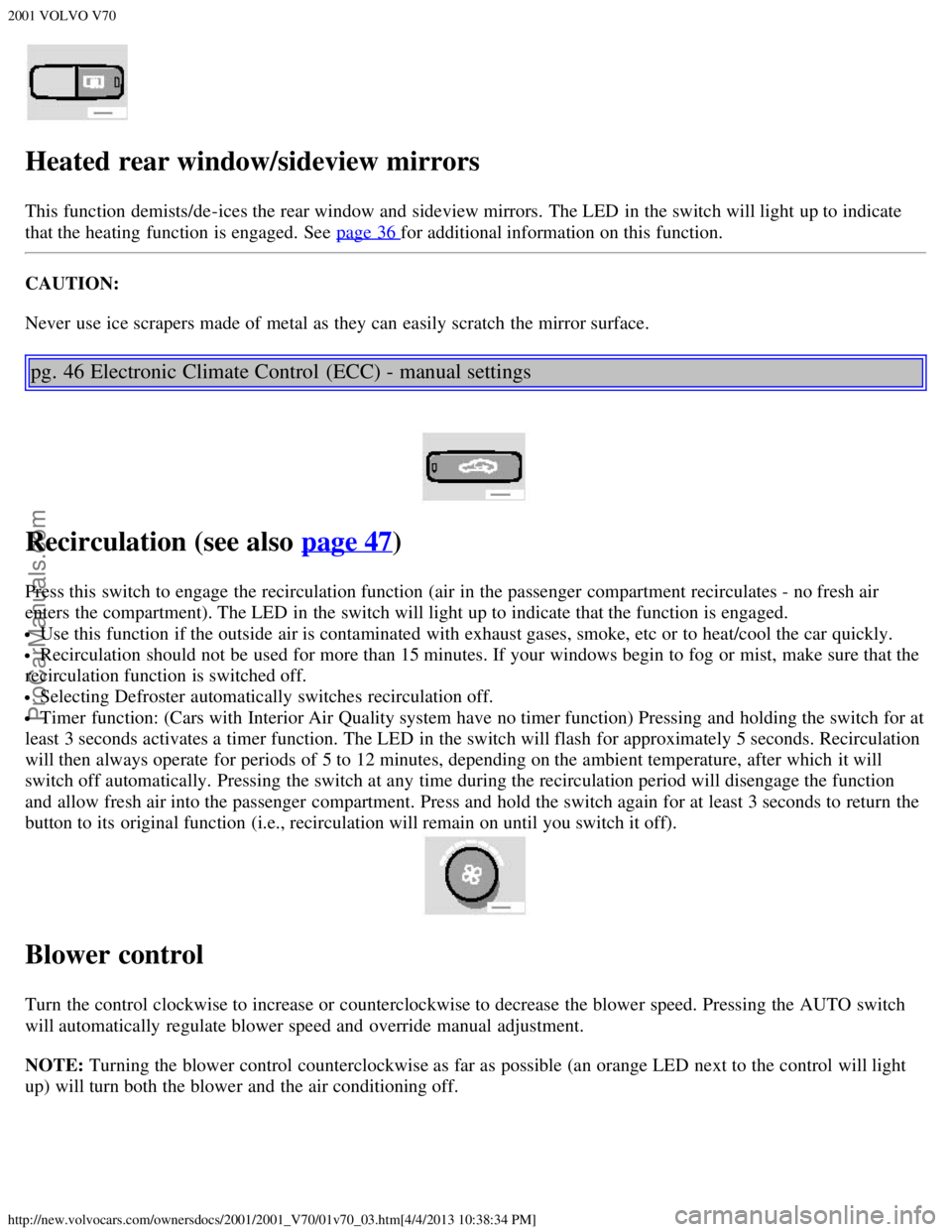

Heated rear window/sideview mirrors
This function demists/de-ices the rear window and sideview mirrors. The LED in the switch will light up to indicate
that the heating function is engaged. See page 36
for additional information on this function.
CAUTION:
Never use ice scrapers made of metal as they can easily scratch the mirror surface.
pg. 46 Electronic Climate Control (ECC) - manual settings
Recirculation (see also page 47)
Press this switch to engage the recirculation function (air in the passenger compartment recirculates - no fresh air
enters the compartment). The LED in the switch will light up to indicate that the function is engaged.
Use this function if the outside air is contaminated with exhaust gases, smoke, etc or to heat/cool the car quickly.
Recirculation should not be used for more than 15 minutes. If your windows begin to fog or mist, make sure that the
recirculation function is switched off.
Selecting Defroster automatically switches recirculation off.
Timer function: (Cars with Interior Air Quality system have no timer function) Pressing and holding the switch for at
least 3 seconds activates a timer function. The LED in the switch will flash for approximately 5 seconds. Recirculation
will then always operate for periods of 5 to 12 minutes, depending on the ambient temperature, after which it will
switch off automatically. Pressing the switch at any time during the recirculation period will disengage the function
and allow fresh air into the passenger compartment. Press and hold the switch again for at least 3 seconds to return the
button to its original function (i.e., recirculation will remain on until you switch it off).
Blower control
Turn the control clockwise to increase or counterclockwise to decrease the blower speed. Pressing the AUTO switch
will automatically regulate blower speed and override manual adjustment.
NOTE: Turning the blower control counterclockwise as far as possible (an orange LED next to the control will light
up) will turn both the blower and the air conditioning off.
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_03.htm[4/4/2013 10:38:34 PM]

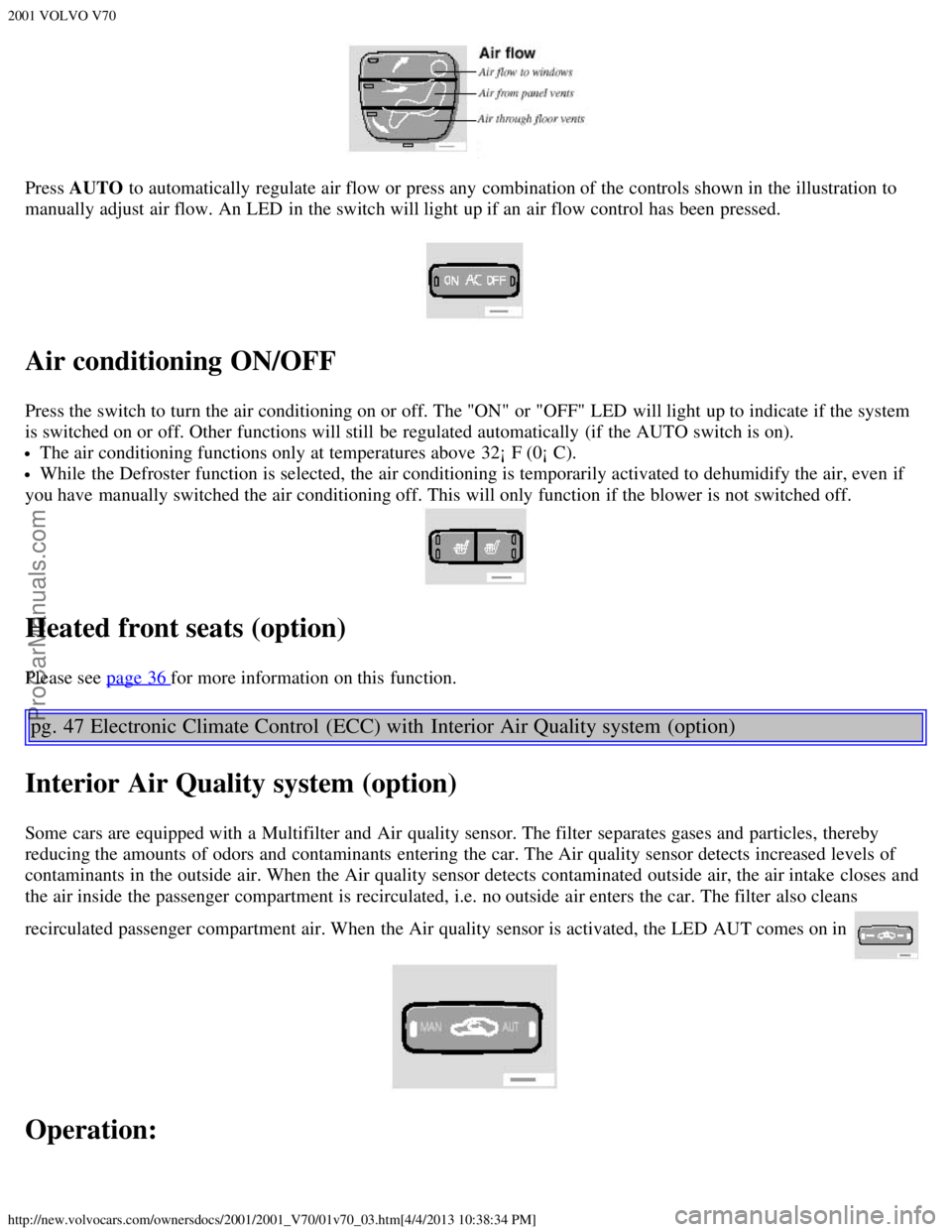

Press AUTO to automatically regulate air flow or press any combination of the controls shown in the illustration to
manually adjust air flow. An LED in the switch will light up if an air flow control has been pressed.
Air conditioning ON/OFF
Press the switch to turn the air conditioning on or off. The "ON" or "OFF" LED will light up to indicate if the system
is switched on or off. Other functions will still be regulated automatically (if the AUTO switch is on).
The air conditioning functions only at temperatures above 32¡ F (0¡ C).
While the Defroster function is selected, the air conditioning is temporarily activated to dehumidify the air, even if
you have manually switched the air conditioning off. This will only function if the blower is not switched off.
Heated front seats (option)
Please see page 36 for more information on this function.
pg. 47 Electronic Climate Control (ECC) with Interior Air Quality system (option)
Interior Air Quality system (option)
Some cars are equipped with a Multifilter and Air quality sensor. The filter separates gases and particles, thereby
reducing the amounts of odors and contaminants entering the car. The Air quality sensor detects increased levels of
contaminants in the outside air. When the Air quality sensor detects contaminated outside air, the air intake closes and
the air inside the passenger compartment is recirculated, i.e. no outside air enters the car. The filter also cleans
recirculated passenger compartment air. When the Air quality sensor is activated, the LED AUT comes on in

Operation:
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_03.htm[4/4/2013 10:38:34 PM]

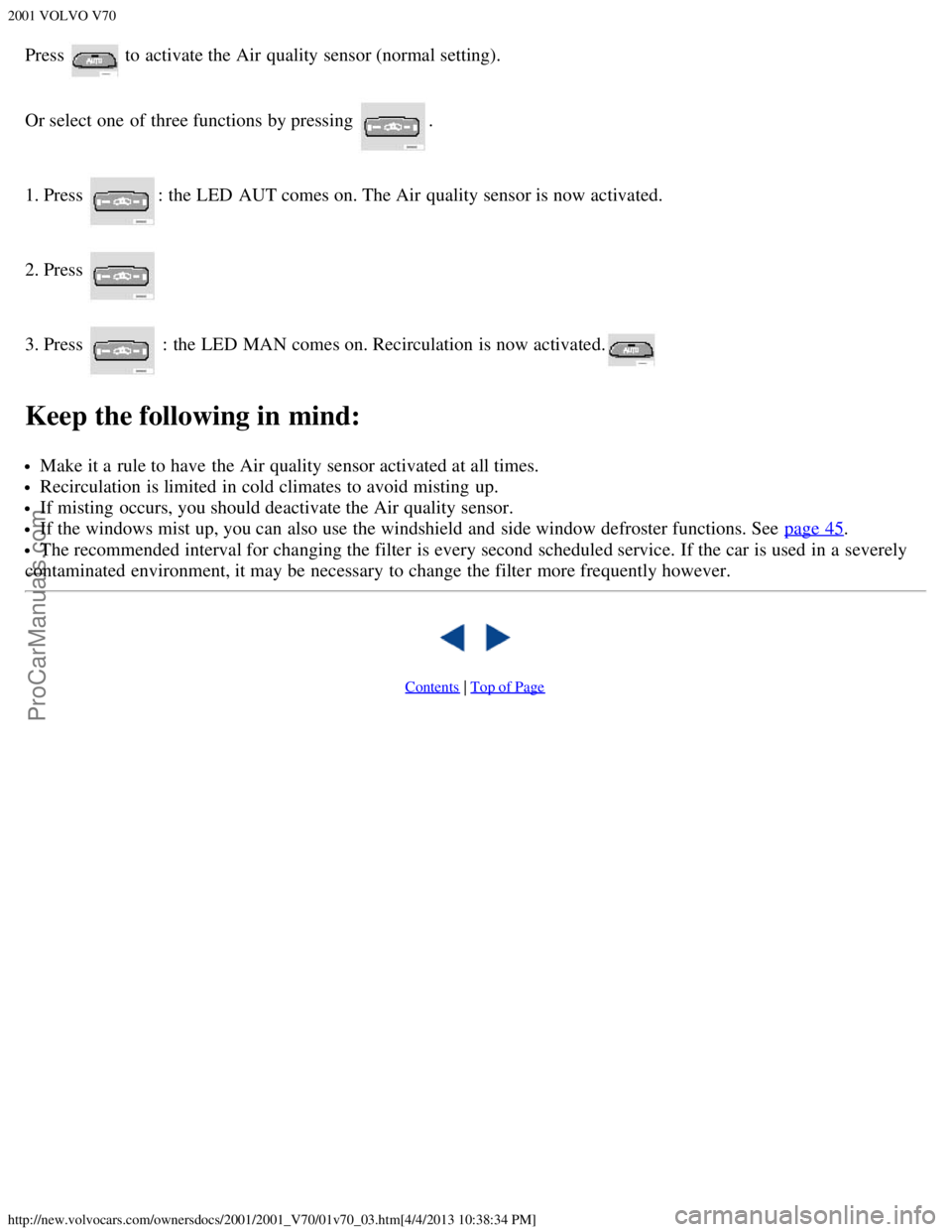

Press to activate the Air quality sensor (normal setting).
Or select one of three functions by pressing .
1. Press
: the LED AUT comes on. The Air quality sensor is now activated.
2. Press
3. Press : the LED MAN comes on. Recirculation is now activated.
Keep the following in mind:
Make it a rule to have the Air quality sensor activated at all times.
Recirculation is limited in cold climates to avoid misting up.
If misting occurs, you should deactivate the Air quality sensor.
If the windows mist up, you can also use the windshield and side window defroster functions. See page 45.
The recommended interval for changing the filter is every second scheduled service. If the car is used in a severely
contaminated environment, it may be necessary to change the filter more frequently however.

Contents | Top of Page
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_04a.htm[4/4/2013 10:38:38 PM]

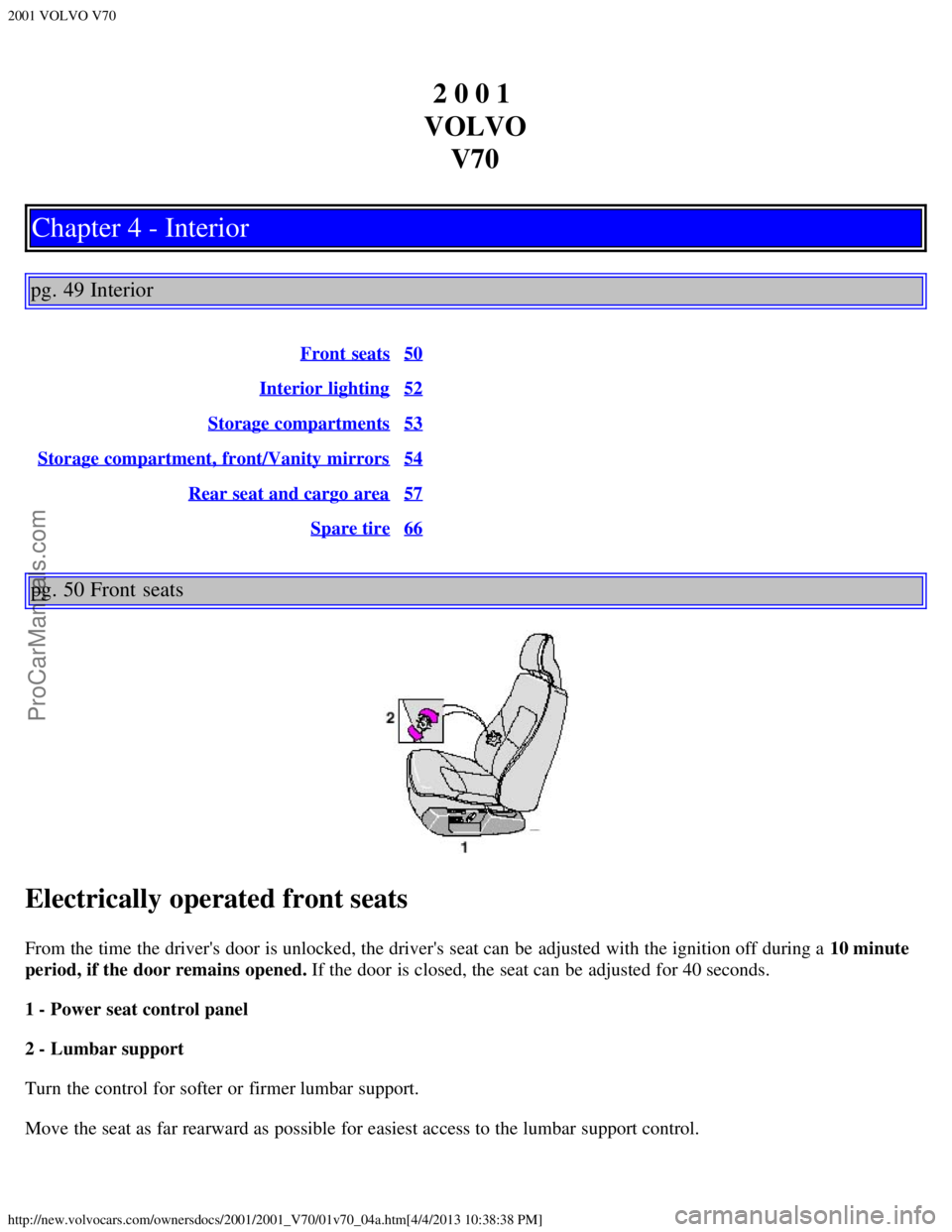

2 0 0 1
VOLVO V70
Chapter 4 - Interior
pg. 49 Interior
Front seats50
Interior lighting52
Storage compartments53
Storage compartment, front/Vanity mirrors54
Rear seat and cargo area57
Spare tire66
pg. 50 Front seats
Electrically operated front seats
From the time the driver's door is unlocked, the driver's seat can be adjusted with the ignition off during a 10 minute
period, if the door remains opened. If the door is closed, the seat can be adjusted for 40 seconds.
1 - Power seat control panel
2 - Lumbar support
Turn the control for softer or firmer lumbar support.
Move the seat as far rearward as possible for easiest access to the lumbar support control.
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_04a.htm[4/4/2013 10:38:38 PM]

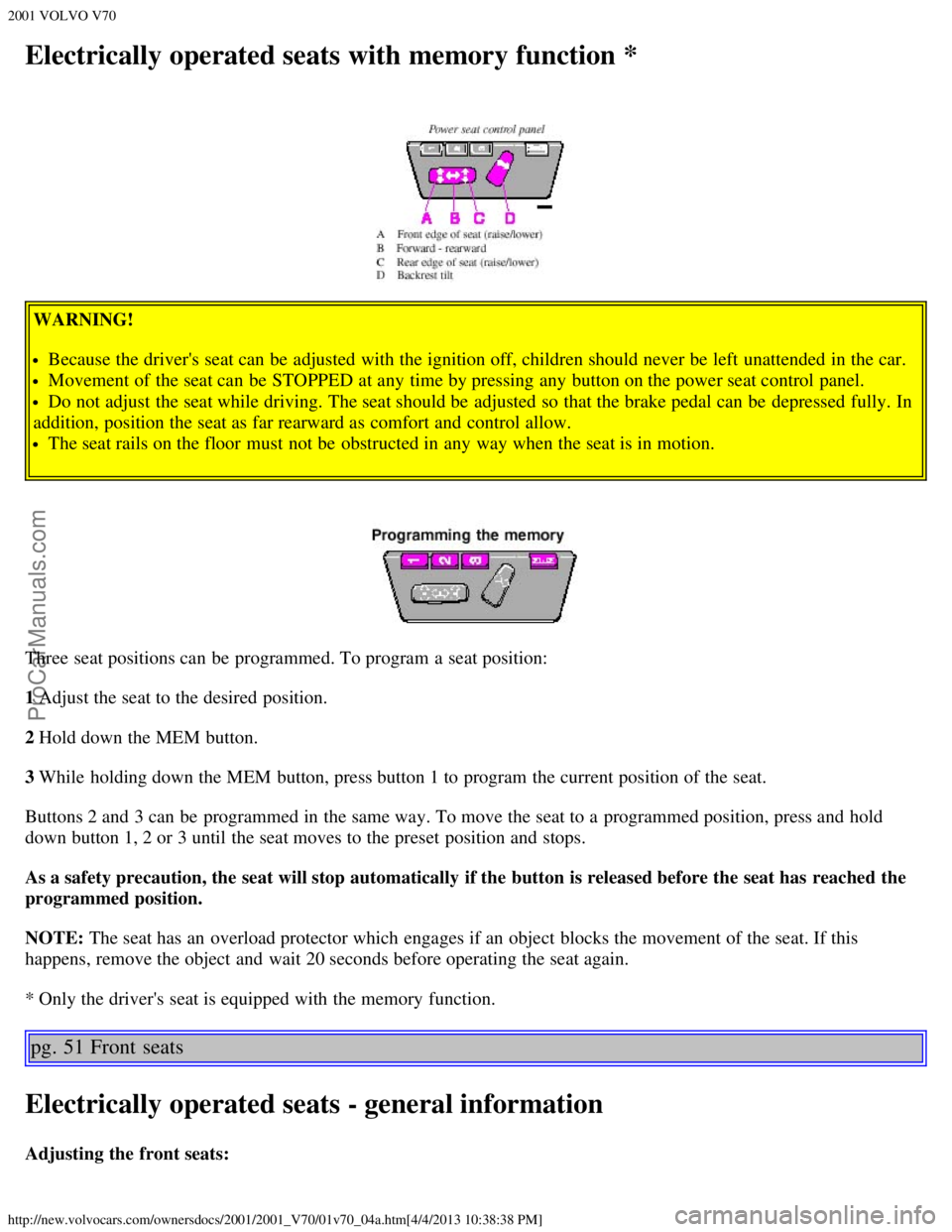

Electrically operated seats with memory function *
WARNING!
Because the driver's seat can be adjusted with the ignition off, children should never be left unattended in the car.
Movement of the seat can be STOPPED at any time by pressing any button on the power seat control panel.
Do not adjust the seat while driving. The seat should be adjusted so that the brake pedal can be depressed fully. In
addition, position the seat as far rearward as comfort and control allow.
The seat rails on the floor must not be obstructed in any way when the seat is in motion.
Three seat positions can be programmed. To program a seat position:
1 Adjust the seat to the desired position.
2 Hold down the MEM button.
3 While holding down the MEM button, press button 1 to program the current position of the seat.
Buttons 2 and 3 can be programmed in the same way. To move the seat to a programmed position, press and hold
down button 1, 2 or 3 until the seat moves to the preset position and stops.
As a safety precaution, the seat will stop automatically if the button is released before the seat has reached the
programmed position.
NOTE: The seat has an overload protector which engages if an object blocks the movement of the seat. If this
happens, remove the object and wait 20 seconds before operating the seat again.
* Only the driver's seat is equipped with the memory function.
pg. 51 Front seats
Electrically operated seats - general information
Adjusting the front seats:
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_04a.htm[4/4/2013 10:38:38 PM]

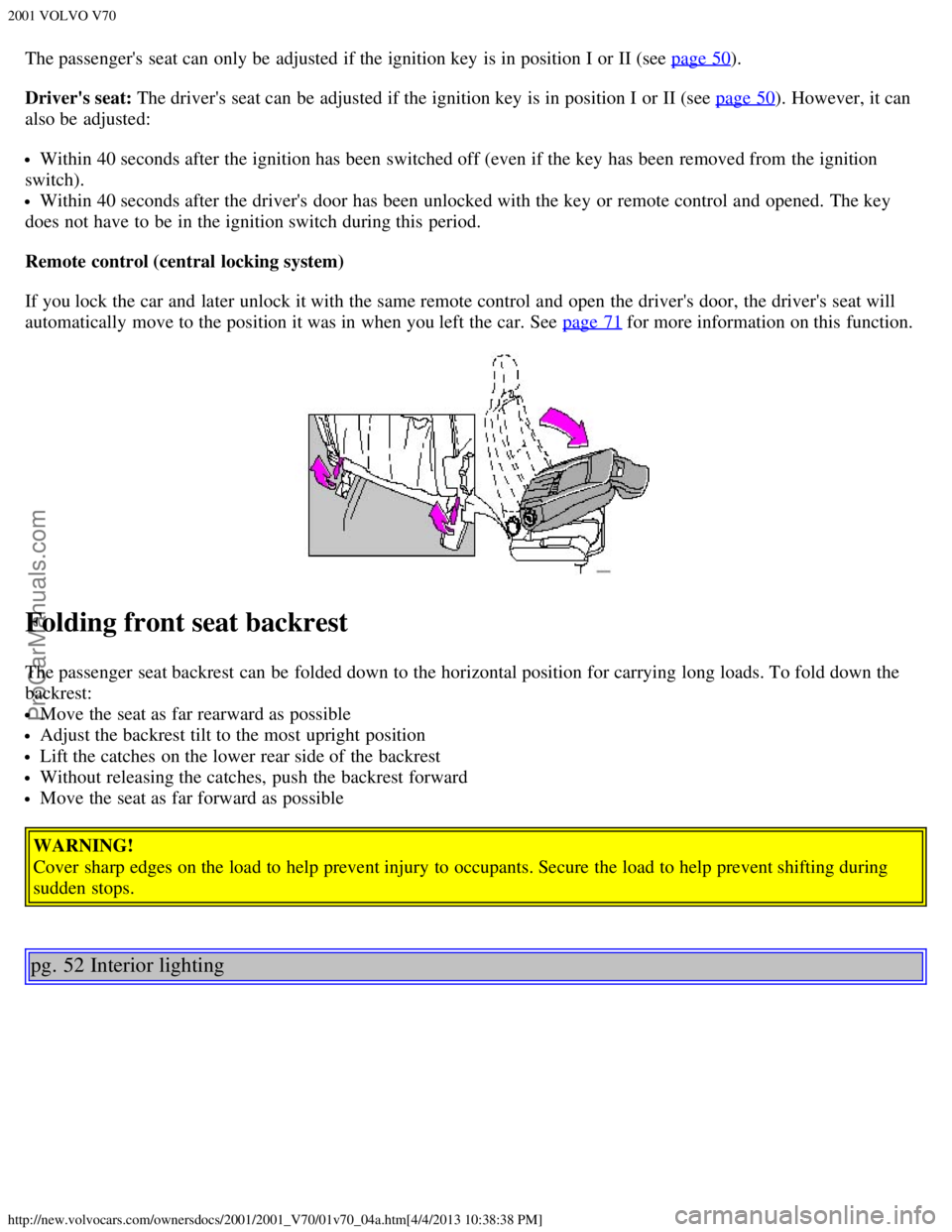

The passenger's seat can only be adjusted if the ignition key is in position I or II (see page 50).
Driver's seat: The driver's seat can be adjusted if the ignition key is in position I or II (see page 50
). However, it can
also be adjusted:
Within 40 seconds after the ignition has been switched off (even if the key has been removed from the ignition
switch).
Within 40 seconds after the driver's door has been unlocked with the key or remote control and opened. The key
does not have to be in the ignition switch during this period.
Remote control (central locking system)
If you lock the car and later unlock it with the same remote control and open the driver's door, the driver's seat will
automatically move to the position it was in when you left the car. See page 71
for more information on this function.
Folding front seat backrest
The passenger seat backrest can be folded down to the horizontal position for carrying long loads. To fold down the
backrest:
Move the seat as far rearward as possible
Adjust the backrest tilt to the most upright position
Lift the catches on the lower rear side of the backrest
Without releasing the catches, push the backrest forward
Move the seat as far forward as possible
WARNING!
Cover sharp edges on the load to help prevent injury to occupants. Secure the load to help prevent shifting during
sudden stops.
pg. 52 Interior lighting
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_04a.htm[4/4/2013 10:38:38 PM]

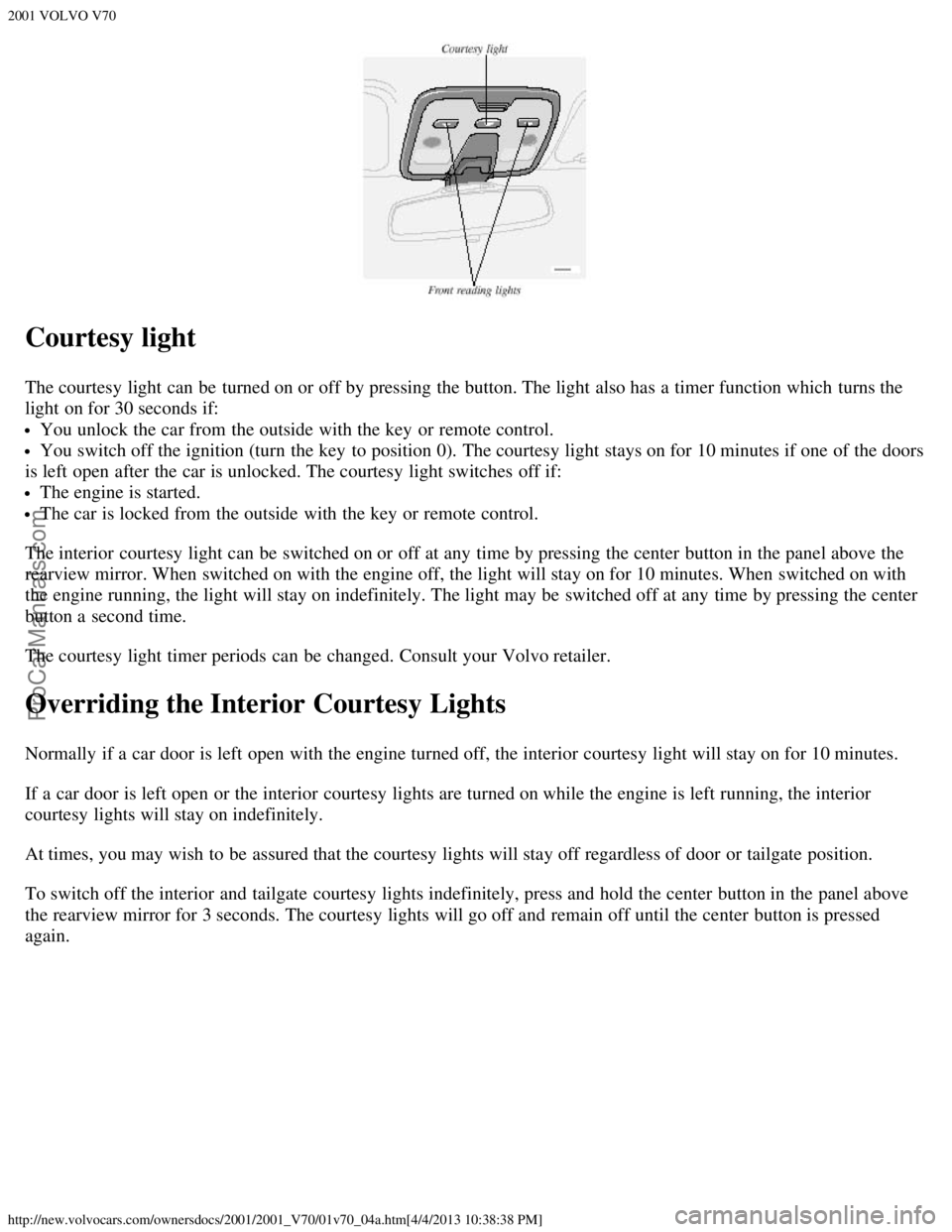

Courtesy light
The courtesy light can be turned on or off by pressing the button. The light also has a timer function which turns the
light on for 30 seconds if:
You unlock the car from the outside with the key or remote control.
You switch off the ignition (turn the key to position 0). The courtesy light stays on for 10 minutes if one of the doors
is left open after the car is unlocked. The courtesy light switches off if:
The engine is started.
The car is locked from the outside with the key or remote control.
The interior courtesy light can be switched on or off at any time by pressing the center button in the panel above the
rearview mirror. When switched on with the engine off, the light will stay on for 10 minutes. When switched on with
the engine running, the light will stay on indefinitely. The light may be switched off at any time by pressing the center
button a second time.
The courtesy light timer periods can be changed. Consult your Volvo retailer.
Overriding the Interior Courtesy Lights
Normally if a car door is left open with the engine turned off, the interior courtesy light will stay on for 10 minutes.
If a car door is left open or the interior courtesy lights are turned on while the engine is left running, the interior
courtesy lights will stay on indefinitely.
At times, you may wish to be assured that the courtesy lights will stay off regardless of door or tailgate position.
To switch off the interior and tailgate courtesy lights indefinitely, press and hold the center button in the panel above
the rearview mirror for 3 seconds. The courtesy lights will go off and remain off until the center button is pressed
again.
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_04a.htm[4/4/2013 10:38:38 PM]

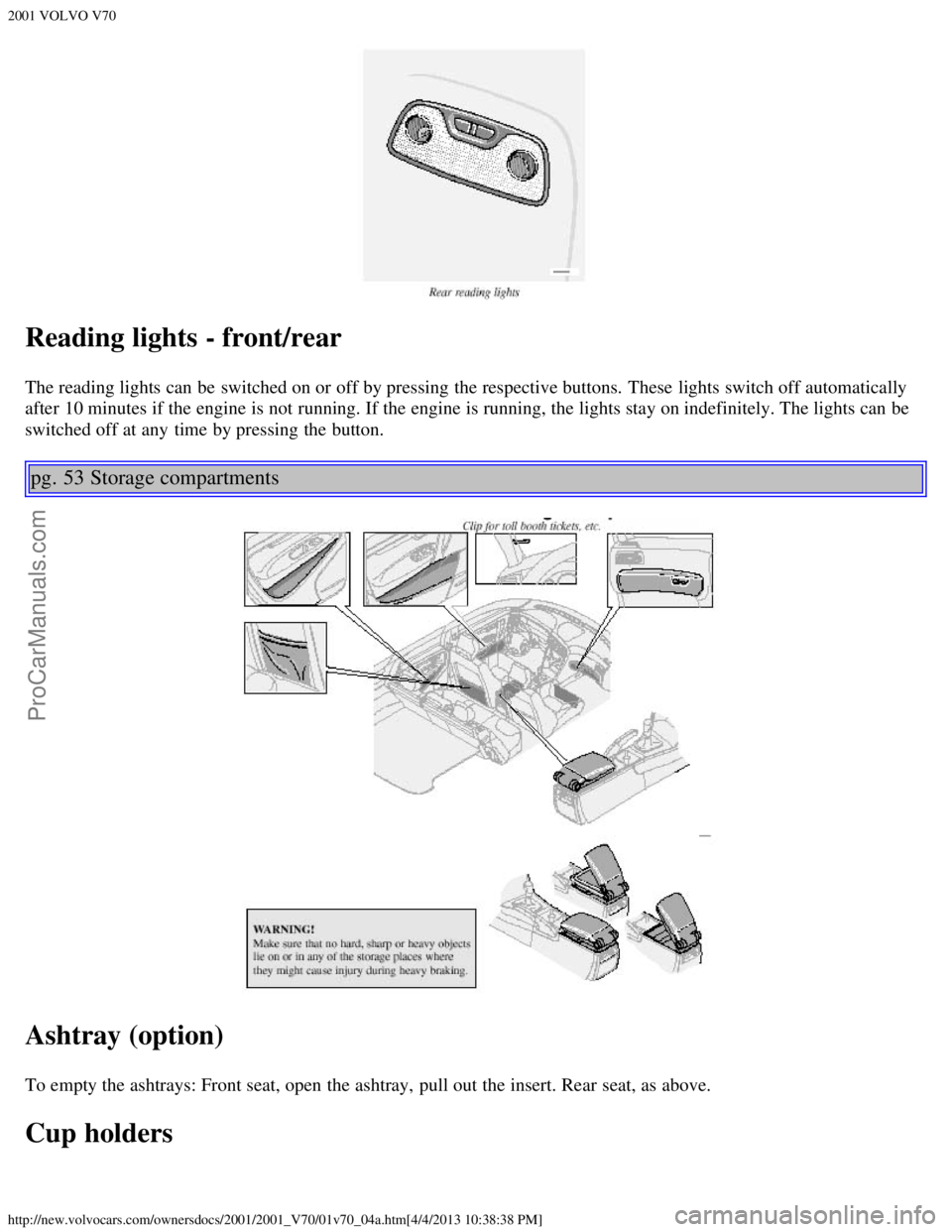

Reading lights - front/rear
The reading lights can be switched on or off by pressing the respective buttons. These lights switch off automatically
after 10 minutes if the engine is not running. If the engine is running, the lights stay on indefinitely. The lights can be
switched off at any time by pressing the button.
pg. 53 Storage compartments
Ashtray (option)
To empty the ashtrays: Front seat, open the ashtray, pull out the insert. Rear seat, as above.
Cup holders
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_04a.htm[4/4/2013 10:38:38 PM]

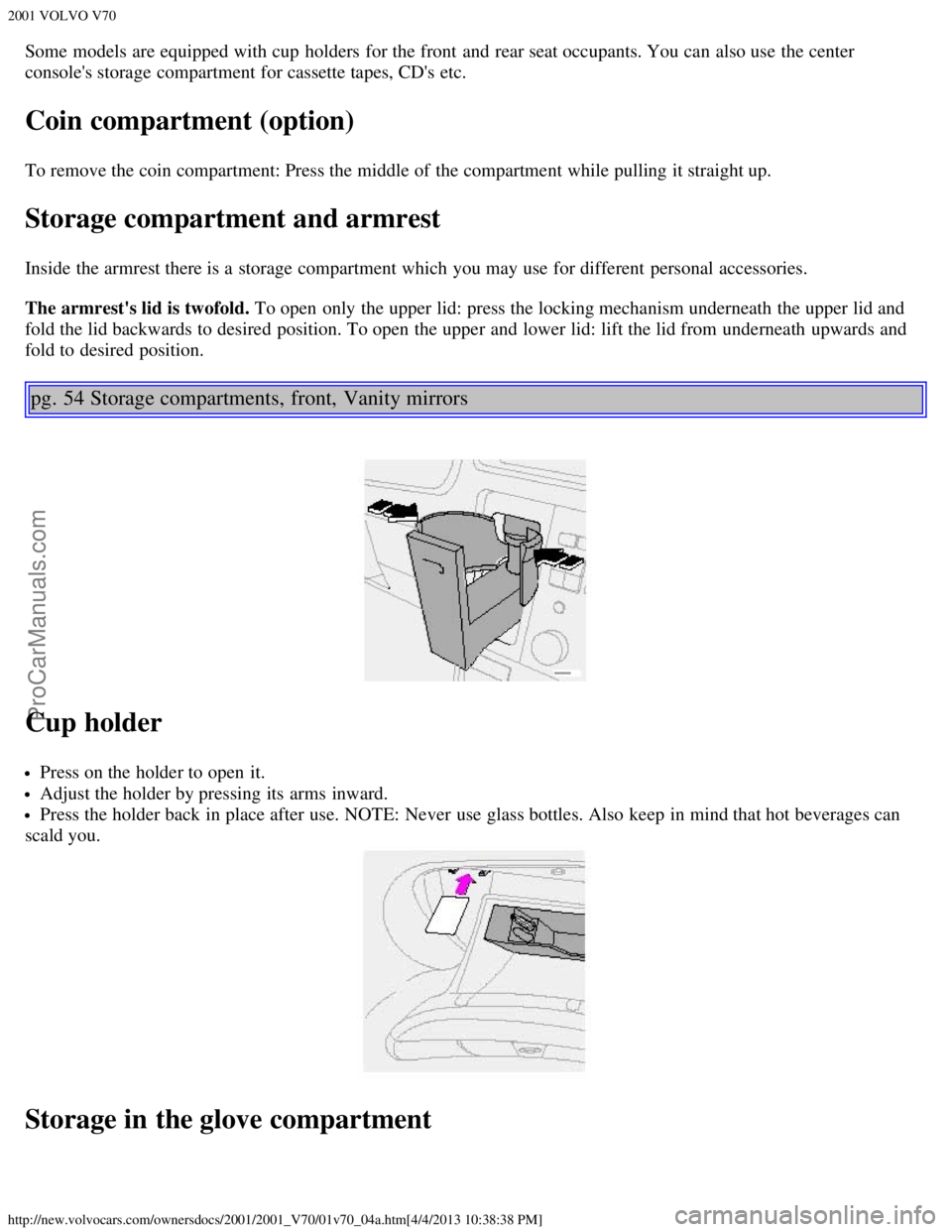

Some models are equipped with cup holders for the front and rear seat occupants. You can also use the center
console's storage compartment for cassette tapes, CD's etc.
Coin compartment (option)
To remove the coin compartment: Press the middle of the compartment while pulling it straight up.
Storage compartment and armrest
Inside the armrest there is a storage compartment which you may use for different personal accessories.
The armrest's lid is twofold. To open only the upper lid: press the locking mechanism underneath the upper lid and
fold the lid backwards to desired position. To open the upper and lower lid: lift the lid from underneath upwards and
fold to desired position.
pg. 54 Storage compartments, front, Vanity mirrors
Cup holder
Press on the holder to open it.
Adjust the holder by pressing its arms inward.
Press the holder back in place after use. NOTE: Never use glass bottles. Also keep in mind that hot beverages can
scald you.
Storage in the glove compartment
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_04a.htm[4/4/2013 10:38:38 PM]

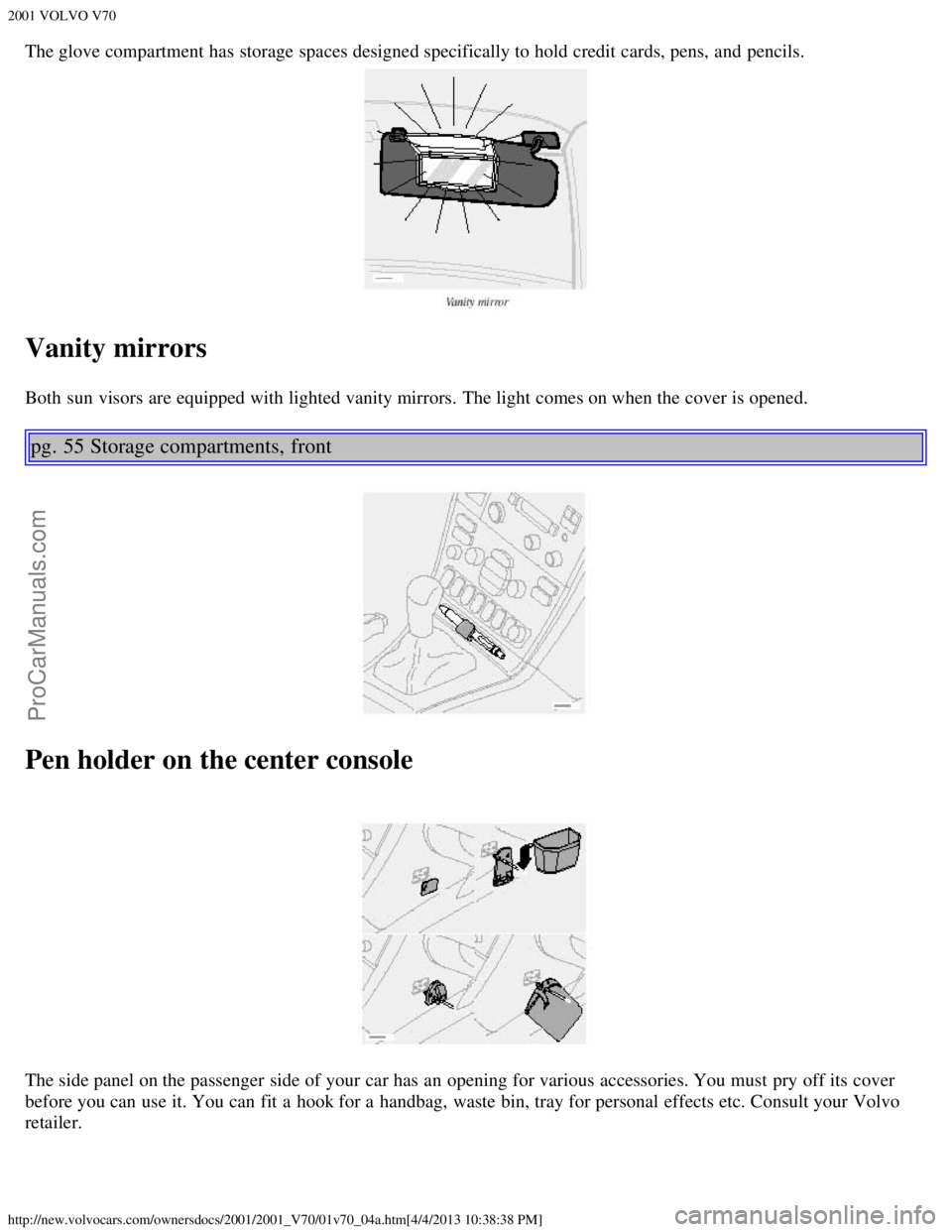

The glove compartment has storage spaces designed specifically to hold credit cards, pens, and pencils.
Vanity mirrors
Both sun visors are equipped with lighted vanity mirrors. The light comes on when the cover is opened.
pg. 55 Storage compartments, front
Pen holder on the center console
The side panel on the passenger side of your car has an opening for various accessories. You must pry off its cover
before you can use it. You can fit a hook for a handbag, waste bin, tray for personal effects etc. Consult your Volvo
retailer.
