04 Comfort and driving pleasureCollision warning with Auto-brake (option)
04162

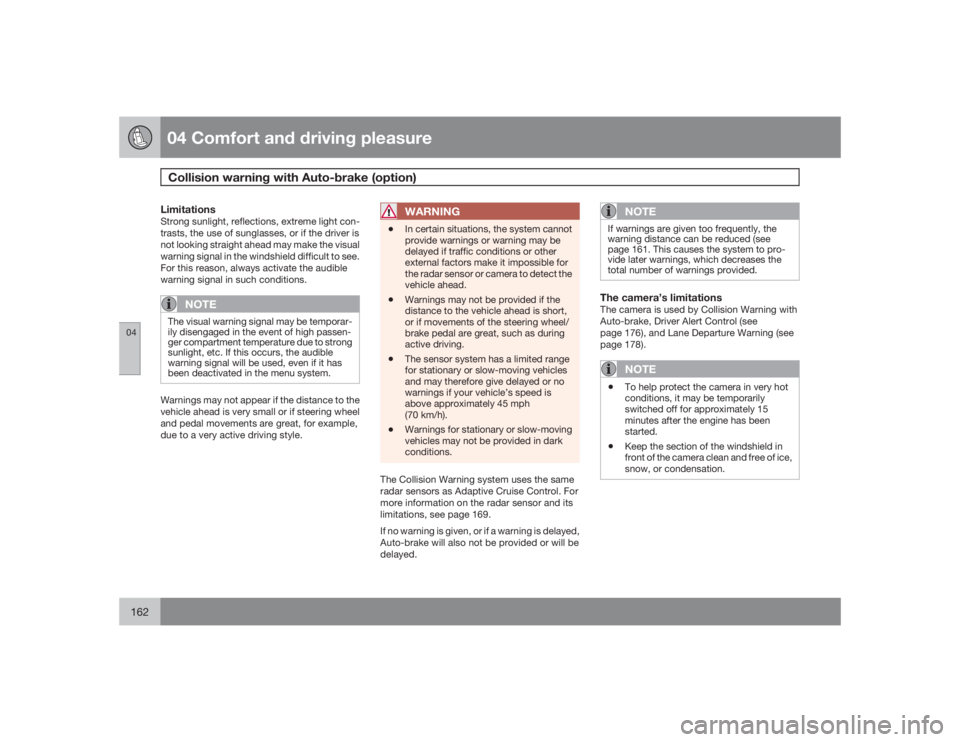

LimitationsStrong sunlight, reflections, extreme light con-
trasts, the use of sunglasses, or if the driver is
not looking straight ahead may make the visual
warning signal in the windshield difficult to see.
For this reason, always activate the audible
warning signal in such conditions.
NOTE
The visual warning signal may be temporar-
ily disengaged in the event of high passen-
ger compartment temperature due to strong
sunlight, etc. If this occurs, the audible
warning signal will be used, even if it has
been deactivated in the menu system.Warnings may not appear if the distance to the
vehicle ahead is very small or if steering wheel
and pedal movements are great, for example,
due to a very active driving style.
WARNING
•
In certain situations, the system cannot
provide warnings or warning may be
delayed if traffic conditions or other
external factors make it impossible for
the radar sensor or camera to detect the
vehicle ahead.
•
Warnings may not be provided if the
distance to the vehicle ahead is short,
or if movements of the steering wheel/
brake pedal are great, such as during
active driving.
•
The sensor system has a limited range
for stationary or slow-moving vehicles
and may therefore give delayed or no
warnings if your vehicle’s speed is
above approximately 45 mph
(70 km/h).
•
Warnings for stationary or slow-moving
vehicles may not be provided in dark
conditions.
The Collision Warning system uses the same
radar sensors as Adaptive Cruise Control. For
more information on the radar sensor and its
limitations, see page 169.
If no warning is given, or if a warning is delayed,
Auto-brake will also not be provided or will be
delayed.
NOTE
If warnings are given too frequently, the
warning distance can be reduced (see
page 161. This causes the system to pro-
vide later warnings, which decreases the
total number of warnings provided.The camera’s limitationsThe camera is used by Collision Warning with
Auto-brake, Driver Alert Control (see
page 176), and Lane Departure Warning (see
page 178).
NOTE
•
To help protect the camera in very hot
conditions, it may be temporarily
switched off for approximately 15
minutes after the engine has been
started.
•
Keep the section of the windshield in
front of the camera clean and free of ice,
snow, or condensation.

04 Comfort and driving pleasure
Collision warning with Auto-brake (option)
04``163
WARNING
•

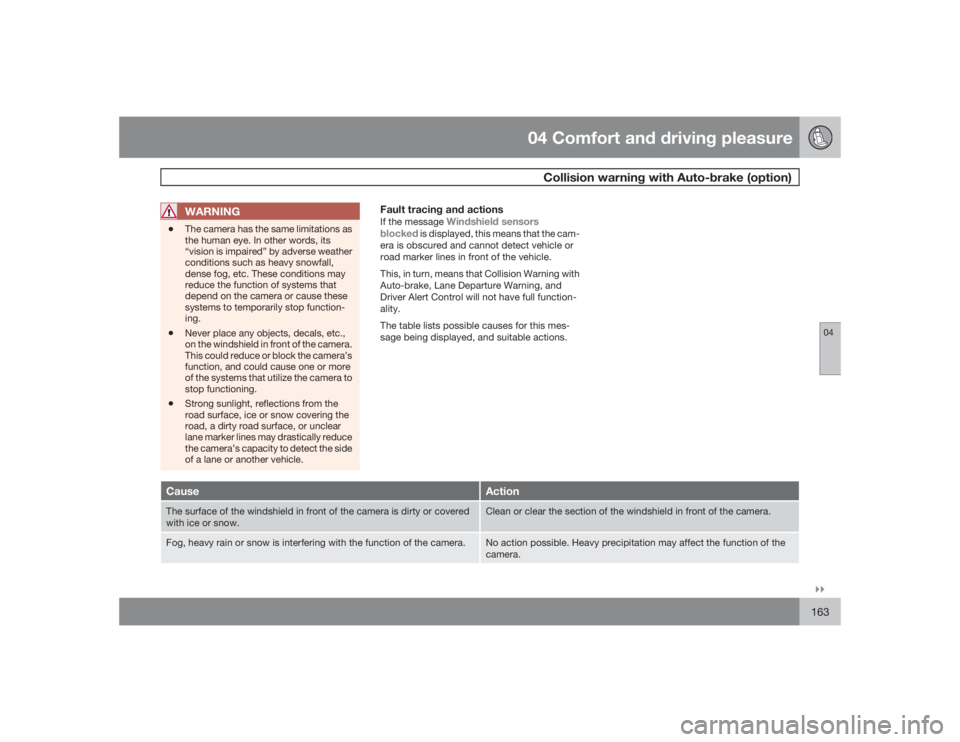

The camera has the same limitations as
the human eye. In other words, its
“vision is impaired” by adverse weather
conditions such as heavy snowfall,
dense fog, etc. These conditions may
reduce the function of systems that
depend on the camera or cause these
systems to temporarily stop function-
ing.
•
Never place any objects, decals, etc.,
on the windshield in front of the camera.
This could reduce or block the camera’s
function, and could cause one or more
of the systems that utilize the camera to
stop functioning.
•
Strong sunlight, reflections from the
road surface, ice or snow covering the
road, a dirty road surface, or unclear
lane marker lines may drastically reduce
the camera’s capacity to detect the side
of a lane or another vehicle.
Fault tracing and actionsIf the message
Windshield sensors
blocked
is displayed, this means that the cam-
era is obscured and cannot detect vehicle or
road marker lines in front of the vehicle.
This, in turn, means that Collision Warning with
Auto-brake, Lane Departure Warning, and
Driver Alert Control will not have full function-
ality.
The table lists possible causes for this mes-
sage being displayed, and suitable actions.
Cause
Action
The surface of the windshield in front of the camera is dirty or covered
with ice or snow.
Clean or clear the section of the windshield in front of the camera.
Fog, heavy rain or snow is interfering with the function of the camera.
No action possible. Heavy precipitation may affect the function of the
camera.

04 Comfort and driving pleasure
Collision warning with Auto-brake (option)
04
165
Symbol
Message
Description
Radar blocked
See manual
Collision Warning and Auto-brake are temporarily not functioning. The radar sensor is blocked, for
example by heavy rain or snow that has accumulated in front of the sensor, and cannot detect other
vehicles, see page 169 for more information on the radar sensor’s limitations.
Collision warn.
Service required
Collision Warning and Auto-brake are partially or completely not functioning.
Contact a trained and qualified Volvo service technician if the message remains in the display.

04 Comfort and driving pleasureAdaptive Cruise Control–ACC (option)
04166
IntroductionAdaptive Cruise Control (ACC) is an optional
system designed to assist the driver by main-
taining a set speed or a set distance to the
vehicle ahead. It is primarily intended for use
on long straight roads in steady traffic, such as
on highways and other main roads.
WARNING
•
Do not use the adaptive cruise control
system in demanding driving conditions
such as city traffic, winding roads, at
intersections, on slippery surfaces, in
poor visibility, heavy rain, etc.
•
Maintenance of cruise control compo-
nents must only be performed by an
authorized Volvo workshop.
WARNING
•
Adaptive cruise control cannot cover all
driving situations and traffic, weather
and road conditions. The Function sec-
tion provides information about limita-
tions that the driver must be aware of
before using the adaptive cruise con-
trol.
•
This system is designed to be a supple-
mentary driving aid. It is not, however,
intended to replace the driver's atten-
tion and judgement. The driver is
responsible for maintaining a safe dis-
tance and speed and must intervene if
adaptive cruise control does not main-
tain a suitable speed or suitable dis-
tance.
Function
G021412

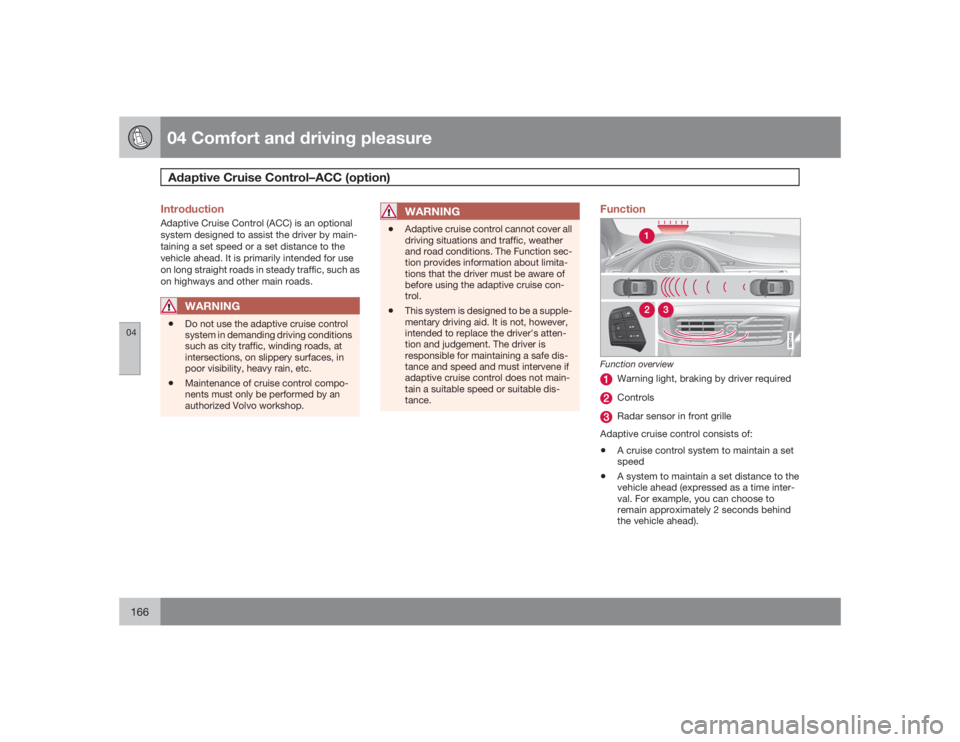

Function overview
Warning light, braking by driver requiredControlsRadar sensor in front grille
Adaptive cruise control consists of:
•
A cruise control system to maintain a set
speed
•
A system to maintain a set distance to the
vehicle ahead (expressed as a time inter-
val. For example, you can choose to
remain approximately 2 seconds behind
the vehicle ahead).

04 Comfort and driving pleasure
Adaptive Cruise Control–ACC (option)
04``167

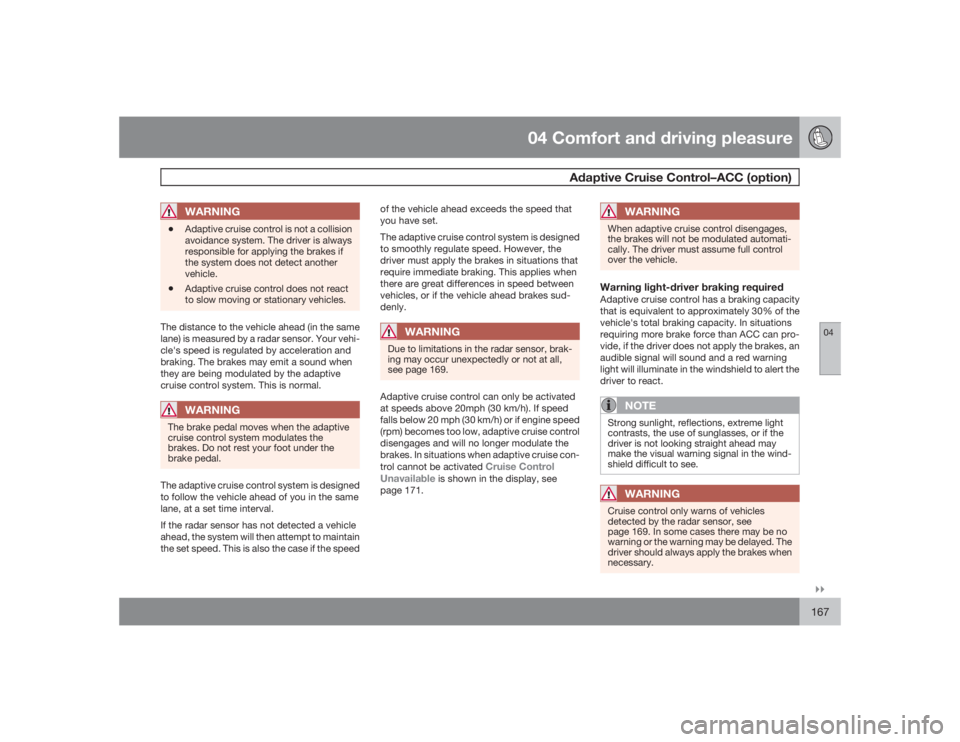

WARNING
•
Adaptive cruise control is not a collision
avoidance system. The driver is always
responsible for applying the brakes if
the system does not detect another
vehicle.
•
Adaptive cruise control does not react
to slow moving or stationary vehicles.
The distance to the vehicle ahead (in the same
lane) is measured by a radar sensor. Your vehi-
cle's speed is regulated by acceleration and
braking. The brakes may emit a sound when
they are being modulated by the adaptive
cruise control system. This is normal.
WARNING
The brake pedal moves when the adaptive
cruise control system modulates the
brakes. Do not rest your foot under the
brake pedal.The adaptive cruise control system is designed
to follow the vehicle ahead of you in the same
lane, at a set time interval.
If the radar sensor has not detected a vehicle
ahead, the system will then attempt to maintain
the set speed. This is also the case if the speedof the vehicle ahead exceeds the speed that
you have set.
The adaptive cruise control system is designed
to smoothly regulate speed. However, the
driver must apply the brakes in situations that
require immediate braking. This applies when
there are great differences in speed between
vehicles, or if the vehicle ahead brakes sud-
denly.
WARNING
Due to limitations in the radar sensor, brak-
ing may occur unexpectedly or not at all,
see page 169.Adaptive cruise control can only be activated
at speeds above 20mph (30 km/h). If speed
falls below 20 mph (30 km/h) or if engine speed
(rpm) becomes too low, adaptive cruise control
disengages and will no longer modulate the
brakes. In situations when adaptive cruise con-
trol cannot be activated
Cruise Control
Unavailable
is shown in the display, see
page 171.
WARNING
When adaptive cruise control disengages,
the brakes will not be modulated automati-
cally. The driver must assume full control
over the vehicle.Warning light-driver braking requiredAdaptive cruise control has a braking capacity
that is equivalent to approximately 30% of the
vehicle's total braking capacity. In situations
requiring more brake force than ACC can pro-
vide, if the driver does not apply the brakes, an
audible signal will sound and a red warning
light will illuminate in the windshield to alert the
driver to react.
NOTE
Strong sunlight, reflections, extreme light
contrasts, the use of sunglasses, or if the
driver is not looking straight ahead may
make the visual warning signal in the wind-
shield difficult to see.
WARNING
Cruise control only warns of vehicles
detected by the radar sensor, see
page 169. In some cases there may be no
warning or the warning may be delayed. The
driver should always apply the brakes when
necessary.

04 Comfort and driving pleasureAdaptive Cruise Control–ACC (option)
04168
Operation
G027123

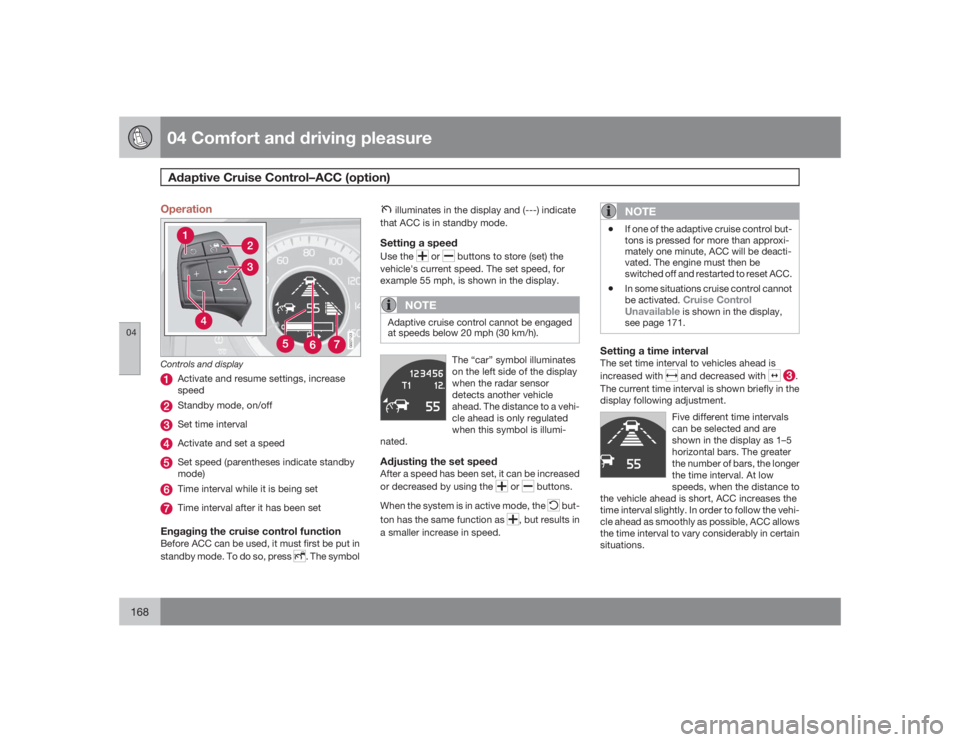

Controls and display
Activate and resume settings, increase
speedStandby mode, on/offSet time intervalActivate and set a speedSet speed (parentheses indicate standby
mode)Time interval while it is being setTime interval after it has been set
Engaging the cruise control functionBefore ACC can be used, it must first be put in
standby mode. To do so, press
. The symbol
illuminates in the display and (---) indicate
that ACC is in standby mode.Setting a speedUse the
or
buttons to store (set) the
vehicle's current speed. The set speed, for
example 55 mph, is shown in the display.
NOTE
Adaptive cruise control cannot be engaged
at speeds below 20 mph (30 km/h).
The “car” symbol illuminates
on the left side of the display
when the radar sensor
detects another vehicle
ahead. The distance to a vehi-
cle ahead is only regulated
when this symbol is illumi-
nated.
Adjusting the set speedAfter a speed has been set, it can be increased
or decreased by using the
or
buttons.
When the system is in active mode, the
but-
ton has the same function as
, but results in
a smaller increase in speed.
NOTE
•
If one of the adaptive cruise control but-
tons is pressed for more than approxi-
mately one minute, ACC will be deacti-
vated. The engine must then be
switched off and restarted to reset ACC.
•
In some situations cruise control cannot
be activated.
Cruise Control
Unavailable is shown in the display,
see page 171.
Setting a time intervalThe set time interval to vehicles ahead is
increased with
and decreased with
.
The current time interval is shown briefly in the
display following adjustment.
Five different time intervals
can be selected and are
shown in the display as 1–5
horizontal bars. The greater
the number of bars, the longer
the time interval. At low
speeds, when the distance to
the vehicle ahead is short, ACC increases the
time interval slightly. In order to follow the vehi-
cle ahead as smoothly as possible, ACC allows
the time interval to vary considerably in certain
situations.

04 Comfort and driving pleasure
Adaptive Cruise Control–ACC (option)

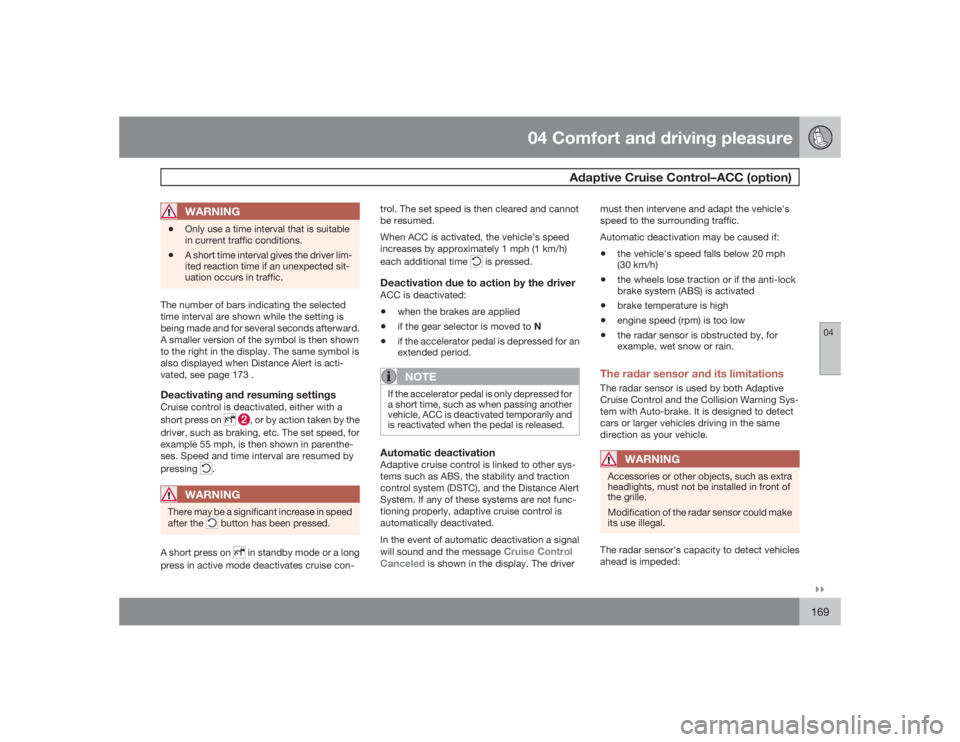

04``169
WARNING
•
Only use a time interval that is suitable
in current traffic conditions.
•
A short time interval gives the driver lim-
ited reaction time if an unexpected sit-
uation occurs in traffic.
The number of bars indicating the selected
time interval are shown while the setting is
being made and for several seconds afterward.
A smaller version of the symbol is then shown
to the right in the display. The same symbol is
also displayed when Distance Alert is acti-
vated, see page 173 .Deactivating and resuming settingsCruise control is deactivated, either with a
short press on
, or by action taken by the
driver, such as braking, etc. The set speed, for
example 55 mph, is then shown in parenthe-
ses. Speed and time interval are resumed by
pressing
.
WARNING
There may be a significant increase in speed
after the
button has been pressed.
A short press on
in standby mode or a long
press in active mode deactivates cruise con-trol. The set speed is then cleared and cannot
be resumed.
When ACC is activated, the vehicle’s speed
increases by approximately 1 mph (1 km/h)
each additional time
is pressed.
Deactivation due to action by the driverACC is deactivated:•
when the brakes are applied
•
if the gear selector is moved to N
•
if the accelerator pedal is depressed for an
extended period.NOTE
If the accelerator pedal is only depressed for
a short time, such as when passing another
vehicle, ACC is deactivated temporarily and
is reactivated when the pedal is released.Automatic deactivationAdaptive cruise control is linked to other sys-
tems such as ABS, the stability and traction
control system (DSTC), and the Distance Alert
System. If any of these systems are not func-
tioning properly, adaptive cruise control is
automatically deactivated.
In the event of automatic deactivation a signal
will sound and the message
Cruise Control
Canceled
is shown in the display. The drivermust then intervene and adapt the vehicle's
speed to the surrounding traffic.
Automatic deactivation may be caused if:
•
the vehicle's speed falls below 20 mph
(30 km/h)
•
the wheels lose traction or if the anti-lock
brake system (ABS) is activated
•
brake temperature is high
•
engine speed (rpm) is too low
•
the radar sensor is obstructed by, for
example, wet snow or rain.
The radar sensor and its limitationsThe radar sensor is used by both Adaptive
Cruise Control and the Collision Warning Sys-
tem with Auto-brake. It is designed to detect
cars or larger vehicles driving in the same
direction as your vehicle.
WARNING
Accessories or other objects, such as extra
headlights, must not be installed in front of
the grille.
Modification of the radar sensor could make
its use illegal.The radar sensor's capacity to detect vehicles
ahead is impeded:

04 Comfort and driving pleasureAdaptive Cruise Control–ACC (option)

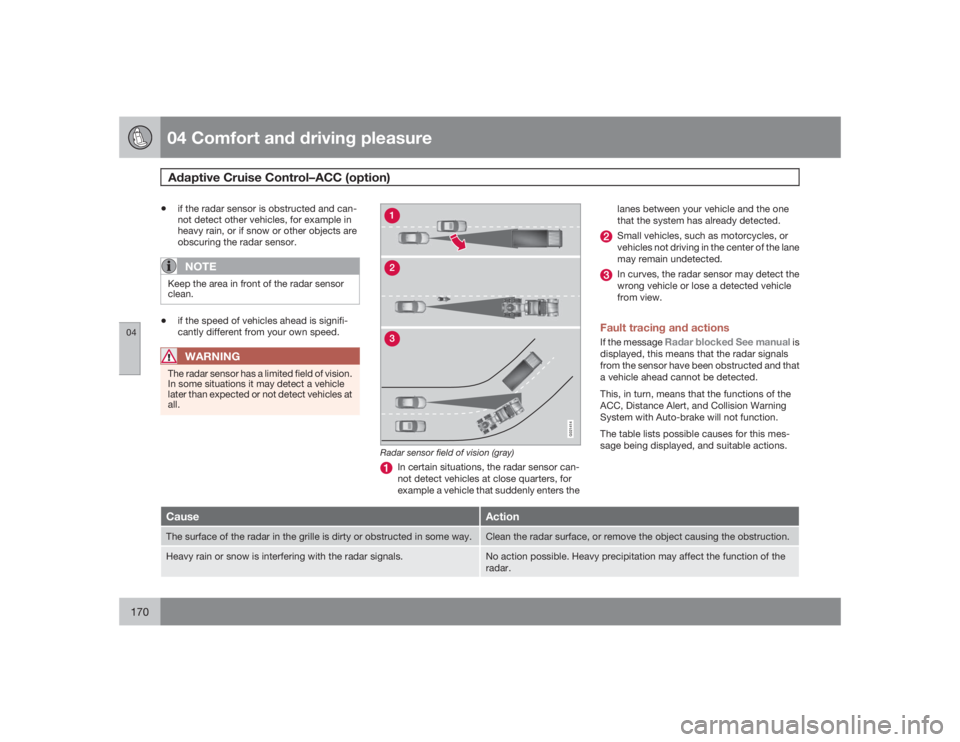

04170
•
if the radar sensor is obstructed and can-
not detect other vehicles, for example in
heavy rain, or if snow or other objects are
obscuring the radar sensor.NOTE
Keep the area in front of the radar sensor
clean.•
if the speed of vehicles ahead is signifi-
cantly different from your own speed.WARNING
The radar sensor has a limited field of vision.
In some situations it may detect a vehicle
later than expected or not detect vehicles at
all.
G021414
Radar sensor field of vision (gray)
In certain situations, the radar sensor can-
not detect vehicles at close quarters, for
example a vehicle that suddenly enters thelanes between your vehicle and the one
that the system has already detected.
Small vehicles, such as motorcycles, or
vehicles not driving in the center of the lane
may remain undetected.In curves, the radar sensor may detect the
wrong vehicle or lose a detected vehicle
from view.
Fault tracing and actionsIf the message
Radar blocked See manual
is
displayed, this means that the radar signals
from the sensor have been obstructed and that
a vehicle ahead cannot be detected.
This, in turn, means that the functions of the
ACC, Distance Alert, and Collision Warning
System with Auto-brake will not function.
The table lists possible causes for this mes-
sage being displayed, and suitable actions.
Cause
Action
The surface of the radar in the grille is dirty or obstructed in some way.
Clean the radar surface, or remove the object causing the obstruction.
Heavy rain or snow is interfering with the radar signals.
No action possible. Heavy precipitation may affect the function of the
radar.

04 Comfort and driving pleasure
Adaptive Cruise Control–ACC (option)

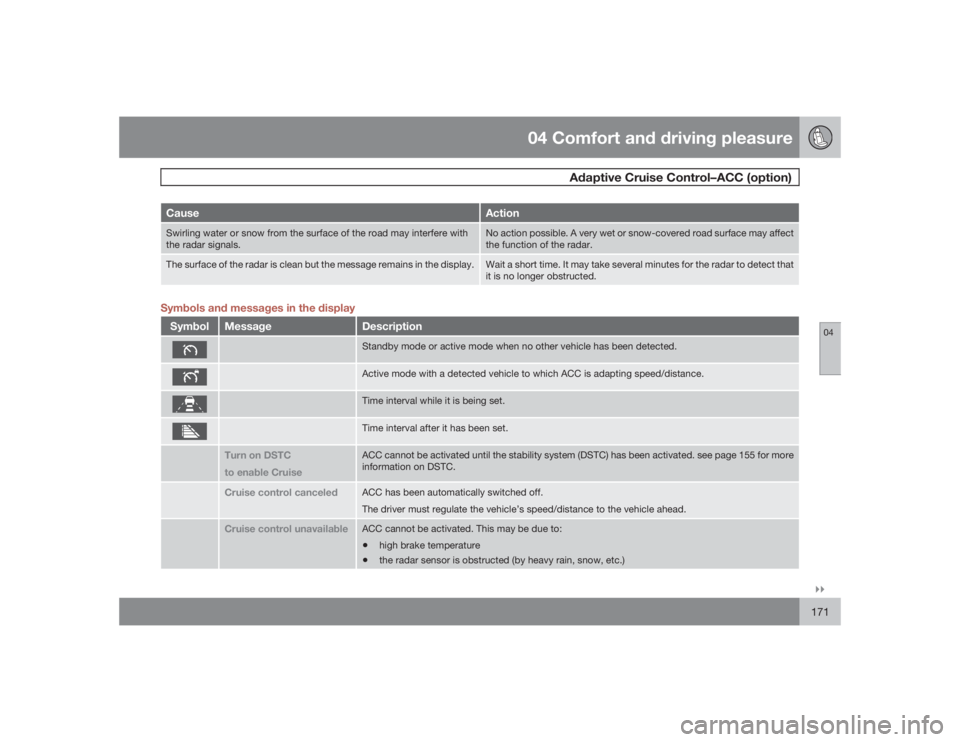

04``171
Cause
Action
Swirling water or snow from the surface of the road may interfere with
the radar signals.
No action possible. A very wet or snow-covered road surface may affect
the function of the radar.
The surface of the radar is clean but the message remains in the display.
Wait a short time. It may take several minutes for the radar to detect that
it is no longer obstructed.
Symbols and messages in the displaySymbol
Message
DescriptionStandby mode or active mode when no other vehicle has been detected.Active mode with a detected vehicle to which ACC is adapting speed/distance.Time interval while it is being set.Time interval after it has been set.
Turn on DSTC
to enable Cruise
ACC cannot be activated until the stability system (DSTC) has been activated. see page 155 for more
information on DSTC.
Cruise control canceled
ACC has been automatically switched off.
The driver must regulate the vehicle’s speed/distance to the vehicle ahead.
Cruise control unavailable
ACC cannot be activated. This may be due to:•
high brake temperature
•
the radar sensor is obstructed (by heavy rain, snow, etc.)

04 Comfort and driving pleasureAdaptive Cruise Control–ACC (option)

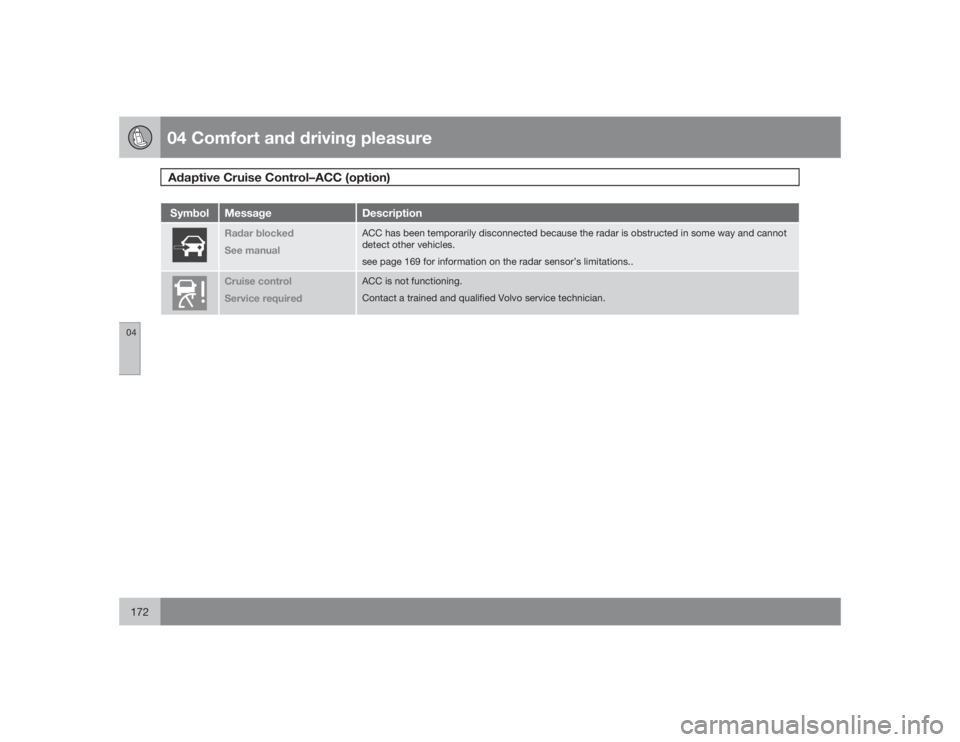

04172
Symbol
Message
Description
Radar blocked
See manual
ACC has been temporarily disconnected because the radar is obstructed in some way and cannot
detect other vehicles.
see page 169 for information on the radar sensor’s limitations..
Cruise control
Service required
ACC is not functioning.
Contact a trained and qualified Volvo service technician.
