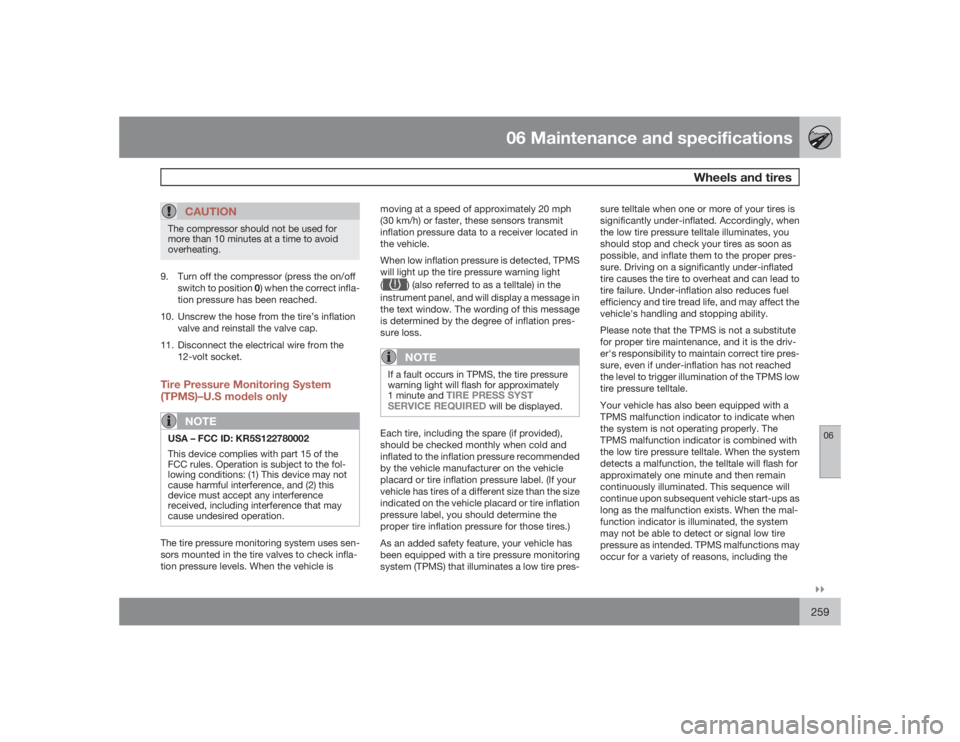

CAUTION
The compressor should not be used for
more than 10 minutes at a time to avoid
overheating.9. Turn off the compressor (press the on/off
switch to position 0) when the correct infla-
tion pressure has been reached.
10. Unscrew the hose from the tire’s inflation
valve and reinstall the valve cap.
11. Disconnect the electrical wire from the
12-volt socket.Tire Pressure Monitoring System
(TPMS)–U.S models only
NOTE
USA – FCC ID: KR5S122780002
This device complies with part 15 of the
FCC rules. Operation is subject to the fol-
lowing conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.The tire pressure monitoring system uses sen-
sors mounted in the tire valves to check infla-
tion pressure levels. When the vehicle ismoving at a speed of approximately 20 mph
(30 km/h) or faster, these sensors transmit
inflation pressure data to a receiver located in
the vehicle.
When low inflation pressure is detected, TPMS
will light up the tire pressure warning light
(
) (also referred to as a telltale) in the
instrument panel, and will display a message in
the text window. The wording of this message
is determined by the degree of inflation pres-
sure loss.NOTE
If a fault occurs in TPMS, the tire pressure
warning light will flash for approximately
1 minute and
TIRE PRESS SYST
SERVICE REQUIRED
will be displayed.
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pres-sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle's handling and stopping ability.
Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv-
er's responsibility to maintain correct tire pres-
sure, even if under-inflation has not reached
the level to trigger illumination of the TPMS low
tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The
TPMS malfunction indicator is combined with
the low tire pressure telltale. When the system
detects a malfunction, the telltale will flash for
approximately one minute and then remain
continuously illuminated. This sequence will
continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the mal-
function indicator is illuminated, the system
may not be able to detect or signal low tire
pressure as intended. TPMS malfunctions may
occur for a variety of reasons, including the

06 Maintenance and specificationsWheels and tires
06260
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one
or more tires or wheels on your vehicle to
ensure that the replacement or alternate tires
and wheels allow the TPMS to continue to
function properly.
NOTE
TPMS indicates low tire pressure but does
not replace normal tire maintenance. For
information on correct tire pressure, please
refer to the Tire inflation pressure tables or
consult your Volvo retailer.Erasing warning messagesWhen a low tire pressure warning message has
been displayed, and the tire pressure warning
light has come on:
1. Use a tire pressure gauge to check the
inflation pressure of all four tires.
2. Re-inflate the tire(s) to the correct pressure
(consult the tire pressure placard or the
tables on pages 248 and 249.
3. In certain cases, it may be necessary to
drive the vehicle for several minutes at a
speed of 20 mph (30 km/h) or faster. Thiswill erase the warning text and the warning
light will go out.
WARNING
Incorrect inflation pressure could lead to tire
failure, resulting in a loss of control of the
vehicle.Changing wheels with TPMSPlease note the following when changing or
replacing the factory installed TPMS wheels/
tires on the vehicle:•
Only the factory-mounted wheels are
equipped with TPMS sensors in the valves.
•
If the vehicle is equipped with a temporary
spare tire, this tire does not have a TPMS
sensor.
•
If wheels without TPMS sensors are moun-
ted on the vehicle, TIRE PRESS SYST
SERVICE REQUIRED will be displayed
each time the vehicle is driven above
25 mph (40 km/h) for 10 minutes or more.
•
Once TPMS sensors are properly installed,
the warning message should not reappear.
If the message is still displayed, drive the
vehicle for several minutes at a speed of
20 mph (30 km/h) or faster to erase the
message.
•
Volvo recommends that TPMS sensors be
fitted on all wheels used on the vehicle.Volvo does not recommend moving sen-
sors back and forth between sets of
wheels.
NOTE
•
If you change to tires with a different
recommended inflation pressure, the
TPMS system must be recalibrated to
these tires. This must be done by a
trained and qualified Volvo service tech-
nician.
•
If a tire is changed, or if the TPMS sen-
sor is moved to another wheel, the sen-
sor's seal, nut, and valve core should be
replaced.
•
When installing TPMS sensors, the
vehicle must be parked for at least
15 minutes with the ignition off. if the
vehicle is driven within 15 minutes, a
TPMS error message will be displayed.CAUTION
When inflating tires with TPMS valves, press
the pump's mouthpiece straight onto the
valve to help avoid bending or otherwise
damaging the valve.

06 Maintenance and specificationsVehicle care
06262
fully. Solvents or stain removers should not be
used.
CAUTION
•
Avoid waxing or polishing plastic or rub-
ber components
•
Polishing chromed strips can wear
away or damage the surface
•
Polishes containing abrasive sub-
stances should not be used
Automatic car wash•
We do NOT recommend washing your car
in an automatic wash during the first six
months (because the paint will not have
hardened sufficiently).
•
An automatic wash is a simple and quick
way to clean your car, but it is worth
remembering that it may not be as thor-
ough as when you yourself go over the car
with sponge and water. Keeping the under-
body clean is most important, especially in
the winter. Some automatic washers do
not have facilities for washing the under-
body.
CAUTION
•
Before driving into an automatic car
wash, turn off the optional rain sensor
to avoid damaging the windshield wip-
ers.
•
Make sure that side view mirrors, auxil-
iary lamps, etc, are secure, and that any
antenna(s) are retracted or removed.
Otherwise there is risk of the machine
dislodging them.
•
Chromed wheels: Clean chrome-
plated wheels using the same deter-
gents used for the body of the vehicle.
Aggressive wheel-cleaning agents can
permanently stain chrome-plated
wheels.WARNING
•
When the vehicle is driven immediately
after being washed, apply the brakes,
including the parking brake, several
times in order to remove any moisture
from the brake linings.
•
Engine cleaning agents should not be
used when the engine is warm. This
constitutes a fire risk.
Exterior lightingCondensation may form temporarily on the
inside of the lenses of exterior lights such asheadlights, fog lights, or taillights. This is nor-
mal and the lights are designed to withstand
moisture. Normally, condensation will dissi-
pate after the lights have been on for a short
time.
Polishing and waxing•
Normally, polishing is not required during
the first year after delivery, however, wax-
ing may be beneficial.
•
Before applying polish or wax the vehicle
must be washed and dried. Tar spots can
be removed with kerosene or tar remover.
Difficult spots may require a fine rubbing
compound.
•
After polishing use liquid or paste wax.
•
Several commercially available products
contain both polish and wax.
•
Waxing alone does not substitute for pol-
ishing a dull surface.
•
A wide range of polymer-based waxes can
be purchased today. These waxes are easy
to use and produce a long-lasting, high-
gloss finish that protects the bodywork
against oxidation, road dirt and fading.
•
Do not polish or wax your vehicle in direct
sunlight (the surface of the vehicle should
not be warmer than 113 °F (45 °C).

07 Index
07280
Headlights
active bi-xenon lights........................... 86
changing bulbs...........................225, 226
high/low beams.................................... 85
high beam flash.................................... 85
switch................................................... 85
Headlight washers..................................... 92
Head restraints, rear seat.......................... 82
Heartbeat sensor (alarm system)............... 55
Heated front seats................................... 126
Heated oxygen sensors........................... 201
Heated rear seats.................................... 127
High beams................................................ 85
indicator light........................................ 73
Hill Descent Control................................. 112
Home safe lighting..................................... 89
Hood, opening/closing............................219
Horn........................................................... 84IIgnition modes........................................... 77
Immobilizer................................................ 52
Important information.................................. 8Indicator lights...............................71, 72, 73
Infant seats................................................ 37
Inflatable Curtain........................................ 29
Inflation pressure.............................246, 247
Inflation pressure tables..................248, 249
Information lights...........................71, 72, 73
Information symbol.................................... 73
Inspection readiness................................ 217
Instrument lighting..................................... 85
Instrument overview............................70, 71
Instrument panel...................................... 121
Integrated two-stage booster cushion...... 45
Interior Air Quality System....................... 125
Interior lighting..................................... 88, 89
iPOD connector (audio system)...............132
ISOFIX anchors.......................................... 42
JJack
attaching.............................................256
location of........................................... 255
Jump starting........................................... 105
KKey blade.......................................52, 57, 59
private locking...................................... 59
Keyless drive
starting the engine.............................. 104LLabels
list of................................................... 267
location of........................................... 266
LATCH anchors......................................... 42
Leather care............................................. 263
Lighting panel............................................ 85
Load anchoring eyelets........................... 203
Loading
floor rails............................................. 204
hooks for securing loads.................... 204
Loading the vehicle.......................... 202, 251
roof loads............................................ 206
Locking the vehicle.................................... 54
Locks, child safety..................................... 48
Low beams................................................ 85

07 Index
07
281
Low fuel level warning light........................ 73
Low oil pressure warning light................... 73MMain instrument panel............................. 121
Maintenance............................................ 216
performed by the owner.....................217
Malfunction indicator light......................... 72
Menu system........................................... 120
overview.............................................. 120
Messages in the instrument panel........... 121
Mirrors
defroster............................................... 97
power door........................................... 96
rearview, auto-dim function.................. 97
retractable............................................. 96
vanity.................................................. 190
Moonroof............................................. 98, 99
Motor oil
checking............................................. 220
specifications...................................... 273
volumes.............................................. 274
NNet in cargo area..................................... 208OOccupant safety........................................ 14
Occupant weight sensor...................... 23, 24
Octane recommendations.......................199
Odometer, trip........................................... 76
Oil
specifications...................................... 273
volumes.............................................. 274
On Call Roadside Assistance.................. 276
Overhead courtesy lighting.................. 88, 89
Overheating, engine................................... 75
Oxygen sensors, heated.......................... 201PPaint, touching up.................................... 264
Park assist.......................................181, 183Parking brake
electric, applying/releasing................. 114
warning light......................................... 73
Parking lights............................................. 86
changing bulbs................................... 226
Personal Car Communicator, unique func-
tions........................................................... 55
Polishing.................................................. 263
Power front seat
memory function................................... 79
with keyless drive................................. 80
Power mirrors............................................ 96
defroster............................................... 97
Power moonroof.................................. 98, 99
Power steering
speed-dependent............................... 157
Power steering fluid.........................222, 274
Power tailgate (option)............................. 202
Power windows...................................94, 95
laminated glass..................................... 95
Pregnancy, using seat belts during........... 17
Private locking........................................... 59
PROPOSITION 65 WARN-
ING..................................... 10, 105, 234, 275

07 Index
07282
RRadio
Sirius satellite radio............138, 140, 141
Radio functions........................................ 137
Rails, floor................................................ 204
Rain sensor................................................ 91
READ button............................................ 121
Rear fog light............................................. 86
Rear park assist............................... 181, 183
Rear seat entertainment (option)............. 149
Rear seats
center head restraint............................. 82
folding................................................... 81
heated................................................. 127
Rearview mirror
auto-dim function................................. 97
compass............................................. 153
Rear window defroster.............................. 97
Recalls, child restraints.............................. 44
Refrigerant............................................... 274
Refueling..........................................198, 199
fuel filler cap....................................... 200
fuel filler door...................................... 200
fuel tank volume.................................274Registering child restraints........................ 44
Remote control.......................................... 52
approach lighting.................................. 54
common functions................................ 54
immobilizer........................................... 52
key blade..................................52, 57, 59
key memory.......................................... 52
locking the vehicle................................ 54
Personal Car Communicator..........54, 55
private locking...................................... 59
replacing the battery............................. 57
unlocking the vehicle............................ 54
Reporting safety defects............................ 15
Roadside Assistance............................... 276
Roof loads................................................ 206
SSafety, occupant........................................ 14
Safety defects, reporting........................... 15
Seat belts
Automatic locking retractor/Emergency
locking retractor.................................... 34
buckling................................................ 16
maintenance......................................... 16
pretensioners........................................ 16reminder................................................ 16
reminder warning light.......................... 74
securing child restraint sys-
tems.......................................... 37, 39, 41
unbuckling............................................ 16
use during pregnancy........................... 17
using.....................................................16
Seats, front................................................ 79
Side door mirrors....................................... 96
Side impact airbags................................... 27
Side marker lights, changing bulbs......... 227
Sirius satellite radio.................. 138, 140, 141
Snow chains............................................ 253
Snow tires................................................ 253
Sound settings, audio system................. 134
Spare tire................................................. 254
Speed-dependent steering...................... 157
Spin control............................................. 155
SRS............................................................ 18
Stability system........................................ 155
indicator light........................................ 73
Starting the engine................................... 103
with keyless drive...............................104

07 Index
07284
VVanity mirror............................................. 190
changing bulbs................................... 230
Vehicle dimensions
V70...................................................... 268
XC70................................................... 270
Vehicle Event Data............................... 8, 216
Vehicle loading................................. 202, 251
roof loads............................................ 206
Vehicle maintenance................................ 216
performed by the owner.....................217
Vehicle weights........................................ 271
Ventilated seats....................................... 126
Volvo and the environment........................ 10
Volvo Inflatable Curtain.............................. 29
Volvo maintenance..................................216
Volvo On Call Roadside Assistance........ 276
Volvo programs........................................ 276WWarning flashers, hazard........................... 87
Warning lights................................ 71, 72, 73Warning symbol......................................... 75
Warning system, collision........................ 160
Warranties................................................ 216
Washer fluid..................................... 232, 274
Washers
headlight............................................... 92
windshield............................................. 91
Water, driving through............................. 195
Waxing..................................................... 263
Weights.................................................... 271
Wheels
changing..................................... 255, 256
storing................................................. 244
Wheels and tires, introduction................. 244
Whiplash Protection System..................... 30
Windows
power.............................................. 94, 95
Windshield
rain sensor............................................ 91
washers................................................ 92
wipers/washers..................................... 91
Windshield washer fluid................... 232, 274
Windshield wipers.................................... 231Wiper blades
replacing tailgate wiper...................... 232
replacing windshield wipers............... 231
