VOLVO V90 1998 Owners Manual

1998 Volvo S90


Contents | Top of Page
file:///K|/ownersdocs/1998/1998_SV90/98S90_097.htm (6 of 6)12/30/2006 \
1:52:47 PM

1998 Volvo S90

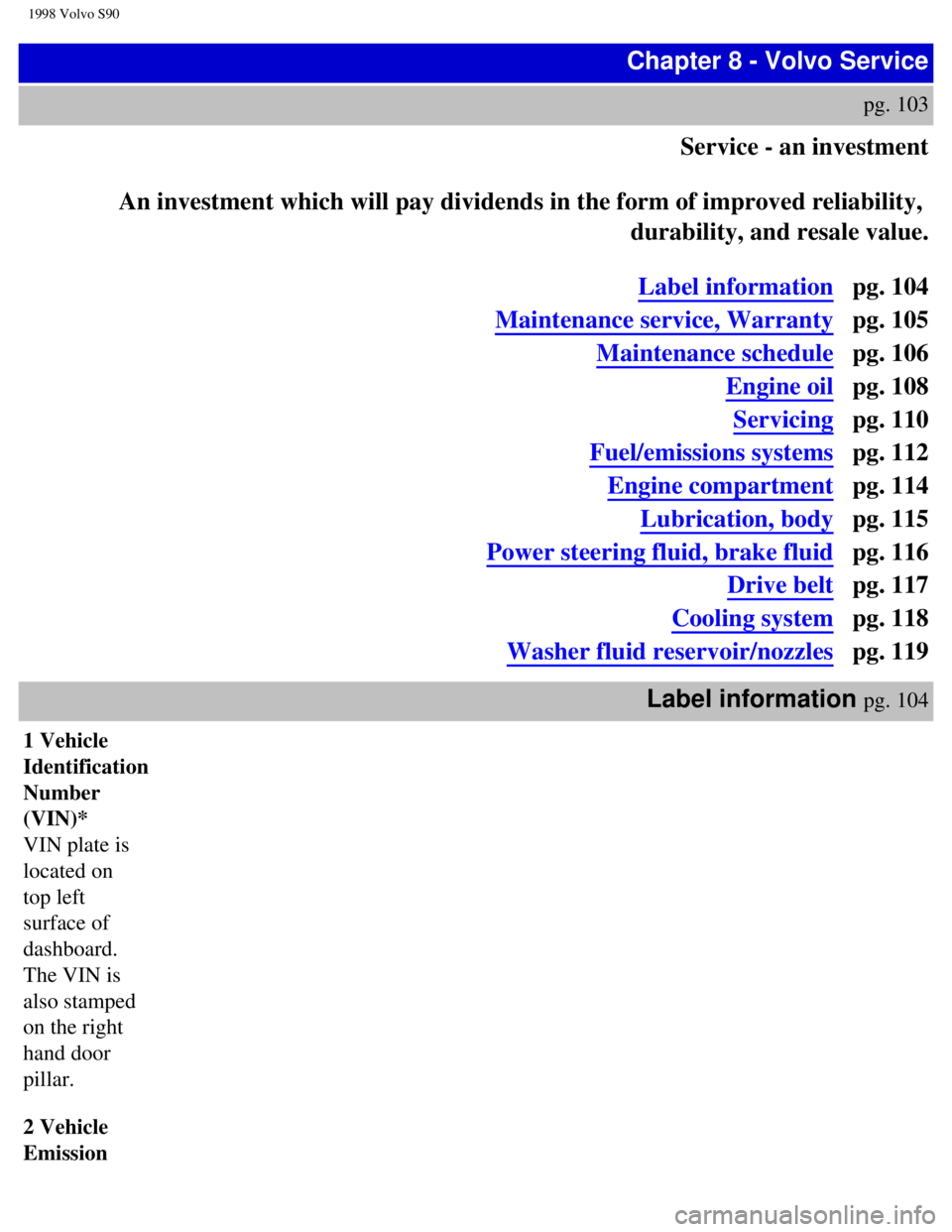

Chapter 8 - Volvo Service
pg. 103
Service - an investment
An investment which will pay dividends in the form of improved reliabili\
ty,
durability, and resale value.
Label information pg. 104
Maintenance service, Warranty pg. 105
Maintenance schedule pg. 106
Engine oil pg. 108
Servicing pg. 110
Fuel/emissions systems pg. 112
Engine compartment pg. 114
Lubrication, body pg. 115
Power steering fluid, brake fluid pg. 116
Drive belt pg. 117
Cooling system pg. 118
Washer fluid reservoir/nozzles pg. 119
Label information
pg. 104
1 Vehicle
Identification
Number
(VIN)*
VIN plate is
located on
top left
surface of
dashboard.
The VIN is
also stamped
on the right
hand door
pillar.

2 Vehicle
Emission
file:///K|/ownersdocs/1998/1998_SV90/98S90_103.htm (1 of 7)12/30/2006 \
1:52:48 PM

1998 Volvo S90
Control
Information
Your Volvo
is designed to
meet all
applicable
emissions
standards, as
evidenced by
the
certification
label on the
left
wheelhousing.
For further
information
regarding
these
regulations,
please
consult your
Volvo
retailer.

3 Model
Plate
Vehicle
Identification
Number
(VIN). Codes
for color and
upholstery
etc. This
plate is
located on
panel-above
right
headlight.

4 Loads and
Tire
Pressures
Located on
the rear edge

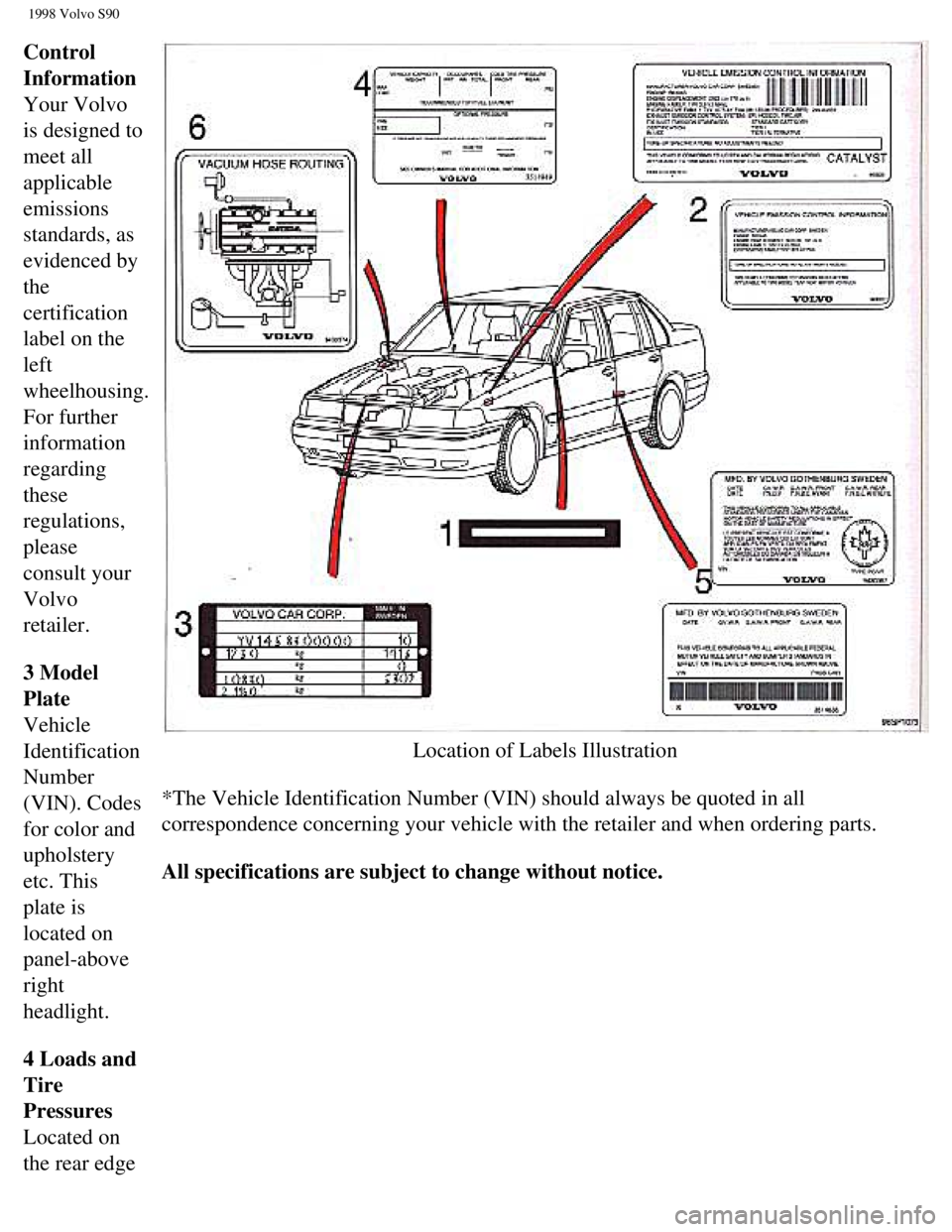

Location of Labels Illustration

*The Vehicle Identification Number (VIN) should always be quoted in al\
l
correspondence concerning your vehicle with the retailer and when orderi\
ng parts.

All specifications are subject to change without notice.
file:///K|/ownersdocs/1998/1998_SV90/98S90_103.htm (2 of 7)12/30/2006 \
1:52:48 PM

1998 Volvo S90
of right front
door.

5 Federal
Motor
Vehicle
Safety
Standards
(FMVSS)
specifications
(USA) and
Ministry of
Transport
(CMVSS)
Standards
(Canada)
Your Volvo
is designed to
meet all
applicable
safety
standards, as
evidenced by
the
certification
label on the
rear facing
side of the
driver's door.
For further
information
regarding
these
regulations,
please
consult your
Volvo
retailer.

6. Vacuum
hose routing
Maintenance service, Warranty pg. 105
file:///K|/ownersdocs/1998/1998_SV90/98S90_103.htm (3 of 7)12/30/2006 \
1:52:48 PM

1998 Volvo S90
Maintenance service

Volvo advises you to follow the
service program which is
outlined in the "Maintenance
Records Manual". This
maintenance program contains
inspections and services
necessary for the proper
function of your car.
The maintenance services
contain several checks which
require special instruments and
tools and therefore must be
performed by a qualified
technician.
To keep your Volvo in top
condition, specify time tested
and proven Genuine Volvo Parts
and Accessories.

The Federal Clean Air
Act - U.S.


The Clean Air Act requires
vehicle manufacturers to furnish
written instructions to the
ultimate purchaser to assure the
proper functioning of those
components that control
emissions.
The maintenance instructions
listed in the "Servicing" section
of this Manual represent the
minimum maintenance required.
These services are not covered
by the warranty. You will be
required to pay for labor and
material used. Refer to your
Warranty booklet for further
details.
Maintenance services

Your Volvo has passed several
major inspections before being
delivered to you, according to
Volvo specifications. The
maintenance services outlined in
this book should be performed
as indicated. The extended
maintenance service intervals
make it even more advisable to
follow this program. Inspection
and service should also be
performed any time a
malfunction is observed or
suspected.
It is recommended that receipts
for vehicle emission services be
retained in the event that
questions arise concerning
maintenance. See your
"Maintenance Records Manual".Applicable warranties -
U.S.


In accordance with U.S. Federal
Regulations, the following list of
applicable U.S. warranties is
provided. For Canadian
specification vehicles, see your
separate warranty booklet.
l New Car Limited Warranty
l Parts and Accessories Limited
Warranty
l Corrosion Protection Limited
Warranty
l Seatbelt and Supplemental
Restraint Systems Limited
Warranty
l Emission Design and Defect
Warranty
l Emission Performance
Warranty

These are the Federal warranties;
other warranties are provided as
required by state law.

Refer to your separate Warranty
booklet for detailed information
concerning each of the warranties.
Maintenance Schedule pg. 106
file:///K|/ownersdocs/1998/1998_SV90/98S90_103.htm (4 of 7)12/30/2006 \
1:52:48 PM

1998 Volvo S90
Maintenance schedule

A= Adjust (Correct if necessary) I= Inspect (Correct or Replace if ne\
cessary)
R= Replace L= Lubricate
Maintenance Operation thousand
miles
(thousand km) 5
(8)
10
(16) 15
(25) 20
(32) 25
(40) 30
(48) 35
(56) 40
(64) 45
(72) 50
(80) 55
(88) 60
(96)
EMISSION SYSTEM
MAINTENANCE
Engine oil and filter R R R R R R R R R R R R
Engine drive belt (accessory belt) I R
Air cleaner filter R R
Spark plugs R R
Automatic transmission fluid I I I I I I
Timing belt - B 6304 S
4

1) See section "Engine oil" for detailed information.

NOTE: The oil should be changed at these intervals or after 750 hours of\
driving or after 12 months
which ever occurs first. See "Service Reminder indicator", page 19.

2) For services beyond 60,000 miles (96,000 km), consult your "Mainte\
nance Records booklet".
3) These intervals may apply, depending on actual driving conditions (\
see page 109 for details)
4) For proper functioning of the vehicle and its emission control syste\
m, Volvo recommends that the
file:///K|/ownersdocs/1998/1998_SV90/98S90_103.htm (5 of 7)12/30/2006 \
1:52:48 PM

1998 Volvo S90
timing belt be replaced every 70,000 (112,000 km).
Maintenance Schedule (cont.) pg. 107
Maintenance Operation thousand miles
(thousand km) 10
(16) 20
(32) 30
(48) 40
(64) 50
(80) 60
(96)
MISCELLANEOUS MAINTENANCE
ENGINE
Fuel (Line) Filter
PCV Nipple (Orifice)/hoses,clean I
Battery I I I I I I
BRAKES
Inspect Brakes, Replace components as
necessary I
I I I I I
Brake Fluid
STEERING
Rotate tires/check tire wear; (Align if needed.) I I I I I I
Check power steering fluid level. I I I I I I
BODY
Power antenna (clean) I I I I I I
Trunk, Hood Hinges and Latches L L L L L L
Sun roof L L L L L L
file:///K|/ownersdocs/1998/1998_SV90/98S90_103.htm (6 of 7)12/30/2006 \
1:52:48 PM

1998 Volvo S90
1) Replace at 100,000 miles (160,000 km).
2) Brake fluid should be changed at owner request every second year (o\
nce a year if the car is driven in
mountainous areas or in areas with high humidity).

The following items should be checked weekly by the driver (it takes on\
ly a few minutes):
Engine oil level Windshield wipers
Brake fluid level Level of windshield washer fluid
Radiator coolant level
Tire pressure (all five tires)
Operation of all lights
Horns

The following should also be carried out at regular intervals:
Washing
Polishing
Cleaning




Contents | Top of Page
file:///K|/ownersdocs/1998/1998_SV90/98S90_103.htm (7 of 7)12/30/2006 \
1:52:48 PM

1998 Volvo S90
Chapter 8 - (cont.)Engine oil
pg. 108
Checking the oil level

The oil level should be checked every
time the car is refuelled. This is
especially important during the engine
break-in period (up to the first service).

CAUTION: Not checking the oil level
regularly can result in serious engine
damage if the oil becomes too low.


Be sure the oil level is maintained between
the upper and lower marks on the dipstick.
Low oil level can cause internal damage to
the engine and over-filling can result in
high oil consumption. The distance
between the dipstick marks represents
approx. 1 US qt (1 liter) of oil. Before
checking the oil level after the car has been
driven, park the car on a level surface and
wait at least 5 minutes after the engine has
been switched off. The oil level should be
halfway between the MIN and MAX
marks.
If the oil is checked before the car is driven
(engine completely cold) the oil level
should be at the MAX mark.

NOTE: The engine must be stopped when
checking the oil.

Draining the oil

Drain the oil after driving while it is still
warm.

WARNING! The oil may be very
hot.
To add or change engine oil

Add oil of the same kind as already used.
Capacity (including filter): 5.9 US qts = 5.75 liters

Changing oil filter



Replace the oil filter at every oil change



WARNING! Oil spilled on a hot exhaust pipe
constitutes a fire risk.
file:///K|/ownersdocs/1998/1998_SV90/98S90_108.htm (1 of 6)12/30/2006 \
1:52:49 PM

1998 Volvo S90


If you change the engine oil and filter
yourself, your Volvo retailer can assist you
in disposing of the used oil. Engine oil can
be harmful to your skin - gloves should
worn when performing this work.
Engine oil pg. 109
Oil quality

Meeting API specification SG, SG/CD, SH or
Energy Conserving (EC) II
For best fuel economy and engine protection
consult with your authorized Volvo retailer for
recommended oils. Oils with a different quality
rating may not provide adequate engine
protection.

Viscosity (stable ambient
temperatures):




Do not use oils with other viscosity ratings. The
use of incorrect viscosity oil can shorten engine
life.
Volvo recommends the use of energy-conserving
oils. Look for the API label. Synthetic oils
complying with oil quality requirements are
recommended for: driving in areas of sustained
temperature extremes (hot or cold), when towing
a trailer over long distances or for prolonged
driving in mountainous areas.
Extra oil additives must not be used unless
advised by an authorized Volvo retailer.

NOTE: SAE 15W/40 should only be used in


Changing oil and oil filter

Oil and oil filter changes should be made as
specified in the following table:

If driving conditions
include: Then the correct oil/oil
filter change interval
is:
l Extended periods of
idling and/or low-
speeds operation
l Frequent short trips
(less than 7 miles = 11
km)
l Extended periods of
driving in dusty and/or
sandy areas
l Trailer towing
l Driving in
mountainous areas EVERY 6 MONTHS
OR EVERY
5,000 miles= 8,000 km
WHICHEVER
COMES FIRST
l Primarily highway
driving
l Frequent trips of
longer than 7 miles =
11 km EVERY 12 MONTHS
OR EVERY
10,000 miles = 16,000
km
WHICHEVER
COMES FIRST
