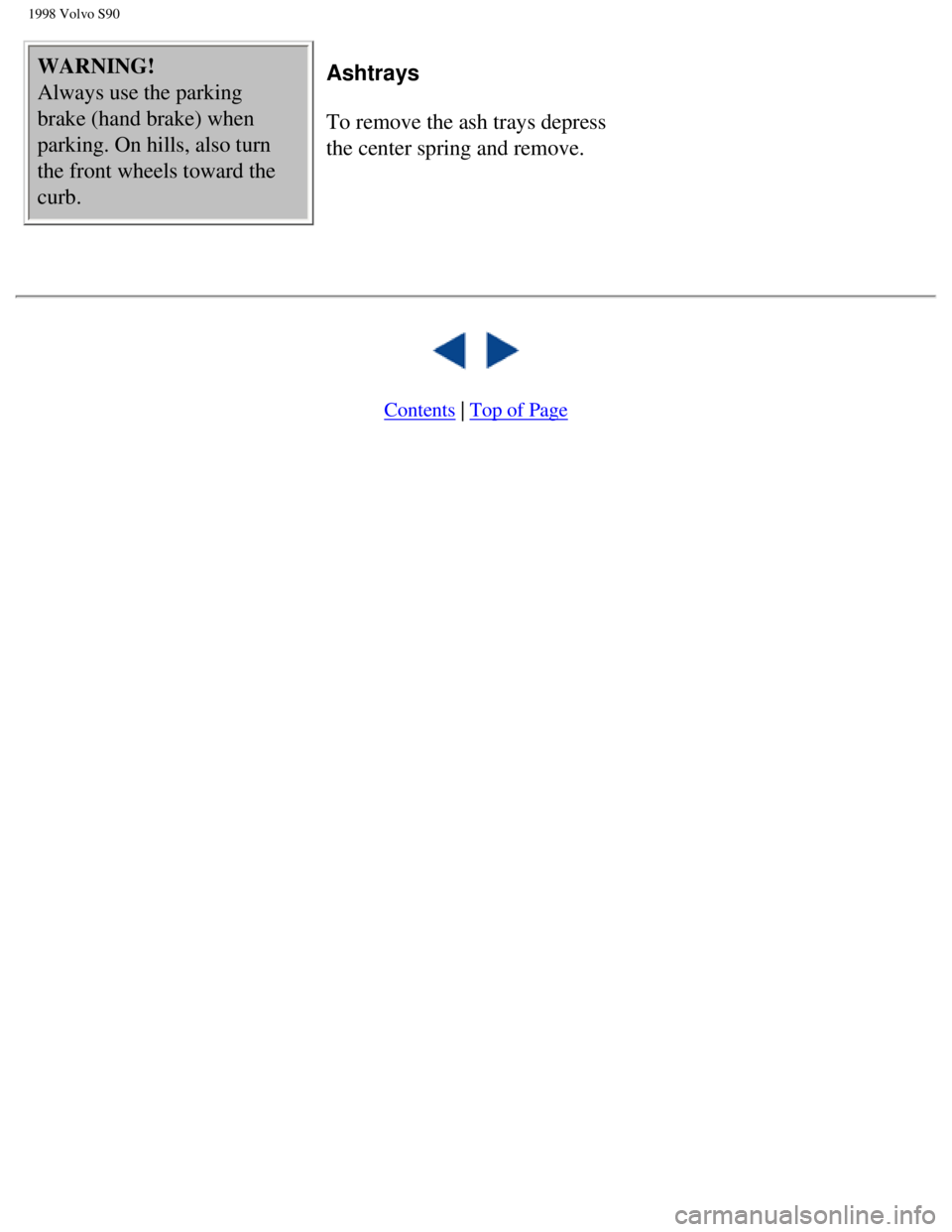

WARNING!
Always use the parking
brake (hand brake) when
parking. On hills, also turn
the front wheels toward the
curb.


Ashtrays

To remove the ash trays depress
the center spring and remove.




Contents | Top of Page
file:///K|/ownersdocs/1998/1998_SV90/98S90_028.htm (3 of 3)12/30/2006 \
1:52:38 PM

1998 Volvo S90
Chapter 3 - Body and interior
pg. 31
Body and
interior
The seats,
doors, sun
roof, mirrors,
etc. are
described on
the following
pages.
Keys, Doors and Locks pg. 32

Remote keyless entry system pg. 32
Front seats pg. 34
Rear/side view mirrors, Vanity mirror pg. 35
Interior light, Rear reading lights pg. 36
Child safety locks, Trunk lid pg. 37
Passenger compartment storage spaces pg. 38
Hood pg. 39
Trunk light, spare tire, jack (sedan) pg. 40
Wagon tailgate/child safety lock pg. 41
Concealed storage bins, Folding rear seat (wagon) pg. 42
Removing seat cushions, Securing cargo (wagon) pg. 44
Cargo space lighting, spare tire, jack (wagon) pg. 45
Cargo space - loading pg. 46
Cargo barrier pg. 47
Luggage cover pg. 48
Sun roof pg. 49
Long load storage pg. 50
Alarm pg. 51
Keys, Doors and Locks pg. 32
file:///K|/ownersdocs/1998/1998_SV90/98S90_031.htm (1 of 6)12/30/2006 \
1:52:39 PM

1998 Volvo S90


Master key
This key operates all locks



Service key
Front doors, starting (ignition)
switch/steering wheel lock Number tag

The key number codes are
stamped on a separate tag supplied
with the keys. This tag should be
separated from the key ring and
kept in a safe place. In the event
the original keys are lost,
duplicates may be ordered from
your Volvo retailer.

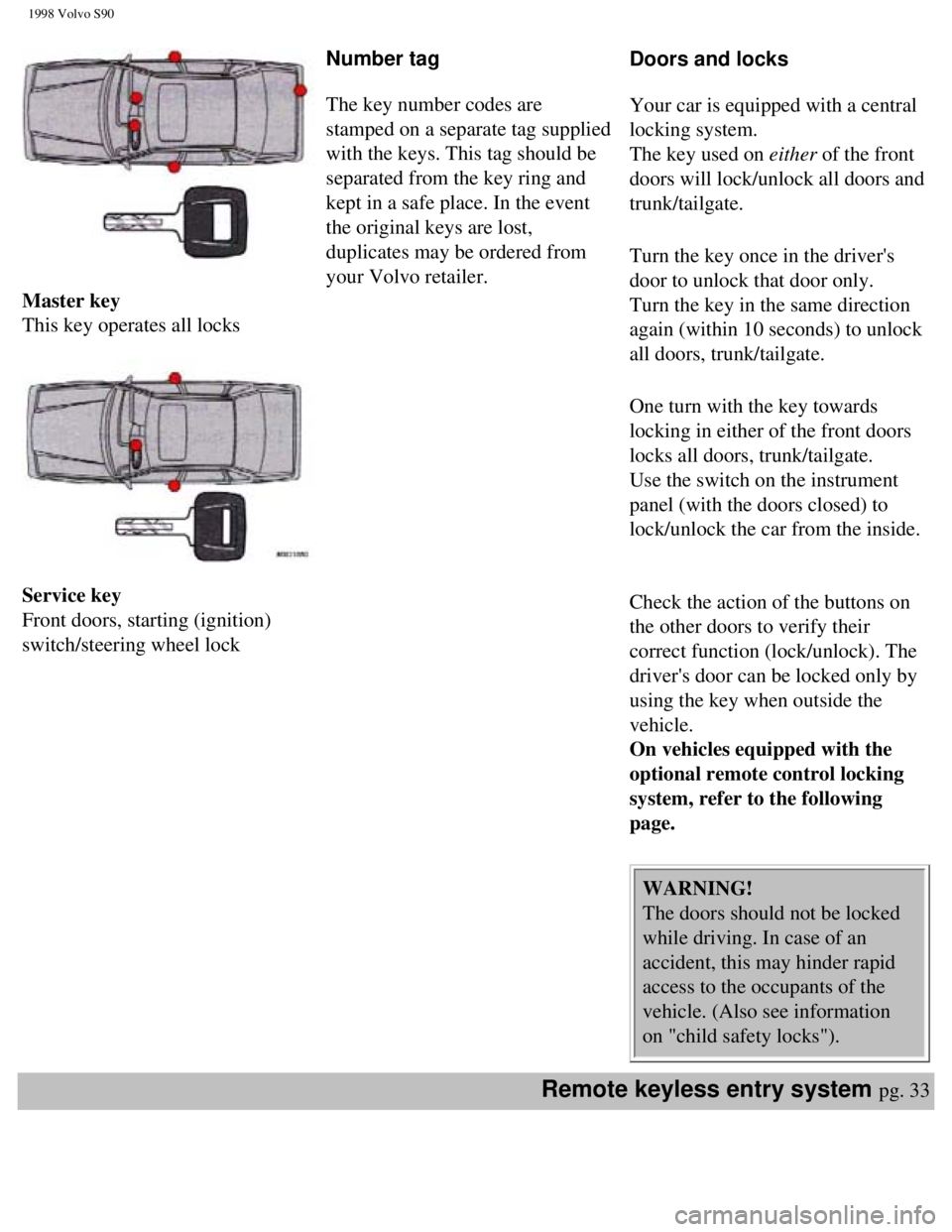

Doors and locks

Your car is equipped with a central
locking system.
The key used on either of the front
doors will lock/unlock all doors and
trunk/tailgate.
Turn the key once in the driver's
door to unlock that door only.
Turn the key in the same direction
again (within 10 seconds) to unlock
all doors, trunk/tailgate.
One turn with the key towards
locking in either of the front doors
locks all doors, trunk/tailgate.
Use the switch on the instrument
panel (with the doors closed) to
lock/unlock the car from the inside.

Check the action of the buttons on
the other doors to verify their
correct function (lock/unlock). The
driver's door can be locked only by
using the key when outside the
vehicle.
On vehicles equipped with the
optional remote control locking
system, refer to the following
page.

WARNING!
The doors should not be locked
while driving. In case of an
accident, this may hinder rapid
access to the occupants of the
vehicle. (Also see information
on "child safety locks").
Remote keyless entry system pg. 33
file:///K|/ownersdocs/1998/1998_SV90/98S90_031.htm (2 of 6)12/30/2006 \
1:52:39 PM

1998 Volvo S90


Remote keyless entry
system

As an option, your car can be
equipped with a remote
control transmitter. This
transmitter uses a radio
frequency which will allow
"keyless" entry into the
passenger compartment or the
trunk. You will be supplied
with two coded key ring
transmitters, which will
enable you to lock/unlock all
doors and the trunk/tailgate
from a distance of 10-15 feet
(3-5 meters).

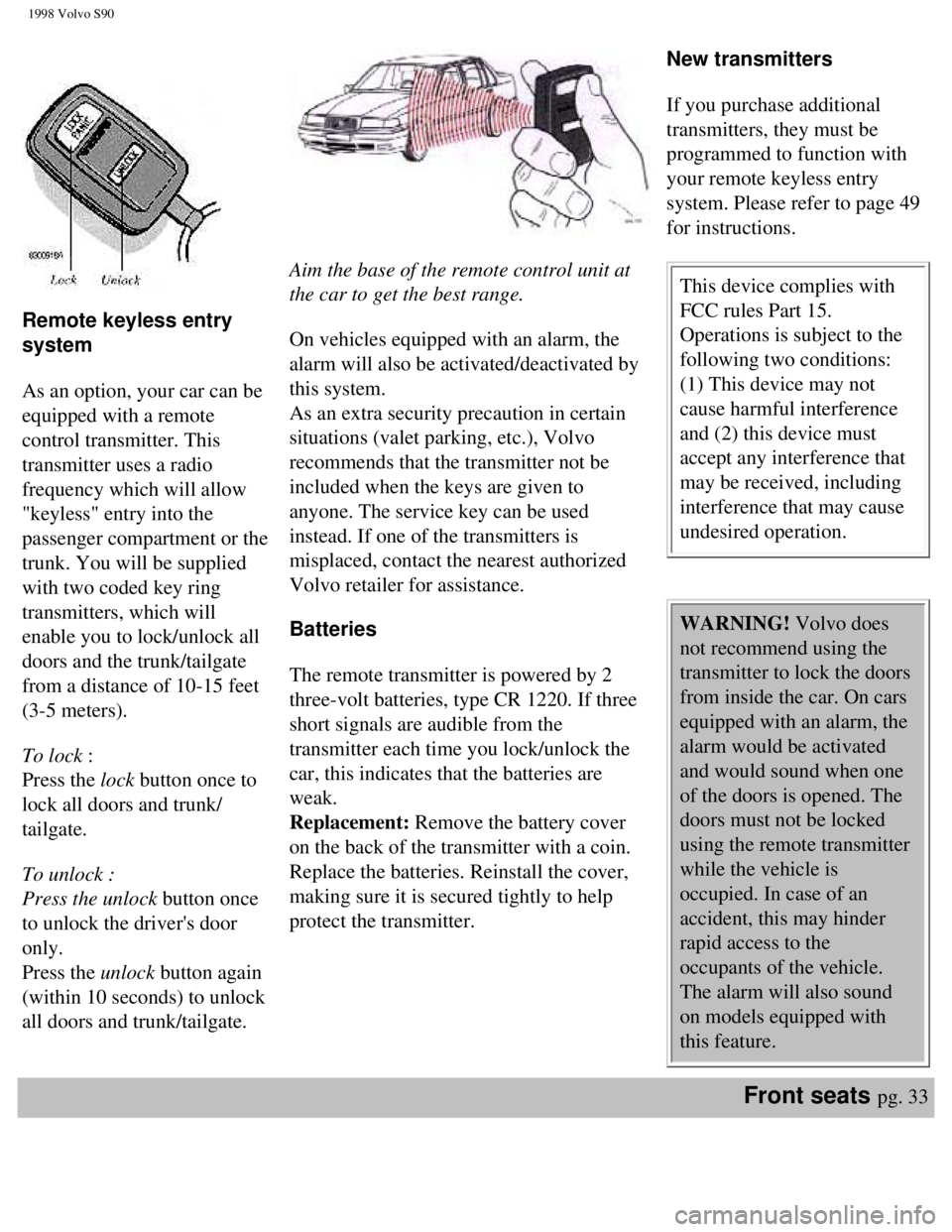

To lock :
Press the lock button once to
lock all doors and trunk/
tailgate.

To unlock :
Press the unlock button once
to unlock the driver's door
only.
Press the unlock button again
(within 10 seconds) to unlock
all doors and trunk/tailgate.


Aim the base of the remote control unit at
the car to get the best range.

On vehicles equipped with an alarm, the
alarm will also be activated/deactivated by
this system.
As an extra security precaution in certain
situations (valet parking, etc.), Volvo
recommends that the transmitter not be
included when the keys are given to
anyone. The service key can be used
instead. If one of the transmitters is
misplaced, contact the nearest authorized
Volvo retailer for assistance.

Batteries

The remote transmitter is powered by 2
three-volt batteries, type CR 1220. If three
short signals are audible from the
transmitter each time you lock/unlock the
car, this indicates that the batteries are
weak.
Replacement: Remove the battery cover
on the back of the transmitter with a coin.
Replace the batteries. Reinstall the cover,
making sure it is secured tightly to help
protect the transmitter. New transmitters

If you purchase additional
transmitters, they must be
programmed to function with
your remote keyless entry
system. Please refer to page 49
for instructions.

This device complies with
FCC rules Part 15.
Operations is subject to the
following two conditions:
(1) This device may not
cause harmful interference
and (2) this device must
accept any interference that
may be received, including
interference that may cause
undesired operation.

WARNING! Volvo does
not recommend using the
transmitter to lock the doors
from inside the car. On cars
equipped with an alarm, the
alarm would be activated
and would sound when one
of the doors is opened. The
doors must not be locked
using the remote transmitter
while the vehicle is
occupied. In case of an
accident, this may hinder
rapid access to the
occupants of the vehicle.
The alarm will also sound
on models equipped with
this feature.
Front seats pg. 33
file:///K|/ownersdocs/1998/1998_SV90/98S90_031.htm (3 of 6)12/30/2006 \
1:52:39 PM

1998 Volvo S90

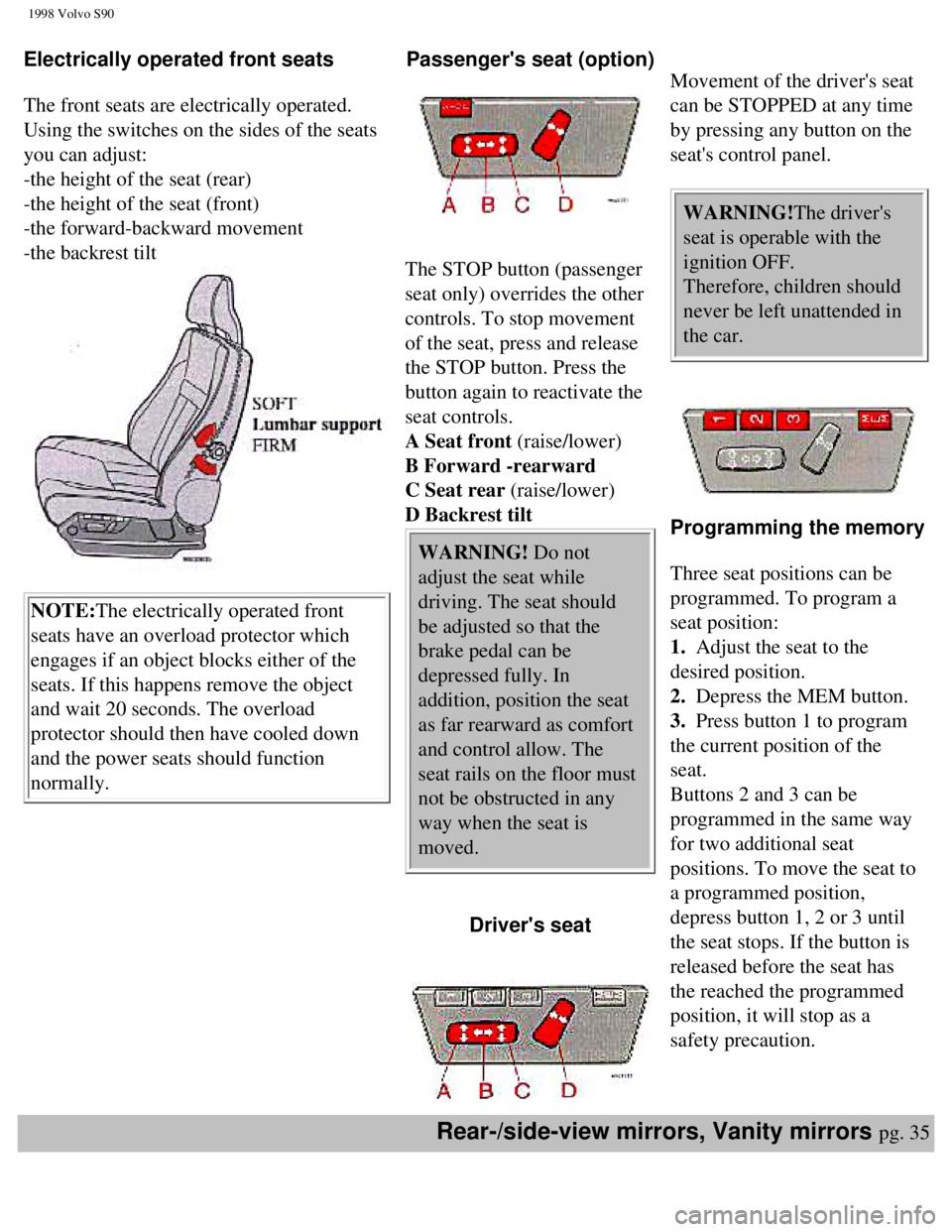

Electrically operated front seats

The front seats are electrically operated.
Using the switches on the sides of the seats
you can adjust:
-the height of the seat (rear)
-the height of the seat (front)
-the forward-backward movement
-the backrest tilt

NOTE:The electrically operated front
seats have an overload protector which
engages if an object blocks either of the
seats. If this happens remove the object
and wait 20 seconds. The overload
protector should then have cooled down
and the power seats should function
normally. Passenger's seat (option)



The STOP button (passenger
seat only) overrides the other
controls. To stop movement
of the seat, press and release
the STOP button. Press the
button again to reactivate the
seat controls.
A Seat front (raise/lower)
B Forward -rearward
C Seat rear (raise/lower)
D Backrest tilt
WARNING! Do not
adjust the seat while
driving. The seat should
be adjusted so that the
brake pedal can be
depressed fully. In
addition, position the seat
as far rearward as comfort
and control allow. The
seat rails on the floor must
not be obstructed in any
way when the seat is
moved.

Driver's seat



Movement of the driver's seat
can be STOPPED at any time
by pressing any button on the
seat's control panel.

WARNING!The driver's
seat is operable with the
ignition OFF.
Therefore, children should
never be left unattended in
the car.



Programming the memory

Three seat positions can be
programmed. To program a
seat position:
1. Adjust the seat to the
desired position.
2. Depress the MEM button.
3. Press button 1 to program
the current position of the
seat.
Buttons 2 and 3 can be
programmed in the same way
for two additional seat
positions. To move the seat to
a programmed position,
depress button 1, 2 or 3 until
the seat stops. If the button is
released before the seat has
the reached the programmed
position, it will stop as a
safety precaution.
Rear-/side-view mirrors, Vanity mirrors pg. 35
file:///K|/ownersdocs/1998/1998_SV90/98S90_031.htm (4 of 6)12/30/2006 \
1:52:39 PM

1998 Volvo S90


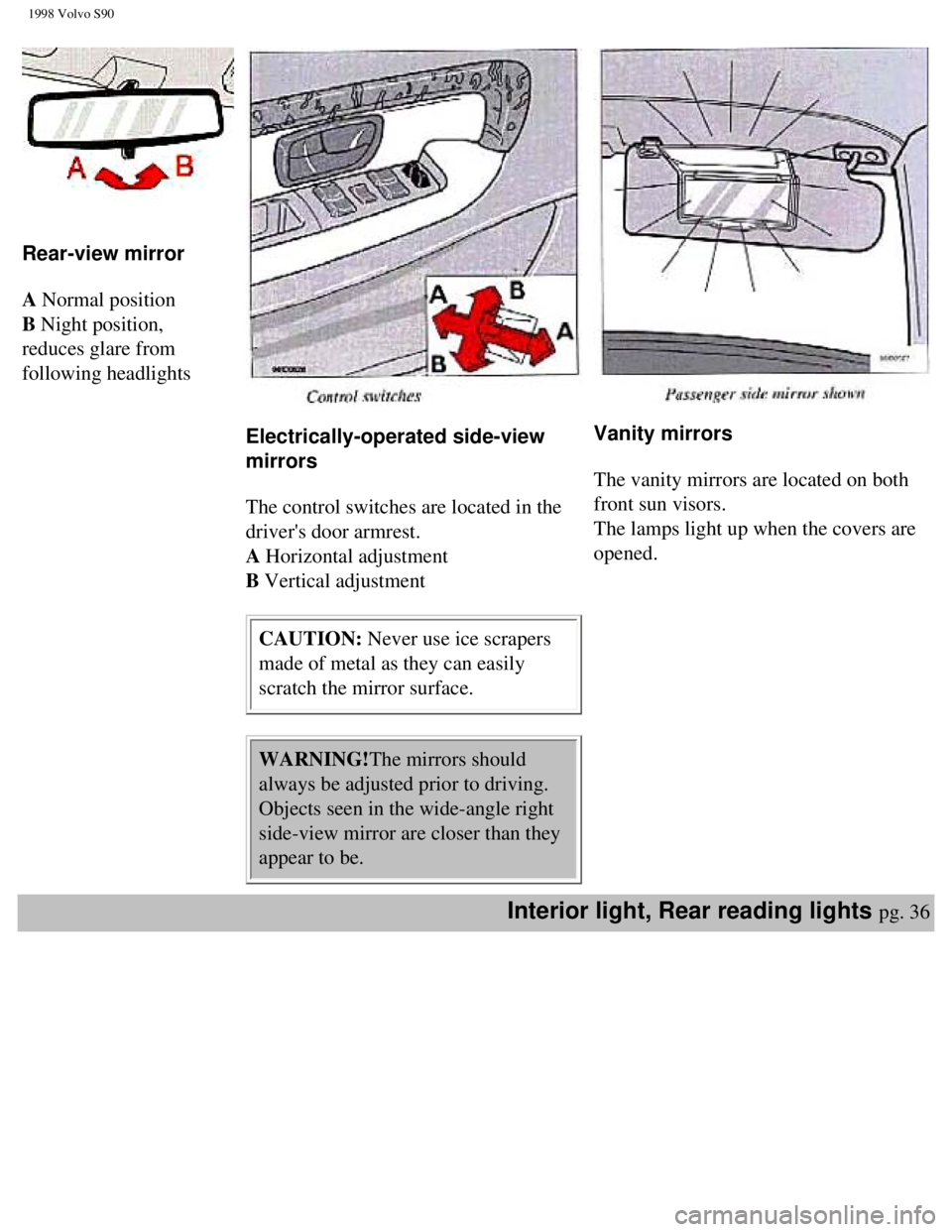

Rear-view mirror

A Normal position
B Night position,
reduces glare from
following headlights


Electrically-operated side-view
mirrors

The control switches are located in the
driver's door armrest.
A Horizontal adjustment
B Vertical adjustment
CAUTION: Never use ice scrapers
made of metal as they can easily
scratch the mirror surface.
WARNING!The mirrors should
always be adjusted prior to driving.
Objects seen in the wide-angle right
side-view mirror are closer than they
appear to be.

Vanity mirrors

The vanity mirrors are located on both
front sun visors.
The lamps light up when the covers are
opened.
Interior light, Rear reading lights pg. 36
file:///K|/ownersdocs/1998/1998_SV90/98S90_031.htm (5 of 6)12/30/2006 \
1:52:39 PM

1998 Volvo S90


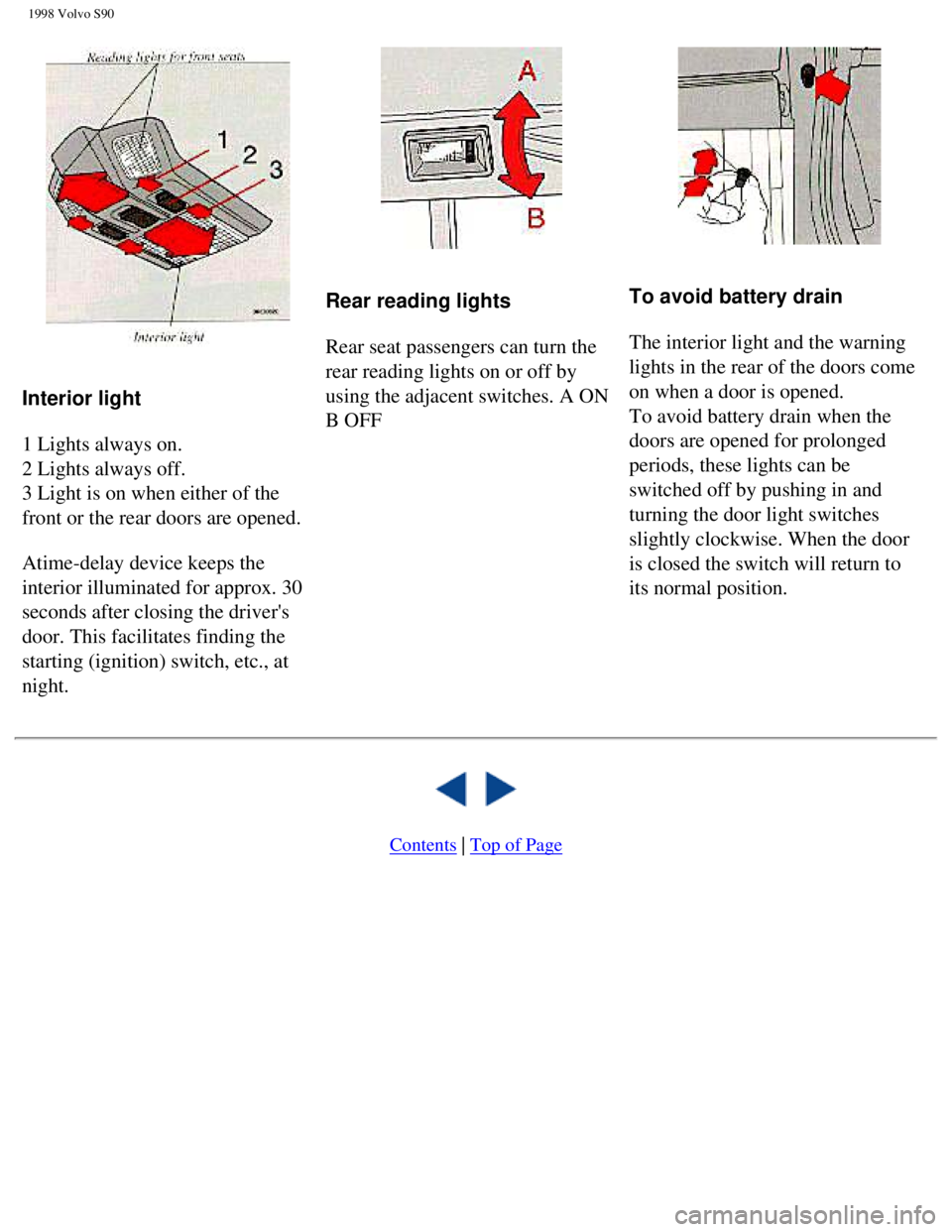

Interior light

1 Lights always on.
2 Lights always off.
3 Light is on when either of the
front or the rear doors are opened.

Atime-delay device keeps the
interior illuminated for approx. 30
seconds after closing the driver's
door. This facilitates finding the
starting (ignition) switch, etc., at
night.


Rear reading lights

Rear seat passengers can turn the
rear reading lights on or off by
using the adjacent switches. A ON
B OFF

To avoid battery drain

The interior light and the warning
lights in the rear of the doors come
on when a door is opened.
To avoid battery drain when the
doors are opened for prolonged
periods, these lights can be
switched off by pushing in and
turning the door light switches
slightly clockwise. When the door
is closed the switch will return to
its normal position.




Contents | Top of Page
file:///K|/ownersdocs/1998/1998_SV90/98S90_031.htm (6 of 6)12/30/2006 \
1:52:39 PM

1998 Volvo S90
Chapter 3 - Body and interior (cont.)
Child safety locks, Trunk lid (sedan)
pg. 37


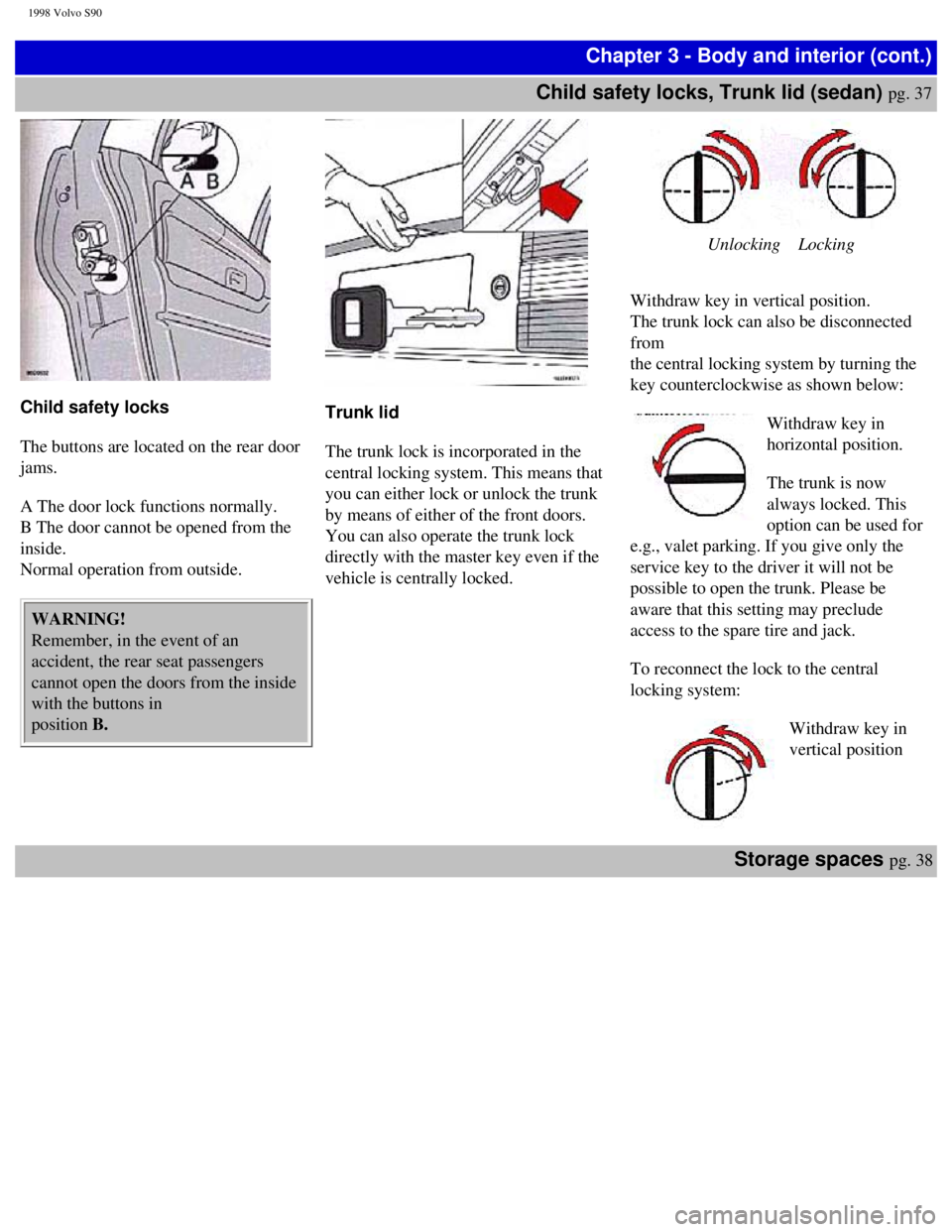

Child safety locks

The buttons are located on the rear door
jams.

A The door lock functions normally.
B The door cannot be opened from the
inside.
Normal operation from outside.
WARNING!
Remember, in the event of an
accident, the rear seat passengers
cannot open the doors from the inside
with the buttons in
position B.

Trunk lid

The trunk lock is incorporated in the
central locking system. This means that
you can either lock or unlock the trunk
by means of either of the front doors.
You can also operate the trunk lock
directly with the master key even if the
vehicle is centrally locked.

Unlocking Locking


Withdraw key in vertical position.
The trunk lock can also be disconnected
from
the central locking system by turning the
key counterclockwise as shown below:

Withdraw key in
horizontal position.

The trunk is now
always locked. This
option can be used for
e.g., valet parking. If you give only the
service key to the driver it will not be
possible to open the trunk. Please be
aware that this setting may preclude
access to the spare tire and jack.

To reconnect the lock to the central
locking system:

Withdraw key in
vertical position
Storage spaces pg. 38
file:///K|/ownersdocs/1998/1998_SV90/98S90_037.htm (1 of 4)12/30/2006 \
1:52:39 PM

1998 Volvo S90
Hood pg. 39





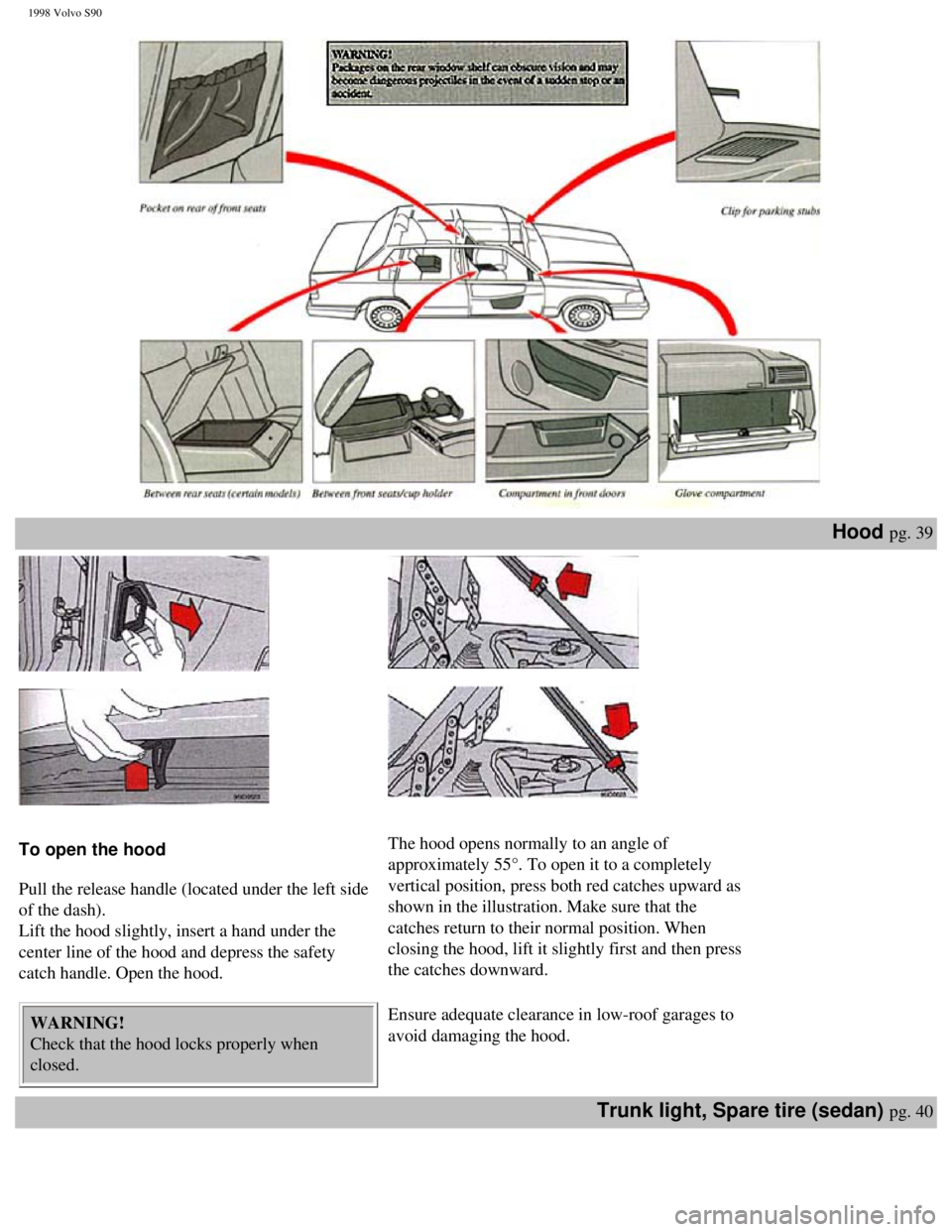

To open the hood

Pull the release handle (located under the left side
of the dash).
Lift the hood slightly, insert a hand under the
center line of the hood and depress the safety
catch handle. Open the hood.
WARNING!
Check that the hood locks properly when
closed.





The hood opens normally to an angle of
approximately 55°. To open it to a completely
vertical position, press both red catches upward as
shown in the illustration. Make sure that the
catches return to their normal position. When
closing the hood, lift it slightly first and then press
the catches downward.
Ensure adequate clearance in low-roof garages to
avoid damaging the hood.
Trunk light, Spare tire (sedan) pg. 40
file:///K|/ownersdocs/1998/1998_SV90/98S90_037.htm (2 of 4)12/30/2006 \
1:52:39 PM

1998 Volvo S90


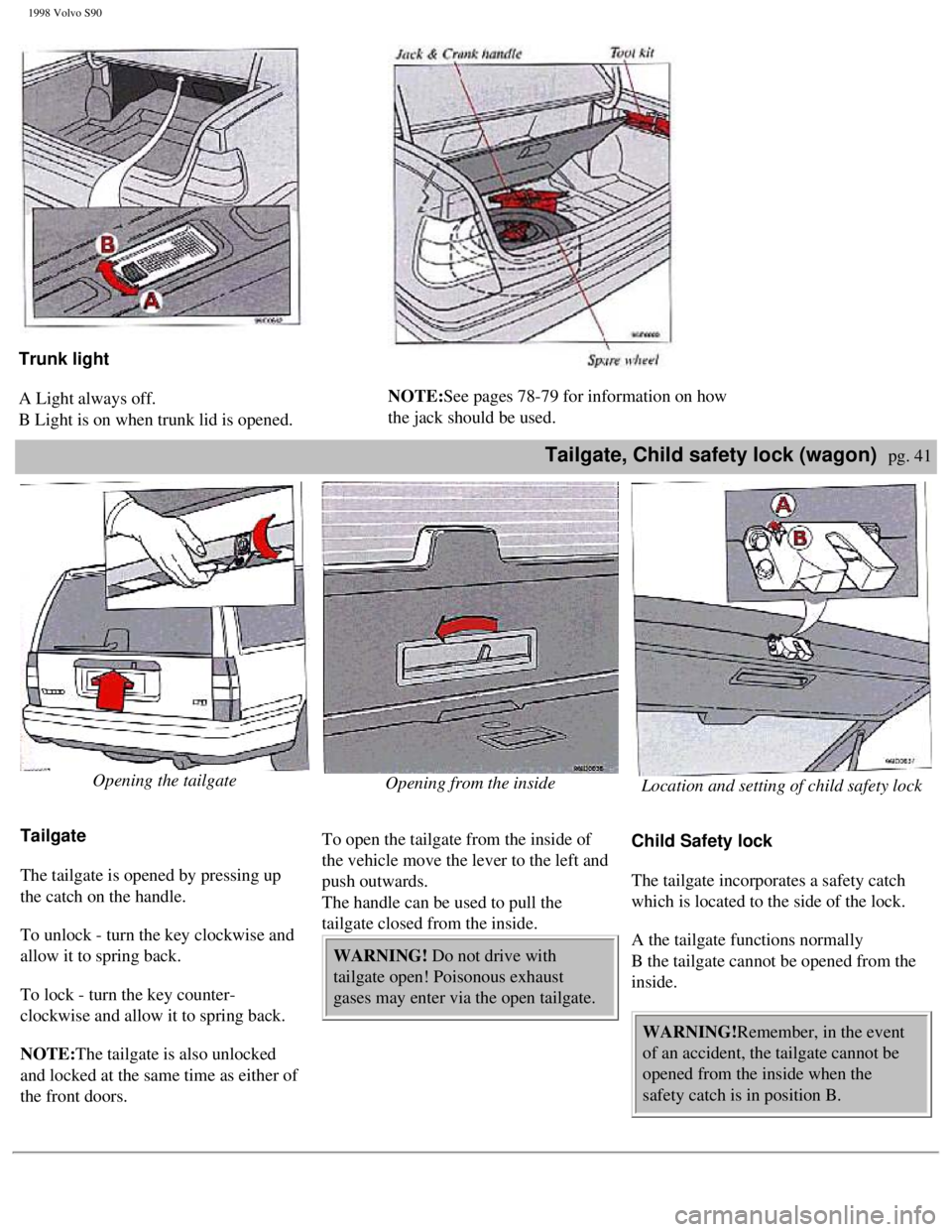

Trunk light

A Light always off.
B Light is on when trunk lid is opened.

NOTE:See pages 78-79 for information on how
the jack should be used.
Tailgate, Child safety lock (wagon) pg. 41

Opening the tailgate


Tailgate

The tailgate is opened by pressing up
the catch on the handle.

To unlock - turn the key clockwise and
allow it to spring back.

To lock - turn the key counter-
clockwise and allow it to spring back.

NOTE:The tailgate is also unlocked
and locked at the same time as either of
the front doors.
Opening from the inside


To open the tailgate from the inside of
the vehicle move the lever to the left and
push outwards.
The handle can be used to pull the
tailgate closed from the inside.
WARNING! Do not drive with
tailgate open! Poisonous exhaust
gases may enter via the open tailgate.
Location and setting of child safety lock


Child Safety lock

The tailgate incorporates a safety catch
which is located to the side of the lock.

A the tailgate functions normally
B the tailgate cannot be opened from the
inside.

WARNING!Remember, in the event
of an accident, the tailgate cannot be
opened from the inside when the
safety catch is in position B.


file:///K|/ownersdocs/1998/1998_SV90/98S90_037.htm (3 of 4)12/30/2006 \
1:52:39 PM
