Chapter 3 - Body and interior (cont.)
Concealed storage bins, Rear seat head restraints (wagon)
pg. 42

Opening the small storage bin


Concealed storage bins

There are three storage bins under the floor of the
cargo space; the largest bin can be locked with a
key.



The lid of the largest
bin is hinged in the
middle (not useable if
the auxiliary child seat is installed).


Folding rear seat; increasing the cargo
space

The center head restraint should be lowered
manually before folding down the rear seat
backrest. The outboard head restraints retract
automatically when the backrest is folded down.
The rear seat head restraints can be raised by
pulling straight up or lowered by grasping the
restraint, pulling it slightly forward and pushing
down.
Folding rear seat (wagon) pg. 43

Seat cushion strap

The rear seat is split 60/40 so that each
section can be folded independently.
Straighten front backrests if they are
tilted too far to the rear.
Pull the strap to lift the seat cushion and
Release lever - backrest


CAUTION: Check that latches under
seat cushions engage holes at top edge of
backrest.
Seat belts must be correctly positioned as
Latches fit into holes


file:///K|/ownersdocs/1998/1998_SV90/98S90_042.htm (1 of 4)12/30/2006 \
1:52:40 PM

1998 Volvo S90
swing the cushion up and toward the
back of the front seats.
Move the backrest release lever rearward
and fold the backrest down.
When the backrest is raised, the outboard
head restraints return to their normal
position and must be raised manually if
required.
The backrest must lock into place. The
red lock indicator will not be visible if
the seat has locked into place
correctly. seat is returned to normal position. WARNING! When the rear seat is
folded down, do not place heavy
objects against the backs of the front
seats. This places a severe strain on
the folded down backrest of the rear
seat. Be sure to secure cargo. Cargo
must not be stacked higher than the
top of seatbacks. This will reduce the
possibility of luggage, etc. becoming
projectiles during sudden maneuvers,
rapid braking or an accident. The red
lock indicator is visible when the
backrest is NOT locked in position
and not visible when the backrest is
correctly locked in place. When the
backrest is in the upright position, it
must always be correctly locked in
place.
Removing seat cushions, Tool box, Securing cargo (wagon) pg. 44

Lift the seat cushion part way and
remove the seat.

Removing seat cushions

The seat cushion can be easily removed
to provide a slightly larger cargo storage
area. To remove, lift the seat cushion out
of the hinges.

Tool box

Tool box

The tool box can be released by turning
the catch.

WARNING! Do not place extremely
heavy articles the front seats, as the
backrest which is folded down is then
placed under severe strain.
Be sure to secure cargo. Hard and sharp
articles could otherwise damage the
frontseat backrest and/or cause injury to
passengers in the event of rapid braking
or a collision.
Always secure cargo

Securing cargo

As a safety precaution, the cargo space
is equipped with six eyelets to which
straps can be attached to secure
luggage.

file:///K|/ownersdocs/1998/1998_SV90/98S90_042.htm (2 of 4)12/30/2006 \
1:52:40 PM

1998 Volvo S90
WARNING! The eyelets are not to
be used as passenger restraints or as
anchorages for child restraints. See
page 9.
Wagons only:
Unless the station wagon is
equipped with Volvo's auxiliary seat
for children (option) passengers
should not ride in the rear cargo
area.

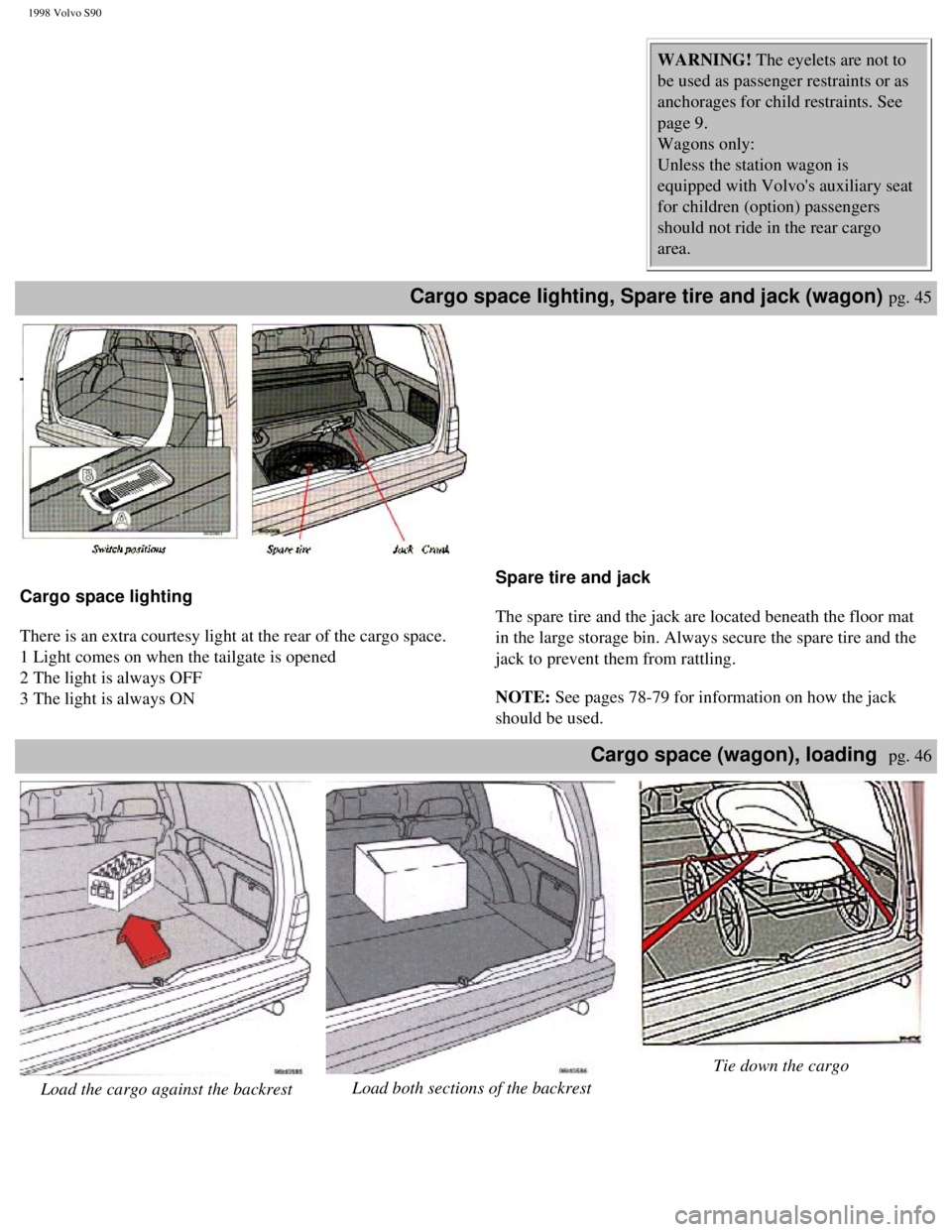

Cargo space lighting, Spare tire and jack (wagon) pg. 45
Cargo space lighting

There is an extra courtesy light at the rear of the cargo space.
1 Light comes on when the tailgate is opened
2 The light is always OFF
3 The light is always ON Spare tire and jack

The spare tire and the jack are located beneath the floor mat
in the large storage bin. Always secure the spare tire and the
jack to prevent them from rattling.

NOTE: See pages 78-79 for information on how the jack
should be used.
Cargo space (wagon), loading pg. 46

Load the cargo against the backrest
Load both sections of the backrest

Tie down the cargo
file:///K|/ownersdocs/1998/1998_SV90/98S90_042.htm (3 of 4)12/30/2006 \
1:52:40 PM

1998 Volvo S90


Loading in cargo space

Seat belts and airbags help give driver and passengers good
protection, especially in head-on collisions. However, there is
also a risk of injury from behind. When loading the car,
remember that objects not properly loaded and secured may
move forward in collisions or when braking suddenly, causing
injury.
Remember that a 44 lbs object weighs the equivalent of
2,200 lbs in a head-on collision at 30 mph.
Remember the following when loading the car:

l Load the cargo against the backrest.
l Load heavy cargo as low down as possible.
l Load wide cargo on either side of the rear seat split.
l Secure the cargo with cargo straps through the eyelets in the
cargo space.
l If nobody is sitting in the rear seat reinforce the backrest by
fastening the rear seat belts.
l Never load cargo above the backrest without a cargo barrier.

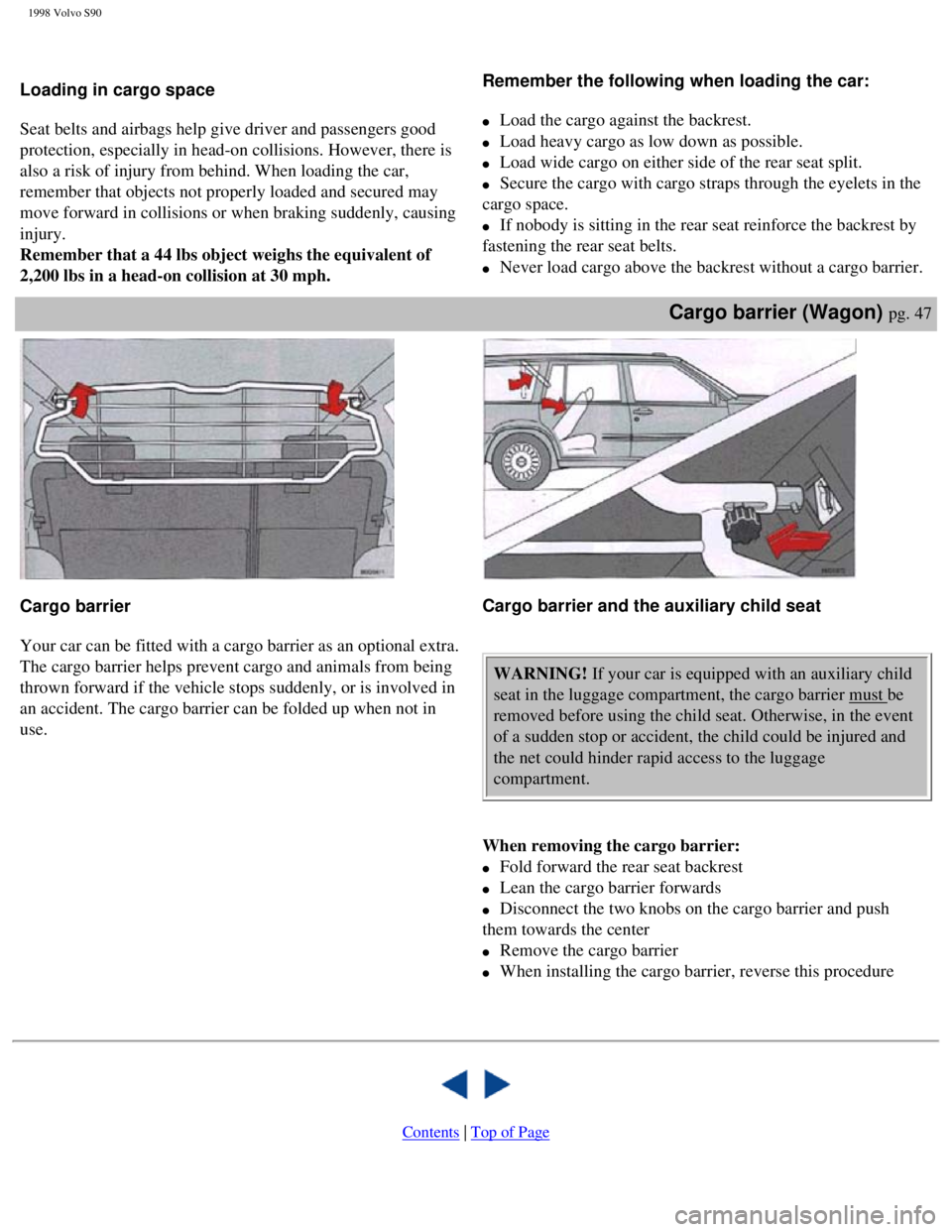

Cargo barrier (Wagon) pg. 47


Cargo barrier

Your car can be fitted with a cargo barrier as an optional extra.
The cargo barrier helps prevent cargo and animals from being
thrown forward if the vehicle stops suddenly, or is involved in
an accident. The cargo barrier can be folded up when not in
use.

Cargo barrier and the auxiliary child seat

WARNING! If your car is equipped with an auxiliary child
seat in the luggage compartment, the cargo barrier must be
removed before using the child seat. Otherwise, in the event
of a sudden stop or accident, the child could be injured and
the net could hinder rapid access to the luggage
compartment.


When removing the cargo barrier:
l Fold forward the rear seat backrest
l Lean the cargo barrier forwards
l Disconnect the two knobs on the cargo barrier and push
them towards the center
l Remove the cargo barrier
l When installing the cargo barrier, reverse this procedure




Contents | Top of Page
file:///K|/ownersdocs/1998/1998_SV90/98S90_042.htm (4 of 4)12/30/2006 \
1:52:40 PM

1998 Volvo S90

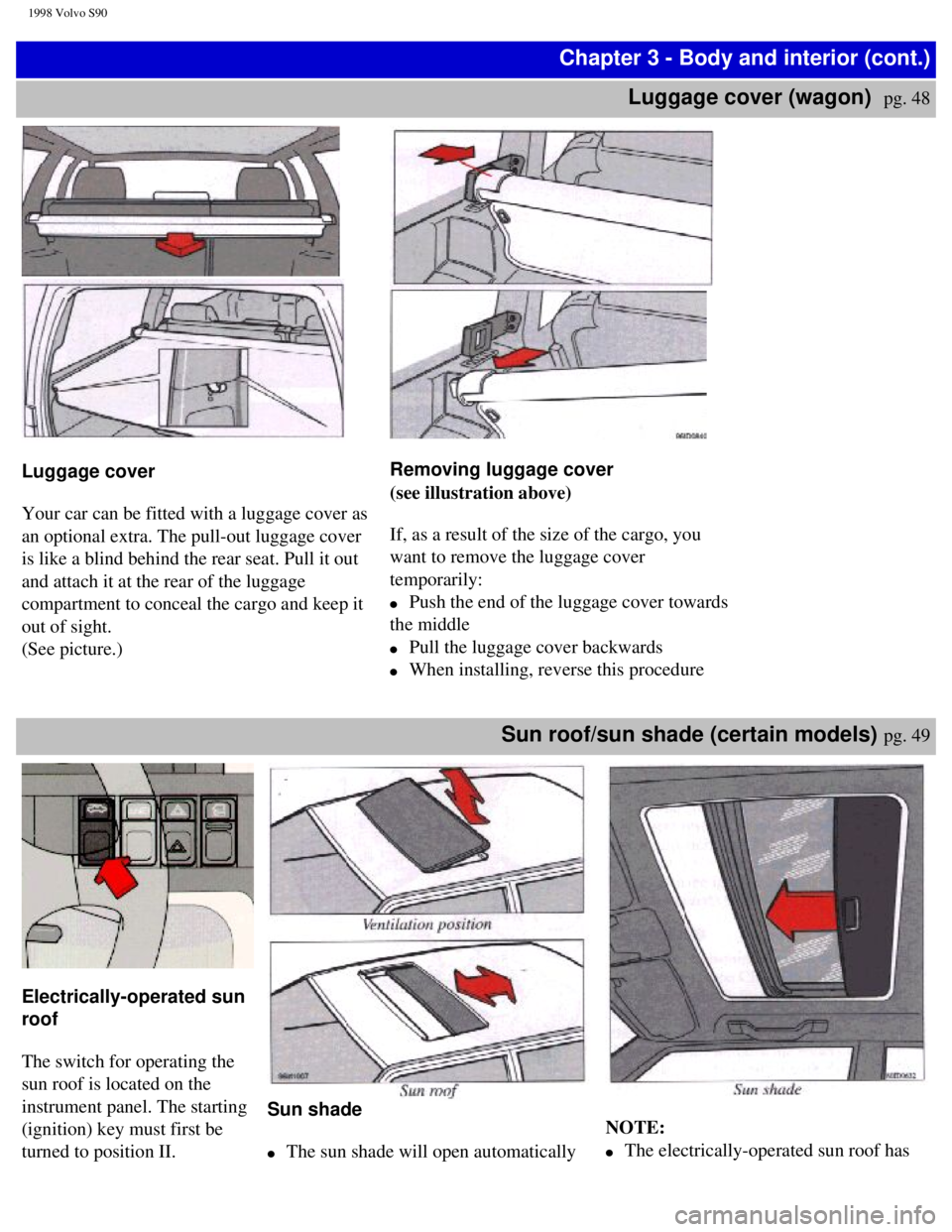

Chapter 3 - Body and interior (cont.)Luggage cover (wagon)
pg. 48



Luggage cover

Your car can be fitted with a luggage cover as
an optional extra. The pull-out luggage cover
is like a blind behind the rear seat. Pull it out
and attach it at the rear of the luggage
compartment to conceal the cargo and keep it
out of sight.
(See picture.)



Removing luggage cover
(see illustration above)

If, as a result of the size of the cargo, you
want to remove the luggage cover
temporarily:
l Push the end of the luggage cover towards
the middle
l Pull the luggage cover backwards
l When installing, reverse this procedure
Sun roof/sun shade (certain models) pg. 49


Electrically-operated sun
roof

The switch for operating the
sun roof is located on the
instrument panel. The starting
(ignition) key must first be
turned to position II.
Sun shade

l The sun shade will open automatically


NOTE:
l The electrically-operated sun roof has
file:///K|/ownersdocs/1998/1998_SV90/98S90_048.htm (1 of 4)12/30/2006 \
1:52:40 PM

1998 Volvo S90
l To slide open the sun roof :
press the lower section of the
switch.
l To close the sun roof :press
the upper section of the
switch until the sun roof has
closed completely .
l To open the rear edge of
the sun roof (ventilation
position): press the upper
section of the switch. Press
the lower section of the
switch to return the sun roof
to the closed position.
with the sun roof when the sun roof slides
back (not when the sun roof is opened to
the ventilation position).
l The sun shade can also be opened
manually even if the sun roof is closed.
l The sun shade will not close
automatically with the sun roof. It must be
closed manually.

WARNING! (SUN ROOF): The sun
roof must never be obstructed in any
way when in operation.
an overload protecting circuit breaker
(fuse no. 26) which is activated when an
object blocks the sun roof. Should this
occur, remove the object and wait 20
seconds for the circuit breaker to reset.
The sun roof should then function
normally.
l To help alleviate "rumbling" wind
noise when the sun roof is open, adjust the
position slightly (open/close).

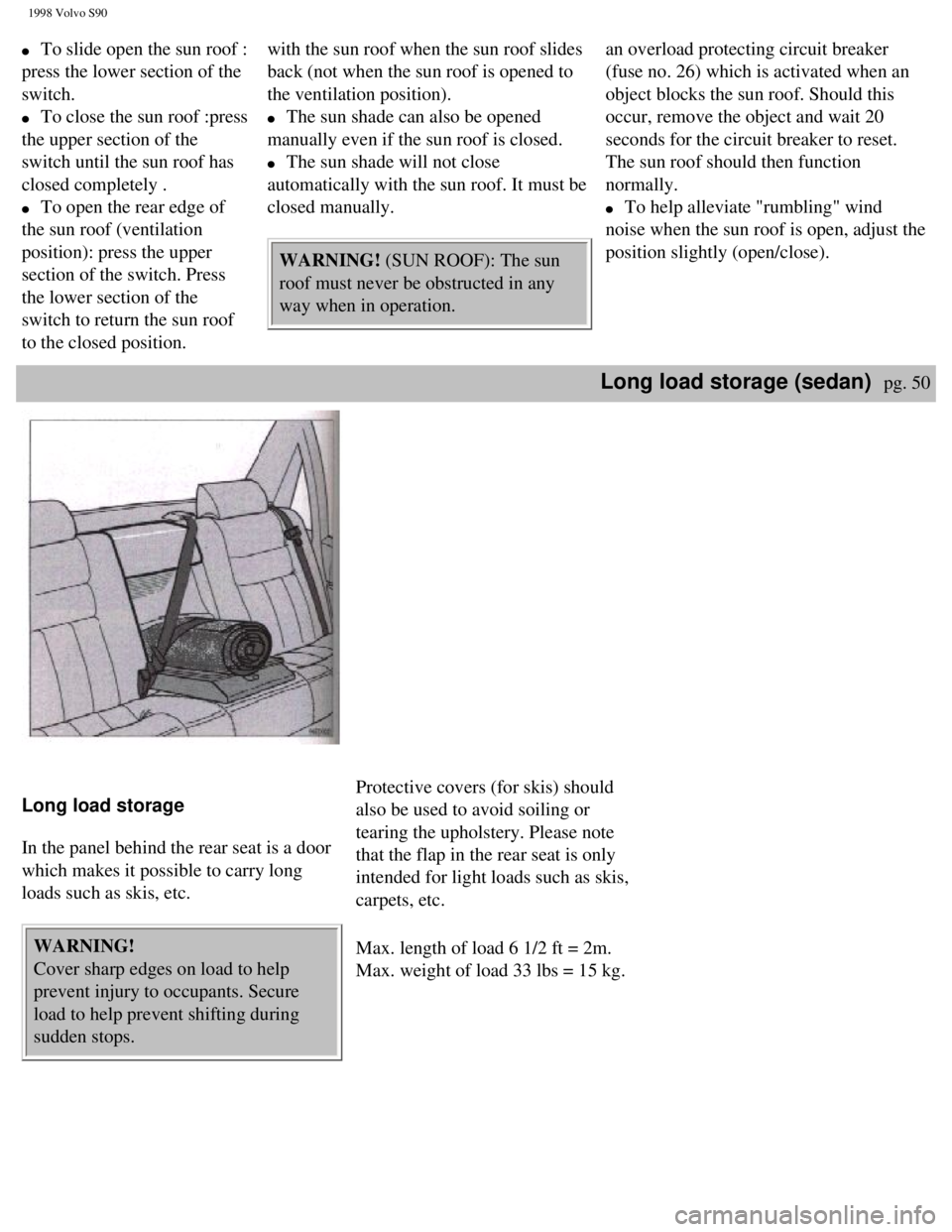

Long load storage (sedan) pg. 50



Long load storage

In the panel behind the rear seat is a door
which makes it possible to carry long
loads such as skis, etc.
WARNING!
Cover sharp edges on load to help
prevent injury to occupants. Secure
load to help prevent shifting during
sudden stops.
Protective covers (for skis) should
also be used to avoid soiling or
tearing the upholstery. Please note
that the flap in the rear seat is only
intended for light loads such as skis,
carpets, etc.
Max. length of load 6 1/2 ft = 2m.
Max. weight of load 33 lbs = 15 kg.


file:///K|/ownersdocs/1998/1998_SV90/98S90_048.htm (2 of 4)12/30/2006 \
1:52:40 PM

1998 Volvo S90
WARNING!
Always turn engine off and apply
parking brake when loading/
unloading the vehicle. Place
transmission selector in P (PARK)
position to help prevent
inadvertent movement of selector.
Alarm pg. 51

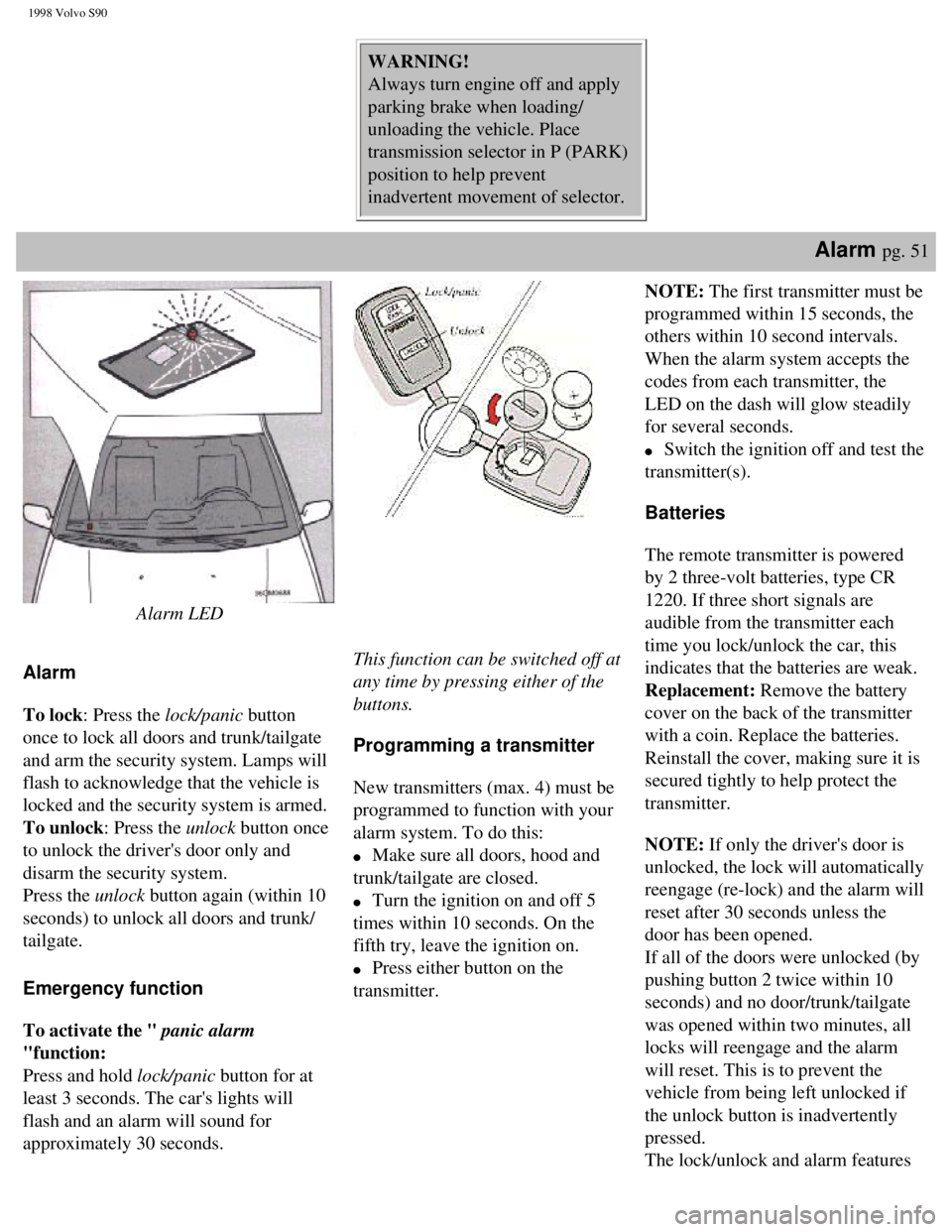

Alarm LED


Alarm

To lock: Press the lock/panic button
once to lock all doors and trunk/tailgate
and arm the security system. Lamps will
flash to acknowledge that the vehicle is
locked and the security system is armed.
To unlock: Press the unlock button once
to unlock the driver's door only and
disarm the security system.
Press the unlock button again (within 10
seconds) to unlock all doors and trunk/
tailgate.
Emergency function

To activate the " panic alarm
"function:
Press and hold lock/panic button for at
least 3 seconds. The car's lights will
flash and an alarm will sound for
approximately 30 seconds.







This function can be switched off at
any time by pressing either of the
buttons.

Programming a transmitter

New transmitters (max. 4) must be
programmed to function with your
alarm system. To do this:
l Make sure all doors, hood and
trunk/tailgate are closed.
l Turn the ignition on and off 5
times within 10 seconds. On the
fifth try, leave the ignition on.
l Press either button on the
transmitter. NOTE: The first transmitter must be
programmed within 15 seconds, the
others within 10 second intervals.
When the alarm system accepts the
codes from each transmitter, the
LED on the dash will glow steadily
for several seconds.
l Switch the ignition off and test the
transmitter(s).

Batteries

The remote transmitter is powered
by 2 three-volt batteries, type CR
1220. If three short signals are
audible from the transmitter each
time you lock/unlock the car, this
indicates that the batteries are weak.
Replacement: Remove the battery
cover on the back of the transmitter
with a coin. Replace the batteries.
Reinstall the cover, making sure it is
secured tightly to help protect the
transmitter.

NOTE: If only the driver's door is
unlocked, the lock will automatically
reengage (re-lock) and the alarm will
reset after 30 seconds unless the
door has been opened.
If all of the doors were unlocked (by
pushing button 2 twice within 10
seconds) and no door/trunk/tailgate
was opened within two minutes, all
locks will reengage and the alarm
will reset. This is to prevent the
vehicle from being left unlocked if
the unlock button is inadvertently
pressed.
The lock/unlock and alarm features
file:///K|/ownersdocs/1998/1998_SV90/98S90_048.htm (3 of 4)12/30/2006 \
1:52:40 PM

1998 Volvo S90
can also be utilized by using the
keys. See section: Keys, Doors and
Locks on page 32.
If the alarm LED glows
continuously for 5 seconds, this
indicates a fault in the system or that
a door is not properly closed.




Contents | Top of Page
file:///K|/ownersdocs/1998/1998_SV90/98S90_048.htm (4 of 4)12/30/2006 \
1:52:40 PM

1998 Volvo S90
Chapter 4 - Starting and driving
pg. 53
Starting and driving
This section on starting and driving contains items
such as starting the engine, operating gear selector, towing, trailers.
Break-in period pg. 54

Fuel requirements, Refueling pg. 54
Driving economy pg. 56
Starting the engine pg. 57
Automatic Transmission pg. 58
Points to remember pg. 60
Emergency towing pg. 63
Vehicle Towing Information pg. 64
Jump starting pg. 65
Three-way catalytic converter pg. 66
Brake system, ABS pg. 67
Trailer towing pg. 68
Winter driving pg. 69
Before a long distance trip pg. 70
Break-in period, Fuel requirements pg. 54
file:///K|/ownersdocs/1998/1998_SV90/98S90_053.htm (1 of 6)12/30/2006 \
1:52:41 PM
