VOLVO V90 CROSS COUNTRY 2018 Owner´s Manual

MAINTENANCE AND SERVICE
}}
* Option/accessory.629

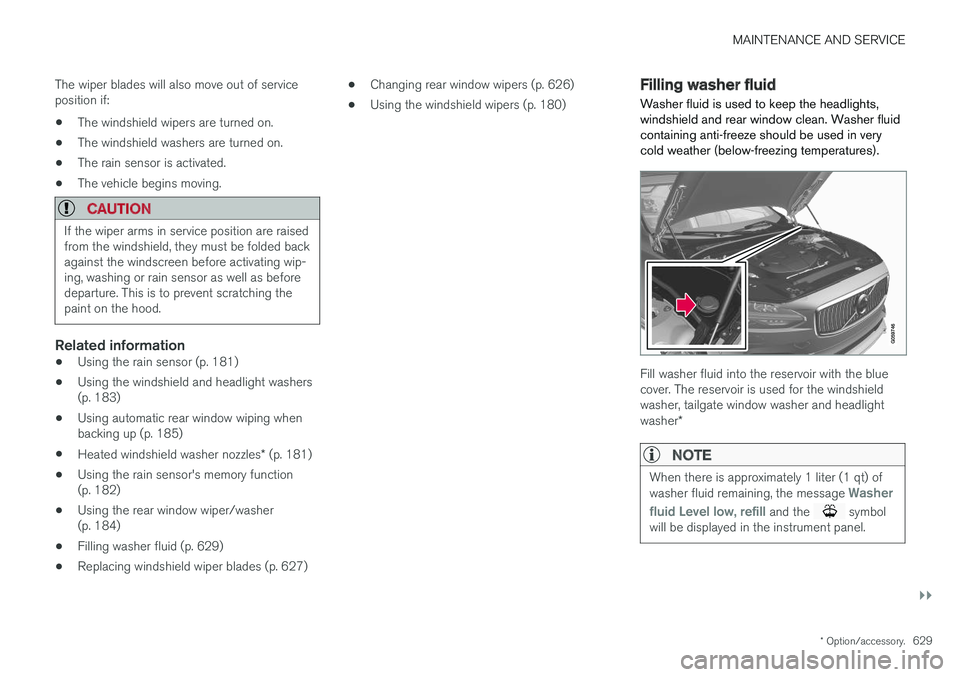

The wiper blades will also move out of service position if:
• The windshield wipers are turned on.
• The windshield washers are turned on.
• The rain sensor is activated.
• The vehicle begins moving.
CAUTION
If the wiper arms in service position are raised from the windshield, they must be folded backagainst the windscreen before activating wip-ing, washing or rain sensor as well as beforedeparture. This is to prevent scratching thepaint on the hood.
Related information
• Using the rain sensor (p. 181)
• Using the windshield and headlight washers (p. 183)
• Using automatic rear window wiping whenbacking up (p. 185)
• Heated windshield washer nozzles
* (p. 181)
• Using the rain sensor's memory function(p. 182)
• Using the rear window wiper/washer(p. 184)
• Filling washer fluid (p. 629)
• Replacing windshield wiper blades (p. 627) •
Changing rear window wipers (p. 626)
• Using the windshield wipers (p. 180)
Filling washer fluid
Washer fluid is used to keep the headlights, windshield and rear window clean. Washer fluidcontaining anti-freeze should be used in verycold weather (below-freezing temperatures).
Fill washer fluid into the reservoir with the blue cover. The reservoir is used for the windshieldwasher, tailgate window washer and headlight washer *
NOTE
When there is approximately 1 liter (1 qt) of washer fluid remaining, the message Washer
fluid
Level low, refill and the symbol
will be displayed in the instrument panel.

||
MAINTENANCE AND SERVICE
* Option/accessory.

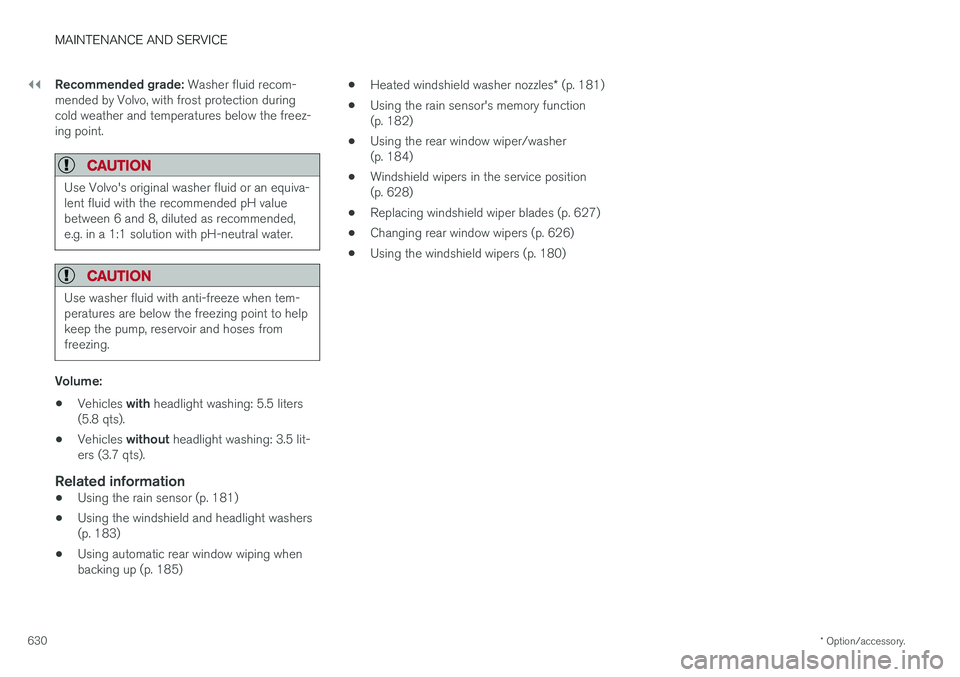

630 Recommended grade:
Washer fluid recom-
mended by Volvo, with frost protection during cold weather and temperatures below the freez-ing point.
CAUTION
Use Volvo's original washer fluid or an equiva- lent fluid with the recommended pH valuebetween 6 and 8, diluted as recommended,e.g. in a 1:1 solution with pH-neutral water.
CAUTION
Use washer fluid with anti-freeze when tem- peratures are below the freezing point to helpkeep the pump, reservoir and hoses fromfreezing.
Volume:
• Vehicles
with headlight washing: 5.5 liters
(5.8 qts).
• Vehicles
without headlight washing: 3.5 lit-
ers (3.7 qts).
Related information
• Using the rain sensor (p. 181)
• Using the windshield and headlight washers (p. 183)
• Using automatic rear window wiping whenbacking up (p. 185) •
Heated windshield washer nozzles
* (p. 181)
• Using the rain sensor's memory function(p. 182)
• Using the rear window wiper/washer(p. 184)
• Windshield wipers in the service position(p. 628)
• Replacing windshield wiper blades (p. 627)
• Changing rear window wipers (p. 626)
• Using the windshield wipers (p. 180)

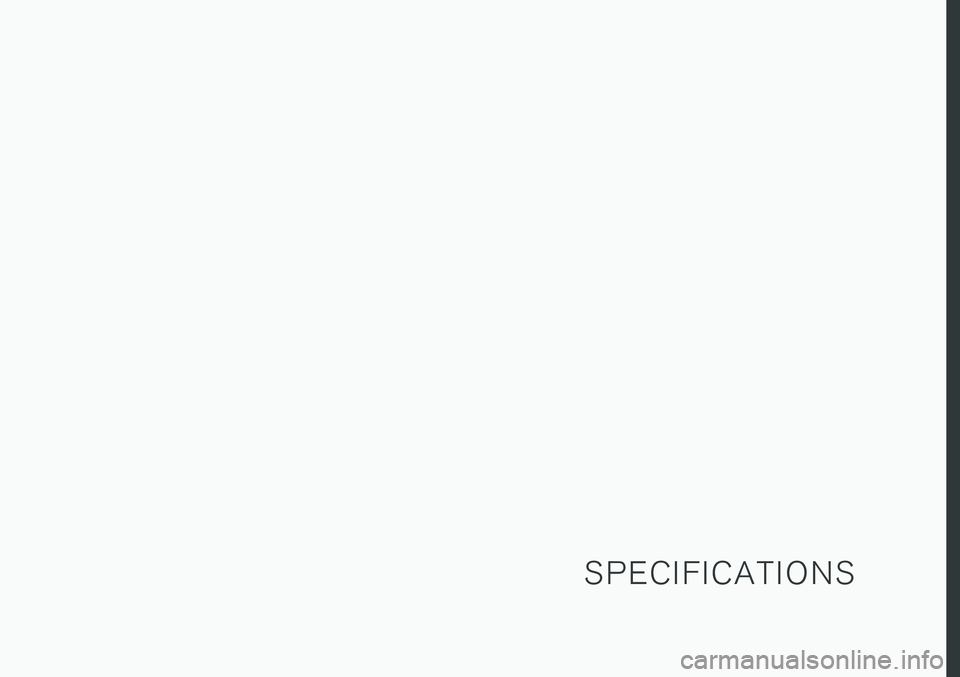

S P E C I F I C A T I O N S

SPECIFICATIONS
632
Type designations
The decals in the vehicle contain information such as chassis number, type designation, colorcode, etc.
Location of decals
The illustration is general and details may vary depending on market and model.

SPECIFICATIONS
}}
633

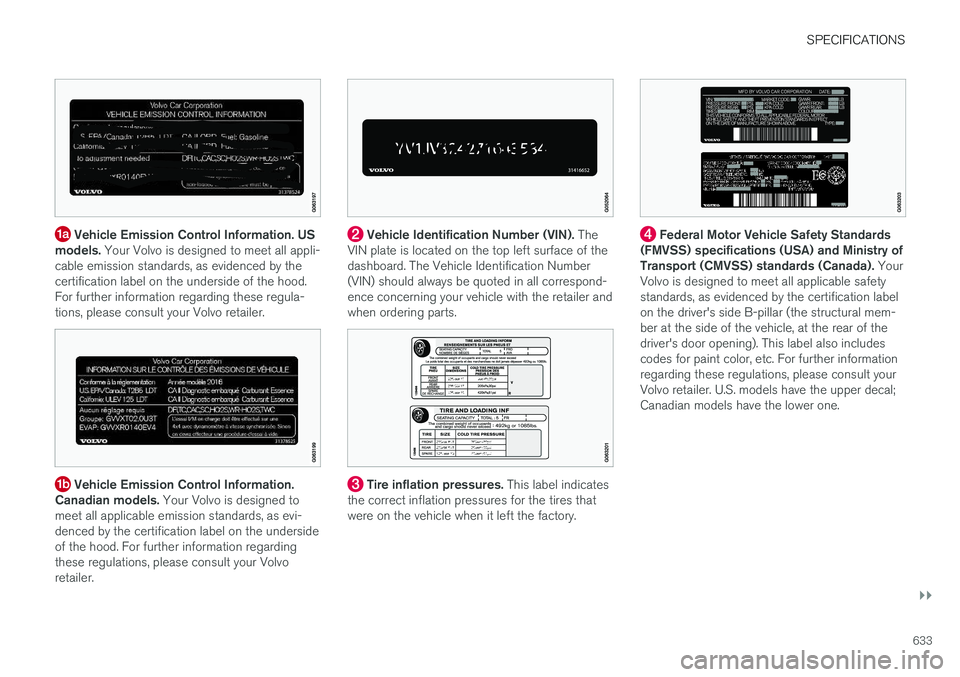

Vehicle Emission Control Information. US
models. Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by the certification label on the underside of the hood.For further information regarding these regula-tions, please consult your Volvo retailer.
Vehicle Emission Control Information.
Canadian models. Your Volvo is designed to
meet all applicable emission standards, as evi- denced by the certification label on the undersideof the hood. For further information regardingthese regulations, please consult your Volvoretailer.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle Identification Number(VIN) should always be quoted in all correspond-ence concerning your vehicle with the retailer andwhen ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires that were on the vehicle when it left the factory.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada). Your
Volvo is designed to meet all applicable safetystandards, as evidenced by the certification labelon the driver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rear of thedriver's door opening). This label also includescodes for paint color, etc. For further informationregarding these regulations, please consult yourVolvo retailer. U.S. models have the upper decal;Canadian models have the lower one.

||
SPECIFICATIONS
634

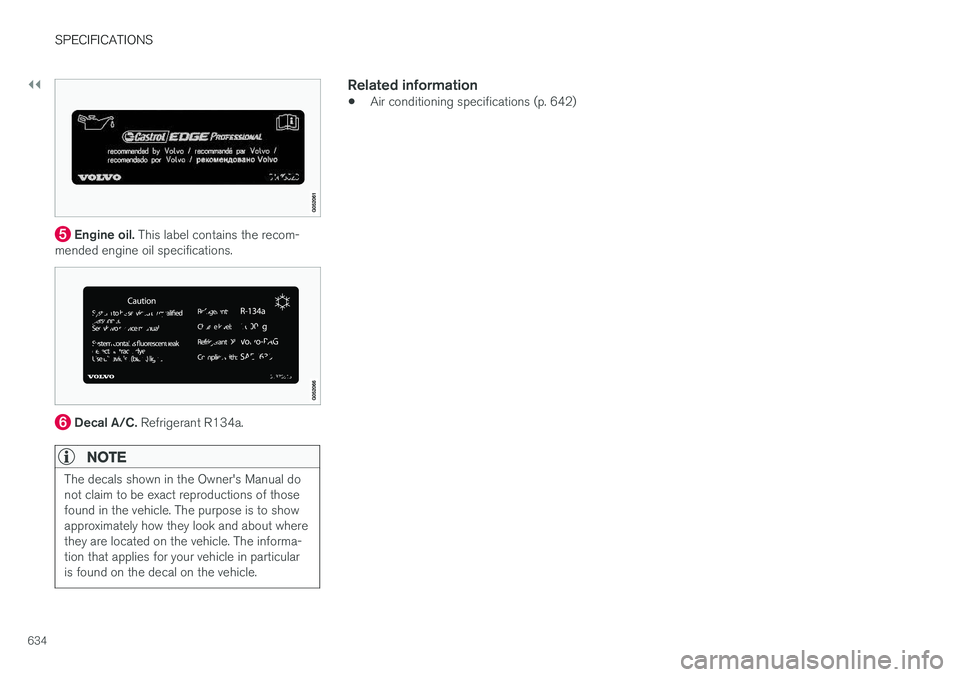

Engine oil. This label contains the recom-
mended engine oil specifications.
Decal A/C. Refrigerant R134a.
NOTE
The decals shown in the Owner's Manual do not claim to be exact reproductions of thosefound in the vehicle. The purpose is to showapproximately how they look and about wherethey are located on the vehicle. The informa-tion that applies for your vehicle in particularis found on the decal on the vehicle.
Related information
•Air conditioning specifications (p. 642)

SPECIFICATIONS
}}
635
DimensionsThe vehicle's length, height, etc. are shown in the table.
Dimensionsmminches
A Ground clear- ance A 198 7.8
B Wheelbase 2941 115.8 C Length 4939 194.4
D Load length, floor, foldedbackrest 1988 78.3Dimensionsmminches
E Load length, floor 1153 45.4
F Height 1543 60.7
G Load height 704 27.7
H Wheel track, front 1652
B
1655 C 65.0
B
65.2 CDimensionsmminches
I Wheel track, rear 1643
B
1645 C 64.7
B
64.8 C
J Load width, floor 1130 44.5
K Width 1903 (1879D
) 74.9 (74.0
D
)

||
SPECIFICATIONS
636

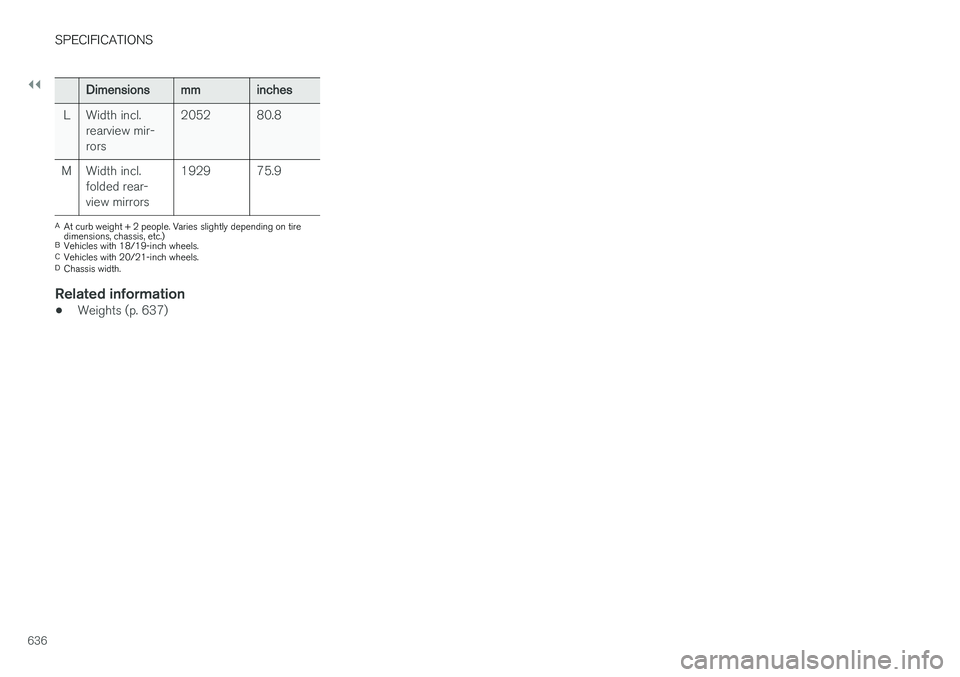

Dimensionsmminches
L Width incl. rearview mir- rors 2052 80.8
M Width incl. folded rear-view mirrors 1929 75.9
A
At curb weight + 2 people. Varies slightly depending on tire dimensions, chassis, etc.)
B Vehicles with 18/19-inch wheels.
C Vehicles with 20/21-inch wheels.
D Chassis width.
Related information
• Weights (p. 637)

SPECIFICATIONS
637
Weights The following table lists important weight data for your vehicle.
CategoryUSA
(lbs)Canada(kg)
Gross vehicle weight T6 AWD (B4204T27) 5335 2420
T5 AWD (B4204T23) 5290 2400
Capacity weight 950 430
Permissible axle weights, front T6 AWD (B4204T27) 2645 1200
T5 AWD (B4204T23) 2625 1190
Permissible axle weights, rear T6 AWD (B4204T27) 2800 1270
T5 AWD (B4204T23) 2780 1260
Curb weight 4100–4210 1860–1920
Max. roof load 220 100
CAUTION
•When loading the vehicle, the maximum gross vehicle weight and permissible axleweights may not be exceeded.
Related information
• Type designations (p. 632)
• Towing capacity and tongue weight (p. 638)

SPECIFICATIONS
* Option/accessory.
638

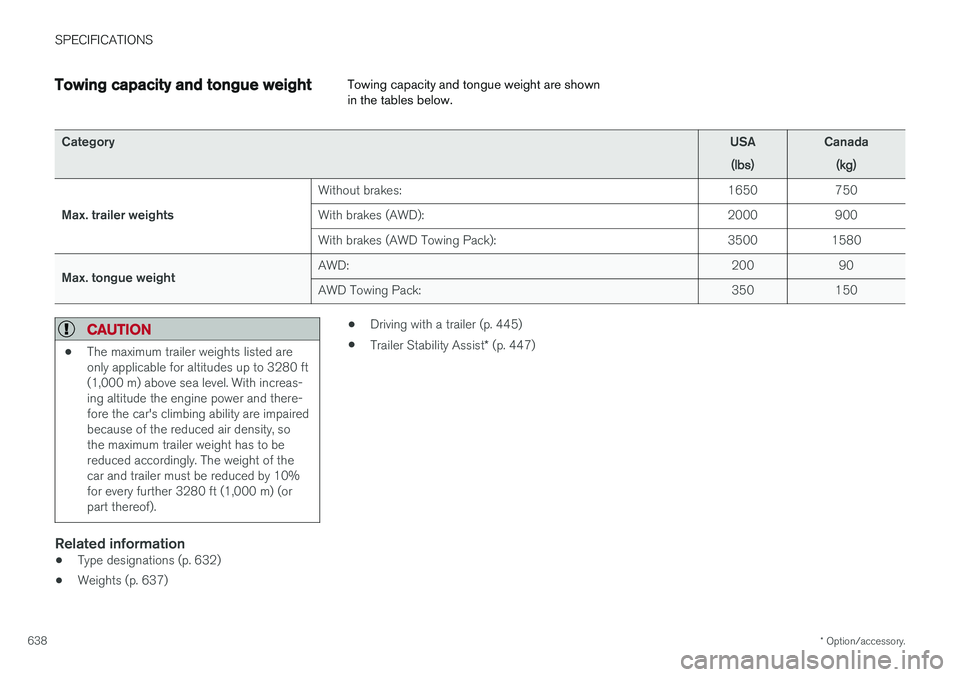

Towing capacity and tongue weight Towing capacity and tongue weight are shown in the tables below.
Category
USA
(lbs)Canada(kg)
Max. trailer weights Without brakes:
1650 750
With brakes (AWD): 2000 900
With brakes (AWD Towing Pack): 3500 1580
Max. tongue weight AWD:
200 90
AWD Towing Pack: 350 150
CAUTION
•The maximum trailer weights listed are only applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).
Related information
• Type designations (p. 632)
• Weights (p. 637) •
Driving with a trailer (p. 445)
• Trailer Stability Assist
* (p. 447)
