AUDIO, MEDIA AND INTERNET
* Option/accessory.509

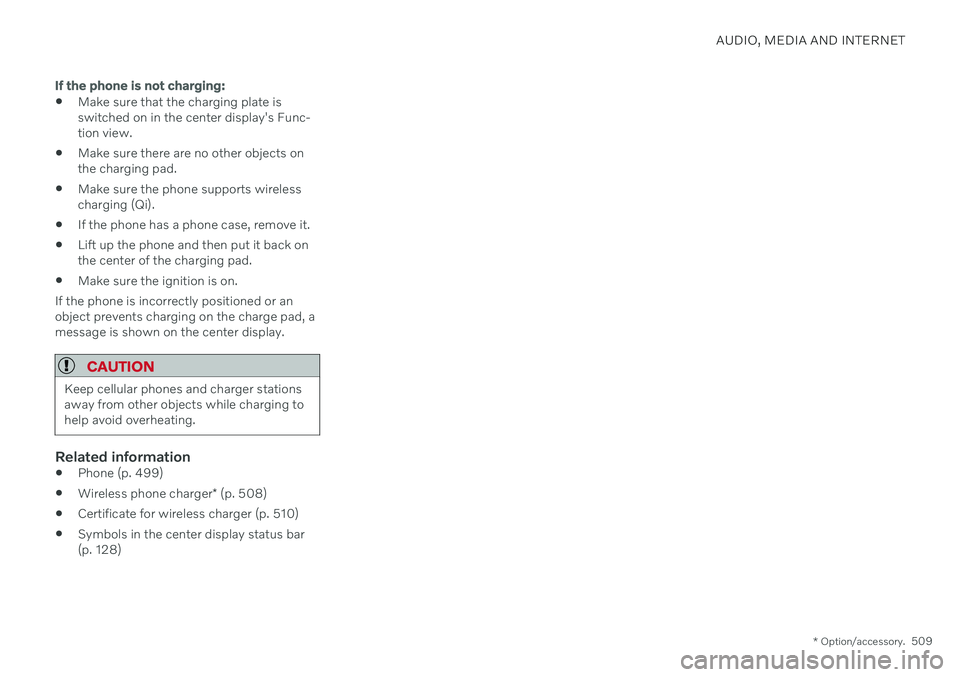

If the phone is not charging:
Make sure that the charging plate is switched on in the center display's Func-tion view.
Make sure there are no other objects onthe charging pad.
Make sure the phone supports wirelesscharging (Qi).
If the phone has a phone case, remove it.
Lift up the phone and then put it back onthe center of the charging pad.
Make sure the ignition is on.
If the phone is incorrectly positioned or anobject prevents charging on the charge pad, amessage is shown on the center display.
CAUTION
Keep cellular phones and charger stations away from other objects while charging tohelp avoid overheating.
Related information
Phone (p. 499)
Wireless phone charger
* (p. 508)
Certificate for wireless charger (p. 510)
Symbols in the center display status bar (p. 128)

AUDIO, MEDIA AND INTERNET
510

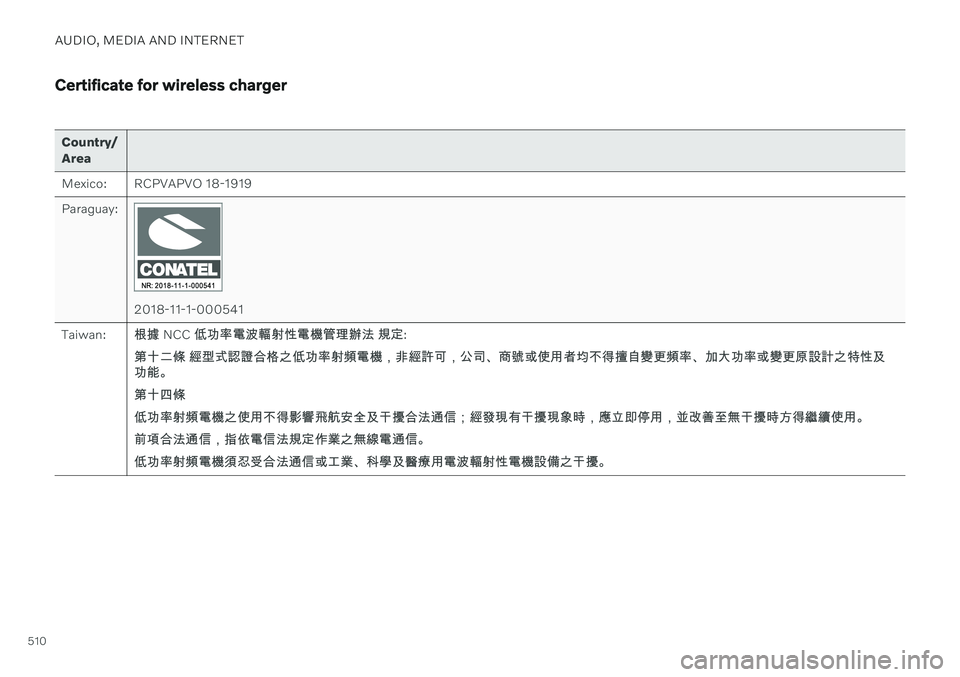

Certificate for wireless charger
Country/ Area
Mexico: RCPVAPVO 18-1919 Paraguay:
2018-11-1-000541
Taiwan: 根據NCC 低%率電波輻射性電機管理辦法 規定 :
第十二條 經型式認證合格之低%率射頻電機，非經許可，公司=商號或使用者均不得擅自變更頻率=&大%率或變更原設計之特性及
%能> 第十四條低%率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用>前項合法通信，指依電信法規定作業之無線電通信>低%率射頻電機須忍受合法通信或工業=科學及醫療用電波輻射性電機設備之干擾>

AUDIO, MEDIA AND INTERNET
}}
511

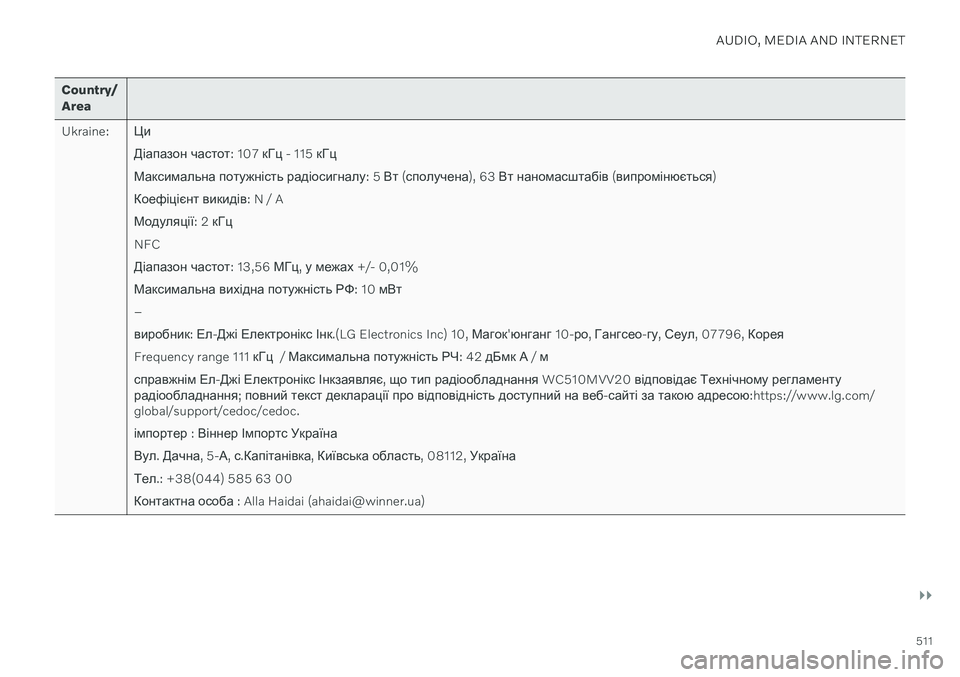

Country/ Area Ukraine:=O
+lGVGNUT ^GXYUY
: 107 Q*] - 115 Q*]
МGQXOSGRьTG VUYZMTlXYь WGKlUXOJTGRZ : 5 )Y (XVURZ^LTG ), 63 )Y TGTUSGX_YGHlI (IOVWUSlTeєYьXf )
КUL[l]lєTY IOQOKlI : N / A
МUKZRf]lm : 2 Q*]
NFC
+lGVGNUT ^GXYUY : 13,56 М*], Z SLMG\ +/- 0,01%
МGQXOSGRьTG IO\lKTG VUYZMTlXYь 7; : 10 S)Y
–
IOWUHTOQ : ,R -+Ml ,RLQYWUTlQX ІTQ .(LG Electronics Inc) 10, МGJUQ'eTJGTJ 10-WU, *GTJXLU -JZ , 8LZR , 07796, КUWLf
Frequency range 111 Q*] / МGQXOSGRьTG VUYZMTlXYь 7> : 42 K(SQ ' / S
XVWGIMTlS ,R -+Ml ,RLQYWUTlQX ІTQNGfIRfє , `U YOV WGKlUUHRGKTGTTf WC510MVV20 IlKVUIlKGє 9L\Tl^TUSZ WLJRGSLTYZ
WGKlUUHRGKTGTTf ; VUITOP YLQXY KLQRGWG]lm VWU IlKVUIlKTlXYь KUXYZVTOP TG ILH -XGPYl NG YGQUe GKWLXUe :https://www.lg.com/
global/support/cedoc/cedoc.
lSVUWYLW : )lTTLW ІSVUWYX :QWGmTG
)ZR . +G^TG
, 5-'
, X
.КGVlYGTlIQG
, КOmIXьQG UHRGXYь
, 08112, :QWGmTG
9LR .: +38(044) 585 63 00
КUTYGQYTG UXUHG : Alla Haidai ([email protected])

||
AUDIO, MEDIA AND INTERNET
512
Country/ Area US/ CanadaFCC ID : BEJWC510MVV20 IC : 2703H-WC510MVV20This device complies with part 15 of the FCC rules and with RSS-Gen,RSS-216 rules of Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.Any changed or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.This equipment should be installed and operated with a minimum distance of 15cm between the radiator and your body. –IDéclaration d'avertissement ISEDSon fonctionnement est soumis aux deux conditions suivantes:(1) Cet appareil ne doit pas provoquerd'interferences nuisibles, et(2) Cet appareil doit accepter toute interference recue, y compris les interferences pouvant entrainerun fonctionnement indesirable.Les changements ou modifications non expressement approuves par LG Vehicle Components Company pourraient annuler l'autorite de l'utilisateura utilizer l'equipement. Déclaration d'exposition aux radiations RF de l'ISED: Cet équipement est conforme aux limites d'exposition aux rayonnements RF de l'ISED définies pour un environnement non contrôlé. Cet appareil et son antenne ne doivent pas être situés ou fonctionnerconjointement avec une autre antenne ou un autre émetteur.

AUDIO, MEDIA AND INTERNET
* Option/accessory.513

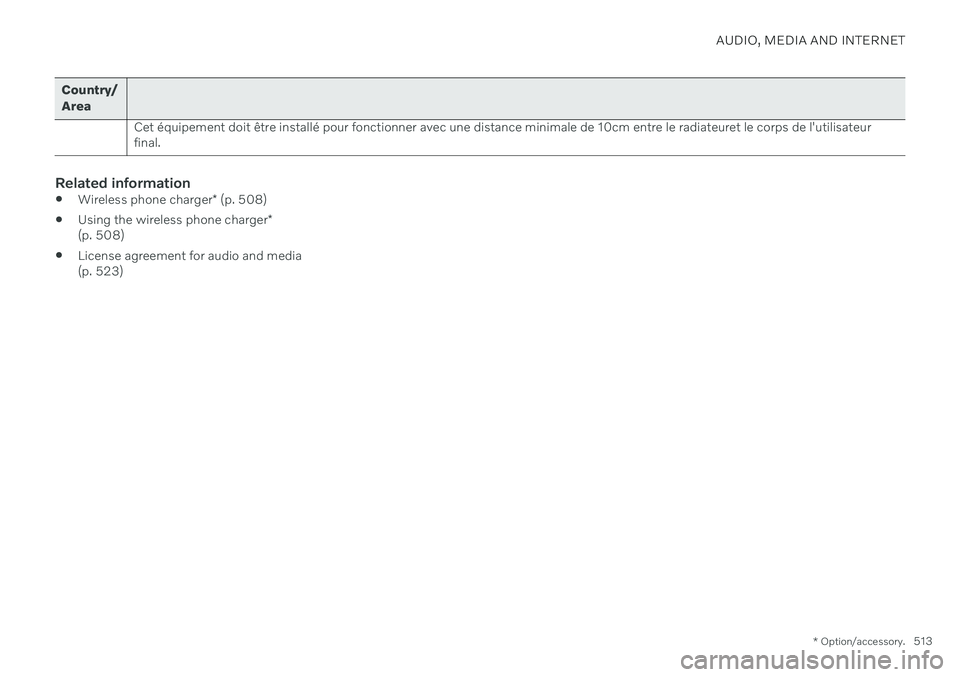

Country/ Area
Cet équipement doit être installé pour fonctionner avec une distance minimale de 10cm entre le radiateuret le corps de l'utilisateur final.
Related information
Wireless phone charger
* (p. 508)
Using the wireless phone charger
*
(p. 508)
License agreement for audio and media (p. 523)

AUDIO, MEDIA AND INTERNET
* Option/accessory.
514

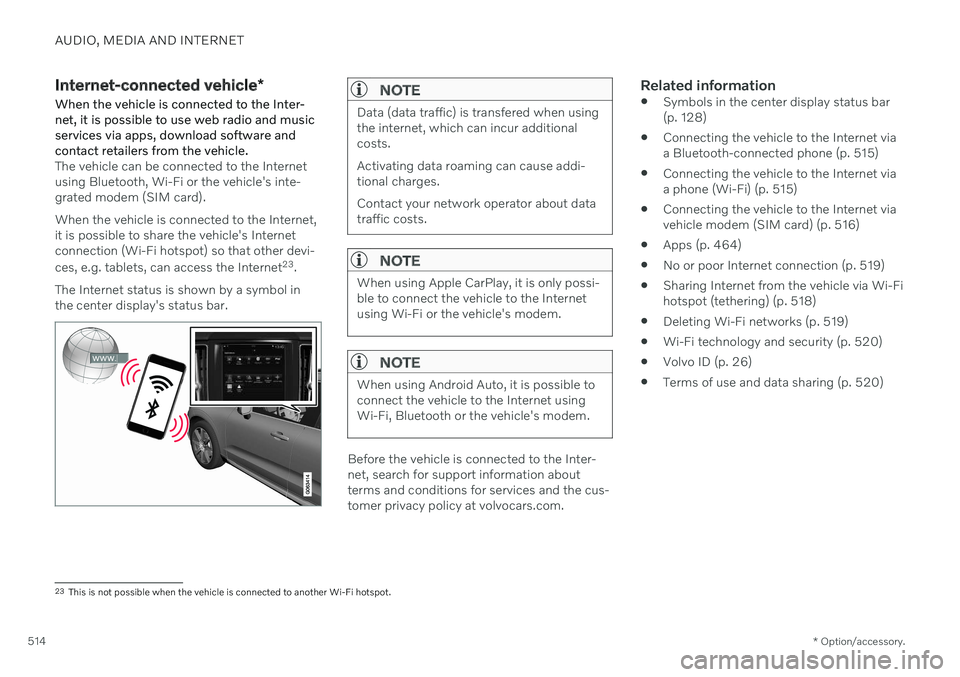

Internet-connected vehicle *
When the vehicle is connected to the Inter- net, it is possible to use web radio and musicservices via apps, download software andcontact retailers from the vehicle.
The vehicle can be connected to the Internet using Bluetooth, Wi-Fi or the vehicle's inte-grated modem (SIM card). When the vehicle is connected to the Internet, it is possible to share the vehicle's Internetconnection (Wi-Fi hotspot) so that other devi- ces, e.g. tablets, can access the Internet 23
.
The Internet status is shown by a symbol in the center display's status bar.
NOTE
Data (data traffic) is transfered when using the internet, which can incur additionalcosts. Activating data roaming can cause addi- tional charges. Contact your network operator about data traffic costs.
NOTE
When using Apple CarPlay, it is only possi- ble to connect the vehicle to the Internetusing Wi-Fi or the vehicle's modem.
NOTE
When using Android Auto, it is possible to connect the vehicle to the Internet usingWi-Fi, Bluetooth or the vehicle's modem.
Before the vehicle is connected to the Inter- net, search for support information aboutterms and conditions for services and the cus-tomer privacy policy at volvocars.com.
Related information
Symbols in the center display status bar(p. 128)
Connecting the vehicle to the Internet viaa Bluetooth-connected phone (p. 515)
Connecting the vehicle to the Internet viaa phone (Wi-Fi) (p. 515)
Connecting the vehicle to the Internet viavehicle modem (SIM card) (p. 516)
Apps (p. 464)
No or poor Internet connection (p. 519)
Sharing Internet from the vehicle via Wi-Fihotspot (tethering) (p. 518)
Deleting Wi-Fi networks (p. 519)
Wi-Fi technology and security (p. 520)
Volvo ID (p. 26)
Terms of use and data sharing (p. 520)
23
This is not possible when the vehicle is connected to another Wi-Fi hotspot.

AUDIO, MEDIA AND INTERNET
}}
* Option/accessory.515

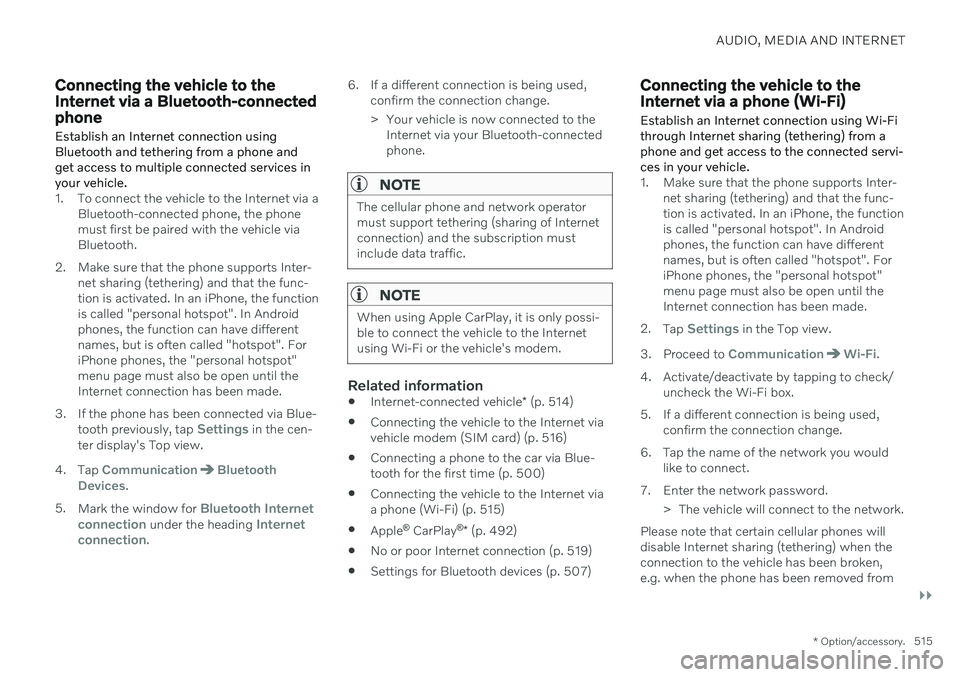

Connecting the vehicle to the Internet via a Bluetooth-connectedphone
Establish an Internet connection using
Bluetooth and tethering from a phone andget access to multiple connected services inyour vehicle.
1. To connect the vehicle to the Internet via a Bluetooth-connected phone, the phone must first be paired with the vehicle viaBluetooth.
2. Make sure that the phone supports Inter- net sharing (tethering) and that the func-tion is activated. In an iPhone, the functionis called "personal hotspot". In Androidphones, the function can have differentnames, but is often called "hotspot". ForiPhone phones, the "personal hotspot"menu page must also be open until theInternet connection has been made.
3. If the phone has been connected via Blue- tooth previously, tap
Settings in the cen-
ter display's Top view.
4. Tap
CommunicationBluetooth
Devices.
5. Mark the window for
Bluetooth Internet
connection under the heading Internet
connection. 6. If a different connection is being used,
confirm the connection change.
> Your vehicle is now connected to theInternet via your Bluetooth-connected phone.
NOTE
The cellular phone and network operator must support tethering (sharing of Internetconnection) and the subscription mustinclude data traffic.
NOTE
When using Apple CarPlay, it is only possi- ble to connect the vehicle to the Internetusing Wi-Fi or the vehicle's modem.
Related information
Internet-connected vehicle
* (p. 514)
Connecting the vehicle to the Internet via vehicle modem (SIM card) (p. 516)
Connecting a phone to the car via Blue-tooth for the first time (p. 500)
Connecting the vehicle to the Internet viaa phone (Wi-Fi) (p. 515)
Apple ®
CarPlay ®
* (p. 492)
No or poor Internet connection (p. 519)
Settings for Bluetooth devices (p. 507)
Connecting the vehicle to the Internet via a phone (Wi-Fi) Establish an Internet connection using Wi-Fi through Internet sharing (tethering) from aphone and get access to the connected servi-ces in your vehicle.
1. Make sure that the phone supports Inter-
net sharing (tethering) and that the func- tion is activated. In an iPhone, the functionis called "personal hotspot". In Androidphones, the function can have differentnames, but is often called "hotspot". ForiPhone phones, the "personal hotspot"menu page must also be open until theInternet connection has been made.
2. Tap
Settings in the Top view.
3. Proceed to
CommunicationWi-Fi.
4. Activate/deactivate by tapping to check/ uncheck the Wi-Fi box.
5. If a different connection is being used, confirm the connection change.
6. Tap the name of the network you would like to connect.
7. Enter the network password. > The vehicle will connect to the network.
Please note that certain cellular phones will disable Internet sharing (tethering) when theconnection to the vehicle has been broken,e.g. when the phone has been removed from

||
AUDIO, MEDIA AND INTERNET
* Option/accessory.
516 the vehicle. The phone's tethering function will then need to be reactivated the next time thephone's hotspot is used to connect to theInternet. When a phone is connected to the vehicle, it will be saved for future use. To display a list ofsaved networks or to manually delete saved networks, tap
SettingsCommunication
Wi-FiSaved networks.
NOTE
The cellular phone and network operator must support tethering (sharing of Internetconnection) and the subscription mustinclude data traffic.
Technical and security requirements for Wi-Fi connection are described in a separate sec-tion.
Related information

Internet-connected vehicle
* (p. 514)
Deleting Wi-Fi networks (p. 519)
No or poor Internet connection (p. 519)
Wi-Fi technology and security (p. 520)
Connecting the vehicle to the Internet via vehicle modem (SIMcard)
It is possible to establish an Internet connec- tion via the vehicle modem and a personal
SIM card (P-SIM).
Vehicles equipped with Volvo On Call will use the vehicle modem Internet connection for theservices. 1.
Insert a personal SIM card in the holder under the floor of the cargo compartment. Note that the vehicle's card reader requires mini SIM cards.
2. Tap
Settings in the Top view.

AUDIO, MEDIA AND INTERNET
* Option/accessory.517

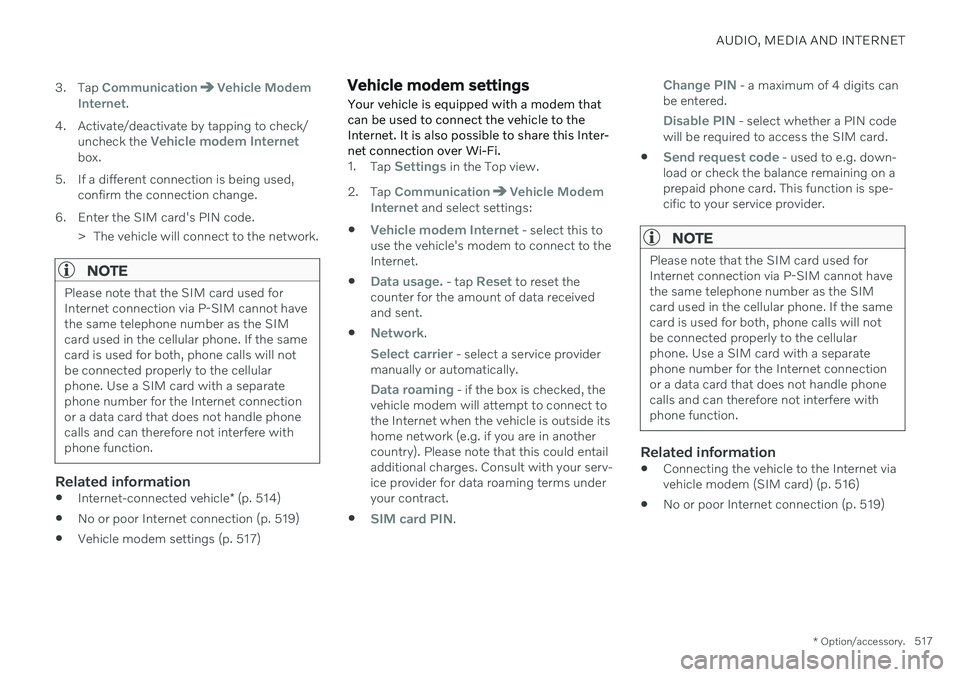

3. Tap
CommunicationVehicle Modem
Internet.
4. Activate/deactivate by tapping to check/ uncheck the
Vehicle modem Internetbox.
5. If a different connection is being used, confirm the connection change.
6. Enter the SIM card's PIN code. > The vehicle will connect to the network.
NOTE
Please note that the SIM card used for Internet connection via P-SIM cannot havethe same telephone number as the SIMcard used in the cellular phone. If the samecard is used for both, phone calls will notbe connected properly to the cellularphone. Use a SIM card with a separatephone number for the Internet connectionor a data card that does not handle phonecalls and can therefore not interfere withphone function.
Related information
Internet-connected vehicle
* (p. 514)
No or poor Internet connection (p. 519)
Vehicle modem settings (p. 517)
Vehicle modem settings Your vehicle is equipped with a modem that can be used to connect the vehicle to theInternet. It is also possible to share this Inter-net connection over Wi-Fi.
1.
Tap Settings in the Top view.
2. Tap
CommunicationVehicle Modem
Internet and select settings:

Vehicle modem Internet - select this to
use the vehicle's modem to connect to the Internet.

Data usage. - tap Reset to reset the
counter for the amount of data received and sent.

Network.
Select carrier - select a service provider
manually or automatically.
Data roaming - if the box is checked, the
vehicle modem will attempt to connect to the Internet when the vehicle is outside itshome network (e.g. if you are in anothercountry). Please note that this could entailadditional charges. Consult with your serv-ice provider for data roaming terms underyour contract.

SIM card PIN.
Change PIN - a maximum of 4 digits can
be entered.
Disable PIN - select whether a PIN code
will be required to access the SIM card.

Send request code - used to e.g. down-
load or check the balance remaining on a prepaid phone card. This function is spe-cific to your service provider.
NOTE
Please note that the SIM card used for Internet connection via P-SIM cannot havethe same telephone number as the SIMcard used in the cellular phone. If the samecard is used for both, phone calls will notbe connected properly to the cellularphone. Use a SIM card with a separatephone number for the Internet connectionor a data card that does not handle phonecalls and can therefore not interfere withphone function.
Related information
Connecting the vehicle to the Internet via vehicle modem (SIM card) (p. 516)
No or poor Internet connection (p. 519)

AUDIO, MEDIA AND INTERNET
* Option/accessory.
518

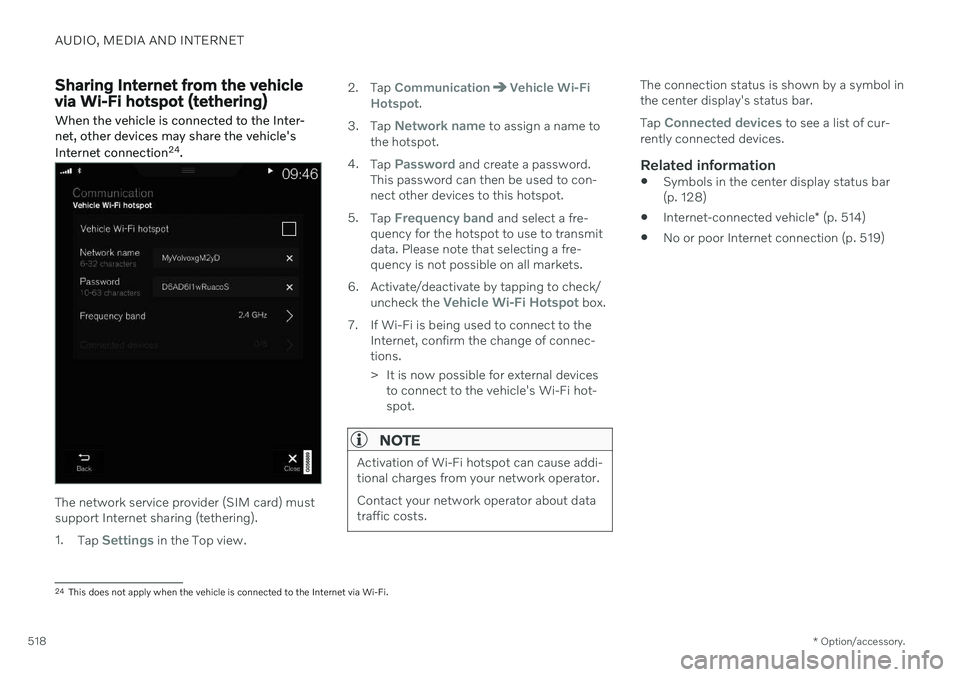

Sharing Internet from the vehicle via Wi-Fi hotspot (tethering)
When the vehicle is connected to the Inter- net, other devices may share the vehicle's Internet connection 24
.
The network service provider (SIM card) must support Internet sharing (tethering). 1. Tap
Settings in the Top view. 2. Tap
CommunicationVehicle Wi-Fi
Hotspot.
3. Tap
Network name to assign a name to
the hotspot.
4. Tap
Password and create a password.
This password can then be used to con- nect other devices to this hotspot.
5. Tap
Frequency band and select a fre-
quency for the hotspot to use to transmit data. Please note that selecting a fre-quency is not possible on all markets.
6. Activate/deactivate by tapping to check/ uncheck the
Vehicle Wi-Fi Hotspot box.
7. If Wi-Fi is being used to connect to the Internet, confirm the change of connec- tions.
> It is now possible for external devicesto connect to the vehicle's Wi-Fi hot- spot.
NOTE
Activation of Wi-Fi hotspot can cause addi- tional charges from your network operator. Contact your network operator about data traffic costs.
The connection status is shown by a symbol in the center display's status bar. Tap
Connected devices to see a list of cur-
rently connected devices.
Related information
Symbols in the center display status bar (p. 128)
Internet-connected vehicle
* (p. 514)
No or poor Internet connection (p. 519)
24
This does not apply when the vehicle is connected to the Internet via Wi-Fi.
