VOLVO V90 CROSS COUNTRY 2021 Owners Manual

AUDIO, MEDIA AND INTERNET
}}
* Option/accessory.499
by tethering using the device's Wi-Fi hot- spot.
Related information

Android Auto
* (p. 496)
Connecting the vehicle to the Internet viaa phone (Wi-Fi) (p. 515)

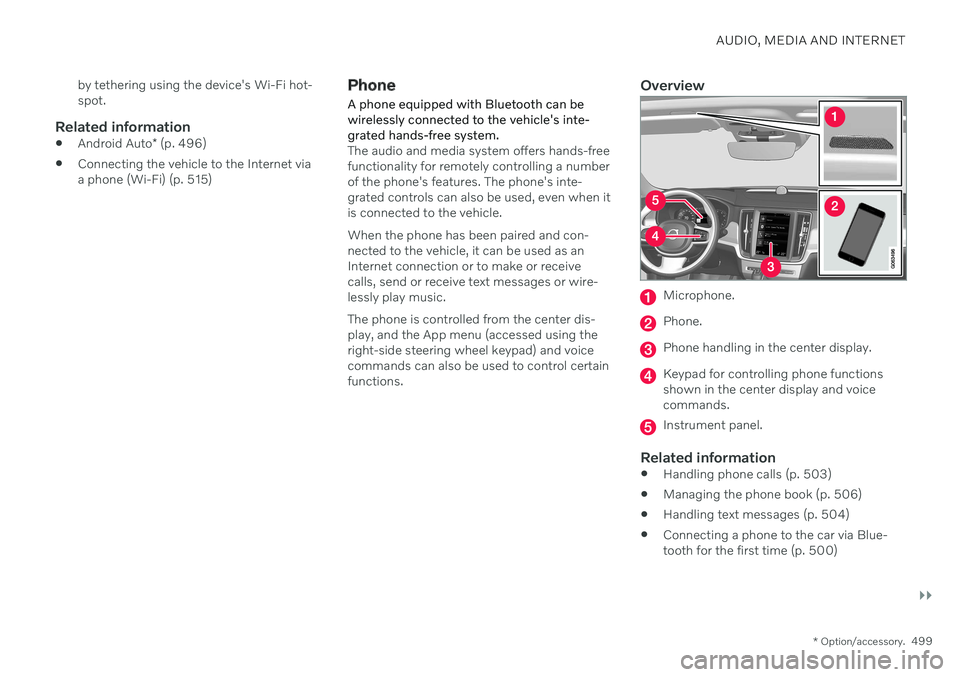

Phone
A phone equipped with Bluetooth can be wirelessly connected to the vehicle's inte-grated hands-free system.
The audio and media system offers hands-free functionality for remotely controlling a numberof the phone's features. The phone's inte-grated controls can also be used, even when itis connected to the vehicle. When the phone has been paired and con- nected to the vehicle, it can be used as anInternet connection or to make or receivecalls, send or receive text messages or wire-lessly play music. The phone is controlled from the center dis- play, and the App menu (accessed using theright-side steering wheel keypad) and voicecommands can also be used to control certainfunctions.
Overview
Microphone.
Phone.
Phone handling in the center display.
Keypad for controlling phone functions shown in the center display and voicecommands.
Instrument panel.
Related information
Handling phone calls (p. 503)

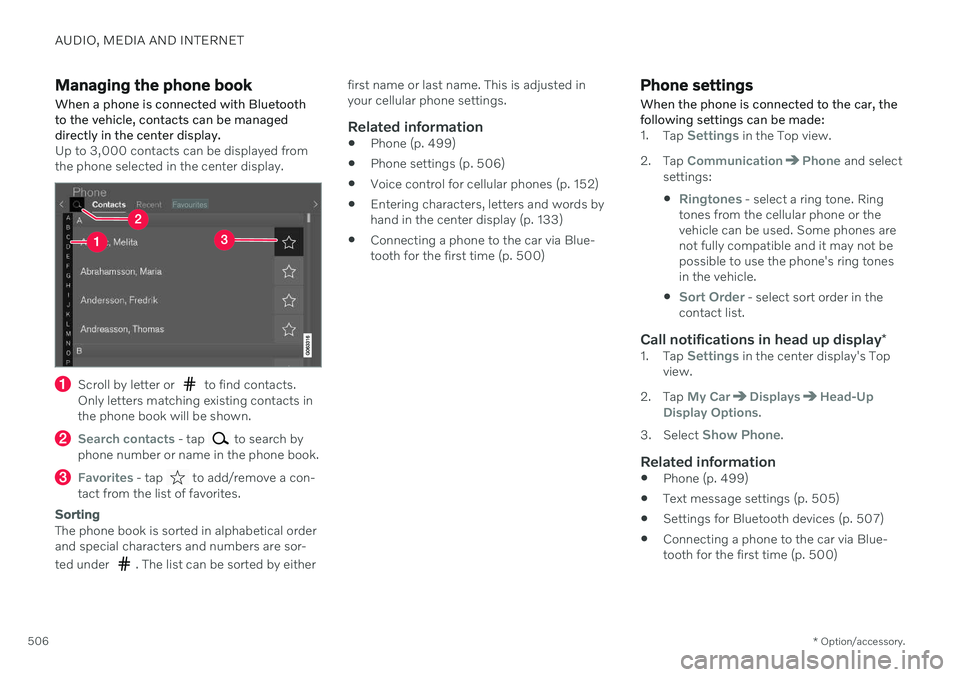

Managing the phone book (p. 506)
Handling text messages (p. 504)
Connecting a phone to the car via Blue- tooth for the first time (p. 500)

AUDIO, MEDIA AND INTERNET
* Option/accessory.
500
Connecting a phone to the car via Blue- tooth automatically (p. 502)
Connecting a phone to the car via Blue-tooth manually (p. 502)
Disconnecting a Bluetooth-connectedphone (p. 502)
Switch between phones connected viaBluetooth (p. 503)
Disconnecting Bluetooth-connected devi-ces (p. 503)

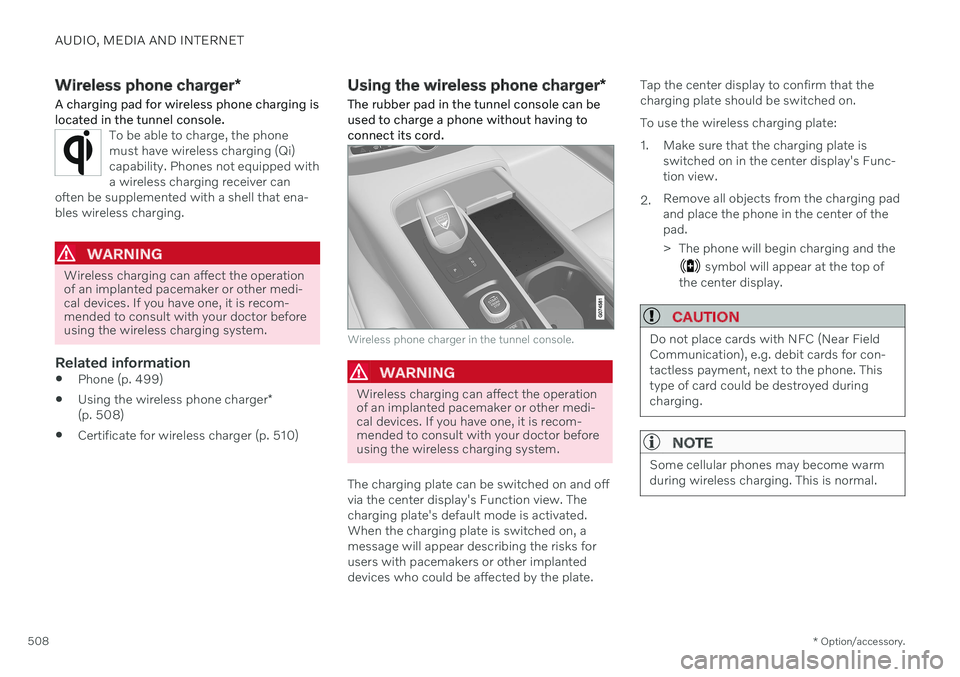

Wireless phone charger
* (p. 508)
Phone settings (p. 506)
Voice Control (p. 149)
Handling the App menu in the instrumentpanel (p. 109)
Sound settings (p. 462)
Connecting the vehicle to the Internet viaa Bluetooth-connected phone (p. 515)

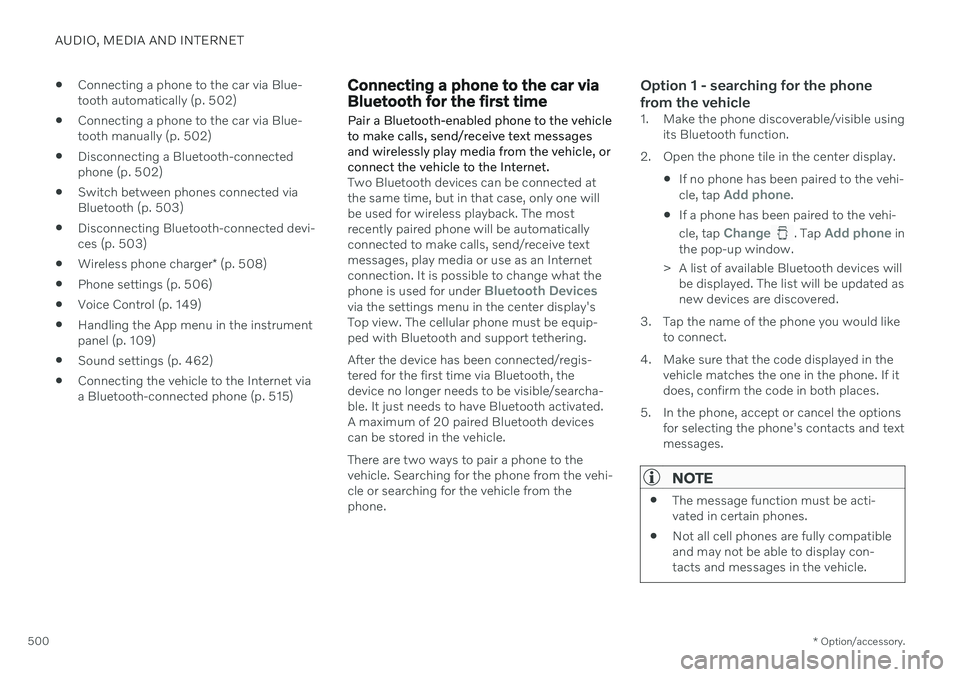

Connecting a phone to the car via Bluetooth for the first time
Pair a Bluetooth-enabled phone to the vehicle to make calls, send/receive text messagesand wirelessly play media from the vehicle, orconnect the vehicle to the Internet.
Two Bluetooth devices can be connected at the same time, but in that case, only one willbe used for wireless playback. The mostrecently paired phone will be automaticallyconnected to make calls, send/receive textmessages, play media or use as an Internetconnection. It is possible to change what the phone is used for under
Bluetooth Devicesvia the settings menu in the center display's Top view. The cellular phone must be equip-ped with Bluetooth and support tethering. After the device has been connected/regis- tered for the first time via Bluetooth, thedevice no longer needs to be visible/searcha-ble. It just needs to have Bluetooth activated.A maximum of 20 paired Bluetooth devicescan be stored in the vehicle. There are two ways to pair a phone to the vehicle. Searching for the phone from the vehi-cle or searching for the vehicle from thephone.
Option 1 - searching for the phone from the vehicle
1. Make the phone discoverable/visible using its Bluetooth function.
2. Open the phone tile in the center display.
If no phone has been paired to the vehi- cle, tap
Add phone.
If a phone has been paired to the vehi- cle, tap
Change. Tap Add phone in
the pop-up window.
> A list of available Bluetooth devices will be displayed. The list will be updated as new devices are discovered.
3. Tap the name of the phone you would like to connect.
4. Make sure that the code displayed in the vehicle matches the one in the phone. If itdoes, confirm the code in both places.
5. In the phone, accept or cancel the options for selecting the phone's contacts and textmessages.
NOTE
The message function must be acti- vated in certain phones.
Not all cell phones are fully compatibleand may not be able to display con-tacts and messages in the vehicle.

AUDIO, MEDIA AND INTERNET
* Option/accessory.501

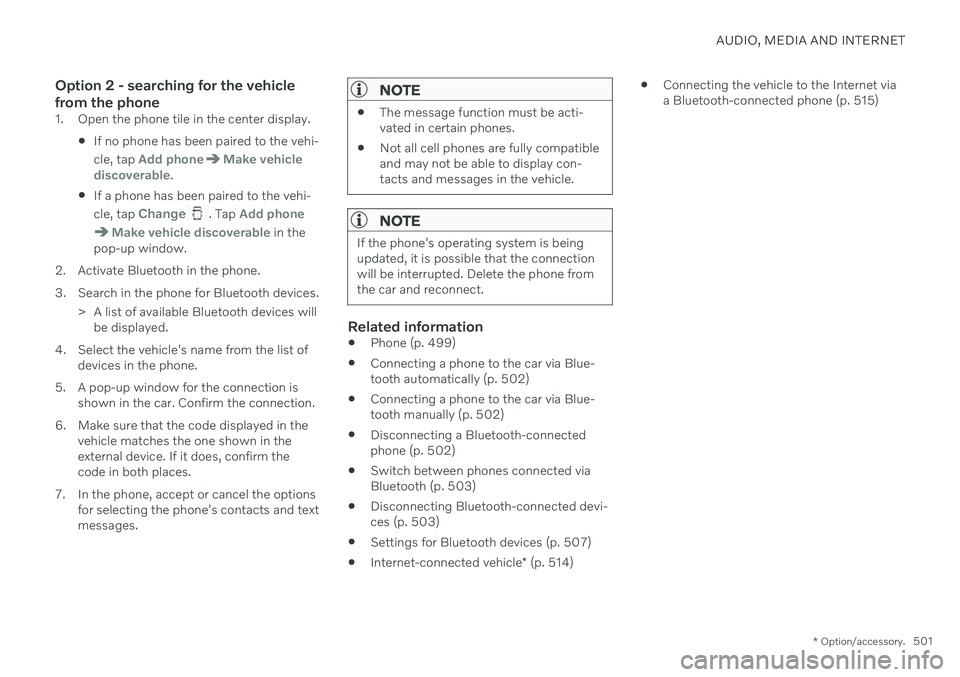

Option 2 - searching for the vehicle from the phone
1. Open the phone tile in the center display.
If no phone has been paired to the vehi- cle, tap
Add phoneMake vehicle
discoverable.
If a phone has been paired to the vehi- cle, tap
Change. Tap Add phone
Make vehicle discoverable in the
pop-up window.
2. Activate Bluetooth in the phone.
3. Search in the phone for Bluetooth devices. > A list of available Bluetooth devices willbe displayed.
4. Select the vehicle's name from the list of devices in the phone.
5. A pop-up window for the connection is shown in the car. Confirm the connection.
6. Make sure that the code displayed in the vehicle matches the one shown in the external device. If it does, confirm thecode in both places.
7. In the phone, accept or cancel the options for selecting the phone's contacts and textmessages.
NOTE
The message function must be acti- vated in certain phones.
Not all cell phones are fully compatibleand may not be able to display con-tacts and messages in the vehicle.
NOTE
If the phone's operating system is being updated, it is possible that the connectionwill be interrupted. Delete the phone fromthe car and reconnect.
Related information
Phone (p. 499)
Connecting a phone to the car via Blue- tooth automatically (p. 502)
Connecting a phone to the car via Blue-tooth manually (p. 502)
Disconnecting a Bluetooth-connectedphone (p. 502)
Switch between phones connected via Bluetooth (p. 503)
Disconnecting Bluetooth-connected devi- ces (p. 503)

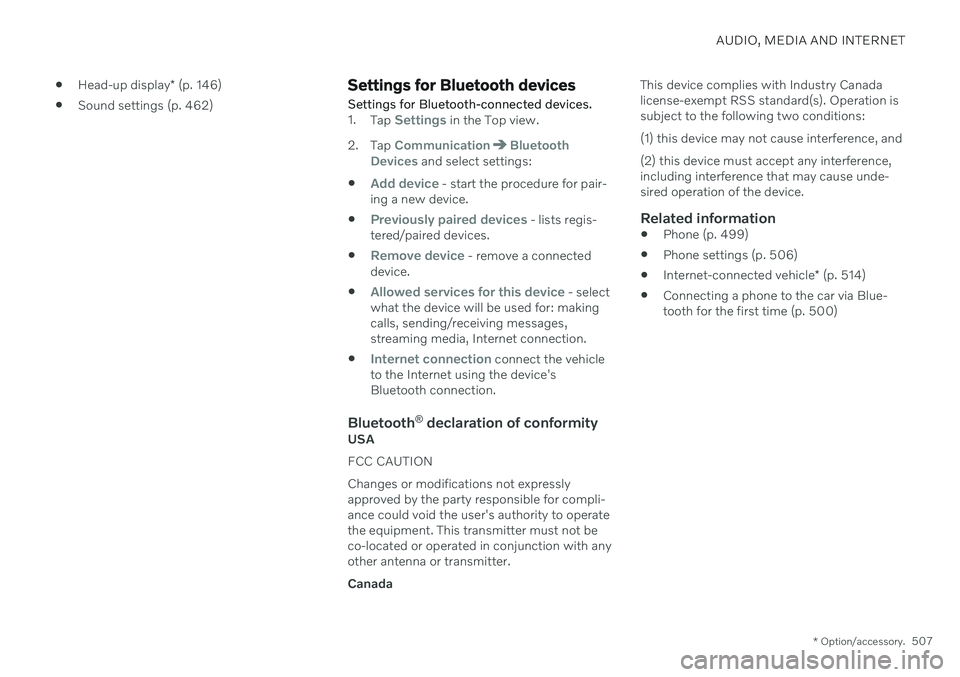

Settings for Bluetooth devices (p. 507)
Internet-connected vehicle
* (p. 514)
Connecting the vehicle to the Internet viaa Bluetooth-connected phone (p. 515)

AUDIO, MEDIA AND INTERNET
* Option/accessory.
502
Connecting a phone to the car via Bluetooth automatically A phone can be automatically connected to the vehicle via Bluetooth. The phone musthave first been paired with the vehicle.
Only the two most recently connected phones can be connected automatically.
1. Activate Bluetooth in the phone before
turning the vehicle's ignition to mode I.
2. Turn the ignition to I or higher.
> The phone will be connected.
Related information
Phone (p. 499)
Connecting a phone to the car via Blue- tooth for the first time (p. 500)
Connecting a phone to the car via Blue-tooth manually (p. 502)
Disconnecting a Bluetooth-connectedphone (p. 502)
Switch between phones connected viaBluetooth (p. 503)
Disconnecting Bluetooth-connected devi-ces (p. 503)
Settings for Bluetooth devices (p. 507)
Internet-connected vehicle
* (p. 514)
Connecting the vehicle to the Internet viaa Bluetooth-connected phone (p. 515)
Ignition modes (p. 401)
Connecting a phone to the car via Bluetooth manually
A phone can be manually connected to the vehicle via Bluetooth. The phone must havefirst been paired with the vehicle.
1. Activate Bluetooth in the phone.
2. Open the phone tile.
> A list of available phones will be dis-played.
3. Tap the name of the phone you would like to connect.
> The phone will be connected.
Related information
Phone (p. 499)
Connecting a phone to the car via Blue- tooth for the first time (p. 500)
Connecting a phone to the car via Blue-tooth automatically (p. 502)
Disconnecting a Bluetooth-connectedphone (p. 502)
Switch between phones connected viaBluetooth (p. 503)
Disconnecting Bluetooth-connected devi-ces (p. 503)
Settings for Bluetooth devices (p. 507)
Internet-connected vehicle
* (p. 514)
Connecting the vehicle to the Internet viaa Bluetooth-connected phone (p. 515)
Disconnecting a Bluetooth- connected phone
A Bluetooth-connected phone can be discon- nected from the vehicle.
When the phone is out of range of the vehicle, it will be automatically discon-nected. If a call is in progress when thephone is disconnected from the vehicle,the call will be transferred from the vehi-cle's speakers and microphone to the cel-lular phone.
The phone can also be disconnected bymanually deactivating Bluetooth.
Related information
Phone (p. 499)
Phone settings (p. 506)
Switch between phones connected viaBluetooth (p. 503)
Disconnecting Bluetooth-connected devi-ces (p. 503)
Settings for Bluetooth devices (p. 507)

AUDIO, MEDIA AND INTERNET
}}
503

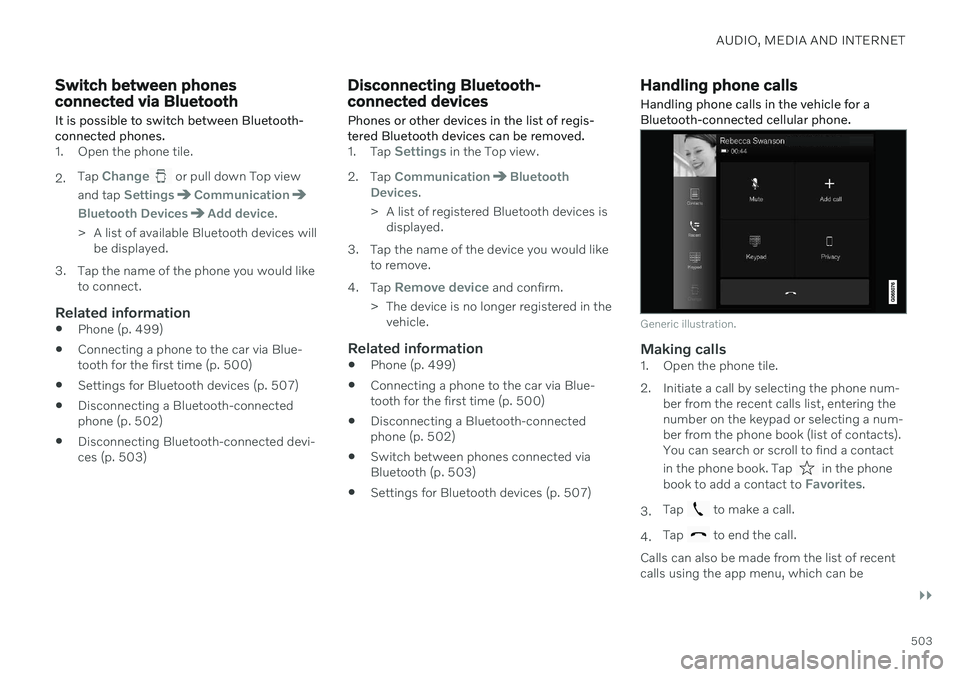

Switch between phones connected via Bluetooth It is possible to switch between Bluetooth- connected phones.
1. Open the phone tile. 2.Tap
Change or pull down Top view
and tap
SettingsCommunication
Bluetooth DevicesAdd device.
> A list of available Bluetooth devices will be displayed.
3. Tap the name of the phone you would like to connect.
Related information
Phone (p. 499)
Connecting a phone to the car via Blue- tooth for the first time (p. 500)
Settings for Bluetooth devices (p. 507)
Disconnecting a Bluetooth-connectedphone (p. 502)
Disconnecting Bluetooth-connected devi-ces (p. 503)
Disconnecting Bluetooth- connected devices
Phones or other devices in the list of regis-
tered Bluetooth devices can be removed.
1. Tap Settings in the Top view.
2. Tap
CommunicationBluetooth
Devices.
> A list of registered Bluetooth devices is displayed.
3. Tap the name of the device you would like to remove.
4. Tap
Remove device and confirm.
> The device is no longer registered in the vehicle.
Related information
Phone (p. 499)
Connecting a phone to the car via Blue- tooth for the first time (p. 500)
Disconnecting a Bluetooth-connectedphone (p. 502)
Switch between phones connected viaBluetooth (p. 503)
Settings for Bluetooth devices (p. 507)
Handling phone calls
Handling phone calls in the vehicle for a
Bluetooth-connected cellular phone.
Generic illustration.
Making calls1. Open the phone tile.
2. Initiate a call by selecting the phone num- ber from the recent calls list, entering the number on the keypad or selecting a num-ber from the phone book (list of contacts).You can search or scroll to find a contact in the phone book. Tap
in the phone
book to add a contact to Favorites.
3. Tap
to make a call.
4. Tap
to end the call.
Calls can also be made from the list of recent calls using the app menu, which can be

||
AUDIO, MEDIA AND INTERNET
504opened using the
button on the right-side
steering wheel keypad.

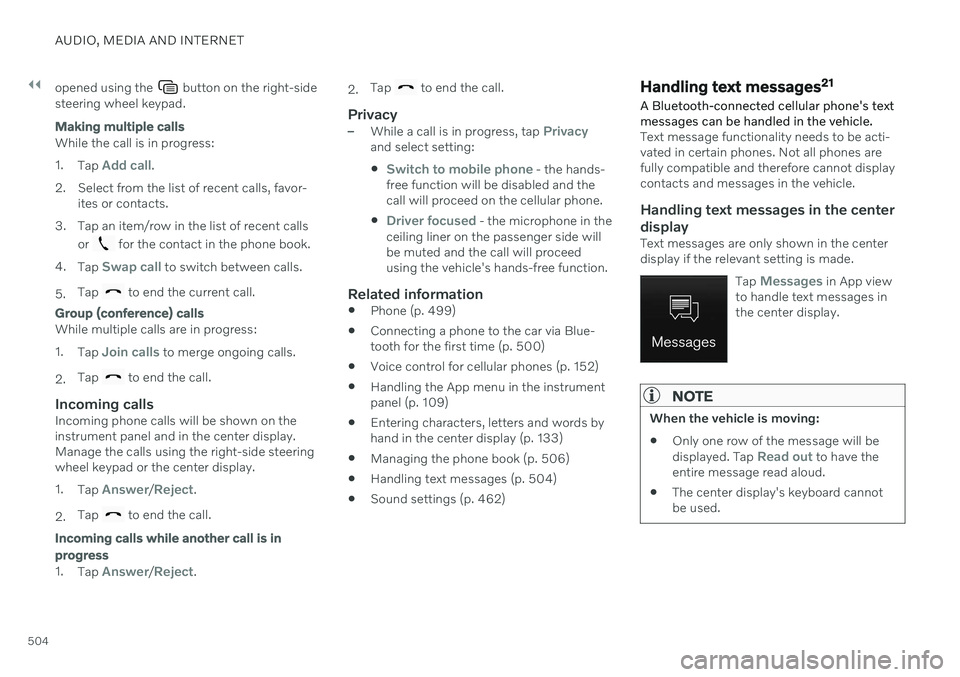

Making multiple calls
While the call is in progress: 1. Tap
Add call.
2. Select from the list of recent calls, favor- ites or contacts.
3. Tap an item/row in the list of recent calls or
for the contact in the phone book.
4. Tap
Swap call to switch between calls.
5. Tap
to end the current call.
Group (conference) calls
While multiple calls are in progress: 1.
Tap
Join calls to merge ongoing calls.
2. Tap
to end the call.
Incoming callsIncoming phone calls will be shown on the instrument panel and in the center display.Manage the calls using the right-side steeringwheel keypad or the center display. 1.
Tap
Answer/Reject.
2. Tap
to end the call.
Incoming calls while another call is in progress
1.
Tap Answer/Reject. 2.
Tap
to end the call.
Privacy–While a call is in progress, tap Privacyand select setting:

Switch to mobile phone - the hands-
free function will be disabled and the call will proceed on the cellular phone.

Driver focused - the microphone in the
ceiling liner on the passenger side will be muted and the call will proceedusing the vehicle's hands-free function.
Related information
Phone (p. 499)
Connecting a phone to the car via Blue-tooth for the first time (p. 500)
Voice control for cellular phones (p. 152)
Handling the App menu in the instrumentpanel (p. 109)
Entering characters, letters and words byhand in the center display (p. 133)
Managing the phone book (p. 506)
Handling text messages (p. 504)
Sound settings (p. 462)
Handling text messages 21
A Bluetooth-connected cellular phone's text messages can be handled in the vehicle.
Text message functionality needs to be acti- vated in certain phones. Not all phones arefully compatible and therefore cannot displaycontacts and messages in the vehicle.
Handling text messages in the center
display
Text messages are only shown in the centerdisplay if the relevant setting is made.
Tap
Messages in App view
to handle text messages in the center display.
NOTE
When the vehicle is moving:
Only one row of the message will be displayed. Tap
Read out to have the
entire message read aloud.
The center display's keyboard cannot be used.

AUDIO, MEDIA AND INTERNET
* Option/accessory.505

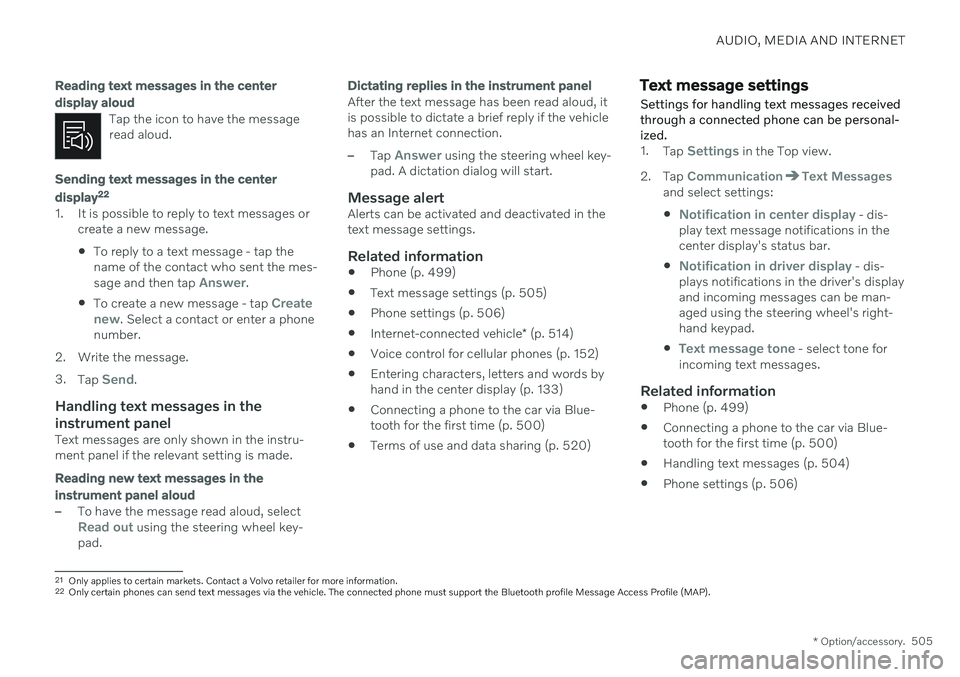

Reading text messages in the center display aloud
Tap the icon to have the message read aloud.
Sending text messages in the center display22
1. It is possible to reply to text messages or
create a new message.
To reply to a text message - tap the name of the contact who sent the mes- sage and then tap
Answer.
To create a new message - tap
Create
new. Select a contact or enter a phone
number.
2. Write the message. 3. Tap
Send.
Handling text messages in the instrument panel
Text messages are only shown in the instru- ment panel if the relevant setting is made.
Reading new text messages in the instrument panel aloud
–To have the message read aloud, selectRead out using the steering wheel key-
pad.
Dictating replies in the instrument panel
After the text message has been read aloud, it is possible to dictate a brief reply if the vehiclehas an Internet connection.
–Tap Answer using the steering wheel key-
pad. A dictation dialog will start.
Message alertAlerts can be activated and deactivated in the text message settings.
Related information
Phone (p. 499)
Text message settings (p. 505)
Phone settings (p. 506)
Internet-connected vehicle
* (p. 514)
Voice control for cellular phones (p. 152)
Entering characters, letters and words byhand in the center display (p. 133)
Connecting a phone to the car via Blue-tooth for the first time (p. 500)
Terms of use and data sharing (p. 520)
Text message settings Settings for handling text messages received through a connected phone can be personal-ized.
1.
Tap Settings in the Top view.
2. Tap
CommunicationText Messagesand select settings:
Notification in center display - dis-
play text message notifications in the center display's status bar.

Notification in driver display - dis-
plays notifications in the driver's display and incoming messages can be man-aged using the steering wheel's right-hand keypad.

Text message tone - select tone for
incoming text messages.
Related information
Phone (p. 499)
Connecting a phone to the car via Blue- tooth for the first time (p. 500)
Handling text messages (p. 504)
Phone settings (p. 506)
21
Only applies to certain markets. Contact a Volvo retailer for more information.22Only certain phones can send text messages via the vehicle. The connected phone must support the Bluetooth profile Message Access Profile (MAP).

AUDIO, MEDIA AND INTERNET
* Option/accessory.
506
Managing the phone book When a phone is connected with Bluetooth to the vehicle, contacts can be manageddirectly in the center display.
Up to 3,000 contacts can be displayed from the phone selected in the center display.
Scroll by letter or to find contacts.
Only letters matching existing contacts in the phone book will be shown.
Search contacts - tap to search by
phone number or name in the phone book.
Favorites - tap to add/remove a con-
tact from the list of favorites.
Sorting
The phone book is sorted in alphabetical order and special characters and numbers are sor- ted under
. The list can be sorted by either first name or last name. This is adjusted in your cellular phone settings.
Related information

Phone (p. 499)
Phone settings (p. 506)
Voice control for cellular phones (p. 152)
Entering characters, letters and words byhand in the center display (p. 133)
Connecting a phone to the car via Blue-tooth for the first time (p. 500)
Phone settings When the phone is connected to the car, the following settings can be made:
1.
Tap Settings in the Top view.
2. Tap
CommunicationPhone and select
settings:

Ringtones - select a ring tone. Ring
tones from the cellular phone or the vehicle can be used. Some phones arenot fully compatible and it may not bepossible to use the phone's ring tonesin the vehicle.

Sort Order - select sort order in the
contact list.
Call notifications in head up display *1.
Tap Settings in the center display's Top
view.
2. Tap
My CarDisplaysHead-Up
Display Options.
3. Select
Show Phone.
Related information
Phone (p. 499)
Text message settings (p. 505)
Settings for Bluetooth devices (p. 507)
Connecting a phone to the car via Blue- tooth for the first time (p. 500)

AUDIO, MEDIA AND INTERNET
* Option/accessory.507

Head-up display
* (p. 146)
Sound settings (p. 462)
Settings for Bluetooth devices
Settings for Bluetooth-connected devices.
1. Tap Settings in the Top view.
2. Tap
CommunicationBluetooth
Devices and select settings:

Add device - start the procedure for pair-
ing a new device.

Previously paired devices - lists regis-
tered/paired devices.

Remove device - remove a connected
device.

Allowed services for this device - select
what the device will be used for: making calls, sending/receiving messages,streaming media, Internet connection.

Internet connection connect the vehicle
to the Internet using the device's Bluetooth connection.
Bluetooth ®
declaration of conformityUSA FCC CAUTIONChanges or modifications not expressly approved by the party responsible for compli-ance could void the user's authority to operatethe equipment. This transmitter must not beco-located or operated in conjunction with anyother antenna or transmitter. Canada This device complies with Industry Canada license-exempt RSS standard(s). Operation issubject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause unde-sired operation of the device.
Related information

Phone (p. 499)
Phone settings (p. 506)
Internet-connected vehicle
* (p. 514)
Connecting a phone to the car via Blue-tooth for the first time (p. 500)

AUDIO, MEDIA AND INTERNET
* Option/accessory.
508
Wireless phone charger *
A charging pad for wireless phone charging is located in the tunnel console.
To be able to charge, the phone must have wireless charging (Qi)capability. Phones not equipped witha wireless charging receiver can
often be supplemented with a shell that ena-bles wireless charging.
WARNING
Wireless charging can affect the operation of an implanted pacemaker or other medi-cal devices. If you have one, it is recom-mended to consult with your doctor beforeusing the wireless charging system.
Related information
Phone (p. 499)
Using the wireless phone charger
*
(p. 508)
Certificate for wireless charger (p. 510)
Using the wireless phone charger
*
The rubber pad in the tunnel console can be used to charge a phone without having toconnect its cord.
Wireless phone charger in the tunnel console.
WARNING
Wireless charging can affect the operation of an implanted pacemaker or other medi-cal devices. If you have one, it is recom-mended to consult with your doctor beforeusing the wireless charging system.
The charging plate can be switched on and off via the center display's Function view. Thecharging plate's default mode is activated.When the charging plate is switched on, amessage will appear describing the risks forusers with pacemakers or other implanteddevices who could be affected by the plate. Tap the center display to confirm that thecharging plate should be switched on. To use the wireless charging plate:
1. Make sure that the charging plate is
switched on in the center display's Func- tion view.
2. Remove all objects from the charging padand place the phone in the center of thepad.
> The phone will begin charging and the
symbol will appear at the top of
the center display.
CAUTION
Do not place cards with NFC (Near Field Communication), e.g. debit cards for con-tactless payment, next to the phone. Thistype of card could be destroyed duringcharging.
NOTE
Some cellular phones may become warm during wireless charging. This is normal.
