VOLVO XC60 2010 Owner´s Manual

03
YOUR DRIVING ENVIRONMENT

03 Your driving environment
Instruments and controls
03
72

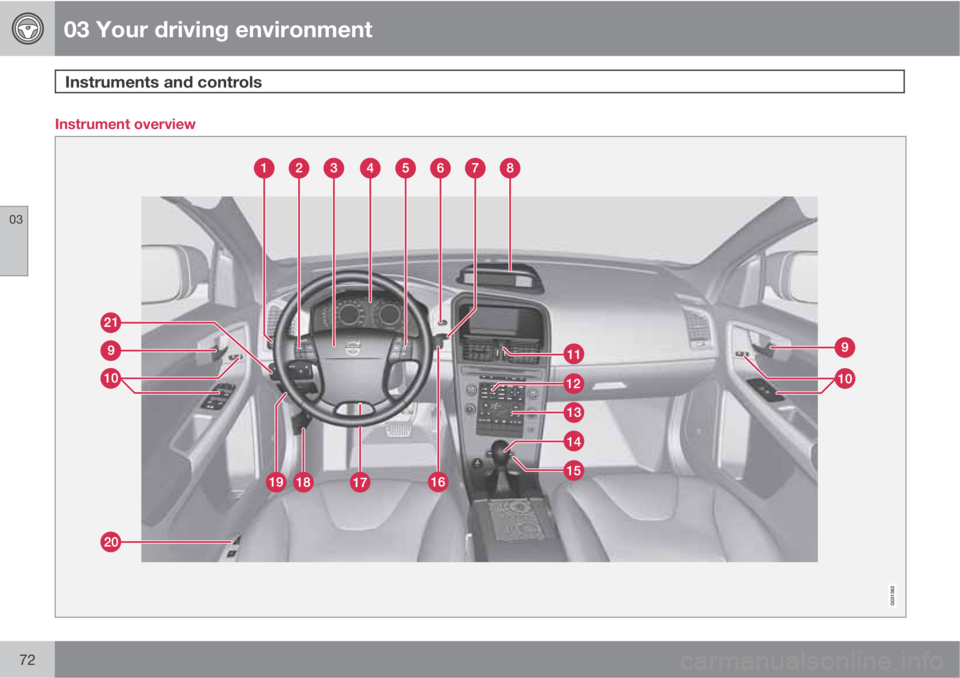

Instrument overview

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.73

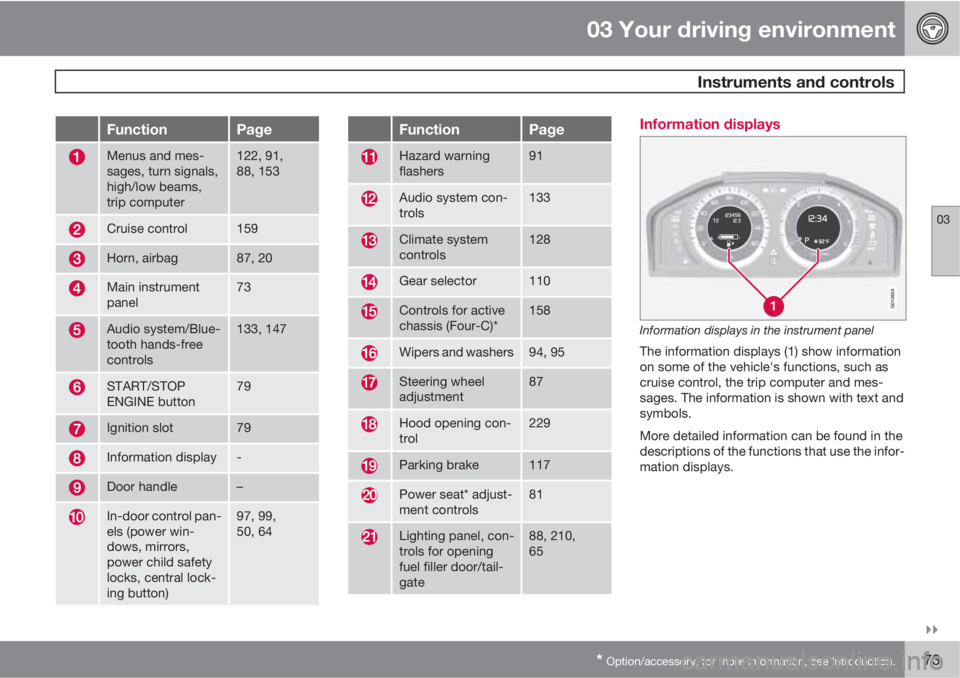

FunctionPage
Menus and mes-
sages, turn signals,
high/low beams,
trip computer122, 91,
88, 153
Cruise control159
Horn, airbag87, 20
Main instrument
panel73
Audio system/Blue-
tooth hands-free
controls133, 147
START/STOP
ENGINE button79
Ignition slot79
Information display-
Door handle–
In-door control pan-
els (power win-
dows, mirrors,
power child safety
locks, central lock-
ing button)97, 99,
50, 64
FunctionPage
Hazard warning
flashers91
Audio system con-
trols133
Climate system
controls128
Gear selector110
Controls for active
chassis (Four-C)*158
Wipers and washers94, 95
Steering wheel
adjustment87
Hood opening con-
trol229
Parking brake117
Power seat* adjust-
ment controls81
Lighting panel, con-
trols for opening
fuel filler door/tail-
gate88, 210,
65
Information displays
G010604
Information displays in the instrument panel
The information displays (1) show information
on some of the vehicle's functions, such as
cruise control, the trip computer and mes-
sages. The information is shown with text and
symbols.
More detailed information can be found in the
descriptions of the functions that use the infor-
mation displays.

03 Your driving environment
Instruments and controls
03
74* Option/accessory, for more information, see Introduction.
Gauges
G010605
Gauges in the instrument panel
Speedometer
Fuel gauge. Please note that the fuel level
indicator in the gauge moves from right to
left as the amount of fuel in the tank
decreases. See also the section on refuel-
ing beginning on page 208. See page
153 for more information on fuel level and
consumption.
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
Do not drive continuously with the needle
in the red area of the gauge. The engine
management system will automatically
prevent excessively high engines speeds.
This will be noticeable as a pronounced
unevenness in engine speed.
Indicator, information, and warning
symbols
G010604
Indicator and warning symbols
Indicator and information symbols
Indicator and warning symbols
High beam and turn signal indicators
Function checkAll indicator and warning symbols light up in
ignition mode II or when the engine is started.
When the engine has started, all the symbols
should go out except the parking brake sym-
bol, which only goes out when the brake is dis-
engaged.
If the engine does not start or if the function
check is carried out in ignition mode II, all sym-
bols go out after 5 seconds except the symbolfor faults in the vehicle's emissions system and
the symbol for low oil pressure.
Certain symbols may not have their functions
illustrated, depending on the vehicle's equip-
ment.
Indicator and information symbols
SymbolDescription
Fault in the Active Bending
Light (ABL)*system
Malfunction indicator light
Anti-lock brake system (ABS)
Rear fog light on
Stability system
Tire pressure monitoring sen-
sor (TPMS)
Low fuel level
Information symbol, see text
in information display
High beam indicator

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.75
SymbolDescription
Left turn signal indicator
Right turn signal indicator
Fault in the Active Bending Light
(ABL) system
This symbol will illuminate if the there is a fault
in the ABL system.
Malfunction Indicator Light
As you drive, a computer called On-Board
Diagnostics II (OBDII) monitors your vehicle's
engine, transmission, electrical and emission
systems.
The malfunction indicator (CHECK ENGINE)
light will illuminate if the computer senses a
condition that potentially may need correcting.
When this happens, please have your vehicle
checked by a trained and qualified Volvo serv-
ice technician as soon as possible.
A malfunction indicator (CHECK ENGINE) light
may have many causes. Sometimes, you may
not notice a change in your car's behavior.
Even so, an uncorrected condition could hurt
fuel economy, emission controls, and drivabil-
ity. Extended driving without correcting thecause could even damage other components
in your vehicle.
This light may illuminate if the fuel filler cap is
not closed tightly or if the engine was running
while the vehicle was refueled.
Canadian models are equipped with this
symbol.
Anti-lock Brake System (ABS)
warning light
If the warning light comes on, there may be a
malfunction in the ABS system (the standard
braking system will still function). Check the
system by:
1. Stopping in a safe place and switching off
the ignition.
2. Restart the engine.
3. If the warning light goes off, no further
action is required.
If the warning light remains on, the vehicle
should be driven to a trained and qualified
Volvo service technician for inspection, see
page 113 for additional information.
Canadian models are equipped with this
symbol.
Rear fog light
This symbol indicates that the rear fog light
(located in the driver's side tail light cluster) is
on.
Stability system
This indicator symbol flashes when the DSTC
(Dynamic Stability and Traction Control sys-
tem) is actively working to stabilize the vehicle,
see page 156 for more detailed information.
Tire pressure monitoring system
(TPMS)*
This symbol illuminates to indicate that tire
pressure in one or more tires is low, see
page 273 for detailed information.
Low fuel level
When this light comes on, the vehicle should
be refueled as soon as possible.
Information symbol
The information symbol illuminates and a text
message is displayed if a fault is detected in
one of the vehicle's systems. The message can
be erased and the symbol can be turned off by
pressing the READ button (see page 124 for
information) or this will take place automatically
after a short time (the length of time varies,
depending on the function affected).
The information symbol may also illuminate
together with other symbols.

03 Your driving environment
Instruments and controls
03
76
High beam indicator
This symbol illuminates when the high beam
headlights are on, or if the high beam flash
function is used.
Left turn signal indicator
Right turn signal indicator
NOTE
•Both turn signal indicators will flash
when the hazard warning flashers are
used.
•If either of these indicators flash faster
than normal, the direction indicators are
not functioning properly.
Indicator and warning symbols
SymbolDescription
Low oil pressure
Parking brake applied
SRS airbags
Seat belt reminder
SymbolDescription
Generator not charging
Fault in the brake system
Warning symbol
Low oil pressure
If the light comes on while driving, stop the
vehicle, stop the engine immediately, and
check the engine oil level. If the oil level is nor-
mal and the light stays on after restart, have the
vehicle towed to the nearest trained and quali-
fied Volvo service technician. This is normal,
provided it goes off when the engine speed is
increased.
Parking brake applied
This symbol illuminates when the parking
brake is applied. On models equipped with the
electric parking brake, this symbol flashes
while the brake is being applied and then glows
steadily.
A flashing symbol means that a fault has been
detected. See the message in the information
display.
Canadian models are equipped with this
symbol.
NOTE
This symbol also comes on when the
mechanical parking brake is only slightly
applied.
Airbags – SRS
If this light comes on while the vehicle is being
driven, or remains on for longer than approxi-
mately 10 seconds after the vehicle has been
started, the SRS system's diagnostic functions
have detected a fault in a seat belt lock or pre-
tensioner, a front airbag, side impact airbag,
and/or an inflatable curtain. Have the system(s)
inspected by a trained and qualified Volvo
service technician as soon as possible.
Seat belt reminder
This symbol comes on for approximately 6 sec-
onds if the driver has not fastened his or her
seat belt.
Generator not charging
This symbol comes on during driving if a fault
has occurred in the electrical system. Contact
an authorized Volvo workshop.
Engine temperatureEngine overheating can result from low oil or
coolant levels, towing or hard driving at high

03 Your driving environment
Instruments and controls
03

77
heat and altitude, or mechanical malfunction.
Engine overheating will be signaled with text
and a red warning triangle in the middle of the
instrument display. The exact text will depend
on the degree of overheating. It may range
from "
HIGH ENGINE TEMP – SLOW
DOWN" to "HIGH ENGINE TEMP – STOP
ENGINE." If appropriate, other messages,
such as "COOLANT LEVEL LOW" will also be
displayed. If your engine does overheat so that
you must stop the engine, always allow the
engine to cool before attempting to check oil
and coolant levels.
Fault in brake system
If this symbol lights, the brake fluid level may
be too low. Stop the vehicle in a safe place and
check the level in the brake fluid reservoir, see
page 232. If the level in the reservoir is below
MIN, the vehicle should be transported to an
authorized Volvo workshop to have the brake
system checked.
Canadian models are equipped with this
symbol.
If the
and symbols come on at the
same time, there may be a fault in the brake
force distribution system.
1. Stop the vehicle in a safe place and turn off
the engine.
2. Restart the engine.
•If both symbols extinguish, continue driv-
ing.
•If the symbols remain on, check the level in
the brake fluid reservoir, see page 232. If
the brake fluid level is normal but the sym-
bols are still lit, the vehicle can be driven,
with great care, to an authorized Volvo
workshop to have the brake system
checked.
•If the level in the reservoir is below MIN, the
vehicle should be transported to an author-
ized Volvo workshop to have the brake
system checked.
WARNING
•If the fluid level is below the MIN mark
in the reservoir or if a warning message
is displayed in the text window:
DO
NOT DRIVE. Have the vehicle towed to
a trained and qualified Volvo service
technician and have the brake system
inspected.
•If the ABS and Brake system lights are
on at the same time, there is a risk of
reduced vehicle stability.
Warning symbol
The red warning symbol comes on when a fault
has been indicated which could affect the
safety and/or drivability of the vehicle. Anexplanatory text is shown on the information
display at the same time. The symbol remains
visible until the fault has been rectified but the
text message can be cleared with the READ
button, see page 124. The warning symbol can
also come on in conjunction with other sym-
bols.
Action:
1. Stop in a safe place. Do not drive the vehi-
cle further.
2. Read the information on the information
display. Implement the action in accord-
ance with the message in the display. Clear
the message using READ.
Reminder – doors not closedIf the vehicle is driven at a speed
lower than approximately 5 mph
(7 km/h), the information symbol comes on.
If the vehicle is driven at a speed
higher than approximately 5 mph
(7 km/h), the warning symbol comes on.

03 Your driving environment
Instruments and controls
03
78
Trip odometers
G010608
Trip odometers and reset button
Odometer display
Button for toggling between T1 and T2,
and for resetting the odometer
The trip odometers are used to measure short
distances. A short press the button toggles
between the two trip odometers
T1 and T2. A
long press (more than 2 seconds) resets an
active trip odometer to zero. The distance is
shown in the display.
Clock
G010609
Clock and setting control
Display
Control for setting the clock
Turn the control clockwise/counterclockwise
to set the time. The set time is shown in the
information display.
The clock may be temporarily replaced by a
symbol in conjunction with a message, see
page 124.

03 Your driving environment
Ignition modes
03

* Option/accessory, for more information, see Introduction.79 Inserting and removing the remote key
Ignition slot with remote key and START/STOP
ENGINE button.
Inserting the remote keyHolding the end of the remote key with the
base of the key blade, insert the remote key
into the ignition slot, with the buttons facing up,
as shown in the illustration.
CAUTION
Foreign objects in the ignition slot can
impair function or damage the lock.
Removing the remote keyThe remote key can be removed from the igni-
tion slot by pressing the key in lightly. It will
then be ejected slightly and can be removedfrom the slot. The gear selector must be in
position P (Park).
Ignition modesThe various ignition modes are accessed with
the remote key in the ignition slot.
Posi-
tionFunction
0Odometer, clock and tempera-
ture gauge are illuminated. Steer-
ing lock is deactivated. The audio
system can be used.
ILaminated panoramic roof*,
power windows,12-volt sockets,
navigation system*, climate sys-
tem blower, ECC, windshield
wipers can be used.
IIThe headlights come on. Warn-
ing/indicator lights come on for
5 seconds. All equipment oper-
ates apart from heated seats and
rear window defroster, which
only work when the engine is run-
ning.
IIIThe starter motor will operate
until the engine has started.
NOTE
The brake pedal must not be depressed
when accessing ignition modes I or II.
Ignition mode 0
Insert the remote key in the ignition slot and
press it lightly. It will be drawn into the slot.
Ignition mode I
Press the remote key into the ignition slot
and press START/STOP ENGINE.
Ignition mode II
Press the remote key into the ignition slot
and press START/STOP ENGINE for
approx. 2 seconds.
Ignition mode III (engine start)Start the engine, see page 106.
Stopping the engine
Press START/STOP ENGINE. (If the
engine is running and the vehicle is mov-
ing, keep the button depressed until the
engine stops).
Return to ignition mode 0
Press START/STOP ENGINE to return
from I, II, or III to ignition mode 0.

03 Your driving environment
Ignition modes
03
80
Functions with timerThe audio system can be operated without a
key for 15 minutes at a time by pressing the
POWER button. The power windows work for
several minutes after the key has been
removed, although not after the door has been
opened.
NOTE
Use the POWER button for the audio sys-
tem when the engine is not running to avoid
discharging the battery.
