VOLVO XC60 2010 Quick Guide

city safety™
City Safety™ is intended to help a distracted driver in a critical situation immediately prece-ding a collision.
The function is active at speeds ranging from approximately 2-18 mph (4-30 km/h) and assists the driver by monitoring the traffic ahead using the laser sensor mounted in the upper edge of the windshield.
City Safety™ can help prevent a collision if the difference in speed between your vehicle and the vehicle ahead is less than 9 mph (15 km/h). If the difference in speed is greater, a collision cannot be avoided but the speed at which the collision occurs can be reduced.
City Safety™ is designed to intervene as late as possible to help avoid unnecessary activation.
warning
City Safety™ is a supplemental aid to the driver. It can never replace the driver’s attention to traffic conditions or his/her responsibility for operating the vehicle in a safe manner. City Safety™ may never be used instead of the driver applying the brakes.
City Safety™ does not function in all driving situations or in all traffic, weather or road conditions.
remote key, Pcc PersonaL car
commUnicator*
Locks the doors and tailgate and arms the alarm.
Unlocks the doors and tailgate, and disarms the alarmA
Unlocks the tailgate.
Approach lighting illuminates lights in door mirrors, cabin, footwells, license plates. Turn signals and parking lights illuminate.
“Panic” alarm. – Press and hold to sound the alarm. Turn off alarm with unlock button.A Automatic relock occurs if no door/tailgate is opened within 2 minutes after unlock.
PCC*
Information about the car can be gathered within a range of 65 ft. (20 m).
– Press the button and wait for 7 seconds.
If the car is out of range when the button is pressed, the most recently stored status information will be shown.
1 Green light: Vehicle is locked.
2 Yellow light: Vehicle is unlocked.
3 Flashing red light: Someone may be in the vehicle.
4 Red light: Alarm has been triggered.

– Press the start/stoP/engine button to start the engine
starting the engine
– Insert the remote key as shown in the illustration, with the buttons upward and push lightly on it – the key will be drawn into the lock.
– Press the brake pedal.
COLDSTART
note
After cold starts, your engine will idle at a higher speed for a short time.
ignition modes 0 and i
To access the following ignition modes: The brake pedal must not be depressed.
switching off the engine and removing the remote key 2. Press lightly on the remote key.
It will be par-tially ejected from the ignition slot. The gear selector must be in the P position.
m
ode
active functions
Remote key inser ted but not drawn into ignition slot – audio system and cour tesy lighting.
Remote key drawn into ignition slot – audio system and cour tesy lighting. Instrument /clock lighting, steering wheel lock /unlocked.
Remote key drawn into ignition slot and start pressed briefly – power moonroof/windows, blower, ECC, wipers, 12-volt sockets in center console, Volvo Navigation System*.
To exit ignition modes 0/i and turn off the vehicle’s electrical system: Press in the remote key. It will be partially ejected from the igntion slot.
1. Park the vehicle and press
the start/stoP engine button to switch off the engine.

1
Press for on/off. Turn to adjust volume.
2 Select am, fm1, fm2, cd, or mode. Use mode to activate Sirius satellite radio*, the accessory iPod interface or AUX for e.g.A
3 Sound settings Press to select e.g., Bass, treBLe, etc. – turn to adjust.
BLUETOOTH®
Make the cell phone searchable/visible.
Press the Phone button on the audio sys-tem control panel briefly.
Select “Add phone” in the audio system display.
Select the cell phone to be connected.
Enter the numbers shown in the audio sys-tem display using the cell phone’s keypad.
A. aUX connector for e.g., mp3 player. Set mp3 player’s volume to medium for best sound quality.
1.
2.
3.
4.
5.
RADIO
3 Turn to select a radio station.
4 Search for stations with the left/right ar-rows. Store up to 20 stations by holding in buttons 0–9 in fm1 och 0–9 in fm2, until the stored station is confirmed in the display.
5 Autostore stations by pressing for 2 se-conds. autostoring... is displayed during the search. The 10 strongest stations are stored. Press 0–9 to select a station.
CD PLAYER
3 Turn to change tracks.
4 Change tracks with left/right arrows. Select CDB with up/down arrows.
6 Press to eject current CD.
Press and hold to eject all CDsB
7 CD selectB. Press 1–6.
B Optional CD changer only.
HD RADIO
HD radio reception is subject to coverage limi-tations. See your Owner’s Manual for details.
aUdio system
emergency Brake assist (eBa)
EBA is designed to provide full brake effect immediately in the event of sudden, hard braking. When EBA is activated, the brake pedal will go down more than usual.
– Press and hold the brake pedal for as long as necessar y – there will be no braking ef-fect if the pedal is released.
car care

Hand washing is gentler on the paint than an automatic car wash. Since the paint on a new vehicle may take several months to harden completely, we recommend washing the vehicle by hand during this period. Use clean water, a suitable car washing detergent and a sponge. Keep in mind that dirt or grit on the sponge can scratch the paint.

eLectronic cLimate controL (ecc)MANUAL CONTROL
2 Blower speed.
3 Air distribution.
4 Heated driver/front passenger seat*.
6 Recirculation
7 Defroster to quickly defog the windshield and side windows.
8 Heated rear window and door mirrors.
9 Air conditioning Off/On to cool the cabin and defog the windows.
The 12-volt sockets in the cabin function in ignition positions i or ii. The 12-volt socket* in the cargo area always functions.
aUX/UsB*
can be used to connect e.g., an mp3 player to the vehicle’s audio system. storage sP aces, 12-voL t sockets & aUX/UsB* connector
caUtion
Using the optional 12-volt socket in the cargo area with the engine switched off will drain the battery.
AUTOMATIC CONTROL
In aUto mode, ECC controls all functions automatically and makes driving more pleasant with optimal air quality.
1 Turn the control to the desired temperature on the left/right sides of the cabin. The set temperature is shown in the display.
5 Press to automatically control the tempera-ture and other functions.

89
7

odometer and triP comPUter
steering wheeL adjUstmentrefUeLing
warning
Never adjust the steering wheel while driving.
– Press the button to unlock the fuel filler door.
1 Low fuel level indicator When the symbol illuminates, refuel as soon as possible.2 The display shows two separate trip odo-meters, t1 & t2.3 Fuel gauge The fuel filler door is on the right, as indi-cated by the arrow.4 Trip computer display. Select function with (8).5 Clock Adjust with (6).6 Multi-function control Turn the control clockwise or counter-clockwise to set the clock. A short press toggles between t1 & t2. A long press resets the displayed odome-ter.
7 Press to display or erase a message.8 Turn to show trip computer information alternatives.9 A short press resets current function. A long press resets all functions.
note
The display text miles to empty tank is an approximation, based on recent average fuel consumption.

Laminated Panoramic roof*
The 1st press on the control operates the sun shade; the 2nd press operates the laminated panoramic roof. The sun shade must be fully open before the laminated panoramic roof
Power taiLgate*
opening
– Press the button on the lighting panel/remote key until the tailgate begins to open.
– The tailgate can also be opened by pulling the handle on the tailgate.
closing
– Press the closing button on the tailgate or close the tailgate manually.
can be opened manually. When the laminated panoramic roof is opened to the tilt (ventilation) position, the sun shade opens/closes automa-tically.
A Auto open
B Manual open
C Manual close
D Auto close
E Open to the tilt position
F Close from the tilt position
AHigh beam flash.
BToggle between high/low beams.
Lighting P
aneL
Display & instrument panel lighting.
Front fog lights.
Rear fog light (driver’s side only).
Automatic headlights. High beam flash only.
Parking lights.
Headlights: turn off when ignition is switched off, high/low beams.

TP 11175 (USA & Canada). AT 0920. Printed in Sweden, Göteborg 2009. Copyright © 2000-2009 Volvo Car Corporation.

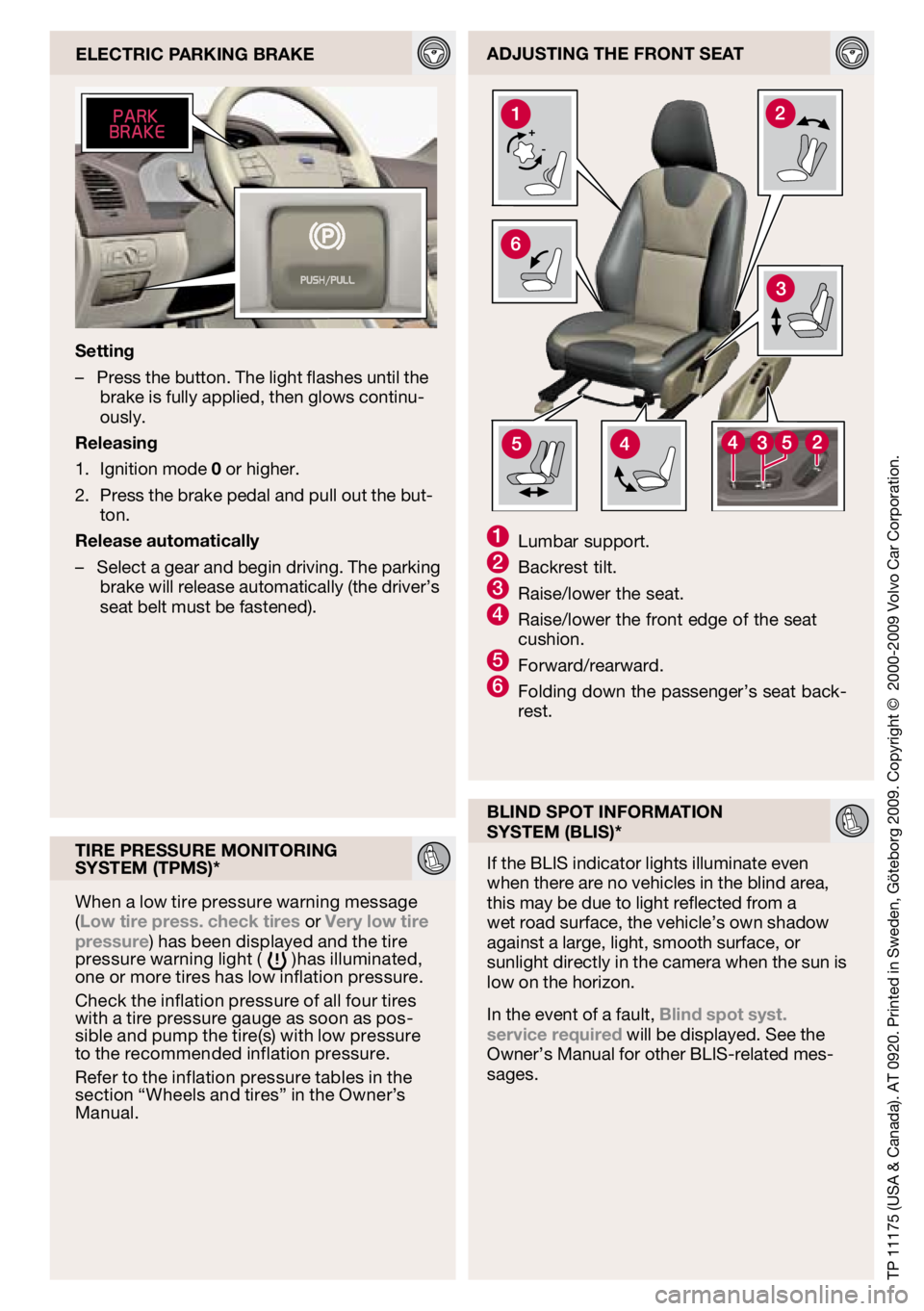

adjUsting the front seat
eLectric P arking Brake
1 Lumbar support.2 Backrest tilt.3 Raise/lower the seat.4 Raise/lower the front edge of the seat cushion.5 Forward/rearward.6 Folding down the passenger’s seat back-rest.
setting
–
Press the button. The light flashes until the brake is fully applied, then glows continu-ously.
releasing
Ignition mode 0 or higher.
Press the brake pedal and pull out the but-ton.
release automatically
– Select a gear and begin driving. The parking
brake will release automatically (the driver’s seat belt must be fastened).
1.
2.
tire PressUre monitoring
system (tPms)*
When a low tire pressure warning message (Low tire press. check tires or very low tire pressure) has been displayed and the tire pressure warning light ( )has illuminated, one or more tires has low inflation pressure.
Check the inflation pressure of all four tires with a tire pressure gauge as soon as pos-sible and pump the tire(s) with low pressure to the recommended inflation pressure.
Refer to the inflation pressure tables in the section “Wheels and tires” in the Owner’s Manual. BLind sPot information
system (BLis)*
If the BLIS indicator lights illuminate even when there are no vehicles in the blind area, this may be due to light reflected from a wet road surface, the vehicle’s own shadow against a large, light, smooth surface, or sunlight directly in the camera when the sun is low on the horizon.
In the event of a fault, Blind spot syst. service required will be displayed. See the Owner’s Manual for other BLIS-related mes-sages.

weLcome to the gLo BaL fami Ly of voLvo
owners !
Getting to know your new vehicle is an exciting experience.
This Quick Guide provides a brief overview of the most common features and
functions in your Volvo.
However, for the most up-to-date and detailed descriptions and instructions,
as well as important warnings and other information not included in this
folder, please refer to your Owner’s Manual.
An asterisk (*) indicates optional equipment.
For additional information, contact Customer Service:
U.S.A.: 1-800-458-1552 www.volvocars.us
Canada: 1-800-663-8255 www.volvocanada.com
