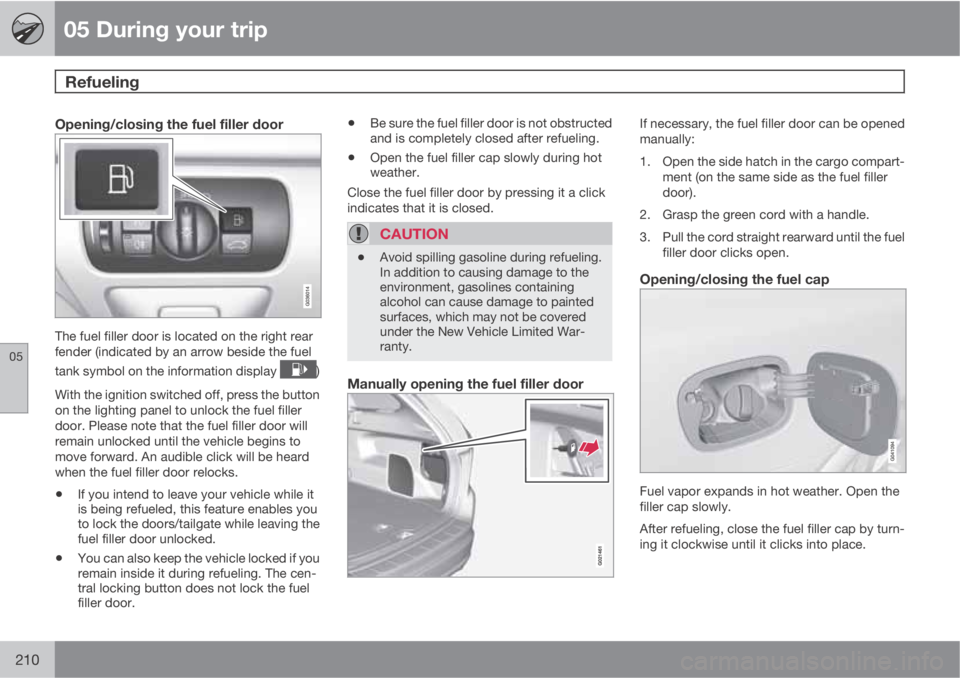

05 During your trip
Refueling
05
210
Opening/closing the fuel filler door
The fuel filler door is located on the right rear
fender (indicated by an arrow beside the fuel
tank symbol on the information display
)
With the ignition switched off, press the button
on the lighting panel to unlock the fuel filler
door. Please note that the fuel filler door will
remain unlocked until the vehicle begins to
move forward. An audible click will be heard
when the fuel filler door relocks.
•If you intend to leave your vehicle while it
is being refueled, this feature enables you
to lock the doors/tailgate while leaving the
fuel filler door unlocked.
•You can also keep the vehicle locked if you
remain inside it during refueling. The cen-
tral locking button does not lock the fuel
filler door.
•Be sure the fuel filler door is not obstructed
and is completely closed after refueling.
•Open the fuel filler cap slowly during hot
weather.
Close the fuel filler door by pressing it a click
indicates that it is closed.
CAUTION
•Avoid spilling gasoline during refueling.
In addition to causing damage to the
environment, gasolines containing
alcohol can cause damage to painted
surfaces, which may not be covered
under the New Vehicle Limited War-
ranty.
Manually opening the fuel filler door
If necessary, the fuel filler door can be opened
manually:
1. Open the side hatch in the cargo compart-
ment (on the same side as the fuel filler
door).
2. Grasp the green cord with a handle.
3. Pull the cord straight rearward until the fuel
filler door clicks open.
Opening/closing the fuel cap
Fuel vapor expands in hot weather. Open the
filler cap slowly.
After refueling, close the fuel filler cap by turn-
ing it clockwise until it clicks into place.

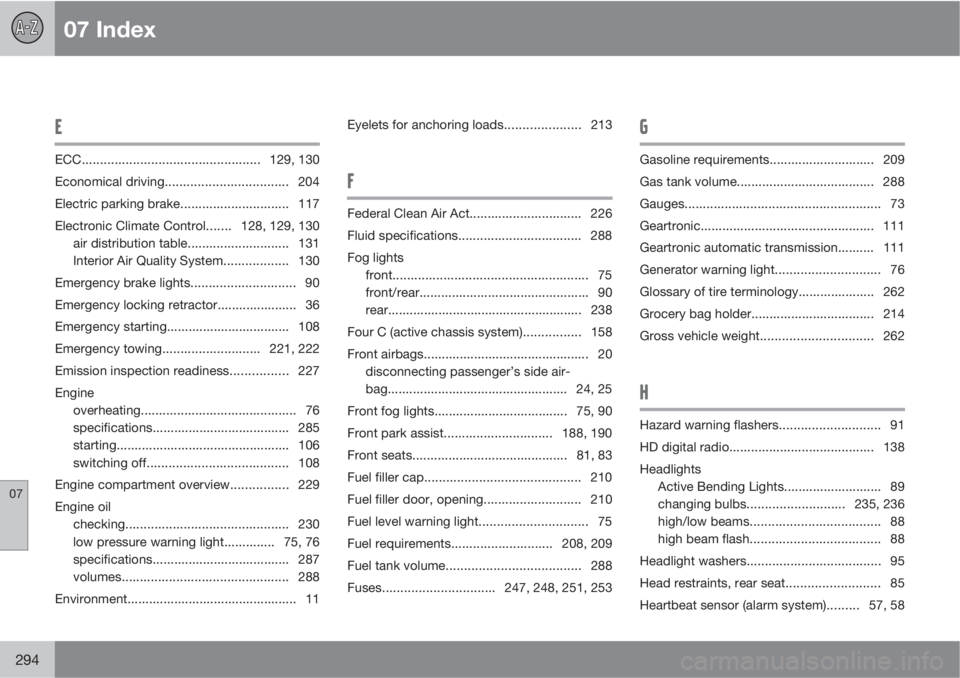

07 Index
07
294
E
ECC.................................................129, 130
Economical driving.................................. 204
Electric parking brake.............................. 117
Electronic Climate Control.......128, 129, 130
air distribution table............................ 131
Interior Air Quality System.................. 130
Emergency brake lights............................. 90
Emergency locking retractor...................... 36
Emergency starting.................................. 108
Emergency towing...........................221, 222
Emission inspection readiness................ 227
Engine
overheating........................................... 76
specifications...................................... 285
starting................................................ 106
switching off....................................... 108
Engine compartment overview................229
Engine oil
checking............................................. 230
low pressure warning light.............. 75, 76
specifications...................................... 287
volumes.............................................. 288
Environment............................................... 11Eyelets for anchoring loads..................... 213
F
Federal Clean Air Act............................... 226
Fluid specifications.................................. 288
Fog lights
front...................................................... 75
front/rear............................................... 90
rear...................................................... 238
Four C (active chassis system)................158
Front airbags.............................................. 20
disconnecting passenger’s side air-
bag.................................................. 24, 25
Front fog lights..................................... 75, 90
Front park assist.............................. 188, 190
Front seats...........................................81, 83
Fuel filler cap........................................... 210
Fuel filler door, opening........................... 210
Fuel level warning light.............................. 75
Fuel requirements............................ 208, 209
Fuel tank volume.....................................288
Fuses............................... 247, 248, 251, 253
G
Gasoline requirements............................. 209
Gas tank volume...................................... 288
Gauges...................................................... 73
Geartronic................................................ 111
Geartronic automatic transmission.......... 111
Generator warning light............................. 76
Glossary of tire terminology..................... 262
Grocery bag holder.................................. 214
Gross vehicle weight...............................262
H
Hazard warning flashers............................ 91
HD digital radio........................................ 138
Headlights
Active Bending Lights........................... 89
changing bulbs...........................235, 236
high/low beams.................................... 88
high beam flash.................................... 88
Headlight washers..................................... 95
Head restraints, rear seat.......................... 85
Heartbeat sensor (alarm system).........57, 58
