08 Maintenance and specifications
Fuses
08

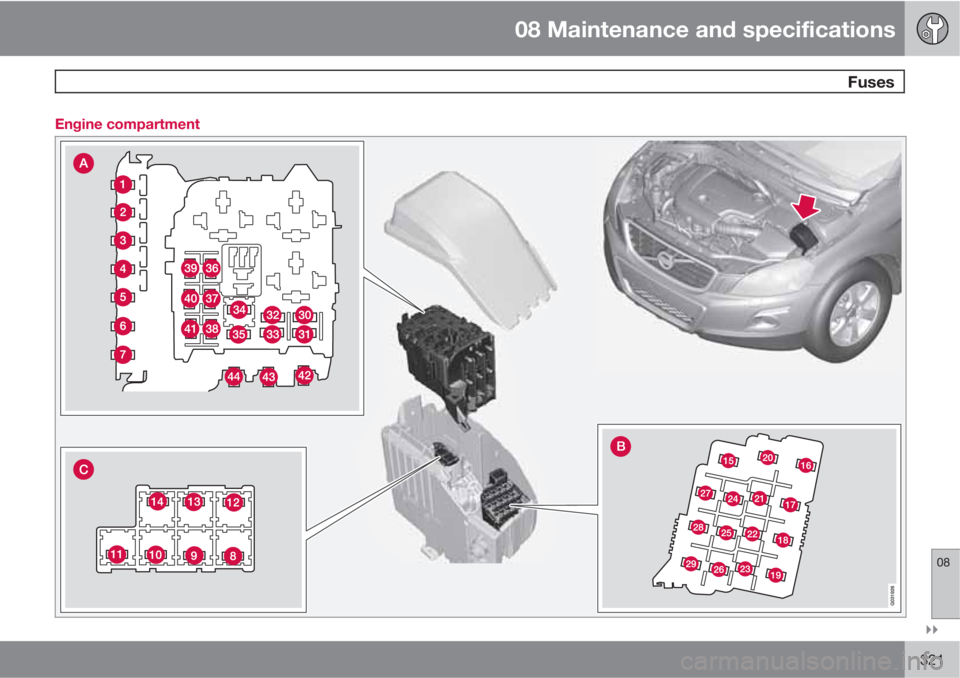

321 Engine compartment

08 Maintenance and specifications
Fuses
08
322* Option/accessory, for more information, see Introduction.
Engine compartment, upper
Engine compartment, front
Engine compartment, lower

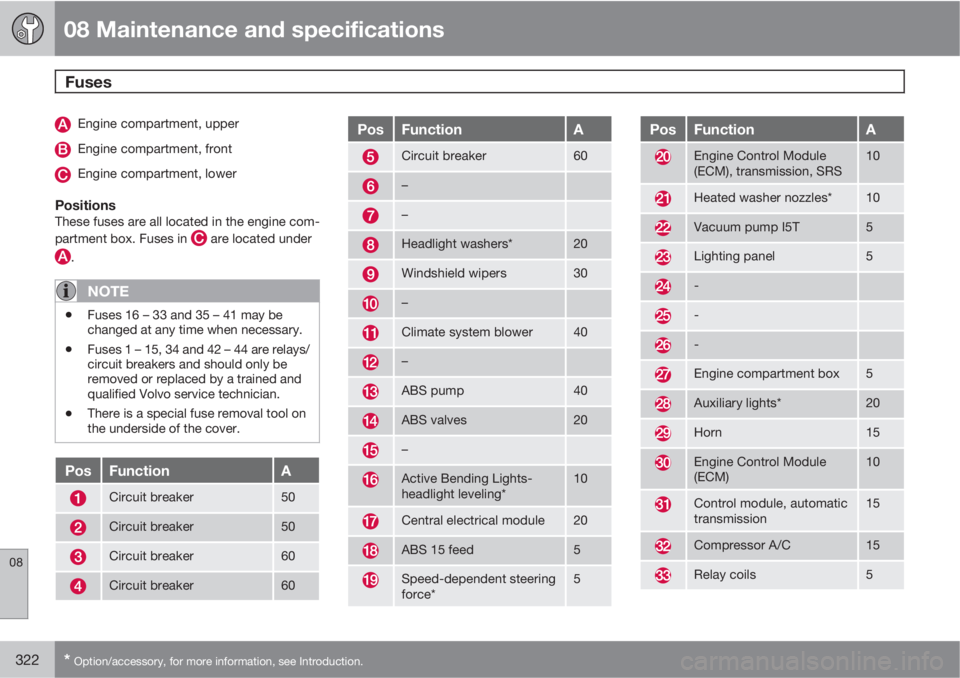

PositionsThese fuses are all located in the engine com-
partment box. Fuses in
are located under
.
NOTE
•Fuses 16 – 33 and 35 – 41 may be
changed at any time when necessary.
•Fuses 1 – 15, 34 and 42 – 44 are relays/
circuit breakers and should only be
removed or replaced by a trained and
qualified Volvo service technician.
•There is a special fuse removal tool on
the underside of the cover.
PosFunctionA
Circuit breaker50
Circuit breaker50
Circuit breaker60
Circuit breaker60
PosFunctionA
Circuit breaker60
–
–
Headlight washers*20
Windshield wipers30
–
Climate system blower40
–
ABS pump40
ABS valves20
–
Active Bending Lights-
headlight leveling*10
Central electrical module20
ABS 15 feed5
Speed-dependent steering
force*5
PosFunctionA
Engine Control Module
(ECM), transmission, SRS10
Heated washer nozzles*10
Vacuum pump I5T5
Lighting panel5
-
-
-
Engine compartment box5
Auxiliary lights*20
Horn15
Engine Control Module
(ECM)10
Control module, automatic
transmission15
Compressor A/C15
Relay coils5

08 Maintenance and specifications
Fuses
08

323

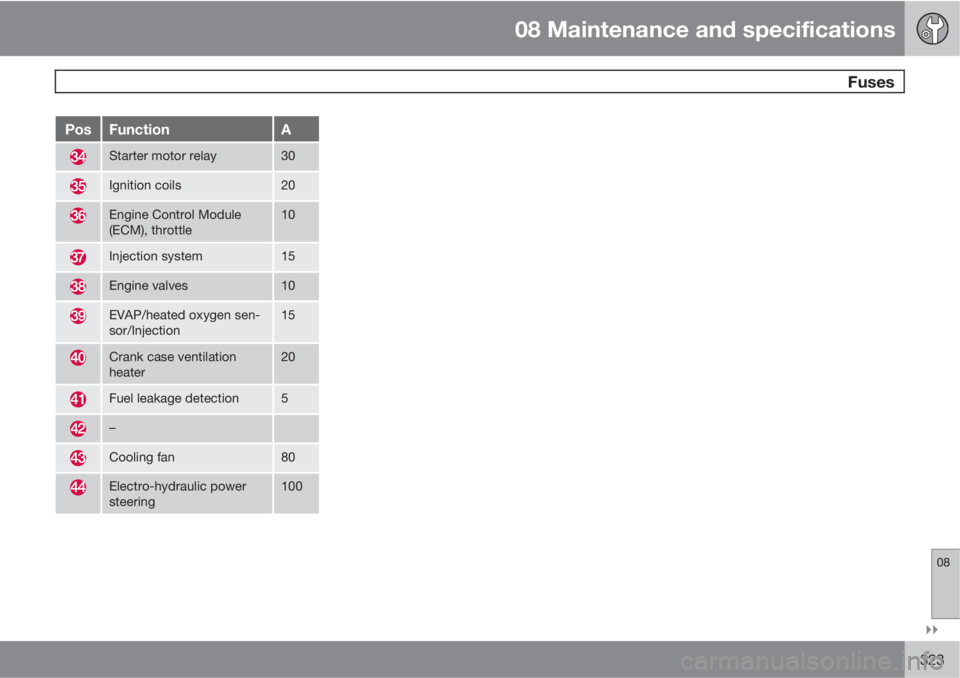

PosFunctionA
Starter motor relay30
Ignition coils20
Engine Control Module
(ECM), throttle10
Injection system15
Engine valves10
EVAP/heated oxygen sen-
sor/Injection15
Crank case ventilation
heater20
Fuel leakage detection5
–
Cooling fan80
Electro-hydraulic power
steering100

08 Maintenance and specifications
Fuses
08
324* Option/accessory, for more information, see Introduction.

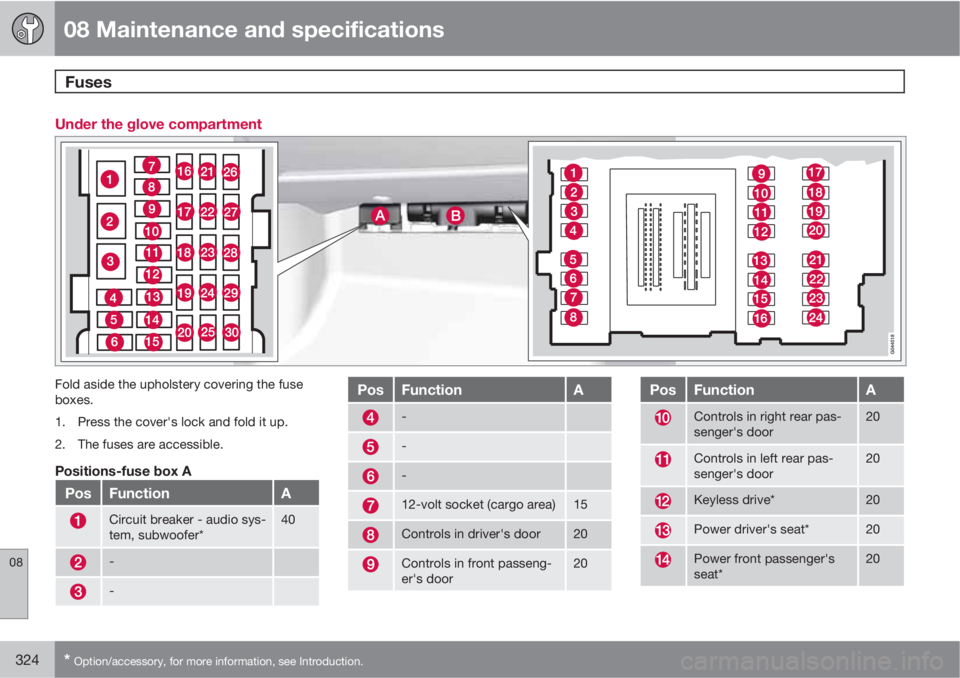

Under the glove compartment
Fold aside the upholstery covering the fuse
boxes.
1. Press the cover's lock and fold it up.
2. The fuses are accessible.
Positions-fuse box A
PosFunctionA
Circuit breaker - audio sys-
tem, subwoofer*40
-
-
PosFunctionA
-
-
-
12-volt socket (cargo area)15
Controls in driver's door20
Controls in front passeng-
er's door20
PosFunctionA
Controls in right rear pas-
senger's door20
Controls in left rear pas-
senger's door20
Keyless drive*20
Power driver's seat*20
Power front passenger's
seat*20

08 Maintenance and specifications
Fuses
08

* Option/accessory, for more information, see Introduction.325

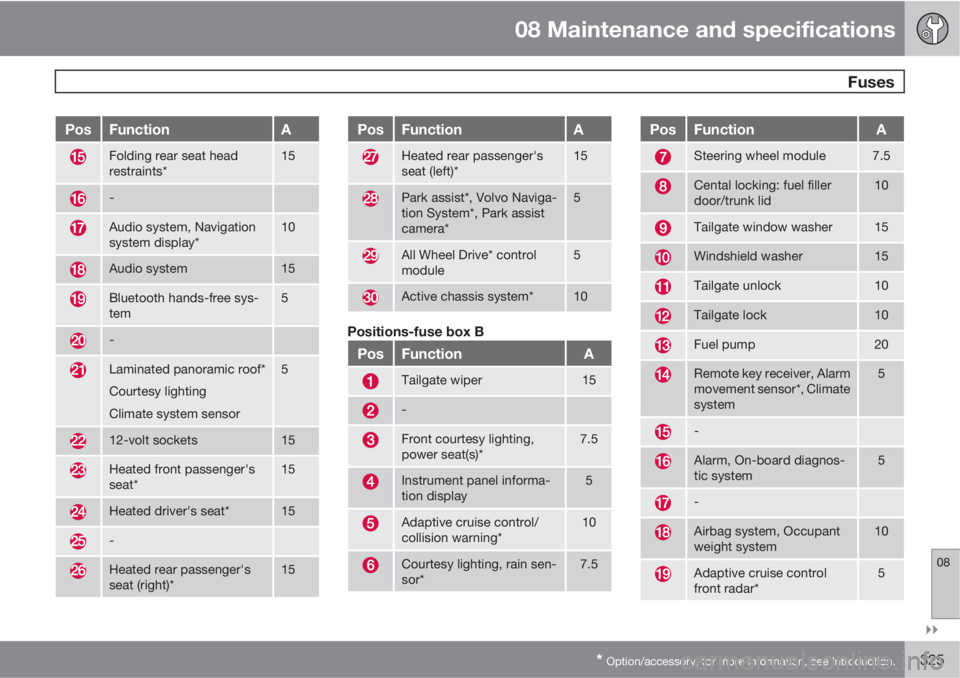

PosFunctionA
Folding rear seat head
restraints*15
-
Audio system, Navigation
system display*10
Audio system15
Bluetooth hands-free sys-
tem5
-
Laminated panoramic roof*
Courtesy lighting
Climate system sensor5
12-volt sockets15
Heated front passenger's
seat*15
Heated driver's seat*15
-
Heated rear passenger's
seat (right)*15
PosFunctionA
Heated rear passenger's
seat (left)*15
Park assist*, Volvo Naviga-
tion System*, Park assist
camera*5
All Wheel Drive* control
module5
Active chassis system*10
Positions-fuse box B
PosFunctionA
Tailgate wiper15
-
Front courtesy lighting,
power seat(s)*7.5
Instrument panel informa-
tion display5
Adaptive cruise control/
collision warning*10
Courtesy lighting, rain sen-
sor*7.5
PosFunctionA
Steering wheel module7.5
Cental locking: fuel filler
door/trunk lid10
Tailgate window washer15
Windshield washer15
Tailgate unlock10
Tailgate lock10
Fuel pump20
Remote key receiver, Alarm
movement sensor*, Climate
system5
-
Alarm, On-board diagnos-
tic system5
-
Airbag system, Occupant
weight system10
Adaptive cruise control
front radar*5

08 Maintenance and specifications
Fuses
08
326* Option/accessory, for more information, see Introduction.

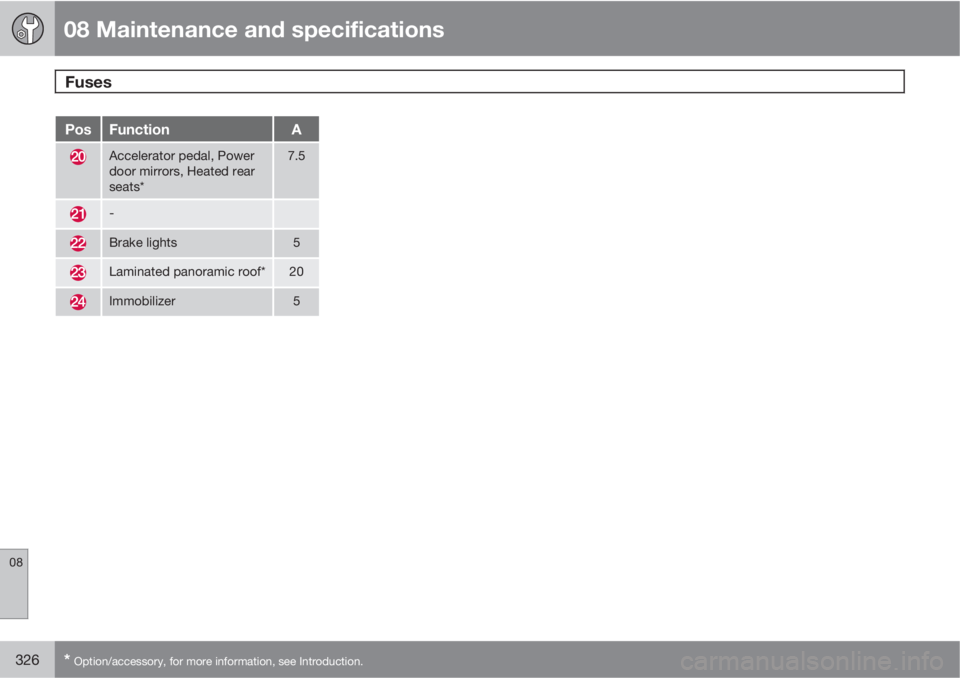

PosFunctionA
Accelerator pedal, Power
door mirrors, Heated rear
seats*7.5
-
Brake lights5
Laminated panoramic roof*20
Immobilizer5

08 Maintenance and specifications
Fuses
08
* Option/accessory, for more information, see Introduction.327 Cargo area

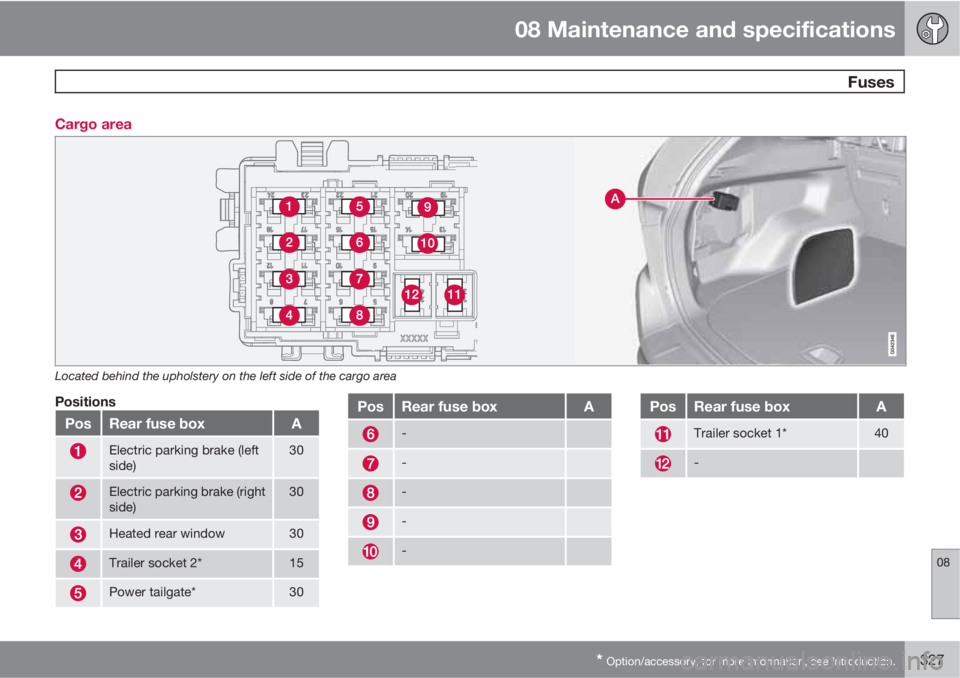

Located behind the upholstery on the left side of the cargo area
Positions
PosRear fuse boxA
Electric parking brake (left
side)30
Electric parking brake (right
side)30
Heated rear window30
Trailer socket 2*15
Power tailgate*30
PosRear fuse boxA
-
-
-
-
-
PosRear fuse boxA
Trailer socket 1*40
-

08 Maintenance and specifications
Vehicle care
08
328
Washing the car

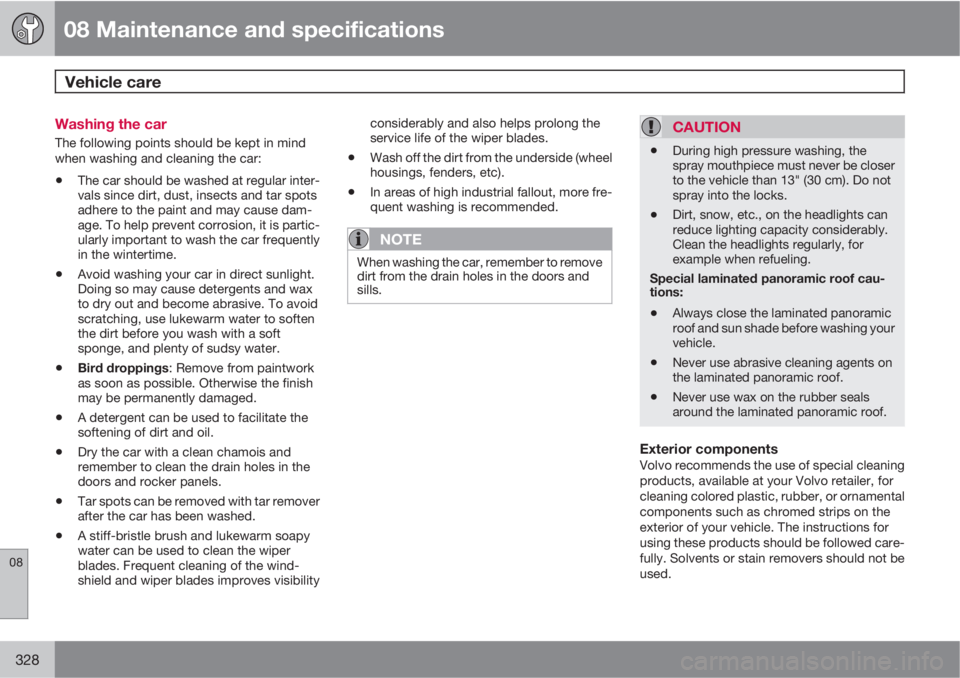

The following points should be kept in mind
when washing and cleaning the car:
•The car should be washed at regular inter-
vals since dirt, dust, insects and tar spots
adhere to the paint and may cause dam-
age. To help prevent corrosion, it is partic-
ularly important to wash the car frequently
in the wintertime.
•Avoid washing your car in direct sunlight.
Doing so may cause detergents and wax
to dry out and become abrasive. To avoid
scratching, use lukewarm water to soften
the dirt before you wash with a soft
sponge, and plenty of sudsy water.
•Bird droppings: Remove from paintwork
as soon as possible. Otherwise the finish
may be permanently damaged.
•A detergent can be used to facilitate the
softening of dirt and oil.
•Dry the car with a clean chamois and
remember to clean the drain holes in the
doors and rocker panels.
•Tar spots can be removed with tar remover
after the car has been washed.
•A stiff-bristle brush and lukewarm soapy
water can be used to clean the wiper
blades. Frequent cleaning of the wind-
shield and wiper blades improves visibilityconsiderably and also helps prolong the
service life of the wiper blades.
•Wash off the dirt from the underside (wheel
housings, fenders, etc).
•In areas of high industrial fallout, more fre-
quent washing is recommended.
NOTE
When washing the car, remember to remove
dirt from the drain holes in the doors and
sills.
CAUTION
•During high pressure washing, the
spray mouthpiece must never be closer
to the vehicle than 13" (30 cm). Do not
spray into the locks.
•Dirt, snow, etc., on the headlights can
reduce lighting capacity considerably.
Clean the headlights regularly, for
example when refueling.
Special laminated panoramic roof cau-
tions:
•Always close the laminated panoramic
roof and sun shade before washing your
vehicle.
•Never use abrasive cleaning agents on
the laminated panoramic roof.
•Never use wax on the rubber seals
around the laminated panoramic roof.
Exterior componentsVolvo recommends the use of special cleaning
products, available at your Volvo retailer, for
cleaning colored plastic, rubber, or ornamental
components such as chromed strips on the
exterior of your vehicle. The instructions for
using these products should be followed care-
fully. Solvents or stain removers should not be
used.

08 Maintenance and specifications
Vehicle care
08

329
CAUTION
•Avoid waxing or polishing plastic or rub-
ber components
•Polishing chromed strips can wear
away or damage the surface
•Polishes containing abrasive sub-
stances should not be used
Automatic car wash
•We do NOT recommend washing your car
in an automatic wash during the first few
months (because the paint will not have
hardened sufficiently).
•An automatic wash is a simple and quick
way to clean your car, but it is worth
remembering that it may not be as thor-
ough as when you yourself go over the car
with sponge and water. Keeping the under-
body clean is most important, especially in
the winter. Some automatic washers do
not have facilities for washing the under-
body.
CAUTION
•Before driving into an automatic car
wash, turn off the optional rain sensor to
avoid damaging the windshield wipers.
•Make sure that side view mirrors, auxil-
iary lamps, etc, are secure, and that any
antenna(s) are retracted or removed.
Otherwise there is risk of the machine
dislodging them.
•Chromed wheels: Clean chrome-
plated wheels using the same deter-
gents used for the body of the vehicle.
Aggressive wheel-cleaning agents can
permanently stain chrome-plated
wheels.
WARNING
•When the vehicle is driven immediately
after being washed, apply the brakes,
including the parking brake, several
times in order to remove any moisture
from the brake linings.
•Engine cleaning agents should not be
used when the engine is warm. This
constitutes a fire risk.
Exterior lightingCondensation may form temporarily on the
inside of the lenses of exterior lights such as
headlights, fog lights, or taillights. This is nor-mal and the lights are designed to withstand
moisture. Normally, condensation will dissi-
pate after the lights have been on for a short
time.
Polishing and waxing
•Normally, polishing is not required during
the first year after delivery, however, wax-
ing may be beneficial.
•Before applying polish or wax the vehicle
must be washed and dried. Tar spots can
be removed with kerosene or tar remover.
Difficult spots may require a fine rubbing
compound.
•After polishing use liquid or paste wax.
•Several commercially available products
contain both polish and wax.
•Waxing alone does not substitute for pol-
ishing a dull surface.
•A wide range of polymer-based waxes can
be purchased today. These waxes are easy
to use and produce a long-lasting, high-
gloss finish that protects the bodywork
against oxidation, road dirt and fading.
•Do not polish or wax your vehicle in direct
sunlight (the surface of the vehicle should
not be warmer than 113 °F (45 °C).

08 Maintenance and specifications
Vehicle care
08
330

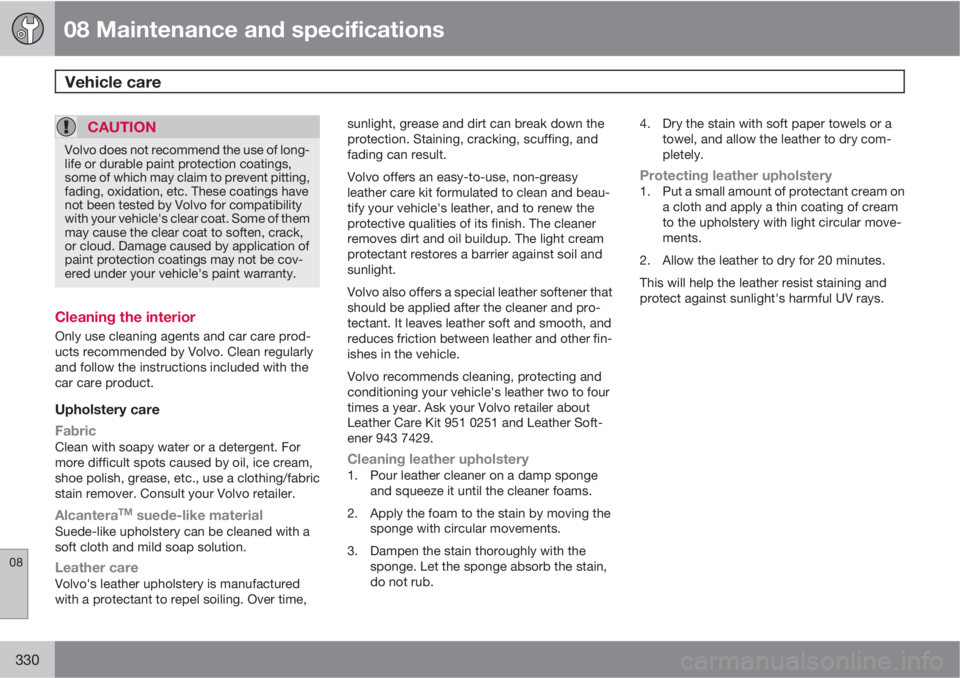

CAUTION
Volvo does not recommend the use of long-
life or durable paint protection coatings,
some of which may claim to prevent pitting,
fading, oxidation, etc. These coatings have
not been tested by Volvo for compatibility
with your vehicle's clear coat. Some of them
may cause the clear coat to soften, crack,
or cloud. Damage caused by application of
paint protection coatings may not be cov-
ered under your vehicle's paint warranty.
Cleaning the interior
Only use cleaning agents and car care prod-
ucts recommended by Volvo. Clean regularly
and follow the instructions included with the
car care product.
Upholstery care
Fabric
Clean with soapy water or a detergent. For
more difficult spots caused by oil, ice cream,
shoe polish, grease, etc., use a clothing/fabric
stain remover. Consult your Volvo retailer.
AlcanteraTM suede-like materialSuede-like upholstery can be cleaned with a
soft cloth and mild soap solution.
Leather careVolvo's leather upholstery is manufactured
with a protectant to repel soiling. Over time,sunlight, grease and dirt can break down the
protection. Staining, cracking, scuffing, and
fading can result.
Volvo offers an easy-to-use, non-greasy
leather care kit formulated to clean and beau-
tify your vehicle's leather, and to renew the
protective qualities of its finish. The cleaner
removes dirt and oil buildup. The light cream
protectant restores a barrier against soil and
sunlight.
Volvo also offers a special leather softener that
should be applied after the cleaner and pro-
tectant. It leaves leather soft and smooth, and
reduces friction between leather and other fin-
ishes in the vehicle.
Volvo recommends cleaning, protecting and
conditioning your vehicle's leather two to four
times a year. Ask your Volvo retailer about
Leather Care Kit 951 0251 and Leather Soft-
ener 943 7429.
Cleaning leather upholstery1. Pour leather cleaner on a damp sponge
and squeeze it until the cleaner foams.
2. Apply the foam to the stain by moving the
sponge with circular movements.
3. Dampen the stain thoroughly with the
sponge. Let the sponge absorb the stain,
do not rub.4. Dry the stain with soft paper towels or a
towel, and allow the leather to dry com-
pletely.
Protecting leather upholstery1. Put a small amount of protectant cream on
a cloth and apply a thin coating of cream
to the upholstery with light circular move-
ments.
2. Allow the leather to dry for 20 minutes.
This will help the leather resist staining and
protect against sunlight's harmful UV rays.
