VOLVO XC60 2011 Owner´s Manual

09 Specifications
Specifications09

341

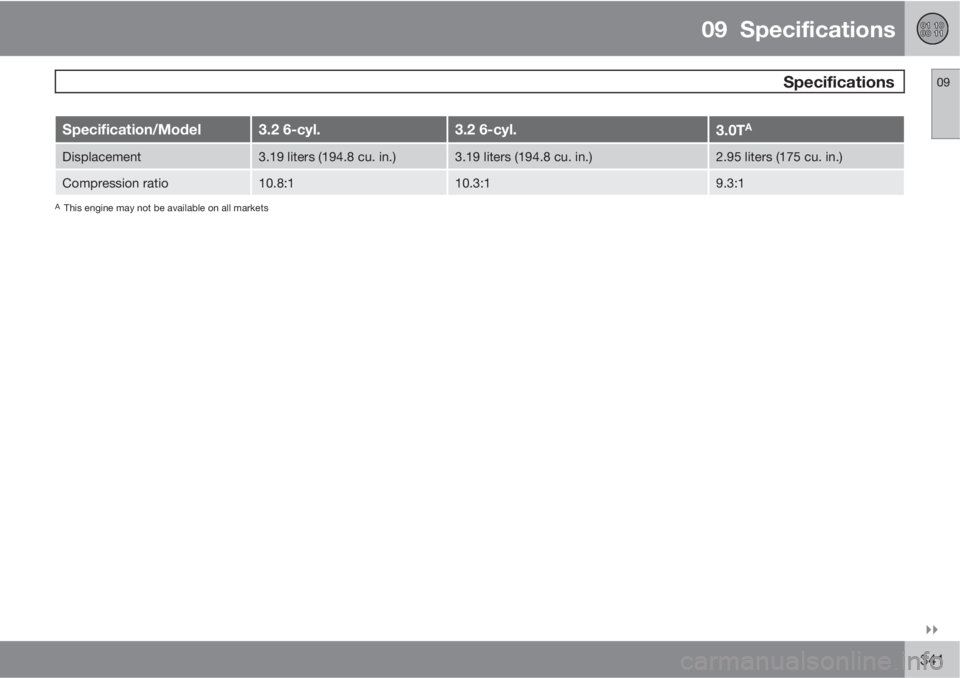

Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Displacement3.19 liters (194.8 cu. in.)3.19 liters (194.8 cu. in.)2.95 liters (175 cu. in.)
Compression ratio10.8:110.3:19.3:1
AThis engine may not be available on all markets

09 Specifications
Specifications 09
342

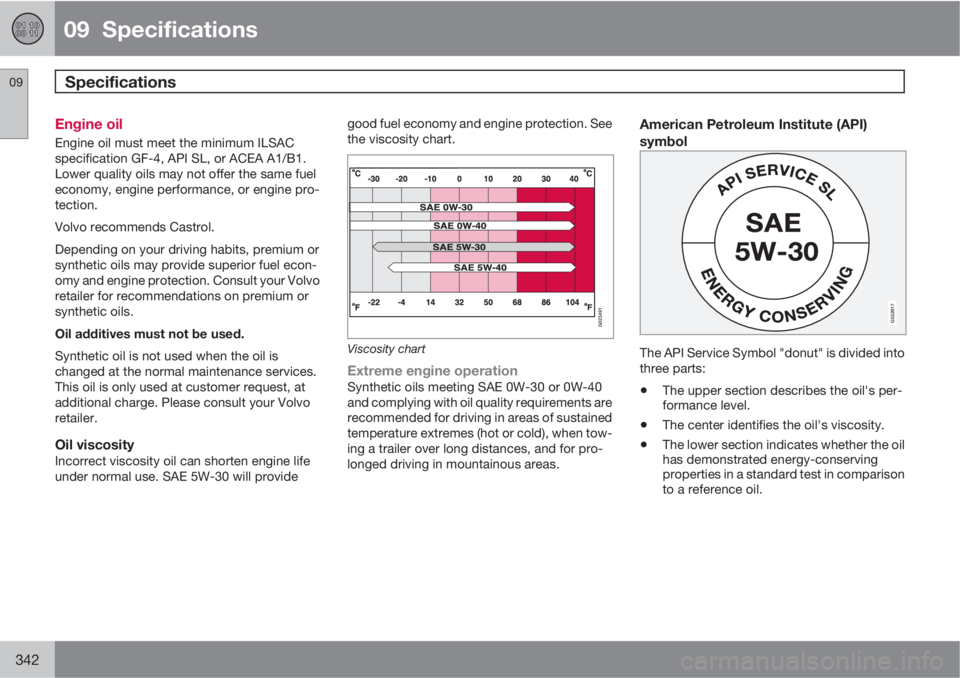

Engine oil
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer for recommendations on premium or
synthetic oils.
Oil additives must not be used.
Synthetic oil is not used when the oil is
changed at the normal maintenance services.
This oil is only used at customer request, at
additional charge. Please consult your Volvo
retailer.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will providegood fuel economy and engine protection. See
the viscosity chart.
G023491
Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
recommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.
American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:
•The upper section describes the oil's per-
formance level.
•The center identifies the oil's viscosity.
•The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.

09 Specifications
Specifications09

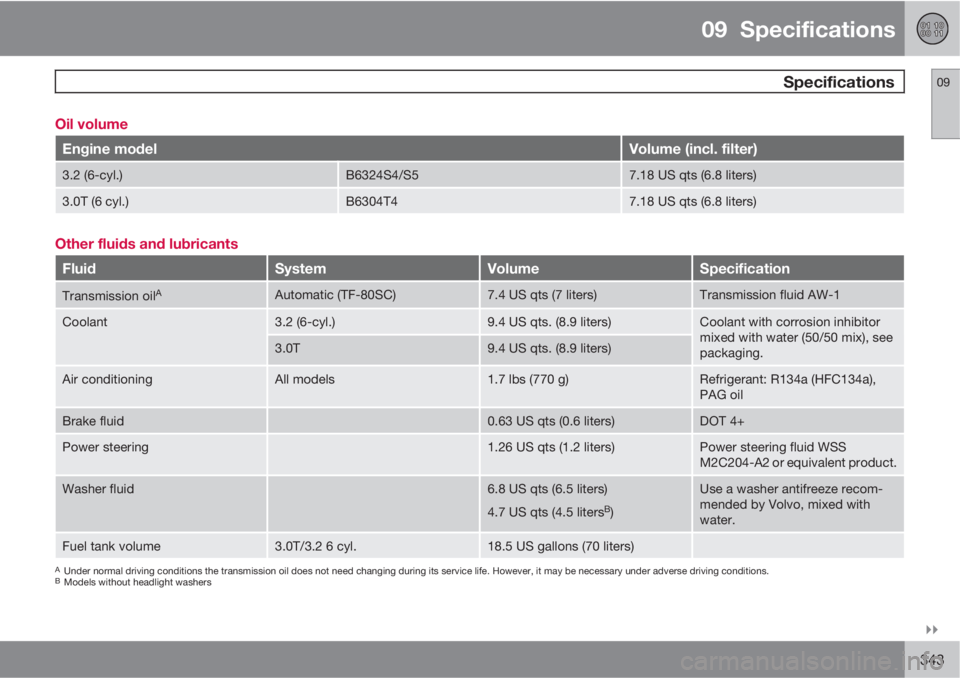

343 Oil volume
Engine modelVolume (incl. filter)
3.2 (6-cyl.)B6324S4/S57.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Coolant3.2 (6-cyl.)9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor
mixed with water (50/50 mix), see
packaging.
3.0T9.4 US qts. (8.9 liters)
Air conditioningAll models1.7 lbs (770 g)Refrigerant: R134a (HFC134a),
PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4+
Power steering1.26 US qts (1.2 liters)Power steering fluid WSS
M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters)
4.7 US qts (4.5 liters
B)
Use a washer antifreeze recom-
mended by Volvo, mixed with
water.
Fuel tank volume3.0T/3.2 6 cyl.18.5 US gallons (70 liters)
AUnder normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.BModels without headlight washers

09 Specifications
Specifications 09
344

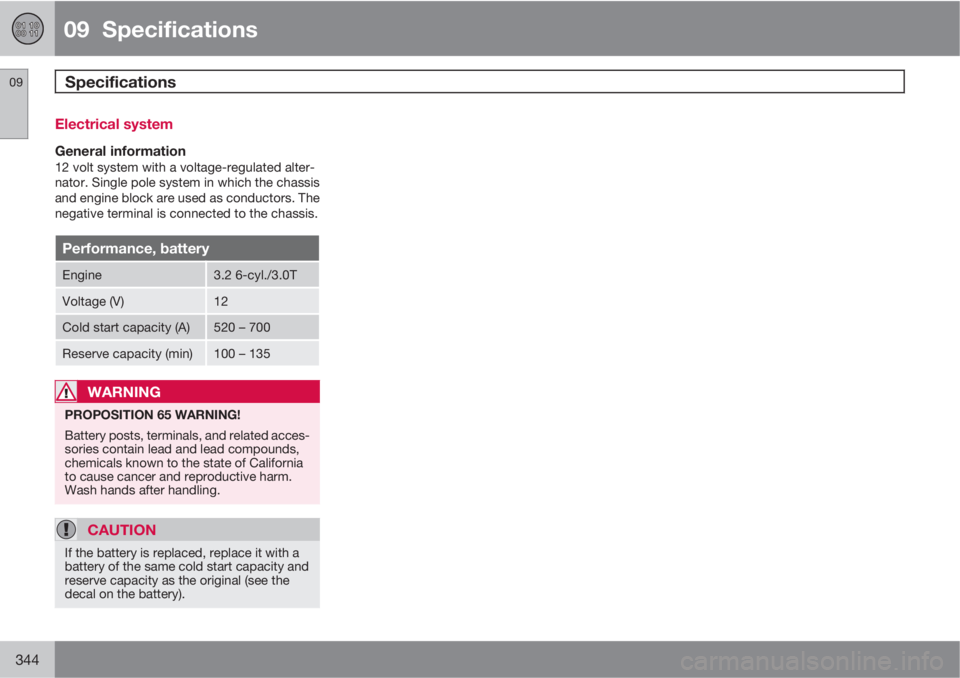

Electrical system
General information12 volt system with a voltage-regulated alter-
nator. Single pole system in which the chassis
and engine block are used as conductors. The
negative terminal is connected to the chassis.
Performance, battery
Engine3.2 6-cyl./3.0T
Voltage (V)12
Cold start capacity (A)520 – 700
Reserve capacity (min)100 – 135
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
CAUTION
If the battery is replaced, replace it with a
battery of the same cold start capacity and
reserve capacity as the original (see the
decal on the battery).

09 Specifications
Overview of information and warning symbols09

* Option/accessory, for more information, see Introduction.345 Introduction
The symbols in the vehicle's various displays
are divided into three main categories:
•Warning symbols
•Indicator symbols
•Information symbols
The following tables list the most common
symbols, their meaning and the pages in this
manual that provide more detailed information.
Warning symbol
The red warning symbol lights up to
indicate a problem related to safety and/or
drivability. A message will also appear in the
main instruments panel's display.
Information symbol
The information symbol lights up and a
text message is displayed to provide the driver
with necessary information about one of the
vehicle's systems.
Symbols in the main instrument panel
Warning symbols
SymbolDescriptionP.
no.
Low oil pressure78
A
Parking brake78
SRS airbags78
Seat belt reminder79
Generator not charg-
ing79
A
Fault in the brake sys-
tem79
Warning symbol79
ACanadian models
Indicator symbols
SymbolDescriptionP.
no.
Fault in the Active
Bending Light
(ABL)*system77
A
Malfunction indicator
light77
A
Anti-lock brake sys-
tem (ABS)77
Rear fog light on77
Stability system
(DSTC), Hill Descent
Control, Trailer Stabil-
ity Assist*77
Tire pressure monitor-
ing sensor (TPMS)77
Low fuel level77

09 Specifications
Overview of information and warning symbols 09
346* Option/accessory, for more information, see Introduction.

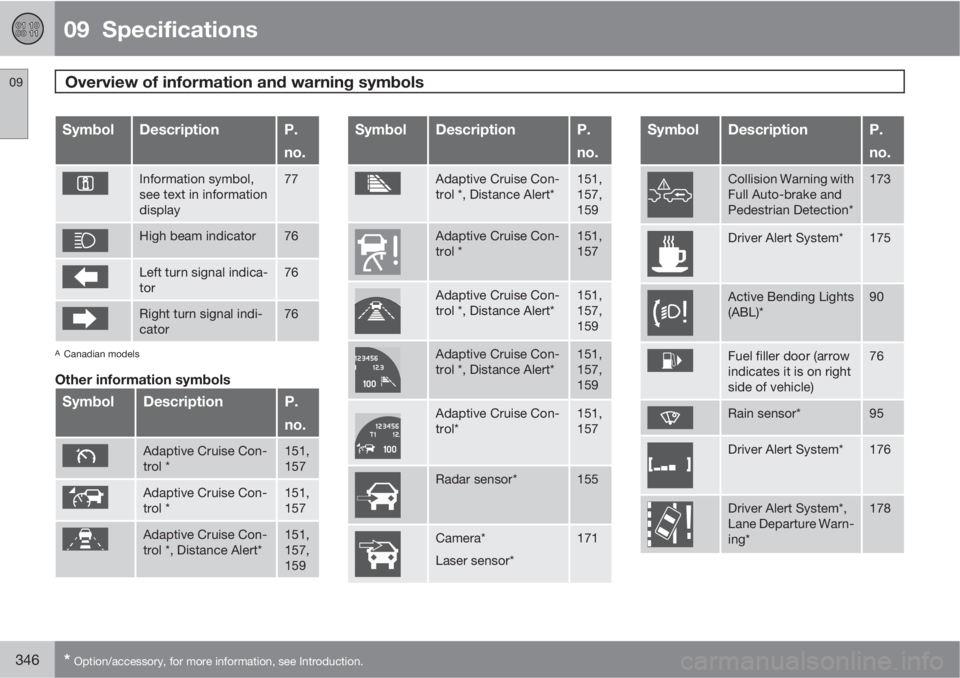

SymbolDescriptionP.
no.
Information symbol,
see text in information
display77
High beam indicator76
Left turn signal indica-
tor76
Right turn signal indi-
cator76
ACanadian models
Other information symbols
SymbolDescriptionP.
no.
Adaptive Cruise Con-
trol *151,
157
Adaptive Cruise Con-
trol *151,
157
Adaptive Cruise Con-
trol *, Distance Alert*151,
157,
159
SymbolDescriptionP.
no.
Adaptive Cruise Con-
trol *, Distance Alert*151,
157,
159
Adaptive Cruise Con-
trol *151,
157
Adaptive Cruise Con-
trol *, Distance Alert*151,
157,
159
Adaptive Cruise Con-
trol *, Distance Alert*151,
157,
159
Adaptive Cruise Con-
trol*151,
157
Radar sensor*155
Camera*
Laser sensor*171
SymbolDescriptionP.
no.
Collision Warning with
Full Auto-brake and
Pedestrian Detection*173
Driver Alert System*175
Active Bending Lights
(ABL)*90
Fuel filler door (arrow
indicates it is on right
side of vehicle)76
Rain sensor*95
Driver Alert System*176
Driver Alert System*,
Lane Departure Warn-
ing*178

09 Specifications

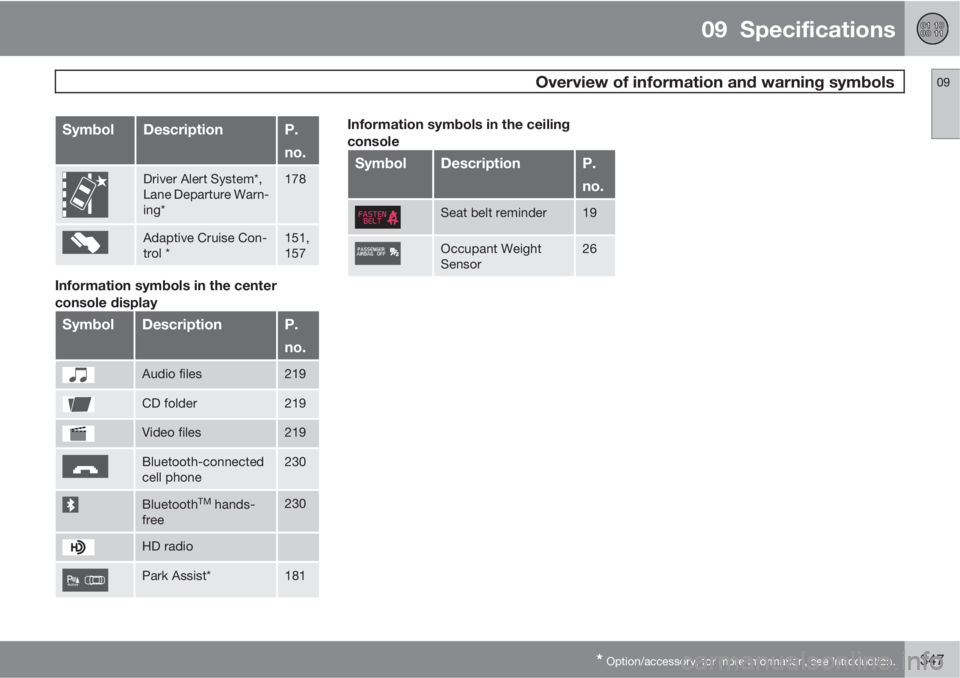

Overview of information and warning symbols09
* Option/accessory, for more information, see Introduction.347
SymbolDescriptionP.
no.
Driver Alert System*,
Lane Departure Warn-
ing*178
Adaptive Cruise Con-
trol *151,
157
Information symbols in the center
console display
SymbolDescriptionP.
no.
Audio files219
CD folder219
Video files219
Bluetooth-connected
cell phone230
BluetoothTM hands-
free230
HD radio
Park Assist*181
Information symbols in the ceiling
console
SymbolDescriptionP.
no.
Seat belt reminder19
Occupant Weight
Sensor26

09 Specifications
Volvo programs 09
348

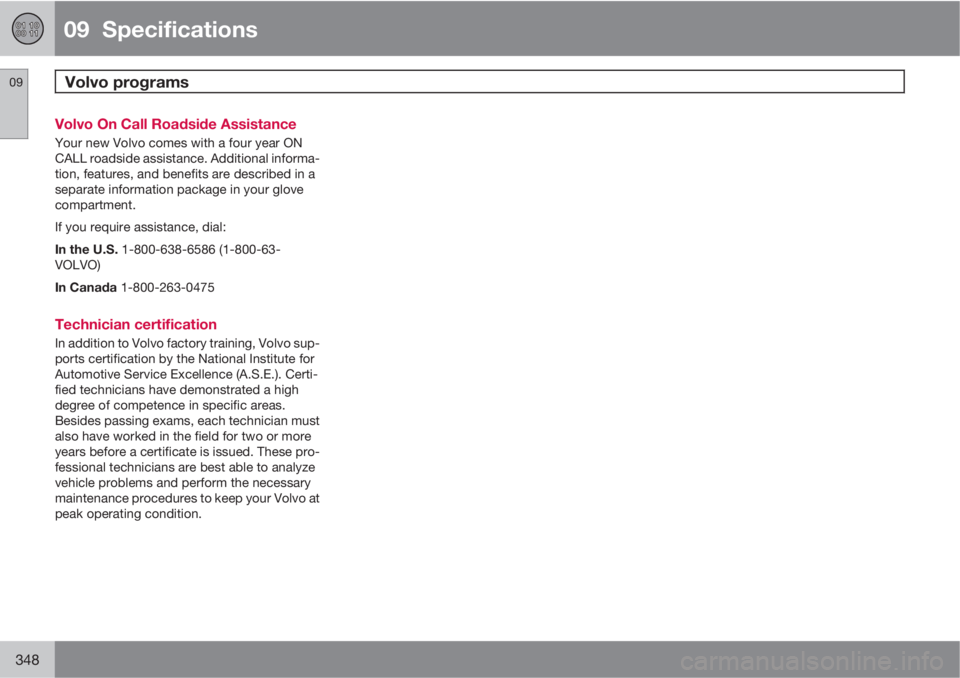

Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON
CALL roadside assistance. Additional informa-
tion, features, and benefits are described in a
separate information package in your glove
compartment.
If you require assistance, dial:
In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)
In Canada 1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo sup-
ports certification by the National Institute for
Automotive Service Excellence (A.S.E.). Certi-
fied technicians have demonstrated a high
degree of competence in specific areas.
Besides passing exams, each technician must
also have worked in the field for two or more
years before a certificate is issued. These pro-
fessional technicians are best able to analyze
vehicle problems and perform the necessary
maintenance procedures to keep your Volvo at
peak operating condition.

09 Specifications
09
349

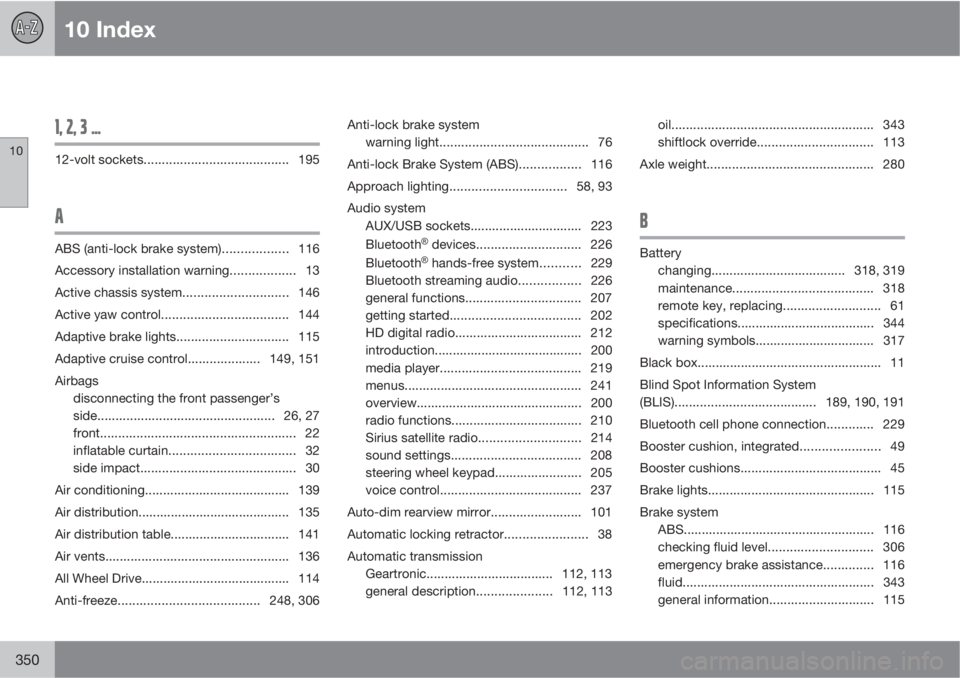

10 Index
10
350
1, 2, 3 ...
12-volt sockets........................................ 195
A
ABS (anti-lock brake system).................. 116
Accessory installation warning.................. 13
Active chassis system.............................146
Active yaw control................................... 144
Adaptive brake lights............................... 115
Adaptive cruise control.................... 149, 151
Airbags
disconnecting the front passenger’s
side.................................................26, 27
front...................................................... 22
inflatable curtain................................... 32
side impact........................................... 30
Air conditioning........................................ 139
Air distribution.......................................... 135
Air distribution table................................. 141
Air vents................................................... 136
All Wheel Drive......................................... 114
Anti-freeze.......................................248, 306Anti-lock brake system
warning light......................................... 76
Anti-lock Brake System (ABS)................. 116
Approach lighting................................58, 93
Audio system
AUX/USB sockets............................... 223
BluetoothŸ devices............................. 226
BluetoothŸ hands-free system........... 229
Bluetooth streaming audio................. 226
general functions................................ 207
getting started.................................... 202
HD digital radio................................... 212
introduction......................................... 200
media player....................................... 219
menus................................................. 241
overview.............................................. 200
radio functions.................................... 210
Sirius satellite radio............................214
sound settings.................................... 208
steering wheel keypad........................ 205
voice control....................................... 237
Auto-dim rearview mirror......................... 101
Automatic locking retractor....................... 38
Automatic transmission
Geartronic................................... 112, 113
general description.....................112, 113oil........................................................ 343
shiftlock override................................ 113
Axle weight.............................................. 280
B
Battery
changing..................................... 318, 319
maintenance....................................... 318
remote key, replacing........................... 61
specifications...................................... 344
warning symbols................................. 317
Black box................................................... 11
Blind Spot Information System
(BLIS)....................................... 189, 190, 191
Bluetooth cell phone connection............. 229
Booster cushion, integrated...................... 49
Booster cushions....................................... 45
Brake lights.............................................. 115
Brake system
ABS..................................................... 116
checking fluid level............................. 306
emergency brake assistance.............. 116
fluid..................................................... 343
general information............................. 115
