VOLVO XC60 2012 Owner´s Manual

04 Comfort and driving pleasure
Passenger compartment convenience
04
201
Fold down the cover to access the electrical
socket.
NOTE
The 12-volt socket in the cargo area pro-
vides electrical current even when the igni-
tion is switched off. Using the socket while
the engine is not running will drain the bat-
tery.

202* Option/accessory, for more information, see Introduction.
Introduction........................................................................................... 204
Getting started ..................................................................................... 206
General infotainment functions ............................................................ 211
Radio..................................................................................................... 214
Media player......................................................................................... 223
AUX/USB sockets................................................................................. 227
Bluetooth
Ÿ media ................................................................................. 230
Bluetooth
® hands-free connection ...................................................... 233
Cell phone voice control....................................................................... 241
Rear Seat Entertainment (RSE)* ........................................................... 245
Remote control*.................................................................................... 254
Infotainment system menus ................................................................. 256

INFOTAINMENT

05 Infotainment
Introduction
05
204* Option/accessory, for more information, see Introduction.

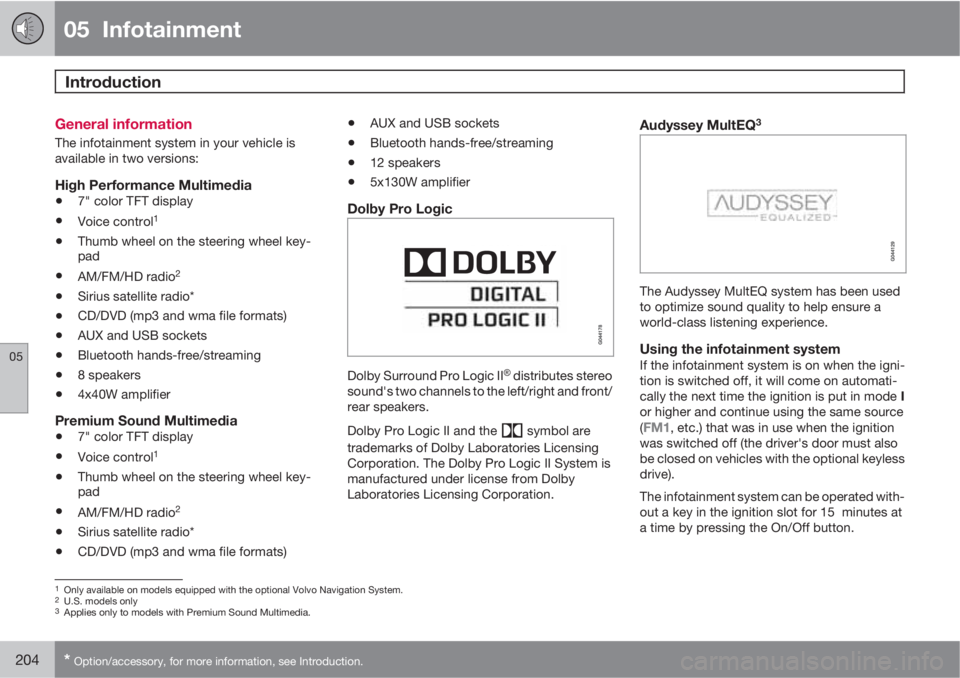

General information
The infotainment system in your vehicle is
available in two versions:
High Performance Multimedia
•7" color TFT display
•Voice control1
•Thumb wheel on the steering wheel key-
pad
•AM/FM/HD radio2
•Sirius satellite radio*
•CD/DVD (mp3 and wma file formats)
•AUX and USB sockets
•Bluetooth hands-free/streaming
•8 speakers
•4x40W amplifier
Premium Sound Multimedia
•7" color TFT display
•Voice control1
•Thumb wheel on the steering wheel key-
pad
•AM/FM/HD radio2
•Sirius satellite radio*
•CD/DVD (mp3 and wma file formats)
•AUX and USB sockets
•Bluetooth hands-free/streaming
•12 speakers
•5x130W amplifier
Dolby Pro Logic
Dolby Surround Pro Logic IIŸ distributes stereo
sound's two channels to the left/right and front/
rear speakers.
Dolby Pro Logic II and the
symbol are
trademarks of Dolby Laboratories Licensing
Corporation. The Dolby Pro Logic II System is
manufactured under license from Dolby
Laboratories Licensing Corporation.
Audyssey MultEQ3
The Audyssey MultEQ system has been used
to optimize sound quality to help ensure a
world-class listening experience.
Using the infotainment systemIf the infotainment system is on when the igni-
tion is switched off, it will come on automati-
cally the next time the ignition is put in mode I
or higher and continue using the same source
(
FM1, etc.) that was in use when the ignition
was switched off (the driver's door must also
be closed on vehicles with the optional keyless
drive).
The infotainment system can be operated with-
out a key in the ignition slot for 15 minutes at
a time by pressing the On/Off button.
1Only available on models equipped with the optional Volvo Navigation System.2U.S. models only3Applies only to models with Premium Sound Multimedia.

05 Infotainment
Introduction
05
205
While the engine is being started, the infotain-
ment system will be temporarily interrupted
and will resume when the engine has started.
NOTE
To help avoid excessive battery drain,
remove the remote key from the ignition slot
if the infotainment system is used while the
engine is switched off.

05 Infotainment
Getting started
05
206* Option/accessory, for more information, see Introduction.

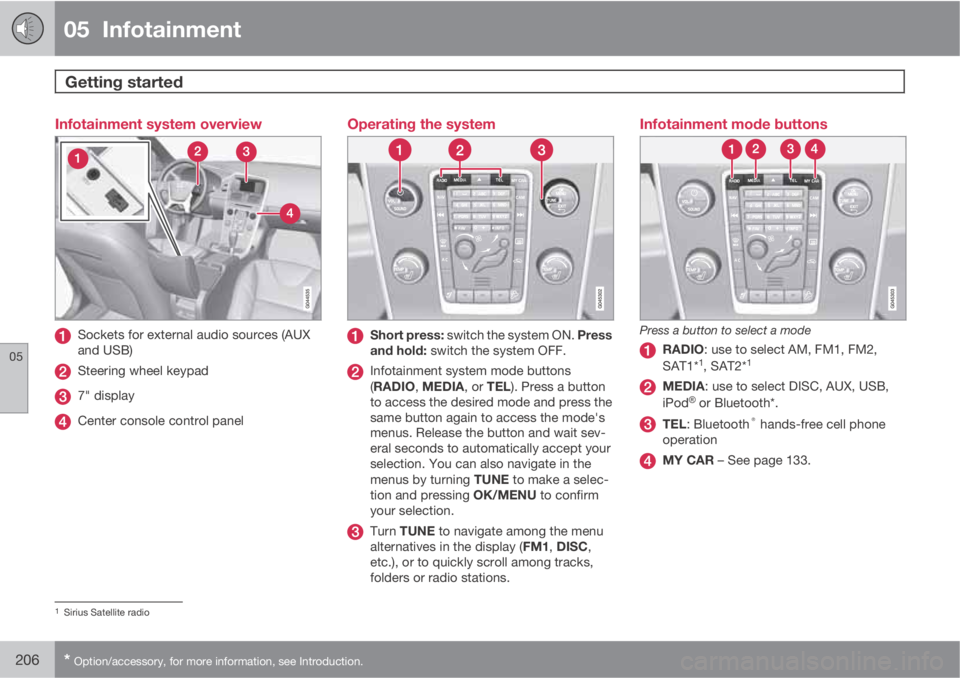

Infotainment system overview
Sockets for external audio sources (AUX
and USB)
Steering wheel keypad
7" display
Center console control panel
Operating the system
Short press: switch the system ON. Press
and hold: switch the system OFF.
Infotainment system mode buttons
(RADIO, MEDIA, or TEL). Press a button
to access the desired mode and press the
same button again to access the mode's
menus. Release the button and wait sev-
eral seconds to automatically accept your
selection. You can also navigate in the
menus by turning TUNE to make a selec-
tion and pressing OK/MENU to confirm
your selection.
Turn TUNE to navigate among the menu
alternatives in the display (FM1, DISC,
etc.), or to quickly scroll among tracks,
folders or radio stations.
Infotainment mode buttons
Press a button to select a mode
RADIO: use to select AM, FM1, FM2,
SAT1*1, SAT2*1
MEDIA: use to select DISC, AUX, USB,
iPodŸ or Bluetooth*.
TEL: Bluetooth® hands-free cell phone
operation
MY CAR – See page 133.
1Sirius Satellite radio

05 Infotainment
Getting started
05

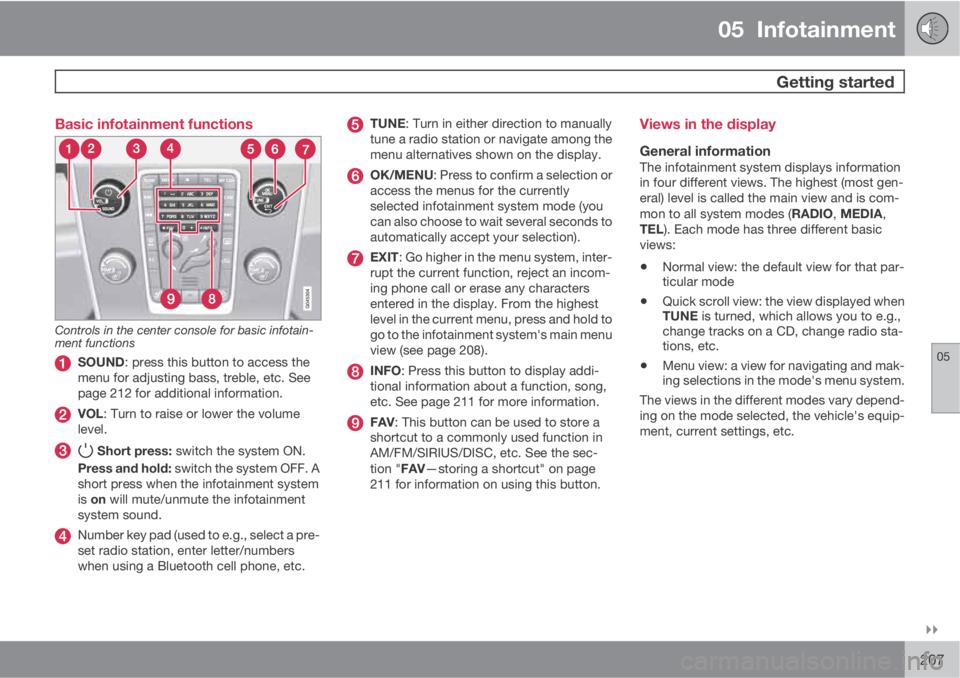

207 Basic infotainment functions
Controls in the center console for basic infotain-
ment functions
SOUND: press this button to access the
menu for adjusting bass, treble, etc. See
page 212 for additional information.
VOL: Turn to raise or lower the volume
level.
Short press: switch the system ON.
Press and hold: switch the system OFF. A
short press when the infotainment system
is on will mute/unmute the infotainment
system sound.
Number key pad (used to e.g., select a pre-
set radio station, enter letter/numbers
when using a Bluetooth cell phone, etc.
TUNE: Turn in either direction to manually
tune a radio station or navigate among the
menu alternatives shown on the display.
OK/MENU: Press to confirm a selection or
access the menus for the currently
selected infotainment system mode (you
can also choose to wait several seconds to
automatically accept your selection).
EXIT: Go higher in the menu system, inter-
rupt the current function, reject an incom-
ing phone call or erase any characters
entered in the display. From the highest
level in the current menu, press and hold to
go to the infotainment system's main menu
view (see page 208).
INFO: Press this button to display addi-
tional information about a function, song,
etc. See page 211 for more information.
FAV: This button can be used to store a
shortcut to a commonly used function in
AM/FM/SIRIUS/DISC, etc. See the sec-
tion "FAV—storing a shortcut" on page
211 for information on using this button.
Views in the display
General informationThe infotainment system displays information
in four different views. The highest (most gen-
eral) level is called the main view and is com-
mon to all system modes (RADIO, MEDIA,
TEL). Each mode has three different basic
views:
•Normal view: the default view for that par-
ticular mode
•Quick scroll view: the view displayed when
TUNE is turned, which allows you to e.g.,
change tracks on a CD, change radio sta-
tions, etc.
•Menu view: a view for navigating and mak-
ing selections in the mode's menu system.
The views in the different modes vary depend-
ing on the mode selected, the vehicle's equip-
ment, current settings, etc.

05 Infotainment
Getting started
05
208* Option/accessory, for more information, see Introduction.

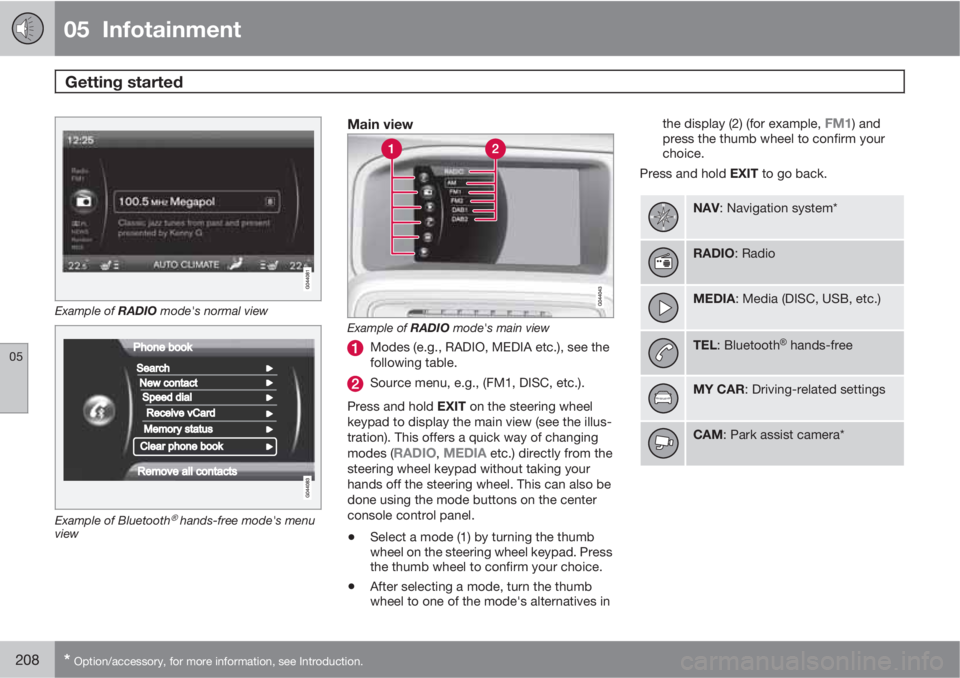

Example of RADIO mode's normal view
Example of BluetoothŸ hands-free mode's menu
view
Main view
Example of RADIO mode's main view
Modes (e.g., RADIO, MEDIA etc.), see the
following table.
Source menu, e.g., (FM1, DISC, etc.).
Press and hold EXIT on the steering wheel
keypad to display the main view (see the illus-
tration). This offers a quick way of changing
modes (
RADIO, MEDIA etc.) directly from the
steering wheel keypad without taking your
hands off the steering wheel. This can also be
done using the mode buttons on the center
console control panel.
•Select a mode (1) by turning the thumb
wheel on the steering wheel keypad. Press
the thumb wheel to confirm your choice.
•After selecting a mode, turn the thumb
wheel to one of the mode's alternatives inthe display (2) (for example,
FM1) and
press the thumb wheel to confirm your
choice.
Press and hold EXIT to go back.
NAV: Navigation system*
RADIO: Radio
MEDIA: Media (DISC, USB, etc.)
TEL: BluetoothŸ hands-free
MY CAR: Driving-related settings
CAM: Park assist camera*

05 Infotainment
Getting started
05

* Option/accessory, for more information, see Introduction.209 Steering wheel keypad

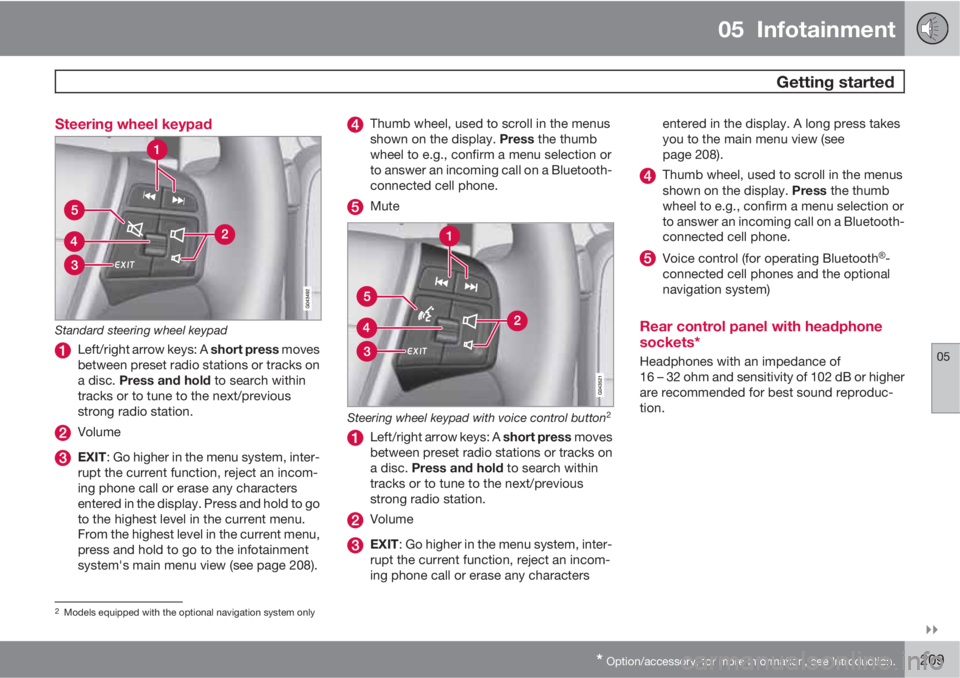

Standard steering wheel keypad
Left/right arrow keys: A short press moves
between preset radio stations or tracks on
a disc. Press and hold to search within
tracks or to tune to the next/previous
strong radio station.
Volume
EXIT: Go higher in the menu system, inter-
rupt the current function, reject an incom-
ing phone call or erase any characters
entered in the display. Press and hold to go
to the highest level in the current menu.
From the highest level in the current menu,
press and hold to go to the infotainment
system's main menu view (see page 208).
Thumb wheel, used to scroll in the menus
shown on the display. Press the thumb
wheel to e.g., confirm a menu selection or
to answer an incoming call on a Bluetooth-
connected cell phone.
Mute
Steering wheel keypad with voice control button2
Left/right arrow keys: A short press moves
between preset radio stations or tracks on
a disc. Press and hold to search within
tracks or to tune to the next/previous
strong radio station.
Volume
EXIT: Go higher in the menu system, inter-
rupt the current function, reject an incom-
ing phone call or erase any charactersentered in the display. A long press takes
you to the main menu view (see
page 208).
Thumb wheel, used to scroll in the menus
shown on the display. Press the thumb
wheel to e.g., confirm a menu selection or
to answer an incoming call on a Bluetooth-
connected cell phone.
Voice control (for operating BluetoothŸ-
connected cell phones and the optional
navigation system)
Rear control panel with headphone
sockets*
Headphones with an impedance of
16 – 32 ohm and sensitivity of 102 dB or higher
are recommended for best sound reproduc-
tion.
2Models equipped with the optional navigation system only

05 Infotainment
Getting started
05
210* Option/accessory, for more information, see Introduction.

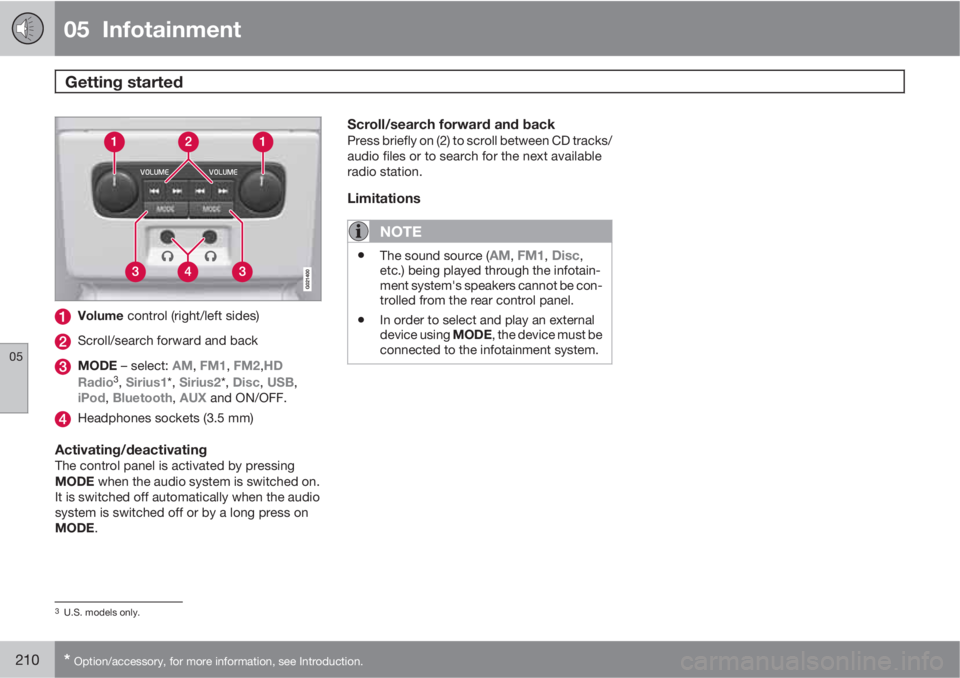

Volume control (right/left sides)
Scroll/search forward and back
MODE – select: AM, FM1, FM2,HD
Radio3, Sirius1*, Sirius2*, Disc, USB,
iPod, Bluetooth, AUX and ON/OFF.
Headphones sockets (3.5 mm)
Activating/deactivatingThe control panel is activated by pressing
MODE when the audio system is switched on.
It is switched off automatically when the audio
system is switched off or by a long press on
MODE.
Scroll/search forward and backPress briefly on (2) to scroll between CD tracks/
audio files or to search for the next available
radio station.
Limitations
NOTE
•The sound source (AM, FM1, Disc,
etc.) being played through the infotain-
ment system's speakers cannot be con-
trolled from the rear control panel.
•In order to select and play an external
device using MODE, the device must be
connected to the infotainment system.
3U.S. models only.
