VOLVO XC60 2012 Owner´s Manual

05 Infotainment
Cell phone voice control
05

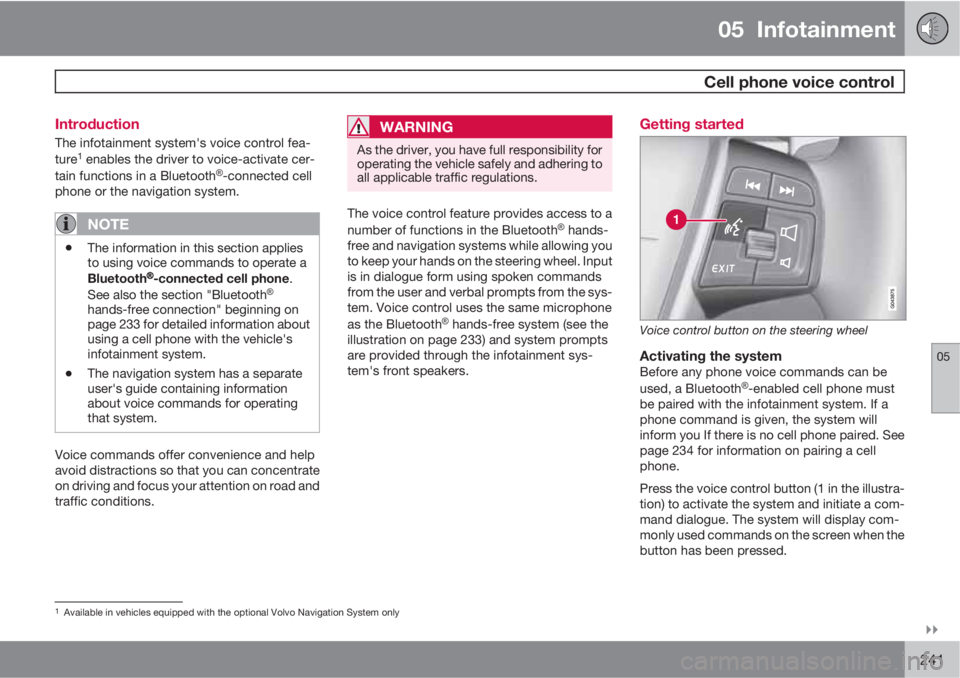

241 Introduction
The infotainment system's voice control fea-
ture1 enables the driver to voice-activate cer-
tain functions in a BluetoothŸ-connected cell
phone or the navigation system.
NOTE
•The information in this section applies
to using voice commands to operate a
Bluetooth
Ÿ-connected cell phone.
See also the section "BluetoothŸ
hands-free connection" beginning on
page 233 for detailed information about
using a cell phone with the vehicle's
infotainment system.
•The navigation system has a separate
user's guide containing information
about voice commands for operating
that system.
Voice commands offer convenience and help
avoid distractions so that you can concentrate
on driving and focus your attention on road and
traffic conditions.
WARNING
As the driver, you have full responsibility for
operating the vehicle safely and adhering to
all applicable traffic regulations.
The voice control feature provides access to a
number of functions in the BluetoothŸ hands-
free and navigation systems while allowing you
to keep your hands on the steering wheel. Input
is in dialogue form using spoken commands
from the user and verbal prompts from the sys-
tem. Voice control uses the same microphone
as the Bluetooth
Ÿ hands-free system (see the
illustration on page 233) and system prompts
are provided through the infotainment sys-
tem's front speakers.
Getting started
Voice control button on the steering wheel
Activating the systemBefore any phone voice commands can be
used, a BluetoothŸ-enabled cell phone must
be paired with the infotainment system. If a
phone command is given, the system will
inform you If there is no cell phone paired. See
page 234 for information on pairing a cell
phone.
Press the voice control button (1 in the illustra-
tion) to activate the system and initiate a com-
mand dialogue. The system will display com-
monly used commands on the screen when the
button has been pressed.
1Available in vehicles equipped with the optional Volvo Navigation System only

05 Infotainment
Cell phone voice control
05
242

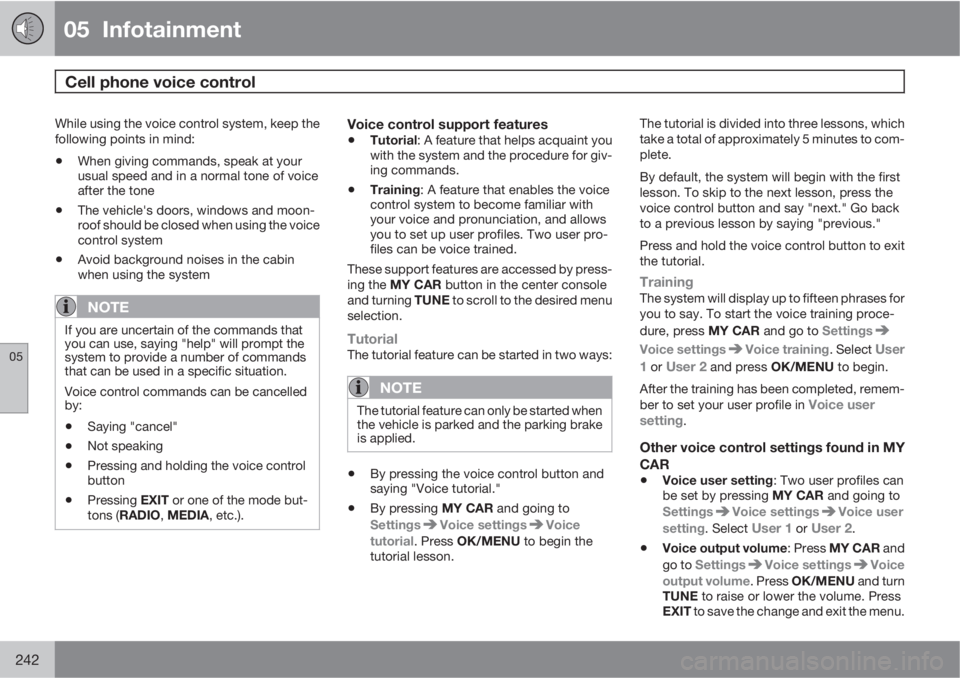

While using the voice control system, keep the
following points in mind:
•When giving commands, speak at your
usual speed and in a normal tone of voice
after the tone
•The vehicle's doors, windows and moon-
roof should be closed when using the voice
control system
•Avoid background noises in the cabin
when using the system
NOTE
If you are uncertain of the commands that
you can use, saying "help" will prompt the
system to provide a number of commands
that can be used in a specific situation.
Voice control commands can be cancelled
by:
•Saying "cancel"
•Not speaking
•Pressing and holding the voice control
button
•Pressing EXIT or one of the mode but-
tons (RADIO, MEDIA, etc.).
Voice control support features
•Tutorial: A feature that helps acquaint you
with the system and the procedure for giv-
ing commands.
•Training: A feature that enables the voice
control system to become familiar with
your voice and pronunciation, and allows
you to set up user profiles. Two user pro-
files can be voice trained.
These support features are accessed by press-
ing the MY CAR button in the center console
and turning TUNE to scroll to the desired menu
selection.
TutorialThe tutorial feature can be started in two ways:
NOTE
The tutorial feature can only be started when
the vehicle is parked and the parking brake
is applied.
•By pressing the voice control button and
saying "Voice tutorial."
•By pressing MY CAR and going to
Settings
Voice settingsVoice
tutorial. Press OK/MENU to begin the
tutorial lesson.The tutorial is divided into three lessons, which
take a total of approximately 5 minutes to com-
plete.
By default, the system will begin with the first
lesson. To skip to the next lesson, press the
voice control button and say "next." Go back
to a previous lesson by saying "previous."
Press and hold the voice control button to exit
the tutorial.
TrainingThe system will display up to fifteen phrases for
you to say. To start the voice training proce-
dure, press MY CAR and go to Settings
Voice settingsVoice training. Select User
1
or User 2 and press OK/MENU to begin.
After the training has been completed, remem-
ber to set your user profile in
Voice user
setting.
Other voice control settings found in MY
CAR
•Voice user setting: Two user profiles can
be set by pressing MY CAR and going to
Settings
Voice settingsVoice user
setting. Select
User 1 or User 2.
•Voice output volume: Press MY CAR and
go to Settings
Voice settingsVoice
output volume. Press OK/MENU and turn
TUNE to raise or lower the volume. Press
EXIT to save the change and exit the menu.

05 Infotainment
Cell phone voice control
05

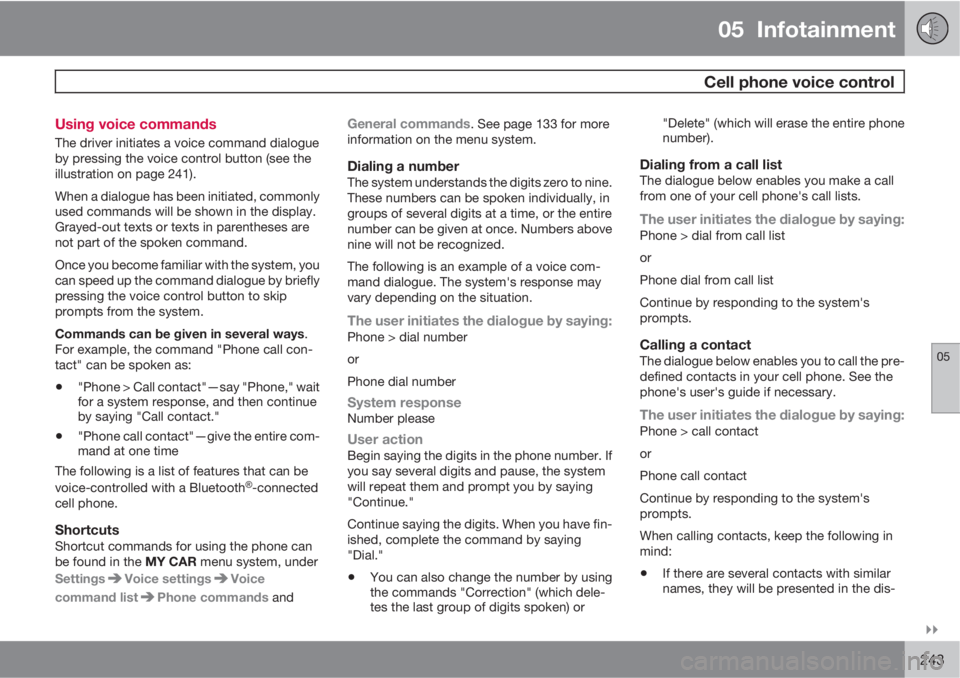

243 Using voice commands
The driver initiates a voice command dialogue
by pressing the voice control button (see the
illustration on page 241).
When a dialogue has been initiated, commonly
used commands will be shown in the display.
Grayed-out texts or texts in parentheses are
not part of the spoken command.
Once you become familiar with the system, you
can speed up the command dialogue by briefly
pressing the voice control button to skip
prompts from the system.
Commands can be given in several ways.
For example, the command "Phone call con-
tact" can be spoken as:
•"Phone > Call contact"—say "Phone," wait
for a system response, and then continue
by saying "Call contact."
•"Phone call contact"—give the entire com-
mand at one time
The following is a list of features that can be
voice-controlled with a Bluetooth
Ÿ-connected
cell phone.
ShortcutsShortcut commands for using the phone can
be found in the
MY CAR menu system, under
Settings
Voice settingsVoice
command list
Phone commands and
General commands. See page 133 for more
information on the menu system.
Dialing a numberThe system understands the digits zero to nine.
These numbers can be spoken individually, in
groups of several digits at a time, or the entire
number can be given at once. Numbers above
nine will not be recognized.
The following is an example of a voice com-
mand dialogue. The system's response may
vary depending on the situation.
The user initiates the dialogue by saying:Phone > dial number
or
Phone dial number
System responseNumber please
User actionBegin saying the digits in the phone number. If
you say several digits and pause, the system
will repeat them and prompt you by saying
"Continue."
Continue saying the digits. When you have fin-
ished, complete the command by saying
"Dial."
•You can also change the number by using
the commands "Correction" (which dele-
tes the last group of digits spoken) or"Delete" (which will erase the entire phone
number).
Dialing from a call listThe dialogue below enables you make a call
from one of your cell phone's call lists.
The user initiates the dialogue by saying:Phone > dial from call list
or
Phone dial from call list
Continue by responding to the system's
prompts.
Calling a contactThe dialogue below enables you to call the pre-
defined contacts in your cell phone. See the
phone's user's guide if necessary.
The user initiates the dialogue by saying:Phone > call contact
or
Phone call contact
Continue by responding to the system's
prompts.
When calling contacts, keep the following in
mind:
•If there are several contacts with similar
names, they will be presented in the dis-

05 Infotainment
Cell phone voice control
05
244

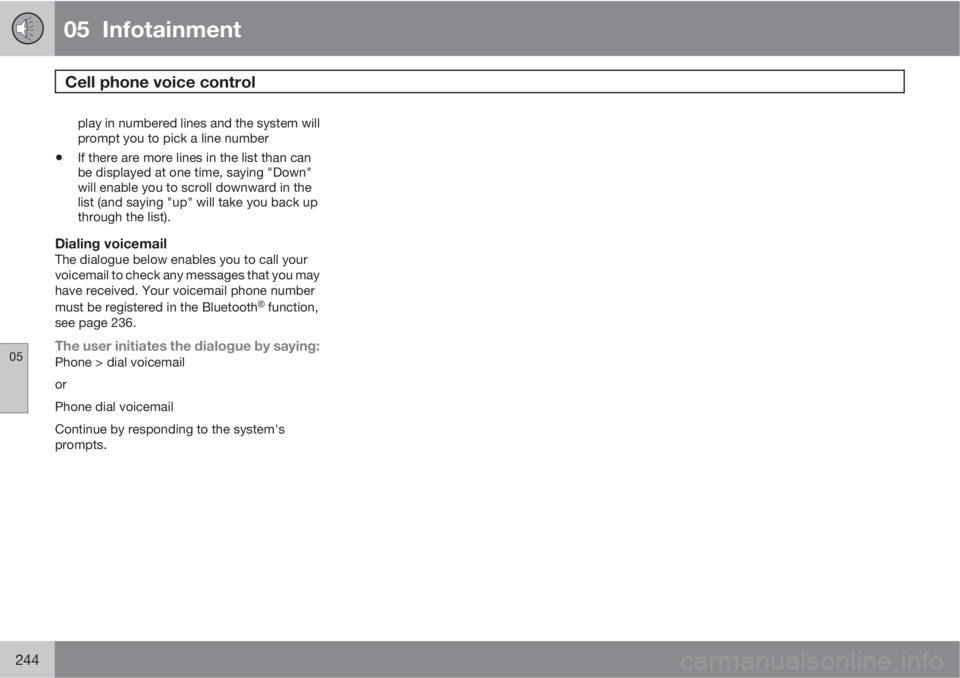

play in numbered lines and the system will
prompt you to pick a line number
•If there are more lines in the list than can
be displayed at one time, saying "Down"
will enable you to scroll downward in the
list (and saying "up" will take you back up
through the list).
Dialing voicemailThe dialogue below enables you to call your
voicemail to check any messages that you may
have received. Your voicemail phone number
must be registered in the Bluetooth
Ÿ function,
see page 236.
The user initiates the dialogue by saying:Phone > dial voicemail
or
Phone dial voicemail
Continue by responding to the system's
prompts.

05 Infotainment
Rear Seat Entertainment (RSE)*
05

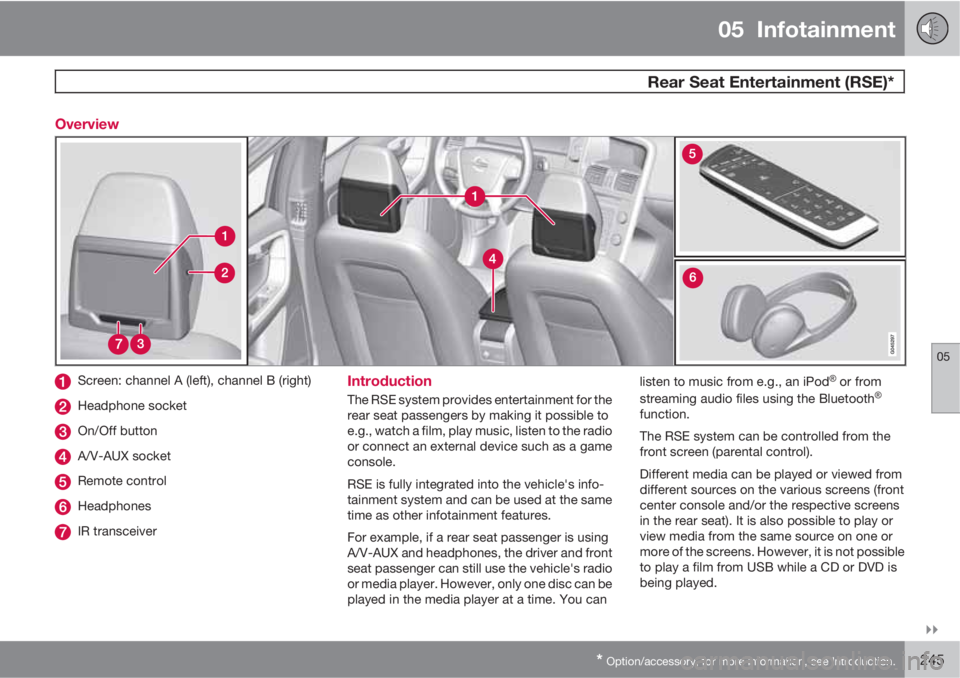

* Option/accessory, for more information, see Introduction.245 Overview
Screen: channel A (left), channel B (right)
Headphone socket
On/Off button
A/V-AUX socket
Remote control
Headphones
IR transceiver
Introduction
The RSE system provides entertainment for the
rear seat passengers by making it possible to
e.g., watch a film, play music, listen to the radio
or connect an external device such as a game
console.
RSE is fully integrated into the vehicle's info-
tainment system and can be used at the same
time as other infotainment features.
For example, if a rear seat passenger is using
A/V-AUX and headphones, the driver and front
seat passenger can still use the vehicle's radio
or media player. However, only one disc can be
played in the media player at a time. You canlisten to music from e.g., an iPod
Ÿ or from
streaming audio files using the BluetoothŸ
function.
The RSE system can be controlled from the
front screen (parental control).
Different media can be played or viewed from
different sources on the various screens (front
center console and/or the respective screens
in the rear seat). It is also possible to play or
view media from the same source on one or
more of the screens. However, it is not possible
to play a film from USB while a CD or DVD is
being played.

05 Infotainment
Rear Seat Entertainment (RSE)*
05
246* Option/accessory, for more information, see Introduction.

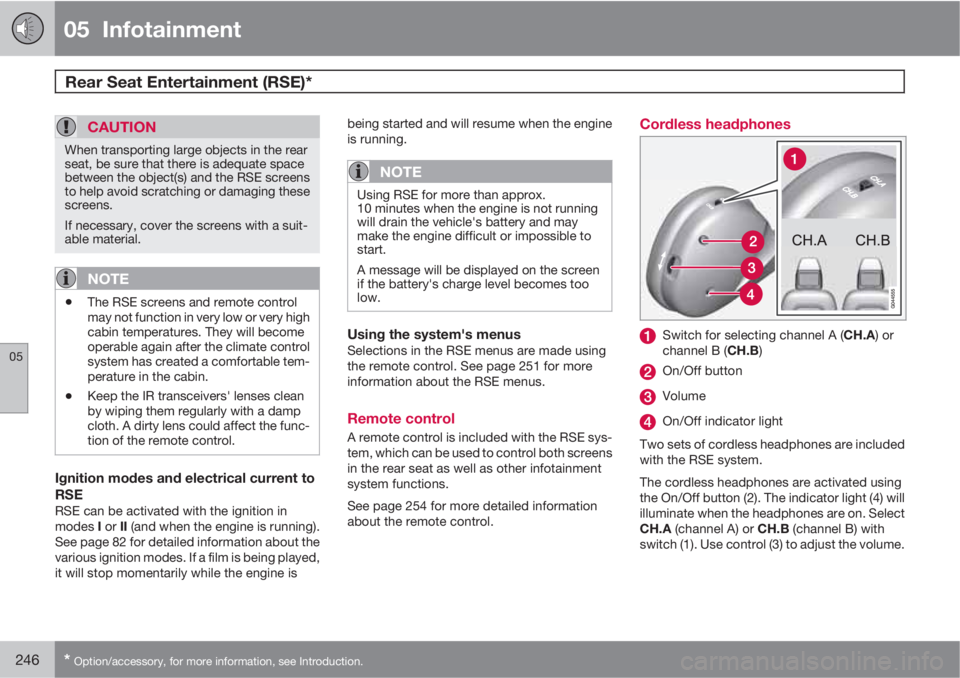

CAUTION
When transporting large objects in the rear
seat, be sure that there is adequate space
between the object(s) and the RSE screens
to help avoid scratching or damaging these
screens.
If necessary, cover the screens with a suit-
able material.
NOTE
•The RSE screens and remote control
may not function in very low or very high
cabin temperatures. They will become
operable again after the climate control
system has created a comfortable tem-
perature in the cabin.
•Keep the IR transceivers' lenses clean
by wiping them regularly with a damp
cloth. A dirty lens could affect the func-
tion of the remote control.
Ignition modes and electrical current to
RSE
RSE can be activated with the ignition in
modes I or II (and when the engine is running).
See page 82 for detailed information about the
various ignition modes. If a film is being played,
it will stop momentarily while the engine isbeing started and will resume when the engine
is running.
NOTE
Using RSE for more than approx.
10 minutes when the engine is not running
will drain the vehicle's battery and may
make the engine difficult or impossible to
start.
A message will be displayed on the screen
if the battery's charge level becomes too
low.
Using the system's menusSelections in the RSE menus are made using
the remote control. See page 251 for more
information about the RSE menus.
Remote control
A remote control is included with the RSE sys-
tem, which can be used to control both screens
in the rear seat as well as other infotainment
system functions.
See page 254 for more detailed information
about the remote control.
Cordless headphones
Switch for selecting channel A (CH.A) or
channel B (CH.B)
On/Off button
Volume
On/Off indicator light
Two sets of cordless headphones are included
with the RSE system.
The cordless headphones are activated using
the On/Off button (2). The indicator light (4) will
illuminate when the headphones are on. Select
CH.A (channel A) or CH.B (channel B) with
switch (1). Use control (3) to adjust the volume.

05 Infotainment
Rear Seat Entertainment (RSE)*
05

* Option/accessory, for more information, see Introduction.247

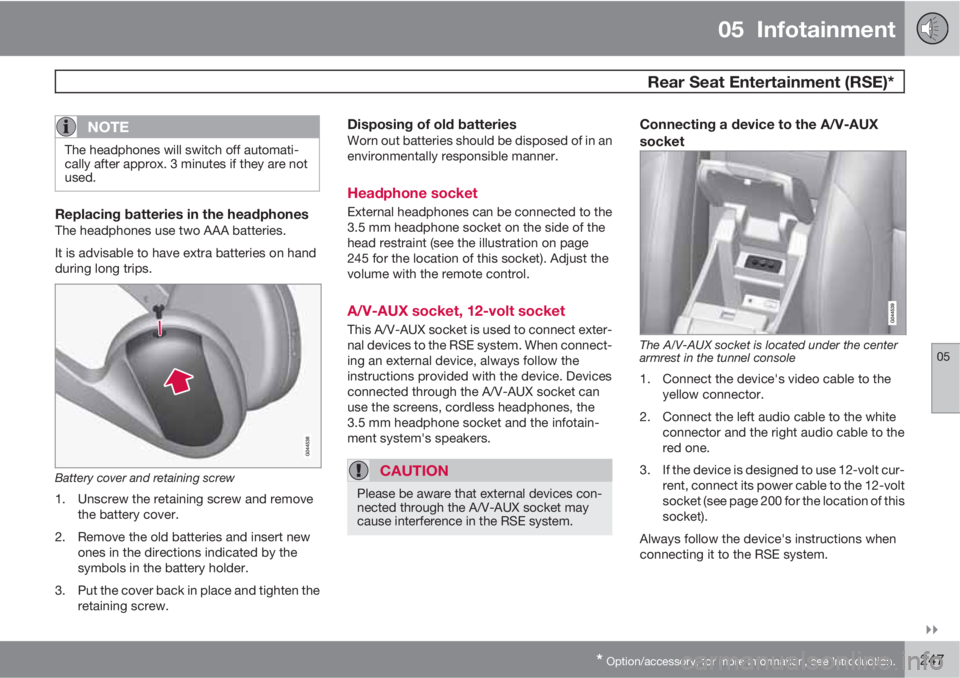

NOTE
The headphones will switch off automati-
cally after approx. 3 minutes if they are not
used.
Replacing batteries in the headphonesThe headphones use two AAA batteries.
It is advisable to have extra batteries on hand
during long trips.
Battery cover and retaining screw
1. Unscrew the retaining screw and remove
the battery cover.
2. Remove the old batteries and insert new
ones in the directions indicated by the
symbols in the battery holder.
3. Put the cover back in place and tighten the
retaining screw.
Disposing of old batteriesWorn out batteries should be disposed of in an
environmentally responsible manner.
Headphone socket
External headphones can be connected to the
3.5 mm headphone socket on the side of the
head restraint (see the illustration on page
245 for the location of this socket). Adjust the
volume with the remote control.
A/V-AUX socket, 12-volt socket
This A/V-AUX socket is used to connect exter-
nal devices to the RSE system. When connect-
ing an external device, always follow the
instructions provided with the device. Devices
connected through the A/V-AUX socket can
use the screens, cordless headphones, the
3.5 mm headphone socket and the infotain-
ment system's speakers.
CAUTION
Please be aware that external devices con-
nected through the A/V-AUX socket may
cause interference in the RSE system.
Connecting a device to the A/V-AUX
socket
The A/V-AUX socket is located under the center
armrest in the tunnel console
1. Connect the device's video cable to the
yellow connector.
2. Connect the left audio cable to the white
connector and the right audio cable to the
red one.
3. If the device is designed to use 12-volt cur-
rent, connect its power cable to the 12-volt
socket (see page 200 for the location of this
socket).
Always follow the device's instructions when
connecting it to the RSE system.

05 Infotainment
Rear Seat Entertainment (RSE)*
05
248* Option/accessory, for more information, see Introduction.

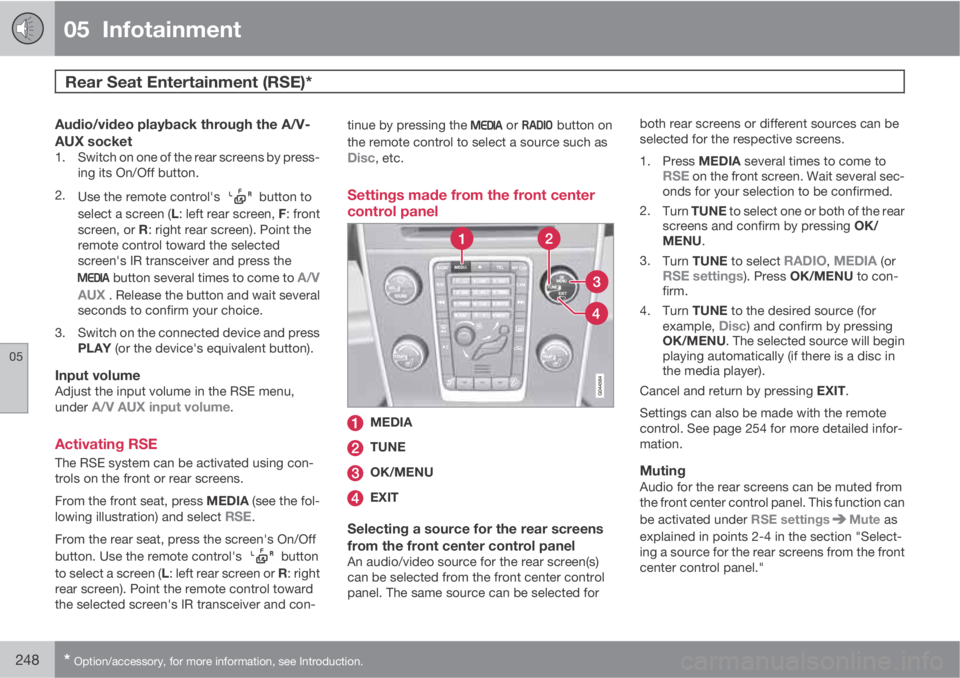

Audio/video playback through the A/V-
AUX socket
1. Switch on one of the rear screens by press-
ing its On/Off button.
2.
Use the remote control's
button to
select a screen (L: left rear screen, F: front
screen, or R: right rear screen). Point the
remote control toward the selected
screen's IR transceiver and press the
button several times to come to A/V
AUX
. Release the button and wait several
seconds to confirm your choice.
3. Switch on the connected device and press
PLAY (or the device's equivalent button).
Input volumeAdjust the input volume in the RSE menu,
under A/V AUX input volume.
Activating RSE
The RSE system can be activated using con-
trols on the front or rear screens.
From the front seat, press MEDIA (see the fol-
lowing illustration) and select
RSE.
From the rear seat, press the screen's On/Off
button. Use the remote control's
button
to select a screen (L: left rear screen or R: right
rear screen). Point the remote control toward
the selected screen's IR transceiver and con-tinue by pressing the
or button on
the remote control to select a source such as
Disc, etc.
Settings made from the front center
control panel
MEDIA
TUNE
OK/MENU
EXIT
Selecting a source for the rear screens
from the front center control panel
An audio/video source for the rear screen(s)
can be selected from the front center control
panel. The same source can be selected forboth rear screens or different sources can be
selected for the respective screens.
1.
Press MEDIA several times to come to
RSE on the front screen. Wait several sec-
onds for your selection to be confirmed.
2.
Turn TUNE to select one or both of the rear
screens and confirm by pressing OK/
MENU.
3.
Turn TUNE to select
RADIO, MEDIA (orRSE settings). Press OK/MENU to con-
firm.
4.
Turn TUNE to the desired source (for
example,
Disc) and confirm by pressing
OK/MENU. The selected source will begin
playing automatically (if there is a disc in
the media player).
Cancel and return by pressing EXIT.
Settings can also be made with the remote
control. See page 254 for more detailed infor-
mation.
MutingAudio for the rear screens can be muted from
the front center control panel. This function can
be activated under RSE settings
Mute as
explained in points 2-4 in the section "Select-
ing a source for the rear screens from the front
center control panel."

05 Infotainment
Rear Seat Entertainment (RSE)*
05

* Option/accessory, for more information, see Introduction.249

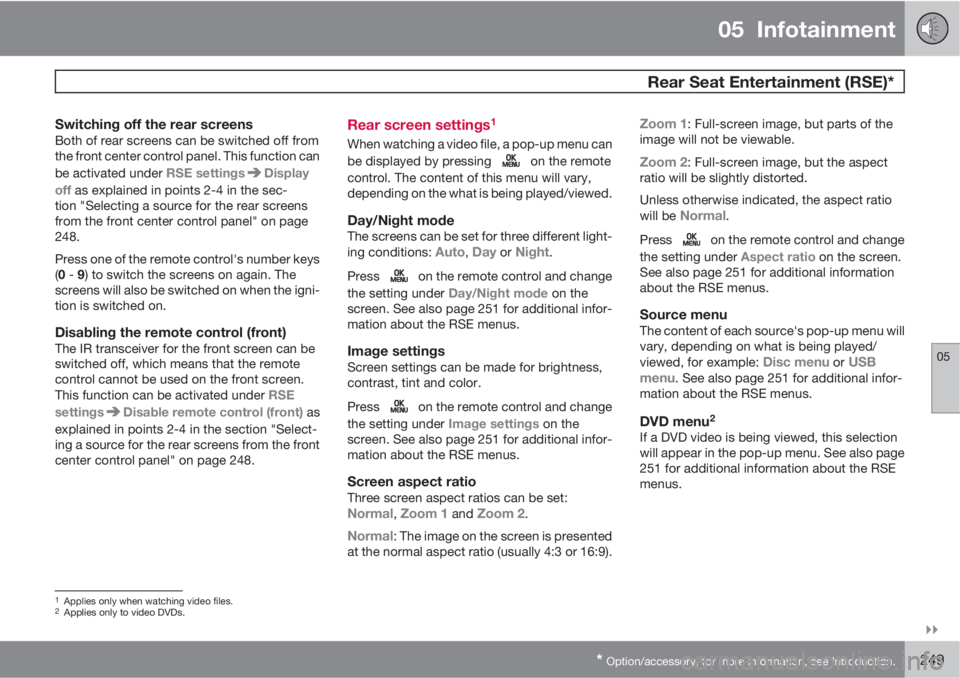

Switching off the rear screensBoth of rear screens can be switched off from
the front center control panel. This function can
be activated under RSE settings
Display
off as explained in points 2-4 in the sec-
tion "Selecting a source for the rear screens
from the front center control panel" on page
248.
Press one of the remote control's number keys
(0 - 9) to switch the screens on again. The
screens will also be switched on when the igni-
tion is switched on.
Disabling the remote control (front)The IR transceiver for the front screen can be
switched off, which means that the remote
control cannot be used on the front screen.
This function can be activated under RSE
settings
Disable remote control (front) as
explained in points 2-4 in the section "Select-
ing a source for the rear screens from the front
center control panel" on page 248.
Rear screen settings1
When watching a video file, a pop-up menu can
be displayed by pressing
on the remote
control. The content of this menu will vary,
depending on the what is being played/viewed.
Day/Night modeThe screens can be set for three different light-
ing conditions: Auto, Day or Night.
Press
on the remote control and change
the setting under Day/Night mode on the
screen. See also page 251 for additional infor-
mation about the RSE menus.
Image settingsScreen settings can be made for brightness,
contrast, tint and color.
Press
on the remote control and change
the setting under Image settings on the
screen. See also page 251 for additional infor-
mation about the RSE menus.
Screen aspect ratioThree screen aspect ratios can be set:Normal, Zoom 1 and Zoom 2.
Normal: The image on the screen is presented
at the normal aspect ratio (usually 4:3 or 16:9).
Zoom 1: Full-screen image, but parts of the
image will not be viewable.
Zoom 2: Full-screen image, but the aspect
ratio will be slightly distorted.
Unless otherwise indicated, the aspect ratio
will be
Normal.
Press
on the remote control and change
the setting under Aspect ratio on the screen.
See also page 251 for additional information
about the RSE menus.
Source menuThe content of each source's pop-up menu will
vary, depending on what is being played/
viewed, for example:
Disc menu or USB
menu. See also page 251 for additional infor-
mation about the RSE menus.
DVD menu2
If a DVD video is being viewed, this selection
will appear in the pop-up menu. See also page
251 for additional information about the RSE
menus.
1Applies only when watching video files.2Applies only to video DVDs.

05 Infotainment
Rear Seat Entertainment (RSE)*
05
250* Option/accessory, for more information, see Introduction.
Rear screen menu settings
See also page 251 for additional information
about the RSE menus.
Random3
See page 224 for additional information.
Repeat folder4
See page 225 for additional information.
DivXŸŸ Video On DemandThe media player can be registered to play
DivX VOD files from home-burned discs or
USB. The registration code can be found by
pressing the MY CAR button, and going to
Settings
InformationDivX® VOD
code. Go to www.divx.com/vod for additional
information.
USB hubA USB hub can be connected to the USB
socket (see page 229 for additional informa-
tion).
Music, video and radio
Listening to musicMusic from disc tracks/audio files can be
played through the media player's USB/AUX
sockets or from streaming audio files coming
from a Bluetooth
Ÿ-connected cell phone.
For more information about the media player,
see page 225, see page 227 for information
about the AUX/USB sockets and see page
230 for information about Bluetooth
Ÿ media.
1. Switch on the cordless headphones, select
CH.A for the left screen or CH.B for the
right screen.
2.
Use the remote control's
button to
select a screen (L: left rear screen, F: front
screen, or R: right rear screen). Point the
remote control toward a screen's IR trans-
ceiver and press
one or more times
to come to the desired source (
Disc,USB, AUX, etc.), release the button and
wait several seconds for your selection to
be accepted.
3. Insert a CD in the infotainment system's
media player, or connect an external
device to the vehicle's USB/AUX sockets
or via Bluetooth
Ÿ.
Playback and navigating in playlistsNavigate using the remote control's scroll
wheel (see the illustration on page 254) to
select the desired playlist or folder structure.
Use
to confirm the choice of a sub-folder
or to begin playing the selected track/audio file.
Tracks/audio files can also be played by press-
ing
on the remote control and change
tracks/audio files by pressing
/.
Stop playback by pressing
.
See page 225 for more information about the
media player.
Watching a videoVideo tracks/files can be viewed via the vehi-
cle's media player or the USB socket.
For more information about the media player,
see page 225 or page 227 for information about
the USB socket.
1. Switch on the cordless headphones, select
CH.A for the left screen or CH.B for the
right screen.
2.
Use the remote control's
button to
select a screen (L: left rear screen, F: front
screen, or R: right rear screen). Point the
remote control toward a screen's IR trans-
ceiver and press
one or more times
3Applies to CD audio, CDs/DVDs, USB and iPodŸ.4Applies to audio/video files on home-burned discs/USB only.
