dimensions VOLVO XC60 2015 Owner´s Manual

08 Wheels and tires

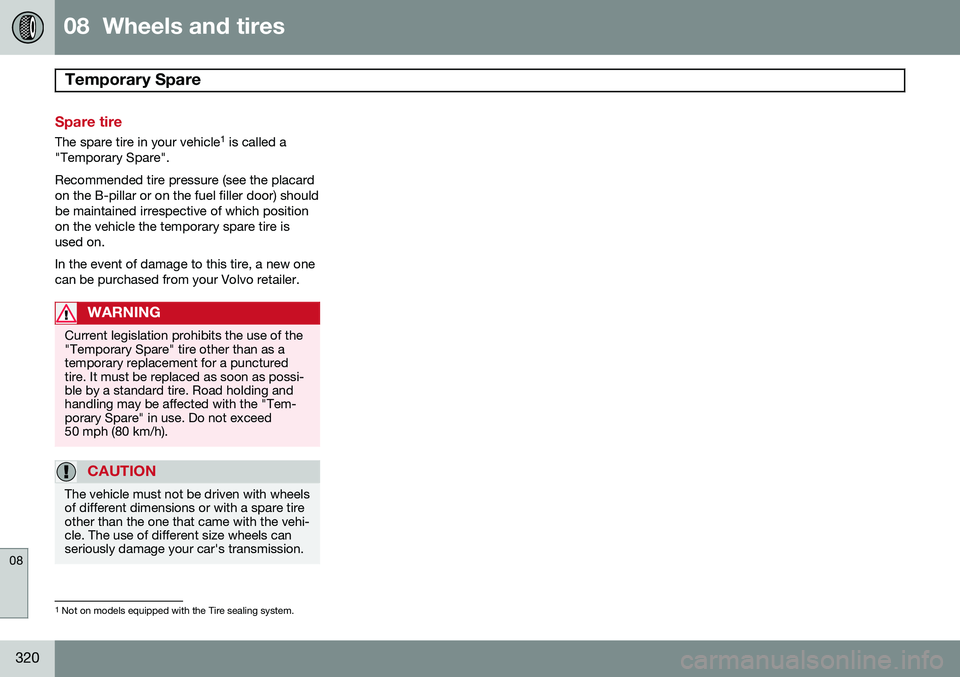

Temporary Spare
08
320
Spare tire
The spare tire in your vehicle1
is called a
"Temporary Spare". Recommended tire pressure (see the placard on the B-pillar or on the fuel filler door) shouldbe maintained irrespective of which positionon the vehicle the temporary spare tire isused on. In the event of damage to this tire, a new one can be purchased from your Volvo retailer.
WARNING
Current legislation prohibits the use of the "Temporary Spare" tire other than as atemporary replacement for a puncturedtire. It must be replaced as soon as possi-ble by a standard tire. Road holding andhandling may be affected with the "Tem-porary Spare" in use. Do not exceed50 mph (80 km/h).
CAUTION
The vehicle must not be driven with wheels of different dimensions or with a spare tireother than the one that came with the vehi-cle. The use of different size wheels canseriously damage your car's transmission.
1 Not on models equipped with the Tire sealing system.

10 Specifications
Specifications
10
382

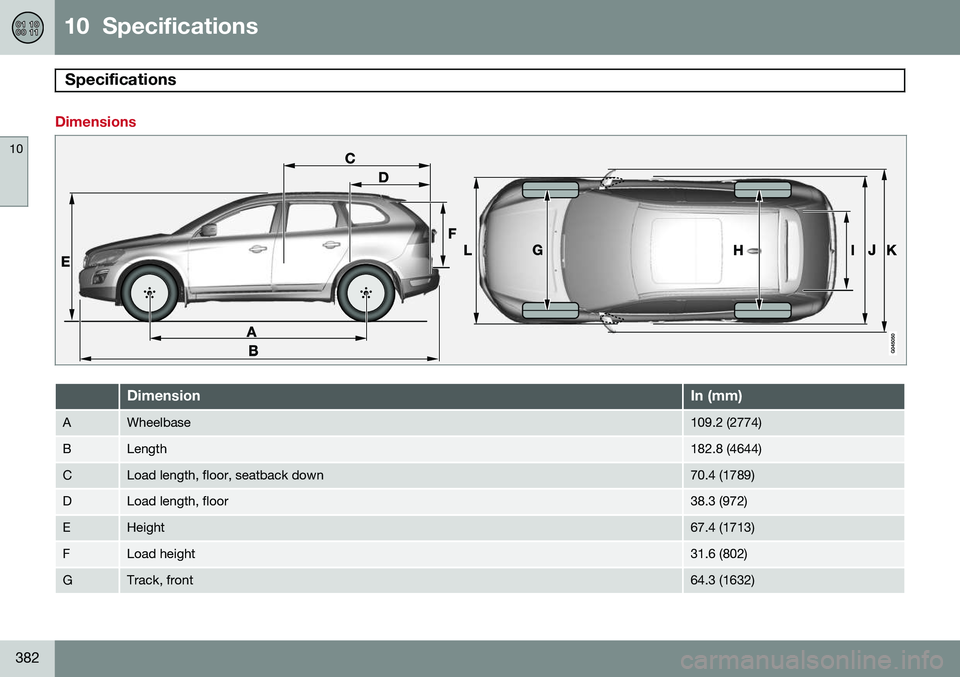

Dimensions
DimensionIn (mm)
AWheelbase109.2 (2774)
BLength182.8 (4644)
CLoad length, floor, seatback down70.4 (1789)
DLoad length, floor38.3 (972)
EHeight67.4 (1713)
FLoad height31.6 (802)
GTrack, front64.3 (1632)

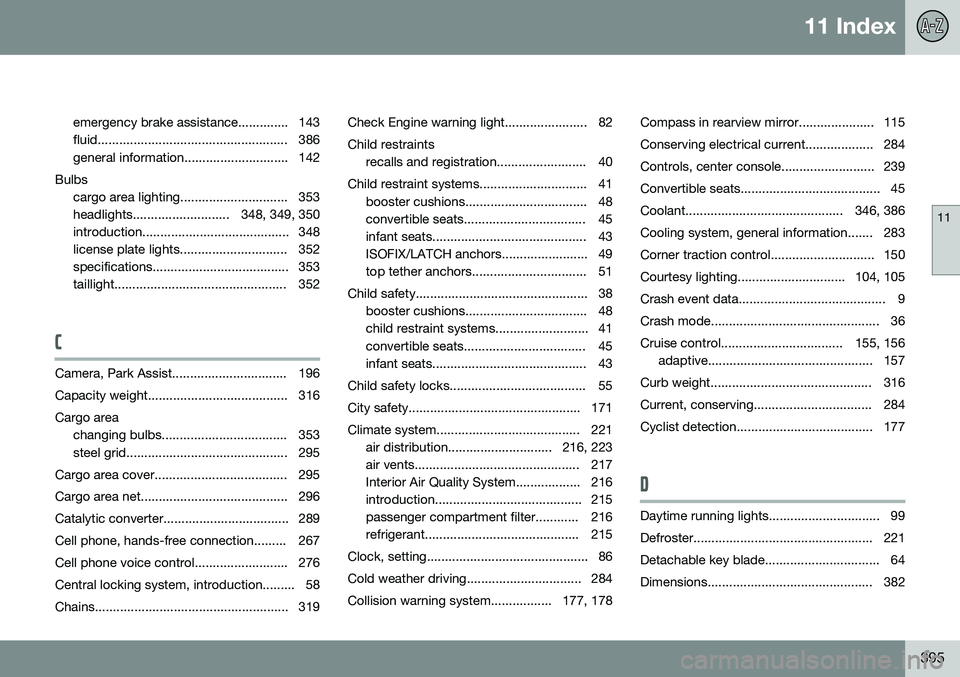

11 Index
11
395
emergency brake assistance.............. 143
fluid..................................................... 386
general information............................. 142
Bulbs cargo area lighting.............................. 353
headlights........................... 348, 349, 350
introduction......................................... 348
license plate lights.............................. 352
specifications...................................... 353
taillight................................................ 352
C
Camera, Park Assist................................ 196
Capacity weight....................................... 316Cargo areachanging bulbs................................... 353
steel grid............................................. 295
Cargo area cover..................................... 295
Cargo area net......................................... 296
Catalytic converter................................... 289
Cell phone, hands-free connection......... 267
Cell phone voice control.......................... 276
Central locking system, introduction......... 58
Chains...................................................... 319 Check Engine warning light....................... 82Child restraints
recalls and registration......................... 40
Child restraint systems.............................. 41 booster cushions.................................. 48
convertible seats.................................. 45
infant seats........................................... 43
ISOFIX/LATCH anchors........................ 49
top tether anchors................................ 51
Child safety................................................ 38 booster cushions.................................. 48
child restraint systems.......................... 41
convertible seats.................................. 45
infant seats........................................... 43
Child safety locks...................................... 55
City safety................................................ 171
Climate system........................................ 221 air distribution............................. 216, 223
air vents.............................................. 217
Interior Air Quality System.................. 216
introduction......................................... 215
passenger compartment filter............ 216
refrigerant........................................... 215
Clock, setting............................................. 86
Cold weather driving................................ 284
Collision warning system................. 177, 178 Compass in rearview mirror..................... 115
Conserving electrical current................... 284
Controls, center console.......................... 239
Convertible seats....................................... 45
Coolant............................................ 346, 386
Cooling system, general information....... 283
Corner traction control............................. 150
Courtesy lighting.............................. 104, 105
Crash event data......................................... 9
Crash mode............................................... 36
Cruise control.................................. 155, 156
adaptive.............................................. 157
Curb weight............................................. 316
Current, conserving................................. 284
Cyclist detection...................................... 177
D
Daytime running lights............................... 99
Defroster.................................................. 221
Detachable key blade................................ 64
Dimensions.............................................. 382

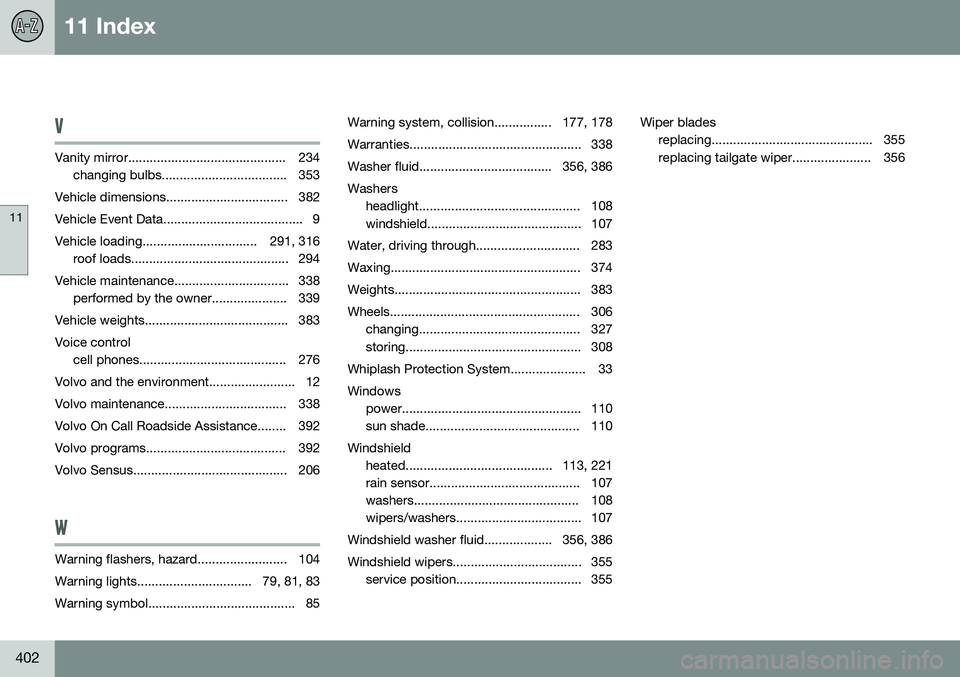

11 Index
11
402
V
Vanity mirror............................................ 234changing bulbs................................... 353
Vehicle dimensions.................................. 382
Vehicle Event Data....................................... 9
Vehicle loading................................ 291, 316 roof loads............................................ 294
Vehicle maintenance................................ 338 performed by the owner..................... 339
Vehicle weights........................................ 383Voice control cell phones......................................... 276
Volvo and the environment........................ 12
Volvo maintenance.................................. 338
Volvo On Call Roadside Assistance........ 392
Volvo programs....................................... 392
Volvo Sensus........................................... 206
W
Warning flashers, hazard......................... 104
Warning lights................................ 79, 81, 83
Warning symbol......................................... 85 Warning system, collision................ 177, 178
Warranties................................................ 338
Washer fluid..................................... 356, 386Washers
headlight............................................. 108
windshield........................................... 107
Water, driving through............................. 283
Waxing..................................................... 374
Weights.................................................... 383
Wheels..................................................... 306 changing............................................. 327
storing................................................. 308
Whiplash Protection System..................... 33 Windows power.................................................. 110
sun shade........................................... 110
Windshield heated......................................... 113, 221
rain sensor.......................................... 107
washers.............................................. 108
wipers/washers................................... 107
Windshield washer fluid................... 356, 386
Windshield wipers.................................... 355 service position................................... 355 Wiper blades
replacing............................................. 355
replacing tailgate wiper...................... 356
