DRIVER SUPPORT
}}
369

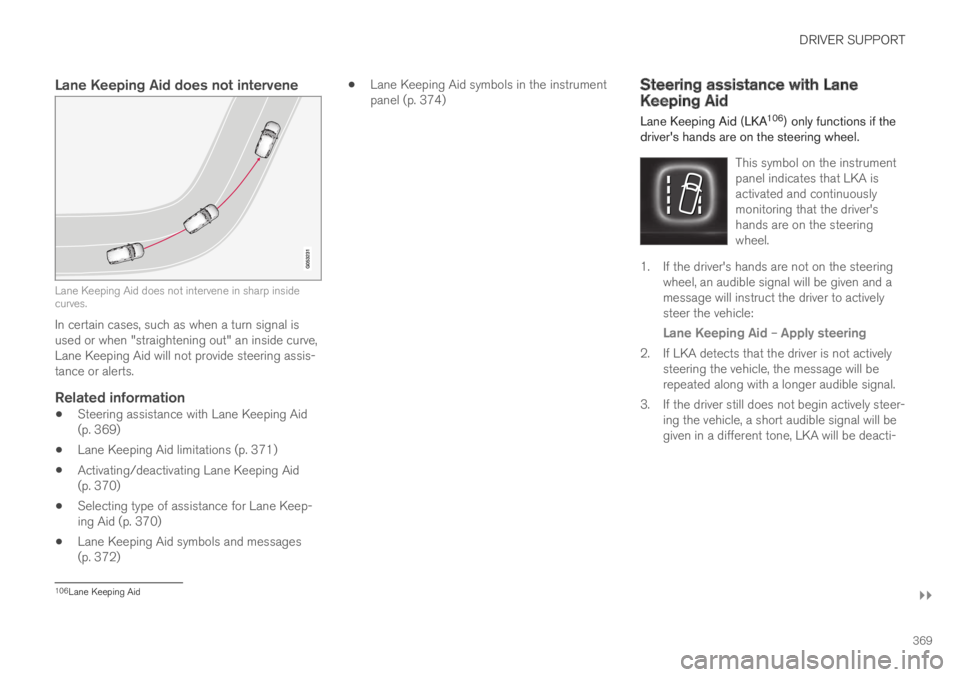

Lane Keeping Aid does not intervene
Lane Keeping Aid does not intervene in sharp insidecurves.
In certain cases, such as when a turn signal isused or when "straightening out" an inside curve,Lane Keeping Aid will not provide steering assis-tance or alerts.
Related information
Steering assistance with Lane Keeping Aid(p. 369)
Lane Keeping Aid limitations (p. 371)
Activating/deactivating Lane Keeping Aid(p. 370)
Selecting type of assistance for Lane Keep-ing Aid (p. 370)
Lane Keeping Aid symbols and messages(p. 372)
Lane Keeping Aid symbols in the instrumentpanel (p. 374)Steering assistance with LaneKeeping Aid
Lane Keeping Aid (LKA106) only functions if thedriver's hands are on the steering wheel.
This symbol on the instrumentpanel indicates that LKA isactivated and continuouslymonitoring that the driver'shands are on the steeringwheel.
1. If the driver's hands are not on the steeringwheel, an audible signal will be given and amessage will instruct the driver to activelysteer the vehicle:
Lane Keeping Aid – Apply steering
2. If LKA detects that the driver is not activelysteering the vehicle, the message will berepeated along with a longer audible signal.
3.If the driver still does not begin actively steer-ing the vehicle, a short audible signal will begiven in a different tone, LKA will be deacti-
106Lane Keeping Aid
Page 372 of 695
||
DRIVER SUPPORT
370

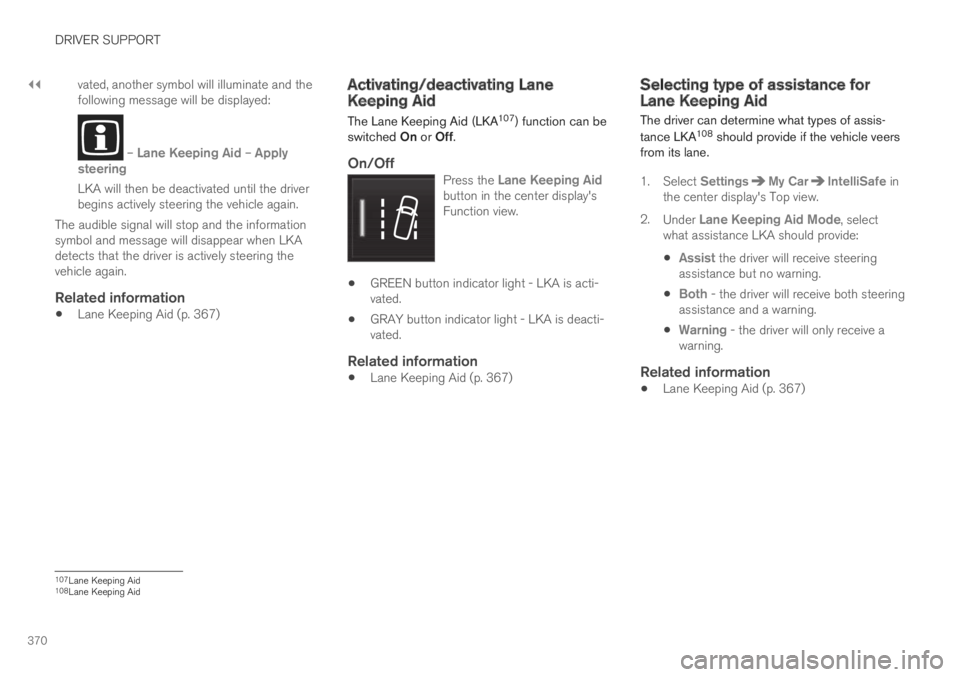

vated, another symbol will illuminate and thefollowing message will be displayed:
– Lane Keeping Aid – Applysteering
LKA will then be deactivated until the driverbegins actively steering the vehicle again.
The audible signal will stop and the informationsymbol and message will disappear when LKAdetects that the driver is actively steering thevehicle again.
Related information
Lane Keeping Aid (p. 367)
Activating/deactivating LaneKeeping Aid
The Lane Keeping Aid (LKA107) function can beswitched On or Off.
On/Off
Press the Lane Keeping Aidbutton in the center display'sFunction view.
GREEN button indicator light - LKA is acti-vated.
GRAY button indicator light - LKA is deacti-vated.
Related information
Lane Keeping Aid (p. 367)
Selecting type of assistance forLane Keeping Aid
The driver can determine what types of assis-
tance LKA108 should provide if the vehicle veersfrom its lane.
1. Select SettingsMy CarIntelliSafe inthe center display's Top view.
2.Under Lane Keeping Aid Mode, selectwhat assistance LKA should provide:
Assist the driver will receive steeringassistance but no warning.
Both - the driver will receive both steeringassistance and a warning.
Warning - the driver will only receive awarning.
Related information
Lane Keeping Aid (p. 367)
107Lane Keeping Aid108Lane Keeping Aid
Page 373 of 695
DRIVER SUPPORT
371
Lane Keeping Aid limitations
In certain demanding driving conditions, LaneKeeping Aid may not be able to properly assistthe driver. In these situations, it is recommendedthat the function be deactivated.
Examples of such situations include:
road work
winter driving conditions
poor road surfaces
a very sporty driving style
bad weather with reduced visibility
roads with indistinct or no lane markings
sharp edges or lines other than the lane'sside markings
when the power steering works at reducedpower, e.g. during cooling due to overheating(see section “Speed-dependent steeringforce”).
NOTE
The function uses the vehicle's camera unit,which has some general limitations – see thesection "Camera unit limitations".
Related information
Lane Keeping Aid (p. 367)
Speed-dependent steering wheel resistance(p. 272)
Camera limitations (p. 332)
Page 374 of 695
DRIVER SUPPORT
372
Lane Keeping Aid symbols andmessages
A number of symbols and messages related to
Lane Keeping Aid LKA109 may be displayed inthe instrument panel.Some examples of symbols and messages are shown in the table below.
SymbolMessageMeaning
Driver support system
Reduced functionality Service required
The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo work-shop is recommended.
Windscreen sensor
Sensor blocked, see Owner's manual
The camera's ability to detect the lane in front of the vehicle is reduced.
Lane Keeping Aid
Apply steering
LKA's steering assistance is disabled when the driver's hands are not on the wheel. Followthe instructions and steer the vehicle.
Lane Keeping Aid
Apply steering
LKA will go into standby mode until the driver begins steering the vehicle again.
109Lane Keeping Aid
Page 375 of 695
DRIVER SUPPORT
373

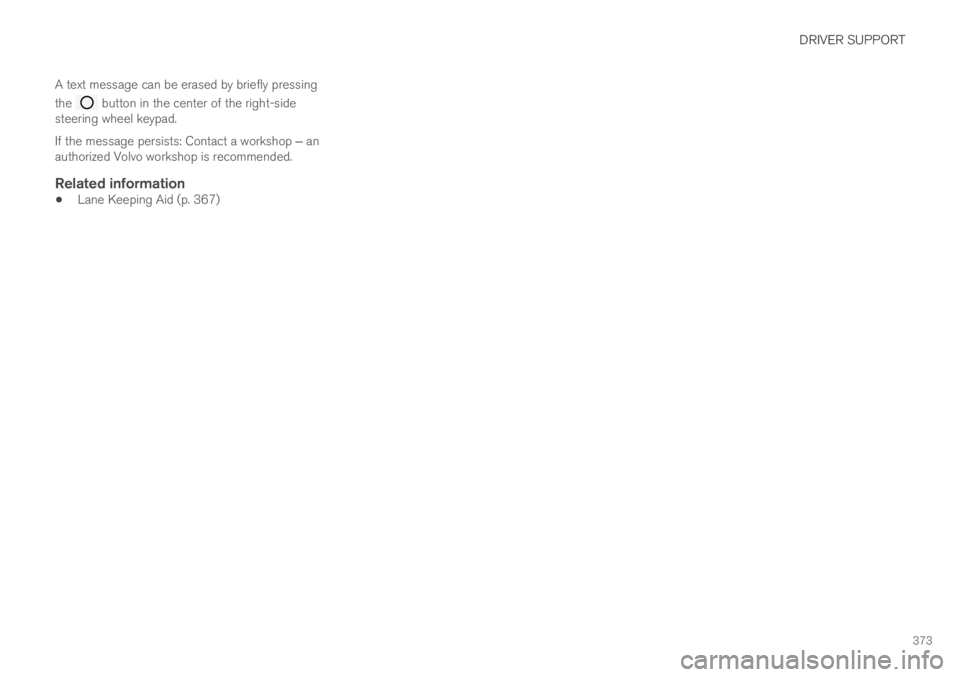

A text message can be erased by briefly pressing
the button in the center of the right-sidesteering wheel keypad.
If the message persists: Contact a workshop ‒ anauthorized Volvo workshop is recommended.
Related information
Lane Keeping Aid (p. 367)
Page 376 of 695
DRIVER SUPPORT
374

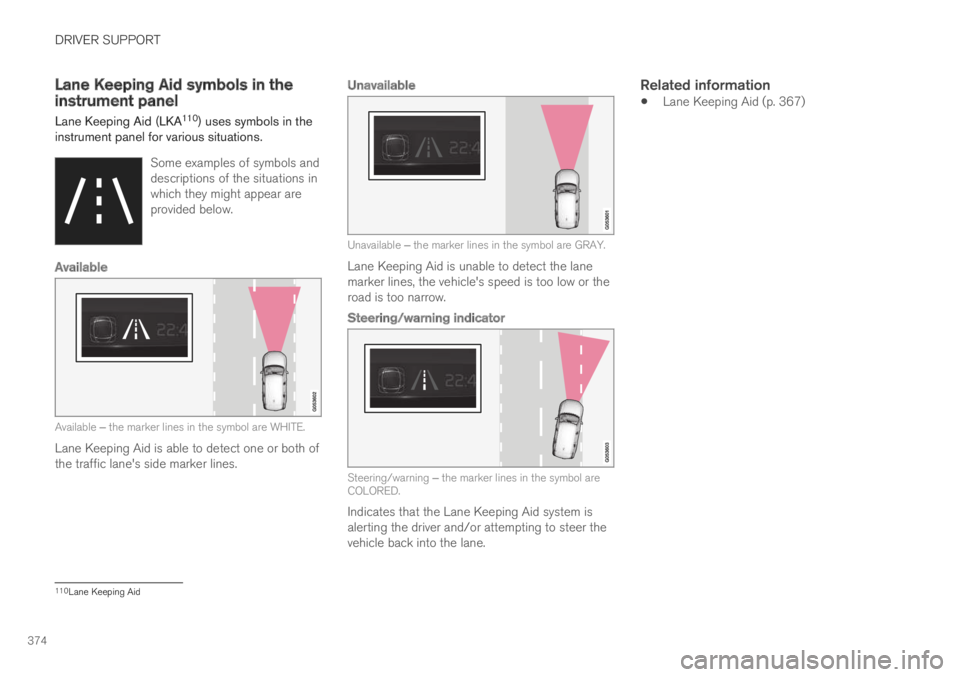

Lane Keeping Aid symbols in theinstrument panel
Lane Keeping Aid (LKA110) uses symbols in theinstrument panel for various situations.
Some examples of symbols anddescriptions of the situations inwhich they might appear areprovided below.
Available
Available ‒ the marker lines in the symbol are WHITE.
Lane Keeping Aid is able to detect one or both ofthe traffic lane's side marker lines.
Unavailable
Unavailable ‒ the marker lines in the symbol are GRAY.
Lane Keeping Aid is unable to detect the lanemarker lines, the vehicle's speed is too low or theroad is too narrow.
Steering/warning indicator
Steering/warning ‒ the marker lines in the symbol areCOLORED.
Indicates that the Lane Keeping Aid system isalerting the driver and/or attempting to steer thevehicle back into the lane.
Related information
Lane Keeping Aid (p. 367)
110Lane Keeping Aid
Page 377 of 695
DRIVER SUPPORT
* Option/accessory.375

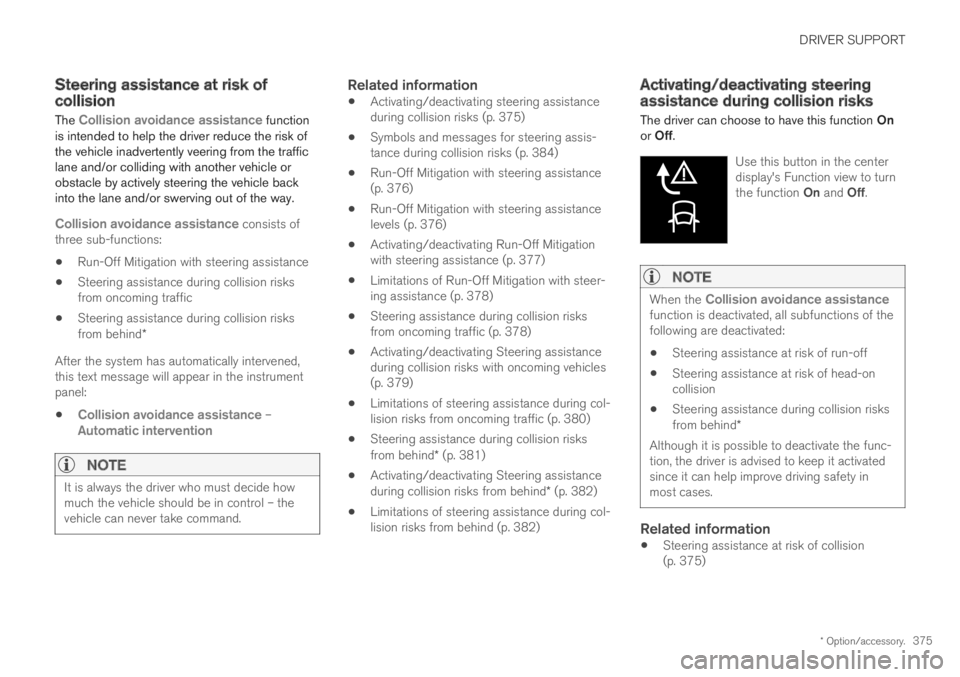

Steering assistance at risk ofcollision
The Collision avoidance assistance functionis intended to help the driver reduce the risk ofthe vehicle inadvertently veering from the trafficlane and/or colliding with another vehicle orobstacle by actively steering the vehicle backinto the lane and/or swerving out of the way.
Collision avoidance assistance consists ofthree sub-functions:
Run-Off Mitigation with steering assistance
Steering assistance during collision risksfrom oncoming traffic
Steering assistance during collision risksfrom behind*
After the system has automatically intervened,this text message will appear in the instrumentpanel:
Collision avoidance assistance –Automatic intervention
NOTE
It is always the driver who must decide howmuch the vehicle should be in control – thevehicle can never take command.
Related information
Activating/deactivating steering assistanceduring collision risks (p. 375)
Symbols and messages for steering assis-tance during collision risks (p. 384)
Run-Off Mitigation with steering assistance(p. 376)
Run-Off Mitigation with steering assistancelevels (p. 376)
Activating/deactivating Run-Off Mitigationwith steering assistance (p. 377)
Limitations of Run-Off Mitigation with steer-ing assistance (p. 378)
Steering assistance during collision risksfrom oncoming traffic (p. 378)
Activating/deactivating Steering assistanceduring collision risks with oncoming vehicles(p. 379)
Limitations of steering assistance during col-lision risks from oncoming traffic (p. 380)
Steering assistance during collision risksfrom behind* (p. 381)
Activating/deactivating Steering assistanceduring collision risks from behind* (p. 382)
Limitations of steering assistance during col-lision risks from behind (p. 382)
Activating/deactivating steeringassistance during collision risks
The driver can choose to have this function Onor Off.
Use this button in the centerdisplay's Function view to turnthe function On and Off.
NOTE
When the Collision avoidance assistancefunction is deactivated, all subfunctions of thefollowing are deactivated:
Steering assistance at risk of run-off
Steering assistance at risk of head-oncollision
Steering assistance during collision risksfrom behind*
Although it is possible to deactivate the func-tion, the driver is advised to keep it activatedsince it can help improve driving safety inmost cases.
Related information
Steering assistance at risk of collision(p. 375)
Page 378 of 695
DRIVER SUPPORT
376
Run-Off Mitigation with steeringassistance
This sub-function is intended to help reduce therisk of the vehicle inadvertently running off theroad by actively steering the vehicle back ontothe road.
The function is active at speeds between65-140 km/h (40-87 mph) on roads with clearlyvisible traffic lane markings/lines.
The system uses a camera to monitor the edgesof the road and the painted side marker lines. Ifthe vehicle is about to cross the edge of the road,the function will attempt to steer the vehicle backonto the road. If this is not sufficient to keep thevehicle on the road, the brakes will also beapplied.
However, the function will not provide eithersteering assistance or braking if the turn signal isused. The function will also not be activated if itdetects that the driver is actively operating thevehicle.
After the system has automatically intervened,this text message will appear in the instrumentpanel:
Collision avoidance assistance –Automatic intervention
WARNING
The "Steering assistance at risk of run-off" subfunction is supplementary driversupport intended to help improve drivingsafety – it cannot handle all situations inall traffic, weather and road conditions.
The function cannot detect barriers, railsor similar obstacles at the side of theroad.
"Steering assistance at risk of run-off" isnot a substitute for the driver's attentionand judgment. The driver is alwaysresponsible for ensuring the vehicle isdriven in a safe manner, at the appropri-ate speed, with an appropriate distance toother vehicles, and in accordance withcurrent traffic rules and regulations.
Related information
Steering assistance at risk of collision(p. 375)
Run-Off Mitigation with steeringassistance levels
This function has two activation levels for inter-vention:
Steering assistance only
Steering assistance with braking
Steering assistance only
Intervention with steering assistance.
Page 379 of 695
DRIVER SUPPORT
* Option/accessory.377

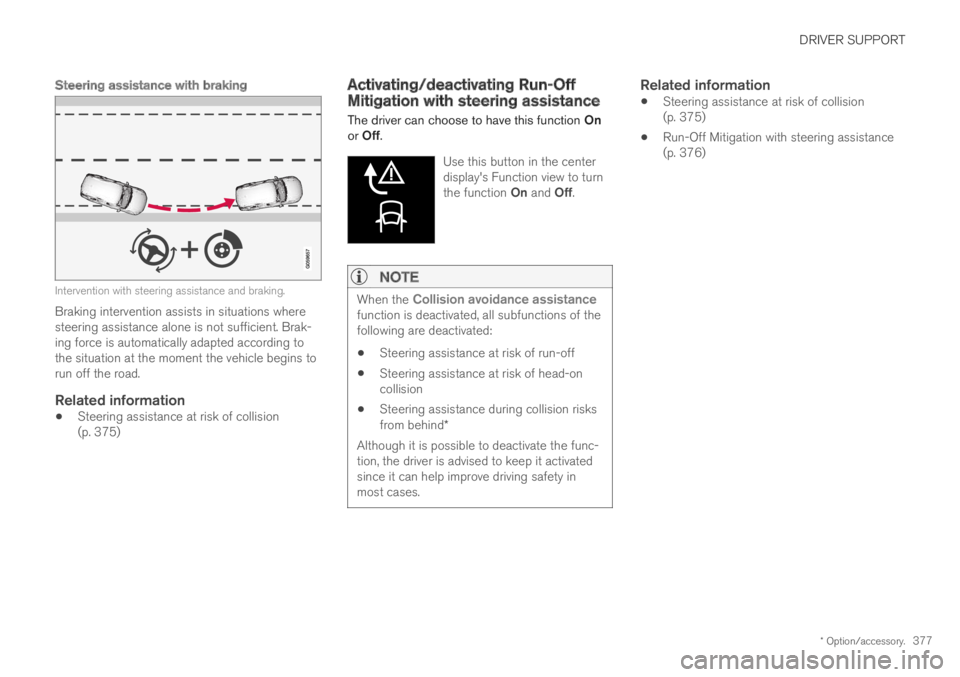

Steering assistance with braking
Intervention with steering assistance and braking.
Braking intervention assists in situations wheresteering assistance alone is not sufficient. Brak-ing force is automatically adapted according tothe situation at the moment the vehicle begins torun off the road.
Related information
Steering assistance at risk of collision(p. 375)
Activating/deactivating Run-OffMitigation with steering assistance
The driver can choose to have this function Onor Off.
Use this button in the centerdisplay's Function view to turnthe function On and Off.
NOTE
When the Collision avoidance assistancefunction is deactivated, all subfunctions of thefollowing are deactivated:
Steering assistance at risk of run-off
Steering assistance at risk of head-oncollision
Steering assistance during collision risksfrom behind*
Although it is possible to deactivate the func-tion, the driver is advised to keep it activatedsince it can help improve driving safety inmost cases.
Related information
Steering assistance at risk of collision(p. 375)
Run-Off Mitigation with steering assistance(p. 376)
Page 380 of 695
DRIVER SUPPORT
378
Limitations of Run-Off Mitigationwith steering assistance
In certain demanding driving conditions, thefunction may not be able to properly assist thedriver. In these situations, it is recommendedthat it is turned off.
Examples of such situations include:
road work
winter driving conditions
narrow roads
poor road surfaces
a very sporty driving style
bad weather with reduced visibility
roads with indistinct or no lane markings
sharp edges or lines other than the lane'sside markings
when the power steering works at reducedpower, e.g. during cooling due to overheating(see section “Speed-dependent steeringforce”).
NOTE
The function uses the vehicle's combinedcamera and radar unit, which has certain gen-eral limitations; see sections "Camera limita-tions" and "Radar sensor limitations".
Related information
Steering assistance at risk of collision(p. 375)
Speed-dependent steering wheel resistance(p. 272)
Camera limitations (p. 332)
Radar sensor limitations (p. 327)
Steering assistance during collisionrisks from oncoming traffic
This sub-function can help assist a distracteddriver who has not noticed that the vehicle isveering into oncoming traffic.
The function provides assistance by swerving your vehi-cle back into your own lane.
Oncoming vehicles
Own vehicle
The function is active at speeds between60-140 km/h (37-87 mph) on roads with clearlyvisible traffic lane markings/lines.
If your vehicle is starting to veer from your ownlane and a vehicle is approaching from the oppo-site direction, this function can help the driversteer the vehicle back into its own lane.
