DRIVER SUPPORT
}}
* Option/accessory.359
Road Sign Information*
The Road Sign Information (RSI90) function canhelp the driver observe speed-related roadsigns.
Examples of signs that can be detected91.
Example91 of registered speed information.
If the vehicle passes a speed limit sign, it will bedisplayed in the instrument panel and the head-up display*.
NOTE
In certain markets, the Road Sign Informationfunction (RSI) is only available in combinationwith Sensus Navigation*.
WARNING
The Road Sign Information function issupplementary driver support intended tofacilitate driving and help make it safer –it cannot handle all situations in all traffic,weather and road conditions.
Road Sign Information is not a substitutefor the driver's attention and judgment.The driver is always responsible forensuring the vehicle is driven in a safemanner, at the appropriate speed, with anappropriate distance to other vehicles,and in accordance with current trafficrules and regulations.
Related information
Activating/deactivating Road Sign Informa-tion (p. 360)
Road Sign Information and sign displays(p. 361)
Road Sign Information and SensusNavigation (p. 361)
Road Sign Information with Speed Warningand Settings (p. 362)
Activating/deactivating Speed Warning inRoad Sign Information (p. 363)
90Road Sign Information91Road signs differ according to market ‒ the illustrations shown here are just some examples.
Page 362 of 695
DRIVER SUPPORT
* Option/accessory.360
Road Sign Information with speed camerainformation (p. 363)
Road Sign Information limitations (p. 364)
Activating/deactivating Road SignInformation
The Road Sign Information function can beswitched On or Off.
Press the Road SignInformation button in the cen-ter display's Function view.
GREEN button indicator light - RSI is acti-vated.
GRAY button indicator light - RSI is deacti-vated.
NOTE
If the Automatic Speed Limiter function isactivated, road sign information is shown
in the driver display even if RSI92 is notactivated.
To remove road sign information from thedriver display, you must deactivate bothAutomatic Speed Limiter and RSI.
When the Automatic Speed Limiter func-tion is activated but RSI is deactivated, nowarnings are given from RSI. RSI mustalso be activated for warnings to be pos-sible.
Related information
Road Sign Information* (p. 359)
92Road Sign Information (RSI)
Page 363 of 695
DRIVER SUPPORT
* Option/accessory.361

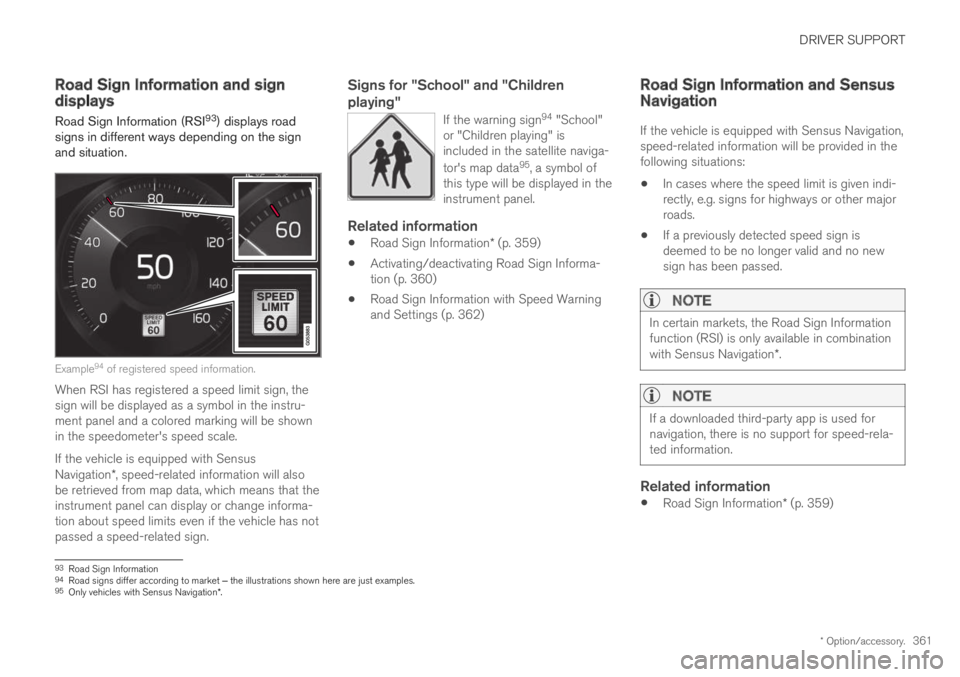

Road Sign Information and signdisplays
Road Sign Information (RSI93) displays roadsigns in different ways depending on the signand situation.
Example94 of registered speed information.
When RSI has registered a speed limit sign, thesign will be displayed as a symbol in the instru-ment panel and a colored marking will be shownin the speedometer's speed scale.
If the vehicle is equipped with SensusNavigation*, speed-related information will alsobe retrieved from map data, which means that theinstrument panel can display or change informa-tion about speed limits even if the vehicle has notpassed a speed-related sign.
Signs for "School" and "Children
playing"
If the warning sign94 "School"or "Children playing" isincluded in the satellite naviga-
tor's map data95, a symbol ofthis type will be displayed in theinstrument panel.
Related information
Road Sign Information* (p. 359)
Activating/deactivating Road Sign Informa-tion (p. 360)
Road Sign Information with Speed Warningand Settings (p. 362)
Road Sign Information and SensusNavigation
If the vehicle is equipped with Sensus Navigation,speed-related information will be provided in thefollowing situations:
In cases where the speed limit is given indi-rectly, e.g. signs for highways or other majorroads.
If a previously detected speed sign isdeemed to be no longer valid and no newsign has been passed.
NOTE
In certain markets, the Road Sign Informationfunction (RSI) is only available in combinationwith Sensus Navigation*.
NOTE
If a downloaded third-party app is used fornavigation, there is no support for speed-rela-ted information.
Related information
Road Sign Information* (p. 359)
93Road Sign Information94Road signs differ according to market ‒ the illustrations shown here are just examples.95Only vehicles with Sensus Navigation*.
Page 364 of 695
DRIVER SUPPORT
* Option/accessory.362
Road Sign Information with SpeedWarning and Settings
The Speed Limit Warning sub-function for
RSI96 can be switched On or Off.
Speed Limit Warning warns the driver if thevehicle's speed has exceeded the applicablespeed limit or the preset Speed Limiter speed.The warning will be repeated once afterabout 1 minute in that speed limit area if thedriver does not slow down.
A new warning and message indicating that thespeed limit has been exceeded will be providedonly when the vehicle has entered a new/differ-ent speed limit area.
When Speed Warning is acti-vated, the symbol for the cur-rent speed limit in the instru-
ment panel97 will flash tempo-rarily if that speed is exceeded.
The driver can be alerted if thevehicle is exceeding a detectedspeed limit and is approachinga speed camera.
Settings
Adjusting the Speed Warning limit
The driver can adjust the settings to be alerted ata higher speed than the posted speed limit.
To adjust the Speed Warning limit:
1. Select SettingsMy CarIntelliSafe
Road Sign Information in the centerdisplay's Top view.
2.Mark Speed Limit Warning.
>The function is activated and a speed limitselector is displayed.
3. Tap the up/down arrows on the screen toadjust the speed at which the Speed Warn-ing will be given.
Please note that the set warn-ing limit will not be used whena speed camera symbol is dis-played in the instrument panel.
Audible alert On/Off
An audible alert can also be given along with theSpeed Warning.
To adjust the audible alert settings:
1. Select SettingsMy CarIntelliSafe
Road Sign Information in the centerdisplay's Top view.
2.Select/deselect Road Sign Audio Warningto activate/deactivate the audible alert.
When Road Sign Audio Warning is activated,the driver will also be alerted if the vehicle isapproaching a one-way/"no-entry" road orentrance.
Speed camera warning On/Off
If the vehicle is equipped withSensus Navigation* and mapdata contains information onspeed cameras, the driver canchoose to receive an audiblealert if the vehicle is approach-ing a speed camera.
To adjust the audible alert settings:
1.Select SettingsMy CarIntelliSafe
Road Sign Information in the centerdisplay's Top view.
2.Select/deselect Speed Camera AudioWarning to activate/deactivate the speedcamera audible alert.
96Road Sign Information97Road signs differ according to market ‒ the illustration shown here is just an example.
Page 365 of 695
DRIVER SUPPORT
}}
* Option/accessory.363
Related information
Road Sign Information* (p. 359)
Road Sign Information with speed camerainformation (p. 363)
Activating/deactivating SpeedWarning in Road Sign Information
To activate the Speed Limit Warning sub-func-tion:
1.Select SettingsMy CarIntelliSafe
Road Sign Information in the centerdisplay's Top view.
2.Mark Speed Limit Warning.
>The function is activated and a speed limitselector is displayed.
(See description for “Adjusting the SpeedWarning limit” in section “Road Sign Infor-mation with Speed Warning and Set-tings.”)
Related information
Road Sign Information* (p. 359)
Road Sign Information with Speed Warningand Settings (p. 362)
Road Sign Information with speedcamera information
Vehicles equipped with RSI98 and SensusNavigation* can provide information on upcom-ing speed cameras in the instrument panel.
Speed camera information in the instrument panel99.
If the vehicle exceeds adetected speed limit with theSpeed Limit Warning func-tion activated, the driver isgiven a speed warning whenthe vehicle is approaching aspeed camera if the navigationmap for the vehicle's current location containsinformation on speed cameras.
98Road Sign Information99Note: This illustration is general and details may vary depending on model and market/region.
Page 366 of 695
||
DRIVER SUPPORT
* Option/accessory.364
For more information on Speed Warnings in con-junction with speed cameras, also see “RoadSign Information with Speed Warning and Set-tings” and “Road Sign Information limitations”.
NOTE
For an audible alert to be provided if thespeed is exceeded, the Speed LimitWarning function must be activated andthe Road Sign Audio Warning sub-function must be On. Audible alerts areprovided if the vehicle's speed exceedsthe speed displayed by RSI in the instru-ment panel.
It is possible to receive an audible alertfor speed cameras regardless of the vehi-cle's speed, whether or not the speedlimit is exceeded, and even if the RoadSign Audio Warning function is deacti-vated: See heading "Speed camerawarning On/Off" in section "Road SignInformation with Speed Warning and set-tings" and select Speed Camera AudioWarning there.
Information about speed cameras on thenavigation map is not available for allmarkets/areas.
Related information
Road Sign Information* (p. 359)
Road Sign Information with Speed Warningand Settings (p. 362)
Road Sign Information limitations (p. 364)
Road Sign Information limitations
Road Sign Information (RSI100) functionality maybe reduced in certain situations.
RSI could have reduced functionality due to e.g.:
faded road signs
signs located in a curve in the road
twisted or damaged signs
signs positioned high above the road
fully/partially obstructed or poorly positionedsigns
signs partially or fully covered by frost, snowand/or dirt
digital road maps101 that are outdated, incor-
rect or do not contain speed information102.
NOTE
Certain types of bike carriers that are con-nected to the trailer socket may be interpre-ted as a connected trailer by the RSI function.In such cases, the instrument panel may indi-cate incorrect speed information.
100Road Sign Information101Vehicles equipped with Sensus Navigation*.102Map data and speed information is not available for all areas.
Page 367 of 695
DRIVER SUPPORT
}}
* Option/accessory.365
NOTE
The function uses the vehicle's camera unit,which has some general limitations – see thesection "Camera unit limitations".
Related information
Road Sign Information* (p. 359)
Camera limitations (p. 332)

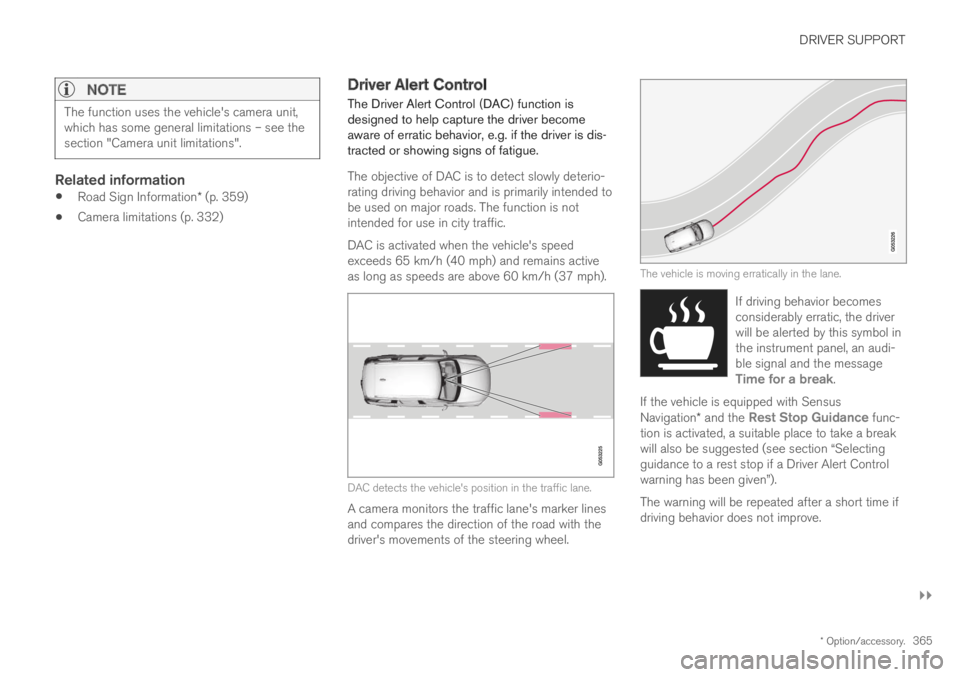

Driver Alert Control
The Driver Alert Control (DAC) function isdesigned to help capture the driver becomeaware of erratic behavior, e.g. if the driver is dis-tracted or showing signs of fatigue.
The objective of DAC is to detect slowly deterio-rating driving behavior and is primarily intended tobe used on major roads. The function is notintended for use in city traffic.
DAC is activated when the vehicle's speedexceeds 65 km/h (40 mph) and remains activeas long as speeds are above 60 km/h (37 mph).
DAC detects the vehicle's position in the traffic lane.
A camera monitors the traffic lane's marker linesand compares the direction of the road with thedriver's movements of the steering wheel.
The vehicle is moving erratically in the lane.
If driving behavior becomesconsiderably erratic, the driverwill be alerted by this symbol inthe instrument panel, an audi-ble signal and the messageTime for a break.
If the vehicle is equipped with SensusNavigation* and the Rest Stop Guidance func-tion is activated, a suitable place to take a breakwill also be suggested (see section “Selectingguidance to a rest stop if a Driver Alert Controlwarning has been given”).
The warning will be repeated after a short time ifdriving behavior does not improve.
Page 368 of 695
||
DRIVER SUPPORT
366
WARNING
The Driver Alert Control function is sup-plementary driver support intended tofacilitate driving and help make it safer –it cannot handle all situations in all traffic,weather and road conditions.
Driver Alert Control must not be used toextend a period of driving. The drivershould plan in breaks at regular intervalsand make sure they are well rested.
Driver Alert Control is not a substitute forthe driver's attention and judgment. Thedriver is always responsible for ensuringthe vehicle is driven in a safe manner, atthe appropriate speed, with an appropri-ate distance to other vehicles, and inaccordance with current traffic rules andregulations.
WARNING
An alarm from Driver Alert Control should betaken very seriously since a sleepy driver isoften not aware of their own condition.
If the alarm sounds or you feel fatigued:
Stop the vehicle safely as soon as possi-ble and rest.
Studies have shown that it is just as danger-ous to drive while tired as it is to drive underthe influence of alcohol or other stimulants.
Related information
Activating/deactivating Driver Alert Control(p. 366)
Selecting guidance to a rest area if theDriver Alert Control warning has been given(p. 367)
Driver Alert Control limitations (p. 367)
Activating/deactivating Driver AlertControl
The Driver Alert Control (DAC) function can beactivated/deactivated.
On/Off
To change DAC settings:
1.Tap Settings in the center display's Topview.
2.Select My CarIntelliSafeDriver AlertControl.
3.Select/deselect Alertness Warning to acti-vate/deactivate DAC.
Related information
Driver Alert Control (p. 365)
Page 369 of 695
DRIVER SUPPORT
}}
* Option/accessory.367
Selecting guidance to a rest area ifthe Driver Alert Control warning hasbeen given
The Rest Stop Guidance function can beswitched on or off.
In vehicles equipped with Sensus Navigation*, thedriver can activate a guide that can automaticallysuggest a suitable rest stop if the DAC warningis given.
To select Rest Stop Guidance:
1.Tap Settings in the center display's Topview.
2.Select My CarIntelliSafeDriver AlertControl.
3.Select/deselect Rest Stop Guidance toactivate/deactivate the function.
Related information
Driver Alert Control (p. 365)
Driver Alert Control limitations
Driver Alert Control (DAC) functionality may bereduced in certain situations.
In certain situations, the system may provide awarning even if it has not detected a change indriving behavior, e.g.:
in strong crosswinds
on grooved road surfaces.
WARNING
In certain cases, driving behavior might not beaffected despite the driver's fatigue – whenusing the Pilot Assist function – resulting inthe driver not getting a warning from DAC.
It is therefore very important to always stopand take a break at the slightest sign of fati-gue, regardless of whether the DAC functionhas issued a warning or not.
NOTE
The function uses the vehicle's camera unit,which has some general limitations – see thesection "Camera unit limitations".
Related information
Driver Alert Control (p. 365)
Camera limitations (p. 332)
Lane Keeping Aid
Lane Keeping Aid (LKA103) is designed toactively steer the vehicle on freeways, highwaysand other major roads to help the driver reducethe risk of the vehicle unintentionally veering outof the lane.
Lake Keeping Assistance steers the vehicle backinto the lane and/or alerts the driver using vibra-tions in the steering wheel.
Lane Keeping Aid is active at speeds between65-200 km/h (40-125 mph) on roads withclearly visible traffic lane marker lines.
On narrow roads, the function may be unavailableand go into standby mode. The function willbecome available again when the road becomessufficiently wide.
A camera monitors the road/traffic lane's marker lines.
103Lane Keeping Aid
Page 370 of 695
||
DRIVER SUPPORT
368
Lane Keeping Aid steers the vehicle back into its lane.
Lane Keeping Aid alerts the driver using vibrations in thesteering wheel104.
Depending on the settings used, Lane KeepingAid functions in different ways:
With Assist105 activated: When the vehicleapproaches a lane marker line, LKA willactively steer the vehicle back into the laneusing light pressure on the steering wheel.
With Warning105 activated: If the vehicle isabout to move over a lane marker line, thedriver will be alerted by vibrations in thesteering wheel.
NOTE
When the direction indicator is activated, theLane Keeping Aid does not provide any warn-ing or intervene with steering.
WARNING
The Lane Keeping Aid function is supple-mentary driver support intended to helpimprove driving safety – it cannot handleall situations in all traffic, weather androad conditions.
The function is not a substitute for thedriver's attention and judgment. The driveris always responsible for ensuring thevehicle is driven in a safe manner, at theappropriate speed, with an appropriatedistance to other vehicles, and in accord-ance with current traffic rules and regula-tions.
104The steering wheel vibrations vary. The more time the vehicle is over the lane marker line, the longer the vibrations.105See "LKA assistance options" under "Activating/deactivating Lane Keeping Aid".
