VOLVO XC60 TWIN ENGINE 2019 Owners Manual

MAINTENANCE AND SERVICE
629
Hybrid battery
The vehicle's electric motor is powered by arechargeable, maintenance-free, lithium-ionhybrid battery.

NOTE
The vehicle cannot be started if the hybridbattery is discharged.

NOTE
If both the starter battery and the hybrid bat-tery are discharged, both batteries must becharged. In such cases, it is not possible tocharge only the hybrid battery first.
The starter battery must have a certain levelof charge for it to be possible to charge thehybrid battery.

WARNING
Hybrid battery replacement may only be per-formed by a workshop – an authorized Volvoworkshop is recommended.

Coolant
The hybrid battery's cooling system has its ownexpansion tank.
CAUTION
Filling the hybrid battery coolant should onlybe performed by a workshop – an authorizedVolvo workshop is recommended.

Specifications for hybrid battery
Type: Lithium-ion
Power reserve: 10.4 kWh.

NOTE
The capacity of the hybrid battery decreaseswith age and use, which could result inincreased use of the combustion engine,leading to higher fuel consumption andreduced electric motor range.
Related information
Battery symbols (p. 630)
Start battery (p. 625)
Charging the hybrid battery (p. 413)

MAINTENANCE AND SERVICE
630
Battery symbols
There are warning symbols and information onthe batteries.
Wear protective goggles.
See the Owner's Manual foradditional information.
Keep batteries away fromchildren.
Batteries contain corrosiveacid.
Avoid smoking, openflames, and/or sparks.
Risk of explosion.
Recycle properly.

NOTE
A used start battery contains lead and mustbe recycled in an environmentally responsiblemanner.

Related information
Start battery (p. 625)
Hybrid battery (p. 629)
Fuses and fuseboxes
All electrical functions and components are pro-tected by a number of fuses in order to protectthe vehicle's electrical system from damage byshort circuiting or overloading.
WARNING
Never use a foreign object or a fuse with ahigher amperage than that specified toreplace a fuse. This could cause significantdamage to the electrical system and possiblylead to a fire.

WARNING
Orange wiring may only be handled by quali-fied personnel.

WARNING
Several components in the vehicle work withhigh voltage that can be hazardous in case ofan incorrect procedure.
Do not touch anything that is not clearlydescribed in this Owner's Manual.
If any electrical component or function is notresponding, the component may have blown afuse due to temporary overload. If the same fuseblows repeatedly, there may be a problem withthe component. Volvo recommends contacting anauthorized Volvo workshop to have the compo-nent checked.

MAINTENANCE AND SERVICE
631

Location of fuseboxes
The illustration is generic - appearance may vary accord-ing to vehicle model.
Engine compartment
Under the glove compartment
Trunk/cargo compartment

Related information
Replacing fuses (p. 631)
Fuses in the cargo compartment (p. 639)
Fuses in the engine compartment (p. 632)
Fuses under the glove compartment(p. 636)
Replacing fuses
All electrical functions and components are pro-tected by a number of fuses in order to protectthe vehicle's electrical system from damage byshort circuiting or overloading.
1. Refer to the fuse diagram to locate the fuse.
2.Pull out the fuse and examine it from theside to determine if the curved metal wire inthe fuse is intact.
3. If the wire is broken, replace the fuse with anew fuse of the same color and amperage.
WARNING
Never use a foreign object or a fuse with ahigher amperage than that specified toreplace a fuse. This could cause significantdamage to the electrical system and possiblylead to a fire.

WARNING
Contact an authorized Volvo workshop forassistance replacing fuses not listed in theOwner's Manual. If performed incorrectly, sig-nificant damage can be caused to the electri-cal system.

Related information
Fuses and fuseboxes (p. 630)
Fuses in the cargo compartment (p. 639)
Fuses in the engine compartment (p. 632)
Fuses under the glove compartment(p. 636)

MAINTENANCE AND SERVICE
632
Fuses in the engine compartment
The fuses in the engine compartment help pro-tect electrical components such as engine andbrake functions.

MAINTENANCE AND SERVICE
}}
* Option/accessory.633
Fuse pliers are provided on the inside of the fusebox cover to assist in removing and insertingfuses.
There are also spaces for several extra fuses inthe fusebox.

Positions
There is a decal with a diagram of the locationsof the fuses on the inside of the cover.
Fuses 1–13, 18–30, 35–37 and 46–70 are"Micro" fuses.
Fuses 14–17, 31–34, 38–45 and 71–78 are"MCase" fuses and should only be replaced
by a workshop16.
FunctionAmpere
––
––
––
Control module for actuatorfor engaging/changing gears,automatic transmission
5
High-voltage coolant heatercontrol module5
FunctionAmpere
Control module for A/C; heatexchanger cut-off valve; cut-off valve for coolant throughthe climate system
5
Hybrid battery control module;high-voltage converter forcombined high-voltage gener-ator/starter motor with 500V–12 V voltage converter
5
––
Converter for controlling feedto rear axle electric motor10
Hybrid battery control module;high-voltage converter forcombined high-voltage gener-ator/starter motor with 500V–12 V voltage converter
10
Charge module5
Cut-off valve for hybrid batterycoolant; coolant pump 1 forhybrid battery
10
Coolant pump for electric drivesystem10
FunctionAmpere
Hybrid component cooling fan 25
––
––
––
––
––
––
––
––
––
12 V outlet in tunnel console,front15
12 V outlet in tunnel consolebetween second-row seats15
12 V outlet in trunk/cargocompartment*
USB ports for iPad holders
15
––
16An authorized Volvo workshop is recommended.

||
MAINTENANCE AND SERVICE
* Option/accessory.634
FunctionAmpere
Left-side headlight, some
models with LEDA15
Right-side headlight, some
models with LEDA15
––
Heated windshield*, left sideShunt
Heated windshield*, left side40
Headlight washers*25
Windshield washer25
––
Horn20
Alarm siren*5
Brake system control module(valves, parking brake)40
Wipers30
Rear window washer25
Heated windshield*, right side40
Parking heater*20
FunctionAmpere
Brake system control module(ABS pump)40
––
Heated windshield*, right sideShunt
Fed when ignition is on:Engine control module; trans-mission components, electricalpower steering, central electri-cal module
5
Exterior vehicle sound (certainmarkets)5
Right-side headlight7.5
Right-side headlight, some
models with LEDA15
––
––
––
Airbags5
Left-side headlight7.5
Left-side headlight, some
models with LEDA15
FunctionAmpere
Accelerator pedal sensor 5
Transmission control module;gear selector control module15
Engine control module5
––
––
––
––
Engine control module; actua-tor; throttle unit; turbo-chargervalve
20
Solenoids; valve; engine cool-ing system thermostat10
Vacuum regulators; valve 7.5
Spoiler shutter control module;radiator shutter control mod-ule
5
––
Heated oxygen sensor, front;heated oxygen sensor, rear15

MAINTENANCE AND SERVICE
635
FunctionAmpere
Oil pump solenoid; A/C mag-netic coupling; heated oxygensensor (center)
15
––
Engine control module20
Ignition coils; spark plugs 15
––
––
Transmission oil pump controlmodule30
Vacuum pump control module 40
Transmission actuator25
––
––
––
ALED (Light Emitting Diode)

Related information
Fuses and fuseboxes (p. 630)
Replacing fuses (p. 631)

MAINTENANCE AND SERVICE
636

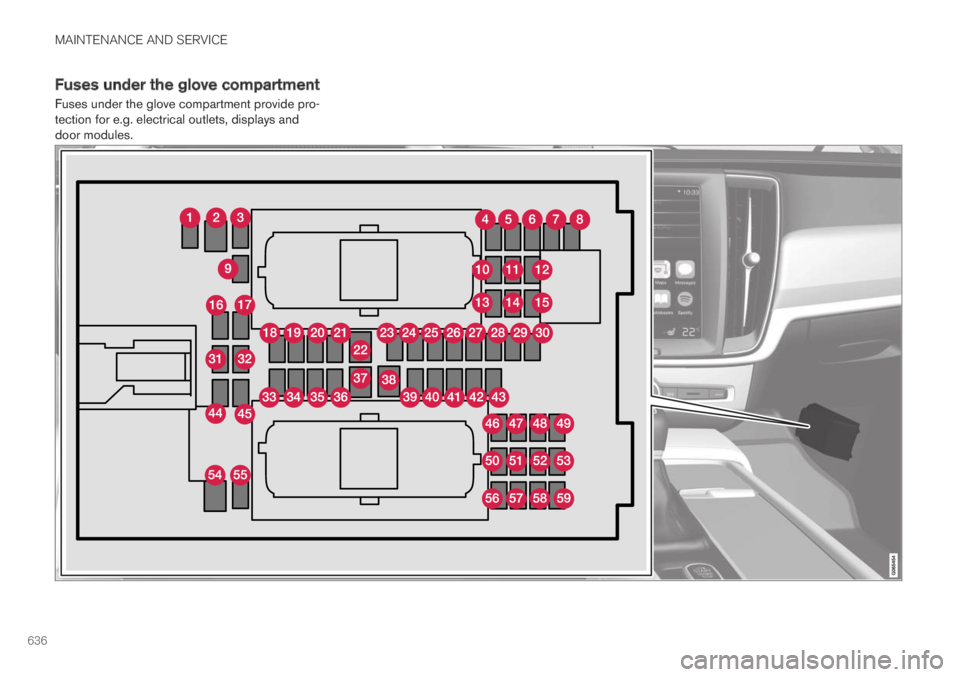

Fuses under the glove compartment
Fuses under the glove compartment provide pro-tection for e.g. electrical outlets, displays anddoor modules.

MAINTENANCE AND SERVICE
}}
* Option/accessory.637
Fuse pliers are provided on the inside of the fusebox cover to assist in removing and insertingfuses.
There are also spaces for several extra fuses inthe distribution box in the engine compart-ment.

Positions
Fuses 1, 3-21, 23-36, 39-53 and 55-59 are"Micro" fuses.
Fuses 2-22, 37-38 and 54 are "MCase"fuses and should only be replaced by a work-
shop17.
FunctionAmpere
––
––
––
Movement sensor*5
Media player5
Instrument panel5
Center console buttons5
Sun sensor5
FunctionAmpere
Sensus control module20
––
Steering wheel module5
Module for start knob andparking brake controls5
Heated steering wheel* mod-ule15
––
––
––
––
Climate system control mod-ule10
––
Data link connector OBD-II 10
Center display5
Climate system blower module(front)40
FunctionAmpere
USB HUB5
Instrument lighting; Interiorlighting; Rearview mirror auto-dim function*; Rain and lightsensors*; Rear tunnel consolekeypad, rear seat*; Power frontseats*; Rear door control pan-els; Climate system blowermodule left/right
7.5
Control module for driver sup-port functions5
Panoramic roof with sun cur-tain*20
Head-up display*5
Passenger compartment light-ing5
––
Ceiling console display (seatbelt reminder/front passengerside airbag indicator)
5
––
Humidity sensor5
17An authorized Volvo workshop is recommended.

||
MAINTENANCE AND SERVICE
* Option/accessory.638
FunctionAmpere
Door module in right-side reardoor20
Fuses in the trunk/cargo com-partment10
Control module for Internet-connected vehicle; Controlmodule for Volvo On Call
5
Door module in left-side reardoor20
Audio control module (ampli-fier) (certain models only)40
––
Multi-band antenna module 5
Front seat massage function*5
––
Rear window wiper15
Fuel pump control module 15
Relay windings for distributionbox in engine compartment;Relay windings for transmis-sion oil pump
5
––
FunctionAmpere
Driver's seat heating15
Front passenger's seat heat-ing15
Coolant pump10
––
Power driver's seat*20
Active chassis control module*20
––
Sensus control module10
––
––
Power front passenger seat*20
––
TV* (certain markets only)5
Primary fuse for fuses 9, 53and 5815

Related information
Fuses and fuseboxes (p. 630)
Replacing fuses (p. 631)
