MAINTENANCE AND SERVICE
* Option/accessory.
640
Wash using a sponge, car washing deter- gent and plenty of lukewarm water.
Clean the wiper blades with lukewarmsoap solution or car washing detergent.
Dry the vehicle using a clean, soft chamoisor a squeegee. Try not to let drops ofwater dry in strong sunlight. This couldcause water drying stains that may needto be polished out.
In areas with heavy industrial emissions,more frequent washing of the vehicle'sexterior is recommended.
Tar spots from asphalt may remain evenafter washing. Use a tar remover toremove these spots.
WARNING
Always entrust engine washing to a work- shop. If the engine is hot, there is a risk offire.
CAUTION
Dirty headlights do not work as well. Clean them regularly, e.g. when refueling. Do not use corrosive cleaners. Use water and a non-abrasive sponge.
NOTE
Exterior lighting such as headlights and taillights may develop temporary conden-sation on the inside of the lens. This is nor-mal. All exterior lighting is designed toresist this. Condensation is normally ven-ted out of the lamp housing once the lighthas been lit for some period of time.
CAUTION

Make sure that the panoramic roof
*
and sun shade are closed before wash- ing the vehicle.
Never use abrasive polishing agents onthe panoramic roof.
Never use wax on the rubber sealsaround the panoramic roof.
CAUTION
Remember to remove dirt from the drain holes in the doors and sills after washingthe vehicle.
Related information
Cleaning the exterior (p. 638)
Polishing and waxing (p. 638)
Automatic car washes (p. 641)
High-pressure washing (p. 642)
Cleaning the wiper blades (p. 642)
Cleaning exterior plastic, rubber and trim components (p. 643)
Cleaning rims (p. 644)
Corrosion protection (p. 644)
Settings for automatically activating theparking brake (p. 413)

SPECIFICATIONS
663
Coolant specifications
Recommended grade: Volvo-approved pre-
mixed coolant. If concentrated coolant is used, mix with 50% water of acceptablequality (i.e. not salt water, etc.). Consult aVolvo retailer if you have any questions.
To avoid deterioration of the cooling system, engine trouble, etc., only approved Volvo cool-ant should be used.
WARNING
Coolant is hazardous if ingested and could cause damage to organs (kidneys). Theproduct contains ethylene glycol, inhibitor,water, etc.
Related information
Refilling coolant (p. 604)
Transmission fluid specifications
Under normal driving conditions, the trans- mission fluid will not need to be changed dur-ing the transmission's service life. However,it may need to be changed if the vehicle isdriven frequently in adverse driving condi-tions.
Automatic transmission
Prescribed transmission fluid: AW-1
Related information
Type designations (p. 654)
Brake fluid specifications
The medium in the hydraulic brake system is called brake fluid and is used to transfer brak-ing force from e.g. pressure on the brakepedal via a master brake cylinder to one ormore slave cylinders, which in turn act on amechanical brake.
Recommended grade: Volvo Original or simi-
lar fluid that meets a combination of Dot 4, 5.1 and ISO 4925 class 6.
NOTE
Changing or filling brake fluid should be entrusted to an authorized Volvo work-shop.
Related information
Engine compartment overview (p. 601)

SPECIFICATIONS
664

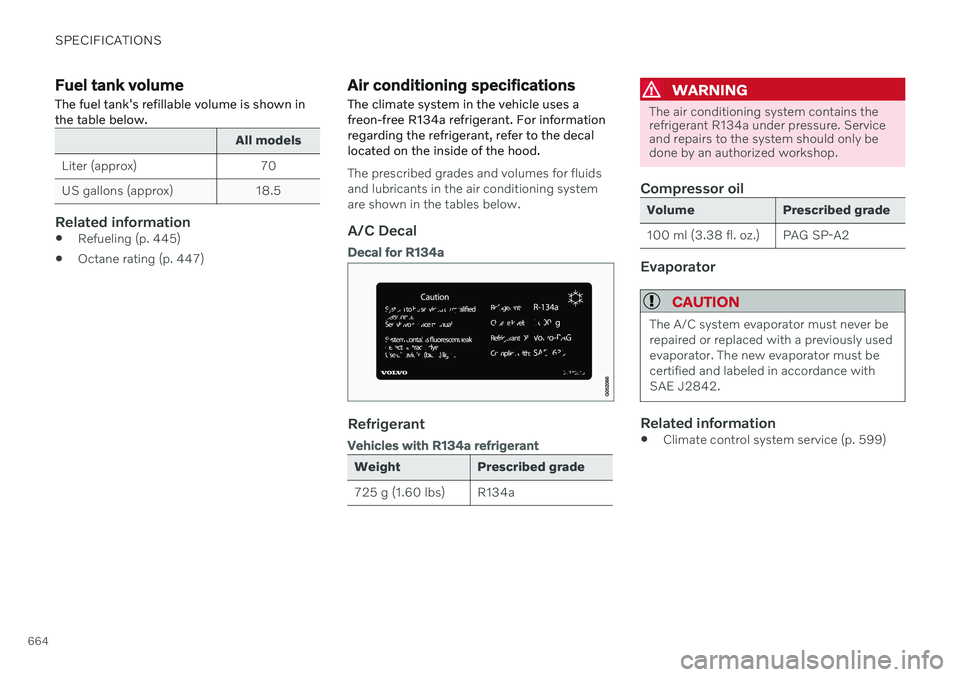

Fuel tank volume
The fuel tank's refillable volume is shown in the table below.
All models
Liter (approx) 70
US gallons (approx) 18.5
Related information
Refueling (p. 445)
Octane rating (p. 447)
Air conditioning specifications
The climate system in the vehicle uses a freon-free R134a refrigerant. For informationregarding the refrigerant, refer to the decallocated on the inside of the hood.
The prescribed grades and volumes for fluids and lubricants in the air conditioning systemare shown in the tables below.
A/C Decal
Decal for R134a
Refrigerant
Vehicles with R134a refrigerant
Weight Prescribed grade
725 g (1.60 lbs) R134a
WARNING
The air conditioning system contains the refrigerant R134a under pressure. Serviceand repairs to the system should only bedone by an authorized workshop.
Compressor oil
Volume Prescribed grade
100 ml (3.38 fl. oz.) PAG SP-A2
Evaporator
CAUTION
The A/C system evaporator must never be repaired or replaced with a previously usedevaporator. The new evaporator must becertified and labeled in accordance withSAE J2842.
Related information
Climate control system service (p. 599)

INDEX
667
1, 2, 3 ...
4WD 421
A
ABSanti-lock brakes 407
AC (Air conditioning) 225
Accessories and extra equipment 37 installation 38
Accessory installation warning 38, 39
Active Bending Lights 162
Adapting driving characteristics 423
Adaptive Cruise Control 282 activating 284
auto-brake 304
change cruise control functionality 288
limitations 287
manage speed 302
passing 308
set time interval 303
standby mode 286
switching target vehicles 301
Symbols and messages 289
troubleshooting 287
turn off 285
WARNING 300
Adjusting the steering wheel 202
Airbag 54
activation/deactivation 58
driver's side 55
passenger side 55, 58
Air bag, see Airbag 54
Air conditioning 225Air conditioning, fluid volume and grade 664
Air distribution 209 air vents 209, 211
changing 210
defrosting 220
recirculation 219
table showing options 212
Air quality 206, 208 allergy and asthma 208
passenger compartment filter 209
Air recirculation 219
Alarm 268 deactivating 269
Allergy and asthma-inducing sub-
stances 208
All Wheel Drive, AWD 421
All Wheel Drive (AWD) 421
All Wheel Drive (four-wheel drive) 421
Android Auto 504, 505, 506Antenna location 256
Apple CarPlay 500, 501, 503
Approach lighting 165
Apps 472
Assistance at risk of collision 355 activating/deactivating 356
at risk of run-off 356
during collision risks from behind 358during collision risks from oncoming
traffic 357
limitations 359
Symbols and messages 360
Audio and media 470 Audio system HD digital radio 481 SiriusXM ®
Satellite radio 482, 483,
484
Auto-climate 219
Auto hold 414
Auto-hold brakes 414 activating/deactivating 415
after collision 416
driver support 272
Automatic car wash 641
Automatic high beam 161
Automatic locking 260
INDEX

INDEX
669
keyboard 129
messages 143, 144
operation 115, 118, 122, 127
overview 113
settings 135, 136
switch off and change volume 134
symbols in status bar 127
views 118
Central locking 257
Change of owner 137
Changing a wheel 552 Charge vehicle function 441
Charge level vehicle function 441
Charging hybrid battery 385 opening and closing the charging
door 390
start charging 390
Status 392, 393, 394
stop charging 396
Charging cable 387
Charging current 387
Checking engine oil level 603
Child restraints 65, 67 booster cushions 74
convertible seats 71
infant seats 69
integrated booster cushion 78
ISOFIX/LATCH anchors 77
lower attachment points 76
recalls and registration 67
top tether anchors 75
Child safety 65
Child safety locks 259
Circuit breaker 389
City Safety 318 braking for oncoming vehicles 327
crossing traffic 324
delayed evasive maneuver 327
detecting obstacles 322
evasive maneuver 326
limitations 328
limitations for evasive maneuvers 326
limitations in crossing traffic 325
setting warning distance 321
sub-functions 319
Symbols and messages 331
Cleaning 635, 637 automatic car wash 641
car wash 638, 639, 641, 642, 643, 644
center display 633
Seat belts 635
textile upholstery 633, 635, 636upholstery 633, 635, 636, 637
wheels 644
Cleaning wheels 644
Cleaning wiper blades 642
Clean Zone 207
Clean Zone Interior Package 208
Climate 204 auto-regulation 219
blower control 222
parking 225
perceived temperature 205
Sensors 204
temperature control 223, 224
voice control 205
zones 204
Climate controls 215 center display 215
rear seat 215
Climate system 204, 215 Refrigerant 664
repairs 599
Clock, setting 96
Collision 44, 49, 54, 63 Collision warner crossing traffic rear 337
see City Safety 318

INDEX
670Collision warning
from the rear 332
Color code, paintwork 646
Color codes 646
Compass 467 calibration 468
Condensation in headlights 639, 641, 642, 643
Connecting vehicle to Internet No connection or poor connection 521
via a mobile device (WiFi) 517
via cellular phone (Bluetooth) 517
via vehicle's modem 518
Connect phone 508
Contact information 28
Convertible seats 71
coolant 663 filling 604
Cooling system overheating 450
Cornering assistance 306 activating/deactivating 307
limitations 307
Corner Traction Control 273
Corrosion protection 644 Covering cargo compartment 583
Crash, see Collision 44
Crash event data 35
Cross Traffic Alert 337
activating/deactivating 338
limitations 338
messages 340
Cruise control 279 activating 280
manage speed 302
standby mode 281
turn off 281
Curb weight 659
Customer Privacy Policy 37
CZIP (Clean Zone Interior Package) 208
D
Data recording 35 transferring between vehicle and
workshop 593
Data sharing 522, 523
Daytime running lights 158 Decals location 654
Defrosting 220
Detecting obstacles City Safety 322
Dimensions 657
Dipstick, electronic 603
Direction of rotation 540Display driver information 86
Display lighting 167
Distance Alert 277 activating/deactivating 278
limitations 278
Set time interval 303
DivX ®
496
Door mirrors 173 compass 467, 468
dimming 174
outer 173
power folding 174
resetting 174
store position 190, 191
Download Center 593 use 594
Driveline transmission 416
Drive mode 423 changing 428
driver support 305

INDEX
672Front seats, power 189
adjusting passenger seat from driv-
er's seat 197
adjusting seat 189
Lumbar support 195
massage 192, 193, 194
multifunction control 192, 193, 194, 195
Side bolsters 195
store position 190, 191
FSC, environmental labeling 25
Fuel 446 Travel Link service 489
Fuel filling 445
Fuel gauge 89
Fuel requirements 446, 447 Fuel tank volume 664
Fuse box 613
Fuses 613 below the glove compartment 622
in engine compartment 615
in the cargo compartment 628
replacing 613
G
Gasoline grade 446 Gauge fuel gauge 89
hybrid battery 90
Gear selector positions automatic transmission 418
Glass, laminated/reinforced 170
Glove compartment 575Gracenote ® 495
Grocery bag holders 579
Gross vehicle weight 659
H
Handbrake 411
Hand wash 639 Hard disk space 524
Hazard warning flashers 164
HDC 436
HD radio 479
Head restraint 199
Head-up display 145 activating/deactivating 147
cleaning 634
Distance Alert 277
replacing windshield 599
settings 147
store position 147, 190, 191
Heated wiper blades 180
Heater 233 auxiliary heater 233
parking heater 233
Heating Seats 216, 217
steering wheel 218
windows 221
Height adjustment 430, 433
high beams 160, 161
High engine temperature 450
Hill Descent Control 436, 437 activate with function button 437
Hill Start Assist 416 Hill Start Assist (HSA) 416
Hoisting the vehicle 597Hold vehicle function 441
HomeLink ® 463
programming 464
type approval 466
use 466

INDEX
674
K
Key 238
Keyboard 129, 132change language 132
Keyless locking/unlocking 254
settings 255
touch-sensitive surfaces 253
Key tag 238
L
Labels location 654
Laminated glass 170 Lamps changing 606
Trailer 460
Lane Keeping Aid 348 activating/deactivating 350
display 354
limitations 351
see Lane Keeping Aid 348
select assistance option 350
Symbols and messages 352
Language 135
Large Animal Detection (LAD) 322 Leather upholstery, cleaning instruc-
tions 636
Leveling control 430 settings 433
License agreement 101, 525
Lifting tools 553Light bulbs changing 606
Light control 156, 167Lighting Active Bending Lights 162
approach lighting 165
automatic high beam 161
brake lights 164
control, instrument, display 167
controls 156, 165
daytime running lights 158
emergency brake lights 164
Hazard warning flashers 164
high beams 160, 161
home safe lighting 165
in passenger compartment 165
low beams 159
position lights 158
rear fog light 163
settings 157
Turn signals 162Lighting, replacing bulbs 606
Limp home 416Load anchoring eyeletscargo compartment 580
Load anchoring hooks 579
Load carriers 579
Load index 542Loading general 577
load anchoring eyelets 580
long load 578
Lock indication 236 setting 237
Locking/unlocking Tailgate 242, 256
Locking wheel bolts 553 Locks locking/unlocking 240
Long-term storage 399Low battery charge level start battery 451
Low beams 159
Lower the rear end 578
Low oil level 603
Low-speed driving 435 activate with function button 436

INDEX
676Symbols and messages 382
use 377
parking on hills 413
Parking Assist 361 activating/deactivating 363
front, rear and sides 362
limitations 363
Symbols and messages 365
Parking brake 411 activating/deactivating 411
automatic activation 413
Low battery charge level 413
Parking climate 225 Symbols and messages 232
Parking heater 233
Passenger compartment filter 209 Passenger compartment heater (Parking
heater) 233
Passenger compartment interior 570 center console 571
electrical outlet 572
glove compartment 575
sun visor 577
Passenger compartment lighting 165 adjusting 167
auto switch 166
Passing assistance
Adaptive Cruise Control 308
Pilot Assist 308
starting with Pilot Assist 308
start with Adaptive Cruise Control 308
personal information (Customer Privacy
Policy) 37
Phone 507 changing to another 511
connect 508
connect automatically 510
connect manually 510
delete 511
disconnect 510
phone call 511, 514
text message 512
voice control 151
Pilot Assist 291 activating 294
auto-brake 304
disengaged steering assistance 297
limitations 297
manage speed 302
passing 308
set time interval 303
standby mode 296
switching target vehicles 301
Symbols and messages 299
turn off 295
WARNING 300pinch protection 170resetting 171
PIN code 519 Private locking 266
Polestar Engineered 430, 433
Polishing 638
Position lights 158
Power 661 electric motor 661
Power folding door mirrors 174
Power panoramic roof 176
Power save mode 451
Power seats 189
Power tailgate 261
Power windows 171, 172 pinch protection 170
Preconditioning 226 start/stop 226
timer 227
Pressure wash 642
Privacy Policy (Customer Privacy Policy) 37
Private locking 266 activating/deactivating 266
PROPOSITION 65 WARNING 451

INDEX
677
R
Radar sensorsee Radar sensor 309
Radar unit 309 limitations 313
maintenance and cleaning 317
type approval 310
Radio 474 changing radio waveband and radio
station 476
HD radio 479
RBDS 478
search radio station 476
settings 478 SiriusXM ® Satellite radio 482, 483,
484
start 475
voice control 152
Radio favorites 477
Rain sensor 181, 182
Rain sensor's memory function 182
Raise the rear end 578
Rear camera 366
Rear Collision Warning 332 limitations 332
Rear seat
climate 215
folding backrest 198
head restraint 199
heating 217
Rearview/door mirrors adjusting door mirrors 174
dimming 174
heating 221
interior 173
Rearview mirror 173 dimming 174
Rear window heating 221
washers 184, 185
wipers 184, 185
Recalls 47
Recommendations when driving 442
Recommendations when loading 577
Recovery 462Red Key restricted remote key 247
settings 248
Refrigerant 599 climate system 664
Refueling filling 445
fuel filler door, fuel flap 444Remote immobilizer 251
Remote key 238battery replacement 243
connecting to driver profile 141
detachable key blade 249
loss 246
Range 242
Remote updates 593
Reporting safety defects 46
Resetting door mirrors 174
Resetting settings 137 change of owner 137
Driver profile 143
Resetting trip odometer 94
Road Sign Information 341 activating/deactivating 342
display 342
limitations 345
Sensus Navigation 343
settings 344
speed camera information 343
Speed warning 343
Road trip 442
Roll-over protection 277
Roll Stability Control 277
Roof load, max. weight 659
Run-off Mitigation 356
