engine VOLVO XC70 2006 Owner´s Manual

This manual deals with the operation and care of your Volvo
Welcome to the worldwide family of Volvo owners.
We trust that you will enjoy many years of safe driv-
ing in your Volvo, an automobile designed with your
safety and comfort in mind. To help ensure your
satisfaction with this vehicle, we encourage you to
familiarize yourself with the equipment descriptions,
operating instructions and maintenance requirements/
recommendations in this manual. We also urge you
and your passengers to wear seat belts at all times in
this or any other automobile. And, of course, please
do not operate a vehicle if you may be affected by
alcohol, medication or any impairment that could
hinder your ability to drive.Your Volvo is designed to meet all applicable safety and
emission standards, as evidenced by the certification
labels attached to the driver's door opening and on the
left wheel housing in the engine compartment.
For further information please contact your
retailer, or:
In the USA: In Canada:
Volvo Cars of North America Volvo Cars of Canada Ltd.
Customer Care Center National Customer Service
P.O. Box 914 175 Gordon Baker Road
Rockleigh, New Jersey 07647-0914 North York, Ontario M2H 2N7
1-800-458-1552 1-800-663-8255
www.volvocars.us
www.volvocanada.com

General information
Important
Before you operate your car for the first time, please familiarize
yourself with the new-engine oil consumption information on page
160. You should also be familiar with the information in chapters
one, two and four of this manual.
Information contained in the balance of the manual is extremely
useful and should be read after operating the vehicle for the first
time.
The manual is structured so that it can be used for reference. For
this reason, it should be kept in the car for ready access.
Do not export your Volvo to another country before investigating
that country’s applicable safety and exhaust emission requirements.
In some cases it may be difficult or impossible to comply with these
requirements. Modifications to the emission control system(s) may
render your Volvo not certifiable for legal operation in the U.S.,
Canada and other countries.
All information, illustrations and specifications contained in this
manual are based on the latest product information available at the
time of publication. Please note that some vehicles may be equipped
differently, depending on special legal requirements and that
optional equipment described in this manual may not be available in
all markets.
Volvo reserves the right to make model changes at any time, or to
change specifications or design, without notice and without
incurring obligation.
CALIFORNIA Proposition 65 Warning
WARNING! Engine exhaust, some of its constituents, and certain
vehicle components contain or emit chemicals known to the state of
California to cause cancer, and birth defects or other reproductive
harm. In addition, certain fluids contained in vehicles and certain
products of component wear contain or emit chemicals known to the
State of California to cause cancer, and birth defects or other
reproductive harm.
Shiftlock
When your car is parked, the gear selector is locked in the (P)ark
position. To release the selector from this position, turn the ignition key
to position II (or start the engine), depress the brake pedal, press the
button on the front of the gear selector knob and move the selector from
(P)ark.
Keylock
This means that when you switch off the ignition, the gear selector must
be in the (P)ark position before the key can be removed from the
ignition switch.
Anti-lock Brake System (ABS)
The ABS system in your car performs a self-diagnostic test when the
vehicle first reaches the speed of approximately 12 mph (20 km/h). The
brake pedal will pulsate several times and a sound may be audible from
the ABS control module. This is normal.
Fuel filler door
Press the button on the light switch panel (see page 35) when the car is at
a standstill to unlock the fuel filler door. Please note that the fuel filler
door will remain unlocked until the car begins to move forward.
An audible click will be heard when the fuel filler door relocks.
Fuel filler cap
After refueling, close the fuel filler cap by turning it clockwise until it
clicks into place. If this cap is not closed tightly or if the engine is
running when the car is refueled, the Malfunction Indicator Lamp
(“Check Engine” light) may indicate a fault.
WARNING! If your vehicle is involved in an accident, unseen damage
may affect your vehicle's driveability and safety.

Volvo and the environment
In addition to continuous environmental refinement of conventional
gasoline-powered internal combustion engines, Volvo is actively looking
at advanced technology alternative-fuel vehicles.
When you drive a Volvo, you become our partner in the work to lessen
the car's impact on the environment.
To reduce your vehicle's environmental impact, you can:
•Maintain proper air pressure in your tires. Tests have shown de-
creased fuel economy with improperly inflated tires
•Follow the recommended maintenance schedule in your Warranty and
Service Records Information booklet.
•Drive at a constant speed
•See an authorized Volvo retailer as soon as possible for inspection if
the check engine (malfunction indicator) lamp
illuminates, or stays on
after the vehicle has started
•Properly dispose of any vehicle related waste such as used motor oil,
used batteries, brake pads, etc.
•When cleaning your car, use Volvo's own car care products, all of
which have systematically been adapted to the environment
PremAir®
On the surface of the radiator in the engine compartment, there is a special
coating called PremAir®. PremAir® works as a catalytic converter,
converting most of the ozone passing through the radiator into oxygen,
thereby reducing harmful ground-level ozone.
PremAir is a registered trademark of Engelhard Corporation.
Volvo is committed to the well being of our customers. As a natural
part of this commitment, we care about the environment in which we all
live. Caring for the environment means an everyday involvement in
reducing our environmental impact.
Volvo's environmental activities are based on a holistic view, which
means we consider the overall environmental impact of a product
throughout its complete life cycle. In this context, design, production,
product use, and recycling are all important considerations.
In production, Volvo has partly or completely phased out several
chemicals including freons, lead chromates, naphtanates, asbestos,
mercury and cadmium; and reduced the amount of chemicals used in
our plants 50% since 1991.
In use, Volvo was the first in the world to introduce into production a
three-way catalytic converter with a Lambda sond, now called oxygen
sensor, in 1976. The current version of this highly efficient system
reduces emissions of harmful substances (CO, HC, NOx) from the
exhaust pipe by approximately 95% and the search to eliminate the
remaining emissions continues. Volvo is the only automobile manufac-
turer to offer CFC-free retrofit kits for the air conditioning system for
all models as far back as the M/Y 1975 240. Advanced electronic
engine controls, refined purification systems and cleaner fuels are
bringing us closer to our goal.
After Volvo cars and parts have fulfilled their use, recycling is the next
critical step in completing the life cycle. The metal content is about
75% of the total weight of a car, which makes the car among the most
recycled industrial products. In order to have efficient and well con-
trolled recycling, many Volvo variants have printed dismantling
manuals, indicating the weight and material of individual components.
For Volvo, all homogeneous plastic parts weighing more than 1.7 oz.
(50 grams) are marked with international symbols that indicate how the
component is to be sorted for recycling.

5

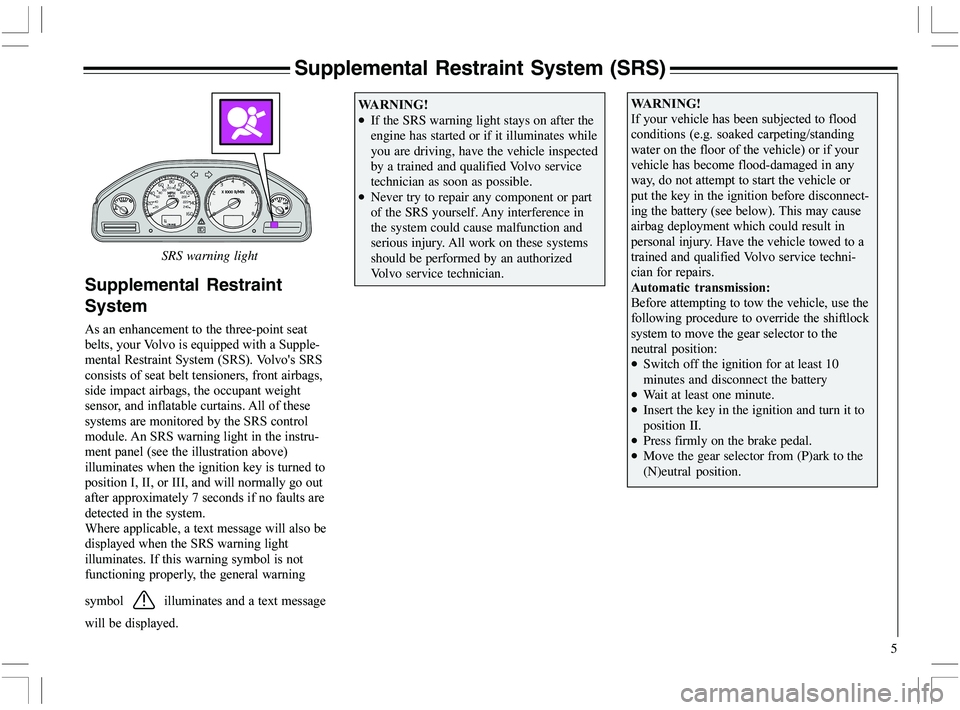

Supplemental Restraint System (SRS)
SRS warning light
Supplemental Restraint
System
(



 6
)

" 
) ,)")1
6? )")

  







 




(

)")

()")
 

,  

1

  
 



8
.




4


8



)")












8





•If the SRS warning light stays on after the
engine has started or if it illuminates while
you are driving, have the vehicle inspected
by a trained and qualified Volvo service
technician as soon as possible.
•Never try to repair any component or part
of the SRS yourself. Any interference in
the system could cause malfunction and
serious injury. All work on these systems
should be performed by an authorized
Volvo service technician.


 >
  ,



$


1











, 1






>






6 






 


<



 

  #
•Switch off the ignition for at least 10
minutes and disconnect the battery
•Wait at least one minute.
•Insert the key in the ignition and turn it to
position II.
•Press firmly on the brake pedal.
•Move the gear selector from (P)ark to the
(N)eutral position.

18

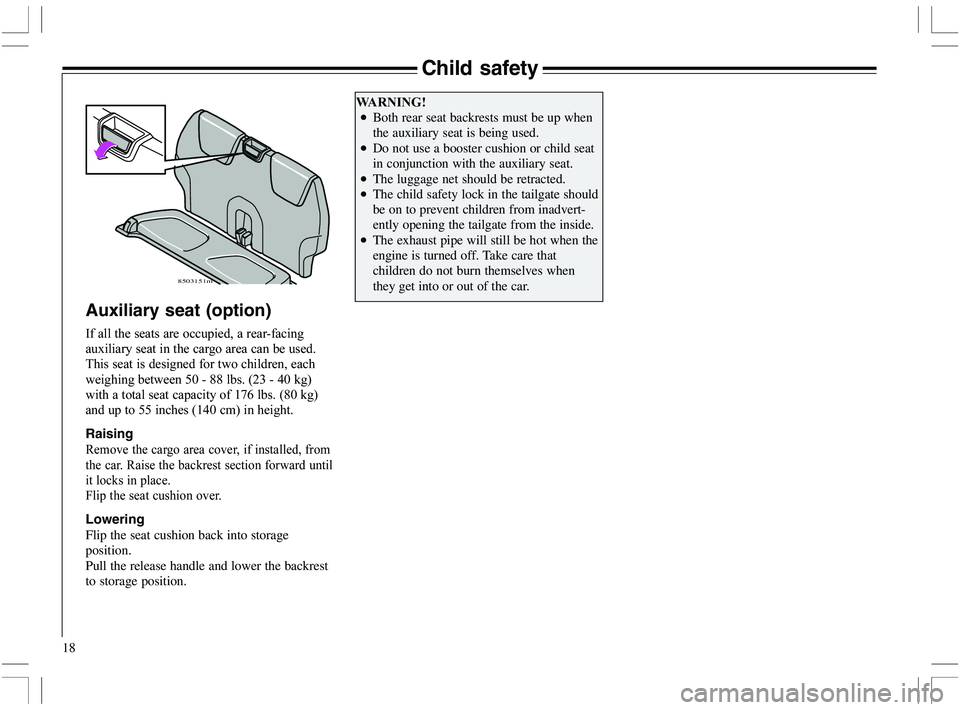

Child safety
Auxiliary seat (option)







8








  

F2 &&
,*- /21





%.0
,&21
FF ,%/21

Raising
"






"

  




@
 

Lowering
Flip the seat cushion back into storage
position.
Pull the release handle and lower the backrest
to storage position.
8503151m


•Both rear seat backrests must be up when
the auxiliary seat is being used.
•Do not use a booster cushion or child seat
in conjunction with the auxiliary seat.
•The luggage net should be retracted.
•The child safety lock in the tailgate should
be on to prevent children from inadvert-
ently opening the tailgate from the inside.
•The exhaust pipe will still be hot when the
engine is turned off. Take care that
children do not burn themselves when
they get into or out of the car.

27
Instrument panel
1 Turn signals
2 Text window
3 Temperature gauge
The pointer should be approximately midway
on the gauge when driving.
Do not drive the car if the warning light is
on. The text window will provide you with
additional information.
If the engine temperature remains high, check
coolant level - see page 154.
4 Trip odometer/reset button
The trip odometer is used for measuring
shorter distances. The last digit indicates 1/10
mile/kilometer. Press the button quickly to
toggle between trip odometers 1 and 2. Hold in
the button for more than 2 seconds to reset.
5 Odometer
6 Speedometer
7 General warning light (see page 28).
23800662d346
5119
8
7 101312
1
14
Please note that this symbol does not
indicate a fault with your car.
At low speeds or when the car is not moving,
the temperature readings may be slightly
higher than the actual ambient temperature.
12 Clock/reset button
Turn the button to adjust the clock.
13 Fuel gauge

\b
\f
 \f \b
\f
\b

\f
\b\f\f
 !
" #$%\b&
'\b\f\f
 !" #(\b&
When the warning light comes on there are
approximately 2.1 US gal. (8 liters) of fuel
remaining.
14 Indicator and warning lights
8 High beam indicator light
9 Tachometer
Indicates engine speed in thousands of rpm.
Do not drive for long with the needle in the red
section. The engine has an built-in function
preventing too high engine speed. When this
function operates, you may discern some
pulsation, which is normal.
10 Gear and driving mode indicator
The currently selected driving mode is
displayed here. If you use the Geartronic
function on the automatic transmission, the
currently selected gear will be displayed.
11 Ambient temperature indicator
This display indicates the air temperature
outside your car. A "snowflake" symbol in the
text window is displayed when the temperature
is in the range of 23 - 36° F (-5 - +2° C).

28
Indicator and warning lights
The indicator and warning lights described on pages 28 and 29 should never stay on when driving*
When the ignition key is turned, all of the warning lights in the lower
right-hand side of the instrument panel should go on to test the function
of the bulbs. If a light does not go off after the engine has started, thesystem indicated should be inspected.
NOTE: The parking brake reminder light will not go off until the
parking brake has been fully released.
Warning lamp in the
center of the instrument
panel
This lamp lights up red or yellow depending
on the severity of the fault that has been
detected.
Red symbol - Stop the vehicle as soon as
possible in a suitable location and read the
message shown in the text window. The
symbol and accompanying text will remain on
until the fault has been corrected.
Yellow symbol - Follow the instructions
shown in the text window. The text can be





A6

(






  

   


Parking
Brake
Parking brake reminder light



,

1








5





#
Generator warning light





BRAKE
Brake failure warning light
!


"

&


$
 '
(

 '
(


$ $!
&

&
#)
%F&

 

5





#
Oil pressure warning light
!


"

&
 '
(

(



$

&
"





)
%02

 * Rear fog light, if used, and trailer turn signal,
if towing a trailer, will go on while driving.
3801130m
erased by pressing the READ button (see page
30), or will disappear automatically after two
minutes.
NOTE: When the message “TIME FOR
REGULAR SERVICE” is displayed, the text
can be erased and the yellow symbol light can
be turned off by pressing the READ button.
The text will disappear and the symbol light
will go out automatically after two minutes.

29
Indicator and warning lights



=
6




Anti-lock Brake System ABS

 

(<)  ,



   1


6


)
%%/





Stability Traction Control (STC) system
(option), or Dynamic Stability Traction
Control (DSTC) system (option)


)5
')5

A


)
 %%F %%0




Turn signal indicator - trailer (certain
models)






 







C 
 

C 


Seat belt reminder





 $


Tire pressure warning light
)
%*-



Rear fog light symbol





CHECK
ENGINE
Malfunction indicator lamp
On-Board Diagnostics II (OBDII): As you
drive, a computer called “OBDII” monitors
your car’s engine, transmission, electrical and
emission systems. The CHECK ENGINE
light will light up if the computer senses a
condition that potentially may need correcting.
When this happens, please have your car
checked by a Volvo retailer as soon as
possible.
(5
H5!HBH





)



C

H




 


H8



 



5





#
#

 

 7

G







C
Supplemental Restraint System (SRS)



 

8
%2




)")  C







 






$







 , 1




6 




32

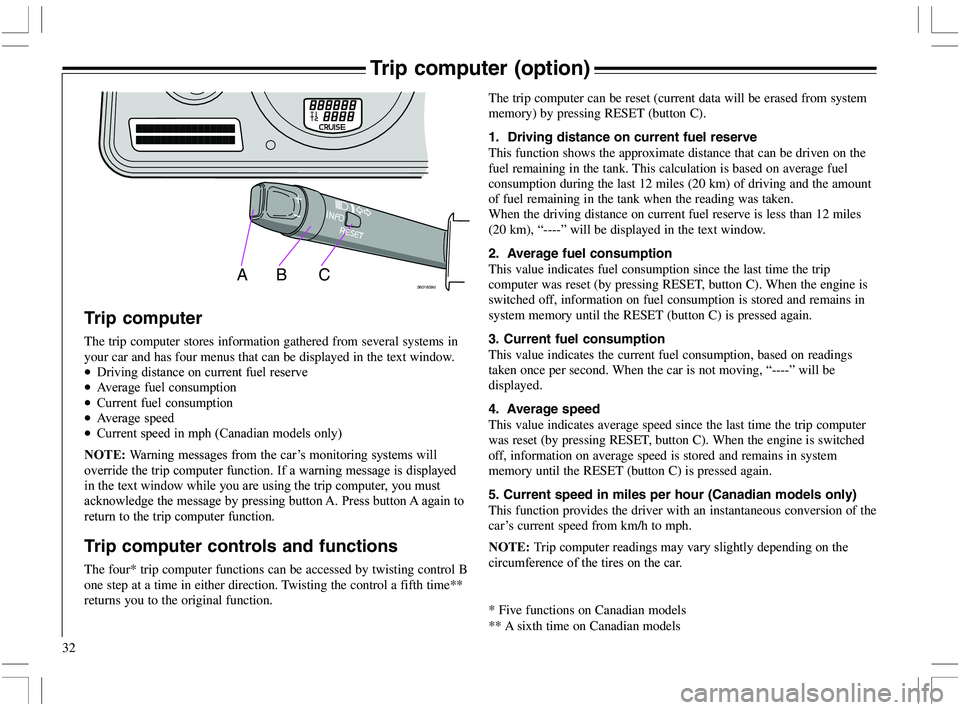

Trip computer (option)
ABC3601859d
Trip computer
The trip computer stores information gathered from several systems in
your car and has four menus that can be displayed in the text window.
•'
 
•(

•5
•(

•5 ,5


 1
4

 
C 






8
 

 (
9 (




Trip computer controls and functions
The four* trip computer functions can be accessed by twisting control B
one step at a time in either direction. Twisting the control a fifth time**
returns you to the original function.The trip computer can be reset (current data will be erased from system
memory) by pressing RESET (button C).
1. Driving distance on current fuel reserve
This function shows the approximate distance that can be driven on the
fuel remaining in the tank. This calculation is based on average fuel
consumption during the last 12 miles (20 km) of driving and the amount
of fuel remaining in the tank when the reading was taken.
When the driving distance on current fuel reserve is less than 12 miles
(20 km), “----” will be displayed in the text window.
2. Average fuel consumption
This value indicates fuel consumption since the last time the trip
computer was reset (by pressing RESET, button C). When the engine is
switched off, information on fuel consumption is stored and remains in
system memory until the RESET (button C) is pressed again.
3. Current fuel consumption
This value indicates the current fuel consumption, based on readings
taken once per second. When the car is not moving, “----” will be
displayed.
4. Average speed
This value indicates average speed since the last time the trip computer
was reset (by pressing RESET, button C). When the engine is switched
off, information on average speed is stored and remains in system
memory until the RESET (button C) is pressed again.
5. Current speed in miles per hour (Canadian models only)
This function provides the driver with an instantaneous conversion of the
car’s current speed from km/h to mph.







* Five functions on Canadian models
** A sixth time on Canadian models

49

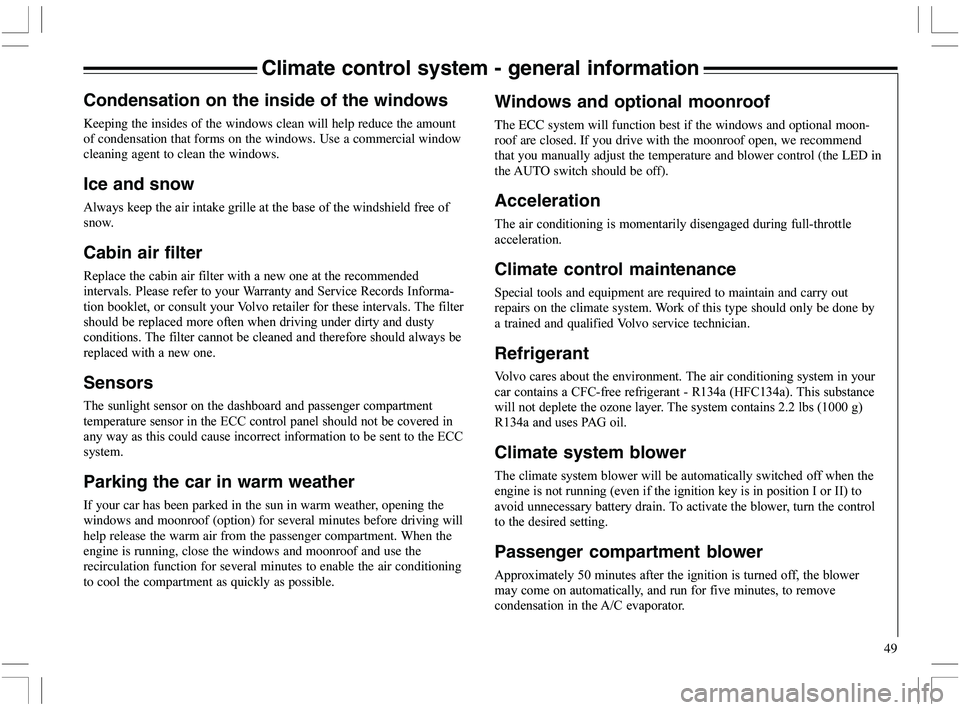

Climate control system - general information
Condensation on the inside of the windows
Keeping the insides of the windows clean will help reduce the amount
of condensation that forms on the windows. Use a commercial window
cleaning agent to clean the windows.
Ice and snow
(




 


Cabin air filter
"







9
4


)" 

 6
 
















Sensors
   






  H55
 



 
 H55


Parking the car in warm weather
If your car has been parked in the sun in warm weather, opening the
windows and moonroof (option) for several minutes before driving will
help release the warm air from the passenger compartment. When the
engine is running, close the windows and moonroof and use the
recirculation function for several minutes to enable the air conditioning
to cool the compartment as quickly as possible.
Windows and optional moonroof
The ECC system will function best if the windows and optional moon-
roof are closed. If you drive with the moonroof open, we recommend
that you manually adjust the temperature and blower control (the LED in
the AUTO switch should be off).
Acceleration



   



Climate control maintenance
Special tools and equipment are required to maintain and carry out
repairs on the climate system. Work of this type should only be done by
a trained and qualified Volvo service technician.
Refrigerant
6



  



5@5 
 "%-/
,
@5%-/
1


A


 *
* ,%2221
"%-/

  9(B

Climate system blower

  



 ,  1







 

Passenger compartment blower
(8
F2
 





 

($5
