key VOLVO XC70 2006 Owner´s Manual

Contents
© 2005 Volvo Cars of North America, LLC
Chapter 1 - Safety 1
Chapter 2 - Instruments, switches and controls 23
Chapter 3 - Climate control system 47
Chapter 4 - Interior 57
Chapter 5 - Keys, Locks, Alarm 79
Chapter 6 - Starting and driving 87
Chapter 7 - Wheels and tires 117
Chapter 8 - Maintenance/Servicing 135
Chapter 9 - Specifications 165
Chapter 10 - Audio systems 175
HomeLink® Universal Transceiver (option) 192
Index 195

General information
Important
Before you operate your car for the first time, please familiarize
yourself with the new-engine oil consumption information on page
160. You should also be familiar with the information in chapters
one, two and four of this manual.
Information contained in the balance of the manual is extremely
useful and should be read after operating the vehicle for the first
time.
The manual is structured so that it can be used for reference. For
this reason, it should be kept in the car for ready access.
Do not export your Volvo to another country before investigating
that country’s applicable safety and exhaust emission requirements.
In some cases it may be difficult or impossible to comply with these
requirements. Modifications to the emission control system(s) may
render your Volvo not certifiable for legal operation in the U.S.,
Canada and other countries.
All information, illustrations and specifications contained in this
manual are based on the latest product information available at the
time of publication. Please note that some vehicles may be equipped
differently, depending on special legal requirements and that
optional equipment described in this manual may not be available in
all markets.
Volvo reserves the right to make model changes at any time, or to
change specifications or design, without notice and without
incurring obligation.
CALIFORNIA Proposition 65 Warning
WARNING! Engine exhaust, some of its constituents, and certain
vehicle components contain or emit chemicals known to the state of
California to cause cancer, and birth defects or other reproductive
harm. In addition, certain fluids contained in vehicles and certain
products of component wear contain or emit chemicals known to the
State of California to cause cancer, and birth defects or other
reproductive harm.
Shiftlock
When your car is parked, the gear selector is locked in the (P)ark
position. To release the selector from this position, turn the ignition key
to position II (or start the engine), depress the brake pedal, press the
button on the front of the gear selector knob and move the selector from
(P)ark.
Keylock
This means that when you switch off the ignition, the gear selector must
be in the (P)ark position before the key can be removed from the
ignition switch.
Anti-lock Brake System (ABS)
The ABS system in your car performs a self-diagnostic test when the
vehicle first reaches the speed of approximately 12 mph (20 km/h). The
brake pedal will pulsate several times and a sound may be audible from
the ABS control module. This is normal.
Fuel filler door
Press the button on the light switch panel (see page 35) when the car is at
a standstill to unlock the fuel filler door. Please note that the fuel filler
door will remain unlocked until the car begins to move forward.
An audible click will be heard when the fuel filler door relocks.
Fuel filler cap
After refueling, close the fuel filler cap by turning it clockwise until it
clicks into place. If this cap is not closed tightly or if the engine is
running when the car is refueled, the Malfunction Indicator Lamp
(“Check Engine” light) may indicate a fault.
WARNING! If your vehicle is involved in an accident, unseen damage
may affect your vehicle's driveability and safety.

5
Supplemental Restraint System (SRS)
SRS warning light
Supplemental Restraint
System
(



 6
)

" 
) ,)")1
6? )")

  







 




(

)")

()")
 

,  

1

  
 



8
.




4


8



)")












8





•If the SRS warning light stays on after the
engine has started or if it illuminates while
you are driving, have the vehicle inspected
by a trained and qualified Volvo service
technician as soon as possible.
•Never try to repair any component or part
of the SRS yourself. Any interference in
the system could cause malfunction and
serious injury. All work on these systems
should be performed by an authorized
Volvo service technician.


 >
  ,



$


1











, 1






>






6 






 


<



 

  #
•Switch off the ignition for at least 10
minutes and disconnect the battery
•Wait at least one minute.
•Insert the key in the ignition and turn it to
position II.
•Press firmly on the brake pedal.
•Move the gear selector from (P)ark to the
(N)eutral position.

28
Indicator and warning lights
The indicator and warning lights described on pages 28 and 29 should never stay on when driving*
When the ignition key is turned, all of the warning lights in the lower
right-hand side of the instrument panel should go on to test the function
of the bulbs. If a light does not go off after the engine has started, thesystem indicated should be inspected.
NOTE: The parking brake reminder light will not go off until the
parking brake has been fully released.
Warning lamp in the
center of the instrument
panel
This lamp lights up red or yellow depending
on the severity of the fault that has been
detected.
Red symbol - Stop the vehicle as soon as
possible in a suitable location and read the
message shown in the text window. The
symbol and accompanying text will remain on
until the fault has been corrected.
Yellow symbol - Follow the instructions
shown in the text window. The text can be





A6

(






  

   


Parking
Brake
Parking brake reminder light



,

1








5





#
Generator warning light





BRAKE
Brake failure warning light
!


"

&


$
 '
(

 '
(


$ $!
&

&
#)
%F&

 

5





#
Oil pressure warning light
!


"

&
 '
(

(



$

&
"





)
%02

 * Rear fog light, if used, and trailer turn signal,
if towing a trailer, will go on while driving.
3801130m
erased by pressing the READ button (see page
30), or will disappear automatically after two
minutes.
NOTE: When the message “TIME FOR
REGULAR SERVICE” is displayed, the text
can be erased and the yellow symbol light can
be turned off by pressing the READ button.
The text will disappear and the symbol light
will go out automatically after two minutes.

31

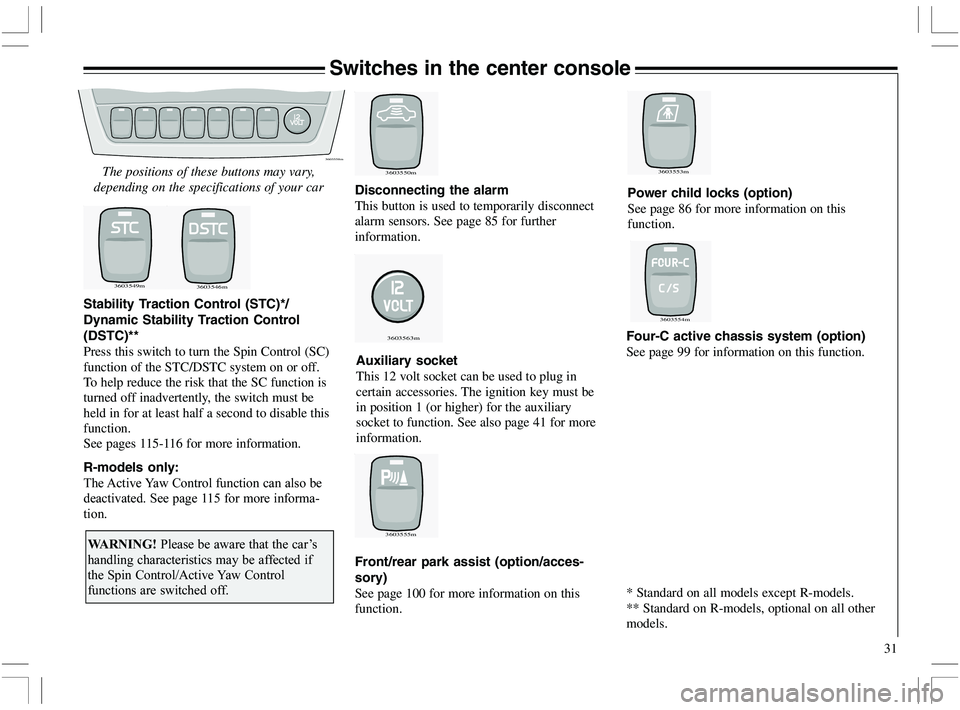

Switches in the center console
The positions of these buttons may vary,
depending on the specifications of your car
Stability Traction Control (STC)*/
Dynamic Stability Traction Control
(DSTC)**
Press this switch to turn the Spin Control (SC)
function of the STC/DSTC system on or off.
To help reduce the risk that the SC function is
turned off inadvertently, the switch must be
held in for at least half a second to disable this
function.
See pages 115-116 for more information.
R-models only:
(
5





)
%%F




9




C






)5$(
5



* Standard on all models except R-models.
** Standard on R-models, optional on all other
models. Disconnecting the alarm
This button is used to temporarily disconnect
alarm sensors. See page 85 for further
information.
3603558m
3603549m3603546m
3603555m
3603550m
Auxiliary socket
This 12 volt socket can be used to plug in
certain accessories. The ignition key must be
in position 1 (or higher) for the auxiliary
socket to function. See also page 41 for more
information.
Front/rear park assist (option/acces-
sory)
See page 100 for more information on this
function.
3603563m
3603553m
Power child locks (option)
See page 86 for more information on this
function.
3603554m
Four-C active chassis system (option)
See page 99 for information on this function.

42

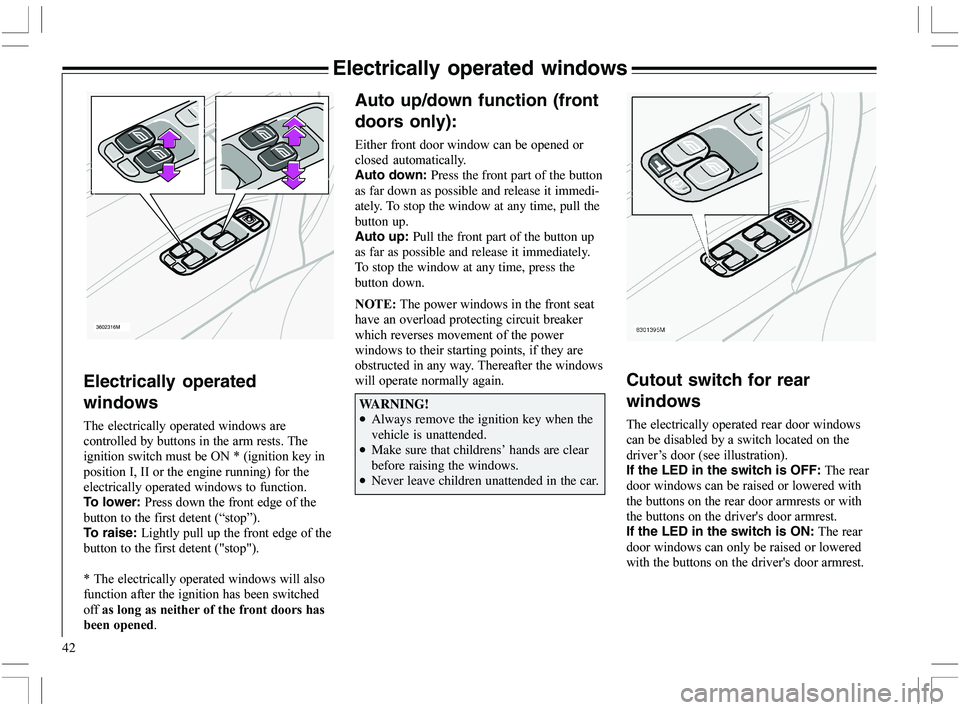

Electrically operated windows
Electrically operated
windows







  +N,
 1




To lower:9 
 ,: ;1

To raise:G
 ,I I1

N







 

! !




(

Auto up/down function (front
doors only):
H






Auto down: Press the front part of the button
as far down as possible and release it immedi-
ately. To stop the window at any time, pull the
button up.
Auto up: Pull the front part of the button up
as far as possible and release it immediately.
To stop the window at any time, press the
button down.
 






  
 


 










WARNING!
•Always remove the ignition key when the
vehicle is unattended.
•Make sure that childrens’ hands are clear
before raising the windows.
•Never leave children unattended in the car.
Cutout switch for rear
windows









C   ,   
1

If the LED in the switch is OFF:



 
 

  
 ? 


If the LED in the switch is ON:



 
 ? 


3602316M

58

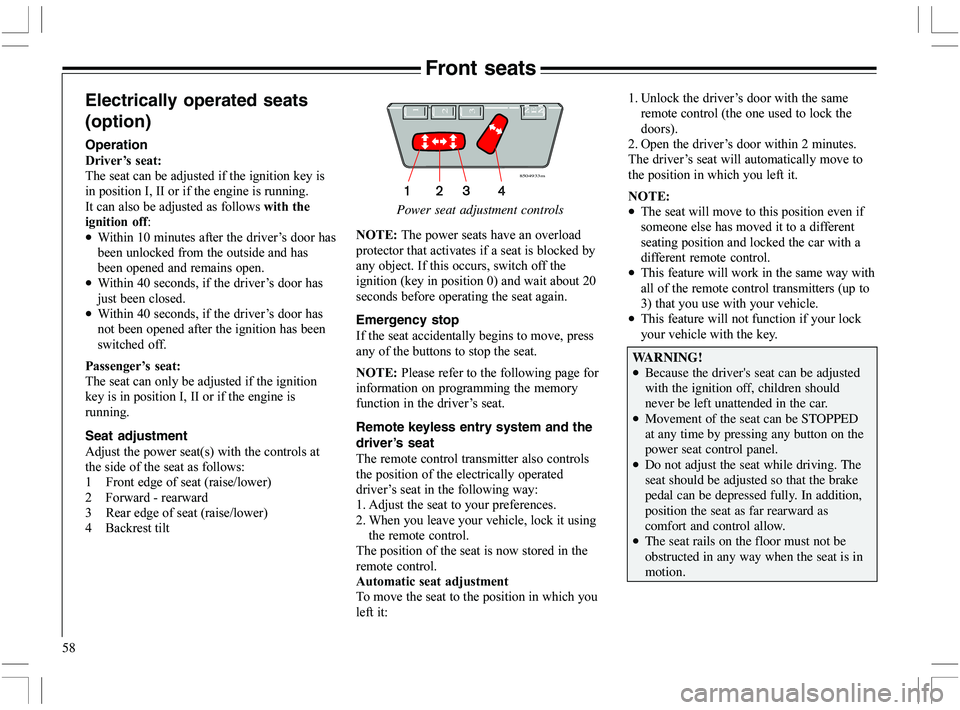

Front seats
Power seat adjustment controls
Electrically operated seats
(option)
Operation
-
&% 



>
  




>
 "




!!#
•4%2
C 








•4/2  C 

>

•4/2  C 






0 % 



>
  


Seat adjustment
(> 
, 1



 #
%@
,
 $1
*@
 


-"

,
 $1
/<

123
8504933m
M
E
M











>
 
, 21


*2
 





Emergency stop



 



9



  
  
C


Remote keyless entry system and the
driver’s seat

 
 
 


C

#
%
(>


*
4

  


  
 



   2


#%
=C 

,
 1

*
+C *

C







•








  

•




  ,
-1
 

•



WARNING!
•Because the driver's seat can be adjusted
with the ignition off, children should
never be left unattended in the car.
•Movement of the seat can be STOPPED
at any time by pressing any button on the
power seat control panel.
•Do not adjust the seat while driving. The
seat should be adjusted so that the brake
pedal can be depressed fully. In addition,
position the seat as far rearward as
comfort and control allow.
•The seat rails on the floor must not be
obstructed in any way when the seat is in
motion.

76

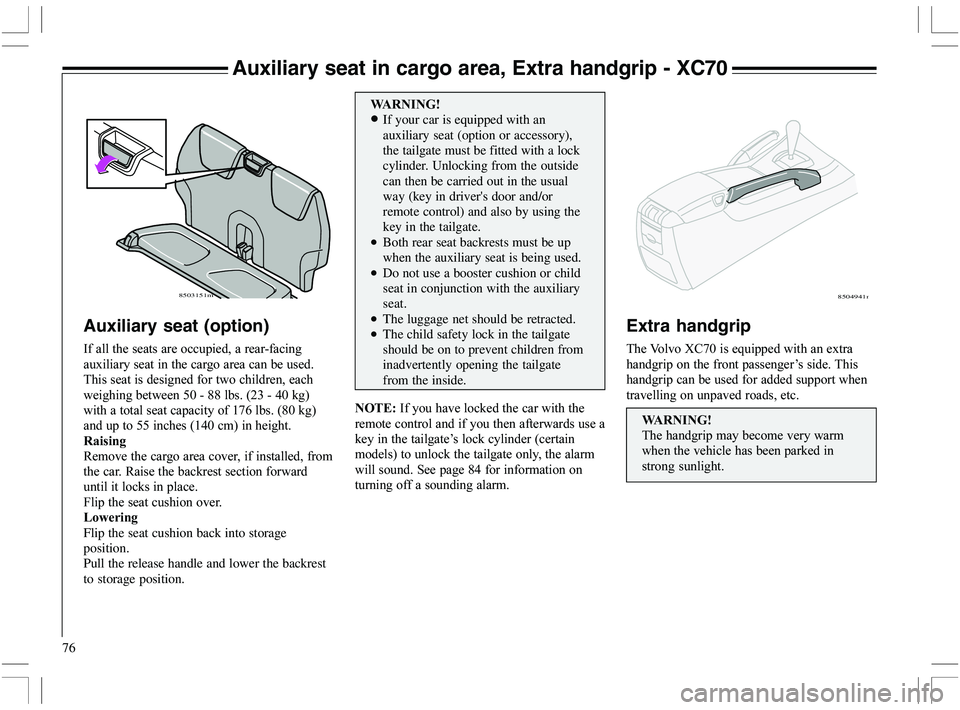

Auxiliary seat in cargo area, Extra handgrip - XC70
Extra handgrip
6J5.2
8


C



 
 





Auxiliary seat (option)







8








  

F2 &&
,*- /21





%.0
,&21
FF ,%/21




"






"

  




@
 

+
"

Flip the seat cushion back into storage
position.
Pull the release handle and lower the backrest
to storage position.


•If your car is equipped with an
auxiliary seat (option or accessory),
the tailgate must be fitted with a lock
cylinder. Unlocking from the outside
can then be carried out in the usual
way (key in driver's door and/or
remote control) and also by using the
key in the tailgate.
•Both rear seat backrests must be up
when the auxiliary seat is being used.
•Do not use a booster cushion or child
seat in conjunction with the auxiliary
seat.
•The luggage net should be retracted.
•The child safety lock in the tailgate
should be on to prevent children from
inadvertently opening the tailgate
from the inside.









C ,

 1





)
&/






8503151m8504941m











79

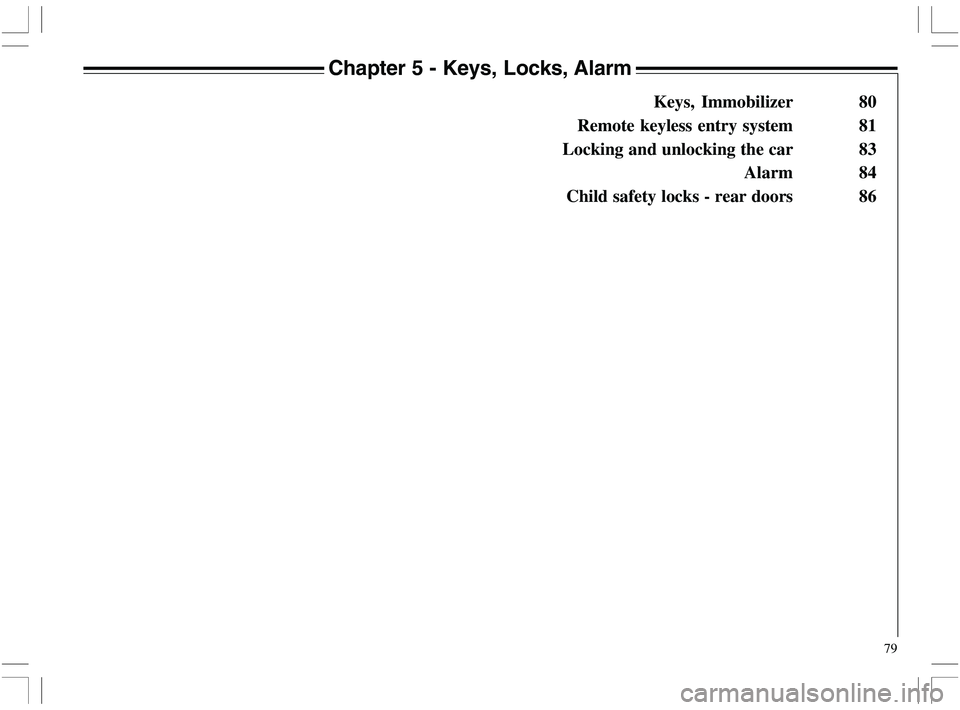

Chapter 5 - Keys, Locks, Alarm
Keys, Immobilizer 80
Remote keyless entry system 81
Locking and unlocking the car 83
Alarm 84
Child safety locks - rear doors 86

80

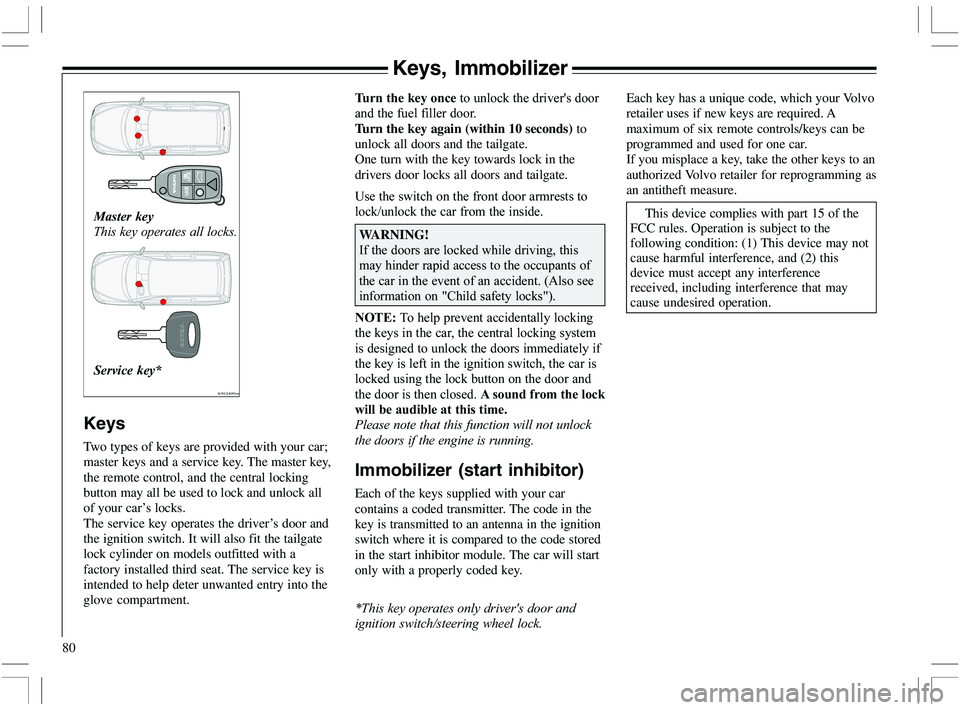

Keys, Immobilizer


(%"
,
%&



0(%"
,
"1




%&
Keys
Two types of keys are provided with your car;
master keys and a service key. The master key,
the remote control, and the central locking
button may all be used to lock and unlock all
of your car’s locks.
The service key operates the driver’s door and
the ignition switch. It will also fit the tailgate
lock cylinder on models outfitted with a
factory installed third seat. The service key is
intended to help deter unwanted entry into the
glove compartment. $
? 


Turn the key again (within 10 seconds) to
unlock all doors and the tailgate.
One turn with the key towards lock in the
drivers door locks all doors and tailgate.
=  

$


WARNING!











,(

I5
 I1







  



 



!

$
"



#

!




%


!
&
Immobilizer (start inhibitor)
Each of the keys supplied with your car
contains a coded transmitter. The code in the
key is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The car will start
only with a properly coded key.
8302499m
Each key has a unique code, which your Volvo
retailer uses if new keys are required. A
maximum of six remote controls/keys can be
programmed and used for one car.
If you misplace a key, take the other keys to an
authorized Volvo retailer for reprogramming as
an antitheft measure.
This device complies with part 15 of the
FCC rules. Operation is subject to the
following condition: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
