reserve capacity as the original (See the decal on the battery).
WARNING!
The distributor ignition system operates at very high voltages. Special \
safety precautions must be
followed to prevent injury. Always turn the ignition off when:
l Replacing distributor ignition components e.g. plugs, coil, etc.
l Do not touch any part of the distributor ignition system while the engin\
e is running. This may
result in unintended movements and body injury.
pg. 223 Specifications
Engine specifications

1. Automatic transmission: 220 kW at 100 rps, 300 hp at 6000 rpm.
2. Automatic transmission: 350Nm at 32-100 rps, 258 ft. lbs at 1850-6000\
rpm.
Charge air cooler (Intercooler)
Turbocharged engines employ a turbo-compressor to force air into the eng\
ine inlet manifold and a
charge air cooler to cool the compressed inlet air. The resulting increa\
se in air flow raises pressure in the
intake manifold and increases engine power over that developed by the no\
rmally-aspirated engine. The
charge air cooler (which resembles a radiator) is located between the \
turbo-compressor and inlet
manifold.
Fuel system
The engine is equipped with a multiport fuel injection system.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_10.htm (10 of 11)12/30/200\
6 5:51:45 PM

2007 Volvo XC70
pg. 224 Specifications
Volvo programs
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON CALL roadside assistance. Addit\
ional information,
features, and benefits are described in a separate information package i\
n your glove compartment.
If you have misplaced your package, dial:
In the U.S.A.:
1-800-638-6586 (1-800-63-VOLVO)
In Canada:
1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo supports certification by t\
he National Institute for
Automotive Service Excellence (A.S.E.). Certified technicians have dem\
onstrated a high degree of
competence in specific areas. Besides passing exams, each technician mus\
t also have worked in the field
for two or more years before a certificate is issued. These professional\
technicians are best able to
analyze vehicle problems and perform the necessary service procedures to\
keep your Volvo at peak
operating condition.



Contents | Top of Page
file:///K|/ownersdocs/2007/2007_XC70/07xc70_10.htm (11 of 11)12/30/200\
6 5:51:45 PM

2007 Volvo XC70
2 0 0 7
VOLVO XC70
Audio

pg. 225 Audio
Introduction
226
Audio system HU-650 - overview
226
Audio system HU-850 - overview
228
Radio functions HU-650/HU-850
229
RBDS functions HU-650/HU-850
234
HU-650 - CD player
237
HU-850 - internal CD changer
238
External CD changer (option)
239
Dolby Surround Pro Logic II - HU-850 only
240
Audio systems - specifications
242
HomeLink® Universal Transceiver (option)
243
pg. 226 Audio
Introduction
The audio system in your vehicle is operated with the buttons and knobs \
in the system's front panel.
Certain functions, such as adjusting the volume, changing radio stations\
or tracks on a CD, etc, can also
be controlled with the optional steering wheel-mounted keypad.
The audio system is available in two versions:
HU-650
Features: AM/FM radio, single-disc CD player, 4x25W output, four
1 speakers.
HU-850
Features: AM/FM radio, integrated 6-disc CD changer, 4x50W or 4x70W outp\
ut plus 25W Dolby Pro
Logic II, eleven speakers. A subwoofer mounted under the floor in the ca\
rgo area is available as an
file:///K|/ownersdocs/2007/2007_XC70/07xc70_11.htm (1 of 22)12/30/2006\
5:51:46 PM

2007 Volvo XC70
option. Consult your Volvo retailer.
Compact disc care
l Keep the discs clean. Wipe them with a soft, clean, lint-free cloth, wor\
king from the center outwards.
If necessary, dampen the cloth with a neutral soap solution. Dry thoroug\
hly before using.
l Never use cleaning spray or antistatic liquid. Use only cleaners specifi\
cally made for CDs.
l Use discs of the correct size only (3.5" discs should never be used). \
l The discs should conform to the norms EN60908 (IEC60908). CDR discs ca\
n cause listening
problems due to the quality of the disc or recording equipment used.
l DualDisc: The audio side of a DualDisc (combined CD/DVD) does not meet\
CD specifications and
may not play in your audio system.
l Do not put tape or labels on the disc itself.
l Volvo does not recommend the use of plastic outer rings on the disc.
l Condensation may occur on discs/optical components of the changer in col\
d winter weather. The disc
can be dried with a clean, lint-free cloth. Optical components in the CD\
changer may, however, take up
to one hour to dry off.
l Never attempt to play a disc which is damaged in any way.
l When not in use, the discs should be stored in their covers. Avoid stori\
ng discs in excessive heat,
direct sunlight or dusty locations.
1. T5 and R-models: six speakers
pg. 227 Audio
Audio system HU-650 - overview
1. On/off - press
Volume - turn
2. Buttons for selecting stored radio stations/discs in optional CD chan\
ger
file:///K|/ownersdocs/2007/2007_XC70/07xc70_11.htm (2 of 22)12/30/2006\
5:51:47 PM

2007 Volvo XC70
3. Bass (press to release control and turn to adjust)
4. Treble (press to release control and turn to adjust)
5. Balance (left/right) - press to release control and turn to adjust \
6. Fader (front/rear) - press to release control and turn to adjust
7. Source/Menu
Press to open main menu
Turn to select FM, AM, CD, CD changer (option)
8. Scan function (automatically search for radio stations)
9. Exit (exit the menu)
10. Navigation buttons (seek/change radio station or CD track)
11. CD eject
12. CD slot
13. CD random play
14. FM (select FM1, FM2, FM3)
15. AM (select AM1 or AM2)
16. CD player
17. AUTO - automatically search for radio stations
18. Display
pg. 228 Audio
Audio system HU-850 - overview
1. On/off - press
Volume - turn
2. Buttons for selecting stored radio stations/discs in optional CD chan\
ger
3. Bass (press to release control and turn to adjust)
4. Treble (press to release control and turn to adjust)
5. Balance (left/right) - press to release control and turn to adjust \
6. Fader (front/rear) - press to release control and turn to adjust
file:///K|/ownersdocs/2007/2007_XC70/07xc70_11.htm (3 of 22)12/30/2006\
5:51:47 PM

2007 Volvo XC70
7. Source/Menu
Press to open main menu
Turn to select FM, AM, CD, CD changer (option)
8. Scan function (automatically search for radio stations)
9. Exit (exit the menu)
10. Navigation buttons (seek/change radio station or CD track)
11. CD eject
12. Dolby Surround Pro Logic II
13. 2-channel stereo
14. 3-channel stereo
15. CD slot
16. CD random play
17. FM (select FM1, FM2, FM3)
18. AM (select AM1 or AM2)
19. CD player
20. AUTO - automatically search for radio stations
21. Display
pg. 229 Audio
Radio functions HU-650/HU-850
Switch on/off

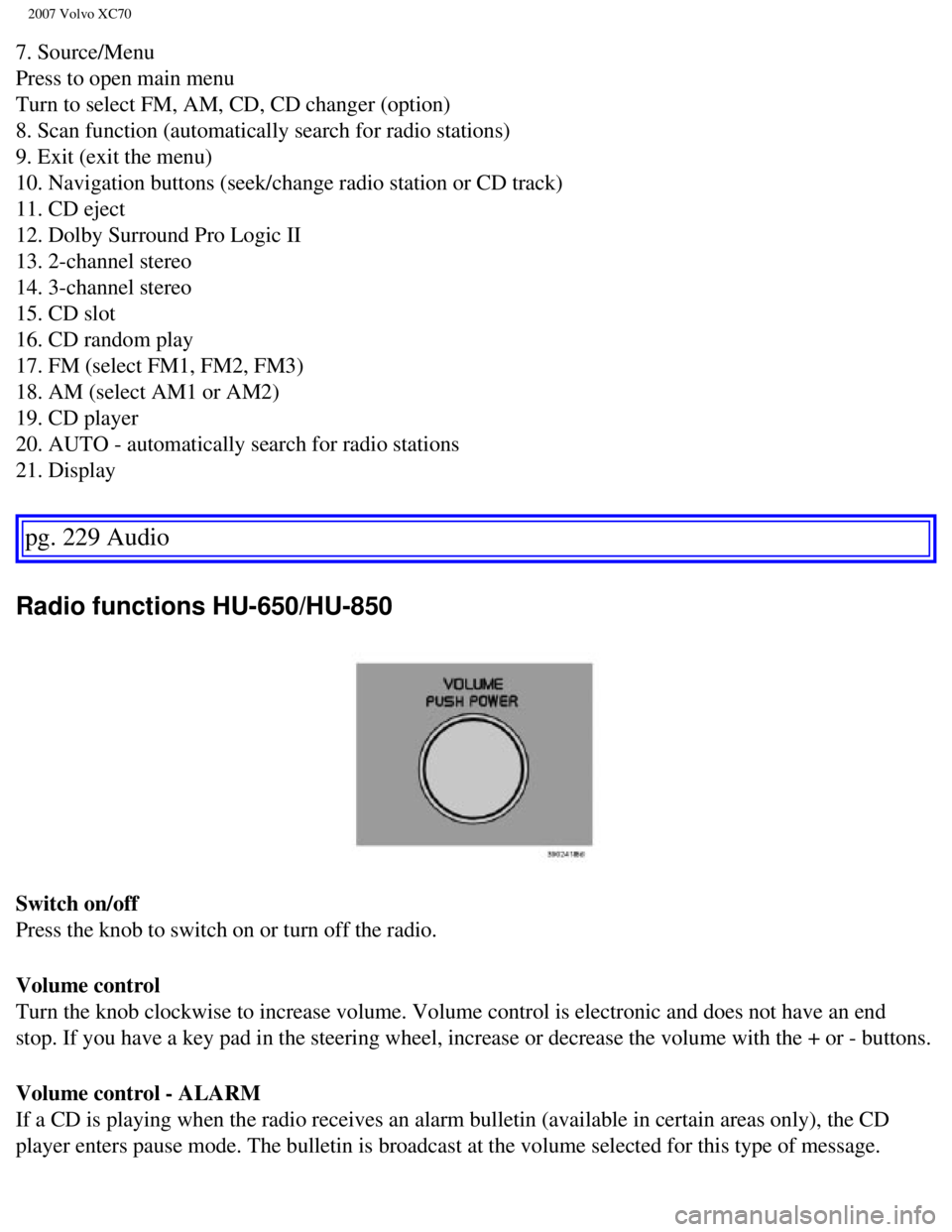

Press the knob to switch on or turn off the radio.
Volume control
Turn the knob clockwise to increase volume. Volume control is electronic\
and does not have an end
stop. If you have a key pad in the steering wheel, increase or decrease \
the volume with the + or - buttons.
Volume control - ALARM
If a CD is playing when the radio receives an alarm bulletin (available\
in certain areas only), the CD
player enters pause mode. The bulletin is broadcast at the volume select\
ed for this type of message.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_11.htm (4 of 22)12/30/2006\
5:51:47 PM

2007 Volvo XC70
After the bulletin has been completed, the audio system reverts to the o\
riginally selected sound.
Volume control - Subwoofer (option)
Turn the knob clockwise to increase volume. Turn the knob counterclockwi\
se to lower volume or switch
off the subwoofer. When the knob is in the middle, bass effect is "equal\
ized".
pg. 230 Audio
Radio functions HU-650/HU-850
Sound settings
Bass
Adjust the bass by pressing the button to extend the control and turning\
it to the left (less bass) or to the
right (more bass). A "detent" indicates "equalized" bass. Press the bu\
tton back in when you have made
the adjustment.
Treble
Adjust the treble by pressing the button to extend the control and turni\
ng it to the left (less treble), or to
file:///K|/ownersdocs/2007/2007_XC70/07xc70_11.htm (5 of 22)12/30/2006\
5:51:47 PM

2007 Volvo XC70
the right (more treble). A "detent" indicates "equalized" treble. Pres\
s the button back in when you have
made the adjustment.
Fader - Balance front/rear
Adjust front/rear speaker balance by pressing the button to extend the c\
ontrol and turning it to the left
(more sound from the rear speakers) or to the right (more sound from \
the front speakers). A "detent"
indicates "equalized" balance. Press the button back in when you have ma\
de the adjustment.
Balance right/left
Adjust left/right speaker balance by pressing the button to extend the c\
ontrol, and turning it to the left
(more sound from the left speakers) or to the right (more sound from \
the right speakers). A "detent"
indicates "equalized" balance. Press the button back in when you have ma\
de the adjustment.
MID EQ level
This function is used to fine-tune the balance of sound in the speakers.\
To set the level:
- Press SOURCE.
- Turn the SOURCE knob, select ADVANCED MENU and press SOURCE.
- Turn the SOURCE knob, select AUDIO SETTINGS and press SOURCE.
- Turn the SOURCE knob, select MID EQ LEVEL and press SOURCE.
- Turn the SOURCE knob, select the desired level and press SOURCE.
- Press EXIT.
pg. 231 Audio
Radio functions HU-650/HU-850
Selecting a sound source
The sound source (e.g. AM, FM, etc.) can be selected in two ways:
l Use the sound source buttons (see the center illustration above).
l Turn the SOURCE knob (see illustration above) to select a sound source\
(AM1, AM2, FM1, FM2,
FM3, or CD). Press the knob to select the AM or FM band of your choice.\
file:///K|/ownersdocs/2007/2007_XC70/07xc70_11.htm (6 of 22)12/30/2006\
5:51:47 PM

2007 Volvo XC70
The sound source selected will be shown in the display.
Scan
Press the SCAN button to start the station scan function. When a station\
is found, scanning stops for
approximately 10 seconds, after which scanning will continue.
Press the SCAN or SOURCE button when a station has been found if you wou\
ld like to listen to that
station and to discontinue the scan function.
Station seek up/down
Press
to start the seek function. The radio seeks the next audible station an\
d tunes it in.
Repeat the procedure to continue the seek function.
Manual station search
Press
and hold it down. MAN will be shown in the display. The radio scans slo\
wly in the
selected direction and will increase the scanning speed after a few seco\
nds. Release the button when the
desired frequency appears in the display. The frequency can be fine-tune\
d by short presses on the
keys. The system will remain in manual search mode for 5 seconds after \
the button is
released, after which it will return to seek mode.
pg. 232 Audio
Radio functions HU-650/HU-850
file:///K|/ownersdocs/2007/2007_XC70/07xc70_11.htm (7 of 22)12/30/2006\
5:51:47 PM

2007 Volvo XC70
Steering wheel key pad (option)
If the vehicle is equipped with the key pad in the steering wheel press \
the right or left arrow to switch
between preset stations.
Storing stations
To store a selected station under one of the station setting buttons 1-6\
:
- Tune to the desired station.
- Press the button under which the station is to be stored and keep it d\
epressed. The audio system sound
will be interrupted for a few seconds and STORED will appear in the disp\
lay. The station is now stored.
A total of 30 stations can be stored; 6 stations each in AM1, AM2, FM1, \
FM2, and FM3.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_11.htm (8 of 22)12/30/2006\
5:51:47 PM
