02 Locks and alarm
Remote key and key blade
02
59
NOTE
If none of the indicator lights flash when the
information button has been pressed sev-
eral times from different places in relation to
the vehicle, contact an authorized Volvo
service technician.
The indicator lights provide information
according to the illustration:
Steady green light: the vehicle is correctly
locked.
Steady yellow light: the vehicle is not
locked.
Steady red light: the alarm has been trig-
gered since the vehicle was most recently
locked.
Both red lights flash alternatively: the alarm
was triggered less than 5 minutes ago.
RangeThe PCC's lock and unlock functions have a
range of approximately 60 ft. (20 m) from the
vehicle.
NOTE
•The approach lighting, panic alarm, and
the functions controlled by the informa-
tion button have a range of approxi-
mately 300 ft (100 m) from the vehicle.
•Radio waves, buildings or other obsta-
cles may interfere with the function of
the PCC.
If the vehicle does not provide confirmation
when a button has been pressed, try moving
closer and pressing the button again.
Outside of the PCC´s rangeIf the PCC is more than approximately 300 ft
(100 m) from the vehicle when the information
button is pressed, no new information will be
received. The PCC most recently used to lock
or unlock the vehicle will show the vehicle's
most recently received status. The indicator
lights will not flash when the information button
is pressed while the PCC is out of range.
If more than one PCC is used to lock/unlock
the vehicle, only the one used most recently will
show the correct locking status.
NOTE
If none of the indicator lights illuminate when
the information button is pressed, this may
be because the most recent transmission
between the vehicle and the PCC was inter-
rupted or impeded by buildings or other
objects.
Keyless driveVehicles equipped with the optional Personal
Car Communicator have the keyless drive
function, see page 63 for detailed informa-
tion.
Detachable key blade
The key blade can be removed from the remote
key. When removed, the key blade can be used
to:
•Lock/unlock the driver's door if the remote
key is not functioning properly
•Lock/unlock the glove compartment (see
page 67)
•Override the transmission's shiftlock sys-
tem (see page 120)
•Enable/disable the private locking function
(see page 62)

02 Locks and alarm
Remote key and key blade
02
60
Removing the key blade
Slide the spring loaded catch to the side.
Pull the key blade straight out of the remote
key.
Reinserting the key blade in the remote
key
1. Hold the remote key with the slot for the
key blade up.
2. Carefully slide the key blade into its groove.
3. Gently press the key blade in the groove
until it clicks into place.
Unlocking the doors with the detached
key blade
Insert the key blade as far as possible in the
driver's door lock. Turn the key blade clock-wise approximately one-quarter turn to unlock
the driver's door only.
NOTE
After unlocking the driver's door with the
key blade, opening the door will trigger the
alarm.
To disable the alarm:Insert the remote key in the ignition slot. This
also applies to vehicles equipped with the
optional keyless drive.
Replacing batteries in the remote key/
PCC
The battery/batteries in the remote key/PCC
should be replaced if:
•The information symbol lights up and a text
appears in the information display.
and/or
•the vehicle's locks repeatedly do not react
when a button on the remote key/PCC is
pressed within approximately 60 ft (20 m)
from the vehicle.
Battery type CR 2430, 3 V (one battery in the
remote key, two batteries in the PCC)

02 Locks and alarm
Remote key and key blade
02
61
Opening the remote key/PCC
Slide the spring loaded catch to the
side.
Pull the key blade straight out of the
remote key.
Insert a small screwdriver in the hole
behind the spring loaded catch and care-
fully pry up the cover.
NOTE
Turn the remote key with the buttons
upward so that the batteries do not fall out
when the cover is removed.
Replacing the batteries
CAUTION
When handling batteries, avoid touching
their contact surfaces as this could result in
poor battery function in the remote key.
Note the position of the battery's (+) or (–)
sides.
Remote key (one battery)1. Use a screwdriver to pry out the old bat-
tery.
2.
Insert a new one with the (+) side down-
ward.
PCC (two batteries)1. Use a screwdriver to pry out the old bat-
teries.
2.
Insert the first new battery with the (+) side
upward.
3. Insert the plastic spacer over the battery.
Insert the second new battery on top of the
plastic spacer, with the + side downward.
Re-assembling the remote key1. Press the remote key's cover into place.
2. Hold the remote key with the slot for the
key blade up.
3. Carefully slide the key blade into its groove.
4. Gently press the key blade in the groove
until it clicks into place.
Old batteries should be properly recycled.

02 Locks and alarm
Private locking
02
62
Tailgate compartment
G017869
Normal locking/unlocking points
G017870
Locking/unlocking points with private locking acti-
vated.
By utilizing the remote key with the key blade
removed, the private locking feature enables
you to block access to the glove compartmentand disconnect the tailgate from the central
locking system for e.g., valet parking or when
the vehicle is brought to the retailer for service.
With the private locking function activated:
•The vehicle's doors can be locked or
unlocked with the remote
•The engine can be started
•The glove compartment cannot be
unlocked
•The tailgate cannot be unlocked or opened
with the remote
•The rear floor hatch cannot be opened
NOTE
The floor hatch must be closed completely
before the tailgate can be closed.
Activating the private locking function
Insert the key blade in the glove compart-
ment lock.
Turn the key blade180 degrees clockwise.
Remove the key blade from the lock. A
message will appear in the instrument
panel display.
Deactivating the private locking functionTurn the key blade 180 degrees counterclock-
wise in the glove compartment lock to deacti-
vate private locking.
See page 67 for information on locking the
glove compartment normally, without activat-
ing the private locking function.

02 Locks and alarm
Keyless drive
02
* Option/accessory, for more information, see Introduction.63 Keyless drive* (models with Personal
Car Communicator only)
Keyless locking and unlocking
Range of the keyless drive remote key–5 ft
(1.5 meters)
This system makes it possible to unlock and
lock the vehicle without having to press any
buttons on the Personal Car Communicators
(PCC). It is only necessary to have a keyless
drive remote key in your possession to operate
the central locking system.
NOTE
•The gear selector must in the P position
before the vehicle can be locked and
the alarm can be armed.
•The buttons on the keyless drive remote
key can also be used to lock and unlock
the vehicle, see page 57 for more infor-
mation.
Both of the PCCs provided with the vehicle
have the keyless function, and additional ones
can be ordered. The system can accommo-
date up to six PCCs.
The red rings in the illustration indicate the area
around the vehicle that is within range of the
keyless drive antennas.
Unlocking the vehicle
•A keyless drive remote key must be on the
same side of the vehicle as the door to be
opened, and be within 5 feet (1.5 meters)
of the door's lock or the tailgate (see the
shaded areas in the illustration).
•Pull a door handle to unlock and open the
door or pull the tailgate opening control.
The number of doors that are unlocked at the
same time can be set in the vehicle's menu
system. Press MY CAR and go to Car settings
Lock settingsKeyless entry. See page
189 for a description of the menu system.
Unlocking the vehicle with the key blade
Keyless drive keyhole cover
If the PCC does not function normally (weak
battery, etc.), the vehicle can be unlocked with
the detachable key blade. See page 60 for
instructions on detaching the key blade from
the PCC. To access the keyhole in the driver's
door:
1. Press the key blade approx. 0.5 in. (1 cm)
straight up in the hole on the underside of
the keyhole cover.
> The cover will come off due to the pres-
sure exerted when the key blade is
pushed upward.
2. Insert the key blade as far as possible in the
driver's door lock. Turn the key blade to
unlock the driver's door only. This will trig-

02 Locks and alarm
Keyless drive
02
64
ger the alarm. Press the remote key into the
ignition slot to turn off the alarm.
3. Press the cover back into place after the
door has been unlocked.
Locking the vehicle
Models with keyless drive have a button on the
outside door handles
The doors and the tailgate can be locked by
pressing the lock button in any of the outside
door handles.
NOTE
On keyless drive vehicles, the gear selector
must be in the Park (P) position, all doors
and the tailgate must be closed and the igni-
tion must be switched off before the vehicle
can be locked.
Keyless drive remote key and driver's
seat/door mirror memory
•When you leave the vehicle with a PCC in
your possession and lock any door, the
position of the driver's seat and door mir-
rors will be stored in the seat's memory.
•The next time a door is opened by a person
with the same PCC in his/her possession,
the driver's seat and door mirrors will auto-
matically move to the position that they
were in when the door was most recently
locked.
NOTE
If several people carrying PCCs approach
the vehicle at the same time, the driver's
seat and door mirrors will assume the posi-
tions they were in for the person who opens
the driver's door.
See also page 85 for information on adjusting
and storing the seat's position in the seat mem-
ory.
Keyless drive information messagesIf all of the PCCs are removed from the vehicle
while the engine is running or if the ignition is
in mode II (see page 82) and all of the doors
are closed, a message will appear in the instru-
ment panel display and an audible signal will
sound.When at least one PCC has been returned to
the car, the message will be erased in the dis-
play and the audible signal will stop when:
•A door has been opened and closed
•The PCC has been inserted in the ignition
slot
•The OK button (see page 187 for the loca-
tion of this button) has been pressed.
CAUTION
•Keyless drive remote keys should never
be left in the vehicle. In the event of a
break-in, a remote found in the vehicle
could make it possible to start the
engine.
•Electromagnetic fields or metal
obstructions can interfere with the key-
less drive system. The remote key
should never be placed closer than
approximately 4-6 in. (10-15 cm) to cell
phones, metallic objects or e.g., stored
in a metal briefcase.
USA – FCC ID:KR55WK48952, KR55WK48964
NOTE
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must

02 Locks and alarm
Keyless drive
02
65
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
Siemens VDO
5WK48891
Tested To Comply With FCC Standards
For Automobile Use
Canada – IC:267T-5WK48952,
267T-5WK48964, 267T-5WK48891
NOTE
This device complies with RSS -210 of Industry
Canada. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the

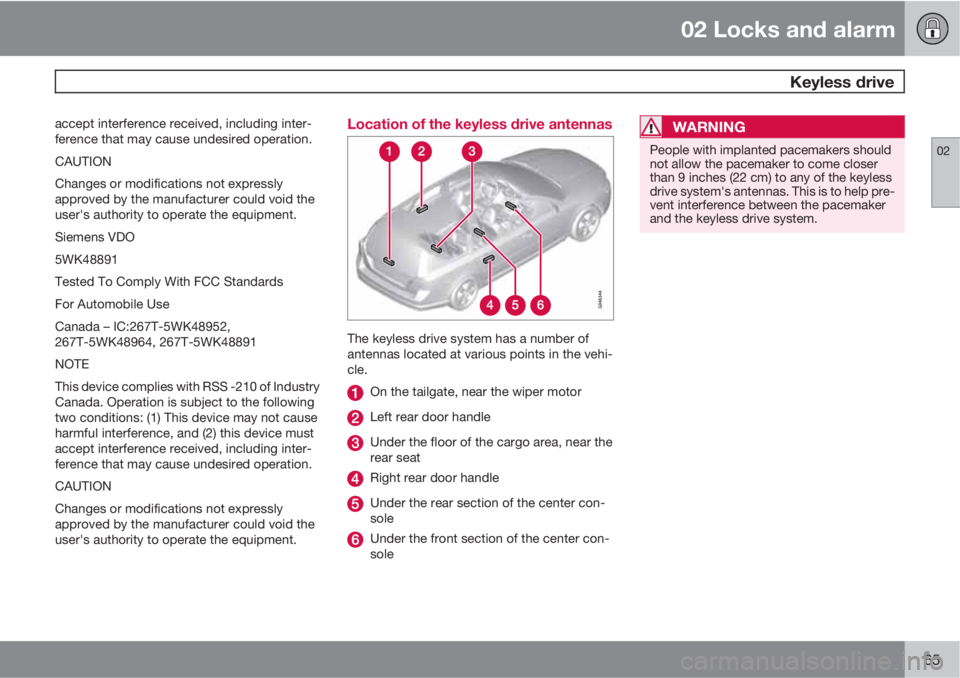

user's authority to operate the equipment.Location of the keyless drive antennas
The keyless drive system has a number of
antennas located at various points in the vehi-
cle.
On the tailgate, near the wiper motor
Left rear door handle
Under the floor of the cargo area, near the
rear seat
Right rear door handle
Under the rear section of the center con-
sole
Under the front section of the center con-
sole
WARNING
People with implanted pacemakers should
not allow the pacemaker to come closer
than 9 inches (22 cm) to any of the keyless
drive system's antennas. This is to help pre-
vent interference between the pacemaker
and the keyless drive system.

02 Locks and alarm
Locks
02
66

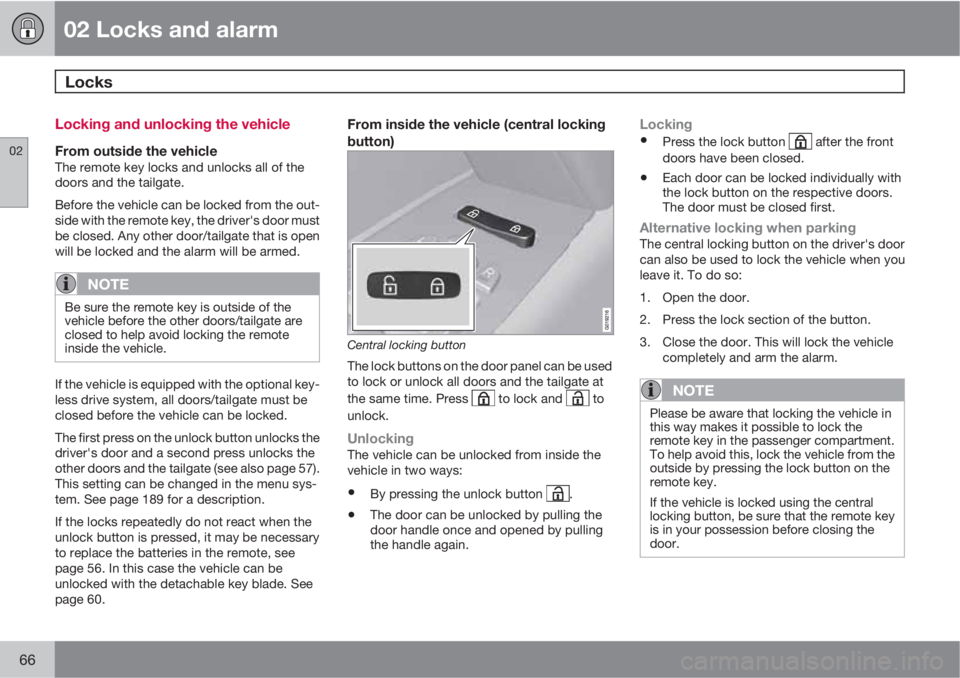

Locking and unlocking the vehicle
From outside the vehicleThe remote key locks and unlocks all of the
doors and the tailgate.
Before the vehicle can be locked from the out-
side with the remote key, the driver's door must
be closed. Any other door/tailgate that is open
will be locked and the alarm will be armed.
NOTE
Be sure the remote key is outside of the
vehicle before the other doors/tailgate are
closed to help avoid locking the remote
inside the vehicle.
If the vehicle is equipped with the optional key-
less drive system, all doors/tailgate must be
closed before the vehicle can be locked.
The first press on the unlock button unlocks the
driver's door and a second press unlocks the
other doors and the tailgate (see also page 57).
This setting can be changed in the menu sys-
tem. See page 189 for a description.
If the locks repeatedly do not react when the
unlock button is pressed, it may be necessary
to replace the batteries in the remote, see
page 56. In this case the vehicle can be
unlocked with the detachable key blade. See
page 60.
From inside the vehicle (central locking
button)
Central locking button
The lock buttons on the door panel can be used
to lock or unlock all doors and the tailgate at
the same time. Press
to lock and to
unlock.
UnlockingThe vehicle can be unlocked from inside the
vehicle in two ways:
•By pressing the unlock button .
•The door can be unlocked by pulling the
door handle once and opened by pulling
the handle again.
Locking
•Press the lock button after the front
doors have been closed.
•Each door can be locked individually with
the lock button on the respective doors.
The door must be closed first.
Alternative locking when parkingThe central locking button on the driver's door
can also be used to lock the vehicle when you
leave it. To do so:
1. Open the door.
2. Press the lock section of the button.
3. Close the door. This will lock the vehicle
completely and arm the alarm.
NOTE
Please be aware that locking the vehicle in
this way makes it possible to lock the
remote key in the passenger compartment.
To help avoid this, lock the vehicle from the
outside by pressing the lock button on the
remote key.
If the vehicle is locked using the central
locking button, be sure that the remote key
is in your possession before closing the
door.

02 Locks and alarm
Locks
02
67
Automatic relockingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
rearm after 2 minutes unless a door or the tail-
gate has been opened.
Automatic lockingWhen the vehicle starts to move, the doors and
tailgate can be locked automatically. This fea-
ture can be turned on or off by pressing MY
CAR and going to Car settings
Lock
settings
Automatic door locking. See
page 189 for a description of the menu sys-
tem.
Glove compartment
The glove compartment can only be locked
and unlocked using the detachable key blade
in the remote key. See page 59 for information
on removing the key blade from the remote
key.
Insert the key blade in the glove compart-
ment lock.
Turn the key blade 90 degrees clockwise.
Remove the key blade from the lock.
Locking/unlocking the tailgate
Tailgate unlock button on the remote key
Unlocking the tailgate with the remote
key
–Press the tailgate unlock button on the
remote key to unlock (but not open1) the
tailgate. See also page 57.
> The alarm indicator light on the dash-
board will go out to indicate that the
alarm is not monitoring the entire vehi-
cle. The accessory movement and incli-
nation sensors will be automatically dis-
connected.
NOTE
•If the doors are locked while the tailgate
is open, the tailgate will remain
unlocked until the vehicle is relocked by
pressing the Lock button on the remote
key.
•On keyless drive vehicles, the gear
selector must be in the Park (P) position,
all doors and the tailgate must be
closed and the ignition must be
switched off before the vehicle can be
locked.
1This button also opens, but does not close, the tailgate on models equipped with the optional power tailgate (see page 276).

02 Locks and alarm
Locks
02
68

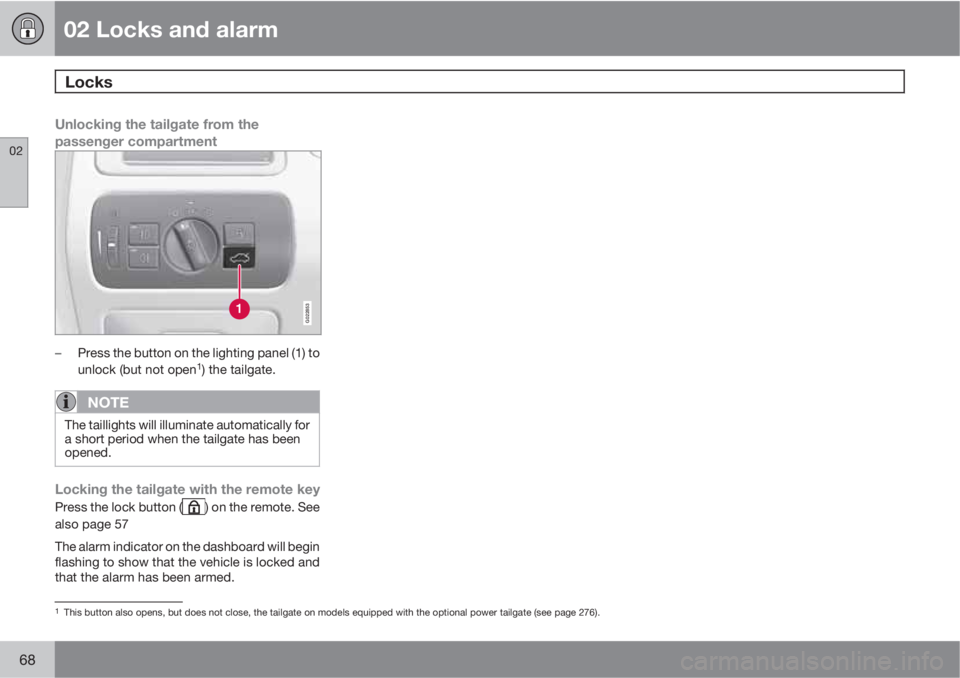

Unlocking the tailgate from the
passenger compartment
G022853
–Press the button on the lighting panel (1) to
unlock (but not open1) the tailgate.
NOTE
The taillights will illuminate automatically for
a short period when the tailgate has been
opened.
Locking the tailgate with the remote key
Press the lock button () on the remote. See
also page 57
The alarm indicator on the dashboard will begin
flashing to show that the vehicle is locked and
that the alarm has been armed.
1This button also opens, but does not close, the tailgate on models equipped with the optional power tailgate (see page 276).
