VOLVO XC70 2014 Owner´s Manual

Owner's ManualXC70
WEB EDITION

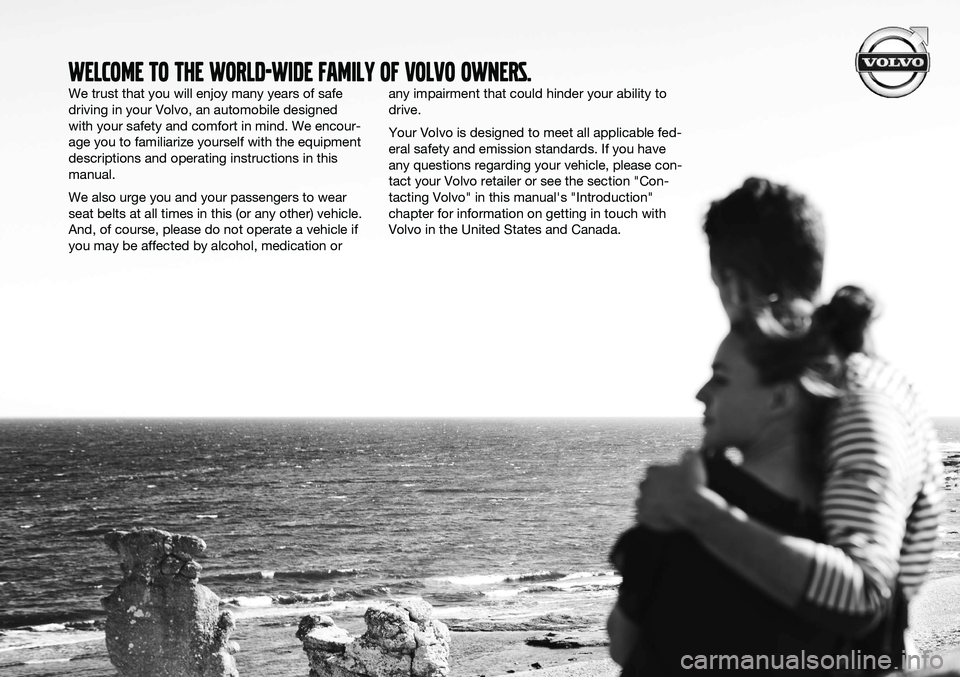

WELCOME TO THE WORLD-WIDE FAMILY OF VOLVO OWNERS.
We trust that you will enjoy many years of safe driving in your Volvo, an automobile designedwith your safety and comfort in mind. We encour-age you to familiarize yourself with the equipmentdescriptions and operating instructions in thismanual. We also urge you and your passengers to wear seat belts at all times in this (or any other) vehicle.And, of course, please do not operate a vehicle ifyou may be affected by alcohol, medication orany impairment that could hinder your ability todrive. Your Volvo is designed to meet all applicable fed- eral safety and emission standards. If you haveany questions regarding your vehicle, please con-tact your Volvo retailer or see the section "Con-tacting Volvo" in this manual's "Introduction"chapter for information on getting in touch withVolvo in the United States and Canada.

Contents
2* Option/accessory, for more information, see Introduction.
00
00 Introduction
Important information................................. 6
Environment.............................................. 12
Important warnings................................... 13
01
01 Safety
Occupant safety........................................ 16
Reporting safety defects........................... 17
Seat belts ................................................. 18
Supplemental Restraint System (SRS) .... 21
Occupant Weight Sensor ......................... 26
Side impact protection (SIPS) airbags ..... 30
Inflatable Curtain (IC) ............................... 32
Whiplash Protection System – WHIPS..... 33
Crash mode.............................................. 35
Child safety............................................... 37
Child restraint systems............................. 40
Infant seats............................................... 42
Convertible seats...................................... 44
Booster cushions...................................... 46
ISOFIX/LATCH lower anchors.................. 47
Top tether anchors.................................... 49
Integrated booster cushion*...................... 50
Child safety locks...................................... 53
02
02 Locks and alarm
Remote key and key blade....................... 56
Private locking ......................................... 65
Keyless drive............................................. 66
Locks........................................................ 69
Alarm......................................................... 72

Contents
* Option/accessory, for more information, see Introduction.3
03

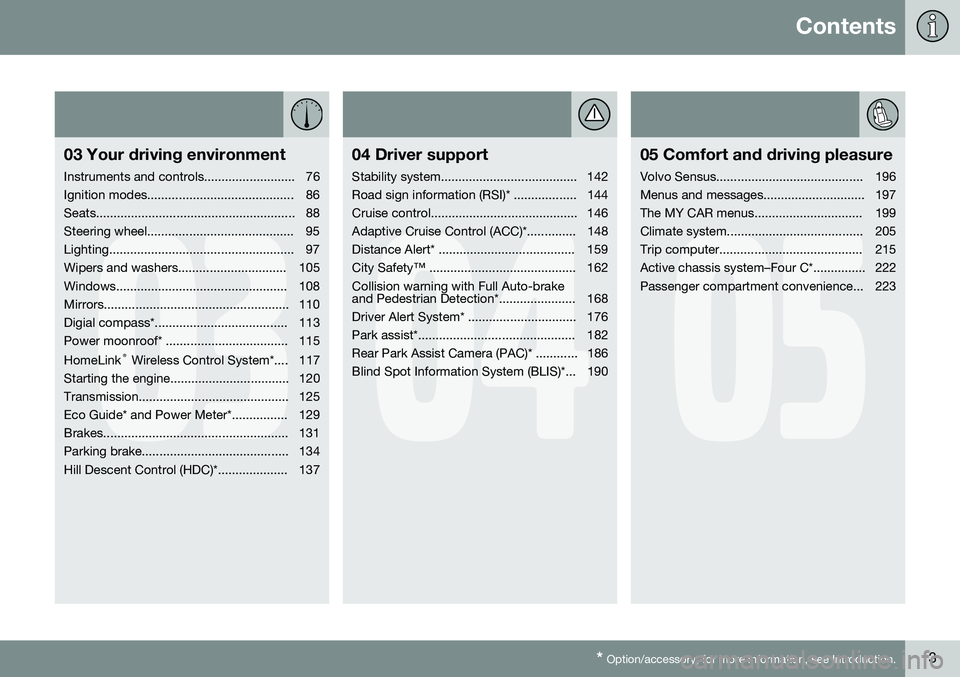

03 Your driving environment
Instruments and controls.......................... 76
Ignition modes.......................................... 86
Seats......................................................... 88
Steering wheel.......................................... 95
Lighting..................................................... 97
Wipers and washers............................... 105
Windows................................................. 108
Mirrors..................................................... 110
Digial compass*...................................... 113
Power moonroof* ................................... 115 HomeLink ®
Wireless Control System*.... 117
Starting the engine.................................. 120
Transmission........................................... 125
Eco Guide* and Power Meter*................ 129
Brakes..................................................... 131
Parking brake.......................................... 134
Hill Descent Control (HDC)*.................... 137
04
04 Driver support
Stability system....................................... 142
Road sign information (RSI)* .................. 144
Cruise control.......................................... 146
Adaptive Cruise Control (ACC)*.............. 148
Distance Alert* ....................................... 159
City Safetyâ„¢ .......................................... 162Collision warning with Full Auto-brake
and Pedestrian Detection*...................... 168
Driver Alert System* ............................... 176
Park assist*............................................. 182
Rear Park Assist Camera (PAC)* ............ 186
Blind Spot Information System (BLIS)*... 190
05
05 Comfort and driving pleasure
Volvo Sensus.......................................... 196
Menus and messages............................. 197
The MY CAR menus............................... 199
Climate system....................................... 205
Trip computer......................................... 215
Active chassis system–Four C*............... 222
Passenger compartment convenience... 223

Contents
4* Option/accessory, for more information, see Introduction.
06

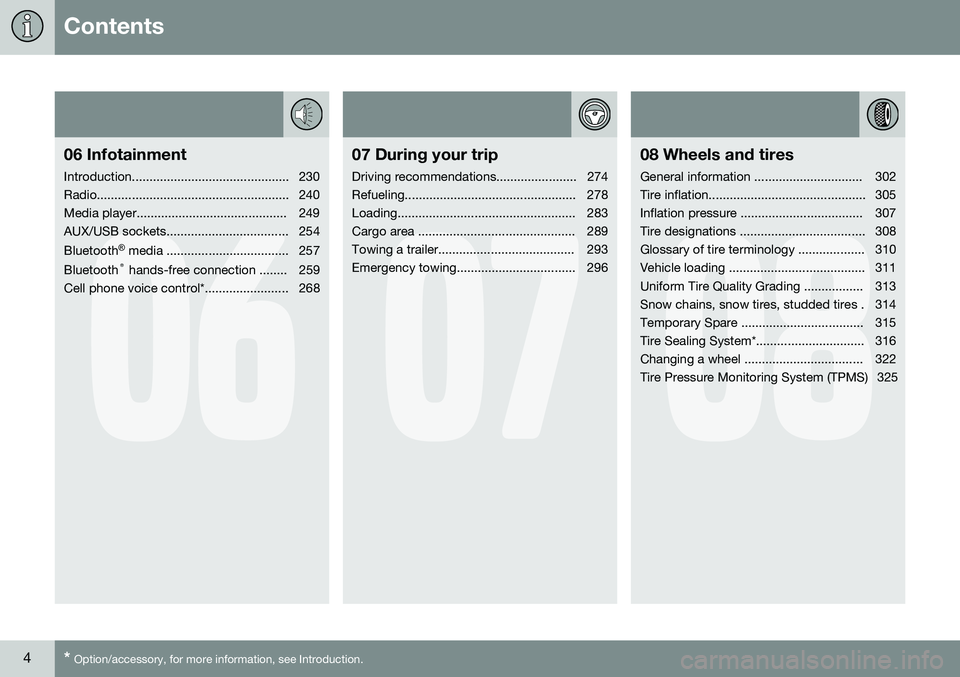

06 Infotainment
Introduction............................................. 230
Radio....................................................... 240
Media player........................................... 249
AUX/USB sockets................................... 254 Bluetooth ®
media ................................... 257
Bluetooth ®
hands-free connection ........ 259
Cell phone voice control*........................ 268
07
07 During your trip
Driving recommendations....................... 274
Refueling................................................. 278
Loading................................................... 283
Cargo area ............................................. 289
Towing a trailer....................................... 293
Emergency towing.................................. 296
08
08 Wheels and tires
General information ............................... 302
Tire inflation............................................. 305
Inflation pressure ................................... 307
Tire designations .................................... 308
Glossary of tire terminology ................... 310
Vehicle loading ....................................... 311
Uniform Tire Quality Grading ................. 313
Snow chains, snow tires, studded tires . 314
Temporary Spare ................................... 315
Tire Sealing System*............................... 316
Changing a wheel .................................. 322
Tire Pressure Monitoring System (TPMS) 325

Contents
5
09

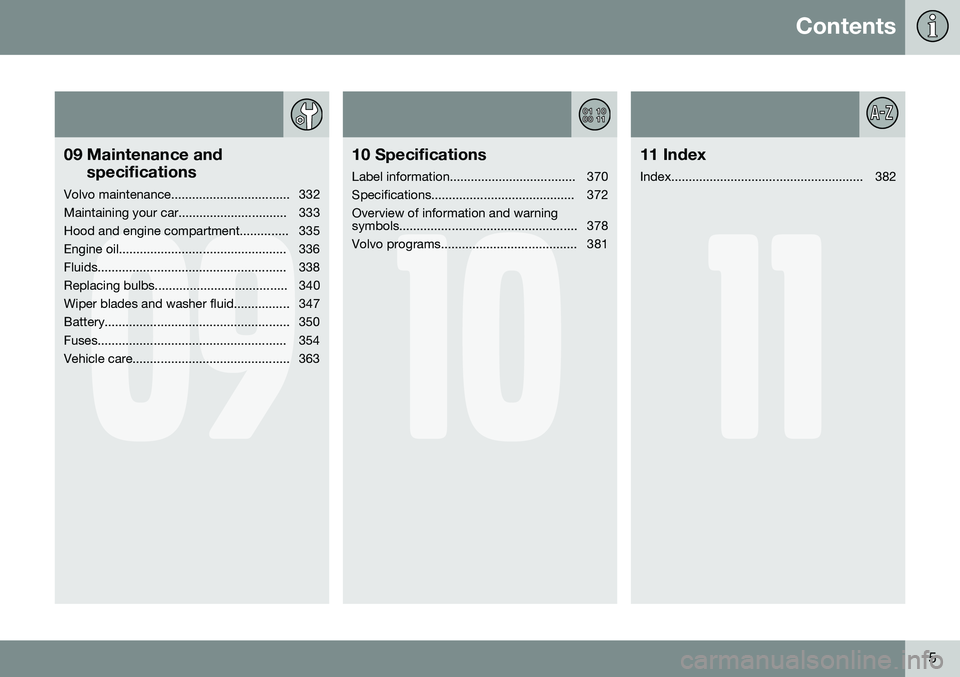

09 Maintenance andspecifications
Volvo maintenance.................................. 332
Maintaining your car............................... 333
Hood and engine compartment.............. 335
Engine oil................................................ 336
Fluids...................................................... 338
Replacing bulbs...................................... 340
Wiper blades and washer fluid................ 347
Battery..................................................... 350
Fuses...................................................... 354
Vehicle care............................................. 363
10
10 Specifications
Label information.................................... 370
Specifications......................................... 372Overview of information and warning
symbols................................................... 378
Volvo programs....................................... 381
11
11 Index
Index....................................................... 382

Introduction
Important information
6
Contacting Volvo
In the USA: Volvo Cars of North America, LLC Customer Care Center1 Volvo Drive,P.O. Box 914Rockleigh, New Jersey 076471-800-458-1552www.volvocars.com/us In Canada: Volvo Cars of Canada National Customer Service9130 Leslie Street, Suite 101Richmond Hill, Ontario L4B 0B91-800-663-8255www.volvocars.com/ca
About this manual
•Before you operate your vehicle for the first time, please familiarize yourself withthe information found in the chapters"Your Driving Environment" and "DuringYour Trip."
• Information contained in the balance ofthe manual is extremely useful and shouldbe read after operating the vehicle for thefirst time.
• The manual is structured so that it can beused for reference. For this reason, itshould be kept in the vehicle for readyaccess.
FootnotesCertain pages of this manual contain informa- tion in the form of footnotes at the bottom ofthe page. This information supplements thetext that the footnote number refers to (a let-ter is used if the footnote refers to text in atable).
Display textsThere are several displays in the driver’s field of vision that show messages generated byvarious systems and functions in the vehicle.These texts are indicated in the Owner’sManual by being in slightly larger type thanthe surrounding text and are printed in gray, (for example:
Change doors unlock
setting).
DecalsThere are various types of decals in the vehi- cle whose purpose is to provide importantinformation in a clear and concise way. Theimportance of these decals is explained asfollows, in descending order of importance.
Risk of injury
G031590
Black ISO symbols on a yellow warning back- ground, white text/image on a black back-ground. Decals of this type are used to indi-cate potential danger. Ignoring a warning ofthis type could result in serious injury ordeath.

Introduction
Important information
7
Risk of damage to the vehicle
G031592
White ISO symbols and white text/image on a black or blue warning background and spacefor a message. If the information on decals ofthis type is ignored, damage to the vehiclecould result.
Information
G031593
White ISO symbols and white text/image on a black background. These decals provide gen-eral information.
NOTE
The decals shown in the Owner’s Manual are examples only and are not intended tobe reproductions of the decals actuallyused in the vehicle. The purpose is to givean indication of how they look and theirapproximate location in the vehicle. Theapplicable information for your particularvehicle can be found on the respectivedecals in the vehicle.
Types of lists used in the manual
ProceduresProcedures (step-by-step instructions), or actions that must be carried out in a certainorder, are arranged in numbered lists in thismanual.
If there is a series of illustrations associ- ated with step-by-step instructions, eachstep in the procedure is numbered in thesame way as the corresponding illustra-tion.
Lists in which letters are used can be found with series of illustrations in caseswhere the order in which the instructionsare carried out is not important.
Arrows with or without numbers are used to indicate the direction of a movement.
Arrows containing letters are used to indi- cate movement.
If there are no illustrations associated with astep-by-step list, the steps in the procedureare indicated by ordinary numbers.
Position listsRed circles containing a number are used in general overview illustrations in whichcertain components are pointed out. Thecorresponding number is also used in theposition list's description of the variouscomponents.

Introduction
Important information
8

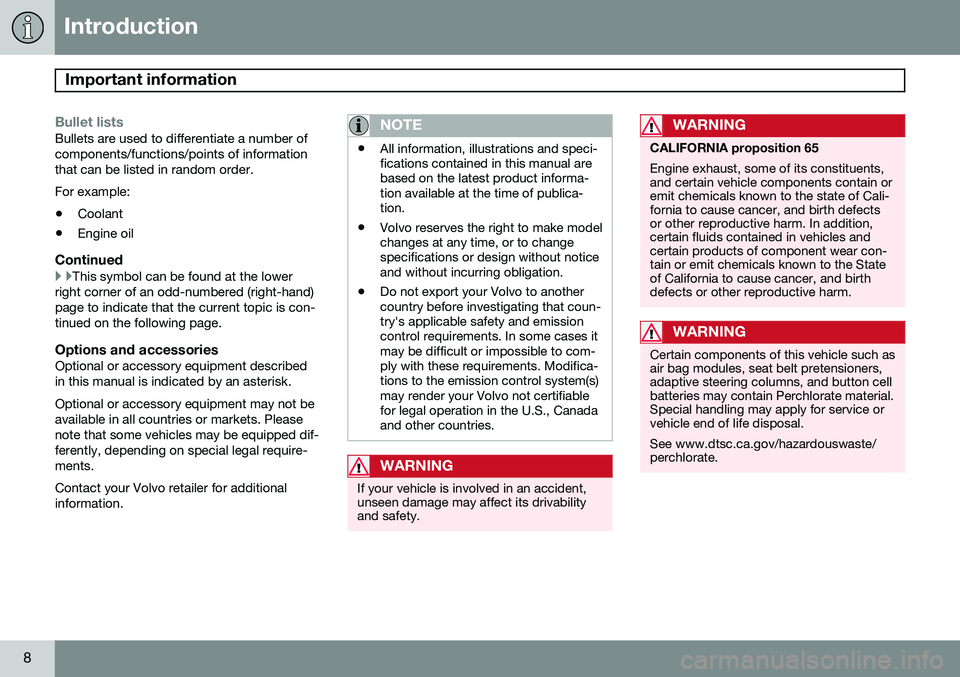

Bullet listsBullets are used to differentiate a number of components/functions/points of informationthat can be listed in random order. For example:• Coolant
• Engine oil
Continued
}
}This symbol can be found at the lower
right corner of an odd-numbered (right-hand) page to indicate that the current topic is con-tinued on the following page.
Options and accessoriesOptional or accessory equipment describedin this manual is indicated by an asterisk. Optional or accessory equipment may not be available in all countries or markets. Pleasenote that some vehicles may be equipped dif-ferently, depending on special legal require-ments. Contact your Volvo retailer for additional information.
NOTE
• All information, illustrations and speci- fications contained in this manual arebased on the latest product informa-tion available at the time of publica-tion.
• Volvo reserves the right to make modelchanges at any time, or to changespecifications or design without noticeand without incurring obligation.
• Do not export your Volvo to anothercountry before investigating that coun-try's applicable safety and emissioncontrol requirements. In some cases itmay be difficult or impossible to com-ply with these requirements. Modifica-tions to the emission control system(s)may render your Volvo not certifiablefor legal operation in the U.S., Canadaand other countries.
WARNING
If your vehicle is involved in an accident, unseen damage may affect its drivabilityand safety.
WARNING
CALIFORNIA proposition 65 Engine exhaust, some of its constituents, and certain vehicle components contain oremit chemicals known to the state of Cali-fornia to cause cancer, and birth defectsor other reproductive harm. In addition,certain fluids contained in vehicles andcertain products of component wear con-tain or emit chemicals known to the Stateof California to cause cancer, and birthdefects or other reproductive harm.
WARNING
Certain components of this vehicle such as air bag modules, seat belt pretensioners,adaptive steering columns, and button cellbatteries may contain Perchlorate material.Special handling may apply for service orvehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/ perchlorate.
