VOLVO XC70 2015 Owner´s Manual

09 Maintenance and specifications
09
379

380

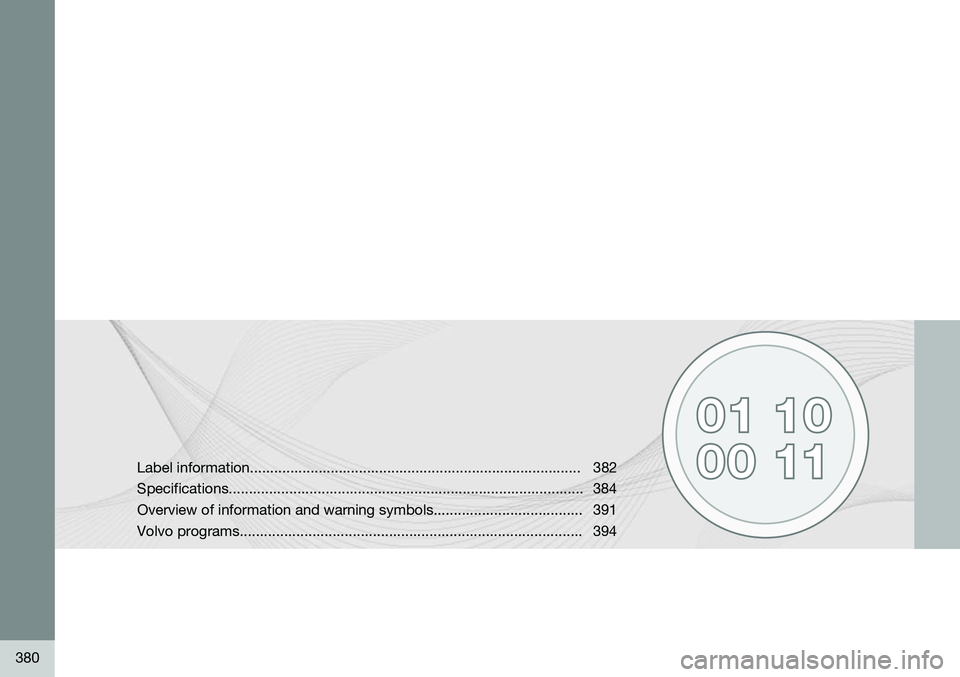

Label information.................................................................................. 382 Specifications........................................................................................ 384
Overview of information and warning symbols..................................... 391
Volvo programs..................................................................................... 394

S P E C I F I C A T I O N S

10 Specifications
Label information
10
382

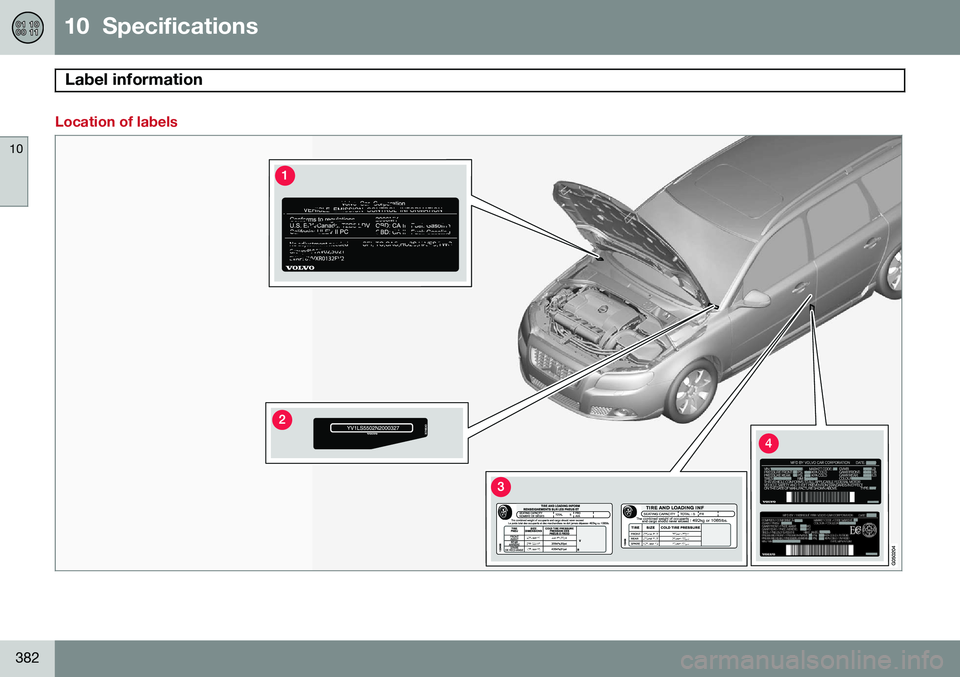

Location of labels

10 Specifications
Label information
10
383

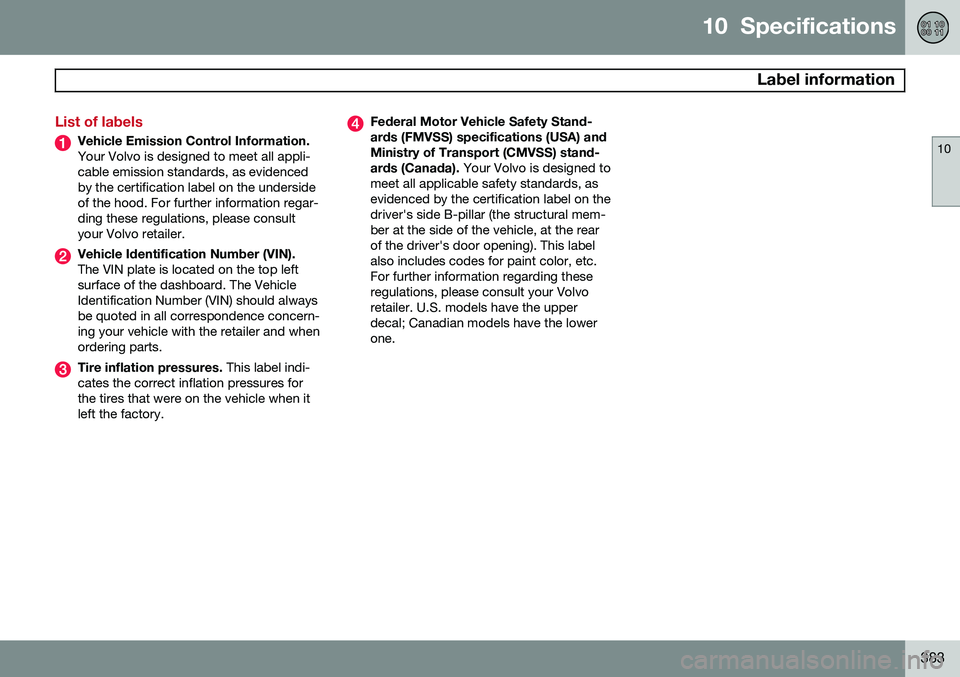

List of labels
Vehicle Emission Control Information. Your Volvo is designed to meet all appli- cable emission standards, as evidencedby the certification label on the undersideof the hood. For further information regar-ding these regulations, please consultyour Volvo retailer.
Vehicle Identification Number (VIN). The VIN plate is located on the top left surface of the dashboard. The VehicleIdentification Number (VIN) should alwaysbe quoted in all correspondence concern-ing your vehicle with the retailer and whenordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when itleft the factory.
Federal Motor Vehicle Safety Stand- ards (FMVSS) specifications (USA) andMinistry of Transport (CMVSS) stand- ards (Canada). Your Volvo is designed to
meet all applicable safety standards, as evidenced by the certification label on thedriver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rearof the driver's door opening). This labelalso includes codes for paint color, etc.For further information regarding theseregulations, please consult your Volvoretailer. U.S. models have the upperdecal; Canadian models have the lowerone.

10 Specifications
Specifications
10
384

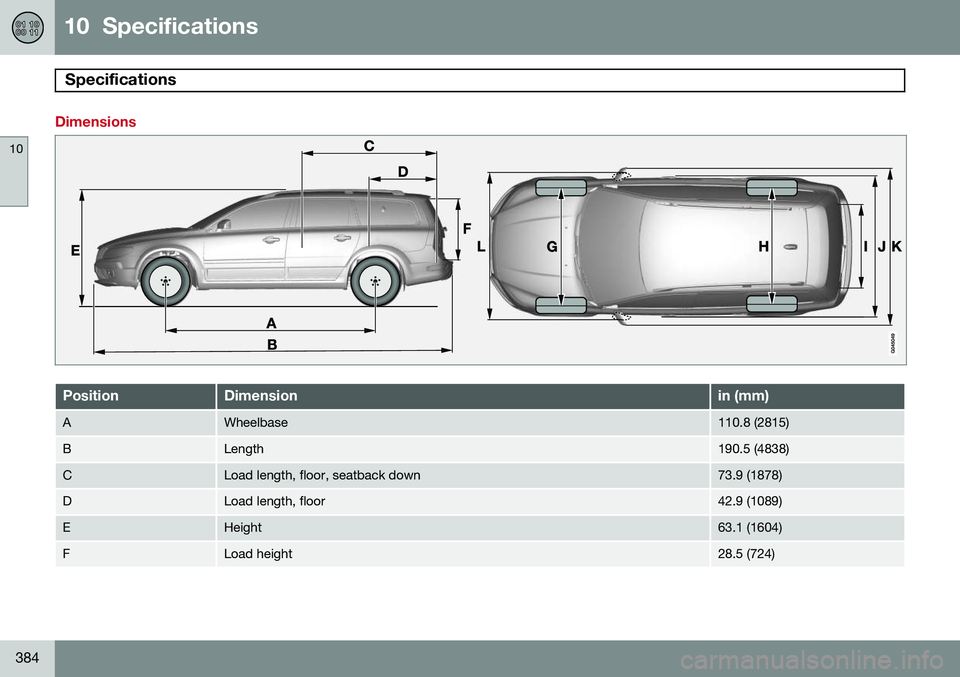

Dimensions
PositionDimensionin (mm)
AWheelbase110.8 (2815)
BLength190.5 (4838)
CLoad length, floor, seatback down73.9 (1878)
DLoad length, floor42.9 (1089)
EHeight63.1 (1604)
FLoad height28.5 (724)

10 Specifications
Specifications
10
}}
385
PositionDimensionin (mm)
GTrack, front63.5 (1614)A
63.1 (1604) B
HTrack, rear62.2 (1580)A
61.8 (1570) B
ILoad width, floor45.4 (1153)
JWidth73.6 (1870) 73.9 (1876)C
KWidth incl. door mirrors (folded out)83.4 (2119)
LWidth incl. door mirrors (folded in)75.8 (1925)
A
16" 50 wheels
B 17/18" 55 wheels
C Models with the optional keyless drive
Weights
CategoryUSACanada
Gross vehicle weight4-cyl. FWD A
turbo: 5100 lbs
6-cyl. non-turbo AWD B
: 5270 lbs
6-cyl. turbo AWD: 5310 lbs4-cyl. FWD A
turbo: 2310 kg
6-cyl. non-turbo AWD B
: 2390 kg
6-cyl. turbo AWD: 2410 kg
Capacity weightAll models: 900 lbsAll models: 410 kg

10 Specifications
Specifications
10
386

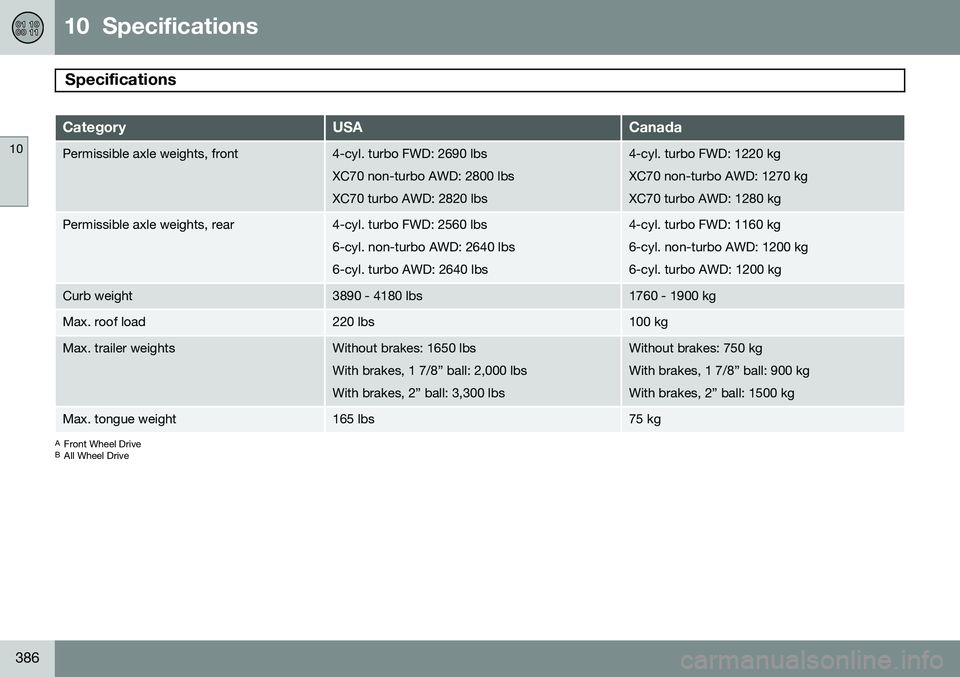

CategoryUSACanada
Permissible axle weights, front4-cyl. turbo FWD: 2690 lbs XC70 non-turbo AWD: 2800 lbsXC70 turbo AWD: 2820 lbs4-cyl. turbo FWD: 1220 kg XC70 non-turbo AWD: 1270 kgXC70 turbo AWD: 1280 kg
Permissible axle weights, rear4-cyl. turbo FWD: 2560 lbs 6-cyl. non-turbo AWD: 2640 lbs6-cyl. turbo AWD: 2640 lbs4-cyl. turbo FWD: 1160 kg 6-cyl. non-turbo AWD: 1200 kg6-cyl. turbo AWD: 1200 kg
Curb weight3890 - 4180 lbs1760 - 1900 kg
Max. roof load220 lbs100 kg
Max. trailer weightsWithout brakes: 1650 lbs With brakes, 1 7/8” ball: 2,000 lbsWith brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg With brakes, 1 7/8” ball: 900 kgWith brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFront Wheel Drive
B All Wheel Drive

10 Specifications
Specifications
10
}}
387

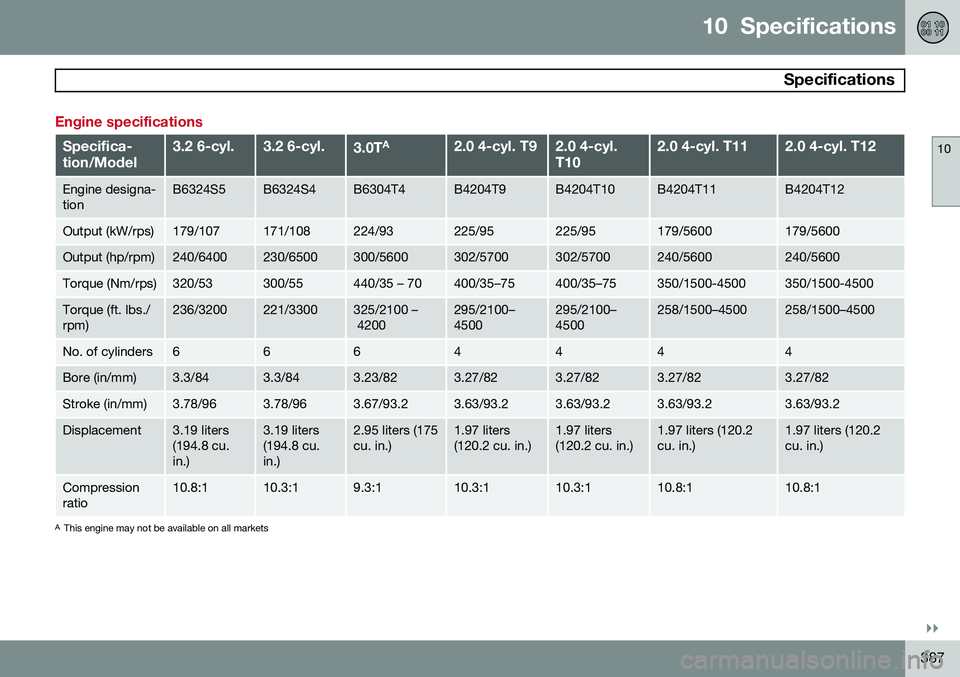

Engine specifications
Specifica- tion/Model3.2 6-cyl.3.2 6-cyl.3.0TA2.0 4-cyl. T92.0 4-cyl. T102.0 4-cyl. T112.0 4-cyl. T12
Engine designa- tionB6324S5B6324S4B6304T4B4204T9B4204T10B4204T11B4204T12
Output (kW/rps)179/107171/108224/93225/95225/95179/5600179/5600
Output (hp/rpm)240/6400230/6500300/5600302/5700302/5700240/5600240/5600
Torque (Nm/rps)320/53300/55440/35 – 70400/35–75400/35–75350/1500-4500350/1500-4500
Torque (ft. lbs./ rpm)236/3200221/3300325/2100 – 4200295/2100– 4500295/2100– 4500258/1500–4500258/1500–4500
No. of cylinders6664444
Bore (in/mm)3.3/843.3/843.23/823.27/823.27/823.27/823.27/82
Stroke (in/mm)3.78/963.78/963.67/93.23.63/93.23.63/93.23.63/93.23.63/93.2
Displacement3.19 liters (194.8 cu.in.)3.19 liters (194.8 cu.in.)2.95 liters (175 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)
Compression ratio10.8:110.3:19.3:110.3:110.3:110.8:110.8:1
A
This engine may not be available on all markets

10 Specifications
Specifications
10
388

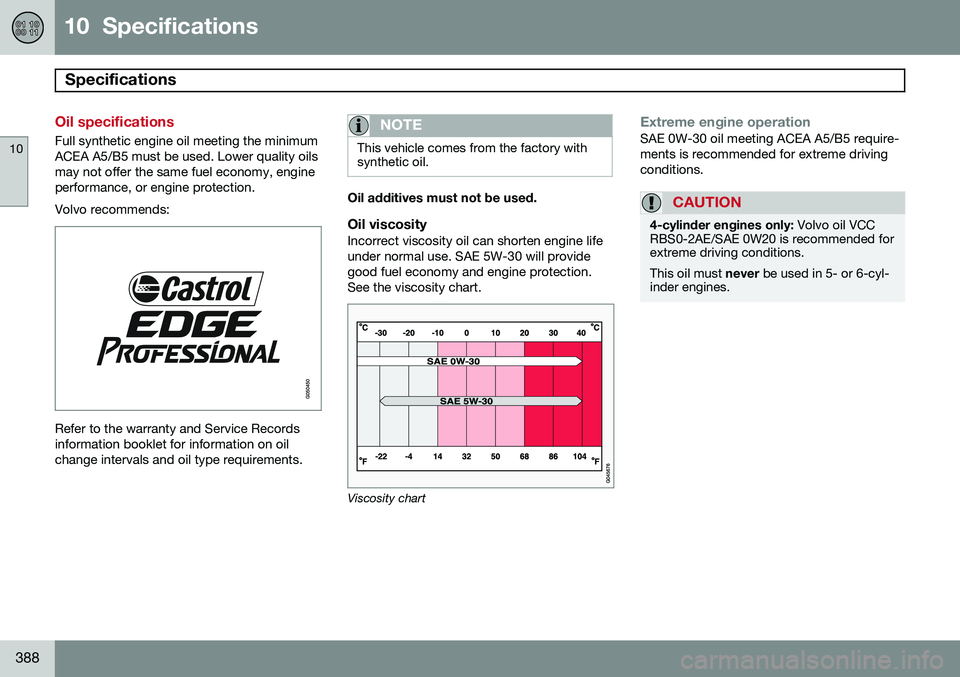

Oil specifications
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection. Volvo recommends:
Refer to the warranty and Service Records information booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will providegood fuel economy and engine protection.See the viscosity chart.
Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme drivingconditions.
CAUTION
4-cylinder engines only: Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cyl-
inder engines.
