VOLVO XC70 2015 Owner´s Manual

10 Specifications
Specifications
10
}}
389

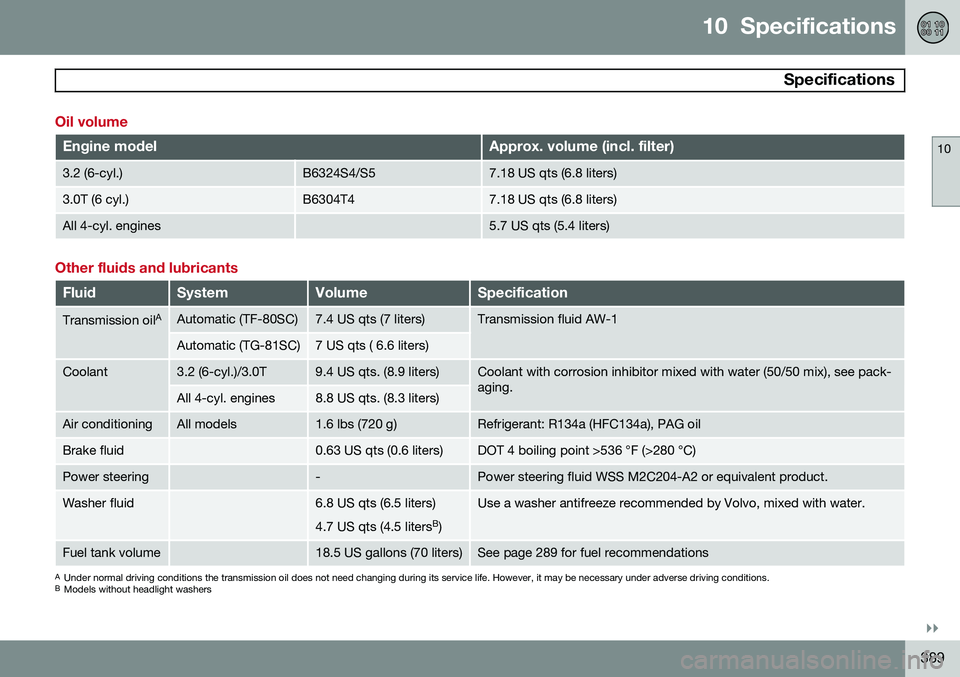

Oil volume
Engine modelApprox. volume (incl. filter)
3.2 (6-cyl.)B6324S4/S57.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
All 4-cyl. engines5.7 US qts (5.4 liters)
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Automatic (TG-81SC)7 US qts ( 6.6 liters)
Coolant3.2 (6-cyl.)/3.0T9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor mixed with water (50/50 mix), see pack- aging.
All 4-cyl. engines8.8 US qts. (8.3 liters)
Air conditioningAll models1.6 lbs (720 g)Refrigerant: R134a (HFC134a), PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4 boiling point >536 °F (>280 °C)
Power steering-Power steering fluid WSS M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters) 4.7 US qts (4.5 liters B
)Use a washer antifreeze recommended by Volvo, mixed with water.
Fuel tank volume18.5 US gallons (70 liters)See page 289 for fuel recommendations
A Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.
B Models without headlight washers

10 Specifications
Specifications
10
390* Option/accessory, for more information, see Introduction.

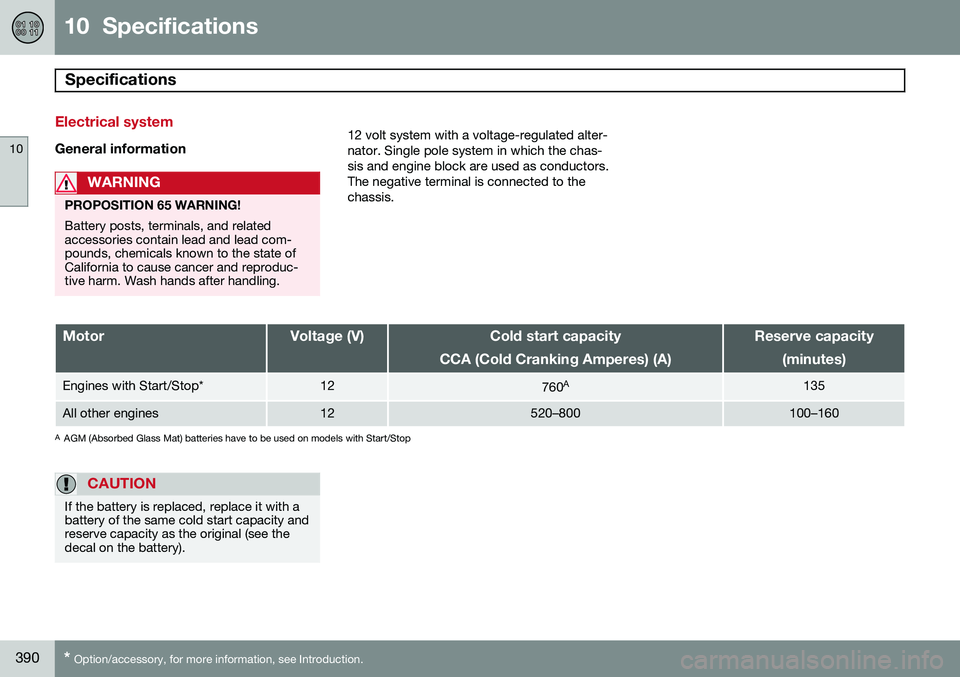

Electrical system
General information
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accessories contain lead and lead com-pounds, chemicals known to the state ofCalifornia to cause cancer and reproduc-tive harm. Wash hands after handling.
12 volt system with a voltage-regulated alter- nator. Single pole system in which the chas-sis and engine block are used as conductors.The negative terminal is connected to thechassis.
MotorVoltage (V)Cold start capacity
CCA (Cold Cranking Amperes) (A)Reserve capacity (minutes)
Engines with Start/Stop*12760A135
All other engines12520–800100–160
A
AGM (Absorbed Glass Mat) batteries have to be used on models with Start/Stop
CAUTION
If the battery is replaced, replace it with a battery of the same cold start capacity andreserve capacity as the original (see thedecal on the battery).

10 Specifications

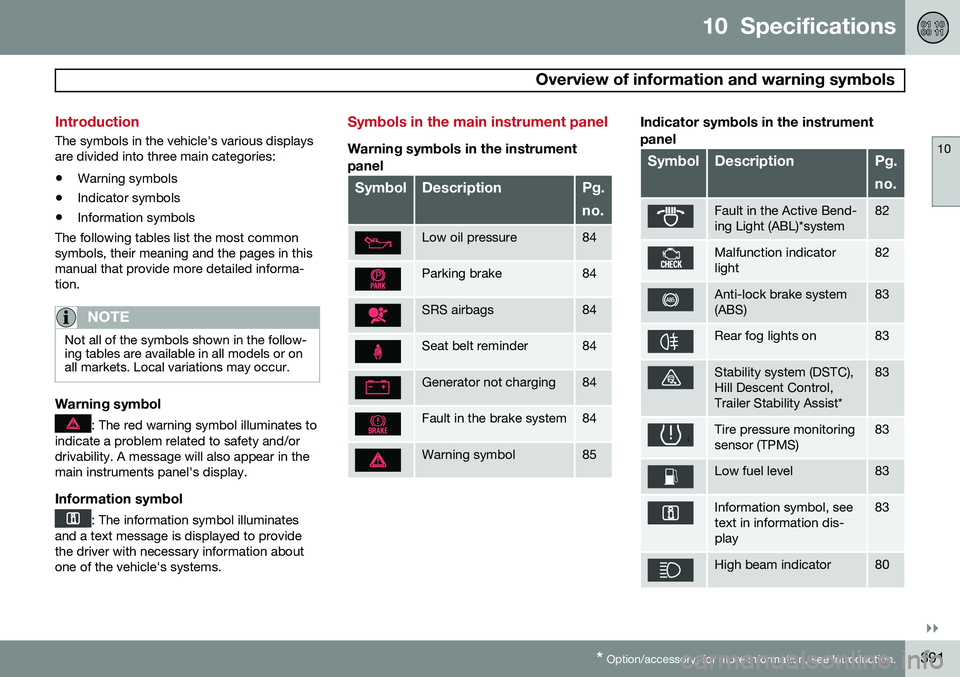

Overview of information and warning symbols
10
}}
* Option/accessory, for more information, see Introduction.391
Introduction
The symbols in the vehicle's various displays are divided into three main categories:
• Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most commonsymbols, their meaning and the pages in thismanual that provide more detailed informa-tion.
NOTE
Not all of the symbols shown in the follow- ing tables are available in all models or onall markets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
Information symbol
: The information symbol illuminates
and a text message is displayed to provide the driver with necessary information aboutone of the vehicle's systems.
Symbols in the main instrument panel
Warning symbols in the instrument
panel
SymbolDescriptionPg. no.
Low oil pressure84
Parking brake84
SRS airbags84
Seat belt reminder84
Generator not charging84
Fault in the brake system84
Warning symbol85
Indicator symbols in the instrument panel
SymbolDescriptionPg. no.
Fault in the Active Bend- ing Light (ABL)*system82
Malfunction indicator light82
Anti-lock brake system (ABS)83
Rear fog lights on83
Stability system (DSTC), Hill Descent Control,Trailer Stability Assist*83
Tire pressure monitoring sensor (TPMS)83
Low fuel level83
Information symbol, see text in information dis-play83
High beam indicator80

10 Specifications
Overview of information and warning symbols
10
392* Option/accessory, for more information, see Introduction.

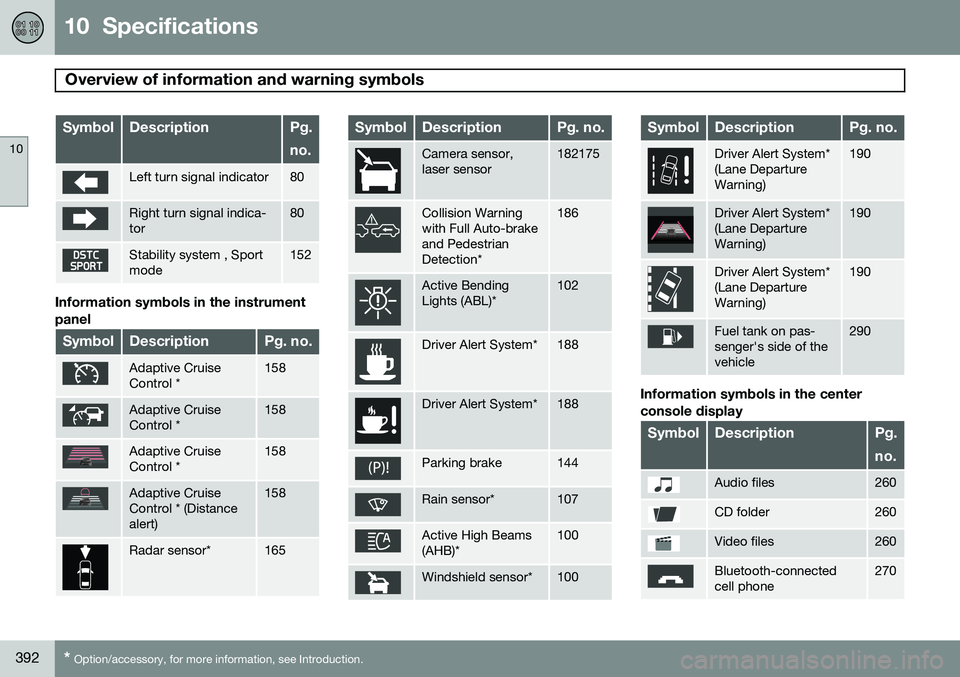

SymbolDescriptionPg. no.
Left turn signal indicator80
Right turn signal indica- tor80
Stability system , Sport mode152
Information symbols in the instrument panel
SymbolDescriptionPg. no.
Adaptive Cruise Control *158
Adaptive Cruise Control *158
Adaptive Cruise Control *158
Adaptive Cruise Control * (Distancealert)158
Radar sensor*165
SymbolDescriptionPg. no.
Camera sensor, laser sensor182175
Collision Warning with Full Auto-brakeand PedestrianDetection*186
Active Bending Lights (ABL)*102
Driver Alert System*188
Driver Alert System*188
Parking brake144
Rain sensor*107
Active High Beams (AHB)*100
Windshield sensor*100
SymbolDescriptionPg. no.
Driver Alert System* (Lane DepartureWarning)190
Driver Alert System* (Lane DepartureWarning)190
Driver Alert System* (Lane DepartureWarning)190
Fuel tank on pas- senger's side of thevehicle290
Information symbols in the center console display
SymbolDescriptionPg. no.
Audio files260
CD folder260
Video files260
Bluetooth-connected cell phone270

10 Specifications
Overview of information and warning symbols
10
* Option/accessory, for more information, see Introduction.393

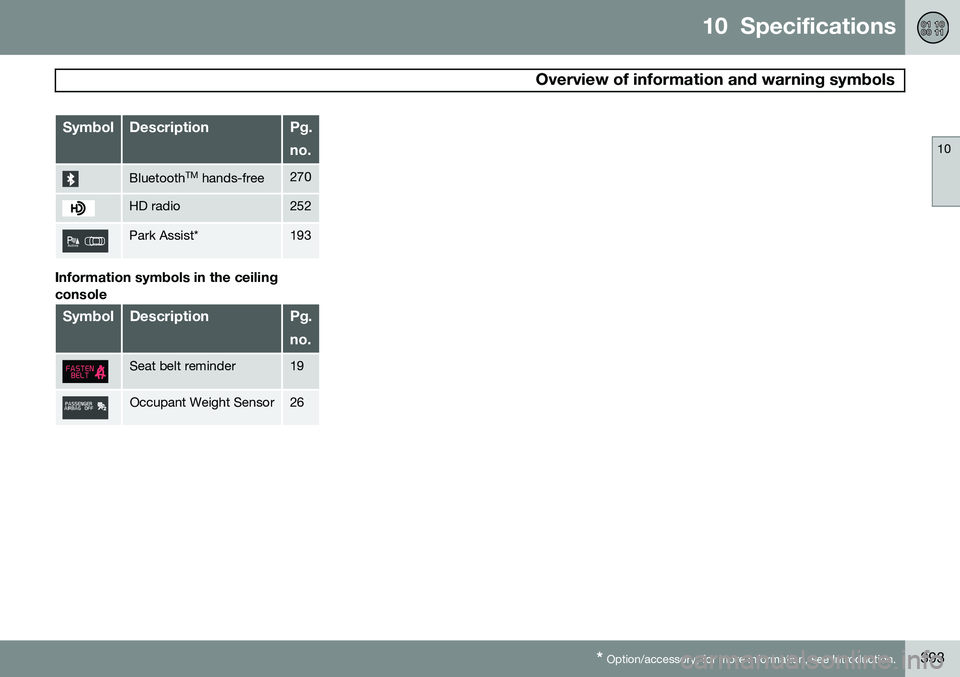

SymbolDescriptionPg. no.
Bluetooth TM
hands-free270
HD radio252
Park Assist*193
Information symbols in the ceiling console
SymbolDescriptionPg. no.
Seat belt reminder19
Occupant Weight Sensor26

10 Specifications
Volvo programs
10
394

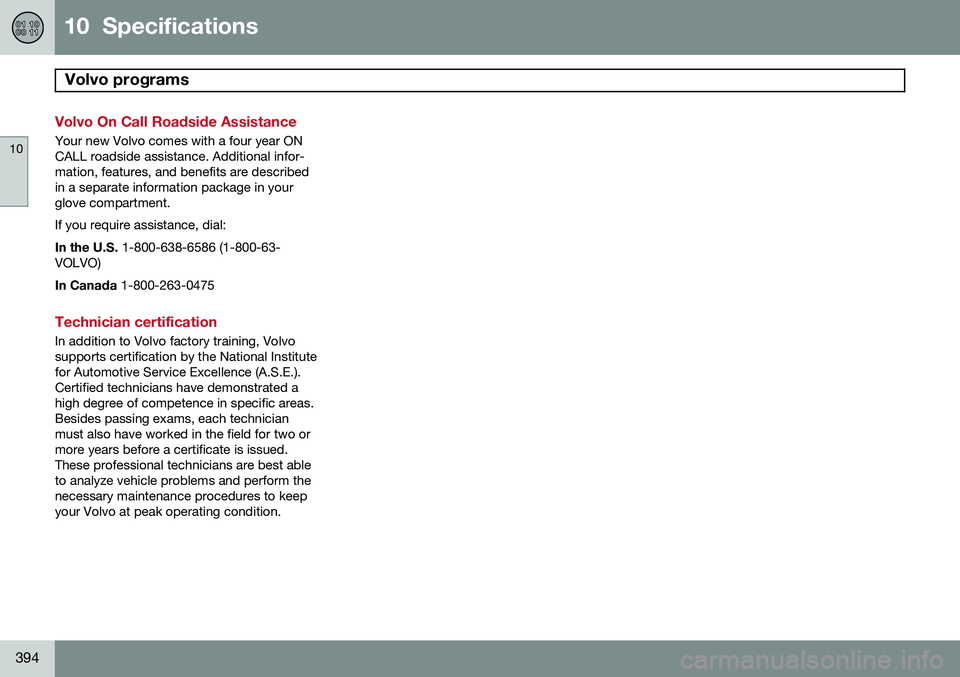

Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON CALL roadside assistance. Additional infor-mation, features, and benefits are describedin a separate information package in yourglove compartment. If you require assistance, dial:In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)In Canada 1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo supports certification by the National Institutefor Automotive Service Excellence (A.S.E.).Certified technicians have demonstrated ahigh degree of competence in specific areas.Besides passing exams, each technicianmust also have worked in the field for two ormore years before a certificate is issued.These professional technicians are best ableto analyze vehicle problems and perform thenecessary maintenance procedures to keepyour Volvo at peak operating condition.

10 Specifications

10
395

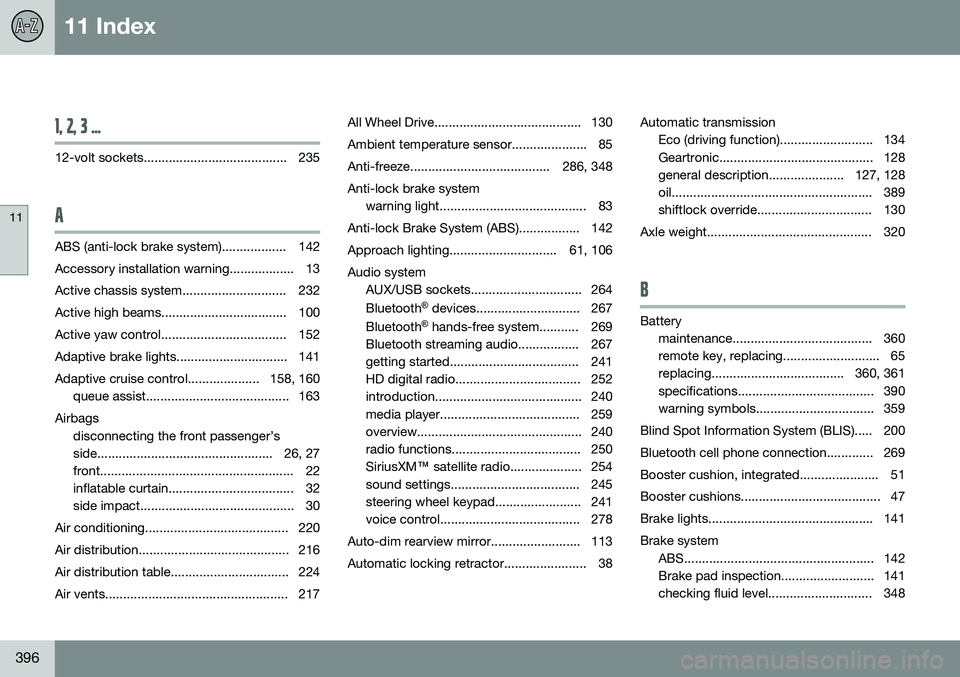

11 Index
11
396
1, 2, 3 ...
12-volt sockets........................................ 235
A
ABS (anti-lock brake system).................. 142
Accessory installation warning.................. 13
Active chassis system............................. 232
Active high beams................................... 100Active yaw control................................... 152
Adaptive brake lights............................... 141
Adaptive cruise control.................... 158, 160 queue assist........................................ 163
Airbags disconnecting the front passenger’s
side................................................. 26, 27
front...................................................... 22
inflatable curtain................................... 32
side impact........................................... 30
Air conditioning........................................ 220
Air distribution.......................................... 216
Air distribution table................................. 224
Air vents................................................... 217 All Wheel Drive......................................... 130
Ambient temperature sensor..................... 85
Anti-freeze....................................... 286, 348Anti-lock brake system
warning light......................................... 83
Anti-lock Brake System (ABS)................. 142
Approach lighting.............................. 61, 106Audio system AUX/USB sockets............................... 264 Bluetooth ®
devices............................. 267
Bluetooth ®
hands-free system........... 269
Bluetooth streaming audio................. 267
getting started.................................... 241
HD digital radio................................... 252
introduction......................................... 240
media player....................................... 259
overview.............................................. 240
radio functions.................................... 250SiriusXM ™ satellite radio.................... 254
sound settings.................................... 245
steering wheel keypad........................ 241
voice control....................................... 278
Auto-dim rearview mirror......................... 113
Automatic locking retractor....................... 38 Automatic transmission
Eco (driving function).......................... 134
Geartronic........................................... 128
general description..................... 127, 128
oil........................................................ 389
shiftlock override................................ 130
Axle weight.............................................. 320
B
Battery maintenance....................................... 360
remote key, replacing........................... 65
replacing..................................... 360, 361
specifications...................................... 390
warning symbols................................. 359
Blind Spot Information System (BLIS)..... 200
Bluetooth cell phone connection............. 269
Booster cushion, integrated...................... 51
Booster cushions....................................... 47
Brake lights.............................................. 141Brake system ABS..................................................... 142
Brake pad inspection.......................... 141
checking fluid level............................. 348

11 Index
11
397
emergency brake assistance.............. 142
fluid..................................................... 389
general information............................. 141
Hill Descent Control............................ 147
Bulbs cargo area lighting.............................. 354
headlights........................... 350, 351, 352
introduction......................................... 350
license plate lights.............................. 354
side marker lights............................... 353
specifications...................................... 355
taillight................................................ 353
C
Camera, Park Assist................................ 197
Capacity weight....................................... 320Cargo areachanging bulbs................................... 354
floor rails............................................. 295
hooks for securing loads............ 295, 296
steel grid............................................. 299
Cargo area cover..................................... 300
Cargo area net......................................... 300
Catalytic converter................................... 291 Cell phone, hands-free connection......... 269
Cell phone voice control.......................... 278
Central locking system, introduction......... 58
Chains...................................................... 323
Check Engine warning light....................... 82Child restraints
recalls and registration......................... 39
Child restraint systems.............................. 40 booster cushions.................................. 47
convertible seats.................................. 44
infant seats........................................... 42
ISOFIX/LATCH anchors........................ 48
top tether anchors................................ 50
Child safety................................................ 37 booster cushions.................................. 47
child restraint systems.......................... 40
convertible seats.................................. 44
infant seats........................................... 42
Child safety locks...................................... 54
City safety................................................ 172
Climate system........................................ 221 air distribution............................. 216, 224
air vents.............................................. 217
Interior Air Quality System.................. 216
introduction......................................... 215 passenger compartment filter............ 215
refrigerant........................................... 215
Clock, setting............................................. 86
Cold weather driving................................ 286
Collision warning system................. 178, 179
Compass in rearview mirror..................... 115
Conserving electrical current................... 286
Controls, center console.......................... 241
Convertible seats....................................... 44
Coolant............................................ 348, 389
Cooling system, general information....... 285
Courtesy lighting.............................. 104, 105
Crash event data......................................... 9
Crash mode............................................... 35
Cruise control.................................. 156, 157 adaptive.............................................. 158
Curb weight............................................. 320
Current, conserving................................. 286
Cyclist detection...................................... 178

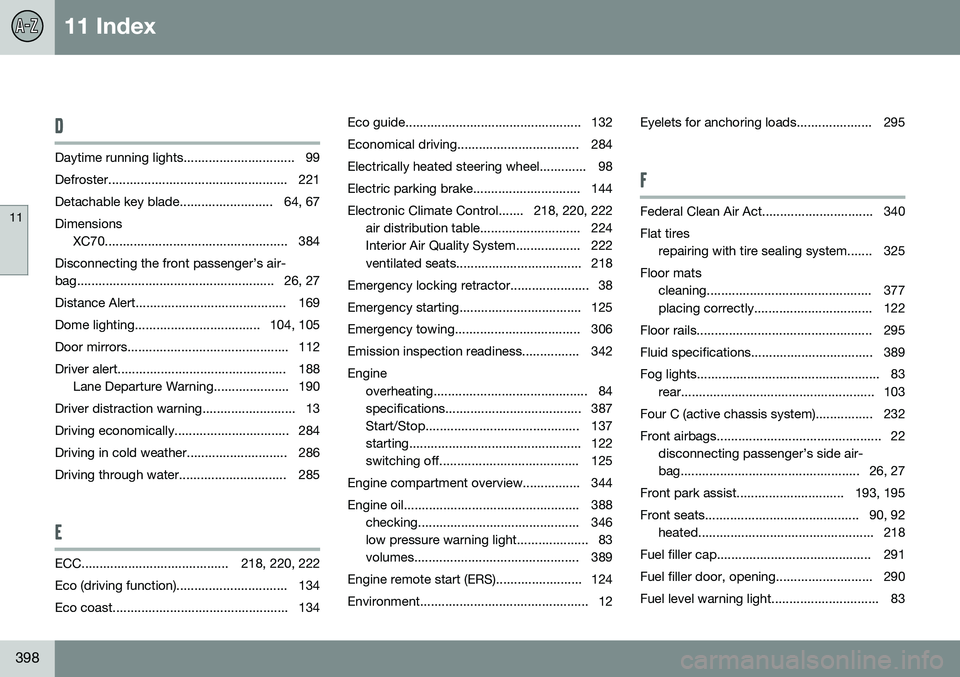

11 Index
11
398
D
Daytime running lights............................... 99
Defroster.................................................. 221
Detachable key blade.......................... 64, 67DimensionsXC70................................................... 384
Disconnecting the front passenger’s air-
bag....................................................... 26, 27
Distance Alert.......................................... 169
Dome lighting................................... 104, 105
Door mirrors............................................. 112
Driver alert............................................... 188 Lane Departure Warning..................... 190
Driver distraction warning.......................... 13
Driving economically................................ 284
Driving in cold weather............................ 286
Driving through water.............................. 285
E
ECC......................................... 218, 220, 222
Eco (driving function)............................... 134
Eco coast................................................. 134 Eco guide................................................. 132
Economical driving.................................. 284
Electrically heated steering wheel............. 98
Electric parking brake.............................. 144
Electronic Climate Control....... 218, 220, 222
air distribution table............................ 224
Interior Air Quality System.................. 222
ventilated seats................................... 218
Emergency locking retractor...................... 38
Emergency starting.................................. 125
Emergency towing................................... 306
Emission inspection readiness................ 342Engine overheating........................................... 84
specifications...................................... 387
Start/Stop........................................... 137
starting................................................ 122
switching off....................................... 125
Engine compartment overview................ 344
Engine oil................................................. 388 checking............................................. 346
low pressure warning light.................... 83
volumes.............................................. 389
Engine remote start (ERS)........................ 124
Environment............................................... 12 Eyelets for anchoring loads..................... 295
F
Federal Clean Air Act............................... 340 Flat tires
repairing with tire sealing system....... 325
Floor mats cleaning.............................................. 377
placing correctly................................. 122
Floor rails................................................. 295
Fluid specifications.................................. 389
Fog lights................................................... 83 rear...................................................... 103
Four C (active chassis system)................ 232
Front airbags.............................................. 22 disconnecting passenger’s side air-
bag.................................................. 26, 27
Front park assist.............................. 193, 195
Front seats........................................... 90, 92 heated................................................. 218
Fuel filler cap........................................... 291
Fuel filler door, opening........................... 290
Fuel level warning light.............................. 83
