clock setting VOLVO XC70 2015 Owner´s Manual

[x] Cancel search | Manufacturer: VOLVO, Model Year: 2015, Model line: XC70, Model: VOLVO XC70 2015
Pages: 408, PDF Size: 11.26 MB

Page 74 of 408

VOLVO XC70 2015 Owner´s Manual 02 Locks and alarm
Locks
02
72
Automatic relockingIf the doors are unlocked, the locks will auto- matically reengage (re-lock) and the alarm willrearm after 2 minutes unless a door or thetailgate has

Page 88 of 408

VOLVO XC70 2015 Owner´s Manual 03 Your driving environment
Instruments and controls
03
86* Option/accessory, for more information, see Introduction.
NOTE
When the ambient temperature is between 23° and 36 °F (–5° and +2 °C),

Page 208 of 408

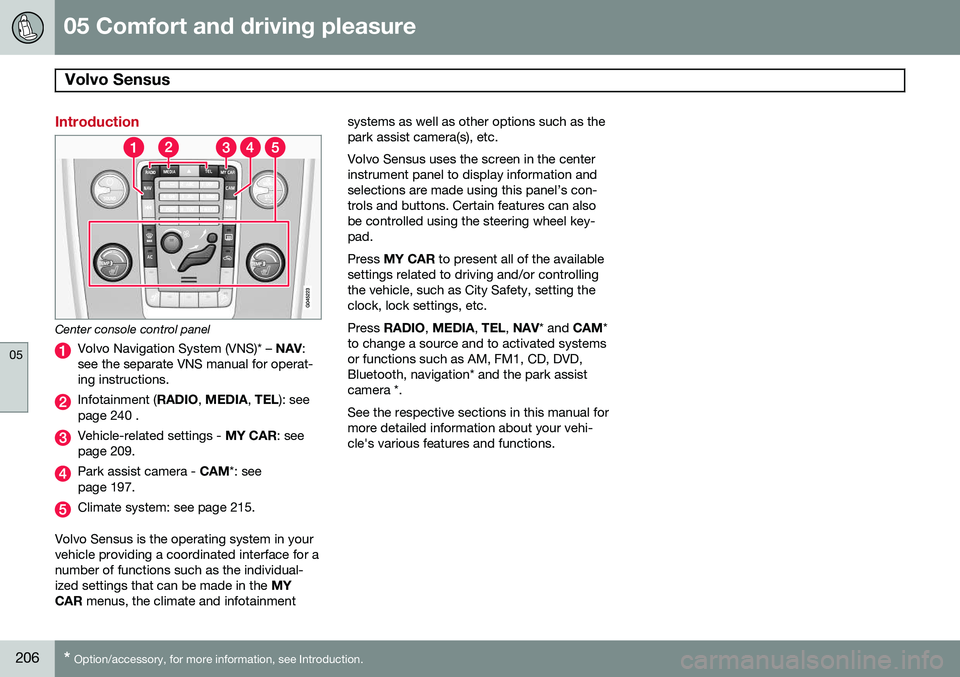

VOLVO XC70 2015 Owner´s Manual 05 Comfort and driving pleasure
Volvo Sensus
05
206* Option/accessory, for more information, see Introduction.
Introduction
Center console control panel
Volvo Navigation System (VNS)* – NAV:
see t

Page 211 of 408

VOLVO XC70 2015 Owner´s Manual 05 Comfort and driving pleasure
The MY CAR menus
05
}}
209
Introduction
The menu system provides access to menus for operating many of the vehi-cle's functions, such as setting the
clock, door m

Page 222 of 408

VOLVO XC70 2015 Owner´s Manual 05 Comfort and driving pleasure
Climate system
05
220
Blower controlTurn the control clockwise to increase or counterclockwiseto decrease the blowerspeed. If AUTO is selected,
blower speed will be re

Page 274 of 408

VOLVO XC70 2015 Owner´s Manual 06 Infotainment
Bluetooth® hands-free connection
06
272
Making a call1. Ensure that is shown at the top of
the center console display and that the hands-free function is in telephone mode.
2. Dia

06 Infotainment
Bluetooth® hands-free connection
06
272
Making a call1. Ensure that is shown at the top of
the center console display and that the hands-free function is in telephone mode.
2. Dial the desired phone number using the center console keypad or use the speeddial function (see page 276). In normalview (see page see page 241 for informa-tion about the various display views), it isalso possible to turn TUNE clockwise to
access the phone book and then counter-clockwise for the call list. See page 277for more information about the phonebook.
3. Press the thumb wheel or OK/MENU.
End or reject a call by pressing EXIT.
Disconnecting the cell phoneThe cell phone is automatically disconnectedfrom the infotainment system if it is movedout of range. The cell phone can be manually disconnected from the hands-free system by pressing andholding TEL or in phone mode, going to
Phone menuDisconnect phone. See also
page 273 for more information about con- nections. The hands-free system is also deactivatedwhen the ignition is switched off (or if thedriver’s door is opened). When the cell phone is disconnected from the hands-free system, a call in progress can becontinued using the cell phone’s own speakerand microphone. Even if the cell phone has been disconnected manually, some phones may reconnect auto-matically, for example when a new call is initi-ated.
Removing a paired deviceA paired phone or device can be removedfrom the list. To do so:
1. Press
TEL.
2. Select
Phone menuRemove
Bluetooth device.
Handling calls
Incoming calls–Press OK/MENU (or the thumb wheel on
the steering wheel keypad) to answer a call, even if the infotainment system is currently in another mode (e.g.,
RADIO orMEDIA).
Press EXIT to reject a call.
Auto answerThis function means that incoming calls will be answered automatically. Activate or deac-tivate the function in the menu system under
Phone menuCall optionsAuto
answer.
Call settingsWhile a call is in progress, press OK/MENU
or the thumb wheel on the steering wheel keypad to access the following functions:
•
Mute: mute the infotainment system’s
microphone.
•
Mobile phone: transfer the call from
hands-free to the cell phone. On certain cell phones, the connection will be bro-ken, which is normal. The hands-freefunction will ask if you would like toreconnect.
•
Dial number: dial a third party during an
ongoing call using the keypad (the current call will be put on hold).
Call listsCall lists are copied to the hands-free func- tion each time a cell phone is connected andthe lists are updated while the phone is con-nected. In normal view, turn TUNE counter-
clockwise to see the
All calls list.

Page 276 of 408

VOLVO XC70 2015 Owner´s Manual 06 Infotainment
Bluetooth® hands-free connection
06
274
connected when the contact is saved. These contacts will be displayed regard-less of the cell phone that is connected. Ifa contact has been

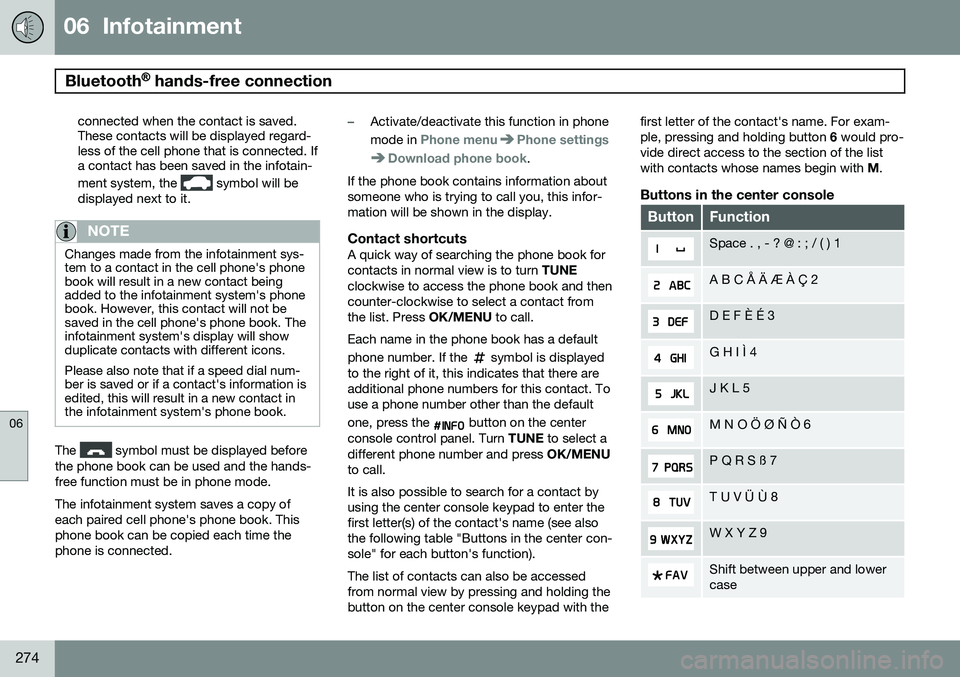

06 Infotainment
Bluetooth® hands-free connection
06
274
connected when the contact is saved. These contacts will be displayed regard-less of the cell phone that is connected. Ifa contact has been saved in the infotain- ment system, the
symbol will be
displayed next to it.
NOTE
Changes made from the infotainment sys- tem to a contact in the cell phone's phonebook will result in a new contact beingadded to the infotainment system's phonebook. However, this contact will not besaved in the cell phone's phone book. Theinfotainment system's display will showduplicate contacts with different icons. Please also note that if a speed dial num- ber is saved or if a contact's information isedited, this will result in a new contact inthe infotainment system's phone book.
The symbol must be displayed before
the phone book can be used and the hands- free function must be in phone mode. The infotainment system saves a copy of each paired cell phone's phone book. Thisphone book can be copied each time thephone is connected.
–Activate/deactivate this function in phone mode in
Phone menuPhone settings
Download phone book.
If the phone book contains information about someone who is trying to call you, this infor-mation will be shown in the display.
Contact shortcutsA quick way of searching the phone book forcontacts in normal view is to turn TUNE
clockwise to access the phone book and thencounter-clockwise to select a contact fromthe list. Press OK/MENU to call.
Each name in the phone book has a default phone number. If the
symbol is displayed
to the right of it, this indicates that there are additional phone numbers for this contact. Touse a phone number other than the default one, press the
button on the center
console control panel. Turn TUNE to select a
different phone number and press OK/MENU
to call. It is also possible to search for a contact by using the center console keypad to enter thefirst letter(s) of the contact's name (see alsothe following table "Buttons in the center con-sole" for each button's function). The list of contacts can also be accessed from normal view by pressing and holding thebutton on the center console keypad with the first letter of the contact's name. For exam-ple, pressing and holding button
6 would pro-
vide direct access to the section of the listwith contacts whose names begin with M.
Buttons in the center console
ButtonFunction
Space . , - ? @ : ; / ( ) 1
A B C Å Ä Æ À Ç 2
D E F È É 3
G H I Ì 4
J K L 5
M N O Ö Ø Ñ Ò 6
P Q R S ß 7
T U V Ü Ù 8
W X Y Z 9
Shift between upper and lower case

Page 399 of 408

VOLVO XC70 2015 Owner´s Manual 11 Index
11
397
emergency brake assistance.............. 142
fluid..................................................... 389
general information............................. 141
Hill Descent Control..

11 Index
11
397
emergency brake assistance.............. 142
fluid..................................................... 389
general information............................. 141
Hill Descent Control............................ 147
Bulbs cargo area lighting.............................. 354
headlights........................... 350, 351, 352
introduction......................................... 350
license plate lights.............................. 354
side marker lights............................... 353
specifications...................................... 355
taillight................................................ 353
C
Camera, Park Assist................................ 197
Capacity weight....................................... 320Cargo areachanging bulbs................................... 354
floor rails............................................. 295
hooks for securing loads............ 295, 296
steel grid............................................. 299
Cargo area cover..................................... 300
Cargo area net......................................... 300
Catalytic converter................................... 291 Cell phone, hands-free connection......... 269
Cell phone voice control.......................... 278
Central locking system, introduction......... 58
Chains...................................................... 323
Check Engine warning light....................... 82Child restraints
recalls and registration......................... 39
Child restraint systems.............................. 40 booster cushions.................................. 47
convertible seats.................................. 44
infant seats........................................... 42
ISOFIX/LATCH anchors........................ 48
top tether anchors................................ 50
Child safety................................................ 37 booster cushions.................................. 47
child restraint systems.......................... 40
convertible seats.................................. 44
infant seats........................................... 42
Child safety locks...................................... 54
City safety................................................ 172
Climate system........................................ 221 air distribution............................. 216, 224
air vents.............................................. 217
Interior Air Quality System.................. 216
introduction......................................... 215 passenger compartment filter............ 215
refrigerant........................................... 215
Clock, setting............................................. 86
Cold weather driving................................ 286
Collision warning system................. 178, 179
Compass in rearview mirror..................... 115
Conserving electrical current................... 286
Controls, center console.......................... 241
Convertible seats....................................... 44
Coolant............................................ 348, 389
Cooling system, general information....... 285
Courtesy lighting.............................. 104, 105
Crash event data......................................... 9
Crash mode............................................... 35
Cruise control.................................. 156, 157 adaptive.............................................. 158
Curb weight............................................. 320
Current, conserving................................. 286
Cyclist detection...................................... 178
