VOLVO XC90 2003 Owners Manual

2003 VOLVO XC90

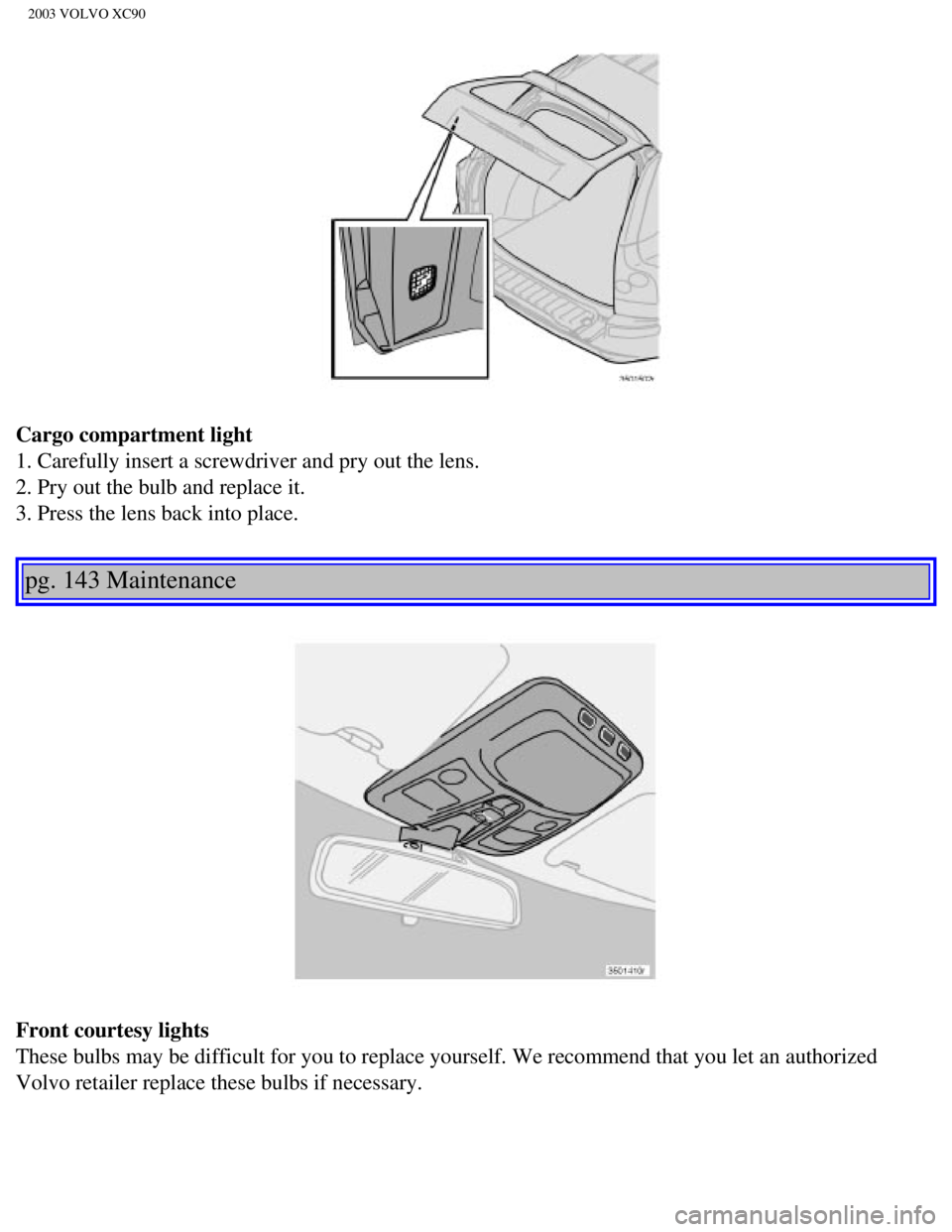

Cargo compartment light
1. Carefully insert a screwdriver and pry out the lens.
2. Pry out the bulb and replace it.
3. Press the lens back into place.
pg. 143 Maintenance
Front courtesy lights
These bulbs may be difficult for you to replace yourself. We recommend t\
hat you let an authorized
Volvo retailer replace these bulbs if necessary.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (14 of 23)12/30/20\
06 4:19:04 PM

2003 VOLVO XC90

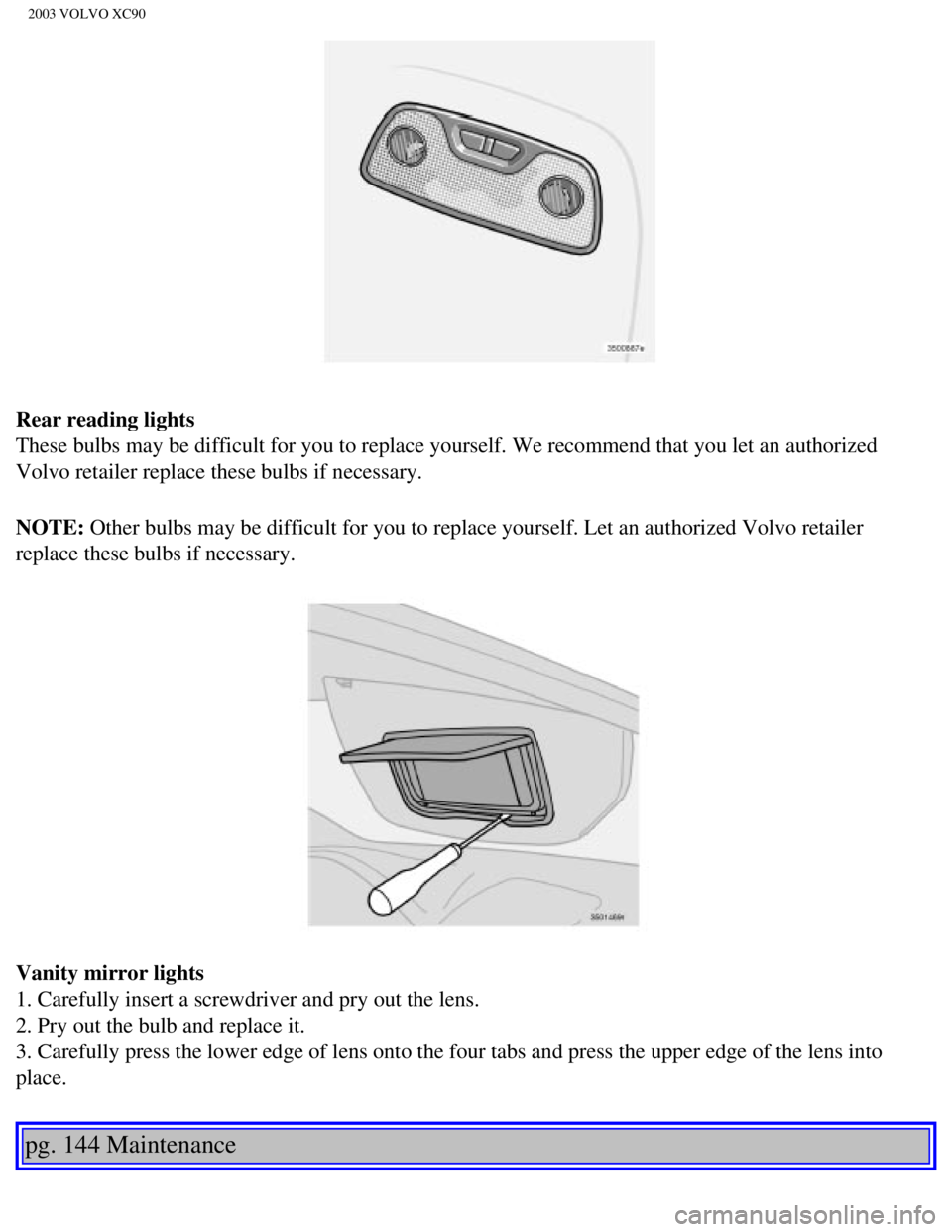

Rear reading lights
These bulbs may be difficult for you to replace yourself. We recommend t\
hat you let an authorized
Volvo retailer replace these bulbs if necessary.
NOTE: Other bulbs may be difficult for you to replace yourself. Let an authori\
zed Volvo retailer
replace these bulbs if necessary.
Vanity mirror lights
1. Carefully insert a screwdriver and pry out the lens.
2. Pry out the bulb and replace it.
3. Carefully press the lower edge of lens onto the four tabs and press t\
he upper edge of the lens into
place.
pg. 144 Maintenance
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (15 of 23)12/30/20\
06 4:19:04 PM

2003 VOLVO XC90
Bulbs (contd)

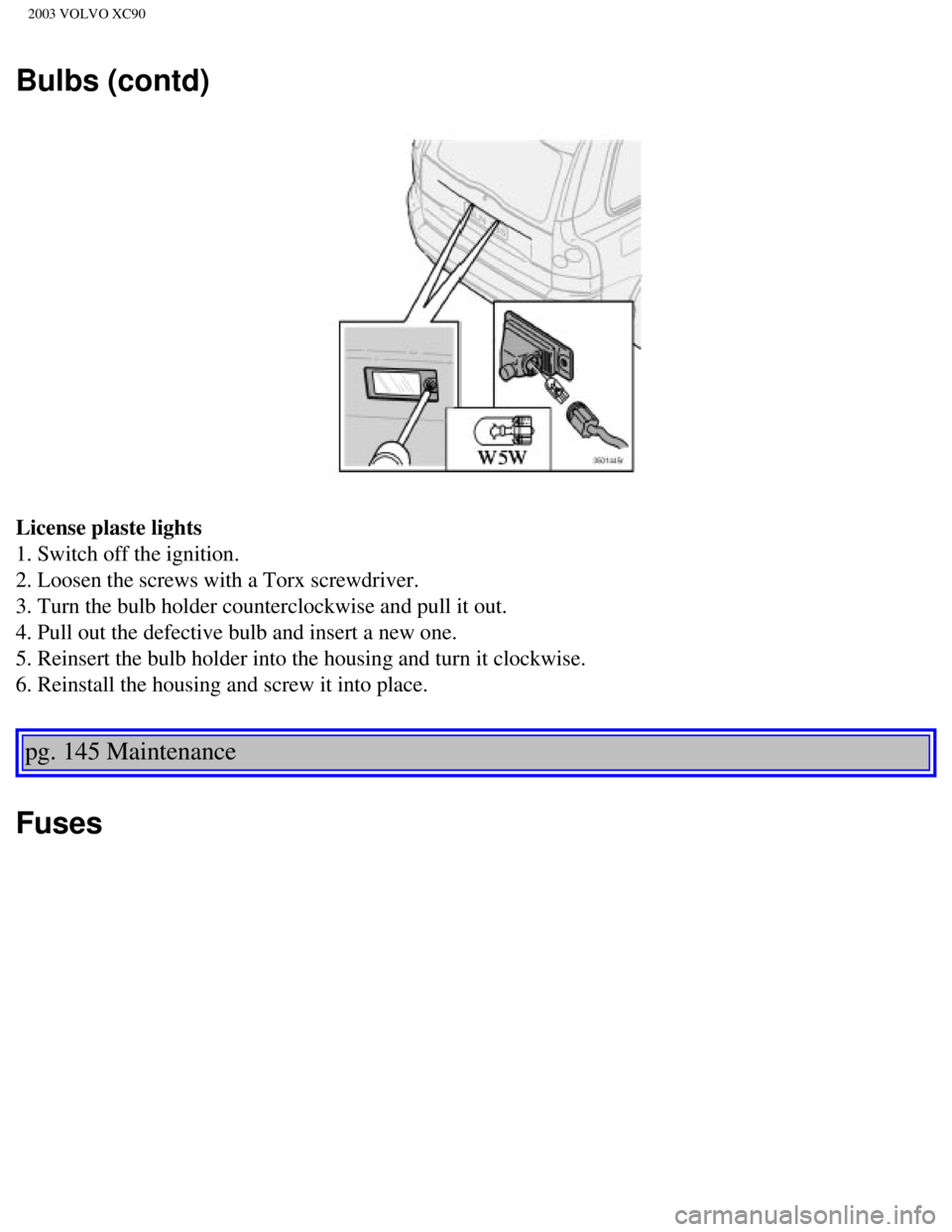

License plaste lights
1. Switch off the ignition.
2. Loosen the screws with a Torx screwdriver.
3. Turn the bulb holder counterclockwise and pull it out.
4. Pull out the defective bulb and insert a new one.
5. Reinsert the bulb holder into the housing and turn it clockwise.
6. Reinstall the housing and screw it into place.
pg. 145 Maintenance
Fuses
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (16 of 23)12/30/20\
06 4:19:04 PM

2003 VOLVO XC90
Replacing fuses
If an electrical component fails to function, it is possible that a fuse\
has blown.
The fuse boxes are located in three different places:
A - Relays/fuse box in the engine compartment
B - Fuse box in the passenger compartment
C - Relays/fuse box in the cargo compartment.
A label on the inside of each cover indicates the amperage and the elect\
rical components that are
connected to each fuse.
The easiest way to see if a fuse is blown is to remove it. Pull the fuse\
straight out. If a fuse is difficult to
remove, you will find a special fuse removal tool in the passenger compa\
rtment fuse box. From the side,
examine the curved metal wire (see next page) to see if it is broken. \
If so, put in a new fuse of the same
color and amperage (written on the fuse). Spare fuses are stored in the fuse box in the \
engine
compartment and the passenger compartment. If fuses burn out repeatedly,\
have the electrical system
inspected by an authorized Volvo retailer.
WARNING!
Never use fuses with higher amperage than those stated on the following \
pages. Doing so could
overload the vehicle's electrical system.
pg. 146 Maintenance
Fuses (contd)
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (17 of 23)12/30/20\
06 4:19:04 PM

2003 VOLVO XC90

A-To open, press the plastice catches on the rear side of the fuse box c\
over and lift.
Relay/Fuse box in the engine compartment
When replacing fuses, be sure to replace a blown fuse with a new one of \
the same color and amperage
(written on the fuse).
Fuses in the engine compartment
No. Amperage
1. Accessories 25
2. -
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (18 of 23)12/30/20\
06 4:19:04 PM

2003 VOLVO XC90
3. Vacuum pump15
4. Oxygen sensors 20
5. Crankcase ventilation heater, solenoid valves 10
6. Mass air flow sensor, engine control module, injectors 15
7. -
8. A/C compressor, accelerator pedal position sensor, E-box
fan 10
9. Horn 15
10. Tailgate washer 10
11. A/C compressor, ignition coils 20
12. Brake light contact 5
13. Windshield wipers 25
14. ABS/DSTC 30
15. Headlight washers 25
16. Windshield washers 15
17. Low beam, right 10
18. Low beam, left 10
19. ABS/DSTC 30
20. High beam, left 15
21. High beam, right 15
22. Starter motor 25
23. Engine control module, system relay 5
24. -
pg. 147 Maintenance
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (19 of 23)12/30/20\
06 4:19:04 PM

2003 VOLVO XC90
Fuses in the passenger compartment
Fuses are located inside the access panel on the end face of the dashboa\
rd. There are also a number of
spare fuses. No. Amperage
1. Blower - climate system 30
2. Audio amplifier 30
3. Power driver's seat 30
4. Power passenger's seat (option) 30
5. Driver's door - central locking, power windows, door mirror 25
6. Front passenger's door - central locking, power windows, door mirror \
25
7. Rear side doors - power windows, child safety locks 30
8. -
9. -
10. Power passenger's seat 5
11. Electric socket 12V 15
12. Ignition switch (30-feed), central electronic module, starter moto\
r relay, SRS, antenna
ring, engine management system 10
13. -
14. Electronic module (ceiling), courtesy lighting (ceiling) 10
15. -
16. Speed-sensitive power steering (T6 only) 5
17. ABS/DSTC 5
18. Heated driver's seat (option) 15
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (20 of 23)12/30/20\
06 4:19:04 PM

2003 VOLVO XC90
19. Heated front passenger's seat (option)15
20. Infotainment system 10
21. Relay extended D1 feed: climate control system, power driver's seat,\
instrument panel 10
22. Headlight switch module, climate control system, onboard diagnostic \
connector,
steering wheel lever modules 5
23. Turn signals 20
24. Automatic transmission - shift inhibitor, extended D2 feed 10
25. Fuel pump 15
26. Moonroof (option) 15
27. Central electronic module, vanity mirror lighting, courtesy lighting\
, glove compartment
lighting, alarm siren* 10
28. Alarm siren* 5
29. -
30. Daytime running lights 10
31. Daytime running lights 10
32. Left front/rear parking lights 7.5
33. Right front/rear parking lights, license plate lights 7.5
34. Front fog lights 15
35. -
36. High beam headlights 20
37. Navigation system (option), DVD player 10
38. Low beam headlights, Bi-Xenon headlights (option) 15
Please be aware that if these fuese are not intact, or have been removed\
, the alarm will not sound.
pg. 148 Maintenance
Fuses (contd)
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (21 of 23)12/30/20\
06 4:19:04 PM

2003 VOLVO XC90
Fuses in the cargo compartment No. Amperage
1. Rear electrical module, cargo compartment lighting 10
2. Rear fog light 10
3. Brake lights 15
4. Backup lights 10
5. Rear window defroster, relay 15I - accessories (rear) 5
6. Tailgate release 10
7. Electric socket 12V in cargo compartment 15
8. Central locking rear doors/tailgate, fuel filler door 20
9. Trailer hitch (30 feed) 15
10. Antenna 5
11. Accessory control module (AEM) 15
12. Washer - tailgate window 15
13. Subwoofer/rear A/C (option) 15
14. Brake lights 7.5
15. Trailer hitch (15I feed), reverse warning system
(option) 20
16. -
17. All Wheel Drive control module 7.5
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09b.htm (22 of 23)12/30/20\
06 4:19:04 PM

2003 VOLVO XC90
18. -
