- The vehicle must not be driven with wheels of different dimensions or \
with a spare tire other than
the one that came with the vehicle. The use of different size wheels can\
seriously damage your
vehicle's transmission.
- Correct tightening torque on wheel bolts must be observed.
- The wheel bolts should never be greased or lubricated.
- Extended, chromed wheel bolts must not be used with steel rims, as the\
y make it impossible to fit
the hub caps.
pg. 121 Wheels and tires

Attaching the jack
l Position the jack correctly on the bar in the attachment (see illustrat\
ion above) and crank while
simultaneously guiding the base of the jack to the ground. The base of t\
he jack must be flat on a level,
firm, non-slippery surface. Before raising the vehicle, check that the j\
ack is still correctly positioned in
the attachment.
l Raise the vehicle until the wheel to be changed is lifted off the ground\
.
l Unscrew the wheel bolts completely and carefully remove the wheel so as \
not to damage the threads
on the studs.
NOTE: To avoid excessive wear and the necessity of rebalancing, mark and reins\
tall wheels in the same
location and position as before removal. To lessen the chance of imbalan\
ce, each wheel hub is equipped
with a guide stud to ensure that a removed wheel can be reinstalled in i\
ts original position (as when
changing over to winter tires/wheels).
Installing the wheel
l Clean the contact surfaces on the wheel and hub.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_08.htm (11 of 12)12/30/200\
6 4:19:01 PM

2003 VOLVO XC90
l Lift the wheel and place it on the hub.
l Install the wheel bolts and tighten handtight. Using the lug wrench, tig\
hten crosswise until all bolts
are snug.
l Lower the vehicle to the ground and alternately tighten the bolts crossw\
ise to 102 ft. lbs. (140 Nm).
l Install the wheel cap (where applicable).

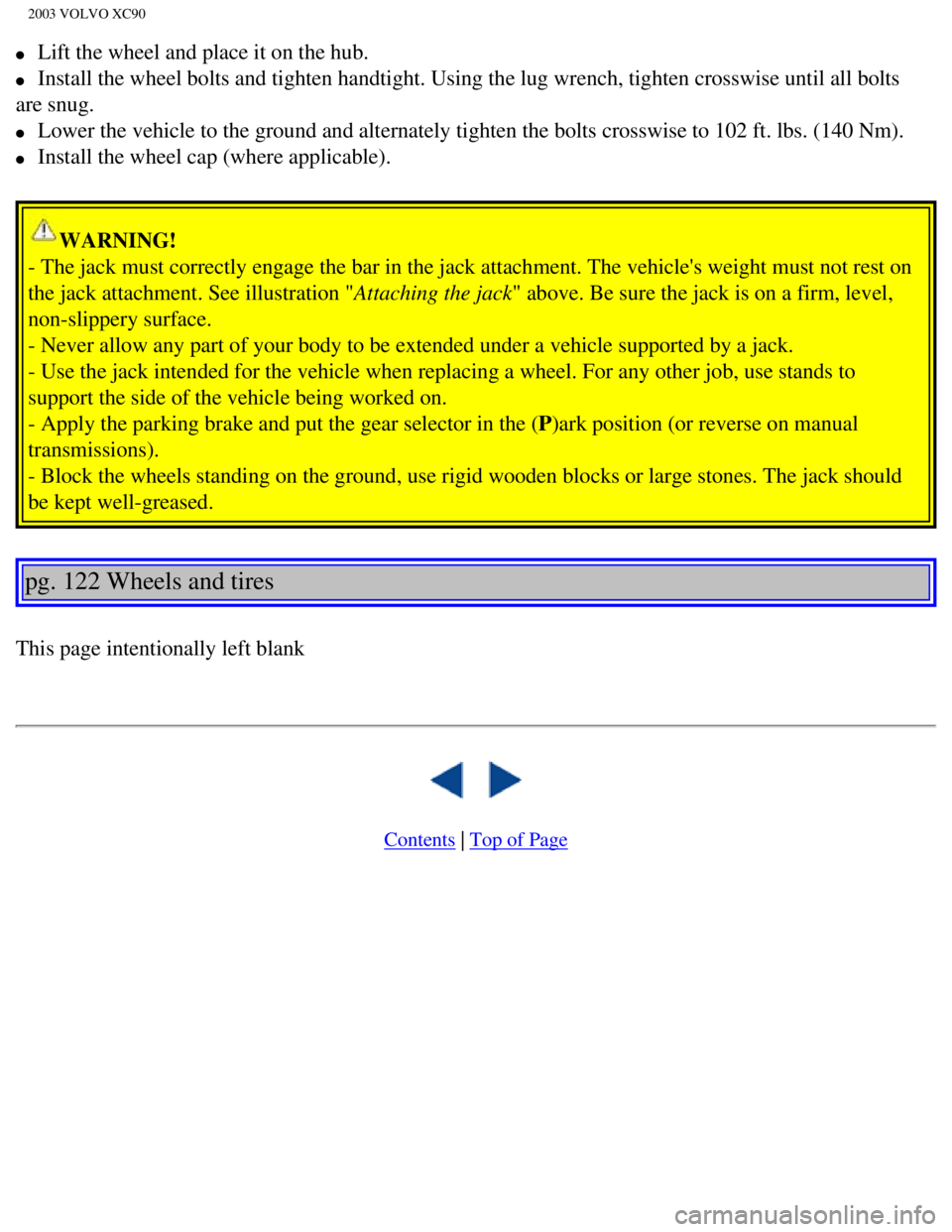

WARNING!
- The jack must correctly engage the bar in the jack attachment. The veh\
icle's weight must not rest on
the jack attachment. See illustration "Attaching the jack" above. Be sure the jack is on a firm, level,
non-slippery surface.
- Never allow any part of your body to be extended under a vehicle suppo\
rted by a jack.
- Use the jack intended for the vehicle when replacing a wheel. For any \
other job, use stands to
support the side of the vehicle being worked on.
- Apply the parking brake and put the gear selector in the (P)ark position (or reverse on manual
transmissions).
- Block the wheels standing on the ground, use rigid wooden blocks or la\
rge stones. The jack should
be kept well-greased.
pg. 122 Wheels and tires
This page intentionally left blank




Contents | Top of Page
file:///K|/ownersdocs/2003/2003_XC90/03xc90_08.htm (12 of 12)12/30/200\
6 4:19:01 PM

2003 VOLVO XC90
2 0 0 3
VOLVO XC90
Maintenance

pg. 123 Maintenance
Volvo maintenance124
Working on your vehicle126
Engine compartment128
Oils and fluids129
Battery maintenance134
Bulbs137
Fuses145
pg. 124 Maintenance
Volvo Maintenance
Maintenance Volvo advises you to follow the maintenance program outlined\
in the Warranty and
Service Records Information booklet. This maintenance program contains i\
nspections and services
necessary for the proper function of your vehicle. The maintenance servi\
ces contain several checks
which require special instruments and tools and therefore must be perfor\
med by a qualified technician.
To keep your Volvo in top condition, specify time-tested and proven Genu\
ine Volvo Parts and
Accessories.
The Federal Clean Air Act - U.S.
The Federal Clean Air Act requires vehicle manufacturers to furnish writ\
ten instructions to the ultimate
purchaser to assure the proper servicing and function of the components \
that control emissions. These
services, which are listed in the "Warranty and Service Records Informat\
ion booklet," are not covered
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09a.htm (1 of 15)12/30/200\
6 4:19:02 PM

2003 VOLVO XC90
by the warranty. You will be required to pay for labor and material used\
.
Maintenance
Your Volvo passed several major inspections before it was delivered to y\
ou, in accordance with Volvo
specifications. The maintenance outlined in the Warranty and Service Rec\
ords Information booklet,
many of which will positively affect your vehicle's emissions, should be\
performed as indicated. It is
recommended that receipts for vehicle emission maintenance be retained i\
n case questions arise
concerning maintenance.
Inspection and maintenance should also be performed anytime a malfunctio\
n is observed or suspected.
Page 125 provides more information about maintenance of emission-related compone\
nts.
Applicable warranties - U.S./Canada
In accordance with applicable U.S. and Canadian regulations, the followi\
ng list of warranties is
provided.
l New Vehicle Limited Warranty
l Parts and Accessories Limited Warranty
l Corrosion Protection Limited Warranty
l Seat Belt and Supplemental Restraint Systems Limited Warranty
l Emission Design and Defect Warranty
l Emission Performance Warranty These are the federal warranties; other wa\
rranties are provided as
required by state/provincial law. Refer to your separate Warranty and Se\
rvice Records Information
booklet for detailed information concerning each of the warranties.
pg. 125 Maintenance
Periodic maintenance helps minimize emissions
Periodic maintenance will help keep your vehicle running well. Your Warr\
anty and Service Records
Information booklet provides a comprehensive periodic maintenance schedu\
le up to 150,000 miles
(240,000 km) of vehicle maintenance. The schedule includes components \
that affect vehicle emissions.
This page describes some of the emission-related components.
Engine air filter
The engine air filter cleans particles from air entering the engine. Rep\
lace the engine air filter cartridge
with a new one every 37,500 miles (60,000 km) under normal driving con\
ditions. Replace the cartridge
more often when the vehicle is driven under dirty and dusty conditions. \
The cartridge cannot be cleaned,
and should always be replaced with a new one.
Fuel filter
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09a.htm (2 of 15)12/30/200\
6 4:19:02 PM

2003 VOLVO XC90
The fuel filter should be replaced at 120,000 miles (193,000 km). The \
filter is replaced as a complete
unit. Replace more frequently if contaminated fuel is introduced into th\
e tank, or if there is reason to
suspect that this has occurred.
Fuel system, including filler cap, tank, lines, and connections
The ability of the fuel system to contain hydrocarbons depends upon a le\
ak-free system. Inspect fuel
lines every 30,000 miles (48,000 km). Check for proper sealing of the \
fuel filler cap, which contains "O"
ring seals.
NOTE: If the fuel filler cap is not closed tightly or if the engine is running\
when the vehicle is refueled,
the Check Engine light (Malfunction Indicator) may indicate a fault. H\
owever, your vehicle's
performance will not be affected. Use only Volvo original or approved fu\
el filler caps.
Timing belt
For proper functioning of the engine and emission control systems, the t\
iming belt and belt pretensioner
must be replaced every 120,000 miles (193,000 km). Engine damage will \
occur if the belt fails.
PCV system
(on turbocharged models)
The nipple in the intake manifold and the filter at the end of the PCV h\
ose in the air cleaner should be
inspected and cleaned at 120,000 miles (193,000 km), and again at 150,\
000 miles (240,000 km).
Spark plugs
The spark plugs should be replaced every 60,000 miles (96,000 km) unde\
r normal driving conditions.
City driving or fast highway driving may necessitate replacement sooner.\
Under normal driving conditions, spark plugs require no maintenance betw\
een replacement intervals.
When installing new plugs, be sure to use the right type and to tighten \
them correctly. When changing
the plugs, clean the terminals and rubber seals. Also check that the sup\
pressor connectors are in good
condition. Cracked or damaged connectors should be replaced.
pg. 126 Maintenance
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09a.htm (3 of 15)12/30/200\
6 4:19:02 PM

2003 VOLVO XC90

Reinforced lifting points
Working you your vehicle
Hoisting the vehicle

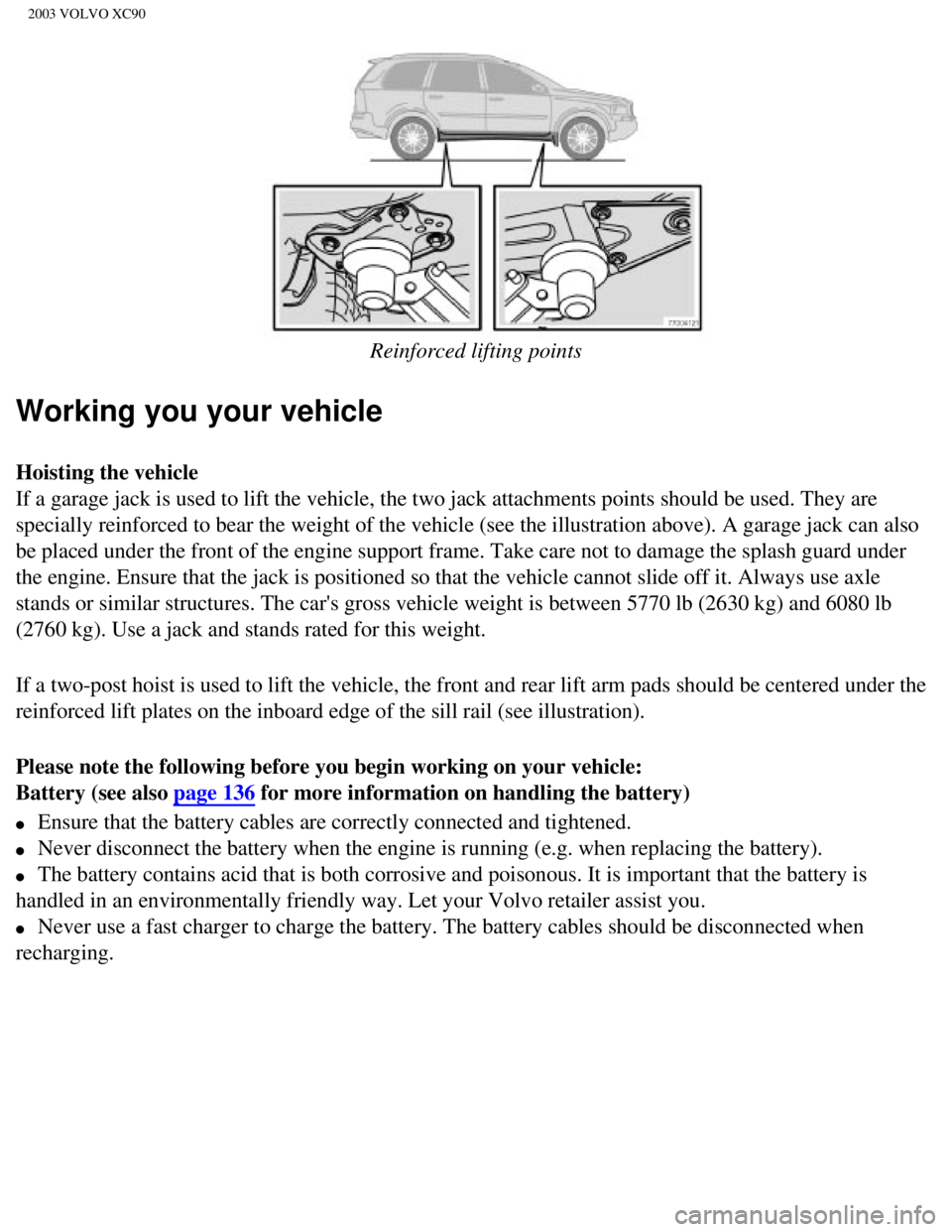

If a garage jack is used to lift the vehicle, the two jack attachments p\
oints should be used. They are
specially reinforced to bear the weight of the vehicle (see the illustr\
ation above). A garage jack can also
be placed under the front of the engine support frame. Take care not to \
damage the splash guard under
the engine. Ensure that the jack is positioned so that the vehicle canno\
t slide off it. Always use axle
stands or similar structures. The car's gross vehicle weight is between \
5770 lb (2630 kg) and 6080 lb
(2760 kg). Use a jack and stands rated for this weight.
If a two-post hoist is used to lift the vehicle, the front and rear lift\
arm pads should be centered under the
reinforced lift plates on the inboard edge of the sill rail (see illust\
ration).
Please note the following before you begin working on your vehicle:
Battery (see also
page 136 for more information on handling the battery)
l Ensure that the battery cables are correctly connected and tightened.
l Never disconnect the battery when the engine is running (e.g. when repl\
acing the battery).
l The battery contains acid that is both corrosive and poisonous. It is im\
portant that the battery is
handled in an environmentally friendly way. Let your Volvo retailer assi\
st you.
l Never use a fast charger to charge the battery. The battery cables shoul\
d be disconnected when
recharging.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09a.htm (4 of 15)12/30/200\
6 4:19:02 PM

2003 VOLVO XC90
WARNING!

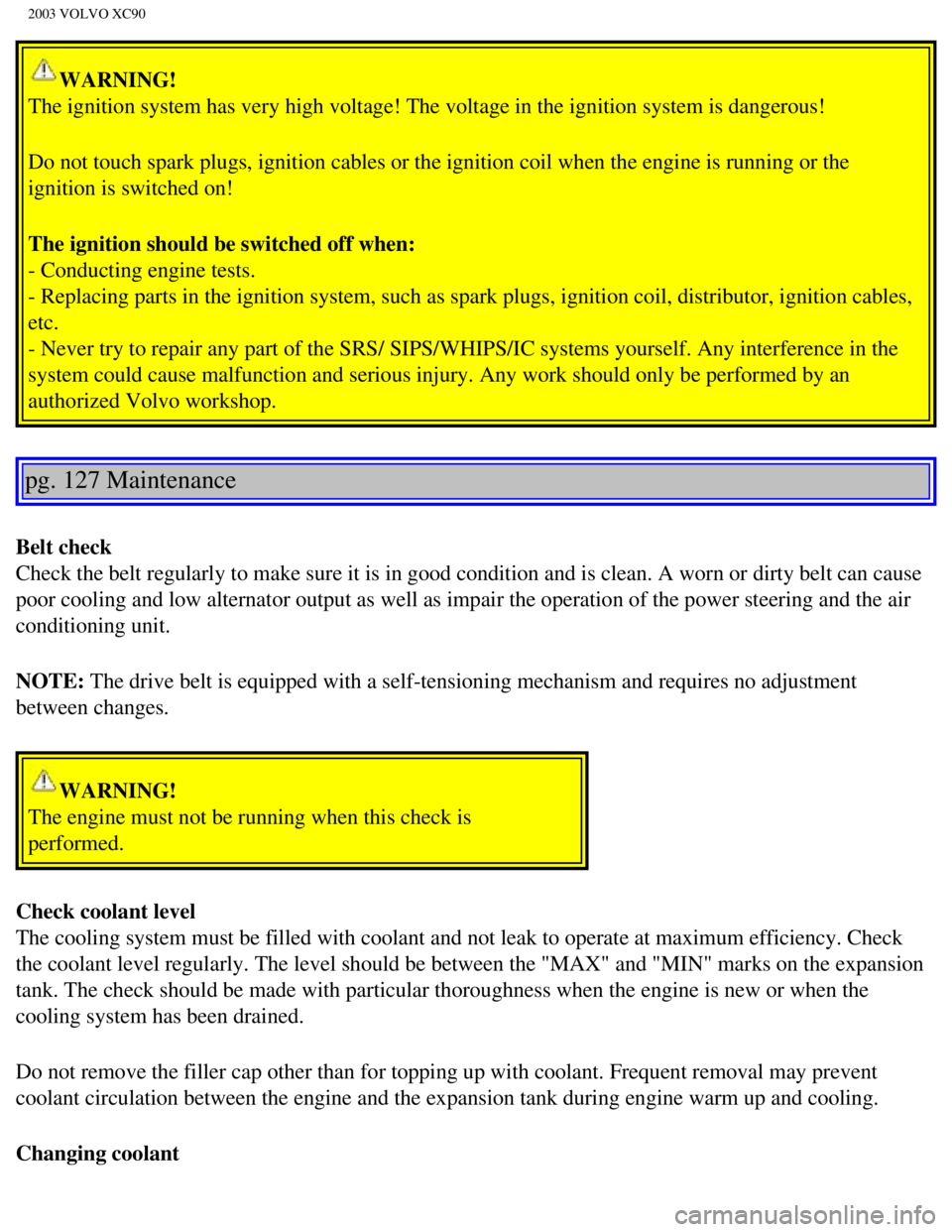

The ignition system has very high voltage! The voltage in the ignition s\
ystem is dangerous!
Do not touch spark plugs, ignition cables or the ignition coil when the \
engine is running or the
ignition is switched on!
The ignition should be switched off when:
- Conducting engine tests.
- Replacing parts in the ignition system, such as spark plugs, ignition \
coil, distributor, ignition cables,
etc.
- Never try to repair any part of the SRS/ SIPS/WHIPS/IC systems yoursel\
f. Any interference in the
system could cause malfunction and serious injury. Any work should only \
be performed by an
authorized Volvo workshop.
pg. 127 Maintenance
Belt check
Check the belt regularly to make sure it is in good condition and is cle\
an. A worn or dirty belt can cause
poor cooling and low alternator output as well as impair the operation o\
f the power steering and the air
conditioning unit.
NOTE: The drive belt is equipped with a self-tensioning mechanism and requires\
no adjustment
between changes.
WARNING!
The engine must not be running when this check is
performed.
Check coolant level
The cooling system must be filled with coolant and not leak to operate a\
t maximum efficiency. Check
the coolant level regularly. The level should be between the "MAX" and "\
MIN" marks on the expansion
tank. The check should be made with particular thoroughness when the eng\
ine is new or when the
cooling system has been drained.
Do not remove the filler cap other than for topping up with coolant. Fre\
quent removal may prevent
coolant circulation between the engine and the expansion tank during eng\
ine warm up and cooling.
Changing coolant
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09a.htm (5 of 15)12/30/200\
6 4:19:02 PM

2003 VOLVO XC90
Normally, the coolant does not need to be changed. If the system must be\
drained, consult your Volvo
retailer.
NOTE: Do not top off with water only. This reduces the rust-protective and ant\
ifreeze qualities of the
coolant and has a lower boiling point. It can also cause damage to the c\
ooling system if it should freeze.
Top off with Volvo Genuine Coolant/Antifreeze only (a 50/50 mix of wate\
r and antifreeze). CAUTION
The cooling system must always be kept filled to the correct level. If i\
t is not kept filled, there can be
high local temperatures in the engine which could result in damage. Diff\
erent types of antifreeze/
coolant may not be mixed.
WARNING!
Never remove the radiator cap while the engine is warm. Wait until the v\
ehicle
cools.
pg. 128 Maintenance
Engine compartment
Engine compartment
1. Brake fluid reservoir
2. Relay/fuse box
3. Air cleaner
4. Cooling fan
5. Radiator
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09a.htm (6 of 15)12/30/200\
6 4:19:02 PM

2003 VOLVO XC90
6. Dipstick - engine oil
7. Filler cap - engine oil
8. Washer fluid reservoir
9. Power steering fluid reservoir
10. Expansion tank - coolant
11. Data plate
12. Battery (under floor in rear cargo area)
WARNING!

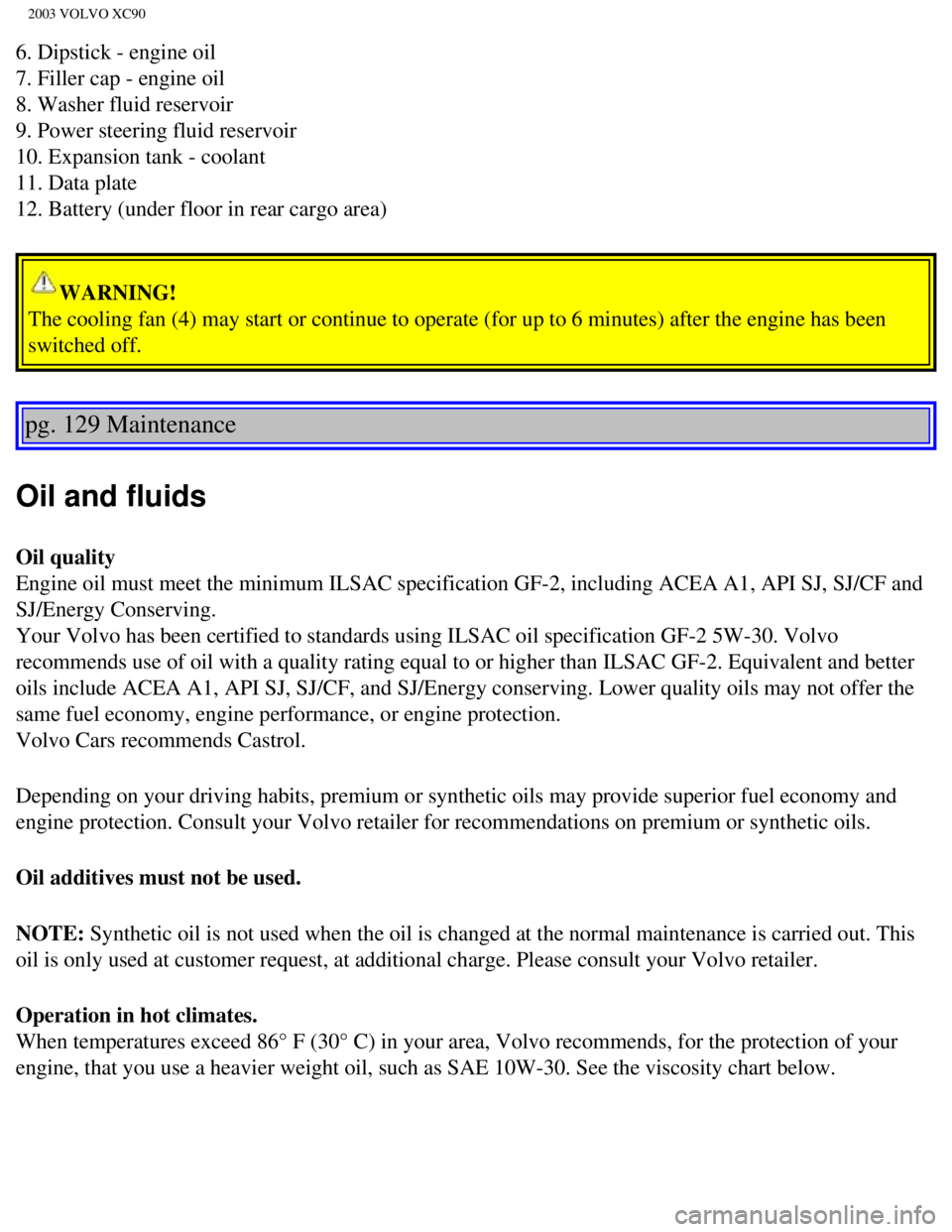

The cooling fan (4) may start or continue to operate (for up to 6 min\
utes) after the engine has been
switched off.
pg. 129 Maintenance
Oil and fluids
Oil quality
Engine oil must meet the minimum ILSAC specification GF-2, including ACE\
A A1, API SJ, SJ/CF and
SJ/Energy Conserving.
Your Volvo has been certified to standards using ILSAC oil specification\
GF-2 5W-30. Volvo
recommends use of oil with a quality rating equal to or higher than ILSA\
C GF-2. Equivalent and better
oils include ACEA A1, API SJ, SJ/CF, and SJ/Energy conserving. Lower qua\
lity oils may not offer the
same fuel economy, engine performance, or engine protection.
Volvo Cars recommends Castrol.
Depending on your driving habits, premium or synthetic oils may provide \
superior fuel economy and
engine protection. Consult your Volvo retailer for recommendations on pr\
emium or synthetic oils.
Oil additives must not be used.
NOTE: Synthetic oil is not used when the oil is changed at the normal maintena\
nce is carried out. This
oil is only used at customer request, at additional charge. Please consu\
lt your Volvo retailer.
Operation in hot climates.
When temperatures exceed 86° F (30° C) in your area, Volvo recom\
mends, for the protection of your
engine, that you use a heavier weight oil, such as SAE 10W-30. See the v\
iscosity chart below.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09a.htm (7 of 15)12/30/200\
6 4:19:02 PM

2003 VOLVO XC90

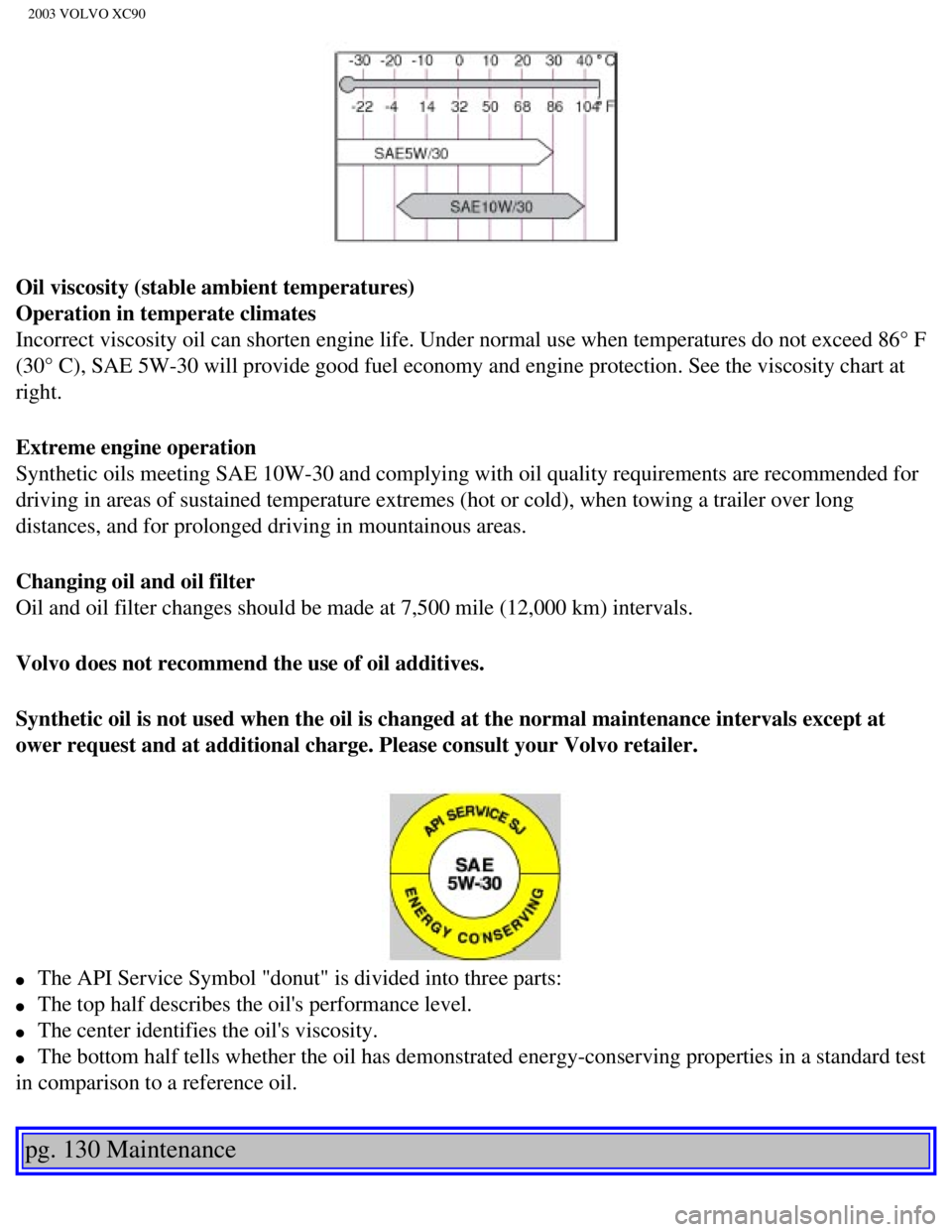

Oil viscosity (stable ambient temperatures)
Operation in temperate climates
Incorrect viscosity oil can shorten engine life. Under normal use when t\
emperatures do not exceed 86° F
(30° C), SAE 5W-30 will provide good fuel economy and engine protec\
tion. See the viscosity chart at
right.
Extreme engine operation
Synthetic oils meeting SAE 10W-30 and complying with oil quality require\
ments are recommended for
driving in areas of sustained temperature extremes (hot or cold), when\
towing a trailer over long
distances, and for prolonged driving in mountainous areas.
Changing oil and oil filter
Oil and oil filter changes should be made at 7,500 mile (12,000 km) in\
tervals.
Volvo does not recommend the use of oil additives.
Synthetic oil is not used when the oil is changed at the normal maintena\
nce intervals except at
ower request and at additional charge. Please consult your Volvo retaile\
r.
l The API Service Symbol "donut" is divided into three parts:
l The top half describes the oil's performance level.
l The center identifies the oil's viscosity.
l The bottom half tells whether the oil has demonstrated energy-conserving\
properties in a standard test
in comparison to a reference oil.
pg. 130 Maintenance
file:///K|/ownersdocs/2003/2003_XC90/03xc90_09a.htm (8 of 15)12/30/200\
6 4:19:02 PM
