VOLVO XC90 2005 Owners Manual

2005 VOLVO XC90
accessories that Volvo has not tested, or if you allow accessories to be\
installed by someone unfamiliar
with your vehicle.
l Damage caused by unapproved or improperly installed accessories may not \
be covered by your new
vehicle warranty. See your Warranty and Service Records Information book\
let for more warranty
information. Volvo assumes no responsibility for death, injury, or expen\
ses that may result from the
installation of non-genuine accessories.
Driver Distraction
l Driver distraction results from driver activities that are not directly \
related to controlling the vehicle in
the driving environment. Your new Volvo is, or can be, equipped with man\
y feature-rich entertainment
and communication systems. These include hands-free cellular telephones,\
navigation systems, and
multipurpose audio systems. You may also own other portable electronic d\
evices for your own
convenience. When used properly and safely, they enrich the driving expe\
rience. Improperly used, any
of these could cause a distraction.
l For all of these systems, we want to provide the following warning that \
reflects the strong Volvo
concern for your safety:
l Never use these devices or any feature of your vehicle in a way that dis\
tracts you from the task of
driving safely. Distraction can lead to a serious accident.In addition t\
o this general warning, we offer the
following guidance regarding specific newer features that may be found i\
n your vehicle:
l Never use a hand-held cellular telephone while driving. Some jurisdictio\
ns prohibit cellular telephone
use by a driver while the vehicle is moving.
l If your vehicle is equipped with a navigation system, set and make chang\
es to your travel itinerary
only with the vehicle parked.
l Never program your audio system while the vehicle is moving. Program rad\
io presets with the vehicle
parked, and use your programmed presets to make radio use quicker and si\
mpler.
l Never use portable computers or personal digital assistants while the ve\
hicle is moving. A driver has a
responsibility to do everything possible to ensure his or her own safety\
and the safety of passengers in
the vehicle and others sharing the roadway. Avoiding distractions is par\
t of that responsibility.
The following should be checked regularly:*
1. Washer fluid reservoir should be filled with water and solvent (wint\
ertime: windshield washer anti-
freeze). See
page 143.
2. Power steering - When cold, the level must not be above the COLD mark\
and when hot it must not be
above the HOT mark. Top up if the level drops to the ADD mark with ATF f\
luid. See
page 144.
3. Coolant level should be between the expansion tank marks. Mixture: 50\
% antifreeze and 50% water.
See
page 139.
4. Engine oil should be checked each time the vehicle is refueled. The o\
il level should be between the
dipstick marks. The distance between the marks represents approx. 1.6 US\
qt. (1.5 liter). See
page 141.
5. Brake fluid - check, without removing the cap, that the level is abov\
e the MIN mark. Use brake fluid
DOT 4+. See
page 144.
Fuel octane rating, see
page 86.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_12.htm (12 of 14)12/30/200\
6 4:42:46 PM

2005 VOLVO XC90
Tire pressure, see page 113, and the label located on the inside of the fuel tank cover.
1 Turn signal
2 High beam
3 Parking light
4 Low beam
5 Fog light, front
6 Fog light, rear
7 Back-up light
8 Parking light/tail
light
9 Turn signal
10 Brake light
See
page 149 for more information on replacing bulbs.

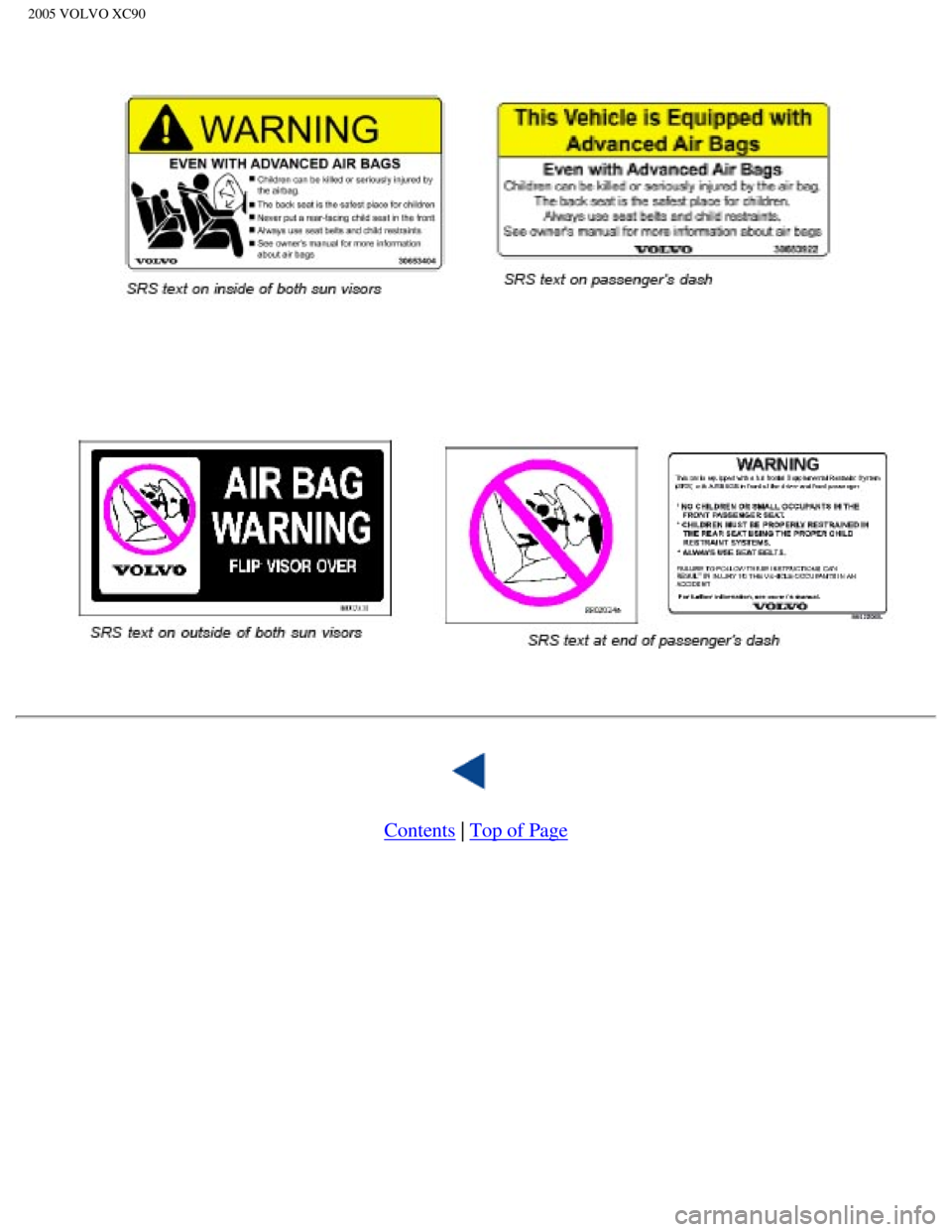

Supplement - SAFETY - AIRBAG LABELS
Page 5 of your owner's manual shows outdated airbag labels. This supplement sh\
ows the correct
positions and text of airbag warning labels located on your vehicle's da\
shboard and sun visors.
This supplement belongs together with your owner's manual. See the Safet\
y section of your owner's
manual for additional information about airbags and child safety.
file:///K|/ownersdocs/2005/2005_XC90/05xc90_12.htm (13 of 14)12/30/200\
6 4:42:46 PM

2005 VOLVO XC90





Contents | Top of Page
file:///K|/ownersdocs/2005/2005_XC90/05xc90_12.htm (14 of 14)12/30/200\
6 4:42:46 PM
