2007 Volvo XC90
l Tar spots can be removed with kerosene or tar remover after the vehicle \
has been washed.
l A stiff-bristle brush and lukewarm soapy water can be used to clean the \
wiper blades. Frequent
cleaning improves visibility considerably.
l Wash off the dirt from the underside (wheel housings, fenders, etc.). \
l In areas of high industrial fallout, more frequent washing is recommende\
d.
l After cleaning the engine, the spark plug wells should be inspected for \
water and blown dry if
necessary.
Suitable detergents
Special vehicle washing detergents should be used. A suitable mixture is\
about 2.5 fl. oz. (8.5 cl) of
detergent to 2.6 US gal. (10 liters) of warm water. After washing with\
a detergent the vehicle should be
well rinsed with clean water.
Exterior plastic components
Cleaning exterior plastic components should be done with a cleaning agen\
t specially designed for this
purpose. Solvents or stain removers should not be used. Consult your Vol\
vo retailer.
NOTE: When washing the vehicle, remember to remove dirt from the drain holes \
in the doors and sills.

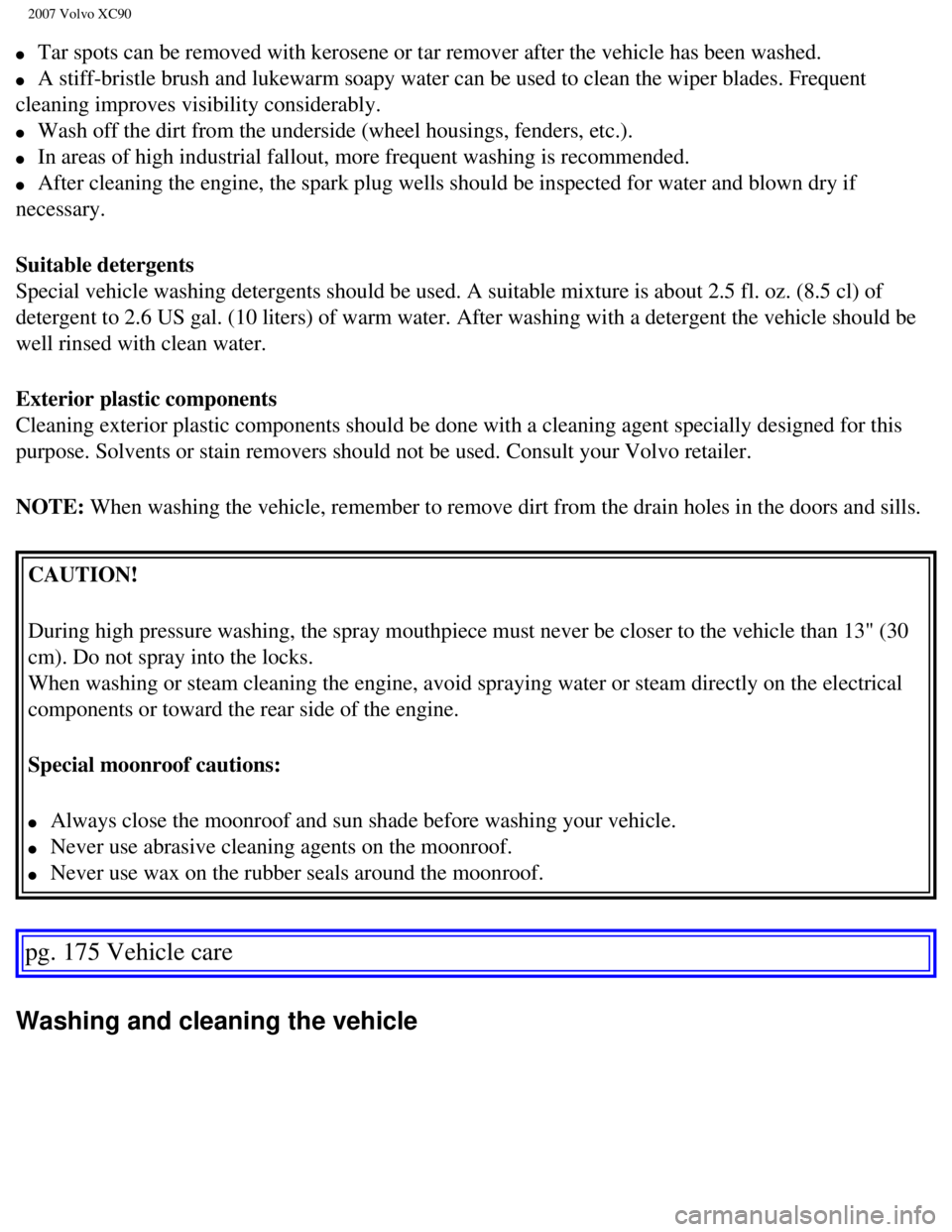

CAUTION!
During high pressure washing, the spray mouthpiece must never be closer \
to the vehicle than 13" (30
cm). Do not spray into the locks.
When washing or steam cleaning the engine, avoid spraying water or steam\
directly on the electrical
components or toward the rear side of the engine.
Special moonroof cautions:
l Always close the moonroof and sun shade before washing your vehicle.
l Never use abrasive cleaning agents on the moonroof.
l Never use wax on the rubber seals around the moonroof.
pg. 175 Vehicle care
Washing and cleaning the vehicle
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (2 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90

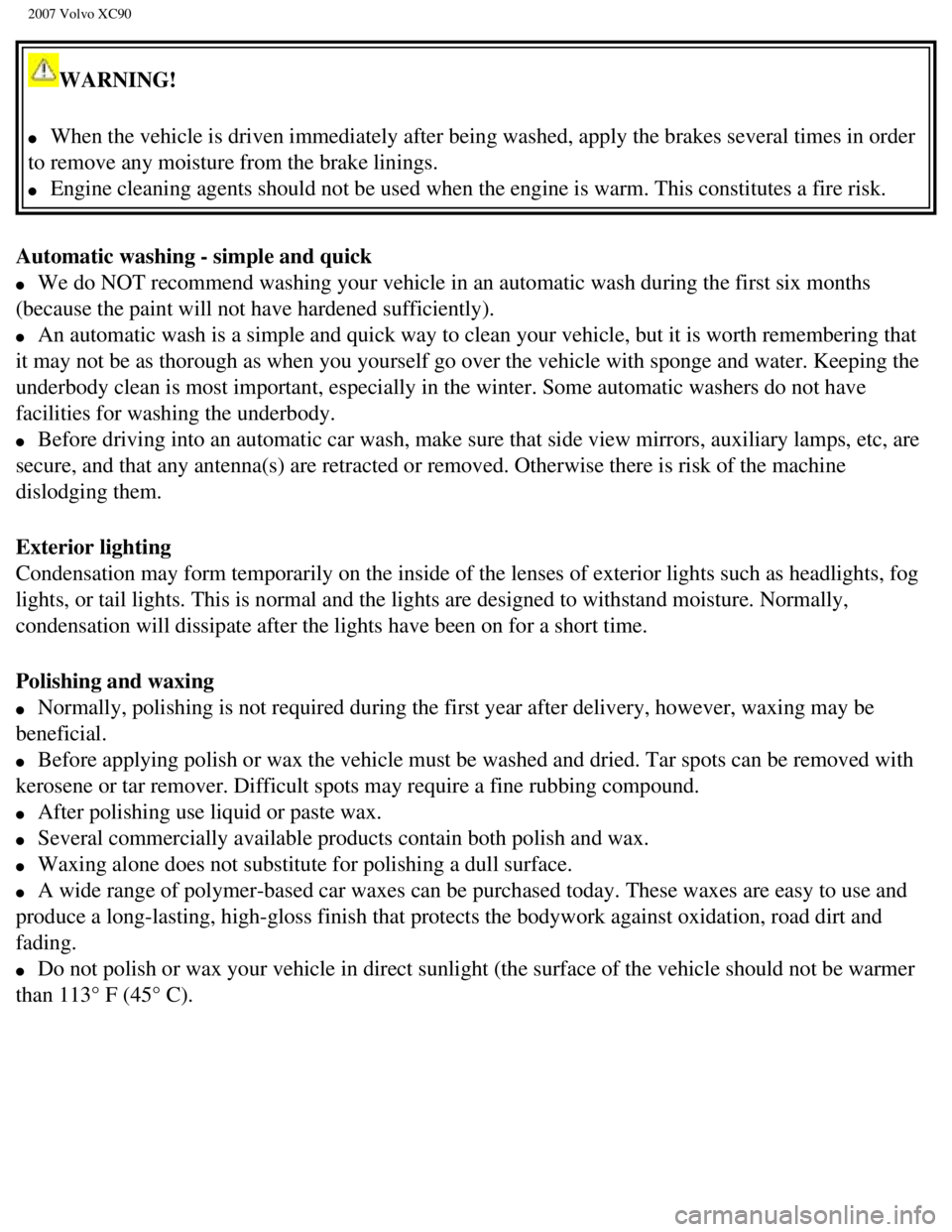

WARNING!
l When the vehicle is driven immediately after being washed, apply the bra\
kes several times in order
to remove any moisture from the brake linings.
l Engine cleaning agents should not be used when the engine is warm. This \
constitutes a fire risk.
Automatic washing - simple and quick
l We do NOT recommend washing your vehicle in an automatic wash during the\
first six months
(because the paint will not have hardened sufficiently).
l An automatic wash is a simple and quick way to clean your vehicle, but i\
t is worth remembering that
it may not be as thorough as when you yourself go over the vehicle with \
sponge and water. Keeping the
underbody clean is most important, especially in the winter. Some automa\
tic washers do not have
facilities for washing the underbody.
l Before driving into an automatic car wash, make sure that side view mirr\
ors, auxiliary lamps, etc, are
secure, and that any antenna(s) are retracted or removed. Otherwise th\
ere is risk of the machine
dislodging them.
Exterior lighting
Condensation may form temporarily on the inside of the lenses of exterio\
r lights such as headlights, fog
lights, or tail lights. This is normal and the lights are designed to wi\
thstand moisture. Normally,
condensation will dissipate after the lights have been on for a short ti\
me.
Polishing and waxing
l Normally, polishing is not required during the first year after delivery\
, however, waxing may be
beneficial.
l Before applying polish or wax the vehicle must be washed and dried. Tar \
spots can be removed with
kerosene or tar remover. Difficult spots may require a fine rubbing comp\
ound.
l After polishing use liquid or paste wax.
l Several commercially available products contain both polish and wax.
l Waxing alone does not substitute for polishing a dull surface.
l A wide range of polymer-based car waxes can be purchased today. These wa\
xes are easy to use and
produce a long-lasting, high-gloss finish that protects the bodywork aga\
inst oxidation, road dirt and
fading.
l Do not polish or wax your vehicle in direct sunlight (the surface of th\
e vehicle should not be warmer
than 113° F (45° C).
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (3 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90

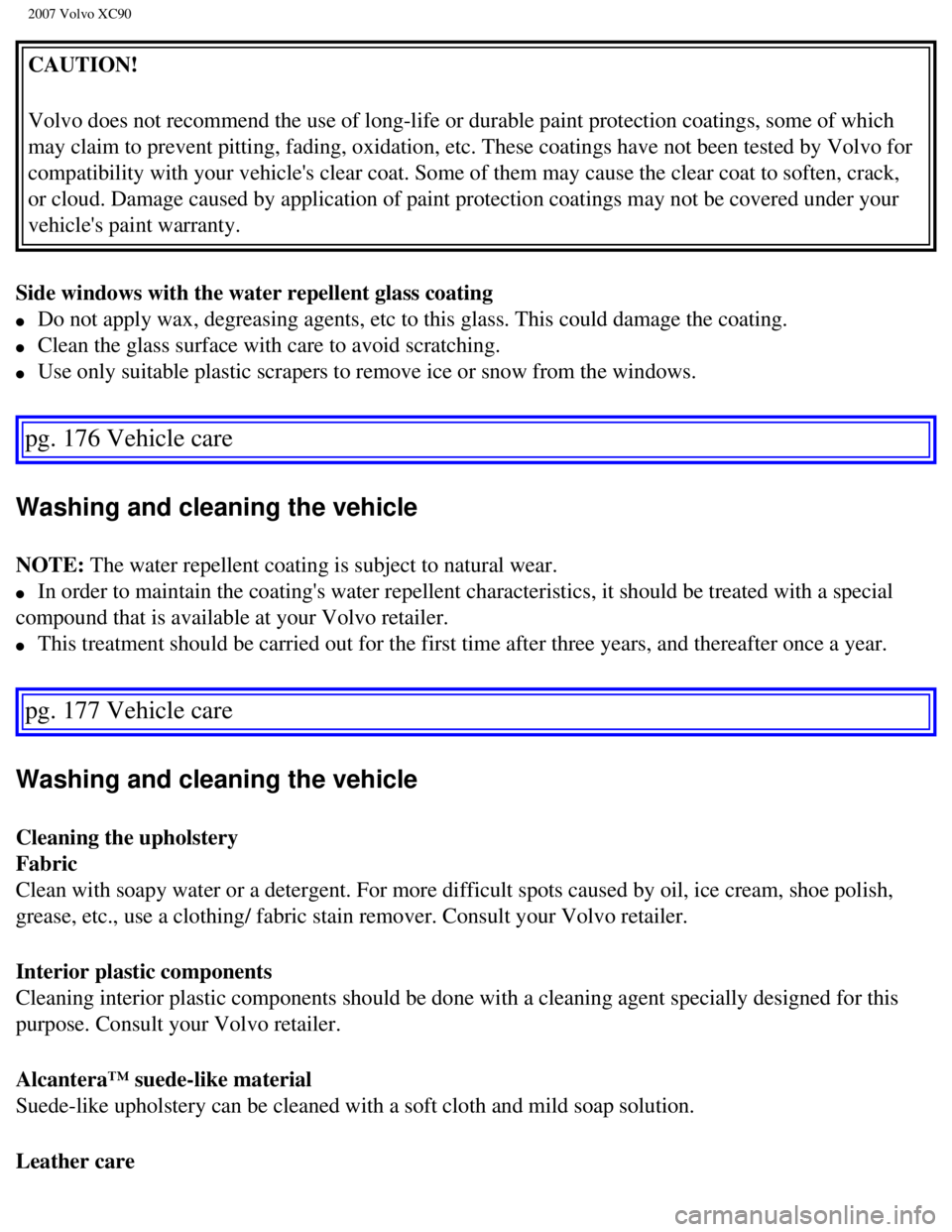

CAUTION!
Volvo does not recommend the use of long-life or durable paint protectio\
n coatings, some of which
may claim to prevent pitting, fading, oxidation, etc. These coatings hav\
e not been tested by Volvo for
compatibility with your vehicle's clear coat. Some of them may cause the\
clear coat to soften, crack,
or cloud. Damage caused by application of paint protection coatings may \
not be covered under your
vehicle's paint warranty.
Side windows with the water repellent glass coating
l Do not apply wax, degreasing agents, etc to this glass. This could damag\
e the coating.
l Clean the glass surface with care to avoid scratching.
l Use only suitable plastic scrapers to remove ice or snow from the window\
s.
pg. 176 Vehicle care
Washing and cleaning the vehicle
NOTE: The water repellent coating is subject to natural wear.
l In order to maintain the coating's water repellent characteristics, it s\
hould be treated with a special
compound that is available at your Volvo retailer.
l This treatment should be carried out for the first time after three year\
s, and thereafter once a year.
pg. 177 Vehicle care
Washing and cleaning the vehicle
Cleaning the upholstery
Fabric
Clean with soapy water or a detergent. For more difficult spots caused b\
y oil, ice cream, shoe polish,
grease, etc., use a clothing/ fabric stain remover. Consult your Volvo r\
etailer.
Interior plastic components
Cleaning interior plastic components should be done with a cleaning agen\
t specially designed for this
purpose. Consult your Volvo retailer.
Alcantera™ suede-like material
Suede-like upholstery can be cleaned with a soft cloth and mild soap sol\
ution.
Leather care
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (4 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90
Volvo's leather upholstery is manufactured with a protectant to repel so\
iling. Over time, sunlight, grease
and dirt can break down the protection. Staining, cracking, scuffing, an\
d fading can result.

Volvo offers an easy-to-use, non-greasy leather care kit formulated to c\
lean and beautify your vehicle's
leather, and to renew the protective qualities of its finish. The cleane\
r removes dirt and oil buildup. The
light cream protectant restores a barrier against soil and sunlight.

Volvo also offers a special leather softener that should be applied afte\
r the cleaner and protectant. It
leaves leather soft and smooth, and reduces friction between leather and\
other finishes in the vehicle.

Volvo recommends cleaning, protecting and conditioning your vehicle's le\
ather two to four times a year.
Ask your Volvo retailer about Leather Care Kit 951 0251 and Leather Soft\

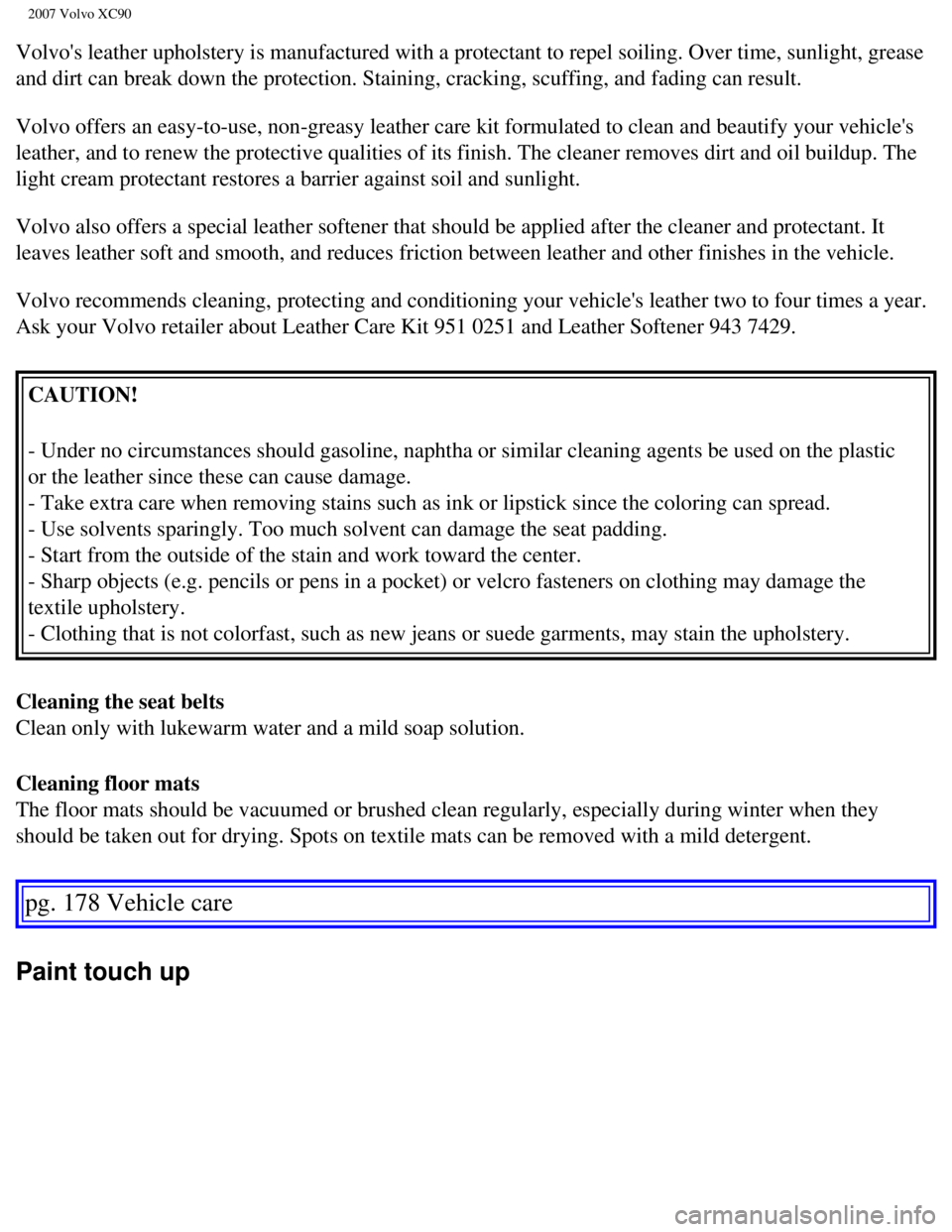

ener 943 7429. CAUTION!
- Under no circumstances should gasoline, naphtha or similar cleaning ag\
ents be used on the plastic
or the leather since these can cause damage.
- Take extra care when removing stains such as ink or lipstick since the\
coloring can spread.
- Use solvents sparingly. Too much solvent can damage the seat padding. \
- Start from the outside of the stain and work toward the center.
- Sharp objects (e.g. pencils or pens in a pocket) or velcro fasteners\
on clothing may damage the
textile upholstery.
- Clothing that is not colorfast, such as new jeans or suede garments, m\
ay stain the upholstery.
Cleaning the seat belts
Clean only with lukewarm water and a mild soap solution.
Cleaning floor mats
The floor mats should be vacuumed or brushed clean regularly, especially\
during winter when they
should be taken out for drying. Spots on textile mats can be removed wit\
h a mild detergent.
pg. 178 Vehicle care
Paint touch up
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (5 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90
Paint damage requires immediate attention to avoid rusting. Make it a ha\
bit to check the finish regularly
- when washing the vehicle for instance. Touch-up if necessary.
Paint repairs require special equipment and skill. Contact your Volvo re\
tailer for any extensive damage.
Minor scratches can be repaired by using Volvo touch-up paint.

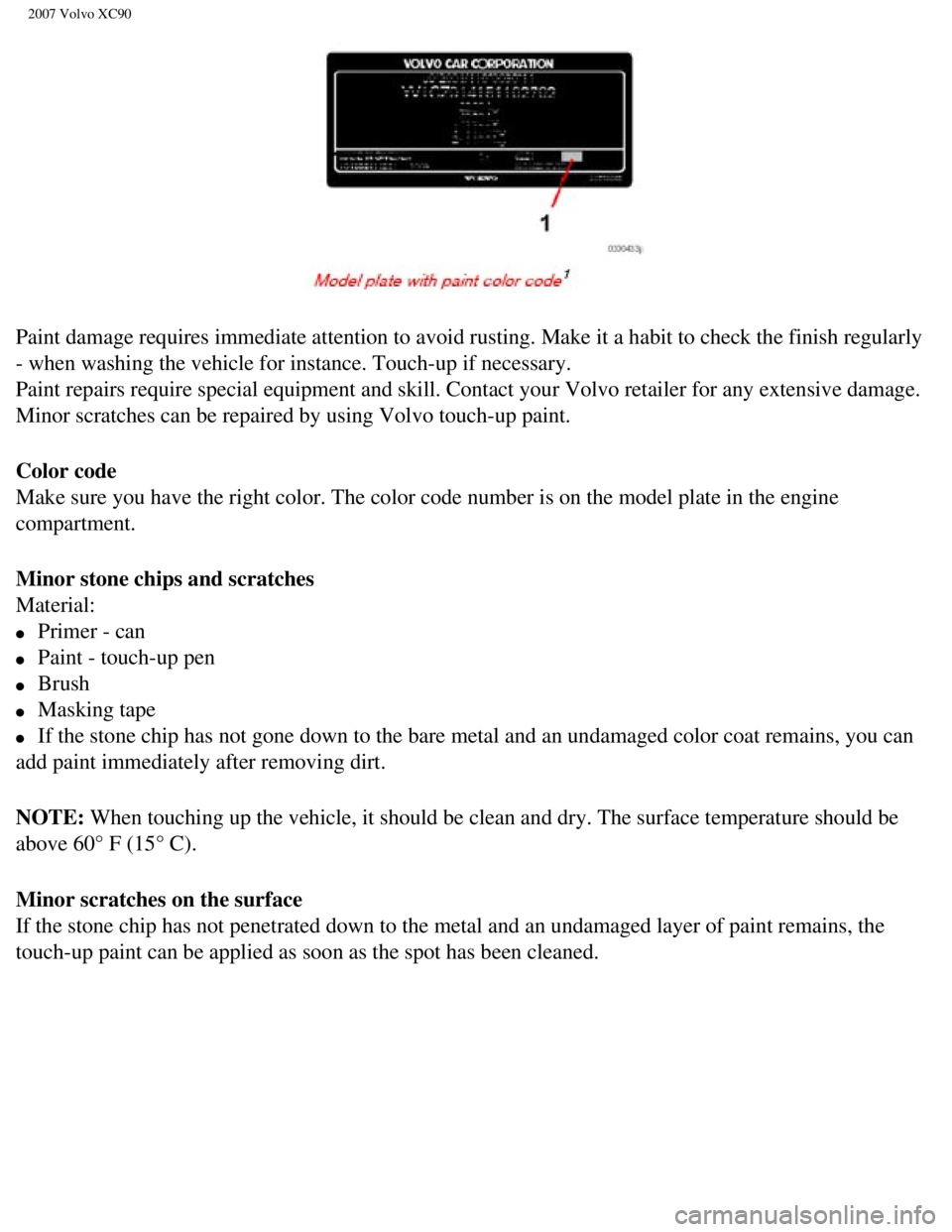

Color code
Make sure you have the right color. The color code number is on the mode\
l plate in the engine
compartment.
Minor stone chips and scratches
Material:
l Primer - can
l Paint - touch-up pen
l Brush
l Masking tape
l If the stone chip has not gone down to the bare metal and an undamaged c\
olor coat remains, you can
add paint immediately after removing dirt.
NOTE: When touching up the vehicle, it should be clean and dry. The surface t\
emperature should be
above 60° F (15° C).
Minor scratches on the surface
If the stone chip has not penetrated down to the metal and an undamaged \
layer of paint remains, the
touch-up paint can be applied as soon as the spot has been cleaned.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (6 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90

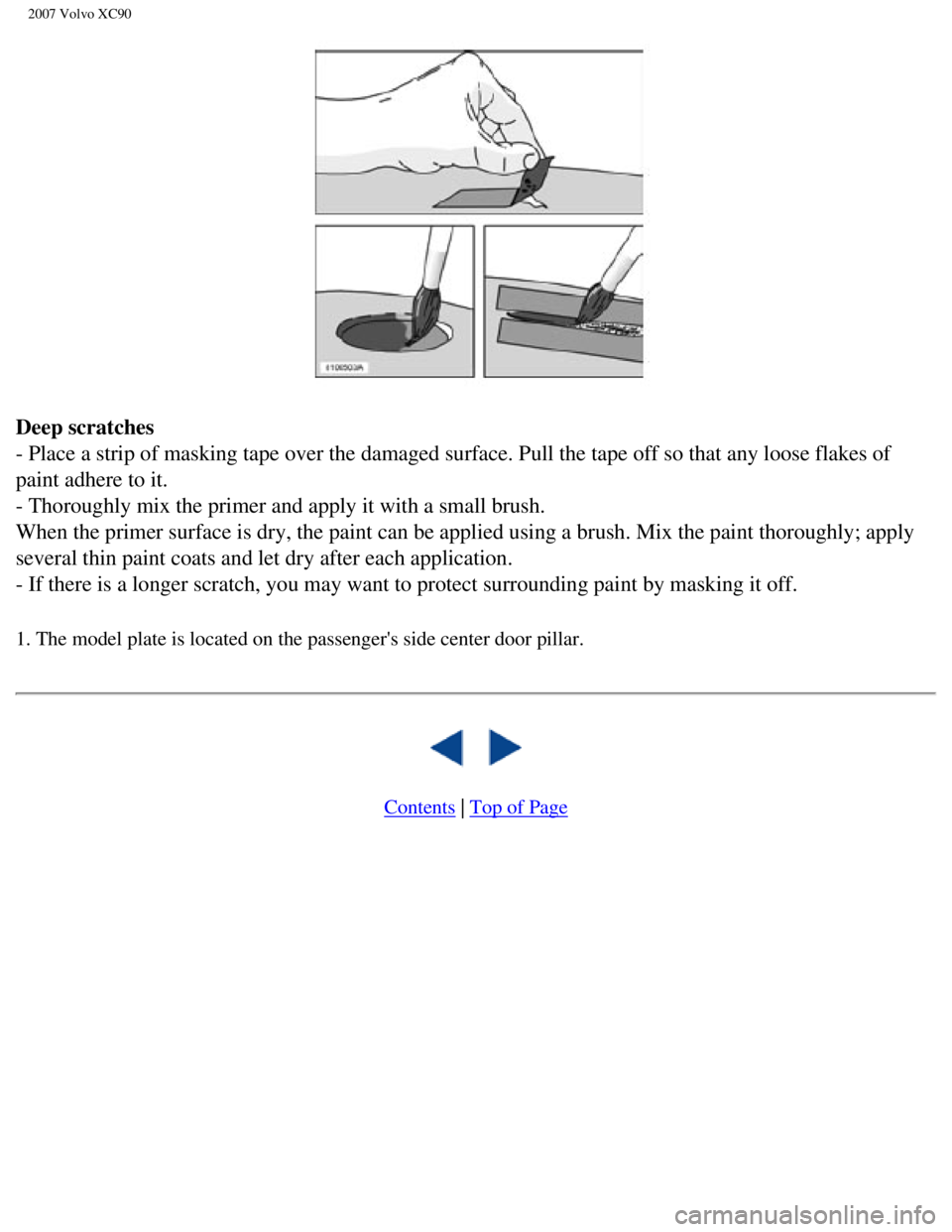

Deep scratches
- Place a strip of masking tape over the damaged surface. Pull the tape \
off so that any loose flakes of
paint adhere to it.
- Thoroughly mix the primer and apply it with a small brush.
When the primer surface is dry, the paint can be applied using a brush. \
Mix the paint thoroughly; apply
several thin paint coats and let dry after each application.
- If there is a longer scratch, you may want to protect surrounding pain\
t by masking it off.
1. The model plate is located on the passenger's side center door pillar\
.



Contents | Top of Page
file:///K|/ownersdocs/2007/2007_XC90/07xc90_08.htm (7 of 7)12/30/2006 \
5:53:48 PM

2007 Volvo XC90
2 0 0 7
VOLVO XC90
Maintenance
pg. 179 Maintenance
Volvo service
180
Maintaining your car
181
Emission inspection
readiness
182
Working on your vehicle
183
Engine compartment
185
Engine oil
186
Fluids
188
Wiper blades
190
Battery
191
Replacing bulbs
194
Fuses
201
pg. 180 Maintenance
Volvo service
Maintenance service
Periodic maintenance will help keep your vehicle running well. Your Warr\
anty and Service Records
Information booklet provides a comprehensive maintenance schedule up to \
150,000 miles (240,000 km)
of vehicle service. This maintenance program contains inspections and se\
rvices necessary for the proper
function of your vehicle, and includes components that affect vehicle em\
issions. The maintenance
services contain several checks that require special instruments and too\
ls and therefore must be
performed by a qualified technician. Volvo advises you to follow the ser\
vice program outlined in this
booklet. To keep your Volvo in top condition, specify time-tested and pr\
oven Genuine Volvo Parts and
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (1 of 37)12/30/2006\
5:53:50 PM

2007 Volvo XC90
Accessories.
The Federal Clean Air Act - U.S.
The Federal Clean Air Act requires vehicle manufacturers to furnish writ\
ten instructions to the ultimate
purchaser to assure the proper servicing and function of the components \
that control emissions. These
services, which are listed in the "Warranty and Service Records Informat\
ion booklet," are not covered
by the warranty. You will be required to pay for labor and material used\
.
Maintenance services
Your Volvo passed several major inspections before it was delivered to y\
ou, in accordance with Volvo
specifications. The maintenance services outlined in the Warranty and Se\
rvice Records Information
booklet, many of which will positively affect your vehicle's emissions, \
should be performed as
indicated. It is recommended that receipts for vehicle emission services\
be retained in case questions
arise concerning maintenance. Inspection and service should also be perf\
ormed anytime a malfunction is
observed or suspected.
Vehicle Event Data (Black Box)
Your vehicle's driving and safety systems employ computers that monitor,\
and share with each other,
information about your vehicle's operation. One or more of these compute\
rs may store what they
monitor, either during normal vehicle operation or in a crash or near-cr\
ash event. Stored information
may be read and used by:
l Volvo Car Corporation
l service and repair facilities
l law enforcement or government agencies
l others who may assert a legal right to know, or who obtain your consent \
to know such information.
Applicable warranties
In accordance with applicable U.S. and Canadian regulations, the followi\
ng list of warranties is
provided.
l New Car Limited Warranty
l Parts and Accessories Limited Warranty
l Corrosion Protection Limited Warranty
l Seat Belt and Supplemental Restraint Systems Limited Warranty
l Emission Design and Defect Warranty
l Emission Performance Warranty
These are the Federal warranties; other warranties are provided as requi\
red by state/ provincial law.
Refer to your separate Warranty and Service Records Information booklet \
for detailed information
concerning each of the warranties.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (2 of 37)12/30/2006\
5:53:50 PM

2007 Volvo XC90
pg. 181 Maintenance
Maintaining your car
Owner maintenance
Periodic maintenance requirements and intervals are described in your ve\
hicle's Warranty and Service
Records Information booklet.
The following points can be carried out between the normally scheduled m\
aintenance services.
Each time the vehicle is refueled:
l Check the engine oil level
l Clean the windshield, windshield wipers, headlights, and tail lights
Monthly:
l Check cold tire pressure in all tires. Inspect the tires for wear.
l Check that engine coolant and other fluid levels are between the indicat\
ed "min" and "max" markings.
l Clean interior glass surfaces with a glass cleaner and soft paper towels\
.
l Wipe driver information displays with a soft cloth.
l Visually inspect battery terminals for corrosion. Corrosion may indicate\
a loose terminal connector, or
a battery near the end of its useful service life. Consult your Volvo re\
tailer for additional information.
As needed:
l Wash the vehicle, including the undercarriage, to reduce wear that can b\
e caused by a buildup of dirt,
and corrosion that can be caused by salt residues.
l Clean leaves and twigs from air intake vents at the base of the windshie\
ld, and from other places
where they may collect.
NOTE: Complete service information for qualified technicians is available onl\
ine for purchase or
subscription at
www.volvotechinfo.com.
pg. 182 Maintenance
Emission inspection readiness
What is an Onboard Diagnostic System (OBD II)?
OBD II is part of your vehicle's computerized engine management system. \
It stores diagnostic
information about your vehicle's emission controls. It can light the Che\
ck Engine light (MIL) if it detects
an emission control "fault." A "fault" is a component or system that is \
not performing within an expected
range. A fault may be permanent or temporary. OBD II will store a messag\
e about any fault.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (3 of 37)12/30/2006\
5:53:50 PM

2007 Volvo XC90
How do states use OBD II for emission inspections?
Many states connect a computer directly to a vehicle's OBD II system. Th\
e inspector can then read
"faults." In some states, this type of inspection has replaced the tailp\
ipe emission test.
How can my vehicle fail OBD II emission inspection?
Your vehicle can fail OBD II emission inspection for any of the followin\
g reasons.
l If your Check Engine (MIL) light is lit, your vehicle may fail inspect\
ion.
l If your vehicle's Check Engine light was lit, but went out without any a\
ction on your part, OBD II will
still have a recorded fault. Your vehicle may pass or fail, depending on\
the inspection practices in your
area.
l If you had recent service that required disconnecting the battery, OBD I\
I diagnostic information may
be incomplete and "not ready" for inspection. A vehicle that is not read\
y may fail inspection.
How can I prepare for my next OBD II emission inspection?
l If your Check Engine (MIL) light is lit - or was lit but went out with\
out service, have your vehicle
diagnosed and, if necessary, serviced by a qualified Volvo technician.
l If you recently had service for a lit Check Engine light, or if you had \
service that required
disconnecting the battery, a period of driving is necessary to bring the\
OBD II system to "ready" for
inspection. A half-hour trip of mixed stop-and-go/ highway driving is ty\
pically needed to allow OBD II
to reach readiness. Your Volvo retailer can provide you with more inform\
ation on planning a trip.
l Maintain your vehicle in accordance with your vehicle's maintenance sche\
dule.
pg. 183 Maintenance
Working on your vehicle
Note the following before you begin working on your vehicle:
Battery (see also
page 192 for more information on handling the battery)
l Ensure that the battery cables are correctly connected and tightened.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_09.htm (4 of 37)12/30/2006\
5:53:50 PM
