09 Maintenance and servicing
Fuses09

231
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

09 Maintenance and servicing
Fuses 09
232* Option/accessory, for more information, see Introduction.
Fuses in the engine compartment
G026972
When replacing fuses, be sure to replace a
blown fuse with a new one of the same color
and amperage (written on the fuse).
NoA
1ABS30
2ABS30
3Headlight washers35
4–20
5Auxiliary lights*35
NoA
6Starter motor relay25
7Windshield wipers15
8Fuel pump15
9Transmission control module
(V8 and 6-cyl.)15
10Ignition coils, engine control
module20
11Throttle pedal sensor, A/C
compressor, e-box fan10
NoA
12Engine control module, fuel
injectors, mass airflow sensor15
13Throttle control (V8), Intake
manifold actuator (6-cyl.)10
14Heated oxygen sensor20
15Crankcase ventilation, sole-
noid valves, A/C connection,
leakage diagnostics, engine
control module (V8, 6-cyl.),
mass airflow sensor (V8)15

09 Maintenance and servicing
Fuses09

233
NoA
16Driver's side low beam head-
light20
17Passenger's side low beam
headlight20
18–
19Engine control module feed,
engine relay5
20Parking lights15
21Vacuum pump20

09 Maintenance and servicing
Fuses 09
234* Option/accessory, for more information, see Introduction.
Fuses in the passenger compartment on the edge of the dashboard
G032316
The decal shows the positions and amperage of the fuses
Fuses are located inside the access panel on
the edge of the dashboard, on the driver's side.
There are also a number of spare fuses. When
replacing a blown fuse, be sure to replace it
with a new one of the same color and amper-
age (written on the fuse).
NoA
1Blower – climate system30
2Audio amplifier*30
3Power driver's seat*25
NoA
4Power passenger's seat*25
5Driver's door – central lock-
ing, power windows, door
mirror25
6Front passenger's door – cen-
tral locking, power windows,
door mirror25
7–
NoA
8Radio, CD player, Rear Seat
Entertainment (RSE)*15
9Volvo Navigation System*,
Sirius satellite radio*10
10On-board diagnostics, head-
light switch, steering wheel
angle sensor, steering wheel
module5

09 Maintenance and servicing
Fuses09

* Option/accessory, for more information, see Introduction.235
NoA

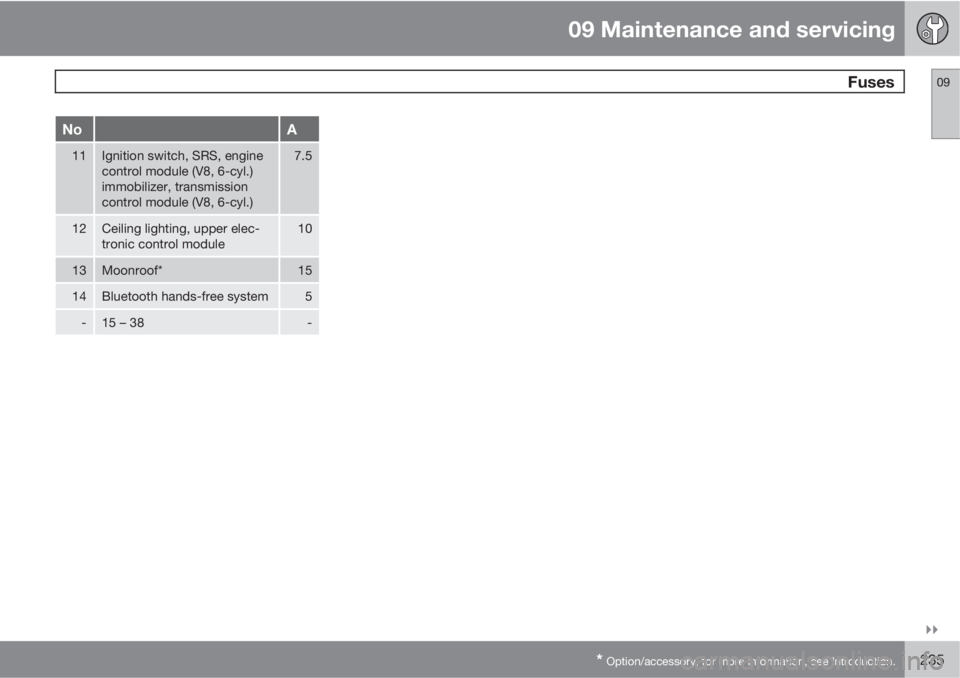

11Ignition switch, SRS, engine
control module (V8, 6-cyl.)
immobilizer, transmission
control module (V8, 6-cyl.)7.5
12Ceiling lighting, upper elec-
tronic control module10
13Moonroof*15
14Bluetooth hands-free system5
-15 – 38-

09 Maintenance and servicing
Fuses 09
236* Option/accessory, for more information, see Introduction.
Fuse box in the passenger compartment, behind the plastic cover, driver's side
G028412
This fuse box is located behind the plastic
cover below the steering wheel. When replac-
ing a blown fuse, be sure to replace it with a
new one of the same color and amperage (writ-
ten on the fuse).
NoA
1Heated passenger's seat15
2Heated driver's seat15
3Horn15
4–
NoA
5Audio system10
6–
7–
8Alarm siren*5
9Break light switch feed5
10Instrument panel, climate sys-
tem, power driver's seat,
Occupant Weight Sensor10
NoA
1112-volt sockets – front and rear
seats, refrigerator* (XC90
Executive)15
12–
13–
14–
15ABS, DSTC5
16Power steering, Active Bend-
ing Lights*10

09 Maintenance and servicing
Fuses09

* Option/accessory, for more information, see Introduction.237
NoA

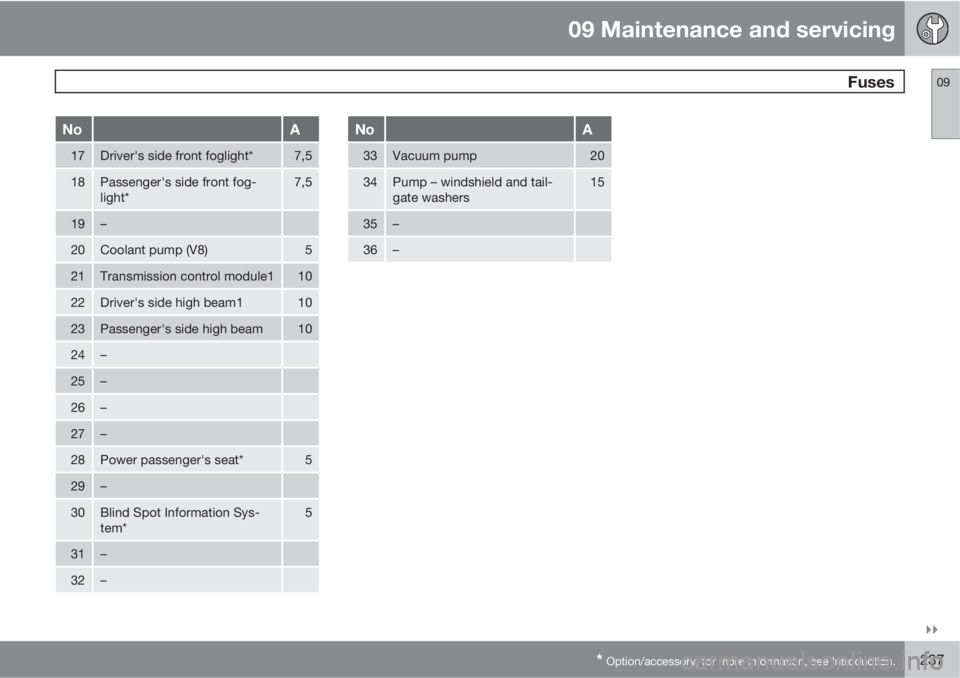

17Driver's side front foglight*7,5
18Passenger's side front fog-
light*7,5
19–
20Coolant pump (V8)5
21Transmission control module110
22Driver's side high beam110
23Passenger's side high beam10
24–
25–
26–
27–
28Power passenger's seat*5
29–
30Blind Spot Information Sys-
tem*5
31–
32–
NoA
33Vacuum pump20
34Pump – windshield and tail-
gate washers15
35–
36–

09 Maintenance and servicing
Fuses 09
238

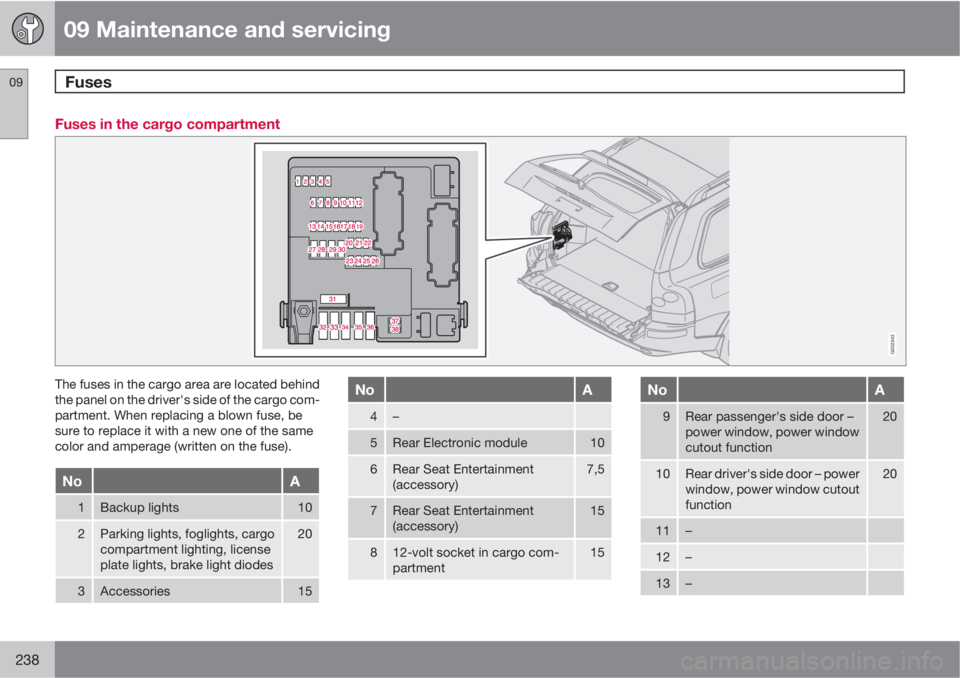

Fuses in the cargo compartment
G032342
The fuses in the cargo area are located behind
the panel on the driver's side of the cargo com-
partment. When replacing a blown fuse, be
sure to replace it with a new one of the same
color and amperage (written on the fuse).
NoA
1Backup lights10
2Parking lights, foglights, cargo
compartment lighting, license
plate lights, brake light diodes20
3Accessories15
NoA
4–
5Rear Electronic module10
6Rear Seat Entertainment
(accessory)7,5
7Rear Seat Entertainment
(accessory)15
812-volt socket in cargo com-
partment15
NoA
9Rear passenger's side door –
power window, power window
cutout function20
10Rear driver's side door – power
window, power window cutout
function20
11–
12–
13–

09 Maintenance and servicing
Fuses09

* Option/accessory, for more information, see Introduction.239
NoA
14Subwoofer*, rear air condition-
ing system *15
15–
16–
17Accessory audio5
18–
19Rear window wiper15
20Trailer wiring (15-feed)*20
21–
22–
23Park assist7,5
24–
25–
26Park assist*5
27Main fuse: trailer wiring, park
assist, All Wheel Drive30
28Central locking system15
29Driver's side trailer lighting:
parking lights, turn signal*25
NoA
30Passenger's side trailer light-
ing: brake light, fog light, turn
signal*25
31Main fuse: fuses 37 and 3840
32–
33–
34–
35–
36–
37Heated rear window20
38Heated rear window20

09 Maintenance and servicing
Fuses 09
240* Option/accessory, for more information, see Introduction.

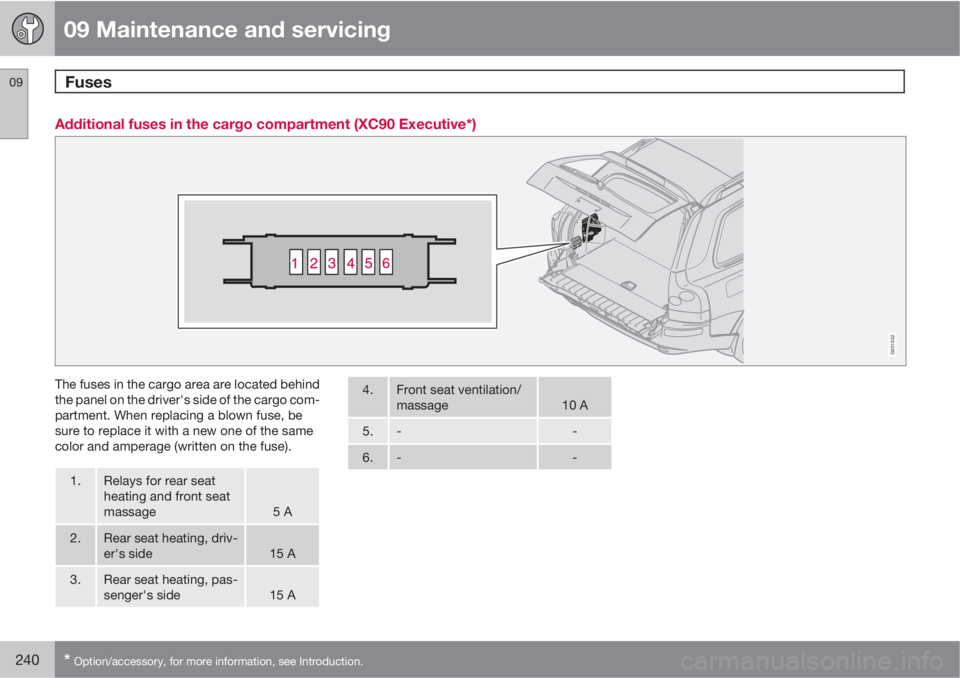

Additional fuses in the cargo compartment (XC90 Executive*)
G031532
The fuses in the cargo area are located behind
the panel on the driver's side of the cargo com-
partment. When replacing a blown fuse, be
sure to replace it with a new one of the same
color and amperage (written on the fuse).
1.Relays for rear seat
heating and front seat
massage
5 A
2.Rear seat heating, driv-
er's side15 A
3.Rear seat heating, pas-
senger's side15 A
4.Front seat ventilation/
massage10 A
5.--
6.--
