VOLVO XC90 2011 Owner´s Manual

09 Maintenance and servicing
09
241

242* Option/accessory, for more information, see Introduction.
Audio system overview......................................................................... 244
Audio system controls.......................................................................... 245
Radio functions..................................................................................... 250
Sirius satellite radio............................................................................... 255
Auxiliary equipment............................................................................... 259
CD player/changer................................................................................ 261
Menu structure...................................................................................... 264
Bluetooth
® hands-free connection....................................................... 265
Rear Seat Entertainment – Dual Screen (RSE)*.................................... 270

AUDIO

10 Audio
Audio system overview
10
244* Option/accessory, for more information, see Introduction.
CD player
VOLUME – turn to adjust
POWER – On/Off
AM/FM – for switching between FM1,
FM2 and AM
Display
ENTER – select in the menu or activate a
selection
Not in use
MY KEY – programmable key for your
favorite function from the menu
SELECTOR – select sound source
SOUND – make sound settings
EXIT/CLEAR – step back in the menu or
cancel a selection
Not in use
MENU – menu selections/navigation
CD eject
CD slot, CD changer*
search for and store the strongest radio
stations in the area in which you are driving
Station preset buttons/selecct a disc in the
CD changer* (1-6)
IR* Infrared port – for the optional naviga-
tion system remote control

10 Audio
Audio system controls
10

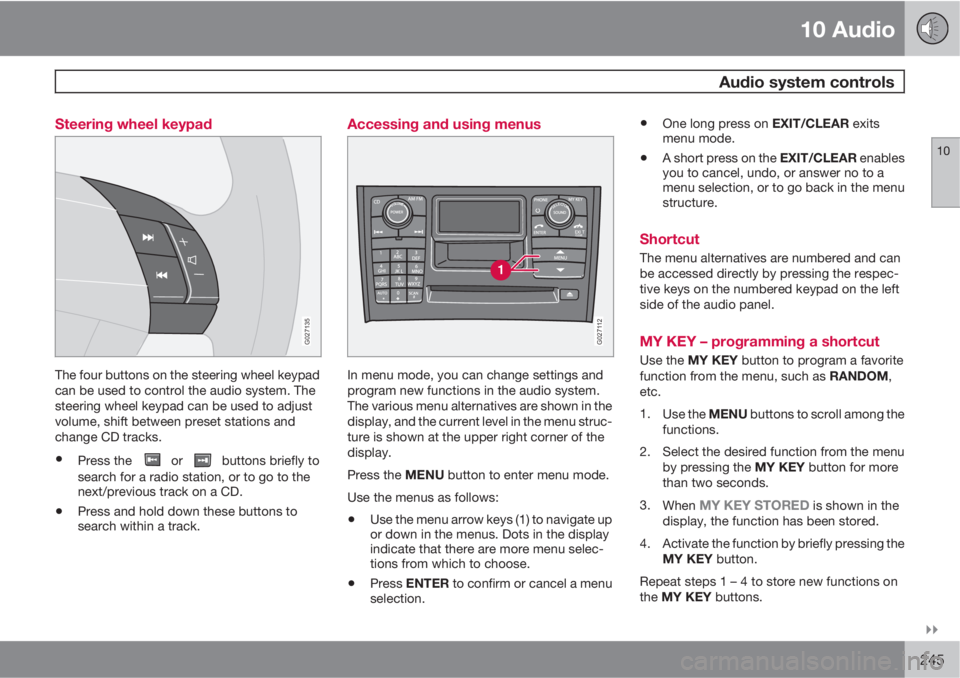

245 Steering wheel keypad
G027135
The four buttons on the steering wheel keypad
can be used to control the audio system. The
steering wheel keypad can be used to adjust
volume, shift between preset stations and
change CD tracks.
•Press the or buttons briefly to
search for a radio station, or to go to the
next/previous track on a CD.
•Press and hold down these buttons to
search within a track.
Accessing and using menus
G027112
In menu mode, you can change settings and
program new functions in the audio system.
The various menu alternatives are shown in the
display, and the current level in the menu struc-
ture is shown at the upper right corner of the
display.
Press the MENU button to enter menu mode.
Use the menus as follows:
•Use the menu arrow keys (1) to navigate up
or down in the menus. Dots in the display
indicate that there are more menu selec-
tions from which to choose.
•Press ENTER to confirm or cancel a menu
selection.
•One long press on EXIT/CLEAR exits
menu mode.
•A short press on the EXIT/CLEAR enables
you to cancel, undo, or answer no to a
menu selection, or to go back in the menu
structure.
Shortcut
The menu alternatives are numbered and can
be accessed directly by pressing the respec-
tive keys on the numbered keypad on the left
side of the audio panel.
MY KEY – programming a shortcut
Use the MY KEY button to program a favorite
function from the menu, such as RANDOM,
etc.
1.
Use the MENU buttons to scroll among the
functions.
2. Select the desired function from the menu
by pressing the MY KEY button for more
than two seconds.
3.
When
MY KEY STORED is shown in the
display, the function has been stored.
4. Activate the function by briefly pressing the
MY KEY button.
Repeat steps 1 – 4 to store new functions on
the MY KEY buttons.

10 Audio
Audio system controls
10
246* Option/accessory, for more information, see Introduction.
NOTE
The MY KEY buttons can only be pro-
grammed for one shortcut function at a
time.
Rear headphone connectors and
controls *
G026982
The door panels behind the second row of
seats can be equipped with headphone con-
nectors for passengers in the second and third
row of seats. Several people can listen to dif-
ferent sound sources, such as CDs or the radio
at the same time without disturbing each other.
Two sets of headphones can be plugged into
each connector.1. With the audio system switched on, use
the SEL button to select a sound source.
2. Press the arrow keys briefly to change CD
tracks or switch between preset stations.
3. Hold down the arrow keys to fast forward/
reverse, or search for the previous/next
strong radio station.
4.
Hold down the SEL button to turn off the
sound.
NOTE
For the best sound reproduction, we rec-
ommend headphones with impedance
between 16 – 32 ohm. The sensitivity of
these should be equal to or greater than
102 dB. The headphone connections are
intended for 3.5 mm contacts and are
located under the lower edge of the socket.
All headphones are automatically turned off
when the ignition is switched off. They must be
manually restarted when the ignition is
switched on again.
Headphones – limitations
•The headphones will only work when the
ignition key is in position I or higher.
•If a set of headphones is connected to the
same source that is being sent through the
speakers, the headphone controls cannot
be used to change track or station. This isto prevent the driver from being distracted
by an unexpected change in music.
•If the driver selects the same sound source
as someone listening to this source
through headphones, the driver takes con-
trol of the sound source.
•Only one disc in the optional CD changer,
and one track on the CD can be played at
a time.
•Headphone users can choose from among
the preset radio stations (AM, FM1, FM2)
previously set by the driver.
•If FM is played in the speakers, AM is not
available and vice versa.
On/Off button
G027146

10 Audio
Audio system controls
10

* Option/accessory, for more information, see Introduction.247
To activate the system:
1.
Turn the ignition key to position I.
NOTE
If you switch off the ignition while the audio
system is on, the system will be on when the
ignition is switched on again.
2.
Press the POWER button (3) to switch the
audio system on or off.
Volume control
Turn the knob (2) clockwise or counterclock-
wise to raise or lower the volume. The volume
control is electronic and has no end position.
Volume can also be raised (+) or lowered (–)
using the steering wheel keypad.
Pause modeIf the volume is turned off, the CD player will go
into pause mode. Re-activate the player by
turning up the volume.
Selecting a sound source
•Press AM/FM (4) repeatedly to toggle
between FM1, FM2, and AM
•Press the CD button (1) to change to the
CD player or optional CD changer
•Turn the SELECTOR control (5) to choose
FM1, FM2, AM, CD, CD changer*, AUX*, or
Sirius satellite radio*.
The selected sound source will be shown in the
display.
Sound settings
G027147
1.
Press the SOUND button (2) repeatedly
until you come to the setting that you wishto change. Choose
BASS, TREBLE,
FADER, BALANCE, SUBWOOFER*,CENTER* or SURROUND*.
2.
Use the SELECTOR control (1) to adjust
the level of the setting you have selected.
The display shows a scale from min. to
max. position. The center indicates the
normal position.
NOTE
Sound level for the center speaker can only
be set if Dolby Pro Logic II (DPL II) or three-
channel stereo (3-CH) is selected in the
menu.
Sound level for the subwoofer can only be set
if SUBWOOFER is selected in the menu (acti-
vated).
SettingShown in the dis-
play
BassBASS
TrebleTREBLE
Balance between
the right and left
speakersBALANCE

10 Audio
Audio system controls
10
248* Option/accessory, for more information, see Introduction.

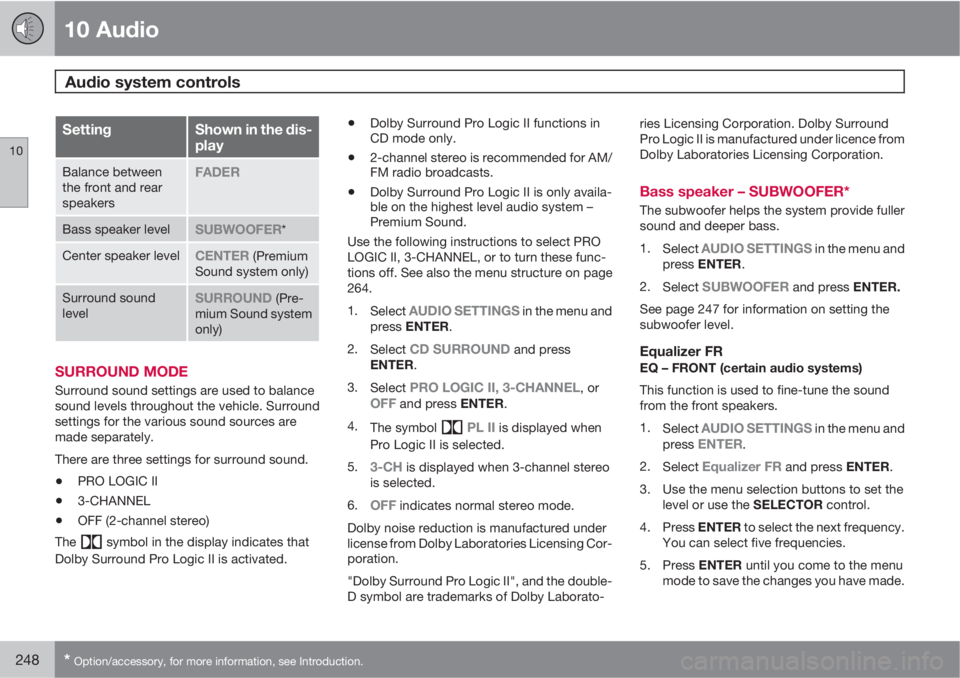

SettingShown in the dis-
play
Balance between
the front and rear
speakersFADER
Bass speaker levelSUBWOOFER*
Center speaker levelCENTER (Premium
Sound system only)
Surround sound
levelSURROUND (Pre-
mium Sound system
only)
SURROUND MODE
Surround sound settings are used to balance
sound levels throughout the vehicle. Surround
settings for the various sound sources are
made separately.
There are three settings for surround sound.
•PRO LOGIC II
•3-CHANNEL
•OFF (2-channel stereo)
The
symbol in the display indicates that
Dolby Surround Pro Logic II is activated.
•Dolby Surround Pro Logic II functions in
CD mode only.
•2-channel stereo is recommended for AM/
FM radio broadcasts.
•Dolby Surround Pro Logic II is only availa-
ble on the highest level audio system –
Premium Sound.
Use the following instructions to select PRO
LOGIC II, 3-CHANNEL, or to turn these func-
tions off. See also the menu structure on page
264.
1.
Select
AUDIO SETTINGS in the menu and
press ENTER.
2.
Select
CD SURROUND and press
ENTER.
3.
Select
PRO LOGIC II, 3-CHANNEL, orOFF and press ENTER.
4.
The symbol
PL II is displayed when
Pro Logic II is selected.
5.
3-CH is displayed when 3-channel stereo
is selected.
6.
OFF indicates normal stereo mode.
Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing Cor-
poration.
"Dolby Surround Pro Logic II", and the double-
D symbol are trademarks of Dolby Laborato-ries Licensing Corporation. Dolby Surround
Pro Logic II is manufactured under licence from
Dolby Laboratories Licensing Corporation.
Bass speaker – SUBWOOFER*
The subwoofer helps the system provide fuller
sound and deeper bass.
1.
Select
AUDIO SETTINGS in the menu and
press ENTER.
2.
Select
SUBWOOFER and press ENTER.
See page 247 for information on setting the
subwoofer level.
Equalizer FREQ – FRONT (certain audio systems)
This function is used to fine-tune the sound
from the front speakers.
1.
Select
AUDIO SETTINGS in the menu and
press ENTER.
2.
Select
Equalizer FR and press ENTER.
3. Use the menu selection buttons to set the
level or use the SELECTOR control.
4.
Press ENTER to select the next frequency.
You can select five frequencies.
5.
Press ENTER until you come to the menu
mode to save the changes you have made.

10 Audio
Audio system controls
10
249
Equalizer RREQ – REAR (certain audio systems)
This function is used to fine-tune the sound
from the rear speakers.
1.
Select
AUDIO SETTINGS in the menu and
press ENTER.
2.
Select
EQ- REAR and press ENTER.
3. Use the menu selection buttons to set the
level or use the SELECTOR control.
4.
Press ENTER to select the next frequency.
You can select five frequencies
5.
Press ENTER until you come to the menu
mode to save the changes you have made.
Optimal sound reproductionThe audio system is calibrated for optimal
sound reproduction through the use of digital
signal processing. This calibration takes into
account the speakers, amplifier, cabin acous-
tics, the seating position of the listener, etc., for
each combination of vehicle and audio system.
There is also dynamic calibration that takes
into account the setting of the volume control,
radio reception, and the vehicle's speed. The
sound settings described in this manual, such
as
BASS, TREBLE, and EQUALIZER are only
intended to enable the user to adapt sound
reproduction to his/her personal preferences.

10 Audio
Radio functions
10
250

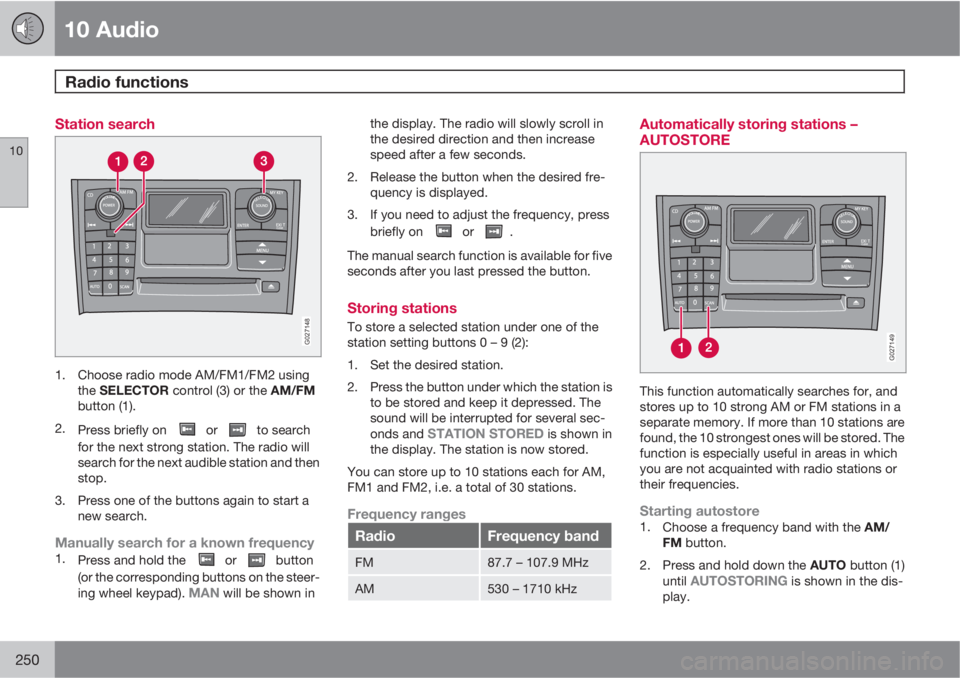

Station search
G027148
1. Choose radio mode AM/FM1/FM2 using
the SELECTOR control (3) or the AM/FM
button (1).
2.
Press briefly on
or to search
for the next strong station. The radio will
search for the next audible station and then
stop.
3. Press one of the buttons again to start a
new search.
Manually search for a known frequency1.
Press and hold the or button
(or the corresponding buttons on the steer-
ing wheel keypad).
MAN will be shown inthe display. The radio will slowly scroll in
the desired direction and then increase
speed after a few seconds.
2. Release the button when the desired fre-
quency is displayed.
3. If you need to adjust the frequency, press
briefly on
or .
The manual search function is available for five
seconds after you last pressed the button.
Storing stations
To store a selected station under one of the
station setting buttons 0 – 9 (2):
1. Set the desired station.
2. Press the button under which the station is
to be stored and keep it depressed. The
sound will be interrupted for several sec-
onds and
STATION STORED is shown in
the display. The station is now stored.
You can store up to 10 stations each for AM,
FM1 and FM2, i.e. a total of 30 stations.
Frequency ranges
RadioFrequency band
FM87.7 – 107.9 MHz
AM530 – 1710 kHz
Automatically storing stations –
AUTOSTORE
G027149
This function automatically searches for, and
stores up to 10 strong AM or FM stations in a
separate memory. If more than 10 stations are
found, the 10 strongest ones will be stored. The
function is especially useful in areas in which
you are not acquainted with radio stations or
their frequencies.
Starting autostore1.
Choose a frequency band with the AM/
FM button.
2.
Press and hold down the AUTO button (1)
until
AUTOSTORING is shown in the dis-
play.
