Interior lighting
04

111 Reading lights and courtesy light
G026960
Driver's side front reading lamp
Courtesy lights
Passenger's side front reading lamp The
reading lights can be switched on or off by
pressing buttons 1 or 3. The courtesy light-
ing (including footwell lighting) can be
turned on or off by pressing button 2. This
also activates the automatic function.
G027153
Rear reading lights
Driver's side rear reading light
Passenger's side rear reading light The
rear reading lights can be switched on and
off by pressing buttons (4) or (5).
Automatic functionThe reading lights and courtesy lights will
switch off automatically approximately
10 minutes after the engine has been turned
off. The lights can be turned off sooner by
pressing the respective buttons.The courtesy lights come on automatically
1
and remain on for approximately 30 seconds
when:
•The vehicle has been unlocked from the
outside with the remote key or key
•If the engine has been switched off and the
ignition key has been turned to position 0
The courtesy lights will come on and remain on
for approximately 10 minutes when:
•One of the doors is opened (assuming the
courtesy lighting has not previously been
switched off)
The courtesy lighting will go off when:
•The engine is started
•The vehicle is locked from the outside with
the remote key or key blade.
The automatic function can be disconnected
by pressing button (2) for more than 3 seconds.
Briefly pressing the button again automatically
reconnects the function.
The courtesy light timer periods can be
changed. Contact a trained and qualified Volvo
service technician.
1This function is light dependent and is only activated in dark conditions.

04 Interior
Interior lighting
04
112
Vanity mirror
G027045
The light comes on when you open the cover.
Glove compartment lighting
The light in the glove compartment comes on
or switches off when its door is opened or
closed.

04 Interior
Storage compartments
04

113
G033089

04 Interior
Storage compartments
04

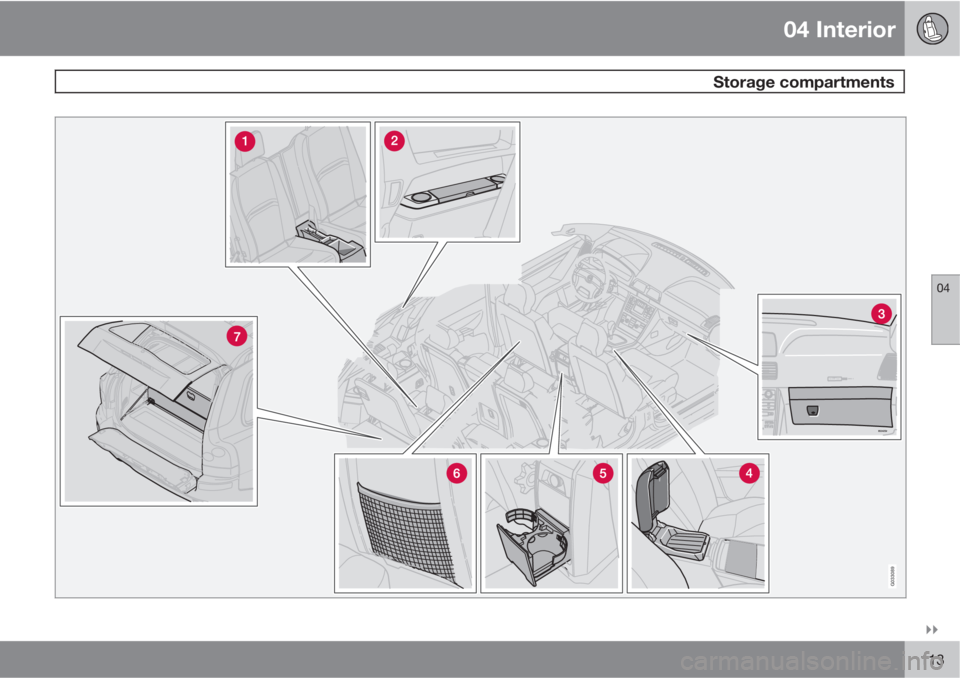

114* Option/accessory, for more information, see Introduction.
Storage compartment in third row of seats
Storage compartment
Glove compartment
Storage compartment in center console
Rear seat cup holders
Storage pocket (also in front edge of front
seats)
Grocery bag holder*
WARNING
Make sure that no hard, sharp or heavy
objects lie on or in any of the storage areas
where they might cause injury during sud-
den braking.
Storage compartment in the center
console
G027019

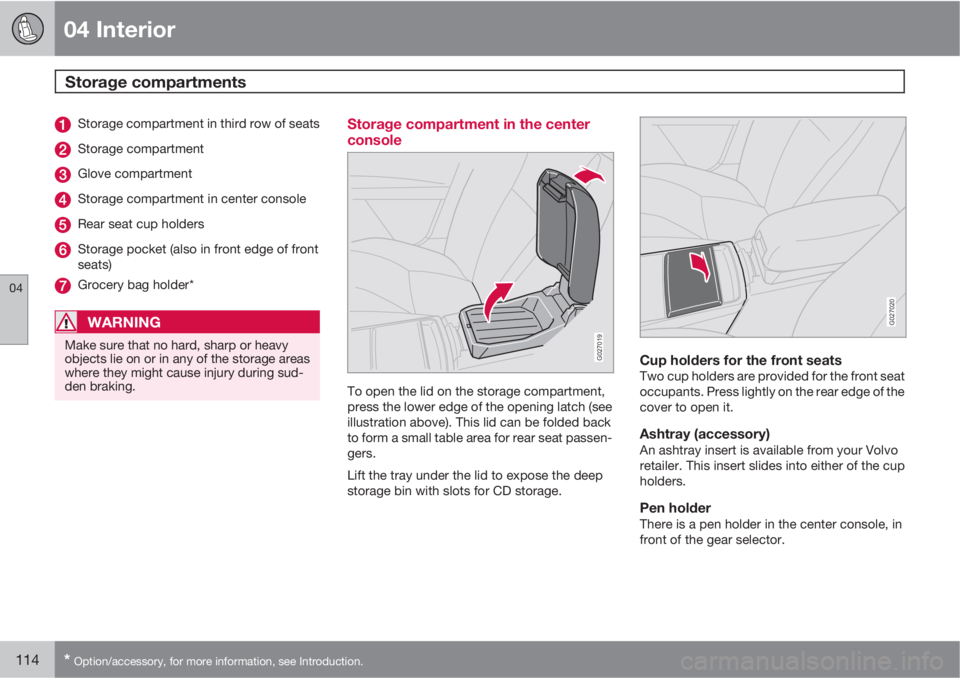

To open the lid on the storage compartment,
press the lower edge of the opening latch (see
illustration above). This lid can be folded back
to form a small table area for rear seat passen-
gers.
Lift the tray under the lid to expose the deep
storage bin with slots for CD storage.
G027020
Cup holders for the front seatsTwo cup holders are provided for the front seat
occupants. Press lightly on the rear edge of the
cover to open it.
Ashtray (accessory)An ashtray insert is available from your Volvo
retailer. This insert slides into either of the cup
holders.
Pen holderThere is a pen holder in the center console, in
front of the gear selector.

04 Interior
Storage compartments
04

115
G027018

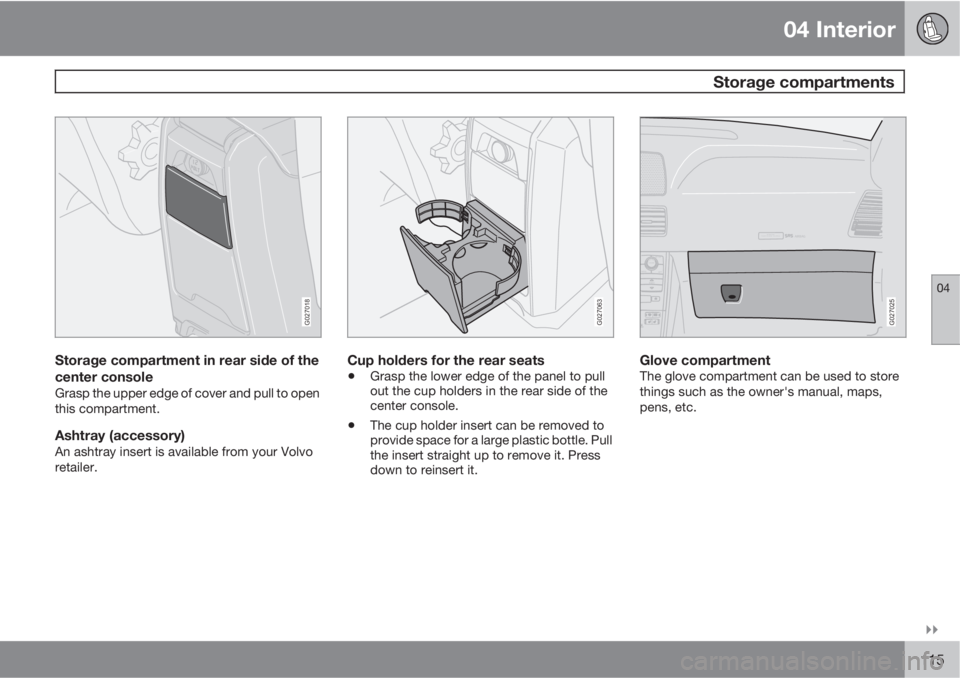

Storage compartment in rear side of the
center console
Grasp the upper edge of cover and pull to open
this compartment.
Ashtray (accessory)An ashtray insert is available from your Volvo
retailer.
G027063
Cup holders for the rear seats
•Grasp the lower edge of the panel to pull
out the cup holders in the rear side of the
center console.
•The cup holder insert can be removed to
provide space for a large plastic bottle. Pull
the insert straight up to remove it. Press
down to reinsert it.
ATTENTIONPakjdskdl ioiuip kjöpp opoodidåuswi
CSOUND
MENU
80
ENTERLSEEEXITMY KEYRTO
AIRBAG
G027025
Glove compartmentThe glove compartment can be used to store
things such as the owner's manual, maps,
pens, etc.

04 Interior
Storage compartments
04
116
G027028

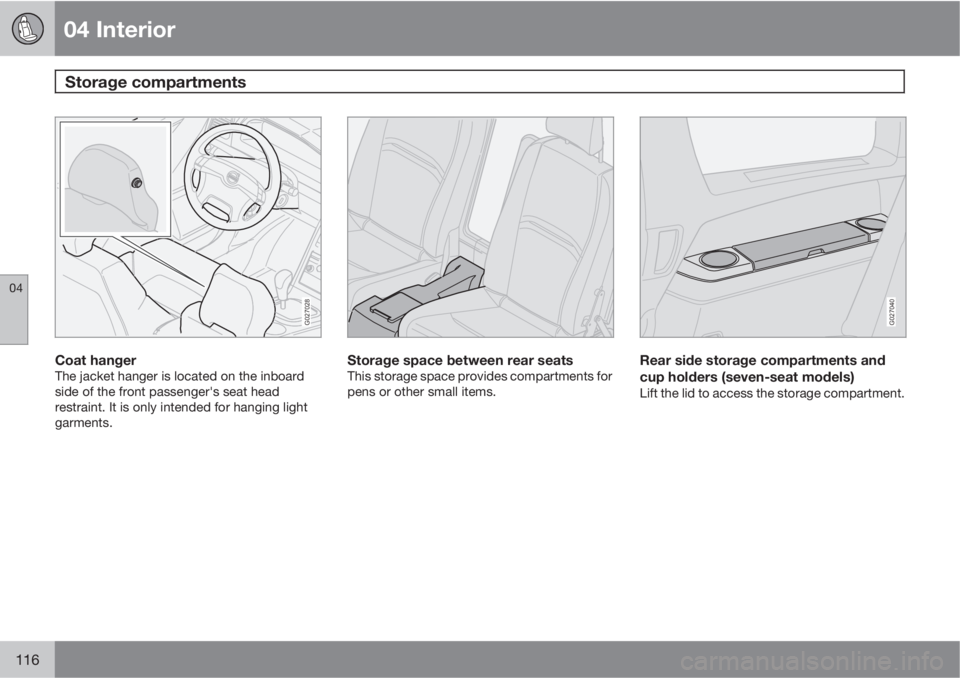

Coat hangerThe jacket hanger is located on the inboard
side of the front passenger's seat head
restraint. It is only intended for hanging light
garments.
G027026
Storage space between rear seatsThis storage space provides compartments for
pens or other small items.
G027040
Rear side storage compartments and
cup holders (seven-seat models)
Lift the lid to access the storage compartment.

04 Interior
Storage compartments
04
* Option/accessory, for more information, see Introduction.117 Refrigerator*
G027068

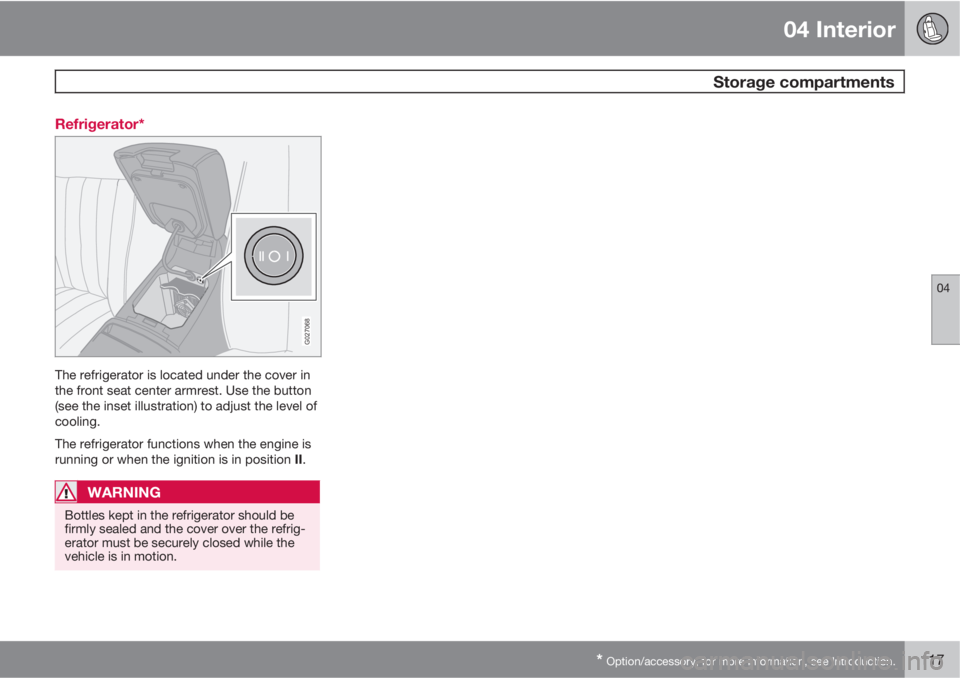

The refrigerator is located under the cover in
the front seat center armrest. Use the button
(see the inset illustration) to adjust the level of
cooling.
The refrigerator functions when the engine is
running or when the ignition is in position II.
WARNING
Bottles kept in the refrigerator should be
firmly sealed and the cover over the refrig-
erator must be securely closed while the
vehicle is in motion.

04 Interior
Securing cargo
04
118
G027031

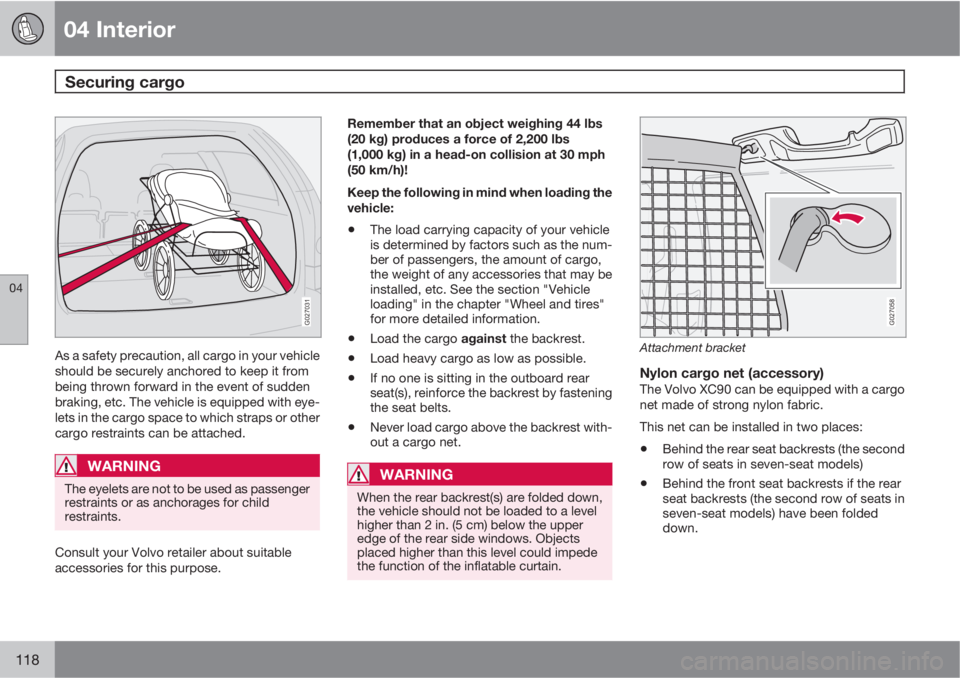

As a safety precaution, all cargo in your vehicle
should be securely anchored to keep it from
being thrown forward in the event of sudden
braking, etc. The vehicle is equipped with eye-
lets in the cargo space to which straps or other
cargo restraints can be attached.
WARNING
The eyelets are not to be used as passenger
restraints or as anchorages for child
restraints.
Consult your Volvo retailer about suitable
accessories for this purpose.Remember that an object weighing 44 lbs
(20 kg) produces a force of 2,200 lbs
(1,000 kg) in a head-on collision at 30 mph
(50 km/h)!
Keep the following in mind when loading the
vehicle:
•The load carrying capacity of your vehicle
is determined by factors such as the num-
ber of passengers, the amount of cargo,
the weight of any accessories that may be
installed, etc. See the section "Vehicle
loading" in the chapter "Wheel and tires"
for more detailed information.
•Load the cargo against the backrest.
•Load heavy cargo as low as possible.
•If no one is sitting in the outboard rear
seat(s), reinforce the backrest by fastening
the seat belts.
•Never load cargo above the backrest with-
out a cargo net.
WARNING
When the rear backrest(s) are folded down,
the vehicle should not be loaded to a level
higher than 2 in. (5 cm) below the upper
edge of the rear side windows. Objects
placed higher than this level could impede
the function of the inflatable curtain.
G027058
Attachment bracket
Nylon cargo net (accessory)The Volvo XC90 can be equipped with a cargo
net made of strong nylon fabric.
This net can be installed in two places:
•Behind the rear seat backrests (the second
row of seats in seven-seat models)
•Behind the front seat backrests if the rear
seat backrests (the second row of seats in
seven-seat models) have been folded
down.

04 Interior
Securing cargo
04

119

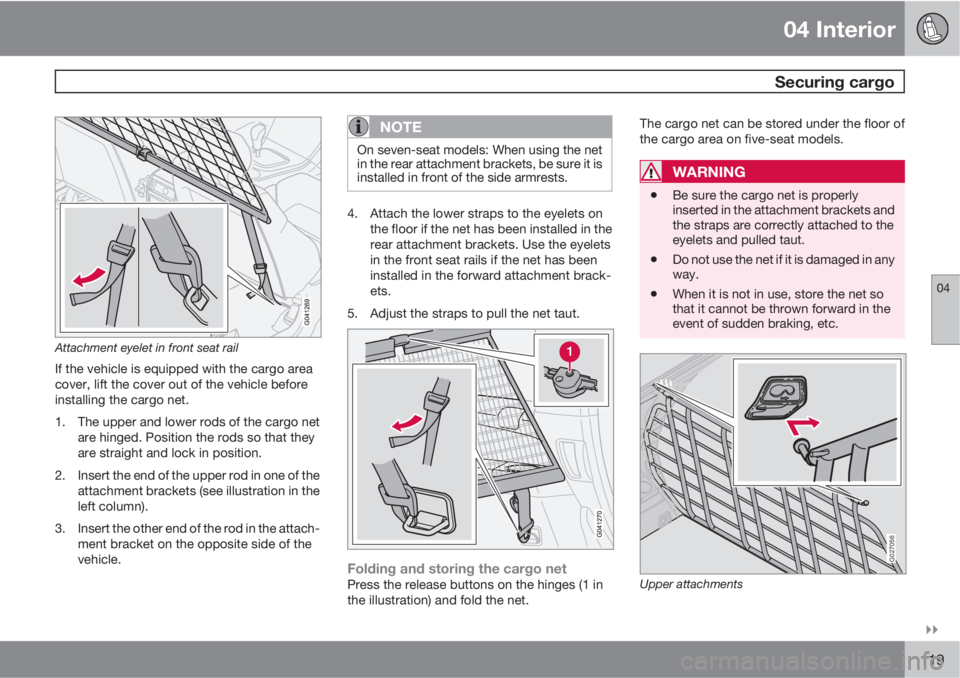

Attachment eyelet in front seat rail
If the vehicle is equipped with the cargo area
cover, lift the cover out of the vehicle before
installing the cargo net.
1. The upper and lower rods of the cargo net
are hinged. Position the rods so that they
are straight and lock in position.
2. Insert the end of the upper rod in one of the
attachment brackets (see illustration in the
left column).
3. Insert the other end of the rod in the attach-
ment bracket on the opposite side of the
vehicle.
NOTE
On seven-seat models: When using the net
in the rear attachment brackets, be sure it is
installed in front of the side armrests.
4. Attach the lower straps to the eyelets on
the floor if the net has been installed in the
rear attachment brackets. Use the eyelets
in the front seat rails if the net has been
installed in the forward attachment brack-
ets.
5. Adjust the straps to pull the net taut.
Folding and storing the cargo netPress the release buttons on the hinges (1 in
the illustration) and fold the net.The cargo net can be stored under the floor of
the cargo area on five-seat models.
WARNING
•Be sure the cargo net is properly
inserted in the attachment brackets and
the straps are correctly attached to the
eyelets and pulled taut.
•Do not use the net if it is damaged in any
way.
•When it is not in use, store the net so
that it cannot be thrown forward in the
event of sudden braking, etc.
G027056
Upper attachments

04 Interior
Securing cargo
04
120

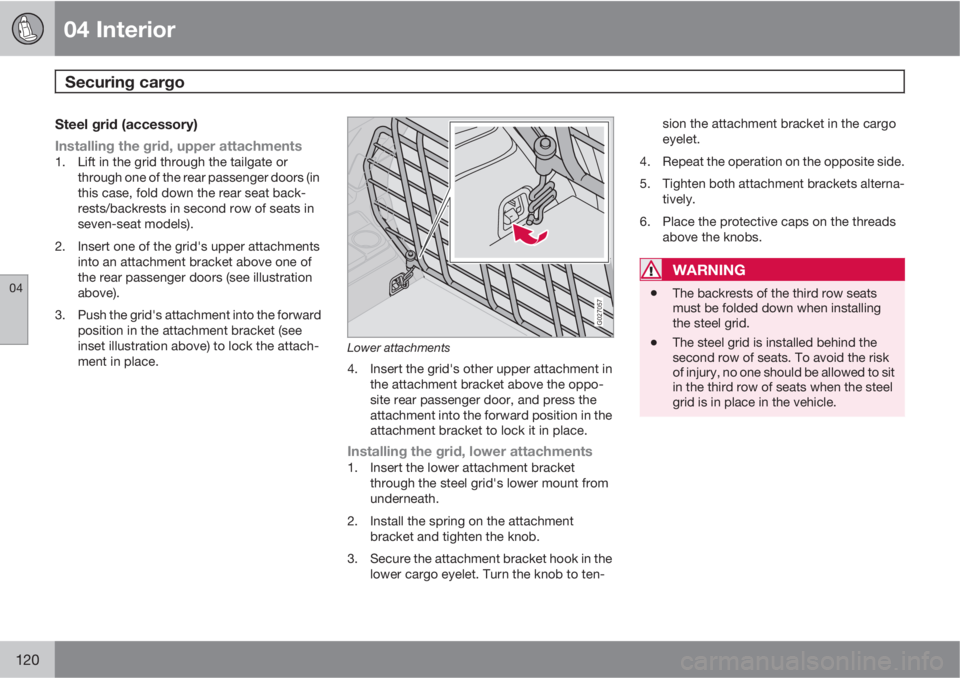

Steel grid (accessory)
Installing the grid, upper attachments
1. Lift in the grid through the tailgate or
through one of the rear passenger doors (in
this case, fold down the rear seat back-
rests/backrests in second row of seats in
seven-seat models).
2. Insert one of the grid's upper attachments
into an attachment bracket above one of
the rear passenger doors (see illustration
above).
3. Push the grid's attachment into the forward
position in the attachment bracket (see
inset illustration above) to lock the attach-
ment in place.
G027057
Lower attachments
4. Insert the grid's other upper attachment in
the attachment bracket above the oppo-
site rear passenger door, and press the
attachment into the forward position in the
attachment bracket to lock it in place.
Installing the grid, lower attachments1. Insert the lower attachment bracket
through the steel grid's lower mount from
underneath.
2. Install the spring on the attachment
bracket and tighten the knob.
3. Secure the attachment bracket hook in the
lower cargo eyelet. Turn the knob to ten-sion the attachment bracket in the cargo
eyelet.
4. Repeat the operation on the opposite side.
5. Tighten both attachment brackets alterna-
tively.
6. Place the protective caps on the threads
above the knobs.
WARNING
•The backrests of the third row seats
must be folded down when installing
the steel grid.
•The steel grid is installed behind the
second row of seats. To avoid the risk
of injury, no one should be allowed to sit
in the third row of seats when the steel
grid is in place in the vehicle.
