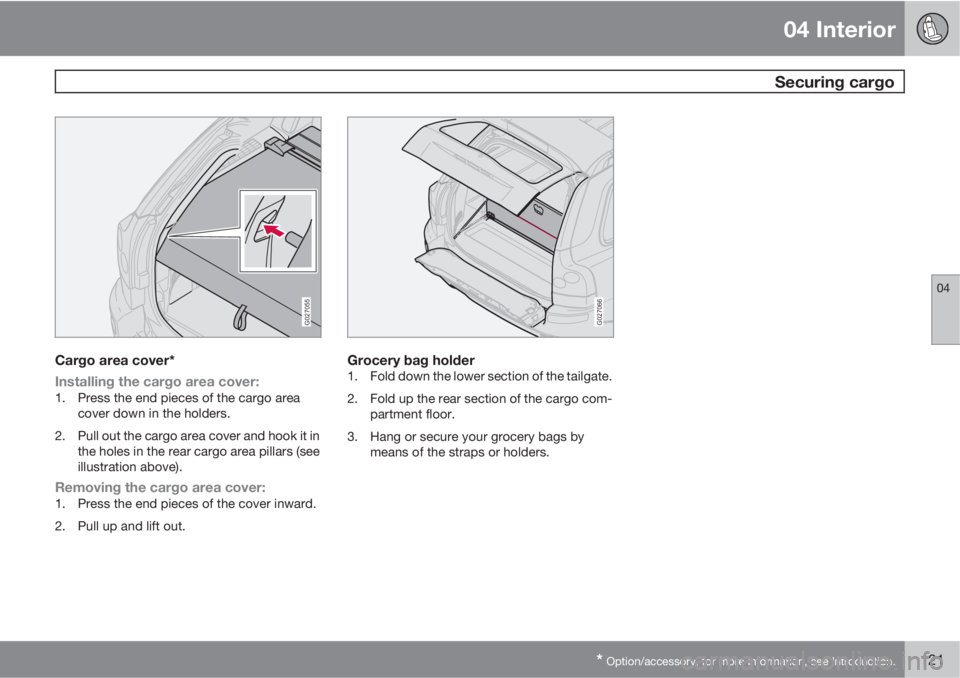

VOLVO XC90 2012 Owner´s Manual

04 Interior
Securing cargo
04
* Option/accessory, for more information, see Introduction.121
G027055
Cargo area cover*
Installing the cargo area cover:
1. Press the end pieces of the cargo area
cover down in the holders.
2. Pull out the cargo area cover and hook it in
the holes in the rear cargo area pillars (see
illustration above).
Removing the cargo area cover:1. Press the end pieces of the cover inward.
2. Pull up and lift out.
G027066
Grocery bag holder1. Fold down the lower section of the tailgate.
2. Fold up the rear section of the cargo com-
partment floor.
3. Hang or secure your grocery bags by
means of the straps or holders.

122
Remote keys and key blades................................................................ 124
Locking and unlocking.......................................................................... 128
Child safety locks.................................................................................. 130
Alarm..................................................................................................... 131

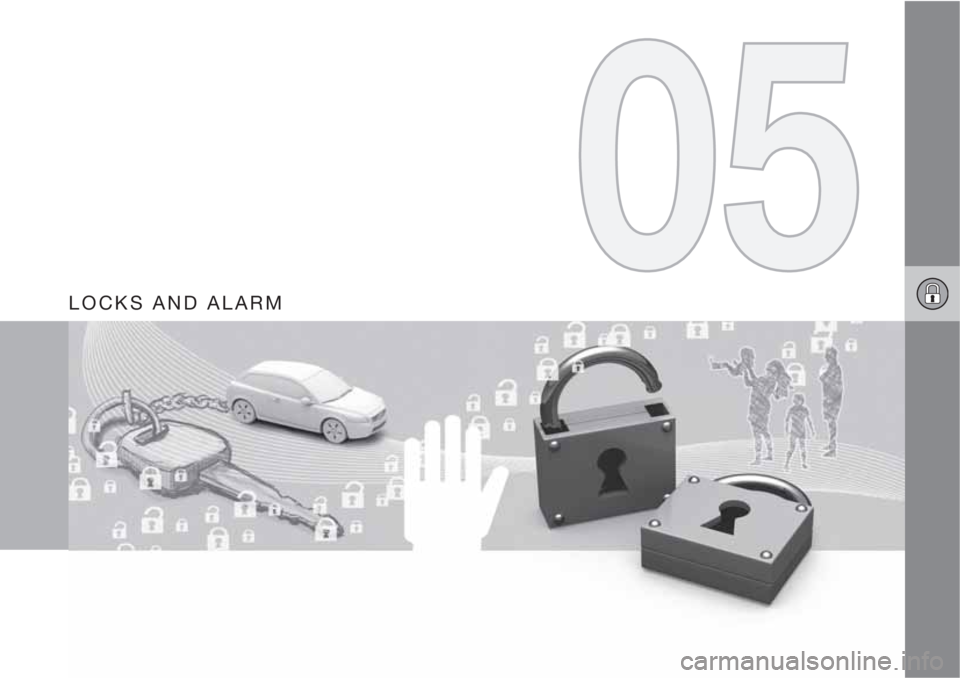

LOCKS AND ALARM

05 Locks and alarm
Remote keys and key blades
05
124

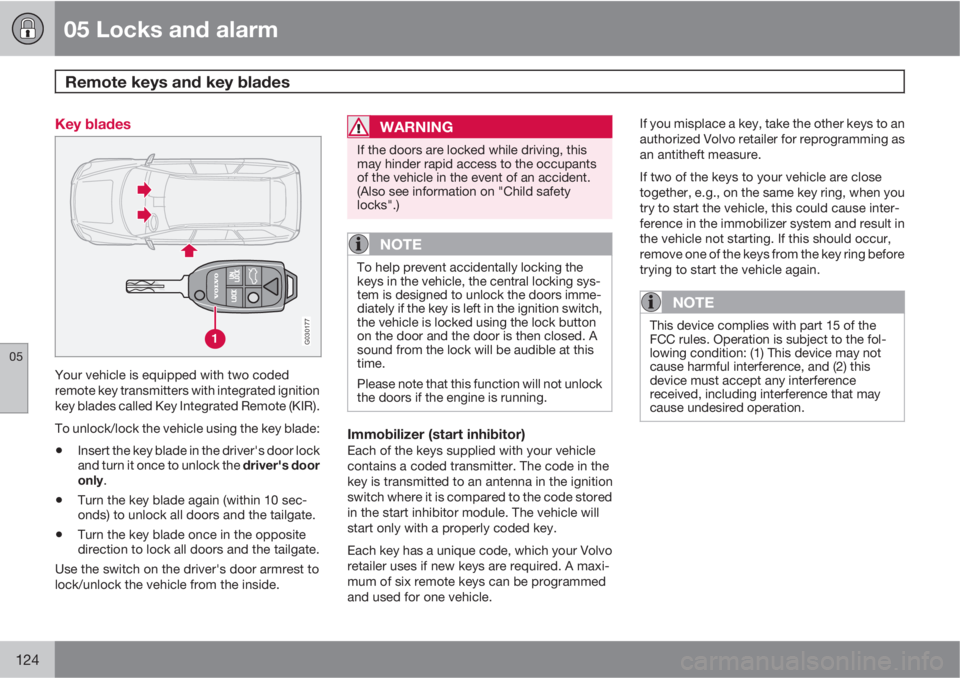

Key blades
G030177
Your vehicle is equipped with two coded
remote key transmitters with integrated ignition
key blades called Key Integrated Remote (KIR).
To unlock/lock the vehicle using the key blade:
•Insert the key blade in the driver's door lock
and turn it once to unlock the driver's door
only.
•Turn the key blade again (within 10 sec-
onds) to unlock all doors and the tailgate.
•Turn the key blade once in the opposite
direction to lock all doors and the tailgate.
Use the switch on the driver's door armrest to
lock/unlock the vehicle from the inside.
WARNING
If the doors are locked while driving, this
may hinder rapid access to the occupants
of the vehicle in the event of an accident.
(Also see information on "Child safety
locks".)
NOTE
To help prevent accidentally locking the
keys in the vehicle, the central locking sys-
tem is designed to unlock the doors imme-
diately if the key is left in the ignition switch,
the vehicle is locked using the lock button
on the door and the door is then closed. A
sound from the lock will be audible at this
time.
Please note that this function will not unlock
the doors if the engine is running.
Immobilizer (start inhibitor)Each of the keys supplied with your vehicle
contains a coded transmitter. The code in the
key is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The vehicle will
start only with a properly coded key.
Each key has a unique code, which your Volvo
retailer uses if new keys are required. A maxi-
mum of six remote keys can be programmed
and used for one vehicle.If you misplace a key, take the other keys to an
authorized Volvo retailer for reprogramming as
an antitheft measure.
If two of the keys to your vehicle are close
together, e.g., on the same key ring, when you
try to start the vehicle, this could cause inter-
ference in the immobilizer system and result in
the vehicle not starting. If this should occur,
remove one of the keys from the key ring before
trying to start the vehicle again.
NOTE
This device complies with part 15 of the
FCC rules. Operation is subject to the fol-
lowing condition: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.

05 Locks and alarm
Remote keys and key blades
05

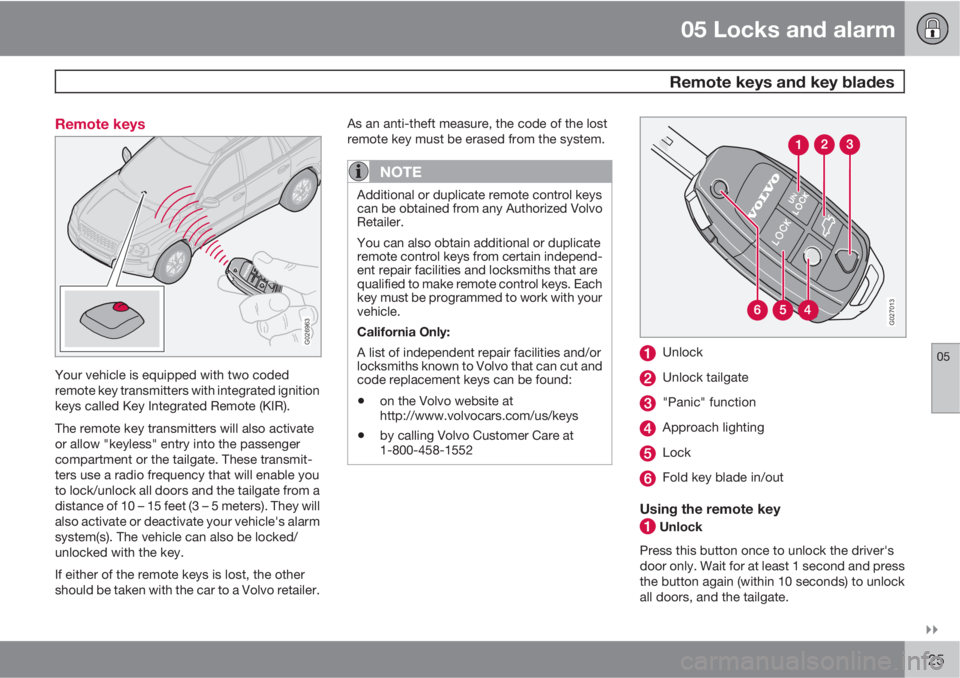

125 Remote keys
G026963
Your vehicle is equipped with two coded
remote key transmitters with integrated ignition
keys called Key Integrated Remote (KIR).
The remote key transmitters will also activate
or allow "keyless" entry into the passenger
compartment or the tailgate. These transmit-
ters use a radio frequency that will enable you
to lock/unlock all doors and the tailgate from a
distance of 10 – 15 feet (3 – 5 meters). They will
also activate or deactivate your vehicle's alarm
system(s). The vehicle can also be locked/
unlocked with the key.
If either of the remote keys is lost, the other
should be taken with the car to a Volvo retailer.As an anti-theft measure, the code of the lost
remote key must be erased from the system.
NOTE
Additional or duplicate remote control keys
can be obtained from any Authorized Volvo
Retailer.
You can also obtain additional or duplicate
remote control keys from certain independ-
ent repair facilities and locksmiths that are
qualified to make remote control keys. Each
key must be programmed to work with your
vehicle.
California Only:
A list of independent repair facilities and/or
locksmiths known to Volvo that can cut and
code replacement keys can be found:
•on the Volvo website at
http://www.volvocars.com/us/keys
•by calling Volvo Customer Care at
1-800-458-1552
G027013
Unlock
Unlock tailgate
"Panic" function
Approach lighting
Lock
Fold key blade in/out
Using the remote key
Unlock
Press this button once to unlock the driver's
door only. Wait for at least 1 second and press
the button again (within 10 seconds) to unlock
all doors, and the tailgate.

05 Locks and alarm
Remote keys and key blades
05
126

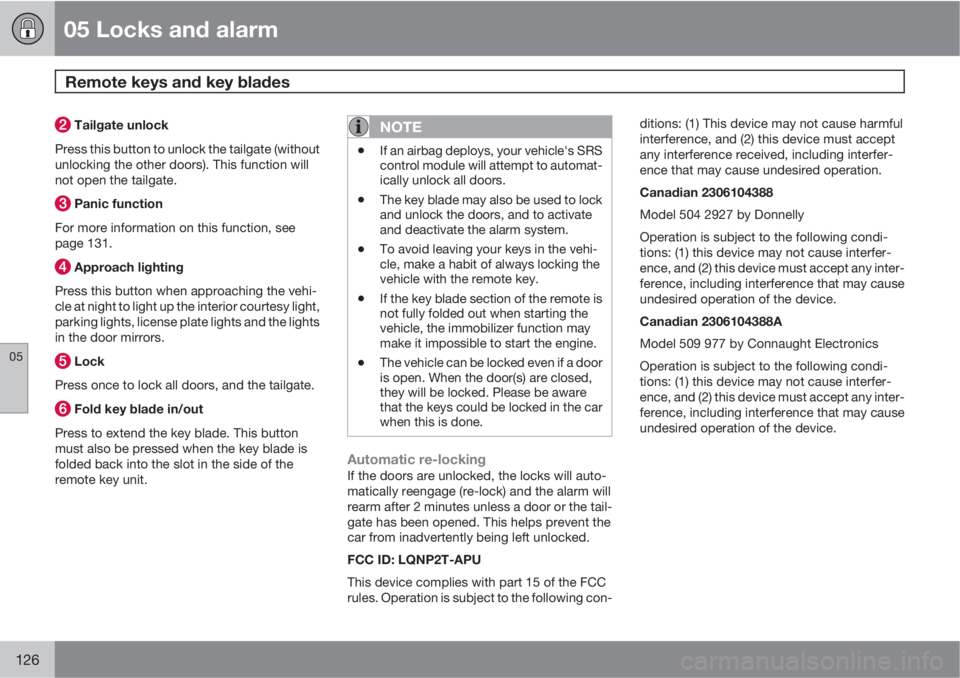

Tailgate unlock
Press this button to unlock the tailgate (without
unlocking the other doors). This function will
not open the tailgate.
Panic function
For more information on this function, see
page 131.
Approach lighting
Press this button when approaching the vehi-
cle at night to light up the interior courtesy light,
parking lights, license plate lights and the lights
in the door mirrors.
Lock
Press once to lock all doors, and the tailgate.
Fold key blade in/out
Press to extend the key blade. This button
must also be pressed when the key blade is
folded back into the slot in the side of the
remote key unit.
NOTE
•If an airbag deploys, your vehicle's SRS
control module will attempt to automat-
ically unlock all doors.
•The key blade may also be used to lock
and unlock the doors, and to activate
and deactivate the alarm system.
•To avoid leaving your keys in the vehi-
cle, make a habit of always locking the
vehicle with the remote key.
•If the key blade section of the remote is
not fully folded out when starting the
vehicle, the immobilizer function may
make it impossible to start the engine.
•The vehicle can be locked even if a door
is open. When the door(s) are closed,
they will be locked. Please be aware
that the keys could be locked in the car
when this is done.
Automatic re-lockingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
rearm after 2 minutes unless a door or the tail-
gate has been opened. This helps prevent the
car from inadvertently being left unlocked.
FCC ID: LQNP2T-APU
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canadian 2306104388
Model 504 2927 by Donnelly
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.
Canadian 2306104388A
Model 509 977 by Connaught Electronics
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.

05 Locks and alarm
Remote keys and key blades
05
127

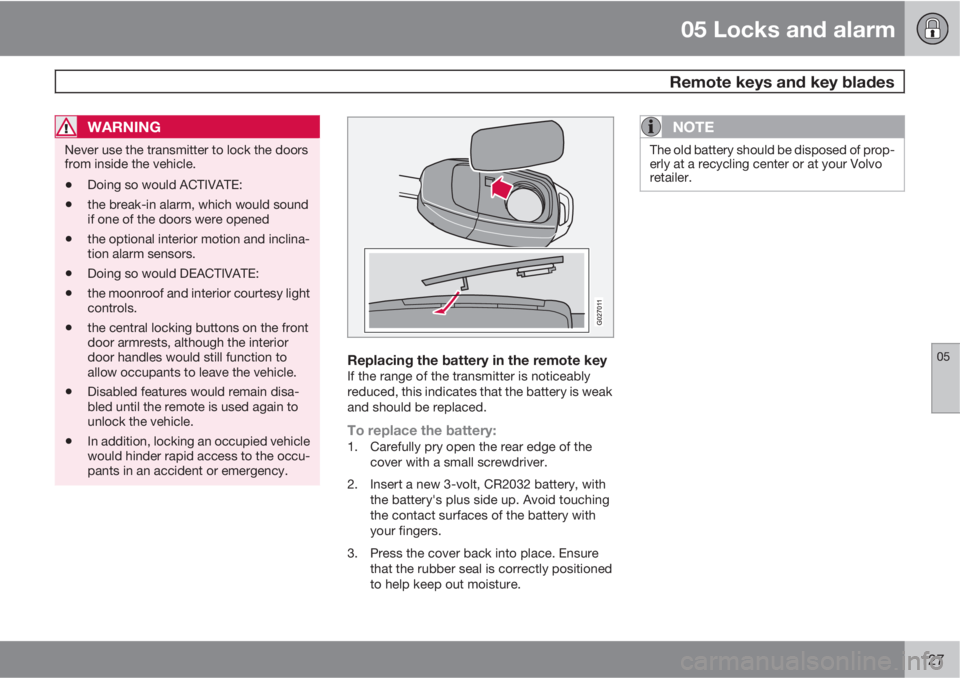

WARNING
Never use the transmitter to lock the doors
from inside the vehicle.
•Doing so would ACTIVATE:
•the break-in alarm, which would sound
if one of the doors were opened
•the optional interior motion and inclina-
tion alarm sensors.
•Doing so would DEACTIVATE:
•the moonroof and interior courtesy light
controls.
•the central locking buttons on the front
door armrests, although the interior
door handles would still function to
allow occupants to leave the vehicle.
•Disabled features would remain disa-
bled until the remote is used again to
unlock the vehicle.
•In addition, locking an occupied vehicle
would hinder rapid access to the occu-
pants in an accident or emergency.
Replacing the battery in the remote keyIf the range of the transmitter is noticeably
reduced, this indicates that the battery is weak
and should be replaced.
To replace the battery:1. Carefully pry open the rear edge of the
cover with a small screwdriver.
2. Insert a new 3-volt, CR2032 battery, with
the battery's plus side up. Avoid touching
the contact surfaces of the battery with
your fingers.
3. Press the cover back into place. Ensure
that the rubber seal is correctly positioned
to help keep out moisture.
NOTE
The old battery should be disposed of prop-
erly at a recycling center or at your Volvo
retailer.

05 Locks and alarm
Locking and unlocking
05
128
G029646

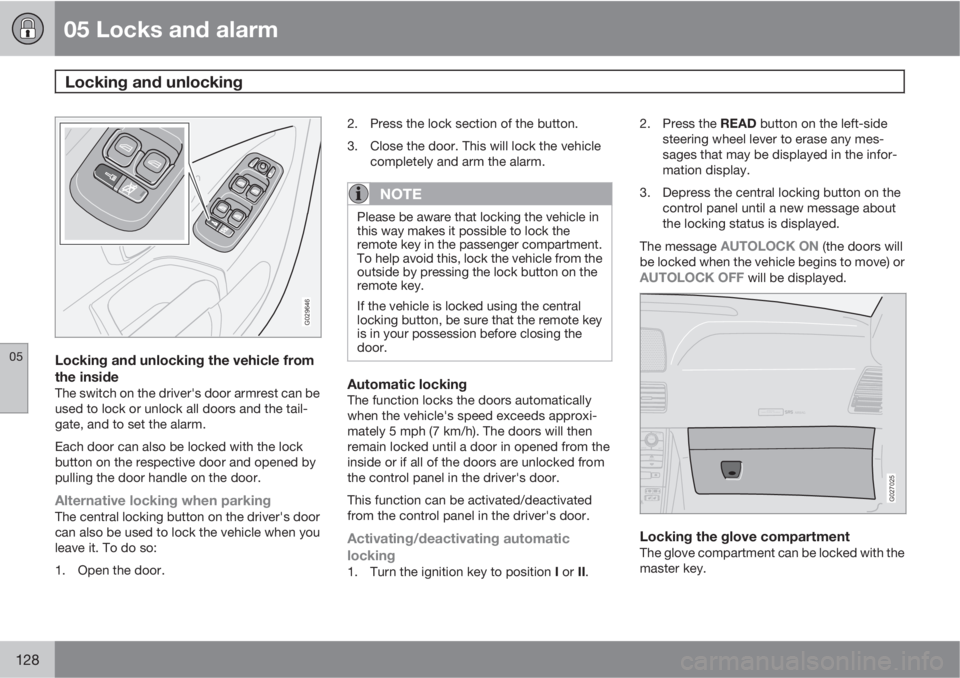

Locking and unlocking the vehicle from
the inside
The switch on the driver's door armrest can be
used to lock or unlock all doors and the tail-
gate, and to set the alarm.
Each door can also be locked with the lock
button on the respective door and opened by
pulling the door handle on the door.
Alternative locking when parkingThe central locking button on the driver's door
can also be used to lock the vehicle when you
leave it. To do so:
1. Open the door.2. Press the lock section of the button.
3. Close the door. This will lock the vehicle
completely and arm the alarm.
NOTE
Please be aware that locking the vehicle in
this way makes it possible to lock the
remote key in the passenger compartment.
To help avoid this, lock the vehicle from the
outside by pressing the lock button on the
remote key.
If the vehicle is locked using the central
locking button, be sure that the remote key
is in your possession before closing the
door.
Automatic lockingThe function locks the doors automatically
when the vehicle's speed exceeds approxi-
mately 5 mph (7 km/h). The doors will then
remain locked until a door in opened from the
inside or if all of the doors are unlocked from
the control panel in the driver's door.
This function can be activated/deactivated
from the control panel in the driver's door.
Activating/deactivating automatic
locking
1.
Turn the ignition key to position I or II.2.
Press the READ button on the left-side
steering wheel lever to erase any mes-
sages that may be displayed in the infor-
mation display.
3. Depress the central locking button on the
control panel until a new message about
the locking status is displayed.
The message
AUTOLOCK ON (the doors will
be locked when the vehicle begins to move) or
AUTOLOCK OFF will be displayed.
ATTENTIONPakjdskdl ioiuip kjöpp opoodidåuswi
CSOUND
MENU
80
ENTERLSEEEXITMY KEYRTO
AIRBAG
G027025
Locking the glove compartmentThe glove compartment can be locked with the
master key.

05 Locks and alarm
Locking and unlocking
05
129
G028485

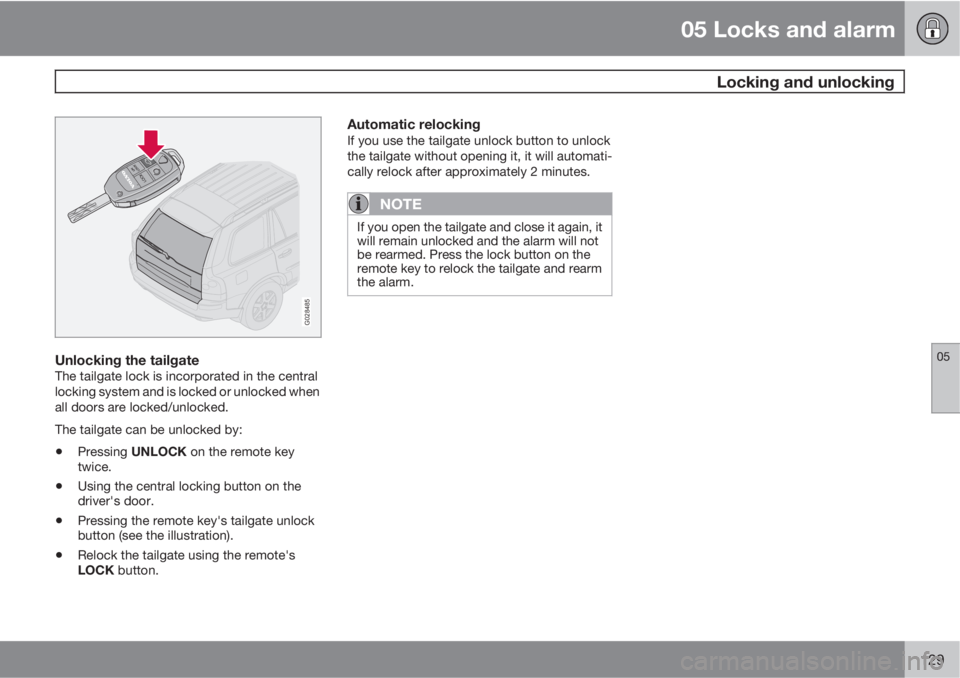

Unlocking the tailgateThe tailgate lock is incorporated in the central
locking system and is locked or unlocked when
all doors are locked/unlocked.
The tailgate can be unlocked by:
•Pressing UNLOCK on the remote key
twice.
•Using the central locking button on the
driver's door.
•Pressing the remote key's tailgate unlock
button (see the illustration).
•Relock the tailgate using the remote's
LOCK button.
Automatic relockingIf you use the tailgate unlock button to unlock
the tailgate without opening it, it will automati-
cally relock after approximately 2 minutes.
NOTE
If you open the tailgate and close it again, it
will remain unlocked and the alarm will not
be rearmed. Press the lock button on the
remote key to relock the tailgate and rearm
the alarm.

05 Locks and alarm

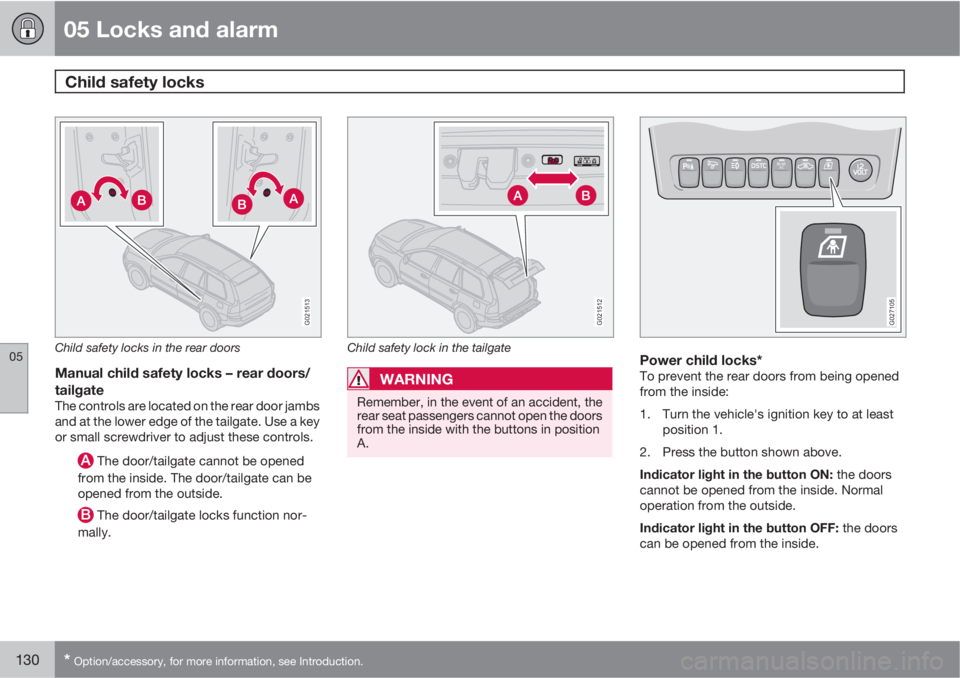

Child safety locks
05
130* Option/accessory, for more information, see Introduction.
G021513
Child safety locks in the rear doors
Manual child safety locks – rear doors/
tailgate
The controls are located on the rear door jambs
and at the lower edge of the tailgate. Use a key
or small screwdriver to adjust these controls.
The door/tailgate cannot be opened
from the inside. The door/tailgate can be
opened from the outside.
The door/tailgate locks function nor-
mally.
G021512
Child safety lock in the tailgate
WARNING
Remember, in the event of an accident, the
rear seat passengers cannot open the doors
from the inside with the buttons in position
A.
REAR
AC
G027105
Power child locks*To prevent the rear doors from being opened
from the inside:
1. Turn the vehicle's ignition key to at least
position 1.
2. Press the button shown above.
Indicator light in the button ON: the doors
cannot be opened from the inside. Normal
operation from the outside.
Indicator light in the button OFF: the doors
can be opened from the inside.
