VOLVO XC90 2015 Owners Manual

SPECIFICATIONS
539

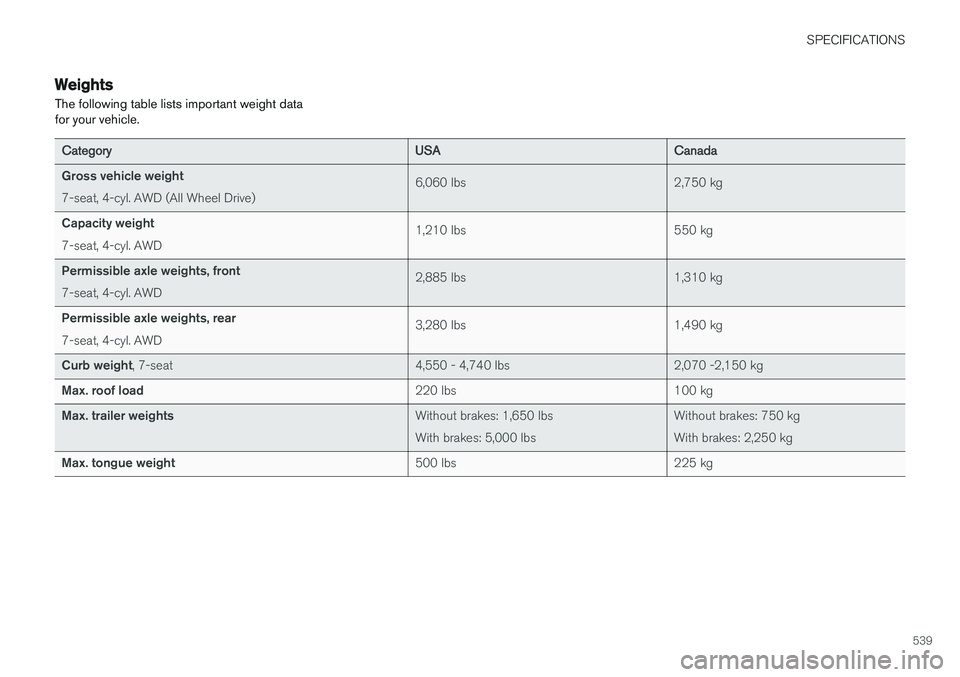

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 7-seat, 4-cyl. AWD (All Wheel Drive)6,060 lbs2,750 kg
Capacity weight 7-seat, 4-cyl. AWD1,210 lbs550 kg
Permissible axle weights, front 7-seat, 4-cyl. AWD2,885 lbs1,310 kg
Permissible axle weights, rear 7-seat, 4-cyl. AWD3,280 lbs1,490 kg
Curb weight, 7-seat4,550 - 4,740 lbs2,070 -2,150 kg
Max. roof load220 lbs100 kg
Max. trailer weightsWithout brakes: 1,650 lbs With brakes: 5,000 lbsWithout brakes: 750 kg With brakes: 2,250 kg
Max. tongue weight500 lbs225 kg

SPECIFICATIONS
540

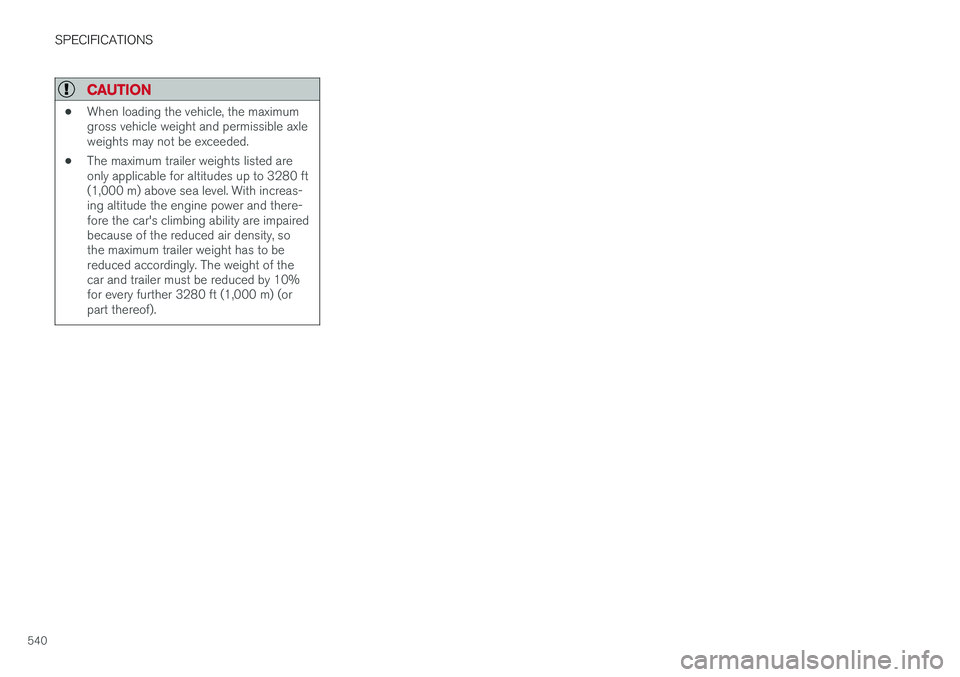

CAUTION
•When loading the vehicle, the maximum gross vehicle weight and permissible axleweights may not be exceeded.
• The maximum trailer weights listed areonly applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).

SPECIFICATIONS
* Option/accessory, for more information, see Introduction.541

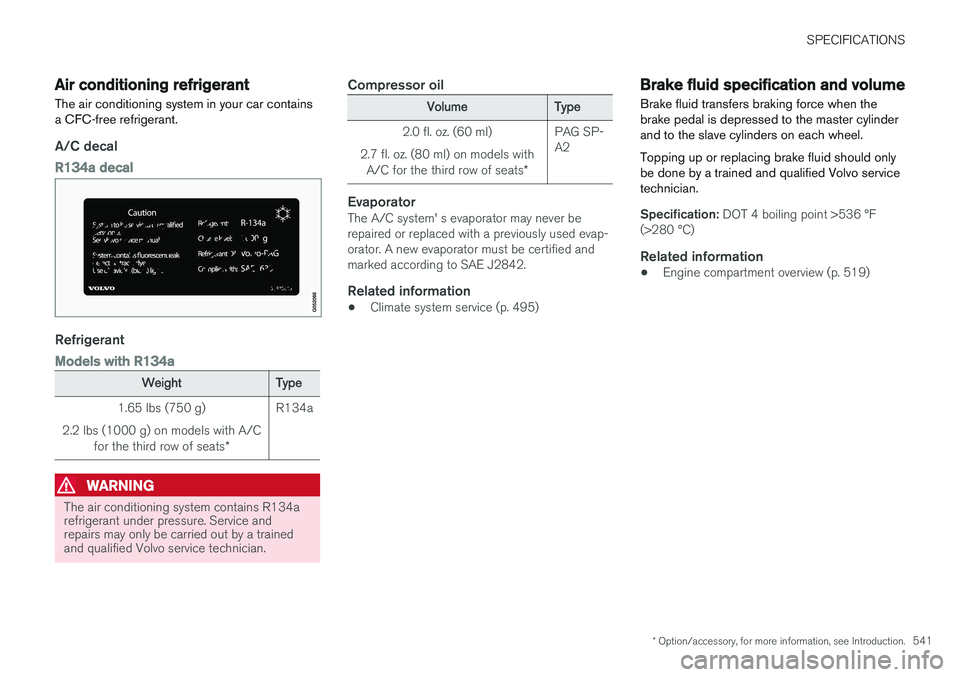

Air conditioning refrigerant
The air conditioning system in your car contains a CFC-free refrigerant.
A/C decal
R134a decal
Refrigerant
Models with R134a
WeightType
1.65 lbs (750 g)
2.2 lbs (1000 g) on models with A/C for the third row of seats *R134a
WARNING
The air conditioning system contains R134a refrigerant under pressure. Service andrepairs may only be carried out by a trainedand qualified Volvo service technician.
Compressor oil
VolumeType
2.0 fl. oz. (60 ml)
2.7 fl. oz. (80 ml) on models with A/C for the third row of seats *PAG SP- A2
EvaporatorThe A/C system' s evaporator may never be repaired or replaced with a previously used evap-orator. A new evaporator must be certified andmarked according to SAE J2842.
Related information
•Climate system service (p. 495)
Brake fluid specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylinderand to the slave cylinders on each wheel. Topping up or replacing brake fluid should only be done by a trained and qualified Volvo servicetechnician.
Specification: DOT 4 boiling point >536 °F
(>280 °C)
Related information
• Engine compartment overview (p. 519)

SPECIFICATIONS
542

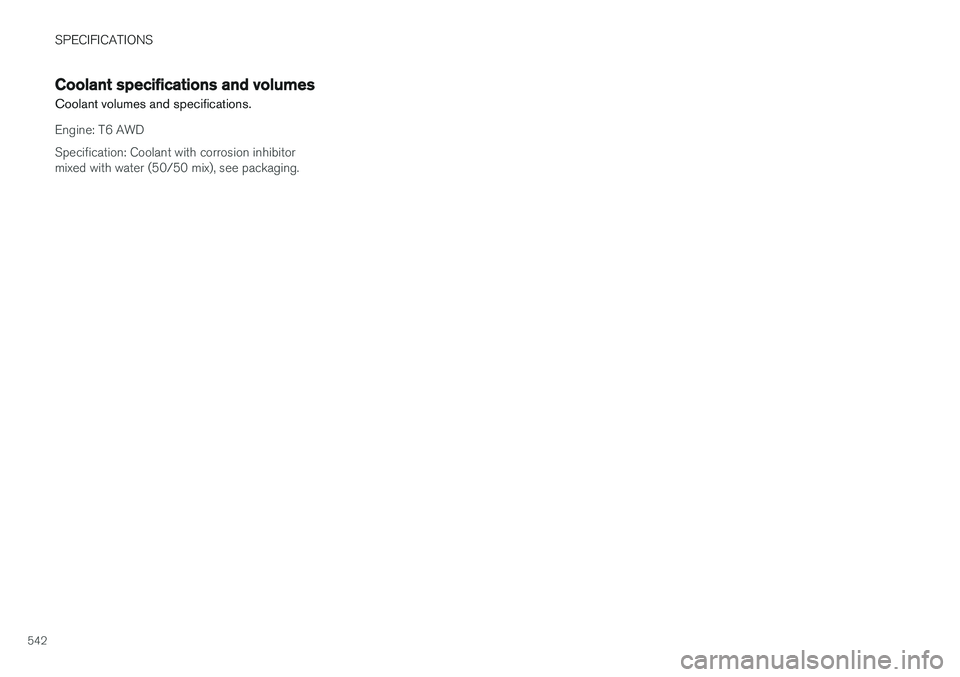

Coolant specifications and volumes
Coolant volumes and specifications.
Engine: T6 AWD Specification: Coolant with corrosion inhibitor mixed with water (50/50 mix), see packaging.

SPECIFICATIONS
543
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary.
SpecificationT6 AWD
Engine designationB4204T27
Output (kW/rps)235/95
Output (hp/rpm)316/5700
Torque (Nm/rps)400/36.7–90
Torque (ft. lbs./rpm)295/2,200–5,400
No. of cylinders4
Related information
• Engine oil specifications and volume (p. 544)
• Coolant specifications and volumes (p. 542)

SPECIFICATIONS
544

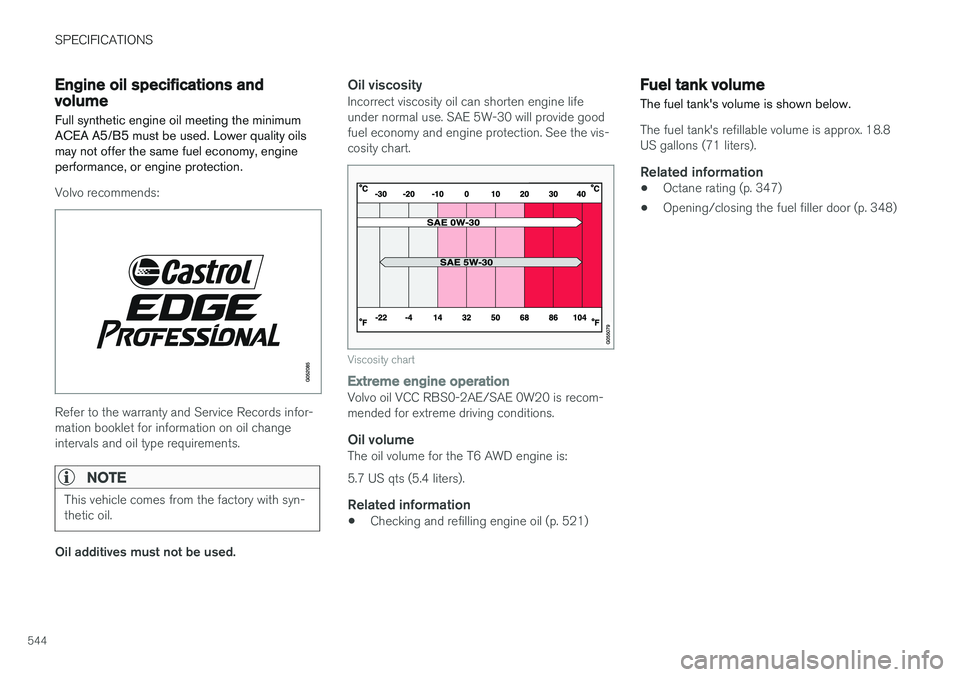

Engine oil specifications and volume
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operationVolvo oil VCC RBS0-2AE/SAE 0W20 is recom- mended for extreme driving conditions.
Oil volumeThe oil volume for the T6 AWD engine is: 5.7 US qts (5.4 liters).
Related information
• Checking and refilling engine oil (p. 521)
Fuel tank volume
The fuel tank's volume is shown below.
The fuel tank's refillable volume is approx. 18.8 US gallons (71 liters).
Related information
• Octane rating (p. 347)
• Opening/closing the fuel filler door (p. 348)

SPECIFICATIONS
545

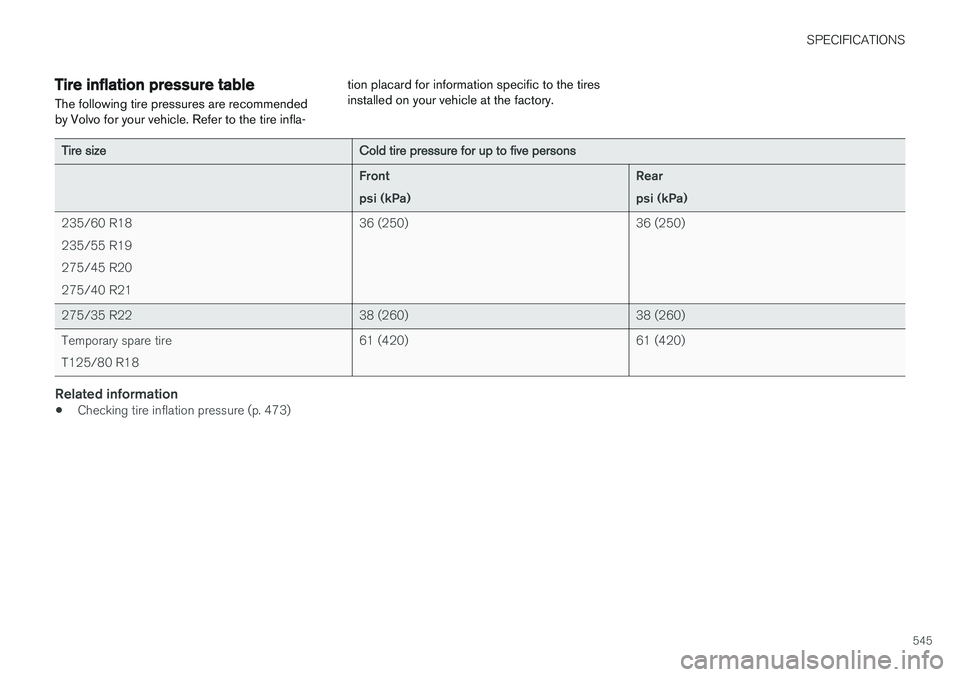

Tire inflation pressure table The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla-tion placard for information specific to the tiresinstalled on your vehicle at the factory.
Tire sizeCold tire pressure for up to five persons
Front psi (kPa)Rear psi (kPa)
235/60 R18 235/55 R19275/45 R20275/40 R2136 (250)36 (250)
275/35 R2238 (260)38 (260)
Temporary spare tire T125/80 R1861 (420)61 (420)
Related information
•
Checking tire inflation pressure (p. 473)

SPECIFICATIONS
546

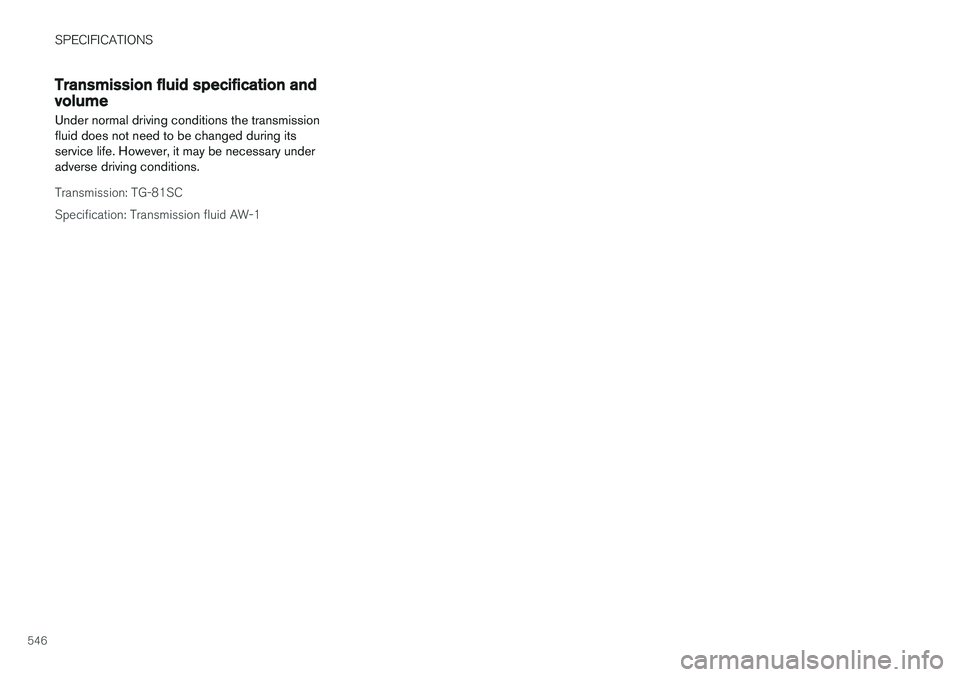

Transmission fluid specification and volume
Under normal driving conditions the transmission fluid does not need to be changed during itsservice life. However, it may be necessary underadverse driving conditions.
Transmission: TG-81SC Specification: Transmission fluid AW-1

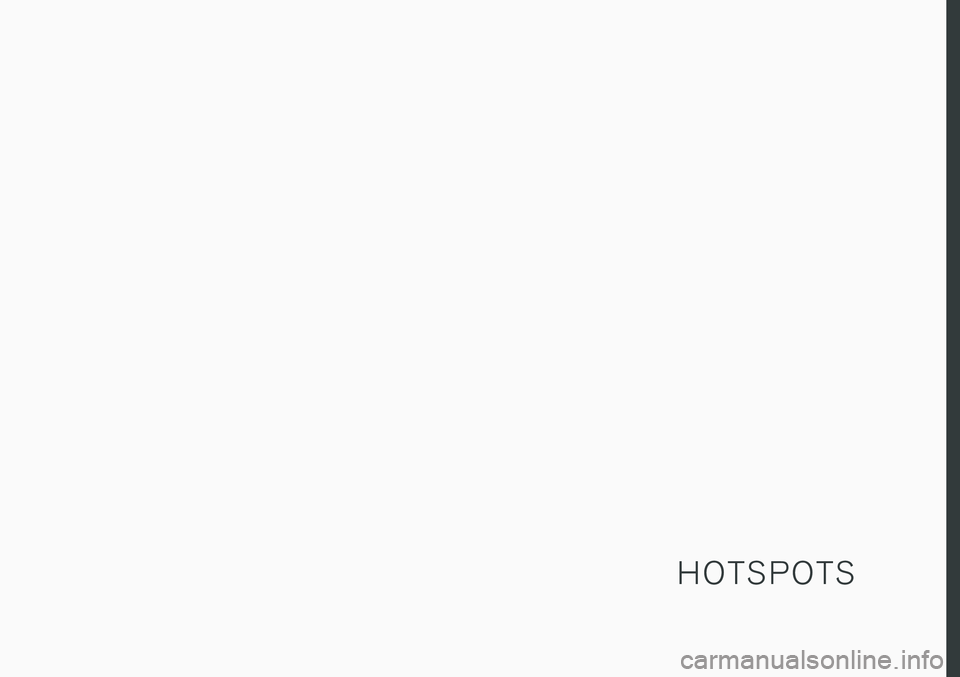

H O T S P O T S

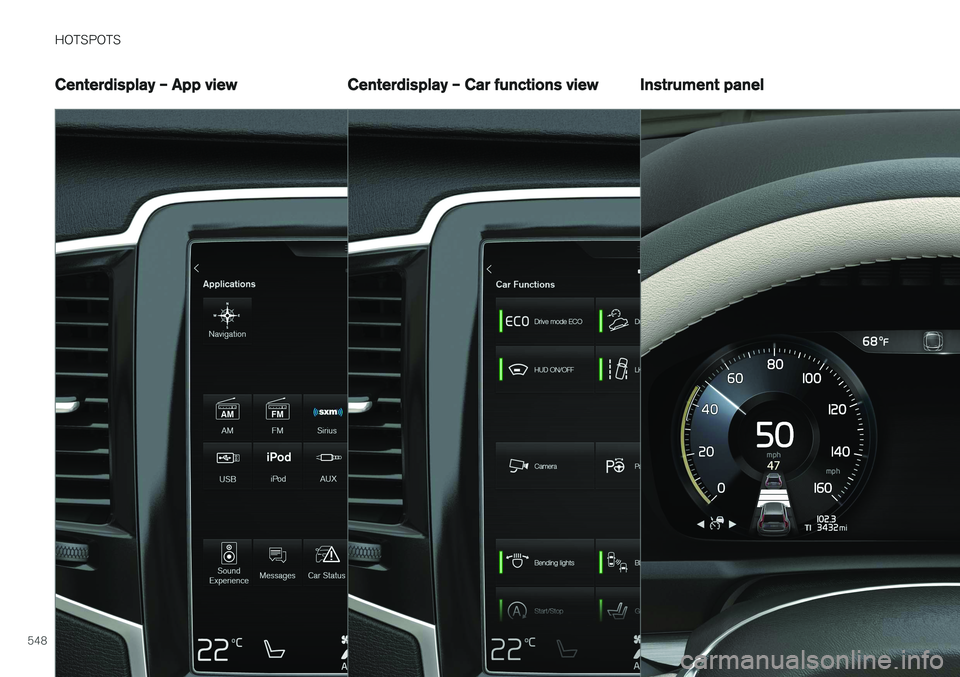

HOTSPOTS
548
Centerdisplay
