VOLVO XC90 T8 2016 Owner´s Manual

S P E C I F I C A T I O N S

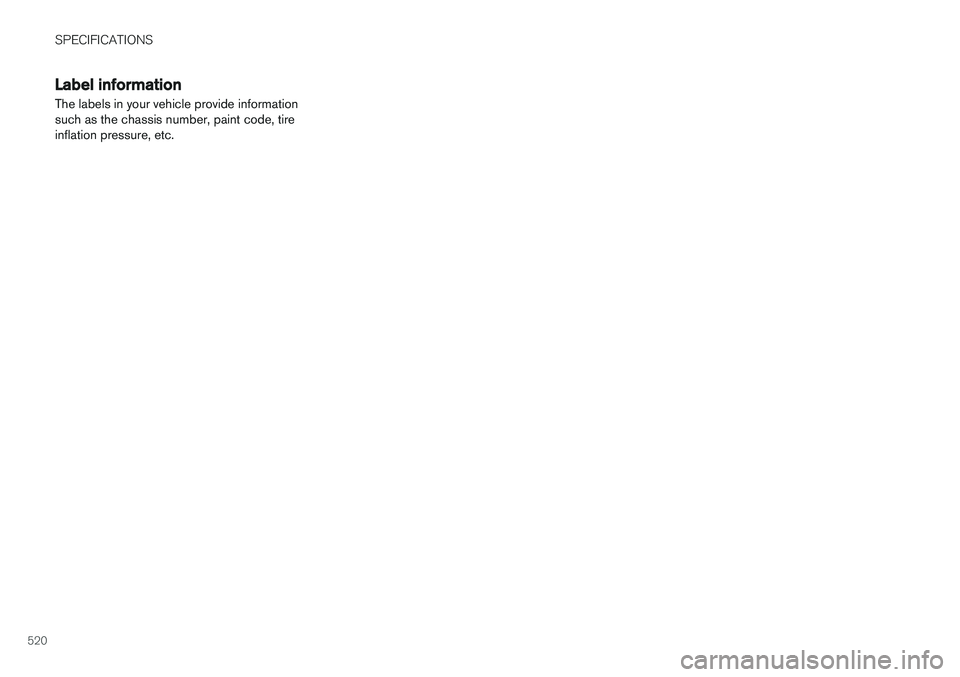

SPECIFICATIONS
520
Label information
The labels in your vehicle provide information such as the chassis number, paint code, tireinflation pressure, etc.

SPECIFICATIONS
}}
521

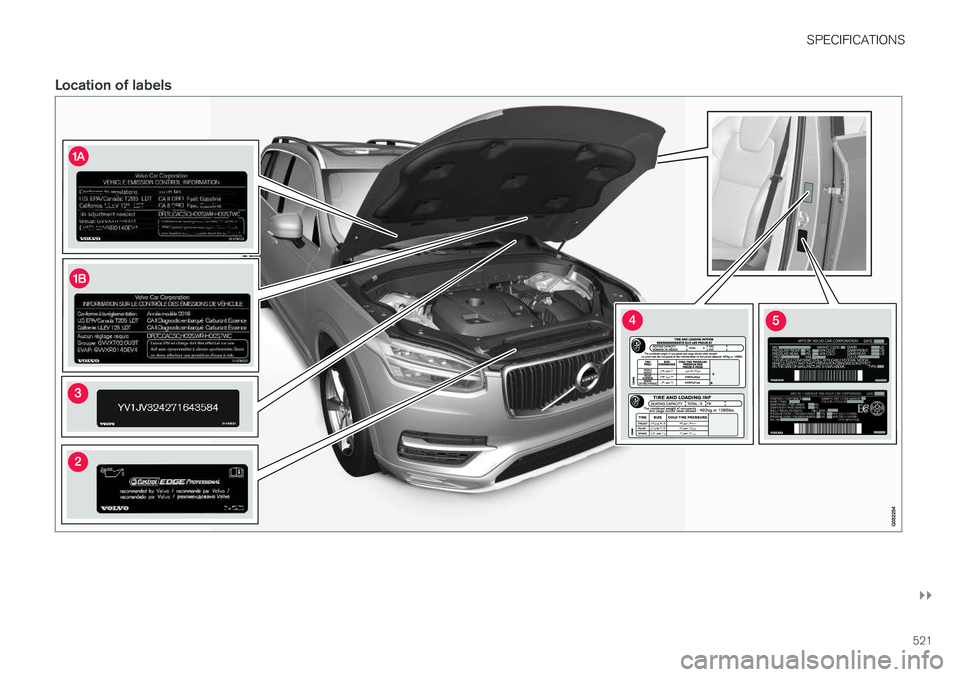

Location of labels

||
SPECIFICATIONS
522

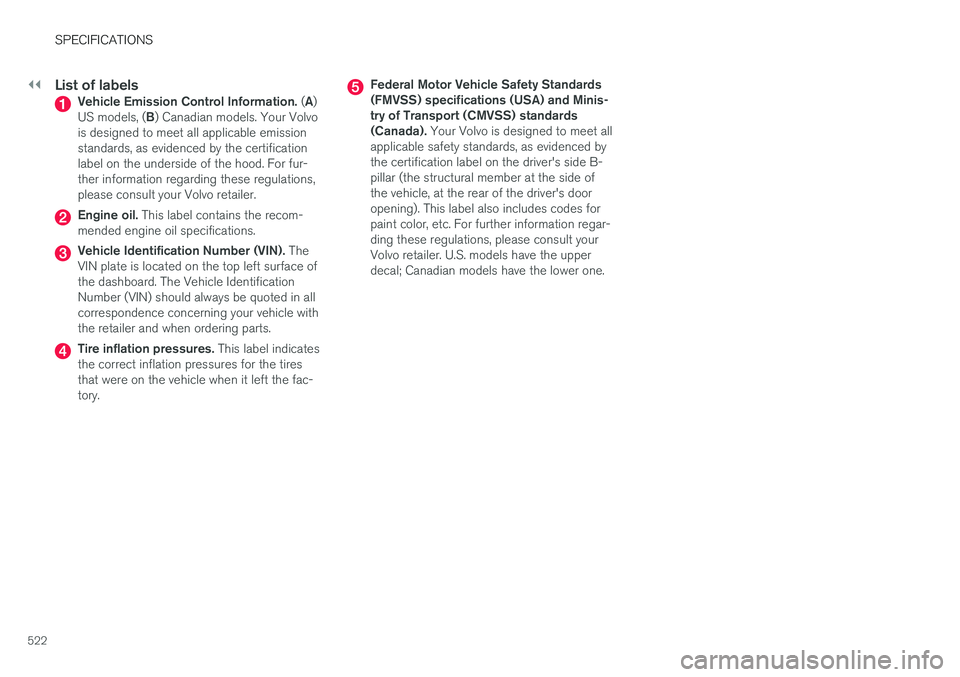

List of labelsVehicle Emission Control Information. (A )
US models, ( B) Canadian models. Your Volvo
is designed to meet all applicable emission standards, as evidenced by the certificationlabel on the underside of the hood. For fur-ther information regarding these regulations,please consult your Volvo retailer.
Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires that were on the vehicle when it left the fac-tory.
Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Minis-try of Transport (CMVSS) standards(Canada). Your Volvo is designed to meet all
applicable safety standards, as evidenced bythe certification label on the driver's side B-pillar (the structural member at the side ofthe vehicle, at the rear of the driver's dooropening). This label also includes codes forpaint color, etc. For further information regar-ding these regulations, please consult yourVolvo retailer. U.S. models have the upperdecal; Canadian models have the lower one.

SPECIFICATIONS
}}
523

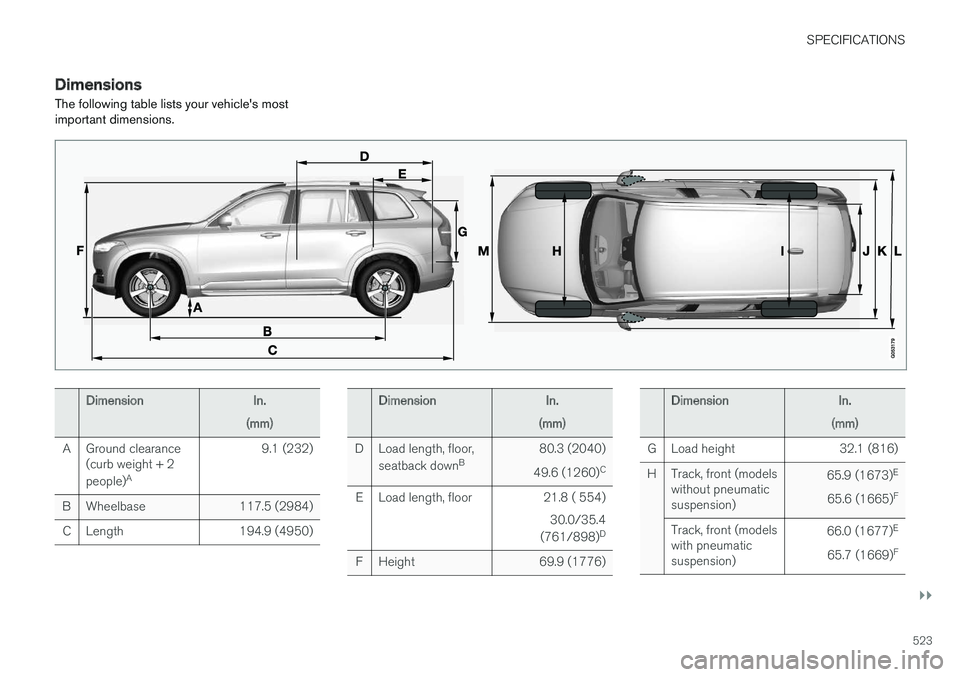

DimensionsThe following table lists your vehicle's most important dimensions.
DimensionIn.
(mm)
AGround clearance (curb weight + 2 people) A9.1 (232)
BWheelbase117.5 (2984)
CLength194.9 (4950)
DimensionIn.
(mm)
DLoad length, floor, seatback down B80.3 (2040)
49.6 (1260) C
ELoad length, floor21.8 ( 554)
30.0/35.4
(761/898) D
FHeight69.9 (1776)
DimensionIn.
(mm)
GLoad height32.1 (816)
HTrack, front (models without pneumaticsuspension)65.9 (1673) E
65.6 (1665) F
Track, front (models with pneumaticsuspension)66.0 (1677)E
65.7 (1669) F

||

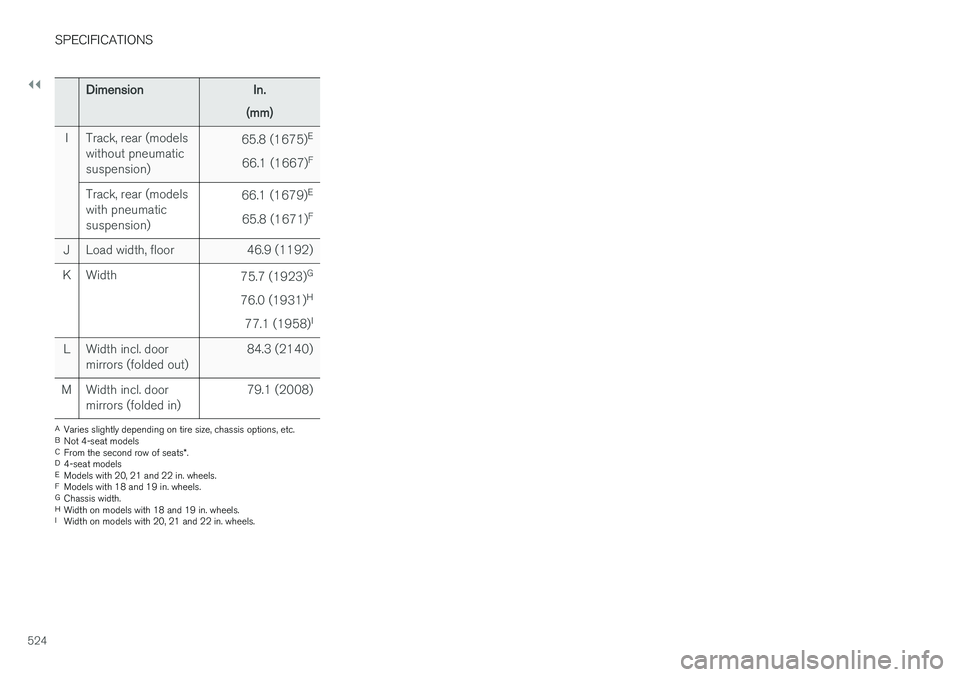

SPECIFICATIONS
524
DimensionIn.
(mm)
ITrack, rear (models without pneumaticsuspension)65.8 (1675) E
66.1 (1667) F
Track, rear (models with pneumaticsuspension)66.1 (1679)
E
65.8 (1671) F
JLoad width, floor46.9 (1192)
KWidth75.7 (1923)
G
76.0 (1931) H
77.1 (1958) I
LWidth incl. door mirrors (folded out)84.3 (2140)
MWidth incl. door mirrors (folded in)79.1 (2008)
A
Varies slightly depending on tire size, chassis options, etc.
B Not 4-seat models
C From the second row of seats *.
D 4-seat models
E Models with 20, 21 and 22 in. wheels.
F Models with 18 and 19 in. wheels.
G Chassis width.
H Width on models with 18 and 19 in. wheels.
I Width on models with 20, 21 and 22 in. wheels.

SPECIFICATIONS
}}
525

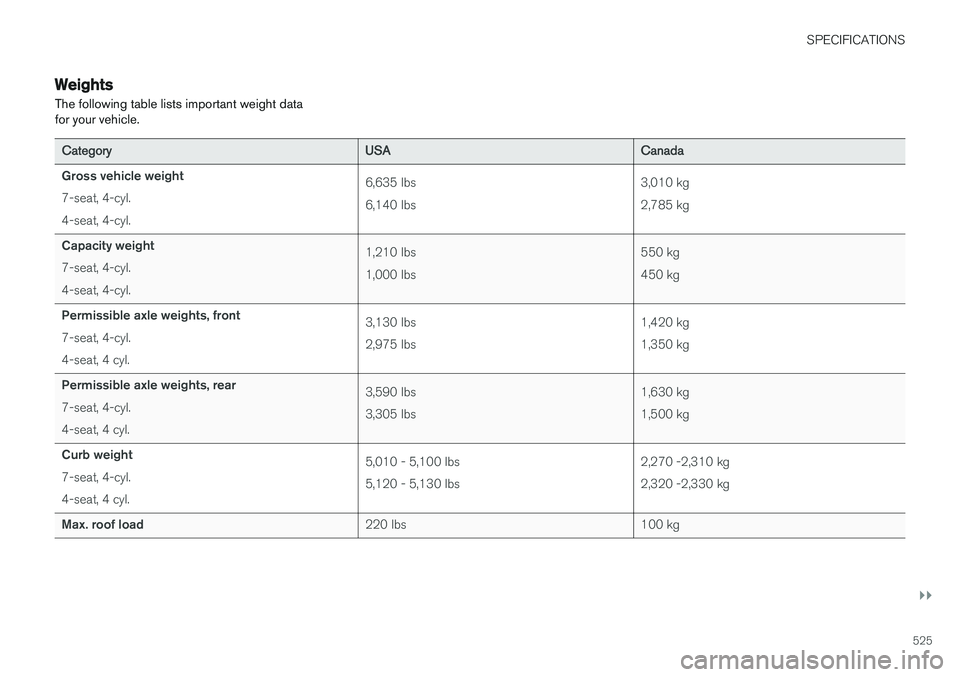

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 7-seat, 4-cyl. 4-seat, 4-cyl.6,635 lbs 6,140 lbs3,010 kg 2,785 kg
Capacity weight 7-seat, 4-cyl. 4-seat, 4-cyl.1,210 lbs 1,000 lbs550 kg 450 kg
Permissible axle weights, front 7-seat, 4-cyl. 4-seat, 4 cyl.3,130 lbs 2,975 lbs1,420 kg 1,350 kg
Permissible axle weights, rear 7-seat, 4-cyl. 4-seat, 4 cyl.3,590 lbs 3,305 lbs1,630 kg 1,500 kg
Curb weight 7-seat, 4-cyl. 4-seat, 4 cyl.5,010 - 5,100 lbs 5,120 - 5,130 lbs2,270 -2,310 kg 2,320 -2,330 kg
Max. roof load220 lbs100 kg

||
SPECIFICATIONS
526
CategoryUSACanada

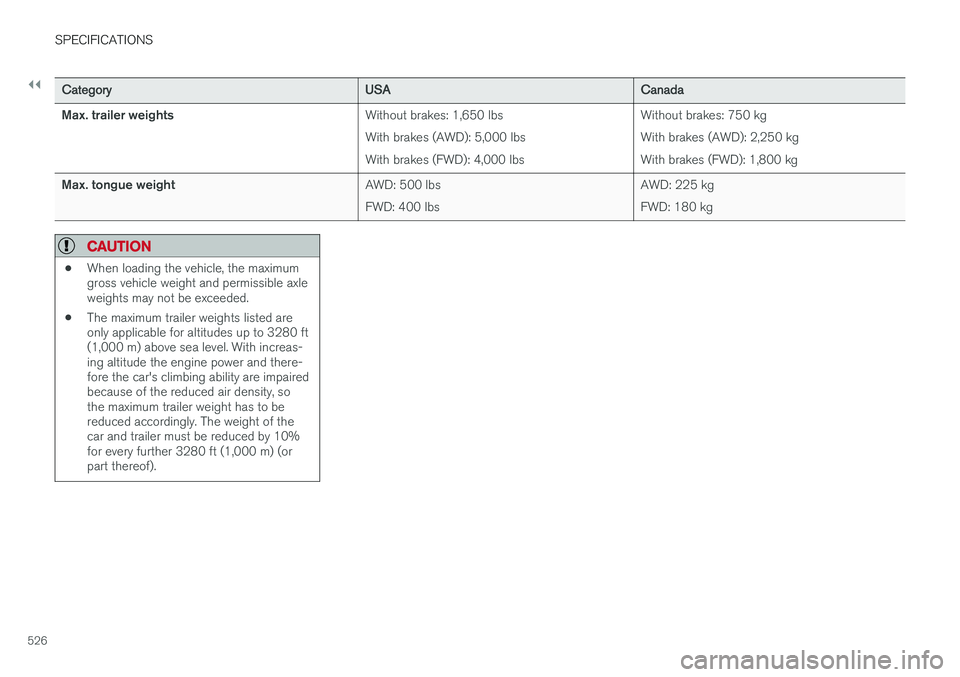

Max. trailer weightsWithout brakes: 1,650 lbs With brakes (AWD): 5,000 lbsWith brakes (FWD): 4,000 lbsWithout brakes: 750 kg With brakes (AWD): 2,250 kgWith brakes (FWD): 1,800 kg
Max. tongue weightAWD: 500 lbs FWD: 400 lbsAWD: 225 kg FWD: 180 kg
CAUTION
•When loading the vehicle, the maximum gross vehicle weight and permissible axleweights may not be exceeded.
• The maximum trailer weights listed areonly applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).

SPECIFICATIONS
527

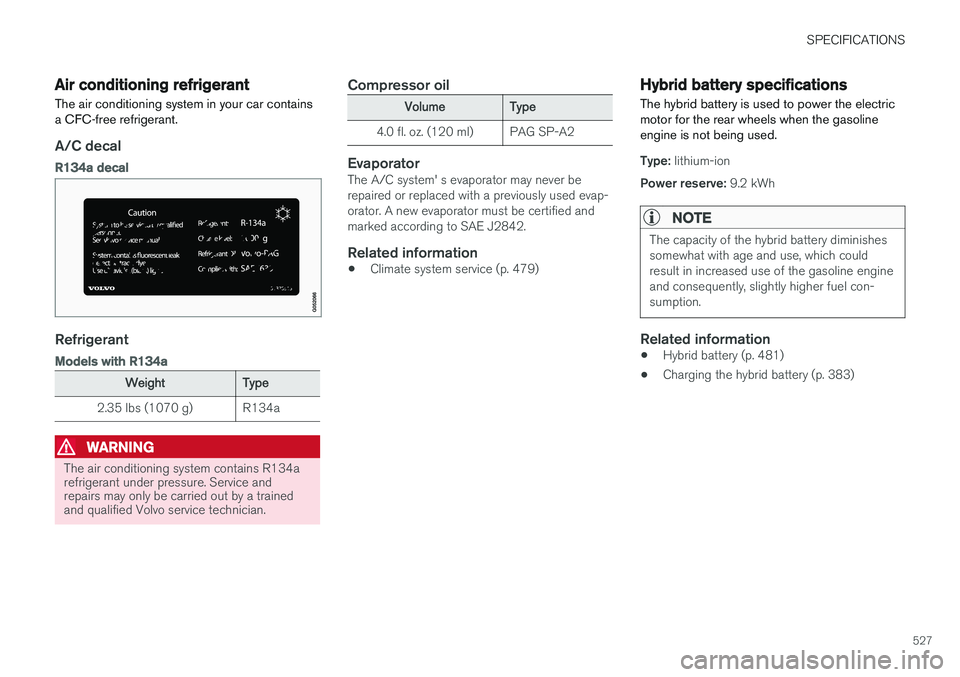

Air conditioning refrigerant
The air conditioning system in your car contains a CFC-free refrigerant.
A/C decal
R134a decal
Refrigerant
Models with R134a
WeightType
2.35 lbs (1070 g)R134a
WARNING
The air conditioning system contains R134a refrigerant under pressure. Service andrepairs may only be carried out by a trainedand qualified Volvo service technician.
Compressor oil
VolumeType
4.0 fl. oz. (120 ml)PAG SP-A2
EvaporatorThe A/C system' s evaporator may never be repaired or replaced with a previously used evap-orator. A new evaporator must be certified andmarked according to SAE J2842.
Related information
• Climate system service (p. 479)
Hybrid battery specifications
The hybrid battery is used to power the electric motor for the rear wheels when the gasolineengine is not being used.
Type: lithium-ion
Power reserve: 9.2 kWh
NOTE
The capacity of the hybrid battery diminishes somewhat with age and use, which couldresult in increased use of the gasoline engineand consequently, slightly higher fuel con-sumption.
Related information
•Hybrid battery (p. 481)
• Charging the hybrid battery (p. 383)

SPECIFICATIONS
528

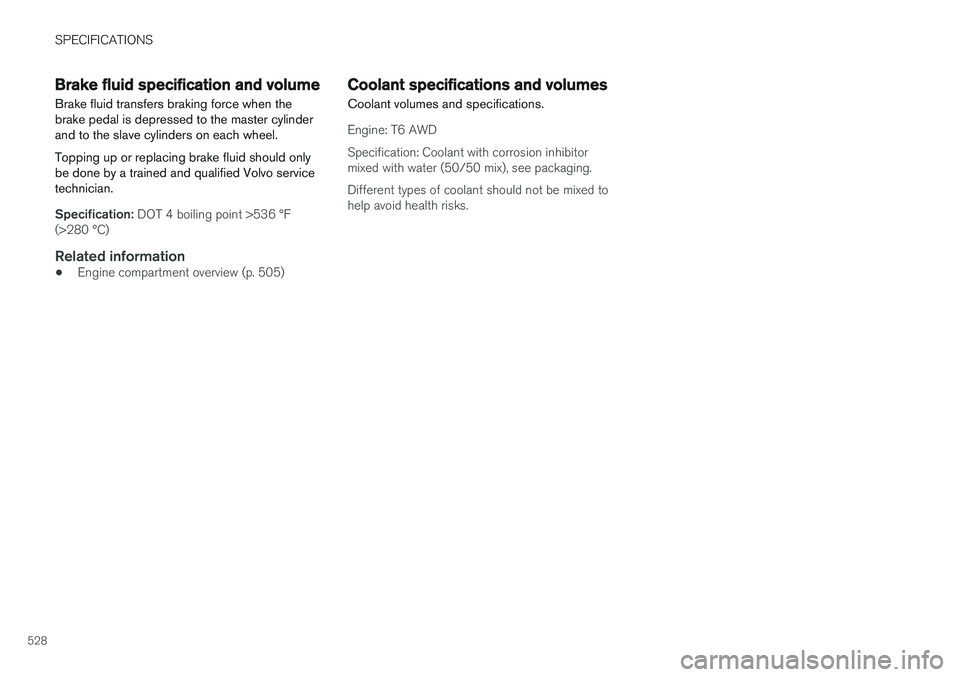

Brake fluid specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylinderand to the slave cylinders on each wheel. Topping up or replacing brake fluid should only be done by a trained and qualified Volvo servicetechnician.
Specification: DOT 4 boiling point >536 °F
(>280 °C)
Related information
• Engine compartment overview (p. 505)
Coolant specifications and volumes
Coolant volumes and specifications.
Engine: T6 AWD Specification: Coolant with corrosion inhibitor mixed with water (50/50 mix), see packaging. Different types of coolant should not be mixed to help avoid health risks.
