MAINTENANCE AND SERVICING
}}
489

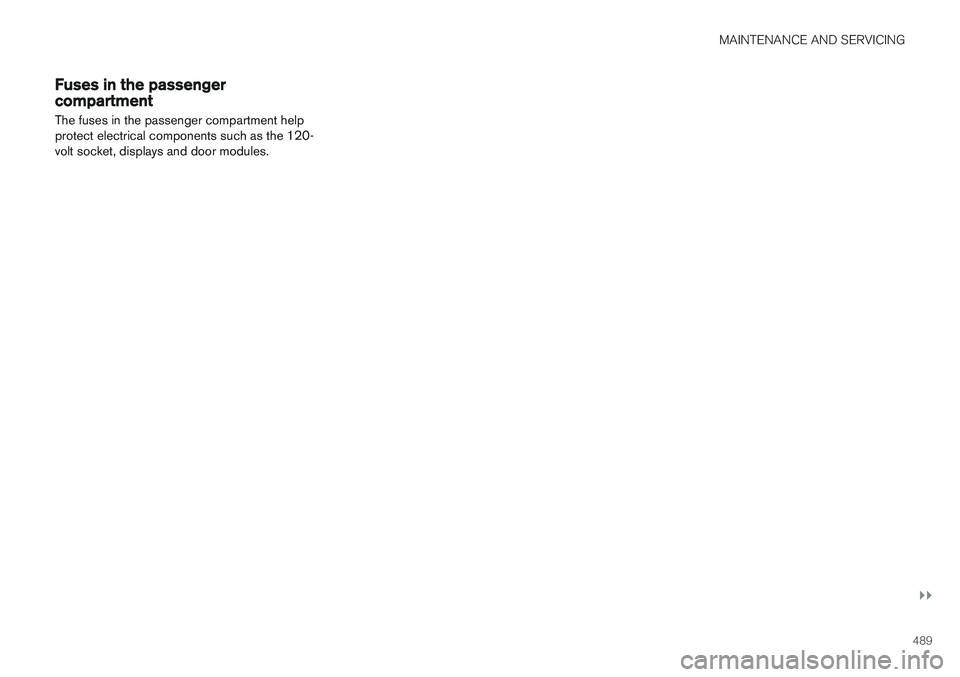

Fuses in the passenger compartment
The fuses in the passenger compartment help protect electrical components such as the 120-volt socket, displays and door modules.
Page 492 of 546

||
MAINTENANCE AND SERVICING
490
Page 493 of 546

MAINTENANCE AND SERVICING
}}
* Option/accessory, for more information, see Introduction.491

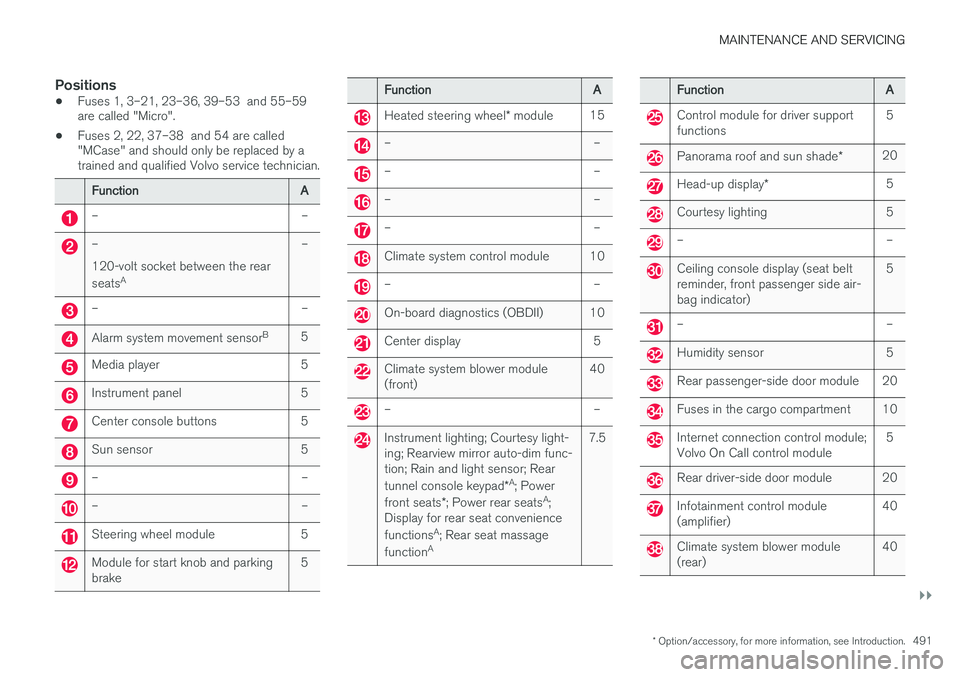

Positions
•Fuses 1, 3–21, 23–36, 39–53 and 55–59 are called "Micro".
• Fuses 2, 22, 37–38 and 54 are called"MCase" and should only be replaced by atrained and qualified Volvo service technician.
FunctionA
––
– 120-volt socket between the rear seats A–
––
Alarm system movement sensor B5
Media player5
Instrument panel5
Center console buttons5
Sun sensor5
––
––
Steering wheel module5
Module for start knob and parking brake5
FunctionA
Heated steering wheel
* module15
––
––
––
––
Climate system control module10
––
On-board diagnostics (OBDII)10
Center display5
Climate system blower module (front)40
––
Instrument lighting; Courtesy light- ing; Rearview mirror auto-dim func-tion; Rain and light sensor; Rear tunnel console keypad *A
; Power
front seats *; Power rear seats A
;
Display for rear seat conveniencefunctions A
; Rear seat massage
function A7.5
FunctionA
Control module for driver support functions5
Panorama roof and sun shade
*20
Head-up display*5
Courtesy lighting5
––
Ceiling console display (seat belt reminder, front passenger side air-bag indicator)5
––
Humidity sensor5
Rear passenger-side door module20
Fuses in the cargo compartment10
Internet connection control module; Volvo On Call control module5
Rear driver-side door module20
Infotainment control module (amplifier)40
Climate system blower module (rear)40
Page 494 of 546

||
MAINTENANCE AND SERVICING
* Option/accessory, for more information, see Introduction.
492
FunctionA
Multi-band antenna module5
Front seat massage function5
––
Tailgate window wiper15
Fuel pump control module15
Relay windings for engine compart- ment electrical module; Relay wind-ing for transmission oil pump5
––
Driver side seat heating *15
Passenger side seat heating *15
Coolant pump10
––
Front driver-side door module20
Active chassis control module *20
––
Sensus control module10
––
FunctionA
––
Front passenger-side door module20
Display for rear seat convenience functionsA5A
––
Circuit breaker for fuses 53 and 5815
A
XC90 Excellence.
B Certain markets only.
Related information
• Fuses (p. 483)
• Replacing fuses (p. 483)
Page 495 of 546

MAINTENANCE AND SERVICING
}}
* Option/accessory, for more information, see Introduction.493

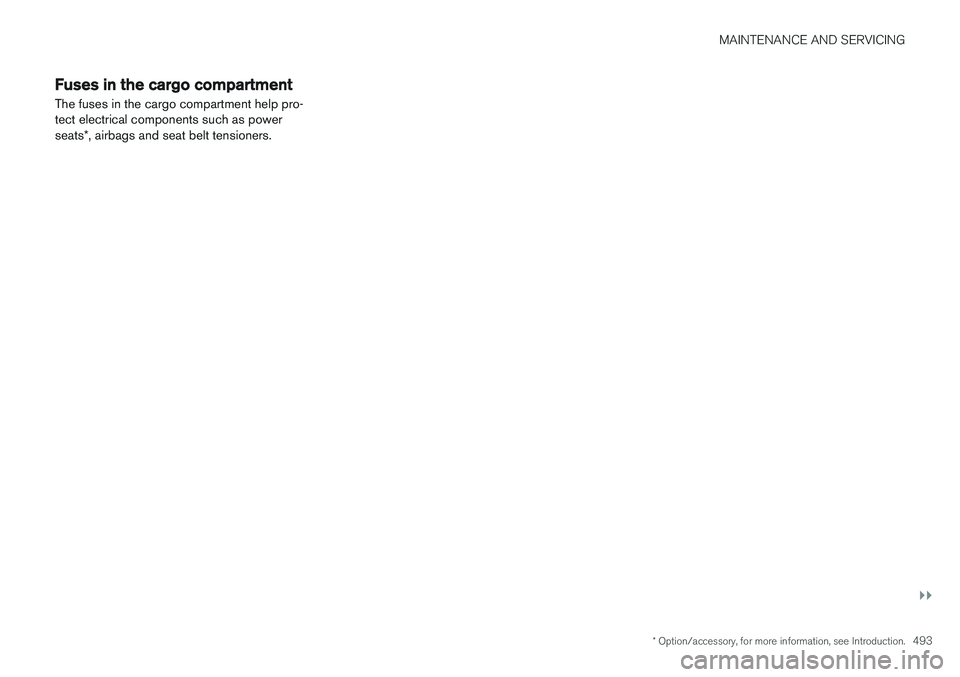

Fuses in the cargo compartment The fuses in the cargo compartment help pro- tect electrical components such as power seats*, airbags and seat belt tensioners.
Page 496 of 546

||
MAINTENANCE AND SERVICING
494

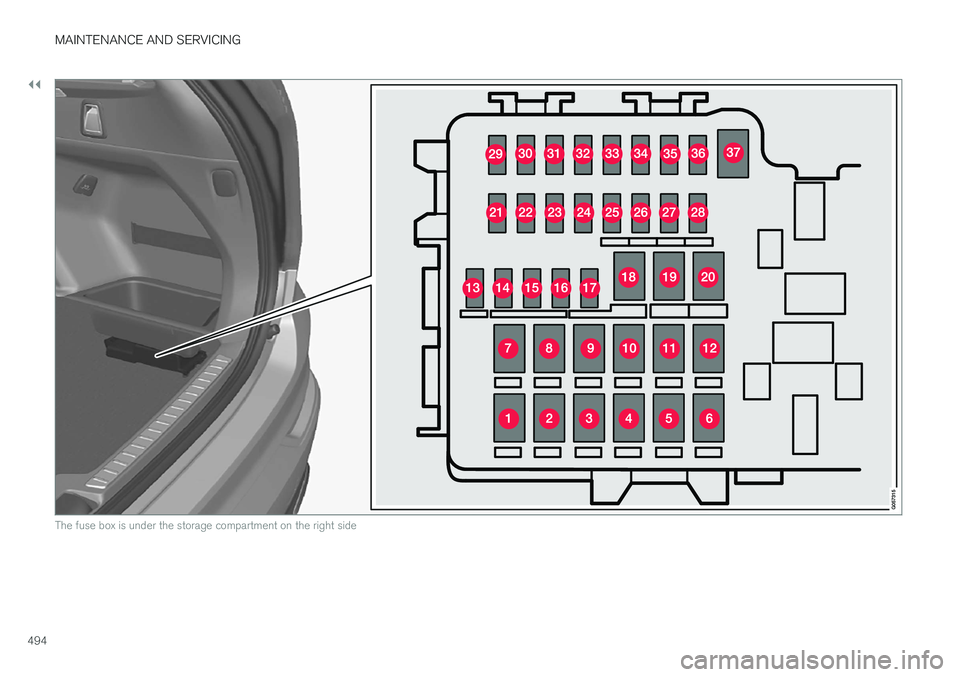

The fuse box is under the storage compartment on the right side
Page 497 of 546

MAINTENANCE AND SERVICING
* Option/accessory, for more information, see Introduction.495
Positions
•Fuses 13–17 and 21–36 are called "Micro".
• Fuses 1–12, 18–20 and 37 are called "MCase" and should only be replaced by atrained and qualified Volvo service technician.
FunctionA
Heated rear window30
Power rear seat (driver side) A20A
Pneumatic suspension
* compres-
sor40
Rear electric heater (passenger side)30
––
Rear electric heater (driver side)30
Power rear seat (passenger side) A20A
––
Power tailgate
*25
Power front seat (passenger side) *
module20
Trailer hitch * control module40
Seat belt tensioner module (pas- senger side)40
FunctionA
Internal relay windings5
––
Foot movement detection module for opening the power tailgate *5
––
––
Trailer hitch* control module25
Power front seat (driver seat *
module20
Seat belt tensioner module (driver side)40
Parking camera *5
––
––
Ionic air cleaner A5A
Feed when ignition is switched on.10
Airbag and seat belt tensioner modules5
Cooler; heated/cooled cup holder (rear) A10A
FunctionA
Heated rear seat (driver side)
*15
––
Blind Spot Information (BLIS) *5
––
Seat belt tensioner modules5
Emission system actuator5
––
––
Heated rear seat (passenger side)*15
––
A
XC90 Excellence.
Related information
• Replacing fuses (p. 483)
• Fuses (p. 483)
Page 498 of 546

MAINTENANCE AND SERVICING
496

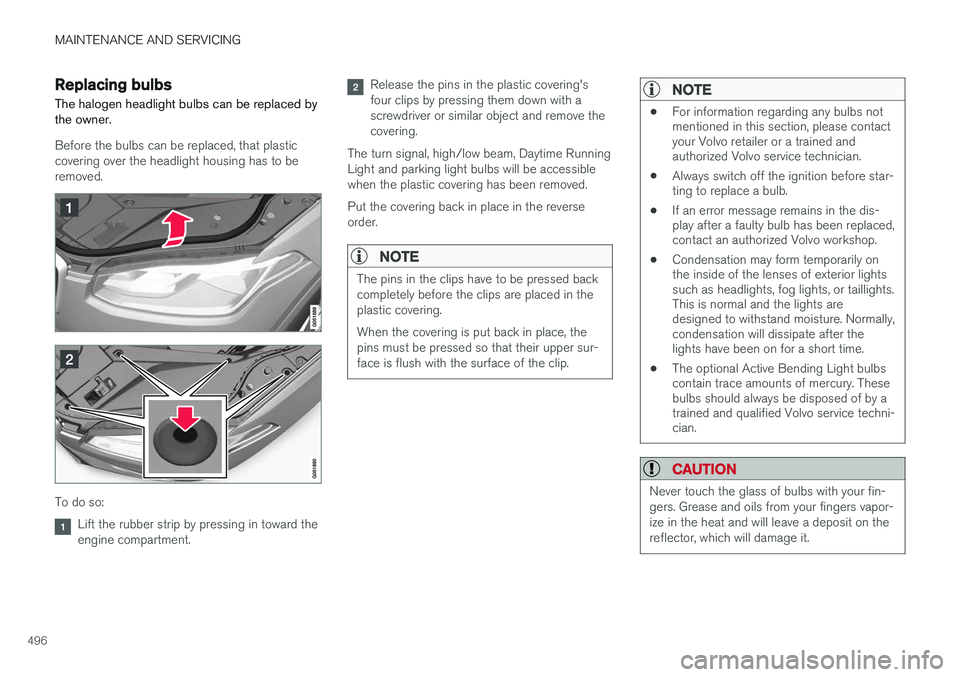

Replacing bulbs
The halogen headlight bulbs can be replaced by the owner.
Before the bulbs can be replaced, that plastic covering over the headlight housing has to beremoved.
To do so:
Lift the rubber strip by pressing in toward the engine compartment.
Release the pins in the plastic covering's four clips by pressing them down with ascrewdriver or similar object and remove thecovering.
The turn signal, high/low beam, Daytime RunningLight and parking light bulbs will be accessiblewhen the plastic covering has been removed. Put the covering back in place in the reverse order.
NOTE
The pins in the clips have to be pressed back completely before the clips are placed in theplastic covering. When the covering is put back in place, the pins must be pressed so that their upper sur-face is flush with the surface of the clip.
NOTE
• For information regarding any bulbs not mentioned in this section, please contactyour Volvo retailer or a trained andauthorized Volvo service technician.
• Always switch off the ignition before star-ting to replace a bulb.
• If an error message remains in the dis-play after a faulty bulb has been replaced,contact an authorized Volvo workshop.
• Condensation may form temporarily onthe inside of the lenses of exterior lightssuch as headlights, fog lights, or taillights.This is normal and the lights aredesigned to withstand moisture. Normally,condensation will dissipate after thelights have been on for a short time.
• The optional Active Bending Light bulbscontain trace amounts of mercury. Thesebulbs should always be disposed of by atrained and qualified Volvo service techni-cian.
CAUTION
Never touch the glass of bulbs with your fin- gers. Grease and oils from your fingers vapor-ize in the heat and will leave a deposit on thereflector, which will damage it.
Page 499 of 546

MAINTENANCE AND SERVICING
497

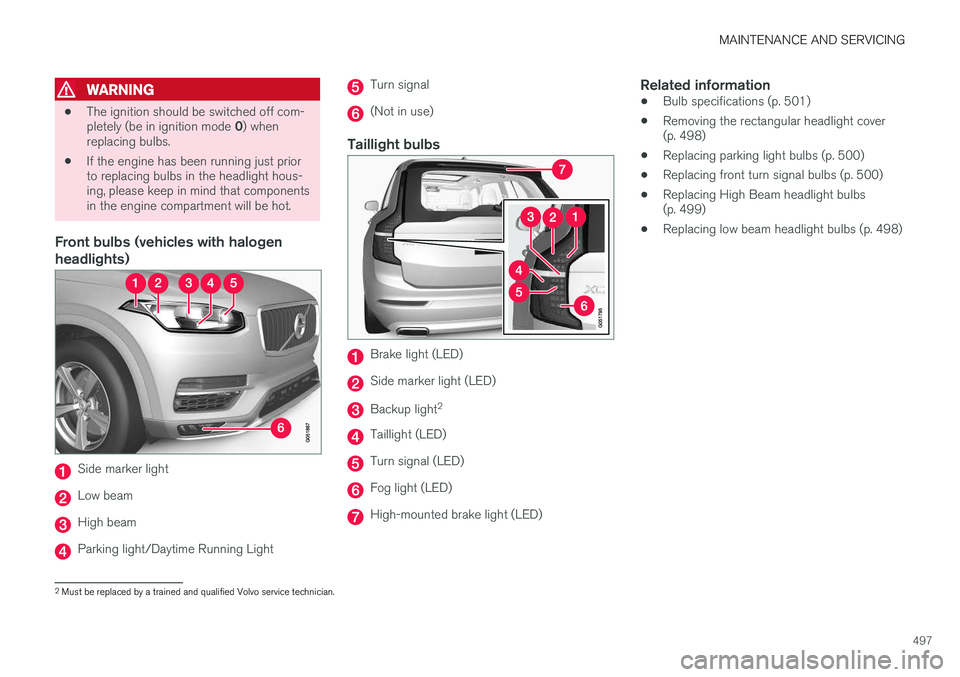

WARNING
•The ignition should be switched off com- pletely (be in ignition mode
0) when
replacing bulbs.
• If the engine has been running just prior to replacing bulbs in the headlight hous-ing, please keep in mind that componentsin the engine compartment will be hot.
Front bulbs (vehicles with halogen headlights)
Side marker light
Low beam
High beam
Parking light/Daytime Running Light
Turn signal
(Not in use)
Taillight bulbs
Brake light (LED)
Side marker light (LED)
Backup light 2
Taillight (LED)
Turn signal (LED)
Fog light (LED)
High-mounted brake light (LED)
Related information
•
Bulb specifications (p. 501)
• Removing the rectangular headlight cover (p. 498)
• Replacing parking light bulbs (p. 500)
• Replacing front turn signal bulbs (p. 500)
• Replacing High Beam headlight bulbs(p. 499)
• Replacing low beam headlight bulbs (p. 498)
2
Must be replaced by a trained and qualified Volvo service technician.
Page 500 of 546

MAINTENANCE AND SERVICING
498

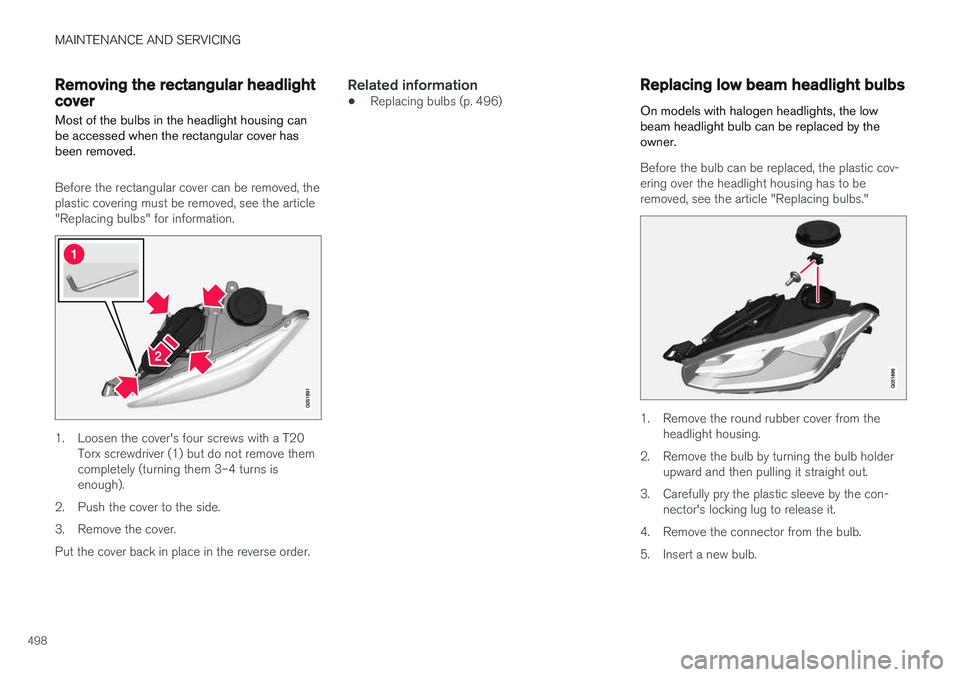

Removing the rectangular headlight cover
