VOLVO XC90 T8 2018 Owner´s Manual

SPECIFICATIONS
659

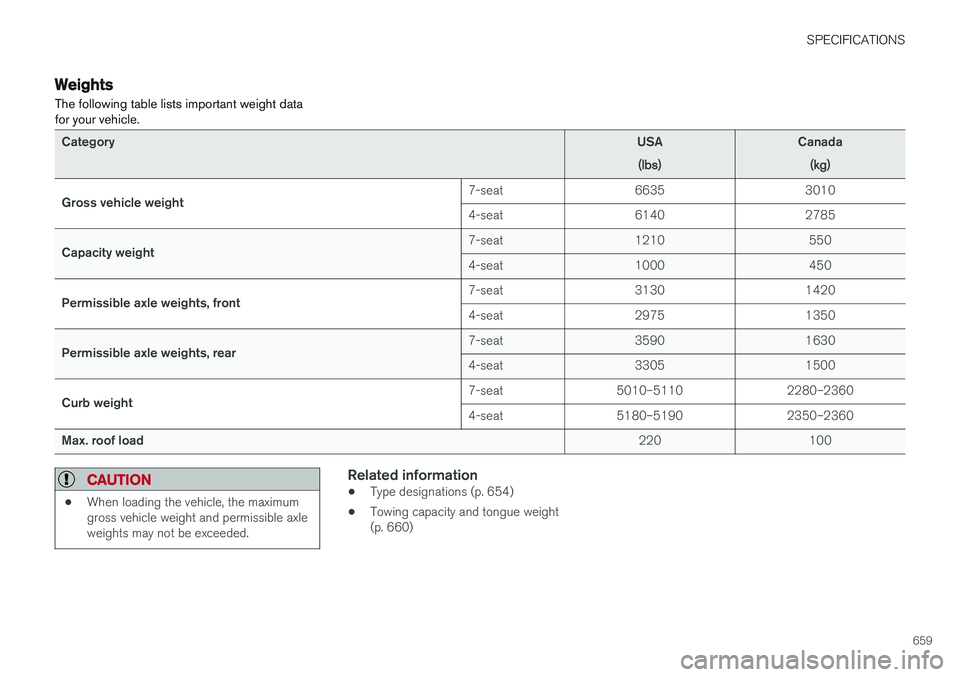

Weights The following table lists important weight data for your vehicle.
CategoryUSA
(lbs)Canada(kg)
Gross vehicle weight 7-seat 6635 3010
4-seat 6140 2785
Capacity weight 7-seat 1210 550
4-seat 1000 450
Permissible axle weights, front 7-seat 3130 1420
4-seat 2975 1350
Permissible axle weights, rear 7-seat 3590 1630
4-seat 3305 1500
Curb weight 7-seat 5010–5110 2280–2360
4-seat 5180–5190 2350–2360
Max. roof load 220 100
CAUTION
•When loading the vehicle, the maximum gross vehicle weight and permissible axleweights may not be exceeded.
Related information
•Type designations (p. 654)
• Towing capacity and tongue weight (p. 660)

SPECIFICATIONS
* Option/accessory.
660

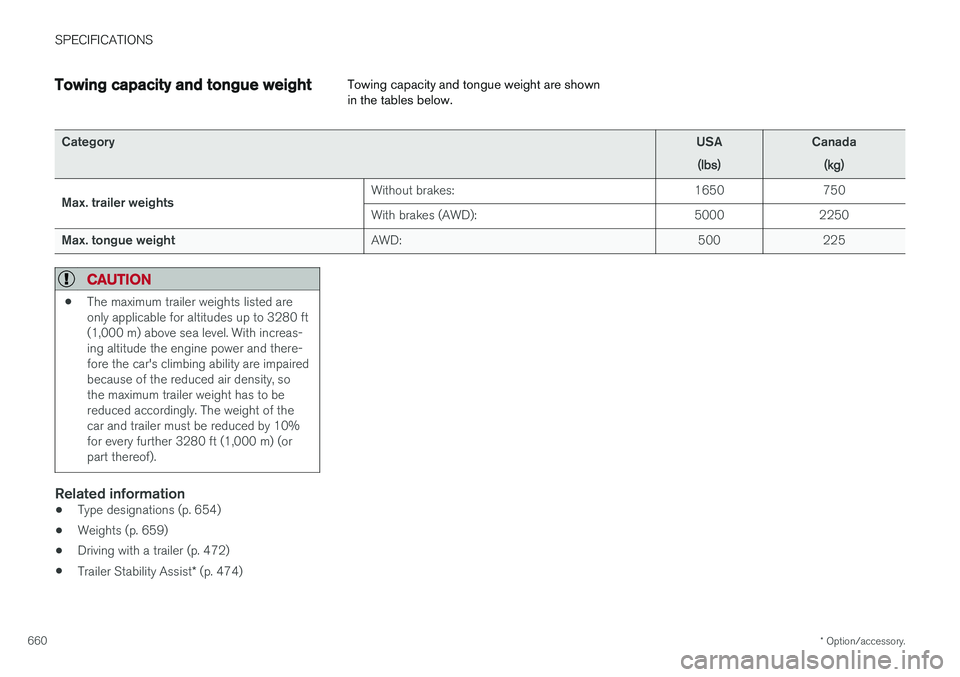

Towing capacity and tongue weight Towing capacity and tongue weight are shown in the tables below.
Category
USA
(lbs)Canada(kg)
Max. trailer weights Without brakes:
1650 750
With brakes (AWD): 5000 2250
Max. tongue weight AWD:
500 225
CAUTION
•The maximum trailer weights listed are only applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).
Related information
•
Type designations (p. 654)
• Weights (p. 659)
• Driving with a trailer (p. 472)
• Trailer Stability Assist
* (p. 474)

SPECIFICATIONS
661

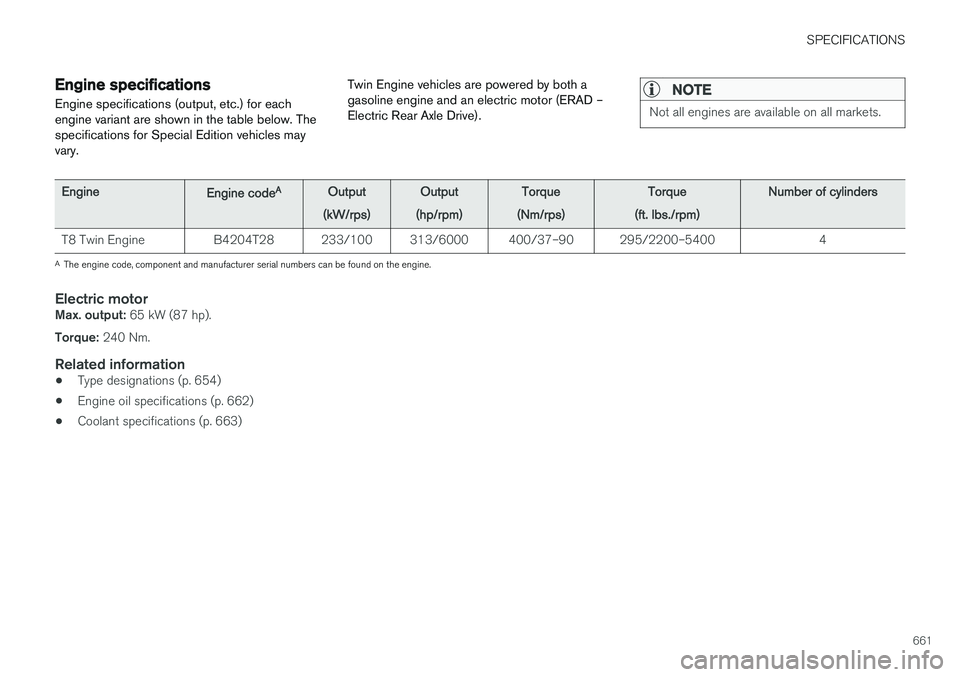

Engine specificationsEngine specifications (output, etc.) for each engine variant are shown in the table below. Thespecifications for Special Edition vehicles mayvary. Twin Engine vehicles are powered by both agasoline engine and an electric motor (ERAD –Electric Rear Axle Drive).NOTE
Not all engines are available on all markets.
EngineEngine codeAOutput
(kW/rps)
Output
(hp/rpm)
Torque
(Nm/rps)
Torque
(ft. lbs./rpm)
Number of cylinders
T8 Twin Engine B4204T28 233/100 313/6000 400/37–90 295/2200–5400 4
A The engine code, component and manufacturer serial numbers can be found on the engine.
Electric motorMax. output: 65 kW (87 hp).
Torque: 240 Nm.
Related information
•Type designations (p. 654)
• Engine oil specifications (p. 662)
• Coolant specifications (p. 663)

SPECIFICATIONS
662
Engine oil specificationsFully synthetic engine oil of at least ACEA A5/B5 must be used. Lower oil gradesmay not offer the same fuel economy, engineperformance or engine protection.
Volvo recommends:
GeneralSee the Service and warranty booklet for infor- mation about oil change intervals.
NOTE
This vehicle is delivered from the factory with synthetic oil.
Do not use oil additives.
Oil viscosityThe wrong oil viscosity can shorten engine serv- ice life during normal use. SAE 5W-30 providesgood fuel economy and engine protection. Seethe viscosity chart.
Viscosity chart
Extreme driving conditions
Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom- mended for extreme conditions.
Oil volume
The oil volume for the engine is:
Liter (approx.) 5.6
US qts (approx.) 5.9
Related information
• Type designations (p. 654)
• Checking and filling engine oil (p. 611) •
Engine oil (p. 610)

SPECIFICATIONS
663

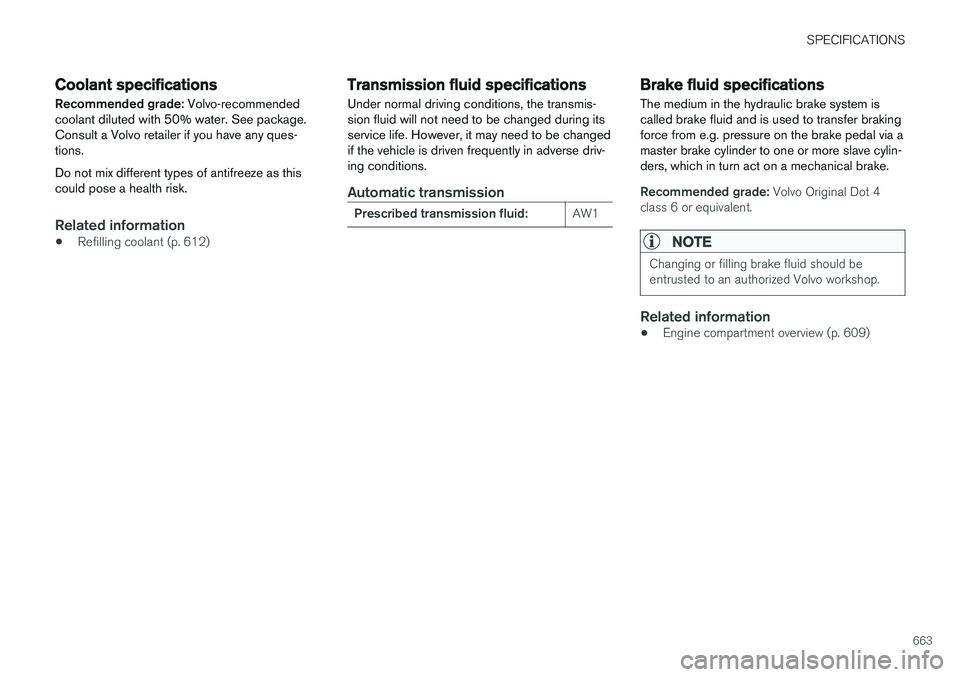

Coolant specifications
Recommended grade: Volvo-recommended
coolant diluted with 50% water. See package. Consult a Volvo retailer if you have any ques-tions. Do not mix different types of antifreeze as this could pose a health risk.
Related information
• Refilling coolant (p. 612)
Transmission fluid specifications
Under normal driving conditions, the transmis- sion fluid will not need to be changed during itsservice life. However, it may need to be changedif the vehicle is driven frequently in adverse driv-ing conditions.
Automatic transmission
Prescribed transmission fluid: AW1
Brake fluid specifications The medium in the hydraulic brake system is called brake fluid and is used to transfer brakingforce from e.g. pressure on the brake pedal via amaster brake cylinder to one or more slave cylin-ders, which in turn act on a mechanical brake.
Recommended grade:
Volvo Original Dot 4
class 6 or equivalent.
NOTE
Changing or filling brake fluid should be entrusted to an authorized Volvo workshop.
Related information
• Engine compartment overview (p. 609)

SPECIFICATIONS
664

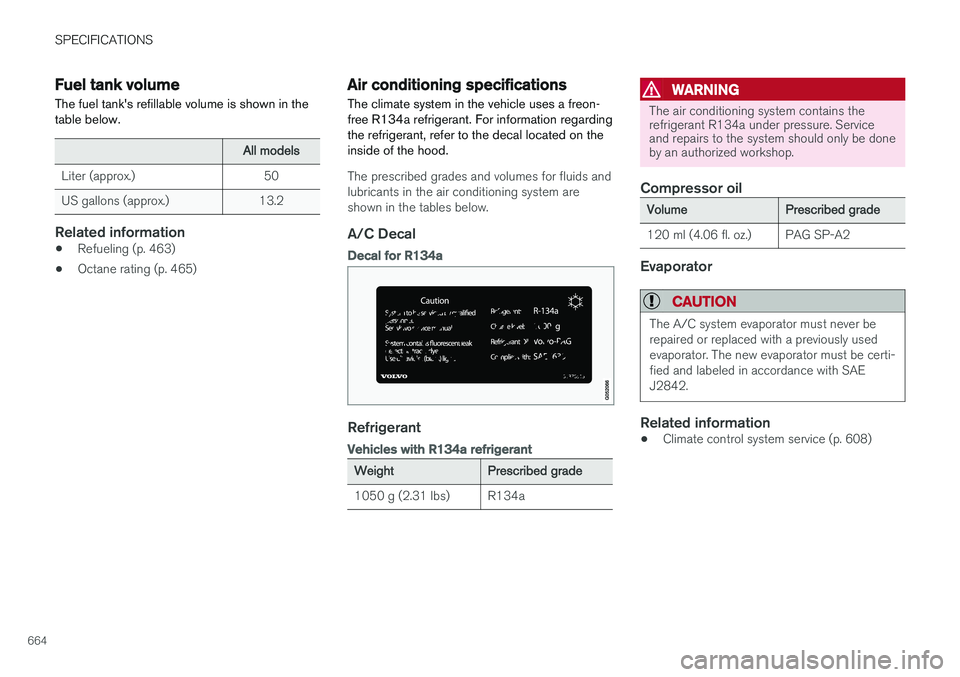

Fuel tank volumeThe fuel tank's refillable volume is shown in the table below.
All models
Liter (approx.) 50
US gallons (approx.) 13.2
Related information
• Refueling (p. 463)
• Octane rating (p. 465)
Air conditioning specifications
The climate system in the vehicle uses a freon- free R134a refrigerant. For information regardingthe refrigerant, refer to the decal located on theinside of the hood.
The prescribed grades and volumes for fluids and lubricants in the air conditioning system areshown in the tables below.
A/C Decal
Decal for R134a
Refrigerant
Vehicles with R134a refrigerant
WeightPrescribed grade
1050 g (2.31 lbs) R134a
WARNING
The air conditioning system contains the refrigerant R134a under pressure. Serviceand repairs to the system should only be doneby an authorized workshop.
Compressor oil
VolumePrescribed grade
120 ml (4.06 fl. oz.) PAG SP-A2
Evaporator
CAUTION
The A/C system evaporator must never be repaired or replaced with a previously usedevaporator. The new evaporator must be certi-fied and labeled in accordance with SAEJ2842.
Related information
• Climate control system service (p. 608)

SPECIFICATIONS
665

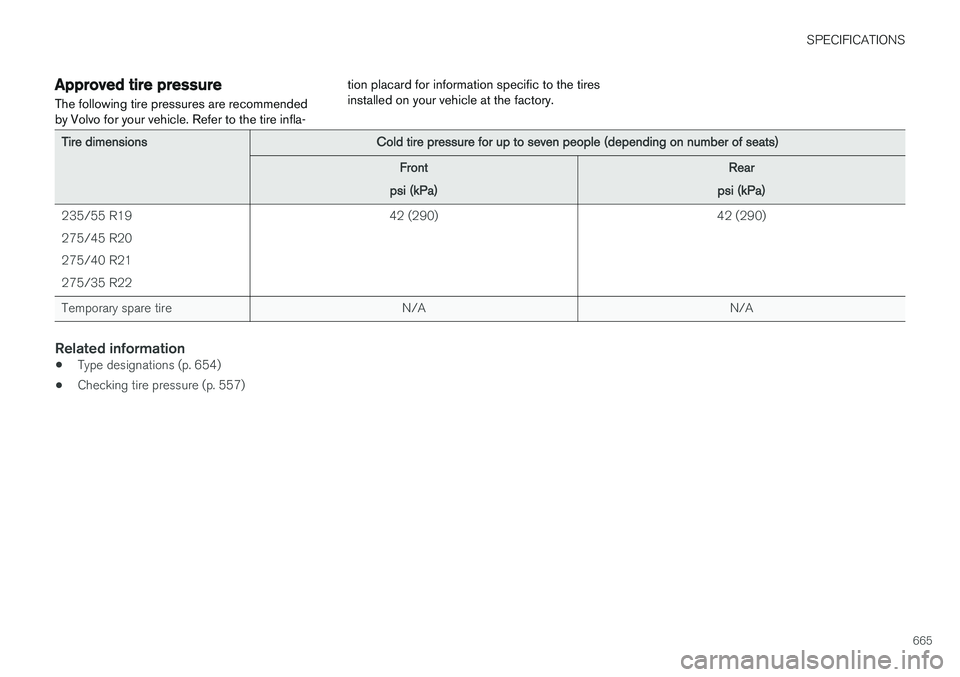

Approved tire pressureThe following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- tion placard for information specific to the tiresinstalled on your vehicle at the factory.
Tire dimensionsCold tire pressure for up to seven people (depending on number of seats)
Front
psi (kPa)
Rear
psi (kPa)
235/55 R19 275/45 R20275/40 R21275/35 R22 42 (290)
42 (290)
Temporary spare tire N/AN/A
Related information
•Type designations (p. 654)
• Checking tire pressure (p. 557)

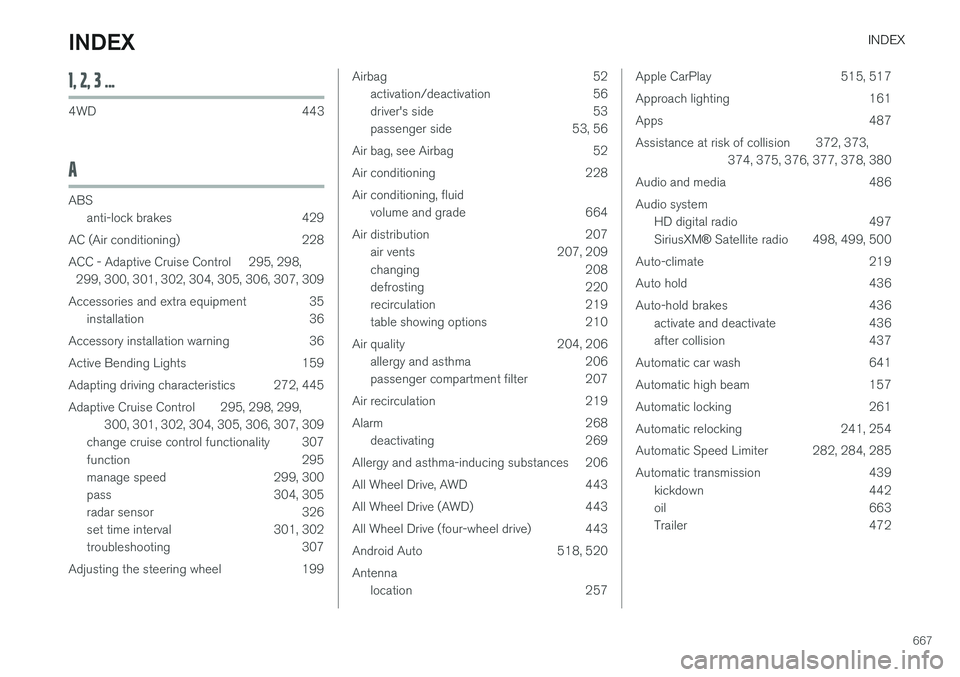

INDEX
667
1, 2, 3 ...
4WD 443
A
ABSanti-lock brakes 429
AC (Air conditioning) 228
ACC - Adaptive Cruise Control 295, 298, 299, 300, 301, 302, 304, 305, 306, 307, 309
Accessories and extra equipment 35 installation 36
Accessory installation warning 36
Active Bending Lights 159
Adapting driving characteristics 272, 445
Adaptive Cruise Control 295, 298, 299, 300, 301, 302, 304, 305, 306, 307, 309
change cruise control functionality 307
function 295
manage speed 299, 300
pass 304, 305
radar sensor 326
set time interval 301, 302
troubleshooting 307
Adjusting the steering wheel 199
Airbag 52 activation/deactivation 56
driver's side 53
passenger side 53, 56
Air bag, see Airbag 52
Air conditioning 228Air conditioning, fluid volume and grade 664
Air distribution 207 air vents 207, 209
changing 208
defrosting 220
recirculation 219
table showing options 210
Air quality 204, 206 allergy and asthma 206
passenger compartment filter 207
Air recirculation 219
Alarm 268 deactivating 269
Allergy and asthma-inducing substances 206
All Wheel Drive, AWD 443
All Wheel Drive (AWD) 443
All Wheel Drive (four-wheel drive) 443
Android Auto 518, 520 Antenna location 257Apple CarPlay 515, 517
Approach lighting 161
Apps 487
Assistance at risk of collision 372, 373, 374, 375, 376, 377, 378, 380
Audio and media 486Audio system HD digital radio 497 SiriusXM ® Satellite radio 498, 499, 500
Auto-climate 219
Auto hold 436
Auto-hold brakes 436 activate and deactivate 436
after collision 437
Automatic car wash 641
Automatic high beam 157
Automatic locking 261
Automatic relocking 241, 254
Automatic Speed Limiter 282, 284, 285
Automatic transmission 439 kickdown 442
oil 663
Trailer 472
INDEX

INDEX
668

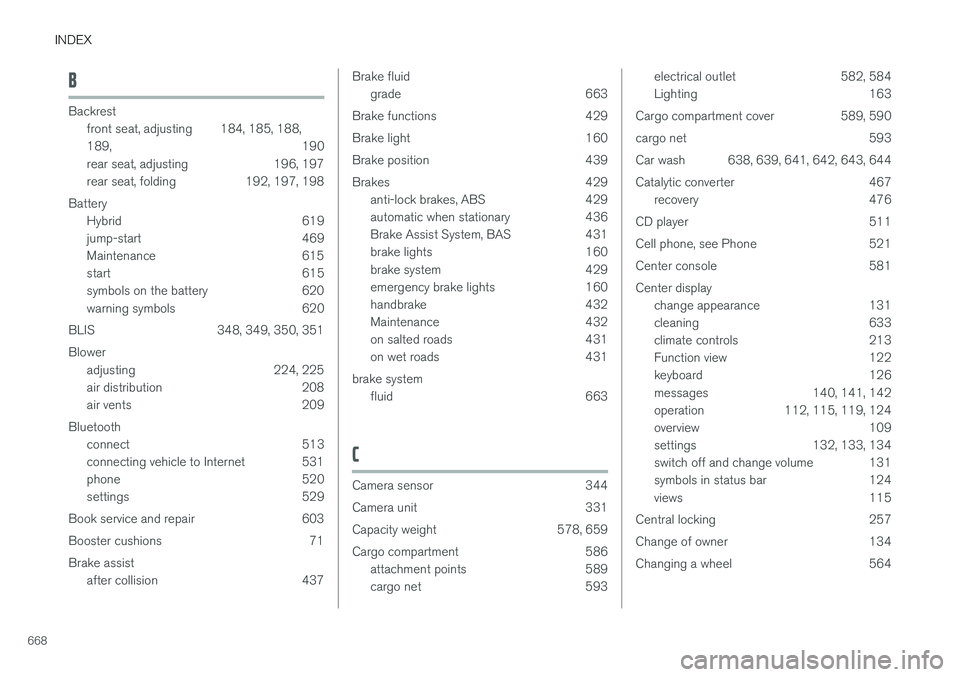

B
Backrestfront seat, adjusting 184, 185, 188, 189 , 190
rear seat, adjusting 196, 197
rear seat, folding 192, 197, 198
Battery Hybrid 619
jump-start 469
Maintenance 615
start 615
symbols on the battery 620
warning symbols 620
BLIS 348, 349, 350, 351 Blower adjusting 224, 225
air distribution 208
air vents 209
Bluetooth connect 513
connecting vehicle to Internet 531
phone 520
settings 529
Book service and repair 603
Booster cushions 71 Brake assist after collision 437
Brake fluid
grade 663
Brake functions 429
Brake light 160
Brake position 439
Brakes 429 anti-lock brakes, ABS 429
automatic when stationary 436
Brake Assist System, BAS 431
brake lights 160
brake system 429
emergency brake lights 160
handbrake 432
Maintenance 432
on salted roads 431
on wet roads 431
brake system fluid 663
C
Camera sensor 344
Camera unit 331
Capacity weight 578, 659
Cargo compartment 586 attachment points 589
cargo net 593
electrical outlet 582, 584
Lighting 163
Cargo compartment cover 589, 590
cargo net 593
Car wash 638, 639, 641, 642, 643, 644
Catalytic converter 467 recovery 476
CD player 511
Cell phone, see Phone 521
Center console 581Center display change appearance 131
cleaning 633
climate controls 213
Function view 122
keyboard 126
messages 140, 141, 142
operation 112, 115, 119, 124
overview 109
settings 132, 133, 134
switch off and change volume 131
symbols in status bar 124
views 115
Central locking 257
Change of owner 134
Changing a wheel 564
