DRIVER SUPPORT
* Option/accessory.
286 Cruise control
Cruise Control (CC 26
) helps the driver maintain
an even speed to provide a more relaxing driving
experience on highways and long, straight roads
with even traffic flows.
Overview Function buttons and symbols
27
. : Activates Cruise Control from standby
mode and resumes the set speed : Increases the set speed
: From standby mode - activates Cruise
Control and sets the current speed : From active mode - deactivates/puts
Cruise Control in standby mode : Reduces the set speed
Marker for set speed
The vehicle's current speed
Set speed
NOTE
In vehicles equipped with Adaptive Cruise
Control*, it is possible to switch between
cruise control and Adaptive Cruise Control –
see the heading "Switching between CC and
ACC".
WARNING •
The cruise control function is supplemen-
tary driver support intended to facilitate
driving and help make it safer – it cannot
handle all situations in all traffic, weather
and road conditions.
• The driver is advised to read all sections
in the Owner's Manual about this function
to learn of its limitations, which the driver
must be aware of before using the func-
tion (see the link list at the end of this
article).
• Cruise control is not a substitute for the
driver's attention and judgment. The driver
is always responsible for ensuring the
vehicle is driven in a safe manner, at the
appropriate speed, with an appropriate
distance to other vehicles, and in accord-
ance with current traffic rules and regula-
tions.
Related information
• Activating and starting Cruise Control
(p. 287)
• Managing Cruise Control speed (p. 288)
• Deactivating and putting Cruise Control in
standby mode (p. 289) 26
Cruise Control
27 Note: This illustration is general and details may vary depending on mod\
el.

DRIVER SUPPORT
288Managing Cruise Control speed
Cruise Control (CC 29
) can be set to various
speeds.
Setting/changing set speed Note: This illustration is general and details may vary
depending on model.
For vehicles with only CC
–
Change a set speed by pressing the (1)
or (3) buttons briefly or by pressing and
holding them:
• Press briefly: Press briefly: each press
changes the speed in +/- 1 mph
(+/- 1 km/h) increments.
• Press and hold: Release the button when
the set speed indicator (4) has moved to
the desired speed. •
The most recently set speed will be stored.
If speed is increased by depressing the accelera-
tor pedal while pressing the (1) button on
the steering wheel, the vehicle's speed when the
button is pressed will be stored as the set speed.
Temporarily increasing speed using the accelera-
tor pedal, e.g. when passing another vehicle, will
not affect the setting. The vehicle will return to
the set speed when the accelerator pedal is
released.
For vehicles with both CC and ACC
– Change a set speed by pressing the (1)
or (3) buttons briefly or by pressing and
holding them:
• Press briefly: Press briefly: each press
changes the speed in +/- 5 mph
(+/- 5 km/h) increments.
• Press and hold: Release the button when
the set speed indicator (4) has moved to
the desired speed.
• The most recently set speed will be stored.
If speed is increased by depressing the accelera-
tor pedal while pressing the (1) button on
the steering wheel, the vehicle's speed when the
button is pressed will be stored as the set speed.
Temporarily increasing speed using the accelera-
tor pedal, e.g. when passing another vehicle, will not affect the setting. The vehicle will return to
the set speed when the accelerator pedal is
released.
Using engine braking instead of
applying the brakes
Cruise Control regulates speed by lightly applying
the brakes. On downgrades, it can sometimes be
desirable to roll a bit faster and let speed be
reduced instead by engine braking alone. The
driver can temporarily disengage the Cruise Con-
trol braking function.
To disengage CC:
– Press the accelerator pedal about halfway
down and then release it.
>

Cruise Control will automatically disen-
gage the automatic brake function and
speed will only be reduced using the
engine braking function.
How drive mode affects cruise controlThe way the cruise control maintains the vehicle's
speed can vary depending on the selected drive
mode 30
. 29
Cruise Control
30 For more information, see "Drive modes".

DRIVER SUPPORT
}}
* Option/accessory. 291Function buttons and symbols
33
.
To turn off Cruise Control:
1. Press the button on the steering wheel
(2).
>

Cruise Control will go into standby mode.
2. Press the â—€ (1) or â–¶ (3) buttons on the
steering wheel to select another function.
>
The Cruise Control symbol (4) in
the instrument panel will go out and the
set speed will be erased.
3. Press the (2) button on the steering
wheel keypad again.
>

Another function will be activated.
NOTE In vehicles equipped with Adaptive Cruise
Control*, it is possible to switch between
cruise control and Adaptive Cruise Control –
see the heading "Switching between CC and
ACC".
Related information
• Cruise control (p. 286) Distance Alert*
The Distance Alert 34
function can help the driver
become aware if the time interval to the vehicle
in front is too short.
However, the vehicle must be equipped with a
head-up display in order to display the Distance
Alert, which will then be indicated by a symbol
on the windshield as long as the time interval to
the vehicle ahead is shorter than the set time
interval.
Distance Alert is active at speeds above 30 km/h
(20 mph) and only reacts for vehicles ahead mov-
ing in the same direction as your vehicle. No dis-
tance information is provided for oncoming, slow-
moving or stationary vehicles. 33
Note: This illustration is general and details may vary depending on mod\
el.
34 Distance Alert

DRIVER SUPPORT
}}
* Option/accessory. 297
Overview
ControlsFunction buttons and symbols
42
. : Activates Adaptive Cruise Control from
standby mode and resumes the set speed : Increases the set speed
: From standby mode - activates the
Adaptive Cruise Control and stores the cur-
rent speed : From active mode - deactivates/
switches the Adaptive Cruise Control to
standby mode : Reduces the set speed
Increases the time interval to the vehicle
ahead Reduces the time interval to the vehicle
ahead
Target vehicle indicator: ACC has detected
and is following a target vehicle using the set
time interval
Symbol for time interval to the vehicle ahead
NOTE
In vehicles equipped with Adaptive Cruise
Control*, it is possible to switch between
cruise control and Adaptive Cruise Control –
see the heading "Switching between CC and
ACC".
Instrument panel Speed indicators
42
. Set speed
Speed of the vehicle ahead.
The current speed of your vehicle.
See "Adaptive Cruise Control symbols and mes-
sages" for examples of different combinations of
symbols depending on the traffic situation.
Related information
• Adaptive Cruise Control and collision warning
(p. 298)
• Head-up display for Adaptive Cruise Control
with collision warning (p. 299)
• Activating and starting Adaptive Cruise Con-
trol (p. 299) 42
Note: This illustration is general and details may vary depending on mod\
el.

||DRIVER SUPPORT
* Option/accessory.

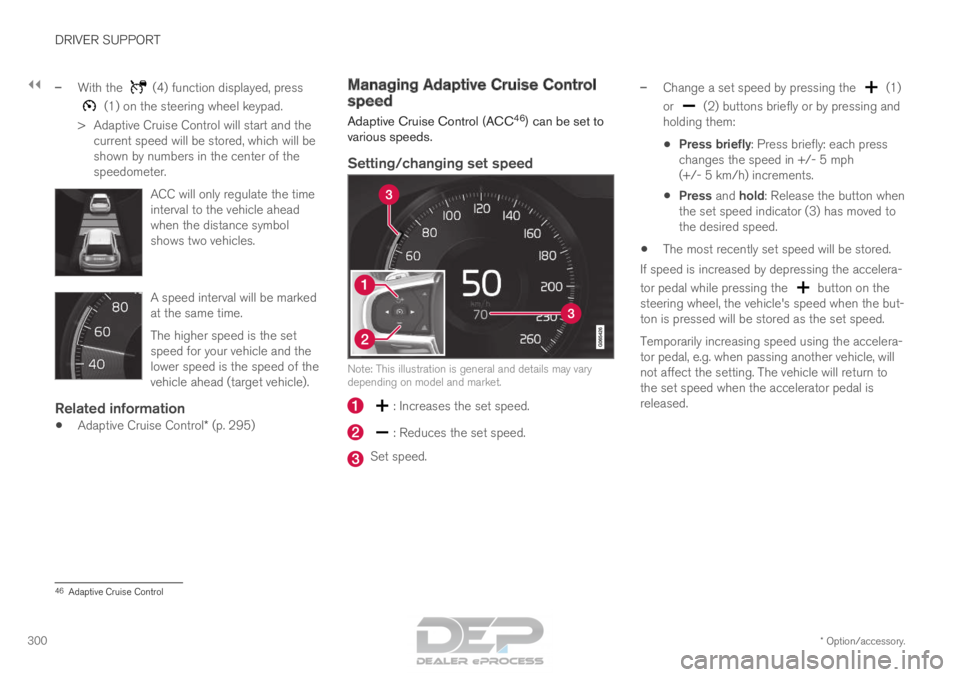

300 –
With the (4) function displayed, press
(1) on the steering wheel keypad.
>

Adaptive Cruise Control will start and the
current speed will be stored, which will be
shown by numbers in the center of the
speedometer.
ACC will only regulate the time
interval to the vehicle ahead
when the distance symbol
shows two vehicles. A speed interval will be marked
at the same time.
The higher speed is the set
speed for your vehicle and the
lower speed is the speed of the
vehicle ahead (target vehicle).
Related information
•
Adaptive Cruise Control* (p. 295) Managing Adaptive Cruise Control
speed
Adaptive Cruise Control (ACC 46
) can be set to
various speeds.
Setting/changing set speed Note: This illustration is general and details may vary
depending on model and market.
: Increases the set speed.
: Reduces the set speed.
Set speed.–
Change a set speed by pressing the (1)
or (2) buttons briefly or by pressing and
holding them:
• Press briefly: Press briefly: each press
changes the speed in +/- 5 mph
(+/- 5 km/h) increments.
• Press and hold: Release the button when
the set speed indicator (3) has moved to
the desired speed.
• The most recently set speed will be stored.
If speed is increased by depressing the accelera-
tor pedal while pressing the button on the
steering wheel, the vehicle's speed when the but-
ton is pressed will be stored as the set speed.
Temporarily increasing speed using the accelera-
tor pedal, e.g. when passing another vehicle, will
not affect the setting. The vehicle will return to
the set speed when the accelerator pedal is
released. 46
Adaptive Cruise Control

DRIVER SUPPORT
}}
313
When the vehicle is approaching an off-ramp or a
fork in the road, the driver should steer toward
the desired lane to indicate to Pilot Assist the
desired direction of travel.
Pilot Assist strives to keep the vehicle
in the center of the lane
When Pilot Assist provides steering assistance, it
strives to position the vehicle in the center of the
lane between the lane markings. For the smooth-
est driving experience possible, the driver should
permit the vehicle to find the optimal positioning.
The driver should check that the vehicle is posi-
tioned safely in the lane and can always adjust
the vehicle's position by applying more force to
the steering wheel.
If Pilot Assist does not position the vehicle appro-
priately in the lane, the driver should turn off Pilot
Assist or switch to Adaptive Cruise Control.
Overview
Controls Function buttons and symbols
62
. : Activates Pilot Assist from standby
mode and resumes the set speed and time
interval : Increases the set speed
: From standby mode - activates Pilot
Assist and sets the current speed : From active mode - deactivates/puts
Pilot Assist in standby mode â—€: Switches from Pilot Assist to Adaptive
Cruise Control
: Reduces the set speed Increases the time interval to the vehicle
ahead
â–¶: Switches from Adaptive Cruise Control to
Pilot Assist
Reduces the time interval to the vehicle
ahead
Function symbol
Symbols for target vehicle and distance to
the vehicle ahead
Symbol for activated/deactivated steering
assistance
62
Note: This illustration is general and details may vary depending on mod\
el.

DRIVER SUPPORT
}}
317
–
Change a set speed by pressing the (1)
or (2) buttons briefly or by pressing and
holding them:
• Press briefly: Press briefly: each press
changes the speed in +/- 5 mph
(+/- 5 km/h) increments.
• Press and hold: Release the button when
the set speed indicator (3) has moved to
the desired speed.
• The most recently set speed will be stored.
If speed is increased by depressing the accelera-
tor pedal while pressing the button on the
steering wheel, the vehicle's speed when the but-
ton is pressed will be stored as the set speed.
Temporarily increasing speed using the accelera-
tor pedal, e.g. when passing another vehicle, will
not affect the setting. The vehicle will return to
the set speed when the accelerator pedal is
released.
Automatic transmission
Pilot Assist can follow another vehicle at speeds
from a standstill up to 200 km/h (125 mph).
The lowest speed that can be set for Pilot Assist
is 30 km/h (20 mph). When following another
vehicle, ACC can monitor that vehicle's speed
and slow your own vehicle down to a standstill,
but it is not possible to set speeds lower than
30 km/h (20 mph). The highest possible speed that can be set is
200 km/h (125 mph).
Related information
•
Pilot Assist (p. 311) Setting a time interval for Pilot
Assist
Pilot Assist
can be set to different time intervals.
Different time intervals to the
vehicle ahead can be selected
and are shown in the instru-
ment panel as 1–5 horizontal
bars. The more bars, the longer
the time interval. One bar rep-
resents an interval of
approx. 1 second to the vehicle ahead. 5 bars
represents approx. 3 seconds.
NOTE When the symbol in the instrument panel
shows a vehicle and a steering wheel, Pilot
Assist follows a vehicle ahead at a preset
time interval.
When only a steering wheel is shown, there is
no vehicle ahead within a reasonable dis-
tance.

DRIVER SUPPORT
}}
* Option/accessory. 391
Starting the Park Assist Camera
The Park Assist Camera starts automatically
when reverse gear is engaged or can be started
manually using one of the center display's func-
tion buttons.
Camera view when backing upWhen reverse gear is engaged, the screen shows
the rear view 123
.
Camera view when manually starting
the camera
Start the Park Assist Camera
using this button in the center
display's Function view.
The screen will first show the
most recently used camera
view. However, each time the
engine is started, the previous side view will be
replaced by the 360° view and a previously dis-
played zoomed-in rear view will be replaced by
the regular rear view.
Automatically deactivating the cameraFront view switches off when the vehicle's speed
reaches 25 km/h (16 mph) to help avoid dis-
tracting the driver. It will be automatically reactiva-
ted if the vehicle's speed falls below 22 km/h
(14 mph) within 1 minute as long as the vehicle's
speed has not exceeded 50 km/h (31 mph). Other camera views switch off at 15 km/h
(9 mph) and are not reactivated.
Related information
•
Park Assist Camera* (p. 386) Park Assist Camera limitations
The Park Assist Camera may not be able to
detect all conditions in all situations and func-
tionality may therefore be limited.
The driver should be aware of the following limi-
tations for the Park Assist Camera:
WARNING Be extra cautious when
reversing if this symbol is
shown when a trailer, bike
carrier or similar is attached
and electrically connected
to the vehicle.
The symbol indicates that
the rear parking assist sensors are deacti-
vated and will not warn of any obstacles.
NOTE A bike carrier and other accessories mounted
on the rear of the vehicle can obscure the
camera's view.
123
In Canada, it is also possible to select the 360° view.

STARTING AND DRIVING
}}
* Option/accessory. 453
Leveling control settings*
The vehicle can be lowered or raised to make it
easier to load or for passengers to get in and
out.
Turn off leveling control before lifting the vehicle
with a jack to help avoid problems with the
pneumatic suspension.
Adjusting loading mode Use the buttons in the cargo compartment to
raise or lower the rear section of the vehicle to
facilitate loading or unloading the vehicle or con-
necting or disconnecting a trailer.
Center display settings
Easy Entry and Exit Suspension Control
The vehicle can be lowered to make it easier to
get in and out.
Activating easy entry in the center display: 1.
Tap Settings in the Top view.
2.

Tap My Car Mirrors and Convenience
.
3. Select Easy Entry and Exit Suspension
Control.
>

When the vehicle is parked and the
engine is turned off, the level is lowered.
(Level adjustment will stop if a side door
is opened and will resume after a slight
delay when the door has been closed.)
When the engine is started and the vehi-
cle begins to move, the level will be raised
to the height set by the selected drive
mode.
Disable Leveling Control
In certain situations, this function must be turned
off, e.g. before the vehicle is raised using a jack*.
The level difference caused by raising the vehicle
with a jack could cause problems with the pneu-
matic suspension.
Turning off the function in the center display:
1. Tap Settings in the Top view.
2.

Tap My Car Parking Brake and
Suspension .
3. Select Disable Leveling Control.
Related information
•Leveling control* and suspension (p. 450)
• Loading recommendations (p. 586) Low Speed Control
The low-speed function, Low Speed Control
(LSC), facilitates and improves control and trac-
tion on rough roads and slippery surfaces, e.g.
when towing a trailer on grass or up boat ramps.
The function is included in the Off Road drive
mode.
Low Speed Control is designed for driving on
rough roads and when towing trailers at low
speeds, up to approximately 40 km/h (25 mph).
When driving at low speeds, LSC prioritizes low
gears and all-wheel drive to help avoid wheel spin
and improve traction on all wheels. The accelera-
tor pedal will be less responsive to improve trac-
tion and speed control at low speeds.
The function is activated together with Hill
Descent Control (HDC), which makes it possible
to control speed going down steep hills using the
accelerator pedal and reduces the need to use
the brake pedal. The system makes it possible to
maintain a low and uniform speed when driving
down steep hills.

STARTING AND DRIVING
}}
459
Factors the driver can control
The driver should be aware that the following fac-
tors help conserve energy and improve driving
range: • charging the battery regularly
• preconditioning
• Pure drive mode
• climate control settings
• speed and acceleration
• the
Hold function
• tires and tire pressure.
The following table shows the approximate rela-
tionship between constant speed and driving
range. Driving at a lower constant speed helps
increase the electric motor's driving range. Constant speed
100 km/h (62 mph)
50 %
80 km/h (50 mph) 70 %
60 km/h (37 mph) 90 %
50 km/h (31 mph) 100 %
NOTE •
The figures shown in the tables pertain to
a new vehicle.
• None of the figures are absolute and are
affected by e.g. driving style, environment
and other conditions.
Related information
• Using the electric motor only (p. 457)
• Economical driving (p. 456)
• "Hold" and "Charge" functions (p. 459)
• Drive modes (p. 445) "Hold" and "Charge" functions
In certain situations, it can be useful to control
the hybrid battery's charge level while driving.
This is possible with the Hold and Charge func-
tions, which are available in all drive modes.
Function buttons for Hold and ChargeThe functions can be activated in the center dis-
play's Function view.
Hold
Battery level sustained for
later use.
This function retains the charge
in the hybrid battery for the
electric motor and saves availa-
ble electrical current for use at
a later time, such as when driving in an urban
area or residential neighborhood. Hold is availa-
ble regardless of the hybrid battery's charge level.
The vehicle will function as in normal hybrid driv-
ing with a discharged battery - in addition to
reusing energy from e.g. regenerative braking, the
combustion engine will be used more frequently
to maintain the charge in the battery.
