Page 30 of 686
||
YOUR VOLVO
* Option/accessory.28
goal. In addition to continuous environmentalrefinement of conventional gasoline-poweredinternal combustion engines, Volvo is activelylooking at advanced technology alternative-fuelvehicles.
When you drive a Volvo, you become our partnerin the work to lessen the vehicle's impact on theenvironment. To reduce your vehicle's environ-mental impact, you can:
•Maintain proper air pressure in your tires.Tests have shown decreased fuel economywith improperly inflated tires.
•Follow the recommended maintenanceschedule in your Warranty and ServiceRecords Information booklet.
•Drive at a constant speed whenever possible.
•See a trained and qualified Volvo servicetechnician as soon as possible for inspectionif the check engine (malfunction indicator)light illuminates, or stays on after the vehiclehas started.
•Properly dispose of any vehicle-related wastesuch as used motor oil, used batteries, brakepads, etc.
•When cleaning your vehicle, please use gen-uine Volvo car care products. All Volvo carcare products are formulated to be environ-mentally friendly.
Twin Engine vehicles
•If possible, precondition the vehicle with thecharging cable before driving.
•If preconditioning is not possible in coldweather, use the seat and steering wheelheating primarily. Avoid heating the entirepassenger compartment, which reduces thehybrid battery's charge level.
•Choose the Pure drive mode to help mini-mize electric power consumption.
•In hilly terrain, put the gear selector in modeB to utilize the electric motor's braking func-tion when the accelerator pedal is released.This helps charge the hybrid battery.
Related information
•Economical driving (p. 456)
•Starting and stopping preconditioning(p. 231)
•The Owner's Manual and the environment(p. 23)
•Air quality (p. 204)
IntelliSafe - driver support
IntelliSafe is Volvo Cars' philosophy regardingvehicle safety. IntelliSafe consists of a number ofsystems, both standard and optional, that aredesigned to help make driving safer, preventaccidents and protect passengers and otherroad users.
Support
IntelliSafe includes driver support functions suchas Adaptive cruise control* which helps the driverto maintain an even speed combined with a pre-selected time interval to the vehicle ahead.
Pilot Assist4 helps the driver keep the vehicle inthe current traffic lane by providing steeringassistance and maintaining an even speed and aset time interval to the vehicle ahead.
Park Assist Pilot* helps the driver pull into andout of parking spaces.
Other examples of systems that can help thedriver are the Active main beam, Cross TrafficAlert (CTA)* and Blind Spot Information (BLIS)*systems.
Prevention
City Safety is a function intended to help preventaccidents. The function can help prevent or miti-gate a collision with pedestrians, cyclists, largeanimals or other vehicles. Light, sound and pulsa-tions in the brake pedal are provided to alert of a
4Depending on market, this function can be either standard or optional.
Page 99 of 686
DISPLAYS AND VOICE CONTROL
97
Warning symbols in the instrument
panel
The warning symbols alert the driver that an
important function is activated or that a serious
fault or error has occurred. Symbol
Meaning WARNING
The red warning symbol illuminates
to indicate that a fault has been
detected that could affect safety
and/or driveability. An explanatory
message will be simultaneously
displayed in the instrument panel.
The warning symbol may also illu-
minate in combination with other
symbols.
Seat belt reminder
This symbol will glow steadily or
flash if the driver or front seat pas-
senger has not fastened their seat
belt or if anyone in the rear seat
has removed their seat belt. Symbol
Meaning Airbags
If this symbol remains illuminated
or comes on while driving, a fault
has been detected in one of the
vehicle's safety systems. Read the
message in the instrument panel.
Volvo recommends contacting an
authorized Volvo workshop.
A
B
Fault in brake system
If this symbol illuminates, the brake
fluid level may be too low. Contact
your nearest authorized workshop
to have the brake fluid level
checked and adjusted. A
BParking brake on
This symbol glows steadily when
the parking brake is applied.
A flashing symbol indicates that a
fault has occurred. Read the mes-
sage in the instrument panel. Symbol
Meaning Low oil pressure
If this symbol illuminates while driv-
ing, the engine oil level is too low.
Stop the engine immediately and
check the engine oil level. Add oil if
necessary. If the symbol illuminates
and the oil level is normal, contact
a workshop. Volvo recommends
contacting an authorized Volvo
workshop.
Generator not charging
This symbol illuminates during driv-
ing if a fault is detected in the elec-
trical system. Contact a workshop.
Volvo recommends contacting an
authorized Volvo workshop.
Collision risk
City Safety warns the driver if there
is a risk of a collision with another
vehicle, pedestrian, cyclist or large
animal.
A
Canadian models.
B US models.
Related information
• Indicator symbols in the instrument panel
(p. 94)
• Instrument panel (p. 84)
Page 612 of 686
MAINTENANCE AND SERVICE
610Engine oil
For the recommended service intervals and war-
ranties to be applied, an approved engine oil
must be used. Volvo recommends: If the engine oil is not checked regularly and the
level becomes low, this could cause serious
engine damage.
CAUTION
To satisfy the requirements for the engine's
service intervals, all engines are factory-filled
with a specially adapted synthetic engine oil.
Great care has been put into the choice of oil,
with consideration given to service life, starta-
bility, fuel consumption and environmental
impact.
For the recommended service intervals to
apply, an approved engine oil must be used.
Only use the prescribed oil grade to top off or
change the oil. Otherwise, there is a risk of
the vehicle's service life, startability, fuel con-
sumption and environmental impact being
affected.
Failure to use engine oil of the prescribed
grade and viscosity could cause damage to
engine-related components. Volvo Car Corpo-
ration disclaims warranty liability for such type
of damage.
Volvo recommends entrusting oil changes to
an authorized Volvo workshop.
Volvo uses different systems to warn if the oil
level is too low/high or the oil pressure is low. On
engine variants with an oil pressure sensor, awarning symbol is displayed in the instrument
panel when oil pressure is low . On engine
variants with an oil level sensor, the warn-
ing symbol in the instrument panel and display
messages are used to alert the driver. Some
engine variants have both systems. Contact a
Volvo retailer for more information.
Change the engine oil and oil filter according to
the schedule specified in the Warranty and Main-
tenance Records Information booklet. Oils of a
higher grade than that specified may be used. If
the vehicle is driven in adverse conditions, Volvo
recommends using an oil with a higher grade
than that specified.
Related information
• Checking and filling engine oil (p. 611)
• Engine oil specifications (p. 662)
Page 614 of 686
||MAINTENANCE AND SERVICE
612
NOTE
If the conditions for measuring oil level are
not properly fulfilled (time after engine shut-
down, vehicle inclination, ambient tempera-
ture, etc.) the message
No value available
will be shown in the center display. This does
not mean that anything is wrong in the vehi-
cle systems.
Related information
• Engine oil (p. 610)
• Engine oil specifications (p. 662)
• Ignition modes (p. 427)
• Vehicle status (p. 602) Refilling coolant
Coolant helps keep the combustion engine at
the right operating temperature. The heat trans-
ferred from the engine to the coolant can be
used to warm the passenger compartment.
When refilling coolant, follow the instructions on
the package. Never fill the cooling system with
only water. The risk of freezing is increased with
too low or too high amounts of coolant.
If there is coolant under the vehicle, smoke from
the cooling system, or if more than 2 liters (about
2 quarts) of coolant has been added to the sys-
tem, there could be something wrong with the
cooling system and starting the vehicle could
damage the engine. Call a tow truck and do not
attempt to start the engine.
WARNING The coolant may be very hot. Never unscrew
the cap when the coolant is hot. If coolant
must be filled, unscrew the expansion tank
cap slowly to relieve overpressure. Coolant expansion tank.
Page 641 of 686
MAINTENANCE AND SERVICE
}}
639

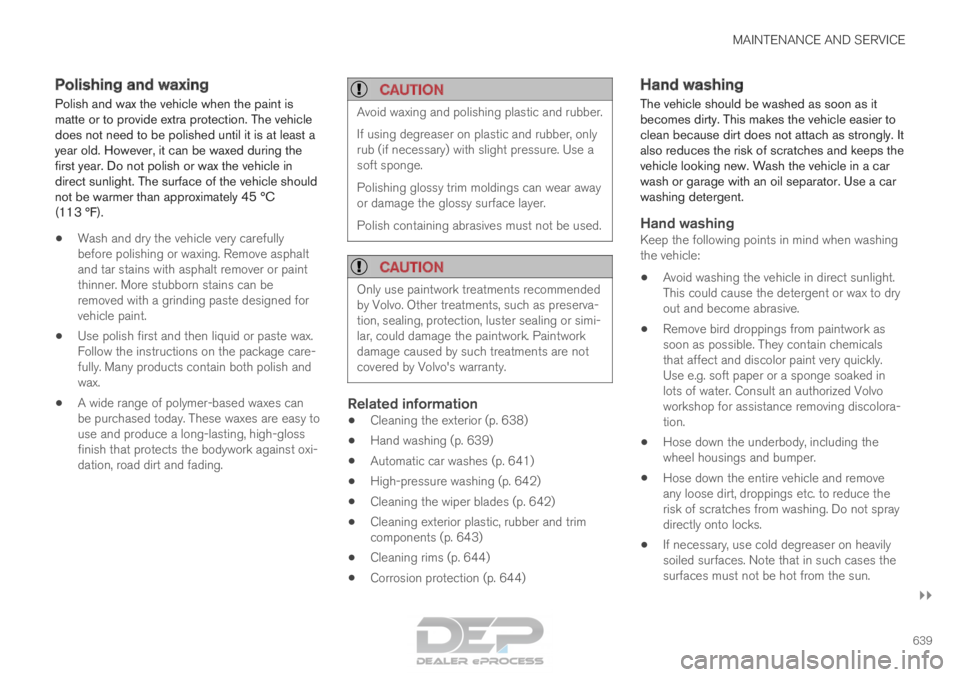

Polishing and waxing
Polish and wax the vehicle when the paint is
matte or to provide extra protection. The vehicle
does not need to be polished until it is at least a
year old. However, it can be waxed during the
first year. Do not polish or wax the vehicle in
direct sunlight. The surface of the vehicle should
not be warmer than approximately 45 °C
(113 °F).
• Wash and dry the vehicle very carefully
before polishing or waxing. Remove asphalt
and tar stains with asphalt remover or paint
thinner. More stubborn stains can be
removed with a grinding paste designed for
vehicle paint.
• Use polish first and then liquid or paste wax.
Follow the instructions on the package care-
fully. Many products contain both polish and
wax.
• A wide range of polymer-based waxes can
be purchased today. These waxes are easy to
use and produce a long-lasting, high-gloss
finish that protects the bodywork against oxi-
dation, road dirt and fading.
CAUTION Avoid waxing and polishing plastic and rubber.
If using degreaser on plastic and rubber, only
rub (if necessary) with slight pressure. Use a
soft sponge.
Polishing glossy trim moldings can wear away
or damage the glossy surface layer.
Polish containing abrasives must not be used.
CAUTION
Only use paintwork treatments recommended
by Volvo. Other treatments, such as preserva-
tion, sealing, protection, luster sealing or simi-
lar, could damage the paintwork. Paintwork
damage caused by such treatments are not
covered by Volvo's warranty.
Related information
•
Cleaning the exterior (p. 638)
• Hand washing (p. 639)
• Automatic car washes (p. 641)
• High-pressure washing (p. 642)
• Cleaning the wiper blades (p. 642)
• Cleaning exterior plastic, rubber and trim
components (p. 643)
• Cleaning rims (p. 644)
• Corrosion protection (p. 644) Hand washing
The vehicle should be washed as soon as it
becomes dirty. This makes the vehicle easier to
clean because dirt does not attach as strongly. It
also reduces the risk of scratches and keeps the
vehicle looking new. Wash the vehicle in a car
wash or garage with an oil separator. Use a car
washing detergent.
Hand washingKeep the following points in mind when washing
the vehicle:
• Avoid washing the vehicle in direct sunlight.
This could cause the detergent or wax to dry
out and become abrasive.
• Remove bird droppings from paintwork as
soon as possible. They contain chemicals
that affect and discolor paint very quickly.
Use e.g. soft paper or a sponge soaked in
lots of water. Consult an authorized Volvo
workshop for assistance removing discolora-
tion.
• Hose down the underbody, including the
wheel housings and bumper.
• Hose down the entire vehicle and remove
any loose dirt, droppings etc. to reduce the
risk of scratches from washing. Do not spray
directly onto locks.
• If necessary, use cold degreaser on heavily
soiled surfaces. Note that in such cases the
surfaces must not be hot from the sun.
Page 645 of 686
MAINTENANCE AND SERVICE
* Option/accessory.643

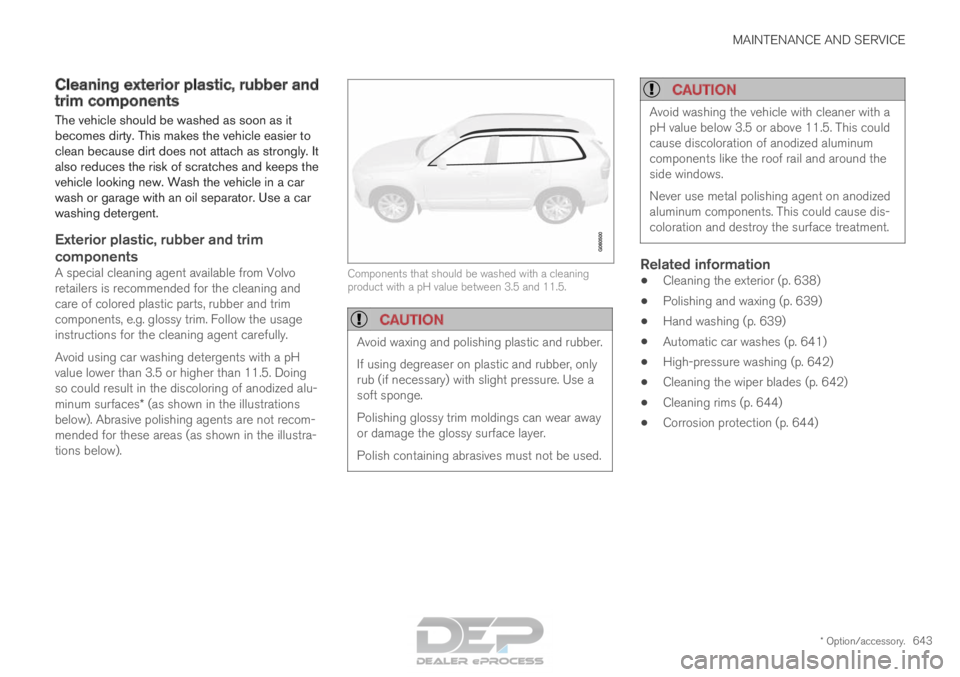

Cleaning exterior plastic, rubber and
trim components
The vehicle should be washed as soon as it
becomes dirty. This makes the vehicle easier to
clean because dirt does not attach as strongly. It
also reduces the risk of scratches and keeps the
vehicle looking new. Wash the vehicle in a car
wash or garage with an oil separator. Use a car
washing detergent.
Exterior plastic, rubber and trim
components
A special cleaning agent available from Volvo
retailers is recommended for the cleaning and
care of colored plastic parts, rubber and trim
components, e.g. glossy trim. Follow the usage
instructions for the cleaning agent carefully.
Avoid using car washing detergents with a pH
value lower than 3.5 or higher than 11.5. Doing
so could result in the discoloring of anodized alu-
minum surfaces* (as shown in the illustrations
below). Abrasive polishing agents are not recom-
mended for these areas (as shown in the illustra-
tions below). Components that should be washed with a cleaning
product with a pH value between 3.5 and 11.5.
CAUTION
Avoid waxing and polishing plastic and rubber.
If using degreaser on plastic and rubber, only
rub (if necessary) with slight pressure. Use a
soft sponge.
Polishing glossy trim moldings can wear away
or damage the glossy surface layer.
Polish containing abrasives must not be used.
CAUTION Avoid washing the vehicle with cleaner with a
pH value below 3.5 or above 11.5. This could
cause discoloration of anodized aluminum
components like the roof rail and around the
side windows.
Never use metal polishing agent on anodized
aluminum components. This could cause dis-
coloration and destroy the surface treatment.
Related information
•
Cleaning the exterior (p. 638)
• Polishing and waxing (p. 639)
• Hand washing (p. 639)
• Automatic car washes (p. 641)
• High-pressure washing (p. 642)
• Cleaning the wiper blades (p. 642)
• Cleaning rims (p. 644)
• Corrosion protection (p. 644)
Page 666 of 686
SPECIFICATIONS
664Fuel tank volume
The fuel tank's refillable volume is shown in the
table below. All models
Liter (approx.)
50
US gallons (approx.) 13.2
Related information
•Refueling (p. 463)
• Octane rating (p. 465) Air conditioning specifications
The climate system in the vehicle uses a freon-
free R134a refrigerant. For information regarding
the refrigerant, refer to the decal located on the
inside of the hood.
The prescribed grades and volumes for fluids and
lubricants in the air conditioning system are
shown in the tables below.A/C Decal Decal for R134a
Refrigerant
Vehicles with R134a refrigerant Weight
Prescribed grade
1050 g (2.31 lbs)
R134a
WARNING The air conditioning system contains the
refrigerant R134a under pressure. Service
and repairs to the system should only be done
by an authorized workshop.
Compressor oil
Volume
Prescribed grade
120 ml (4.06 fl. oz.)
PAG SP-A2
Evaporator
CAUTION The A/C system evaporator must never be
repaired or replaced with a previously used
evaporator. The new evaporator must be certi-
fied and labeled in accordance with SAE
J2842.
Related information
•
Climate control system service (p. 608)
Page 682 of 686
INDEX
680Vehicle key bat. low 244
Vehicle modem
connecting vehicle to Internet 532
settings 533
Vehicle recovery 477
Vehicle status 602 inflation pressure 562
Vehicle upholstery 633, 635, 636, 637, 638
Vehicle weight 659
Ventilation 207, 208, 209 Seats 217
Video 512, 514 settings 513
Voice control 145 climate 203
phone 147
radio and media 148
settings 148
VOL mark 550
Volvo ID 26 create and register 27 W
Warning light
Adaptive Cruise Control
298
stability and traction control system 274
Warning lights airbags SRS 97
alternator does not charge 97
brake system error 97
low oil pressure 97
parking brake applied 97
seat belt reminder 97
starter battery not charging 97
WARNING 97
Warning sound parking brake 435
warning symbols 97
Warning symbols safety 42
Warranties 598
Washer Headlights 179
rear window 180, 181
washer fluid, filling 650
Windshield 179
Washer fluid 650
Washer nozzles, heated 177
Waxing 639 Weights
Curb weight
659
Wheel bolts 565
locking 565
Wheels cleaning 644
mounting 568
removal 566
Snow chains 571
Wheels and tires Load index and speed symbol 554
Whiplash protection 46
Whiplash Protection System 46
WHIPS (Whiplash Protection System) 46
Wi-Fi connecting vehicle to Internet 531
delete network 535
sharing Internet connection, tethering,
hotspot 533
technology and security 535
Window sun shade 169
Windows and glass 166
Windshield heating 222
projected image 142, 144
Windshield washing 179
