CLIMATE CONTROL
}}
* Option/accessory. 215
Climate system controls
The climate system functions are controlled from
physical buttons on the center console, the cen-
ter display, and the climate panel on the rear
side of the tunnel console.
Physical buttons in the center console Button for heated windshield* and max
defroster. Button for heated rear window and door mir-
rors.
Climate bar in the center displayThe most common climate system functions can
be controlled from the climate bar. Temperature control for the driver and pas-
senger sides.
Control for heated* and ventilated* driver and
passenger seats, and heated steering
wheel*. Button for opening Climate view. The graphic
in the button shows activated climate system
settings.
Climate view in the center display
Tap the center button on the climate bar to open
Climate view.
Depending on equipment level, Climate view may
be divided into several tabs. Toggle between the
tabs by swiping the screen to the left/right or by
tapping the desired heading.
Main climate
In addition to the functions in the climate bar,
other main climate system functions can be con-
trolled from the
Main climate tab. Max
, Electric, Rear - Controls for defrosting
windows and door mirrors. AC
- Air conditioning controls.
Recirc
- Air recirculation controls.
Air distribution controls.

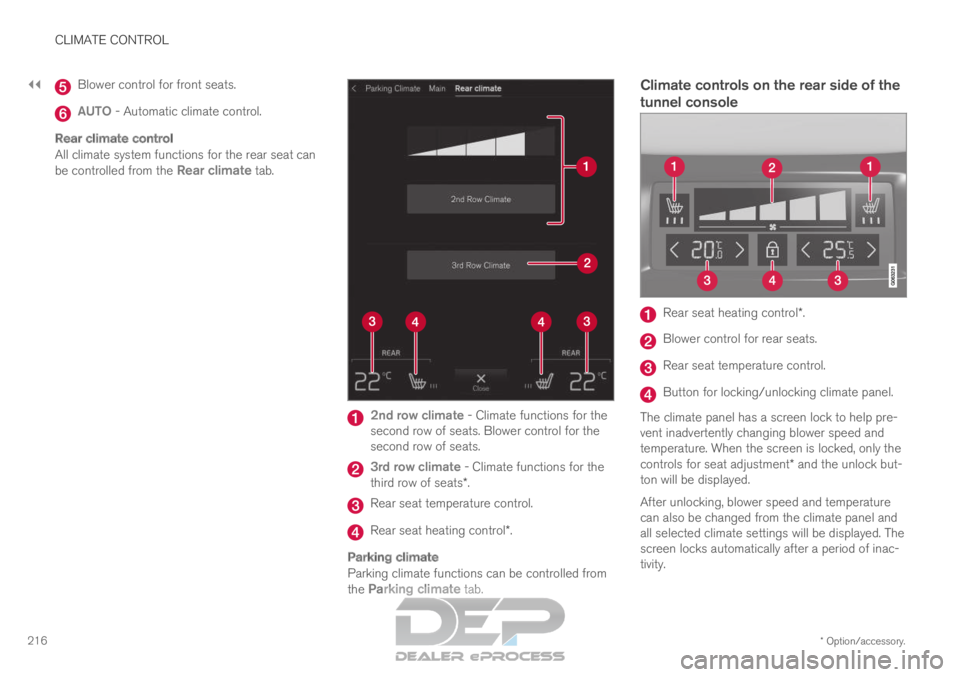

||CLIMATE CONTROL
* Option/accessory.
216 Blower control for front seats.
AUTO - Automatic climate control.
Rear climate control
All climate system functions for the rear seat can
be controlled from the
Rear climate tab. 2nd row climate
- Climate functions for the
second row of seats. Blower control for the
second row of seats. 3rd row climate
- Climate functions for the
third row of seats*. Rear seat temperature control.
Rear seat heating control*.
Parking climate
Parking climate functions can be controlled from
the
Parking climate tab.
Climate controls on the rear side of the
tunnel console Rear seat heating control*.
Blower control for rear seats.
Rear seat temperature control.
Button for locking/unlocking climate panel.
The climate panel has a screen lock to help pre-
vent inadvertently changing blower speed and
temperature. When the screen is locked, only the
controls for seat adjustment* and the unlock but-
ton will be displayed.
After unlocking, blower speed and temperature
can also be changed from the climate panel and
all selected climate settings will be displayed. The
screen locks automatically after a period of inac-
tivity.

CLIMATE CONTROL
* Option/accessory.217
Related information
Climate (p. 204)
Activating and deactivating power front
seats* (p. 217)
Activating and deactivating the heated rear
seats* (p. 218)
Activating and deactivating front seat ventila-
tion* (p. 219)
Activating and deactivating the heated steer-
ing wheel* (p. 219)
Activating auto climate control (p. 220)
Activating and deactivating recirculation
(p. 221)
Activating and deactivating max defroster
(p. 222)
Activating and deactivating the heated wind-
shield* (p. 223)
Activating and deactivating the heated rear
window and door mirrors (p. 225)
Setting the blower speed for the front seats
(p. 226)
Setting the blower speed for the rear seats
(p. 226)
Synchronize temperature (p. 229)
Activating and deactivating air conditioning
(p. 230)
Activating and deactivating climate control
for the third-row seats* (p. 231) Activating and deactivating power
front seats*
The seats can be heated for added comfort for
the driver and passengers in cold weather. Steering wheel and seat buttons in the climate row.
1. Tap the left- or right-side steering wheel and
seat button in the center display's climate
bar to open the controls for steering wheel
and seat heating.
If the vehicle is not equipped with ventilated
seats or heated steering wheel, the button
for seat heating is directly accessible in the
climate bar.
2.

Tap the seat heating button repeatedly to
select one of the four levels: Off,
High,
Medium or Low.
>
The level is changed and the set level is
displayed in the button.
Related information
Climate system controls (p. 215)
Activating and deactivating the heated front
seat* (p. 218)

CLIMATE CONTROL
* Option/accessory.
218 Activating and deactivating the
heated front seat*
The seats can be heated for added comfort for
the driver and passengers in cold weather.
Seat heating can be set to automatically activate
when the engine is started. When set to automat-
ically activate, heating will be turned on at low
ambient temperatures.
1. Tap Settings in the Top view in the center
display.
2. Tap Climate.
3. Select Auto Driver Seat Heating Level
and Auto Passenger Seat Heating Level to activate/deactivate automatic start of
heated driver's and passenger seat.
4. Select Low, Medium or High to select level
after the function has been activated.
Related information
Climate system controls (p. 215)
Activating and deactivating power front
seats* (p. 217) Activating and deactivating the
heated rear seats*
The seats can be heated for added comfort for
the driver and passengers in cold weather.
Activating and deactivating the heated
rear seats from the front seats Seat heating buttons in the Rear climate group in Cli-
mate view.
1. Open Climate view in the center display and select the Rear climate tab.
2.

Tap the seat heating button repeatedly to
select one of the four levels: Off, High,
Medium or Low.
>

The level is changed and the set level is
displayed in the button.
Activating and deactivating the heated
rear seats from the rear seat Seat heating controls and indicator lights on the rear
side of the tunnel console.
–
Press repeatedly on the left or right seat
heating buttons in the climate panel on the
tunnel console to select one of four levels:
Off,
High, Medium or Low.
>
The level will be changed and the climate
panel screen will show the new level.
Related information
Climate system controls (p. 215)

CLIMATE CONTROL
}}
* Option/accessory. 219
Activating and deactivating front
seat ventilation*
The seats can be ventilated to provide increased
comfort in warm weather.
The ventilation system consists of fans in the
seats and backrest that draw air through the seat
upholstery. The cooler the passenger compart-
ment is, the greater the cooling effect of the ven-
tilation. The system can be activated when the
engine is running.
Steering wheel and seat buttons in the climate row.
1. Tap the left- or right-side steering wheel and
seat button in the center display's climate
bar to open the controls for steering wheel
and seat heating.
If the vehicle is not equipped with heated
seats or heated steering wheel, the button
for seat ventilation is directly accessible in
the climate bar.
2.

Tap the seat ventilation button repeatedly to
select one of the four levels: Off, High,
Medium or Low.
>

The level is changed and the set level is
displayed in the button.
Related information
Climate system controls (p. 215) Activating and deactivating the
heated steering wheel*
The steering wheel can be heated for added
comfort in cold weather. Steering wheel and seat buttons in the climate row.
1. Tap the driver's side steering wheel and seat
button in the climate bar in the center display
to open the controls for steering wheel and
seat heating.
If the vehicle is not equipped with heated or
ventilated seats, the button for steering
wheel heating is directly accessible in the cli-
mate bar.
2.

Tap the steering wheel heating button
repeatedly to select one of the four levels:
Off,
High, Medium or Low.
>
The level is changed and the set level is
displayed in the button.

||CLIMATE CONTROL
* Option/accessory.
220
Related information
Climate system controls (p. 215)
Activating and deactivating automatic steer-
ing wheel heating* (p. 220) Activating and deactivating
automatic steering wheel heating*
The steering wheel can be heated for added
comfort in cold weather.
Steering wheel heating can be set to automati-
cally activate when the engine is started. When
set to automatically activate, heating will be
turned on at low ambient temperatures.
1. Tap Settings in the Top view in the center
display.
2. Tap Climate.
3. Select Auto Steering Wheel Heating
Level to activate/deactivate automatic start
of heated steering wheel.
4. Select Low, Medium or High to select level
after the function has been activated.
Related information
Activating and deactivating the heated steer-
ing wheel* (p. 219) Activating auto climate control
If auto climate control is activated, several cli-
mate system functions are controlled automati-
cally. Auto climate button in Climate view.
1. Open Climate view in the center display.

CLIMATE CONTROL
221
2.
Tap or press and hold AUTO.
Tap - air recirculation, air conditioning and
air distribution are controlled automati-
cally.
Press and hold - air recirculation, air con-
ditioning and air distribution are controlled
automatically. Temperature and blower
speed are changed to standard settings:
22 °C (72 °F) and speed
3 (speed 2 in
the rear seat).
>

Auto climate mode is activated and the
button lights up.
NOTE It is possible to change the temperature and
blower speed without deactivating automatic
climate control. Automatic climate control is
deactivated when the air distribution is
changed manually or when the max defroster
is activated.
Related information

Climate system controls (p. 215) Activating and deactivating
recirculation
The climate system's recirculation function helps
shut out smog, smoke, exhaust fumes, etc. by
reusing the air in the passenger compartment. Air recirculation button in Climate view.
1. Open Climate view in the center display.
2.
Tap Recirc.
>

Air recirculation is activated/deactivated
and the button lights up/goes out.
CAUTION If the air in the vehicle is recirculated too long,
there is a risk of fogging on the inside of the
windows.
NOTE Recirculation cannot be activated when the
max defroster is on.
Related information

Climate system controls (p. 215)
Activating and deactivating the recirculation
timer setting (p. 222)

CLIMATE CONTROL
* Option/accessory.
222 Activating and deactivating the
recirculation timer setting
The climate system's recirculation function helps
shut out smog, smoke, exhaust fumes, etc. by
reusing the air in the passenger compartment.
When the recirculation timer is activated, air recir-
culation will switch off automatically after 20
minutes.
1. Tap Settings in the Top view in the center
display.
2. Tap Climate.
3. Tap Recirculation Timer to activate/deacti-
vate the recirculation timer.
Related information
Activating and deactivating recirculation
(p. 221) Activating and deactivating max
defroster
Max defroster is used to quickly remove conden-
sation and ice from windows.
Activating and deactivating max
defroster from the center console
A button in the center console offers quick
access to the max defroster.
On vehicles with heated windshields*, the max
defroster can only be activated separately from
Climate view in the center display. Button in center console.
Vehicles without a heated windshield:
–
Tap the button.
>

The max defroster is activated/deacti-
vated and the button lights up/goes out. Vehicles with a heated windshield:
– Press the button repeatedly to switch
between the three levels:
Activated windshield heating
Activated windshield heating and max
defroster
Deactivated.
>

The heated windshield and max defroster
are activated/deactivated and the button
lights up/goes out.
NOTE The max defroster starts after a slight delay to
avoid a brief increase in blower speed if the
heated windshield function has been deacti-
vated by pressing the button twice in quick
succession.

CLIMATE CONTROL
}}
* Option/accessory. 223
Activating and deactivating max
defroster from the center displayMax defroster in Climate view.
1. Open Climate view in the center display.
2.
Tap Max.
>

The max defroster is activated/deacti-
vated and the button lights up/goes out.
Max defroster deactivates automatic cli-
mate control and air recirculation, acti-
vates the air conditioning, and changes
blower speed to 5 and temperature to HI.
When max defroster is deactivated, the
climate system reverts to the previous set-
tings.
NOTE The volume increases when the blower speed
is changed to
5
.
Related information
Climate system controls (p. 215) Activating and deactivating the
heated windshield*
Windshield heating is used to quickly remove
condensation and ice from the windshield.
Activating and deactivating windshield
heating from the center console
A button in the center console is used to quickly
access windshield heating. Button in center console.
–
Press the button repeatedly to switch
between the three levels:
Activated windshield heating
Activated windshield heating and max
defroster
Deactivated.
>

The heated windshield and max defroster
are activated/deactivated and the button
lights up/goes out.

||CLIMATE CONTROL
* Option/accessory.
224
Activating and deactivating windshield
heating from the center display Windshield heating button in Climate view.
1. Open Climate view in the center display.
2.
Tap Electric.
>

Windshield heating is activated/deacti-
vated and the button lights up/goes out.
NOTE Triangular areas at the far sides of the wind-
shield are not heated and will take slightly
longer to defrost/de-ice.
NOTE
The heated windshield may affect the per-
formance of transponders and other commu-
nication equipment.
Related information

Climate system controls (p. 215)
Activating and deactivating automatic wind-
shield heating* (p. 224) Activating and deactivating
automatic windshield heating*
Windshield heating is used to quickly remove
condensation and ice from the windshield.
Windshield heating can be set to automatically
activate when the engine is started. With auto-
matic start activated, heating will be activated
when there is a risk of ice or condensation on the
windows or mirrors. Heating is automatically
switched off when the window or door mirror is
sufficiently warm and the condensation or ice is
gone.
1. Tap Settings in the Top view in the center
display.
2. Tap Climate.
3. Select Auto Front Defroster to activate/
deactivate automatic windshield heating.
Related information
Activating and deactivating the heated wind-
shield* (p. 223)
