VOLVO XC90 TWIN ENGINE 2019 Owners Manual

SPECIFICATIONS
669
Weights
The following table lists important weight data
for your vehicle.
Category
USA
(lbs) Canada
(kg)
Gross vehicle weight 7-seat

6635 3010
4-seat 6140 2785
Capacity weight 7-seat
1210 550
4-seat 1000 450
Permissible axle weights, front 7-seat
3130 1420
4-seat 2975 1350
Permissible axle weights, rear 7-seat
3590 1630
4-seat 3305 1500
Curb weight 7-seat
4370–5200 2040–2370
4-seat 5230–5240 2370–2380
Max. roof load 220
100
CAUTION
When loading the vehicle, the maximum
gross vehicle weight and permissible axle
weights may not be exceeded.Related information
Type designations (p. 664)
Towing capacity and tongue weight
(p. 670)

SPECIFICATIONS
* Option/accessory.

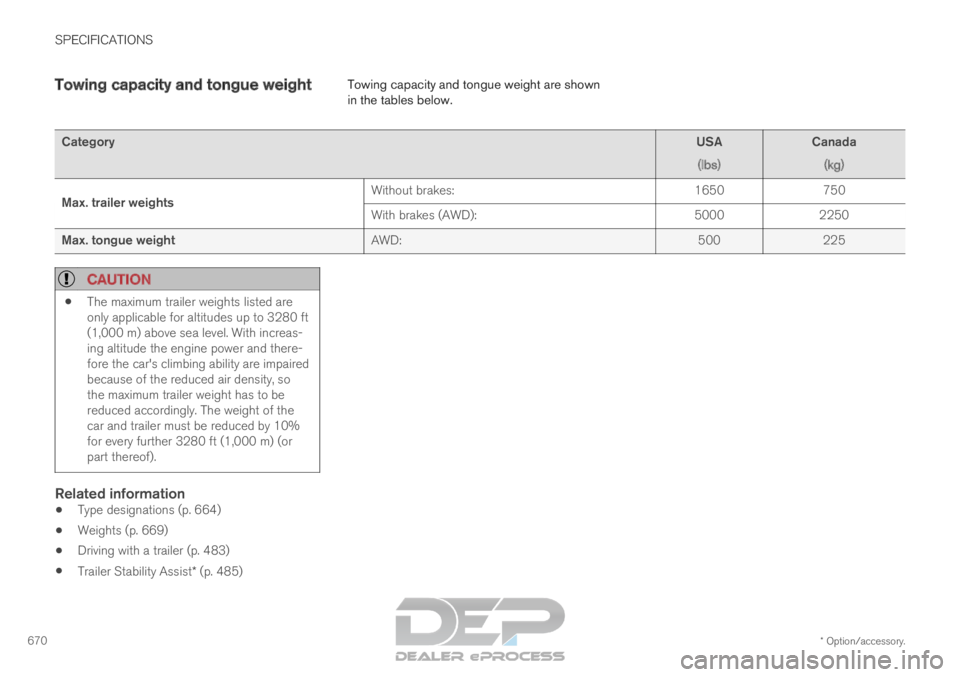

670 Towing capacity and tongue weight
Towing capacity and tongue weight are shown
in the tables below.Category
USA
(lbs) Canada
(kg)
Max. trailer weights Without brakes:
1650

750
With brakes (AWD): 50002250
Max. tongue weight AWD:
500225
CAUTION
The maximum trailer weights listed are
only applicable for altitudes up to 3280 ft
(1,000 m) above sea level. With increas-
ing altitude the engine power and there-
fore the car's climbing ability are impaired
because of the reduced air density, so
the maximum trailer weight has to be
reduced accordingly. The weight of the
car and trailer must be reduced by 10%
for every further 3280 ft (1,000 m) (or
part thereof).
Related information
Type designations (p. 664)
Weights (p. 669)
Driving with a trailer (p. 483)
Trailer Stability Assist* (p. 485)

SPECIFICATIONS
671
Engine specifications
Engine specifications (output, etc.) for each
engine variant are shown in the table below. The
specifications for Special Edition vehicles may
vary. Twin Engine vehicles are powered by both a
gasoline engine and an electric motor (ERAD –
Electric Rear Axle Drive).
NOTE Not all engines are available on all markets.
Engine
Engine codeA
Output
(kW/rps) Output
(hp/rpm) Torque
(Nm/rps) Torque
(ft. lbs./rpm) Number of cylinders
T8 Twin Engine

B4204T28 233/100 313/6000 400/37–90 295/2200–5400 4A
The engine code, component and manufacturer serial numbers can be found \
on the engine.
Electric motorMax. output: 65 kW (87 hp).
Torque: 240 Nm.
Related information
Type designations (p. 664)
Engine oil specifications (p. 672)
Coolant specifications (p. 673)

SPECIFICATIONS
672Engine oil specifications
Fully synthetic engine oil of at least
ACEA A5/B5 must be used. Lower oil grades
may not offer the same fuel economy, engine
performance or engine protection.
Volvo recommends:
GeneralSee the Service and warranty booklet for infor-
mation about oil change intervals.
NOTE This vehicle is delivered from the factory with
synthetic oil.
Do not use oil additives.
Oil viscosityThe wrong oil viscosity can shorten engine serv-
ice life during normal use. SAE 5W-30 provides
good fuel economy and engine protection. See
the viscosity chart. Viscosity chart
Extreme driving conditions
Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom-
mended for extreme conditions.
Oil volume
The oil volume for the engine is:
Liter (approx)

5.6
US qts (approx) 5.9
Related information
Type designations (p. 664)
Checking and filling engine oil (p. 624)
Engine oil (p. 623)

SPECIFICATIONS
673
Coolant specifications
Recommended grade: Volvo-approved pre-
mixed coolant. If concentrated coolant is used,
mix with 50% water. Consult a Volvo retailer if
you have any questions.
To avoid deterioration of the cooling system,
engine trouble, etc., only approved Volvo coolant
should be used.
WARNING Do not ingest. May cause damage to organs
(kidneys). The product contains ethylene gly-
col, inhibitor, emetic, water, etc.
Related information

Refilling coolant (p. 625) Transmission fluid specifications
Under normal driving conditions, the transmis-
sion fluid will not need to be changed during its
service life. However, it may need to be changed
if the vehicle is driven frequently in adverse driv-
ing conditions.
Automatic transmission Prescribed transmission fluid:
AW1
Related information
Type designations (p. 664) Brake fluid specifications
The medium in the hydraulic brake system is
called brake fluid and is used to transfer braking
force from e.g. pressure on the brake pedal via a
master brake cylinder to one or more slave cylin-
ders, which in turn act on a mechanical brake.
Recommended grade: Volvo Original or similar
fluid that meets a combination of Dot 4, 5.1 and
ISO 4925 class 6.NOTE Changing or filling brake fluid should be
entrusted to an authorized Volvo workshop.
Related information

Engine compartment overview (p. 622)

SPECIFICATIONS
674Fuel tank volume
The fuel tank's refillable volume is shown in the
table below. All models
Liter (approx)
70
US gallons (approx) 18,5
Related information
Refueling (p. 475)
Octane rating (p. 477) Air conditioning specifications
The climate system in the vehicle uses a freon-
free R134a refrigerant. For information regarding
the refrigerant, refer to the decal located on the
inside of the hood.
The prescribed grades and volumes for fluids and
lubricants in the air conditioning system are
shown in the tables below.A/C Decal Decal for R134a
Refrigerant
Vehicles with R134a refrigerant Weight
Prescribed grade
1050 g (2.31 lbs)

R134a
WARNING The air conditioning system contains the
refrigerant R134a under pressure. Service
and repairs to the system should only be done
by an authorized workshop.
Compressor oil
Volume
Prescribed grade
120 ml (4.06 fl. oz.)

PAG SP-A2
Evaporator
CAUTION The A/C system evaporator must never be
repaired or replaced with a previously used
evaporator. The new evaporator must be certi-
fied and labeled in accordance with SAE
J2842.
Related information

Climate control system service (p. 621)

SPECIFICATIONS
675
Approved tire pressure
The following tire pressures are recommended
by Volvo for your vehicle. Refer to the tire infla- tion placard for information specific to the tires
installed on your vehicle at the factory.Tire dimensions
Cold tire pressure for up to seven people (depending on number of seats\
)
Front
psi (kPa) Rear
psi (kPa)
235/55 R19
275/45 R20
275/40 R21
275/35 R22 42 (290)
42 (290)
Temporary spare tire N/AN/A
Related information
Type designations (p. 664)
Checking tire pressure (p. 567)
Recommended tire pressure (p. 569)
